1994 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine F-
c
r
i

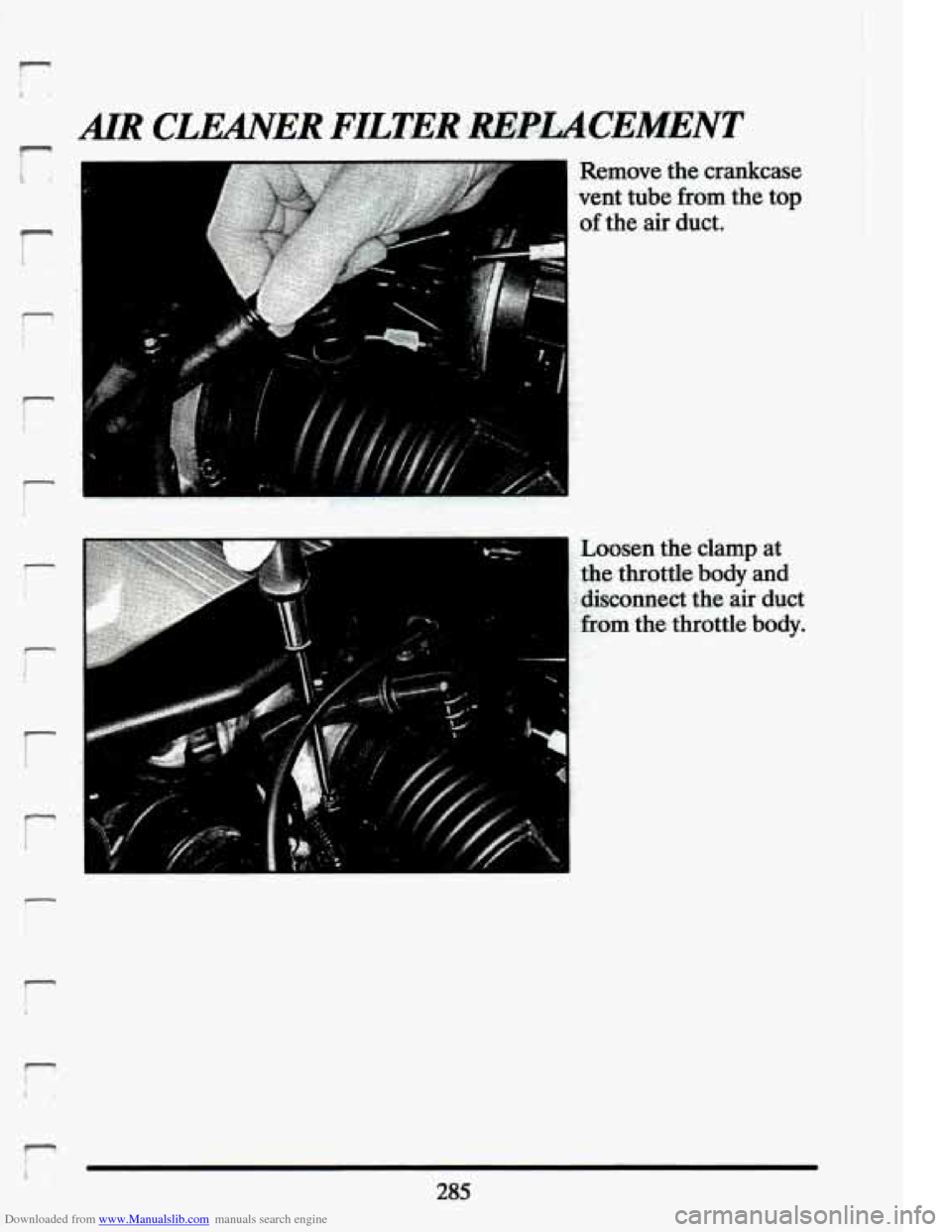

Remove the crankcase
vent tube from the
top
of the air duct.
Loosen the clamp at
the throttle body and
': disconnect the air duct
from the throttle body.
r
I.
285

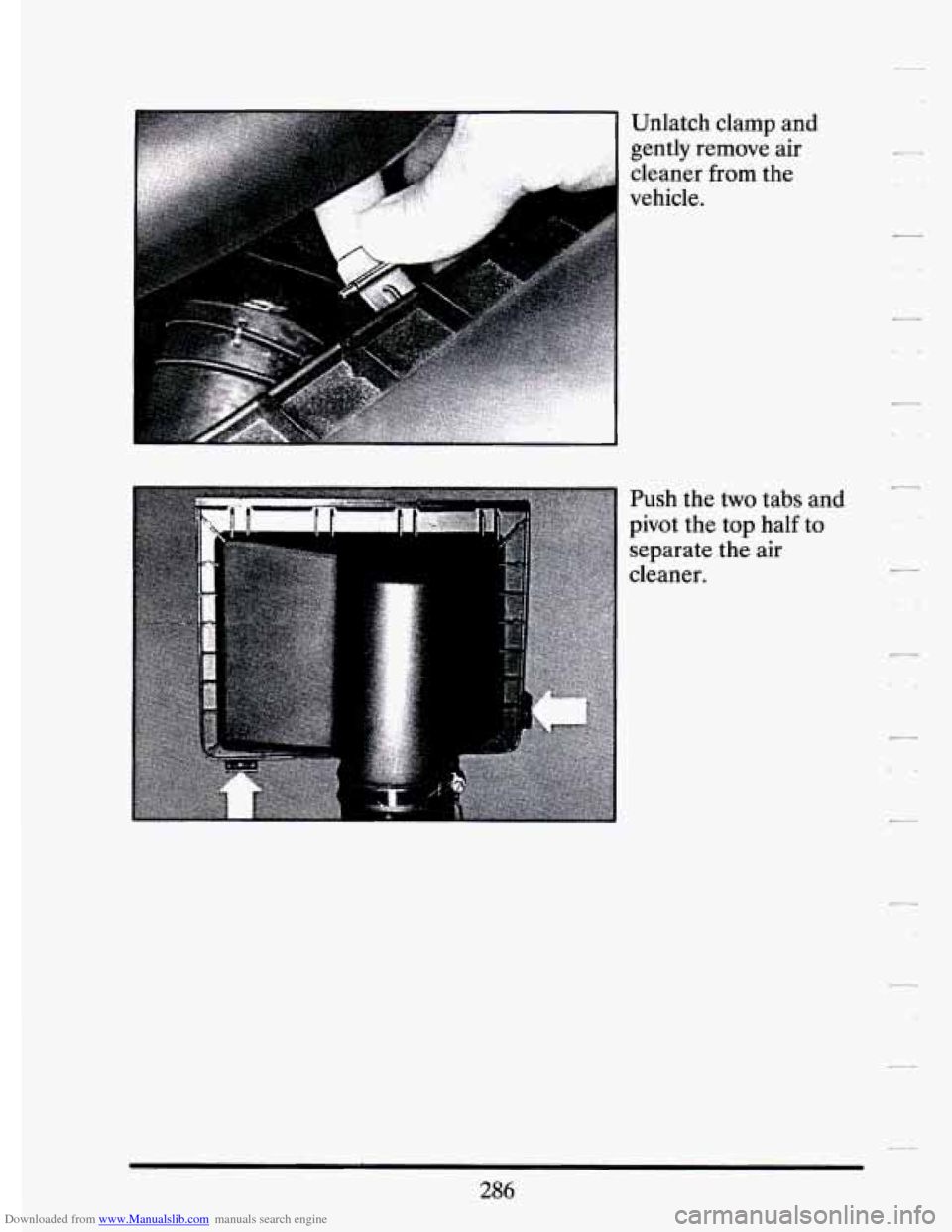

Downloaded from www.Manualslib.com manuals search engine Unlatch clamp and
gently remove air
cleaner from the
vehicle.
Push the
two tabs and
pivot the top half
to
separate the air
cleaner.
286

Downloaded from www.Manualslib.com manuals search engine r
r 1
r
t T
r
r
n
r

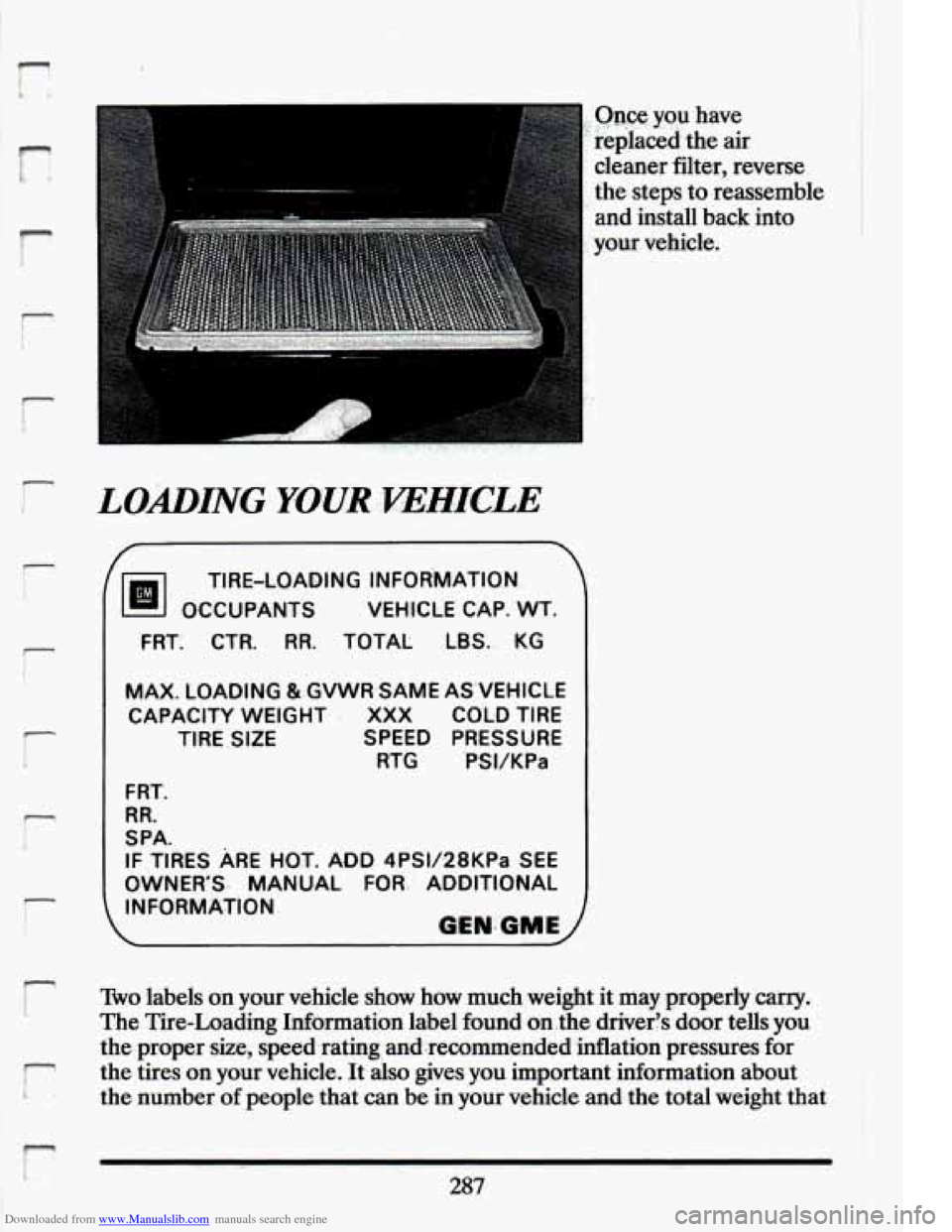

, Once you have
replaced-the air
cleaner filter, reverse
the steps to-reassemble.
and install back into
.your vehicle.
. ..
LOADING YOUR WEHICLE
1"
TIRE-LOADING INFOR'MATION.
OCCUPANTS VEHICLE CAP.
WT.
FRT; CT.R. RR. TOTAL: LBS.. KG
MAX. LOADING &.GVWRSAME AS'VEHICLE
TIRE SIZE SPEED
PRESSURE
CAPACITY WEIGHT . XXX COLD TIRE
RTG
PSVKPa
F RT.
R R.
SPA.
IF TIRES ARE HOT. ADD 4PW28KPa SEE
OWNER'S, MANUAL FOR: ADDITIONAL
INFORMATION

Two labels on your vehicle. show how much weight it may prope,rly carry.
The Tire-Loading Information label found on.the driver's door tells you
the proper size, speed rating and.recommended inflation pressures for
the tires on your vehicle.
It also gives you important information about
the number of people that can be in your vehicle and the total weight that
B" 287

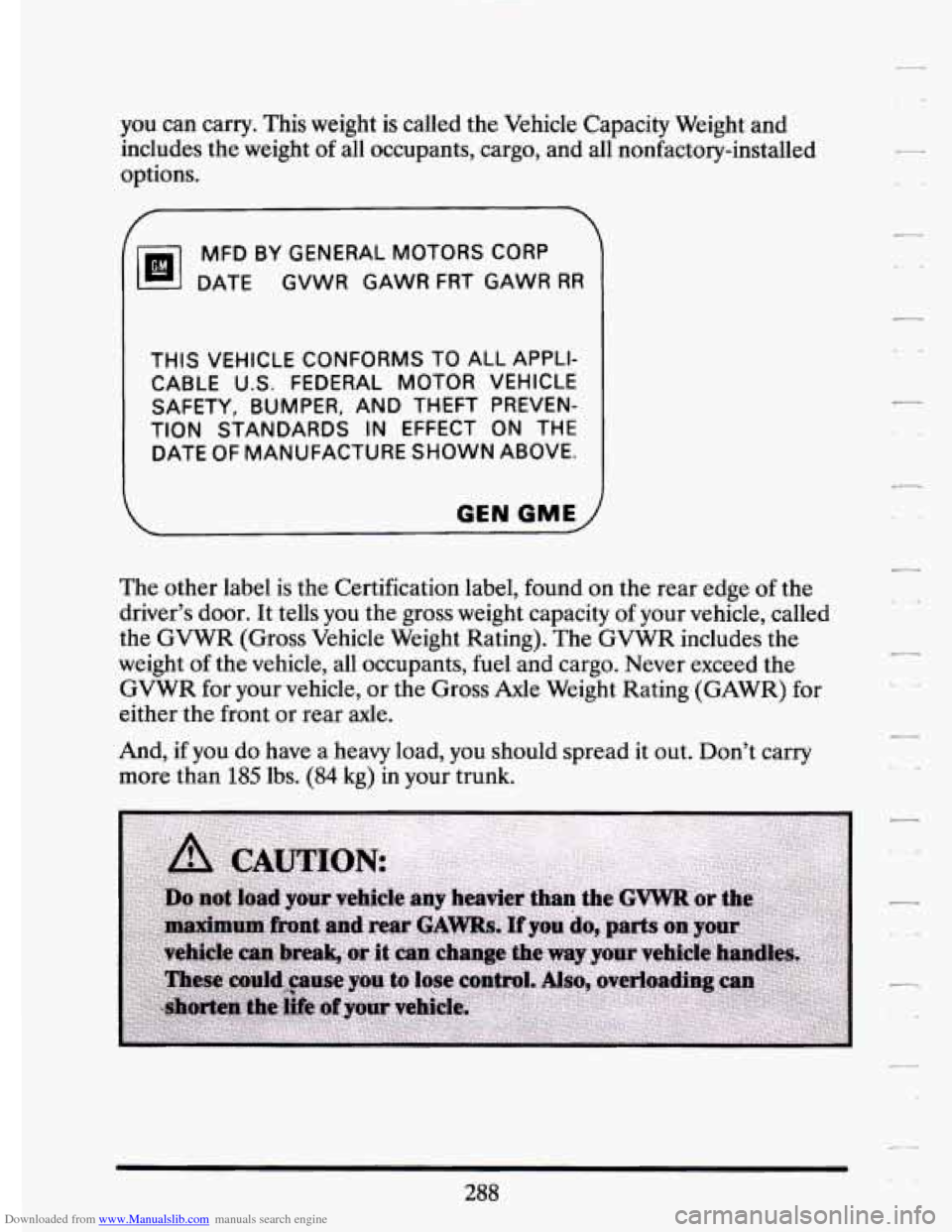

Downloaded from www.Manualslib.com manuals search engine you can carry. This weight is called the Vehicle Capacity Weight and
includes the weight of all occupants, cargo, and all nonfactory-installed
options.
MFD BY GENERAL MOTORS CORP
DATE GVWR GAWR FRT GAWR
RR
THIS VEHICLE CONFORMS TO ALL APPLI-
CABLE U.S. FEDERAL MOTOR VEHICLE
TION STANDARDS
IN EFFECT ON THE
DATE OF MANUFACTURE
SHOWN ABOVE.
SAFETY, BUMPER,
AND THEFT PREVEN-
GEN GME
The other label is the Certification label, found on the rear edge of the
driver’s door. It tells you the gross weight capacity
of your vehicle, called
the GVWR (Gross Vehicle Weight Rating). The GVWR includes the
weight
of the vehicle, all occupants, fuel and cargo. Never exceed the
GVWR for your vehicle, or the Gross Axle Weight Rating (GAWR) for
either the front
or rear axle.
And, if you do have a heavy load, you should spread it out. Don’t carry
more than
185 lbs. (84 kg) in your trunk.
288
c
L -a

Downloaded from www.Manualslib.com manuals search engine r
I
e

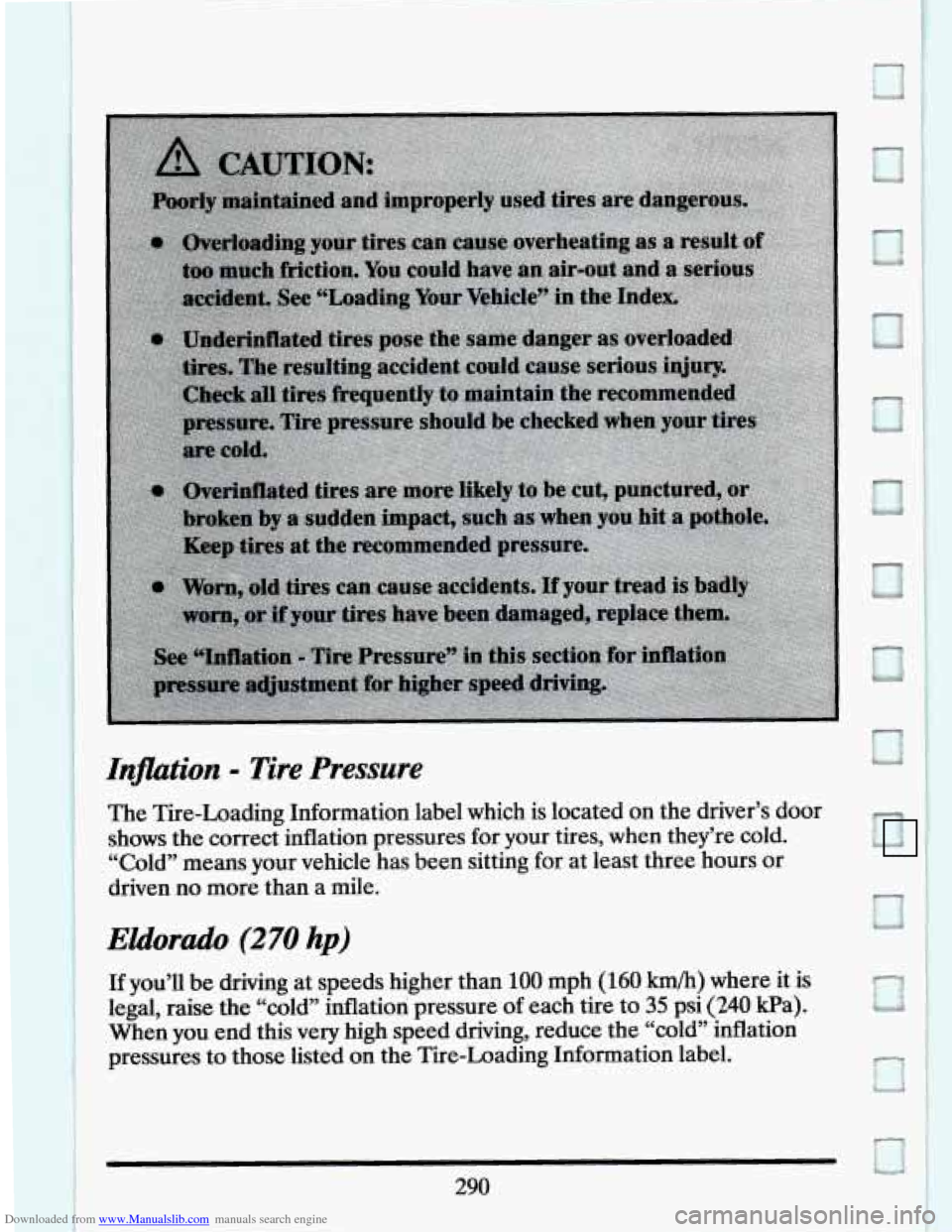

Downloaded from www.Manualslib.com manuals search engine Ii@ktion - Tire Pressure
The Tire-Loading Information label which is located on the driver’\
s door
shows the correct inflation pressures for your tires, when they’re cold\
.
“Cold” means your vehicle has been sitting for at least three hours or
driven
no more than a mile.
Eldorudo (270 hp)
k€ you’ll be driving at speeds higher than 100 mph (160 km/h) where it is
legal, raise the ‘‘mldYy inflation pressure of each tire to 35 psi (240 Wa).
When you end this very high speed driving, reduce the “cold” inflation
pressures to those listed on the Tire-Loading Information label.
290
a
0
0
a

Downloaded from www.Manualslib.com manuals search engine i
NOTICE:
.. - , .., .. . **:. 7 ' . ..._ ^ . ,
Don't let anyone tell you that underinflation or overinflation is
all right. It's not. If your tires don't have enough air
(underinflation) you can get:
Too much flexing.,
Too much heat
Tire overloading
0 Badwear
Bad handling
0 Bad fuel economy.
If your tires have too much air (overinflation), you can ger:
Unusual wear
Bad handling
Rough ride
0 Needless damage from road hazards.
How to Check
Use a good quality pocket-type gage to check tire
pressure. Simply looking at the tires will not tell
you the pressure,
especially
if you have radial tires -- which may look properly' inflated even
if they're underinflated.
If your tires have valve caps, be sure to put them back on. They help
prevent leaks by keeping out dirt and moisture.
When to Check Check your tires once a month or more.
The Eldorado tire pressures are:
0 Front - 28 psi (190 Pa)
Rear - 26 psi (180 kPa)

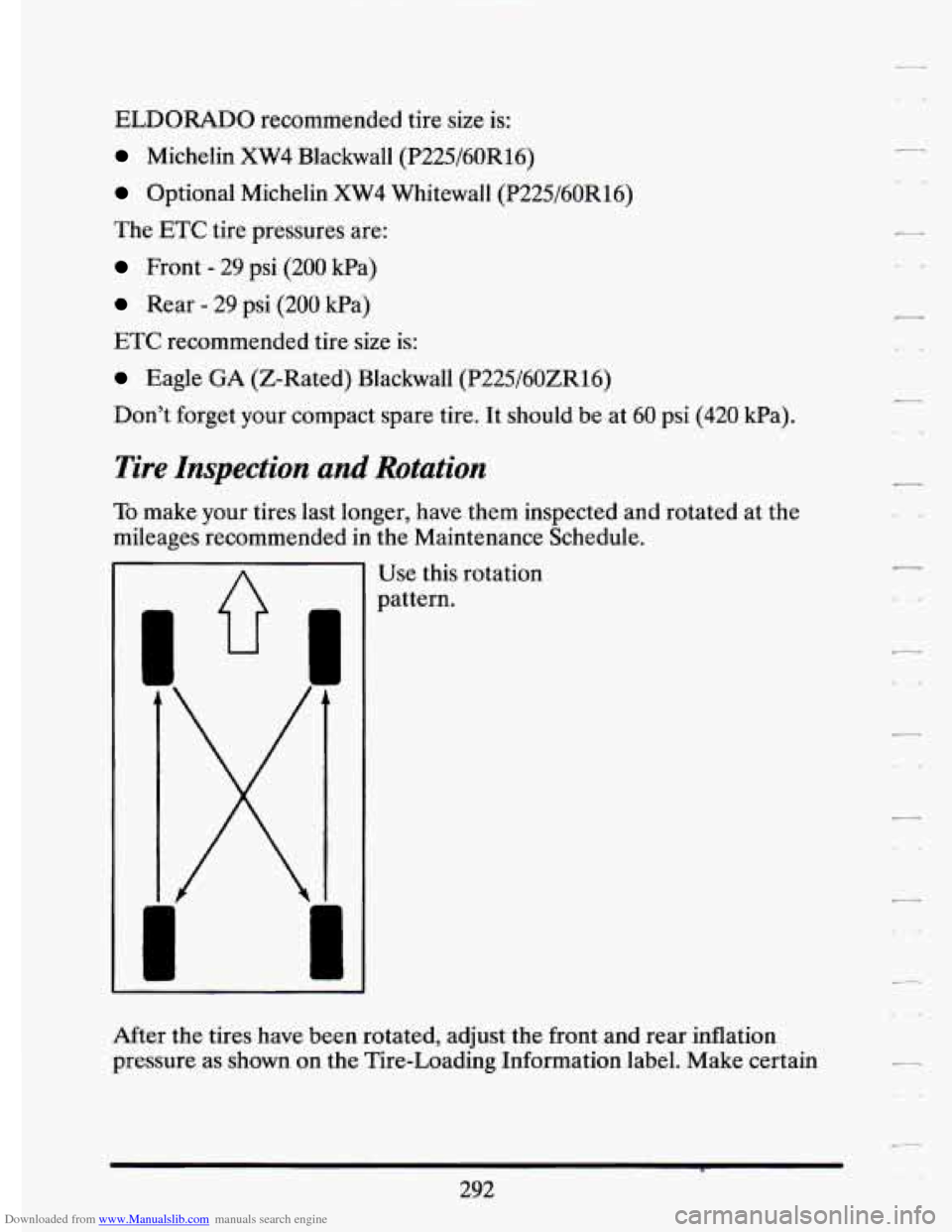

Downloaded from www.Manualslib.com manuals search engine ELDORADO recommended tire size is:
Michelin XW4 Blackwall (P225/60R16)
Optional Michelin XW4 Whitewall (P225/60R16)
The ETC tire pressures are:
Front - 29 psi (200 kPa)
Rear - 29 psi (200 kPa)
ETC recommended tire size is:
Eagle GA (Z-Rated) Blackwall (P225/60ZR16)
Don’t forget your compact spare tire. It should be at
60 psi (420 kPa).
Tire Inspection and Rotation
To make your tires last longer, have them inspected and rotated at the
mileages recommended in the Maintenance Schedule.
I
Use this rotation
pattern.
After the tires have been rotated, adjust
the front and rear inflation
pressure
as shown on the Tire-Loading Information label. Make certain
292
