1994 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine I

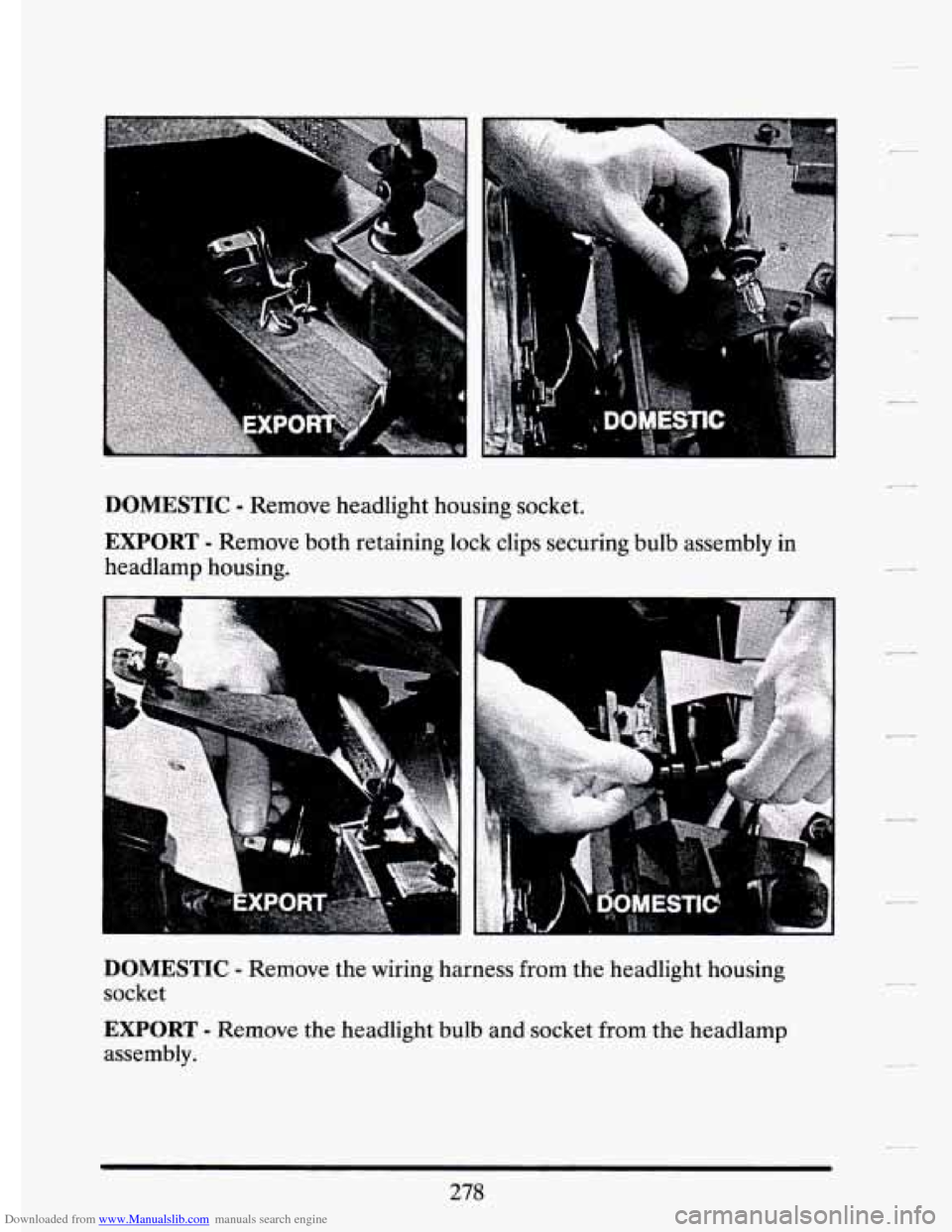

Downloaded from www.Manualslib.com manuals search engine DOMESTIC - Remove headlight housing socket.
EXPORT - Remove both retaining lock clips securing bulb assembly in
headlamp housing.
DOMESTIC - Remove the wiring harness from the headlight housing
socket
EXPORT - Remove the headlight bulb and socket from the headlamp
assembly.
278
c-
L.
-

Downloaded from www.Manualslib.com manuals search engine r
I-

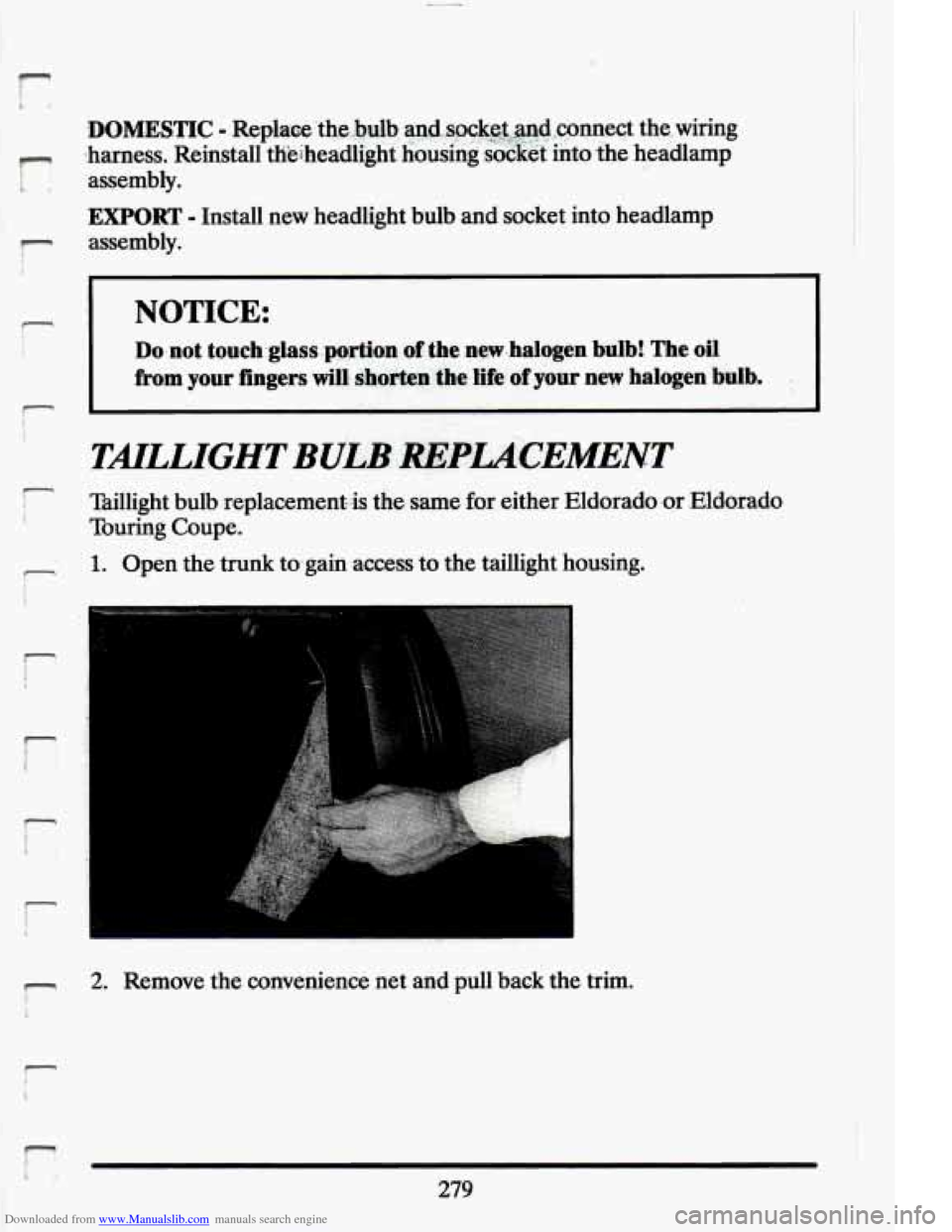

DOMESTIC - -Repl-a.oelheybu€b agd,.,swk$~d.,conect the. wiring
.harness. Reinstall th?e&eadiight housing socket ihto *he headlamp
assembly. . . " ' ,.: T 7- +':."+~,
EXPORT - Install new headlight bulb and socket into headlamp
assembly.
NOTICE:
Domot touch.glass.portion of the ngw.halogen bulb! The oil
from your fingers will shorten. the life of your new halogen bulb. .. . ,
r P
r
r
r
I- i L
r kJ
Taillight bulb .replacement---is the same for either Eldorado.or .Eldorado
Touring Coupe.
1. Open the trunk to.gain access , to the taillight housing.
2. Remove the convenience net and pull back the trim.
279

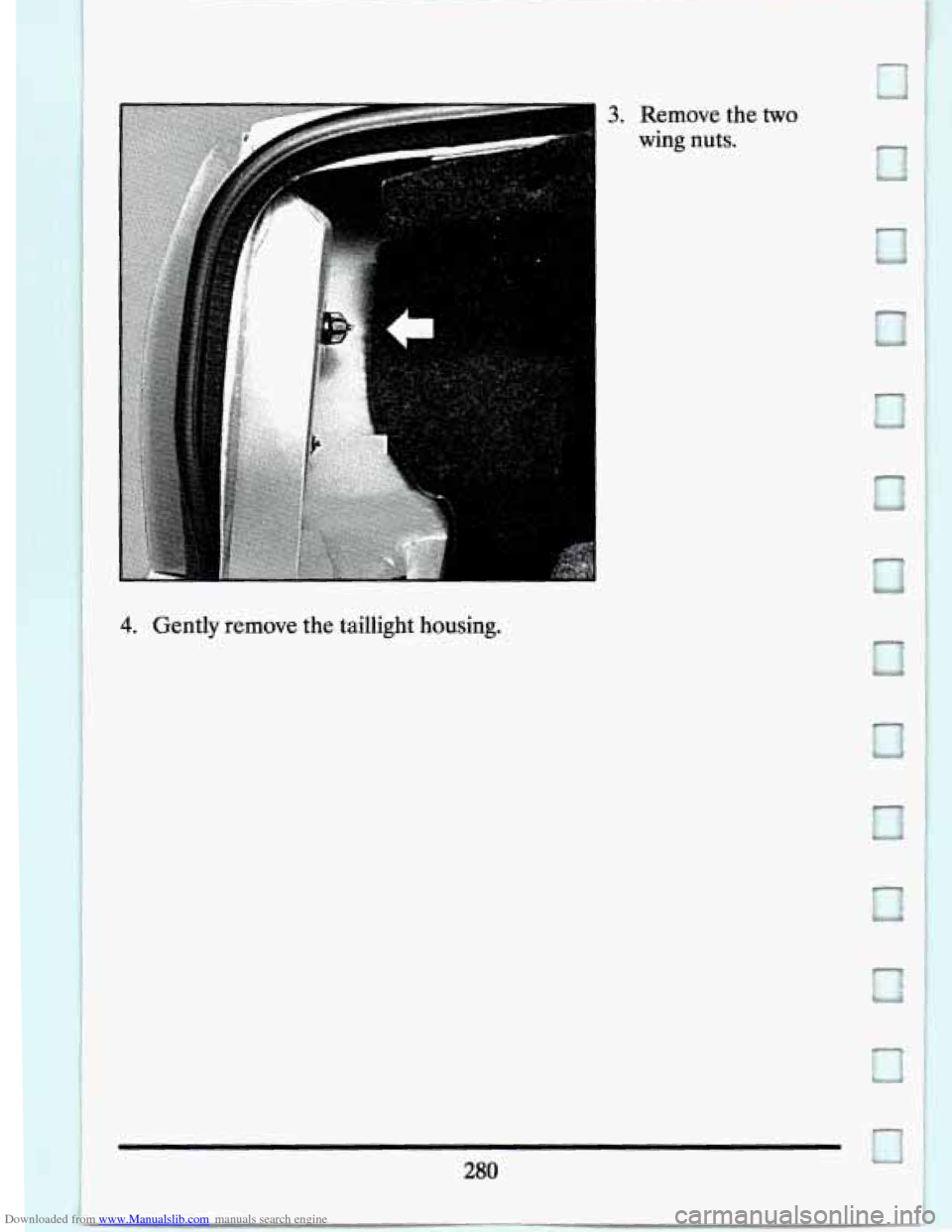

Downloaded from www.Manualslib.com manuals search engine 3. Remove the. two
wing nuts.
4. Gently remove the taillight housing.
J

Downloaded from www.Manualslib.com manuals search engine r
f i
r
r
*;,. -

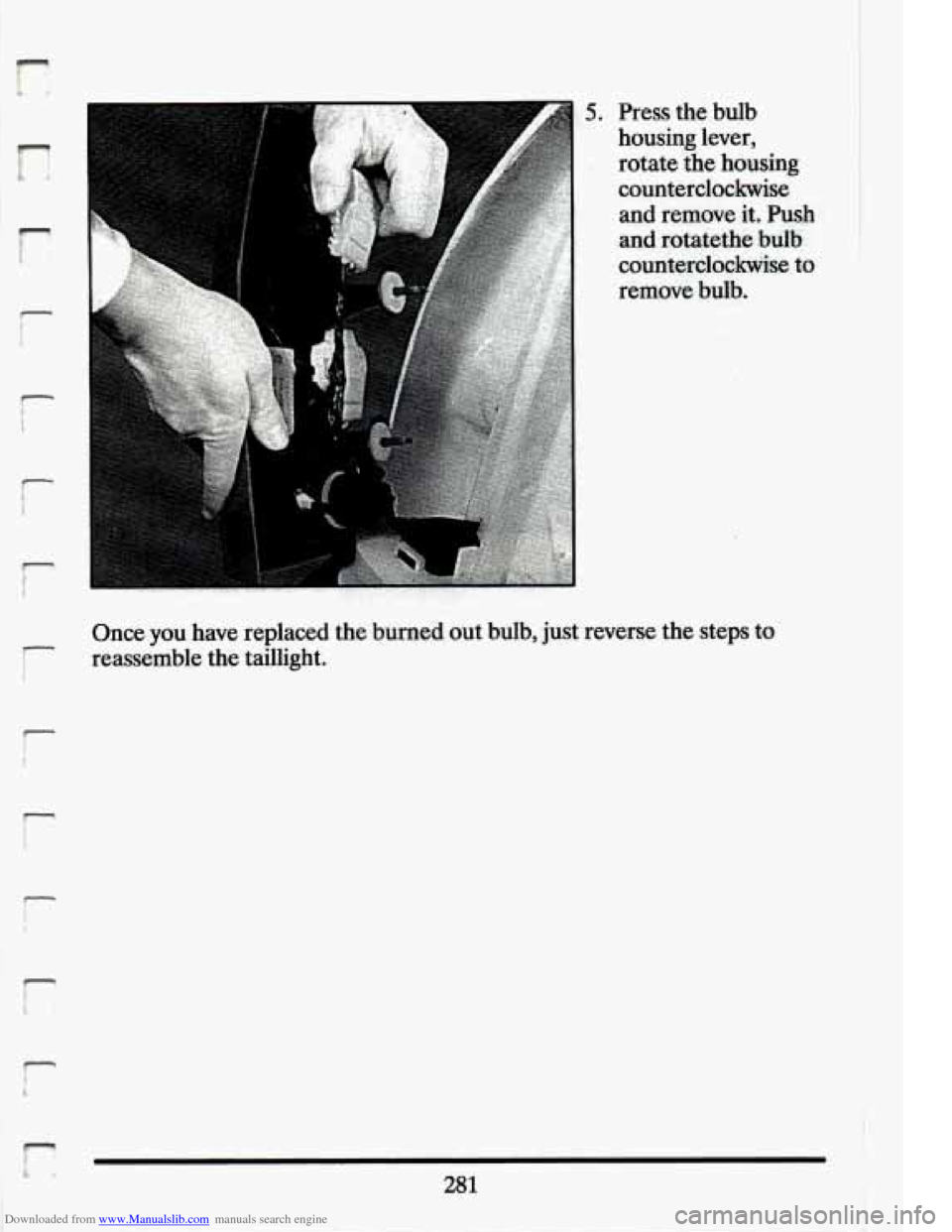

5. Press the bulb
housing lever,
rotate the housing
counterclockwise and remove it. Push
and rotatethe bu-lb.
counterclockwise
to
remove bulb.
Once you have replaced the burned out bulb, just reverse the \
steps
to
reassemble the taillight.
281

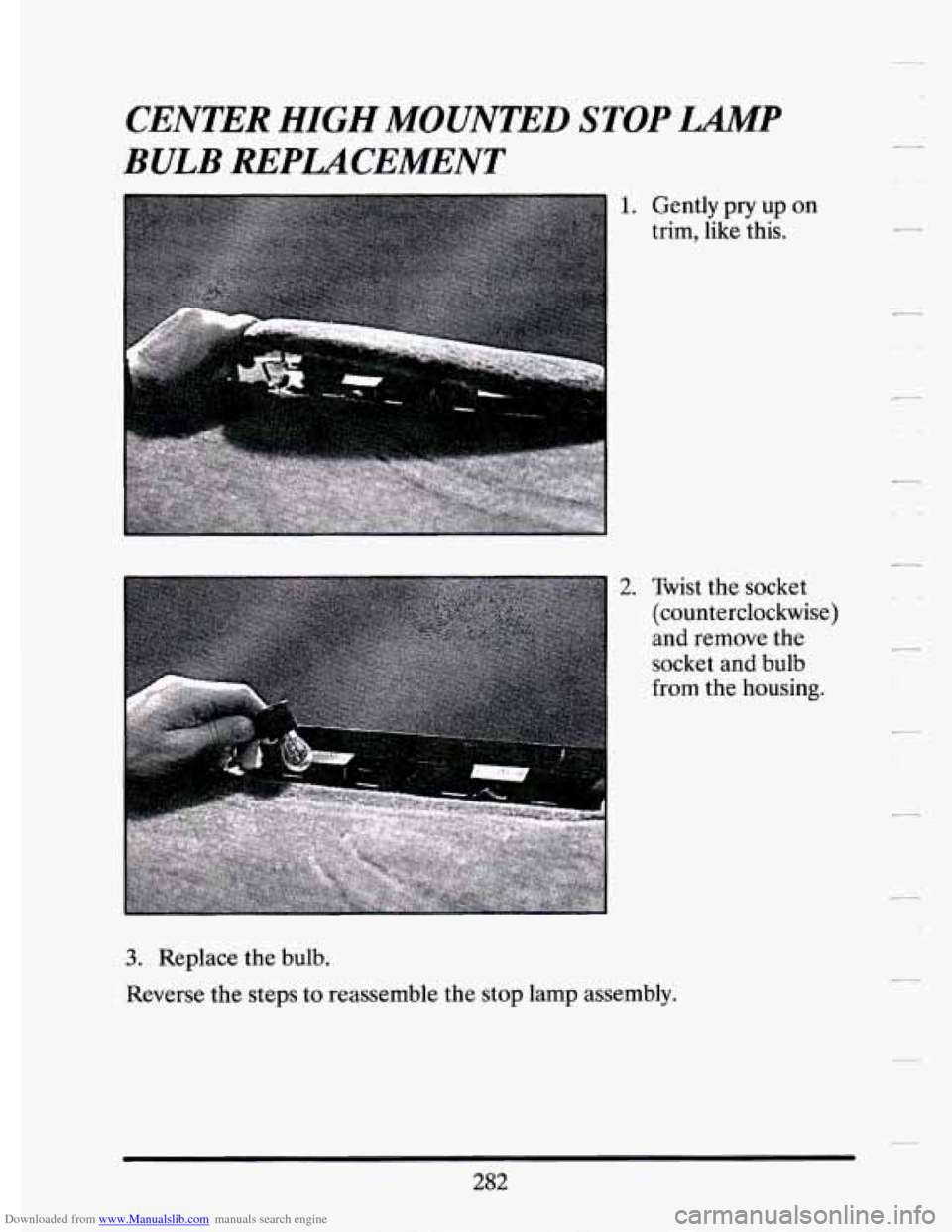

Downloaded from www.Manualslib.com manuals search engine CENTER HIGH MOUNTED STOP LAlMP
BULB REPUCEMENT
2. Twist the socket
(counterclockwise)
and remove the
socket and bulb
from the housing.
3. Replace the bulb.
Reverse the steps
to reassemble the stop lamp assembly.
282

Downloaded from www.Manualslib.com manuals search engine WPER BLADE REPLACEMENT
. Position the windshield wipers on the windshield in the “mid” wipe
position.
To do this, turn the ignition key to ‘‘Accessory” and turn the
wipers on. Then with the door open, turn the ignition key to
“Off. F I L
I- t.
r
Do the same with the passenger side wiper blade assembly.
To install the wiper blade align the wiper arm pin with the hole on the 7 1 wiper blade assembly and snap it into place.
I
Y
283

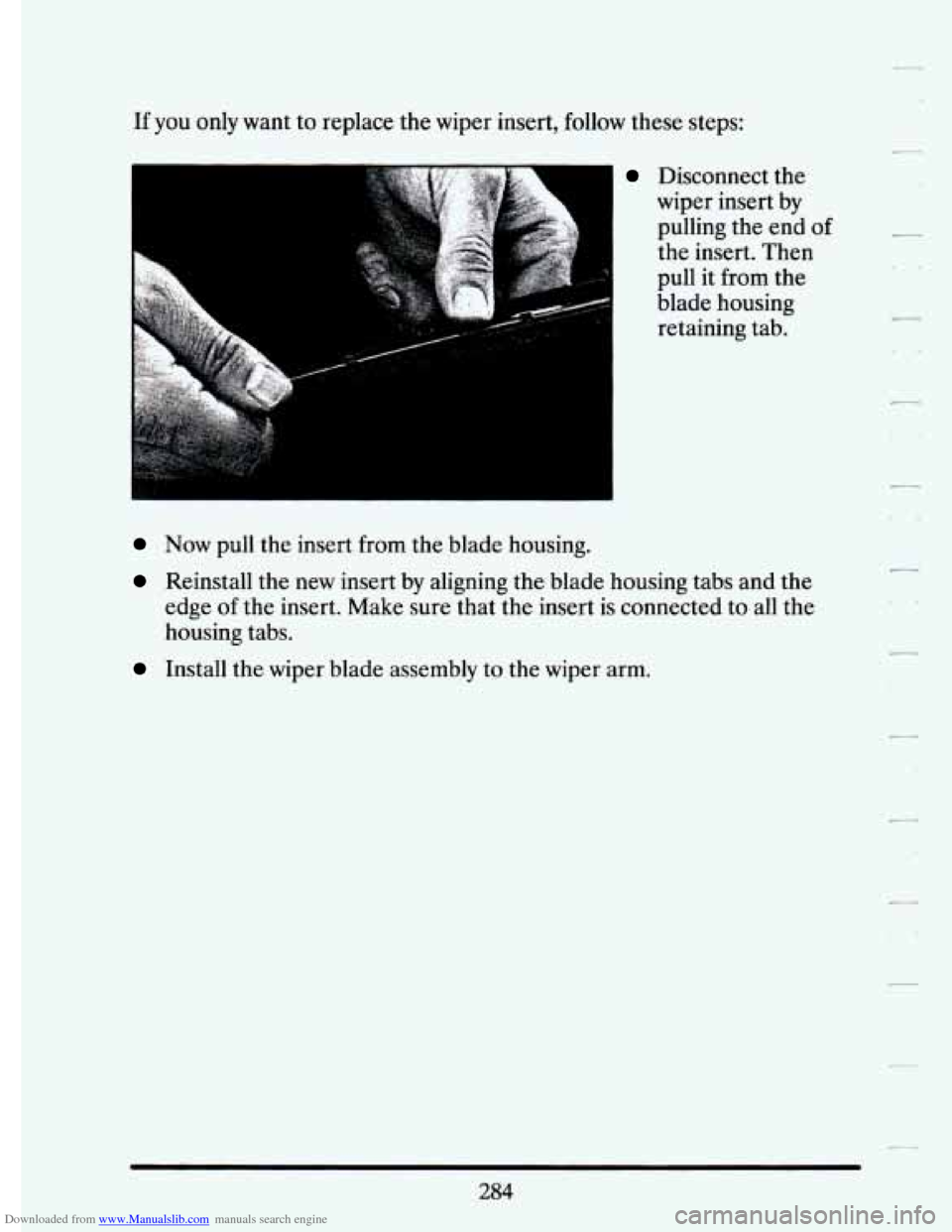

Downloaded from www.Manualslib.com manuals search engine If you only want to replace the wiper insert, follow these steps:
xr”
..
Disconnect the
wiper insert by
pulling the end
of
the insert. Then
pull it from the
blade housing retaining tab.
Now pull the insert from the blade housing.
Reinstall the new insert by aligning the blade housing tabs and the
edge of the insert. Make sure that the insert
is connected to all the
housing tabs.
Install the wiper blade assembly to the wiper arm.
284
