1994 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine n
m

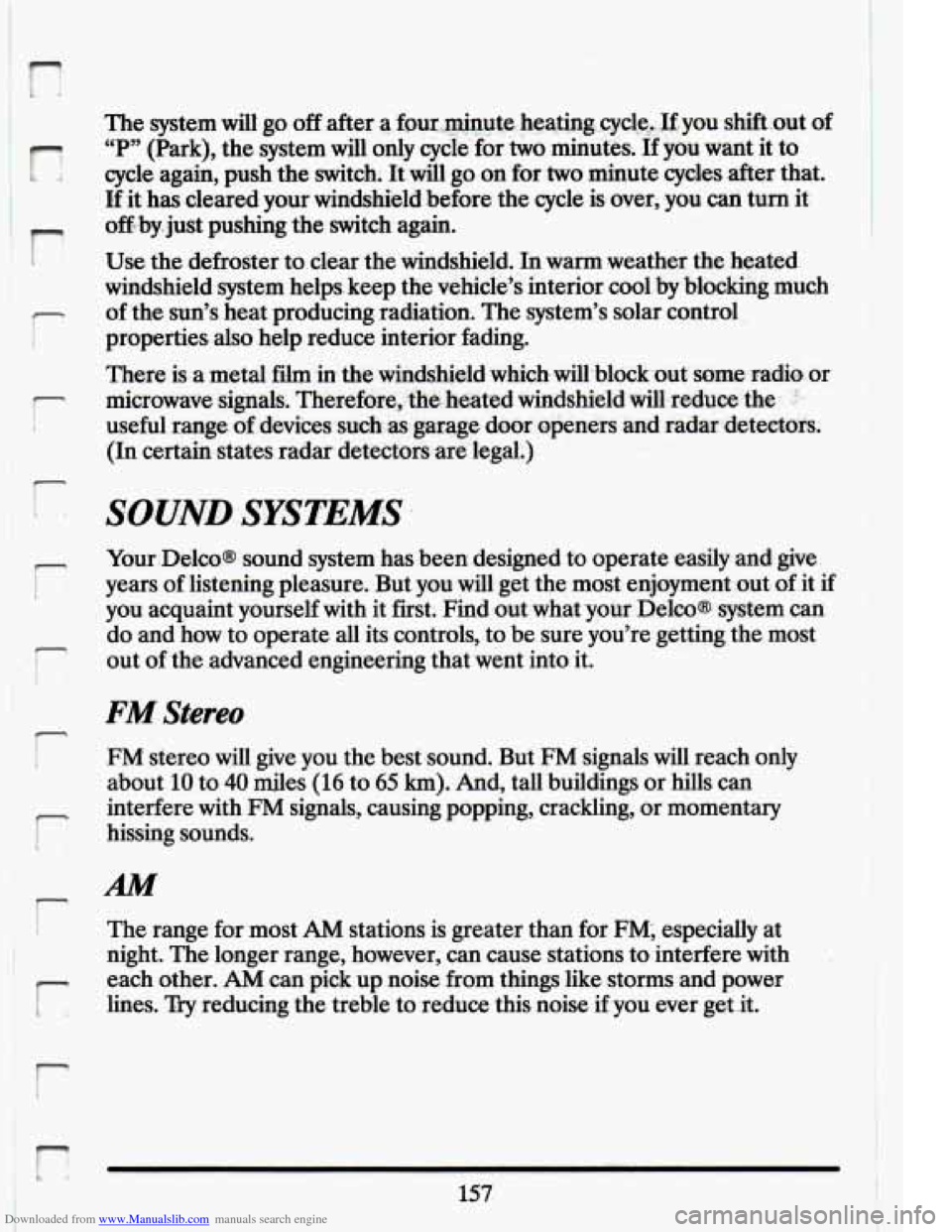

The system will go off after a fmr,.g&u$e: h~e~~i~~~.c;vc!e,I~~you shift.out of
“P” (Park),, the system will only cycle for two minutes. If you want it to
cycle again, push the switch. It.wil1 go on for two minute cycles. after that.
If it has cleared your windshield before the cycle is over, you can turn it
off.by.just gushing the switch again.
1 Use. the defroster ta.clear the windshield. In warm weather the heated
- of the sun’s heat.producing radiation. The system’s solar control
windshield system helps.
keep the vehicle’s interior cool by blocking much
I properties also help reduce interior fading.
There is a metal
film in: the windshield- which. will%lockout some radio or
r microwave signals. Therefore, L useful range. of .devicessuch as garage. door openers and radar -detectors.
(In certain states radar detectors ardegal:)
Your.Delco@ sound system has been .designed to operate easily and
give.
you acquaint yourself with it first. Find out whatyour Delcoa system can
do .and how
to operate all its controls, to be. sure you’re getting the most
r years of listening pleasure. But you will get the most enjoyment out. of .it if
i out of the advanced engineering that went into it.
FM Stereo
m
I FM stereo will give you the best sound. But FM signals will reach only
about
10 to 40 miles (16 to 65 km). And, tall buildings or hills can
interfere with
FM signals, causing popping,. crackling, or momentary
1 r hissing sounds.
I
AM
r I
1
The range formost AM stations is greater than for FM; especially at
night. The longer range, however, can cause stations to interfere with
.,
each other. AM can pick up noise from things like storms and power
r lines. Tiy reducing the treble to reduce this noise if you ever get .it.
t
157.

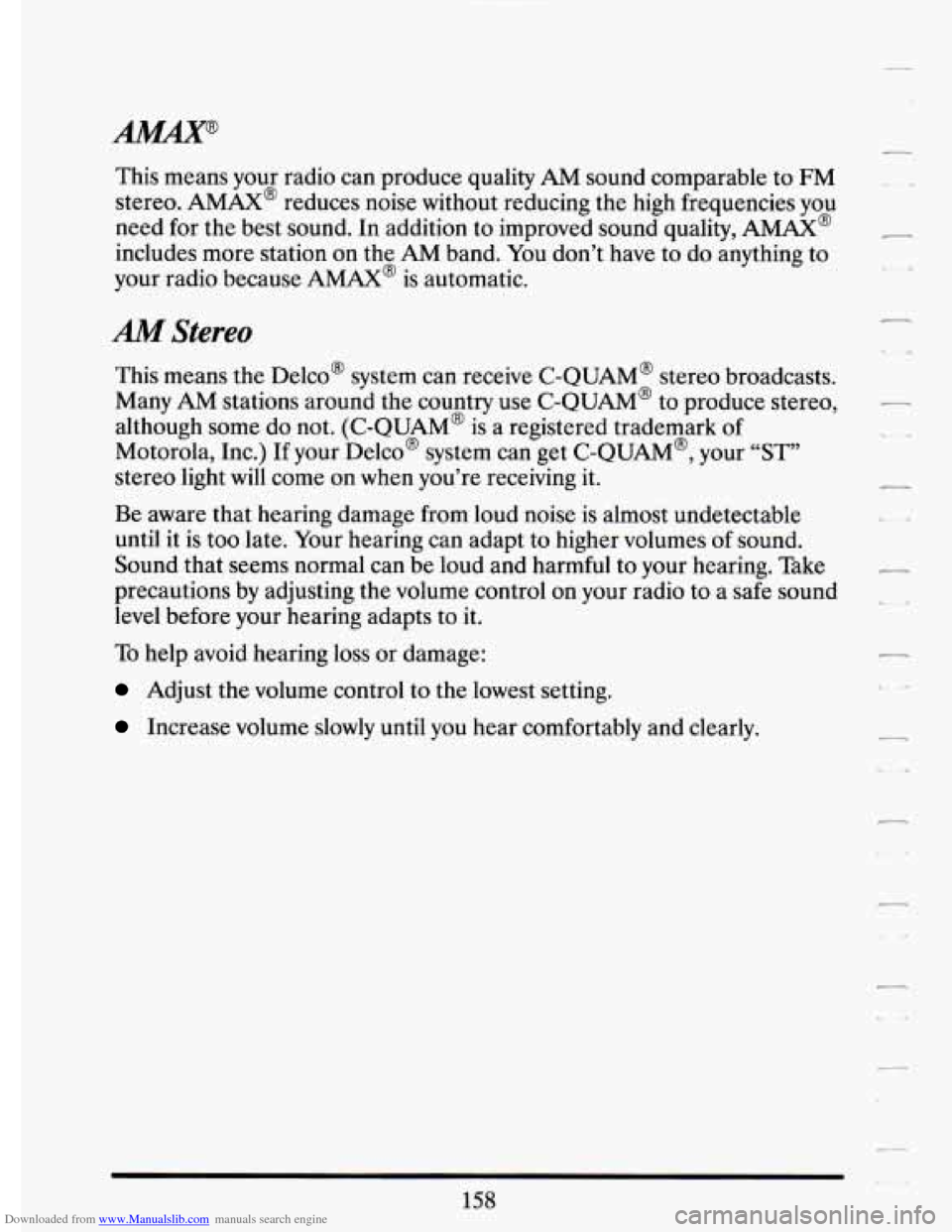

Downloaded from www.Manualslib.com manuals search engine This means your radio can produce quality AM sound comparable to FM
stereo. AMAX@ reduces noise without reducing the high frequencies you
need for the best sound. In addition to improved sound quality, AMAX’
includes more station on the AM band. You don’t have to do anything to
your radio because
AMAX@ is automatic.
AM Stereo
This means the Delco@ system can receive C-QUAM’ stereo broadcasts.
Many
AM stations around the country use C-QUAM@ to produce stereo,
although some do not. (C-QUAM@ is a registered trademark
of
Motorola, Inc.) If your Delco@ system can get C-QUAM@, your “ST”
stereo light
will come on when you’re receiving it.
Be aware that hearing damage from loud noise is almost undetectable
until it is too late. Your hearing can adapt to higher volumes
of sound.
Sound that seems normal can be loud and harmful to your hearing. Take
precautions by adjusting the volume control on your radio to a safe sound
level before your hearing adapts to it.
To help avoid hearing loss or damage:
Adjust the volume control to the lowest setting.
Increase volume slowly until you hear comfortably and clearly.
158

Downloaded from www.Manualslib.com manuals search engine hl
r
i
n
NOTICE:
So, before adding sound equipment, .check with your dealer and
be sure
to check Federal rules covering mobile radio and
telephone units.
r
159

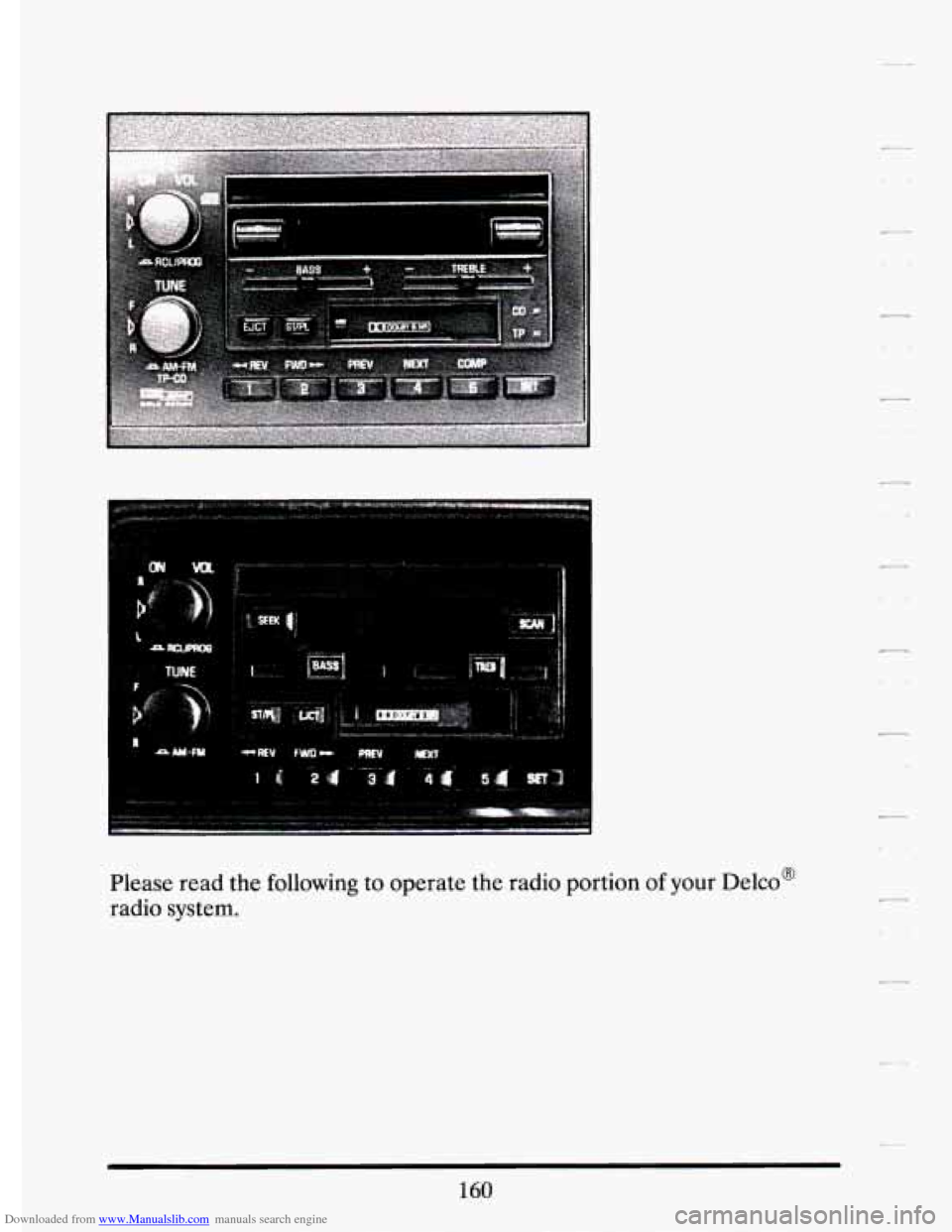

Downloaded from www.Manualslib.com manuals search engine Please read the following to operate the radio portion of your Delco@
radio system.
160

Downloaded from www.Manualslib.com manuals search engine r
F Y!
r
r
i

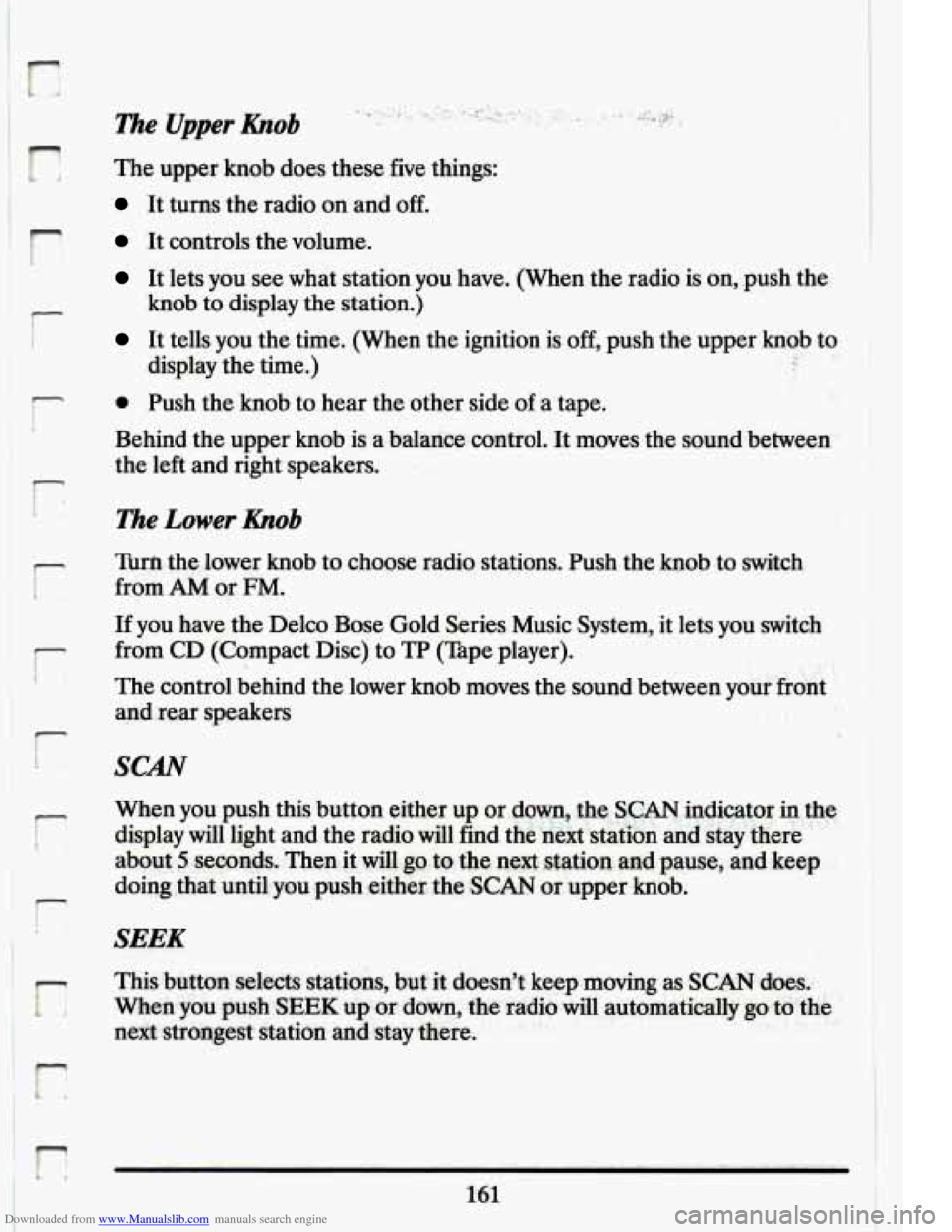

The Upper hob
The upper knob does these five things:
It turns the radio on and off.
It controls the volume.
It lets you see what station you have. (When the radio is on, .push the
It tells you the time. (When the ignition is off, push the upper knob to
knob
to display the station.)
display the time.) .- 4
0 Push the knob to hear the other side of a tape.
Behind the upper knob is a balanee control. It moves the sound between
the left and right speakers.
The Lower hob
Turn the .lower knob to choose radio stations. Push the knob to switch
from
AM or FM.
If you have the Delco Bose Gold Series Music System, it lets you switch
from CD (Compact Disc) to
TP (Tape player).
The control behind the lower knob moves the sound between your
front
and rear speakers .. . ..
SCAN
When you push this button either up or.down, the S:CAN indicator: the
display will light and the radio will find the
next station and stay there '' '.
about 5 seconds. Thenit dl g~ .to the next stsltion.md pause, and keep
doing that until you push eithkr the
SCAN or upper hob,
SEEK
I

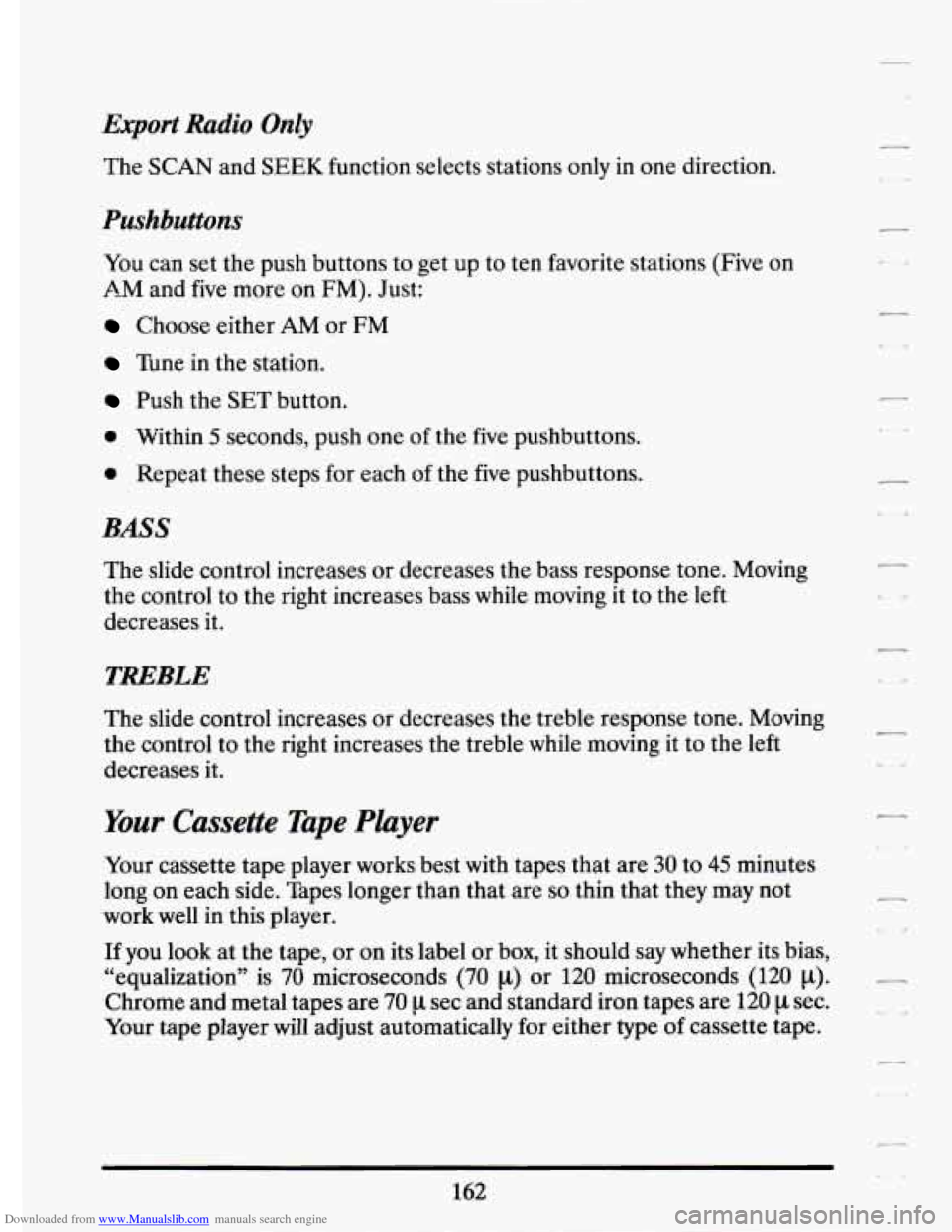

Downloaded from www.Manualslib.com manuals search engine Export Radio Only
The SCAN and SEEK function selects stations only in one direction.
Pushbuttons
You can set the push buttons to get up to ten favorite stations (Five on
AM and five more on FM). Just:
Choose either AM or FM
Tune in the station.
Push the SET button.
0 Within 5 seconds, push one of the five pushbuttons.
0 Repeat these steps for each of the five pushbuttons.
BASS
The slide control increases or decreases the bass response tone. Moving
the control to the right increases bass while moving it to the left
decreases it.
TREBLE
The slide control increases or decreases the treble response tone. Moving
the control to the right increases the treble while moving it to the left
decreases it.
Your Cassette Tape Phyer
Your cassette tape player works best with tapes that are 30 to 45 minutes
long on each side. Tapes longer than that are
so thin that they may not
work well in this player.
If you look at the tape, or on its label or box, it should say whether its bias,
“equalization” is
70 microseconds (70 p) or 120 microseconds (120 p).
Chrome and metal tapes are 70 p sec and standard iron tapes are 120 p sec.
Your tape player will adjust automatically for either
type of cassette tape.
162

Downloaded from www.Manualslib.com manuals search engine To Play A Cassette Tape
F
0 Turn the radio on.
0 Insert the cassette through the tape door. (The “TAPE” indicator in
the display will light.)
1 If you hear nothing or hear just a garbled sound, the cassette may not be
7 tape equalization is automatically sensed and set. Insertin thecassette
in squarely. Push
the
EJCT button to remove the tape and start over. The
I also automatically disables DNR@* and activates DOLBY noise 0
reduction.
noise from the radio.
- DNR@ is the Dynamic Noise Reduction. It helps remove background hiss, a
Push the FWD button to move forward rapidly to another part of the
same button and the tape will start to play again.
7 tape. The radio will play during fast forward. To stop the tape push the i
r- REV (Reverse)
1 Push the REV button to move the tape rapidly backward. To stop the
r i. will play during this reverse function.
tape,
push the same button lightly or any of the other buttons. The radio
To go from one side of the tape to the other, push in the upperAnob on
your radio.
To remove the tape, push EJCT. The tape can be ejected when
i the ignition is turned off.
*DNR@ is a registered trademark of National Semiconductor
r corporation.

Downloaded from www.Manualslib.com manuals search engine NEXT
Push the NEXT button up to jump quickly to the next selection. If the
selection is at the end of
the tape, the tape will reverse directions and
begin playing at a normal speed.
PREV
Push the PREV button up to quickly go to the beginning of the last
selection.
If the player has played less than
10 seconds into the current selection,
depressing the PREV button
will cause the player to find the beginning of -
the previous selection and resume play from that point. If the player is
more than
10 seconds into the current selection, pressing PREV button
will cause the player to find the beginning of the current selection and -
resume play from that point. If PREV is issued while the first selection on ,
the tape is being played, the player will return to the beginning of that
side of the tape.
STjPL (Stop-Play)
Press ST/PL to switch back to the radio without ejecting the tape. Press it -
a second time to start playing it again. .,
EJCT (Eject Tape)
Press this button to remove the tape.
The Delco Bose Gold Series Music System
This optional sound system combines an AM/FM stereo radio with a
cassette tape player and a compact disc player
in a single unit.
To operate the radio and cassette tape player portion of this music
system, please read the beginning of this section.
“How To Operate Your
Sound System’’ and “Your Cassette Tape Player.’’
164
