The.head1ightwiring is protected by,a circuit breaker in the light switch.
An electrical overload will cause the lights to .go on and off, or in.. some
cases: to -remain-
off. If this happens, have your headlight wiring checked
rightaway.
.Wiradshiekl Wipem
The windshield wiper motor is protected by a circuit breaker and a fuse.
If the..motor overheats due to heavy snow, .etc.,-.the wiper will stop imtil
the
motor mls. If the overload iscaused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Widbws andother Power Options
F I ! Circuit breakers in .the fuse panel protect the power windows and other power
accessories. .whensthe current load islm heavy, the circuit breaker
qens .and
closes, protecting the circuit until the, problem is. fixed or goes. away.
I r,
r
r
/r: I
r' LJ
DESCRIPTION BULB NO.
Ash ?i.ay.Illuninatio.n .................................... .1445
Backup Lights ......................................... 2057
Cornering Light ................................... 1156 ,DC7
CowtesyReading Light
.................................... 168
Glove. Compartment Light ................................ 194
Headlights'Composite -Inner High Beam
................................ 9005 HB3
.-Outer Low Beam
................................... ,9006 HB4
Illumination Entry~Lock~Lamp
............................. .192
Instrument. Panel Illuniinatian ............................ ' 194
. 1.nstrumeIlit Panel'T'llt&s ................................ 194
LicenseP1ate.Ligh.t ....................................... 194
Park and Tim Signal ................................ 2357.NA
. Fog Light ............................................... 886
-Errport.Bulb ............................................ H4
317
I
Page 330 of 398

Downloaded from www.Manualslib.com manuals search engine Rear Fog/Back-Up Light (Export) ...................... P21/5W
Side Marker Lights
..................................... 194
Stop/Tail/Turn Signal
................................ 2057 NA
Stop/Tail/Turn Signal (Export) ......................... P21/5W
Front Fender
Side Turn Signal (Export)
.............. 2CNPHW
Trunk Light
.........................
Underhood Light ....................
Vanity Mirror Illumination ............
NORlMAL M4INTENNrE
PARTS
Air Cleaner Element .................
Battery .............................
Fuel Filter Element ..................
Engine Oil Filter ....................
PCVValve .........................
Spark Plugs .........................
Serpentine Drive Belt ................
Surge Tank Cap .....................
Thermostat ..........................
Upper Radiator Hose ................
Lower Radiator Hose ................
Trans Screen Rt. Scavenger ...........
Trans Screen Lt. Scavenger ............
Trans Pan Screws (16) ................
Trans Pan Gasket ....................
..................................
..................................
..................................
..................................
..................................
..................................
..................................
..................................
.................. 1003
................... 561
................... 124
REPLACEMENT
........ AC Type S1096C
.............. 25096932
................ 78A-72
............... 1981590
.............. 25121468
.............. 25014377
.............. 06487779
............... 5614236
............... 3530814
......... AC Type RC 33
............... 6410665
......... ACType 131-66
............... 3531407
............... 3521504
............... 3521505
............... 8679416
............... 8680700
............... 8682650
............... 8681197
........ AC Type GF-580
......... AC Type PF-58'
....... AC Type CV-774C
......... AC Type 41-900
318
Page 331 of 398

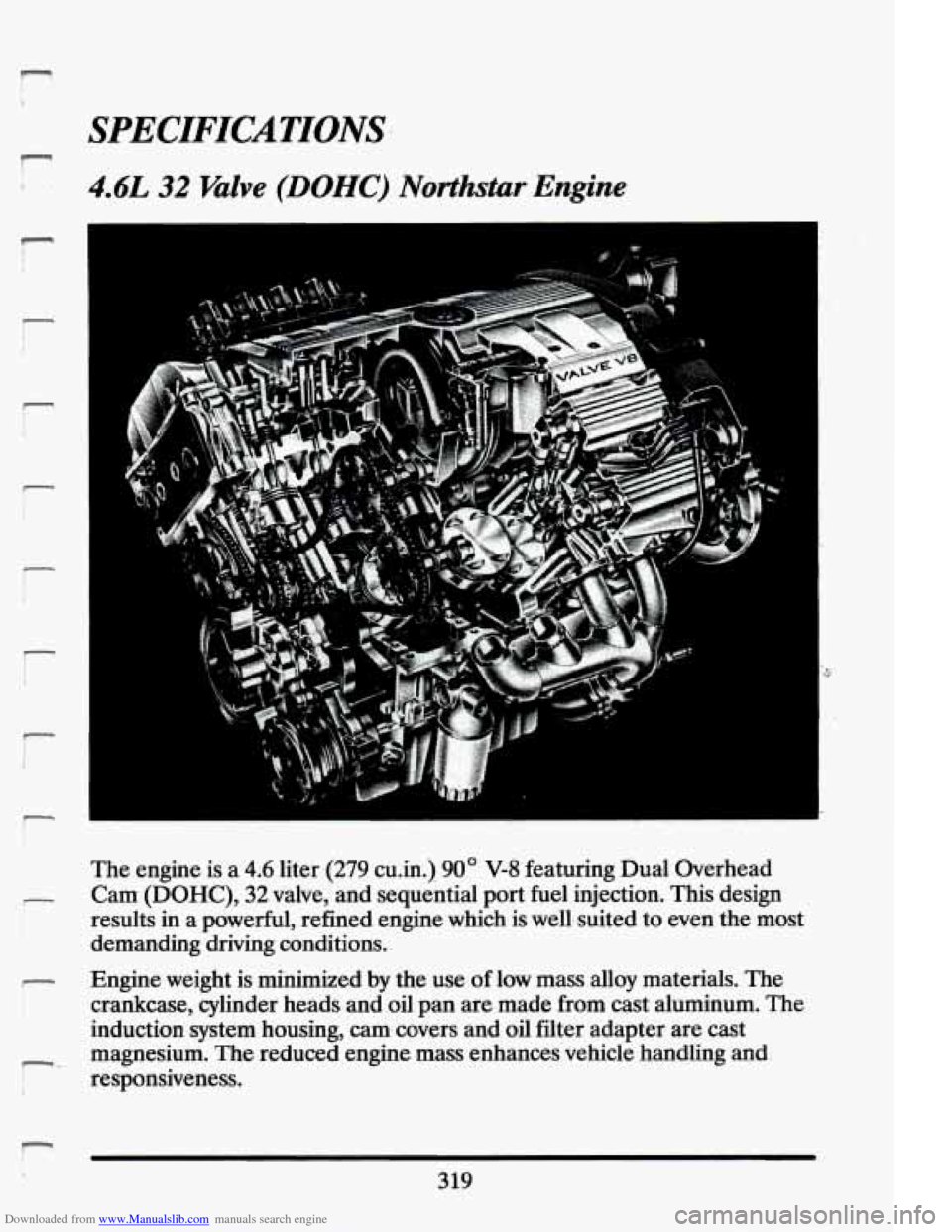

Downloaded from www.Manualslib.com manuals search engine SPECIFICATIONS
4.6L 32 Valve (DOHC) Northstar Engine
r
t-
The engine is a 4.6 liter (279 cu.in.1 90° V-8 featuring Dual Overhead
Cam (DOHC),
32 valve, and sequential port fuel injection.. This design
results in a powerful, refined engine which is wellmited to even the most
demanding driving conditions..
Engine weight is minimized by the use of low mass alloy materials. The
crankcase, cylinder heads and oil pan are made from cast aluminum. The
induction system housing, cam covers and
oil filter adapter are cast
magnesium.. The reduced engine mass enhances.vehicle handling and.
responsiveness.
!- I
319
Page 332 of 398

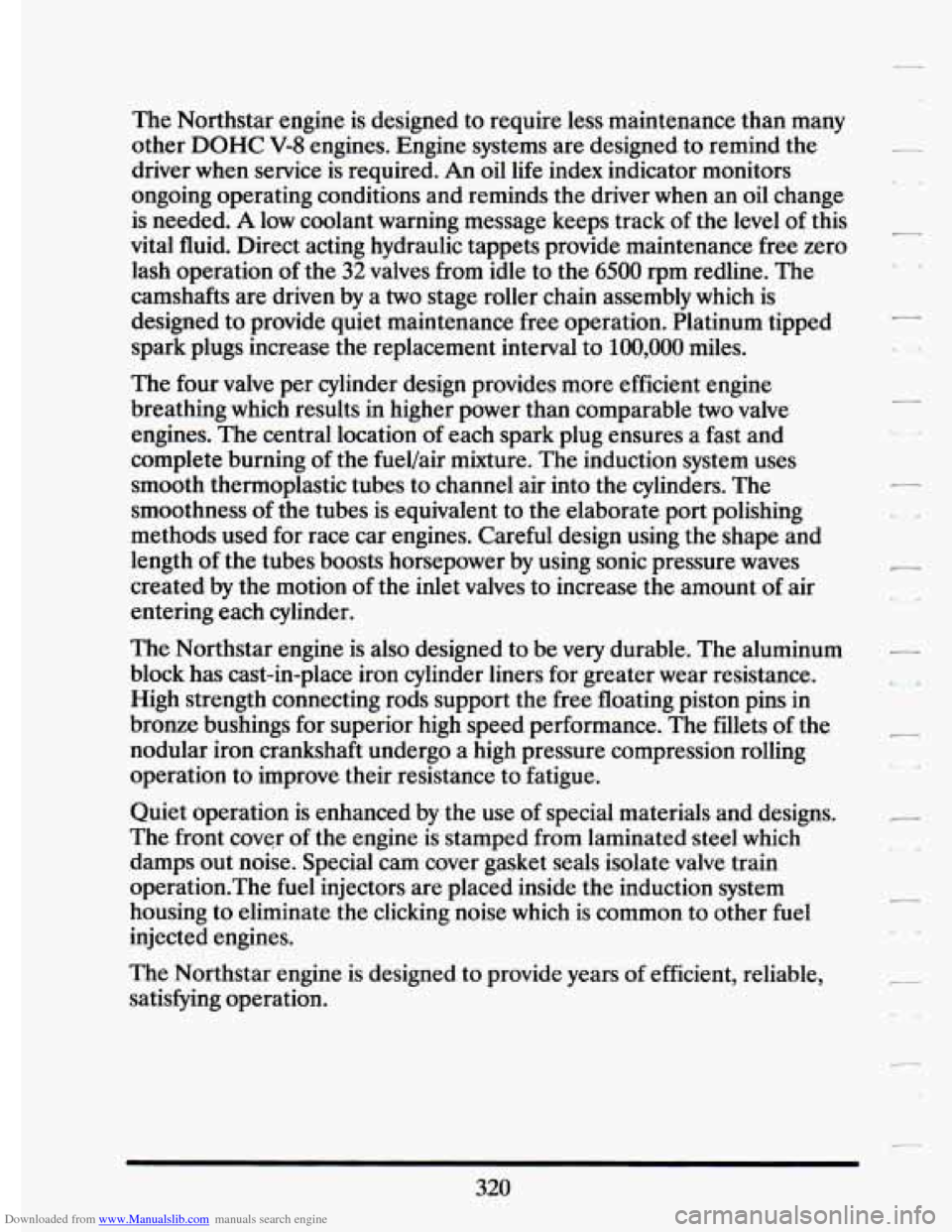

Downloaded from www.Manualslib.com manuals search engine The Northstar engine is designed to require less maintenance than many
other DOHC
V-8 engines. Engine systems are designed to remind the
driver when service is required.
An oil life index indicator monitors
ongoing operating conditions and reminds the driver when an oil change
is needed.
A low coolant warning message keeps track.of the level of this
vital fluid. Direct acting hydraulic tappets provide maintenance free zero
lash operation
of the 32 valves from idle to the 6500 rpm redline. The
camshafts are driven by
a two stage roller chain assembly which is
designed
to provide quiet maintenance free Operation. Platinum tipped
,spark plugs increase the replacement interval
to 100,000 miles.
The four valve per cylinder design provides more efficient engine
breathing which results in higher power than comparable
two valve
engines. The central location
of each spark plug ensures a fast and
complete burning of the fuel/air mixture. The induction system uses
smooth thermoplastic tubes to channel air into the cylinders. The
smoothness
of the tubes is equivalent to the elaborate port polishing
methods used for race car engines. Careful design using the shape and
length
of the tubes boosts horsepower by using sonic pressure waves
created by the motion
of the inlet valves to increase the amount of air
entering ,each cylinder.
The Northstar engine is also designed
to be very durable. The aluminum
block has cast-in-place iron cylinder liners for greater wear resistance.
High strength connecting rods support the free floating piston pins in
bronze bushings for superior high speed performance. The fillets
of the
nodular iron crankshaft undergo
a high pressure compression rolling
operation to improve their resistance to fatigue.
Quiet operation is enhanced by the use of special materials and designs.
The front cover of the engine is stamped from laminated steel which
damps out noise. Special cam cover gasket seals isolate valve train
operation.The fuel injectors are placed inside the induction system
housing
to eliminate- the clicking noise which is common to other fuel
injected engines.
The Northstar engine is designed to provide years of efficient. reliable.
satisfying operation.
7
320
Page 333 of 398

Downloaded from www.Manualslib.com manuals search engine r

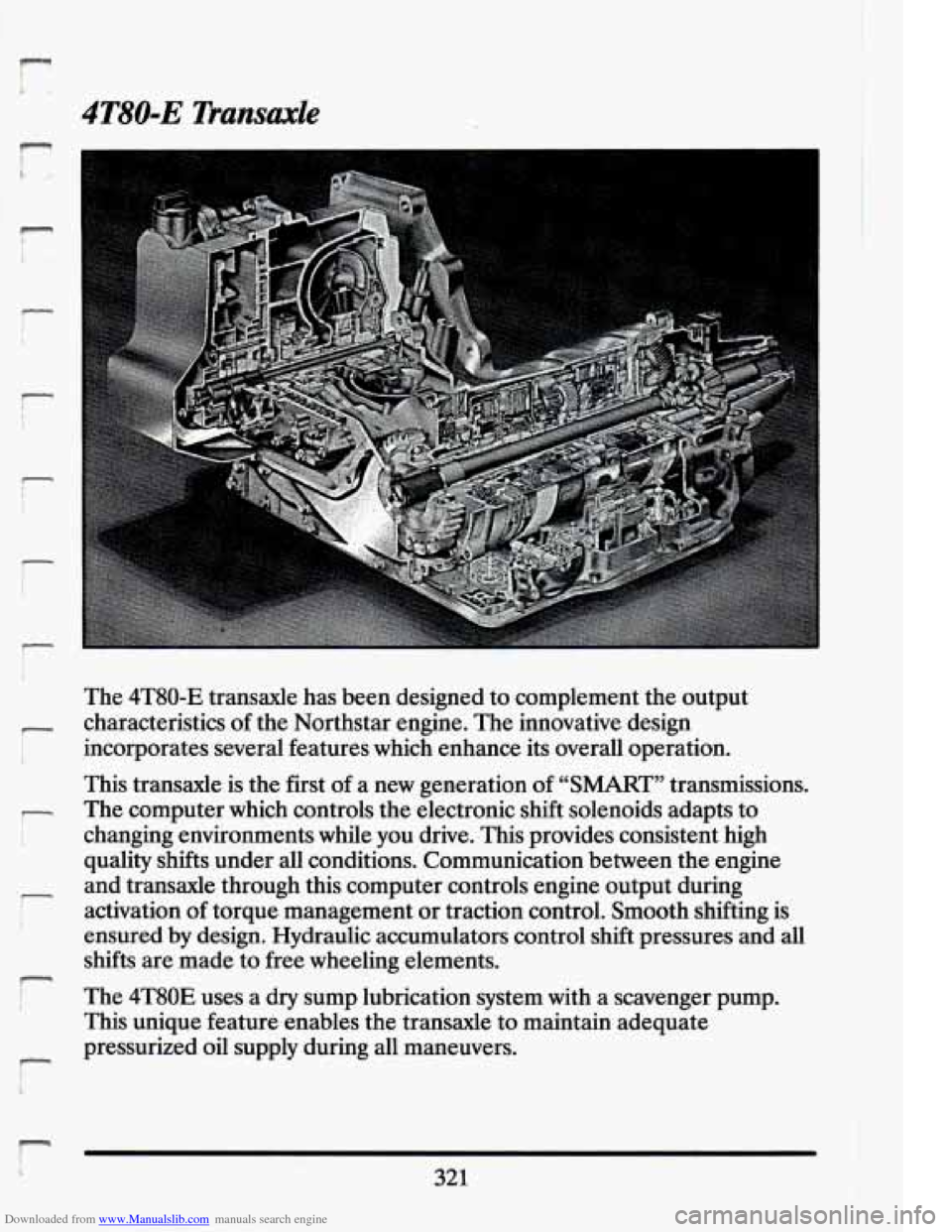

4T80-E Transaxle
r
The 4T80-E transaxle has been designed to complement the output
characteristics
of the Northstar engine. The innovative design
incorporates several features which enhance its overall operation.
This transaxle
is the first of a new generation of “SMART” transmissions.
The computer which controls the electronic shift solenoids adapts to
changing environments while you drive. This provides consistent high
quality shifts under all conditions. Communication between the engine
and transaxle through this computer controls engine output during
activation
of torque management or traction control. Smooth shifting is
ensured
by design. Hydraulic accumulators control shift pressures and all
shifts are made
to free wheeling elements.
The
4T80E uses a dry sump lubrication system with a scavenger pump.
This unique feature enables the transaxle to maintain adequate
pressurized oil supply during all maneuvers.
321
Page 334 of 398
Downloaded from www.Manualslib.com manuals search engine -

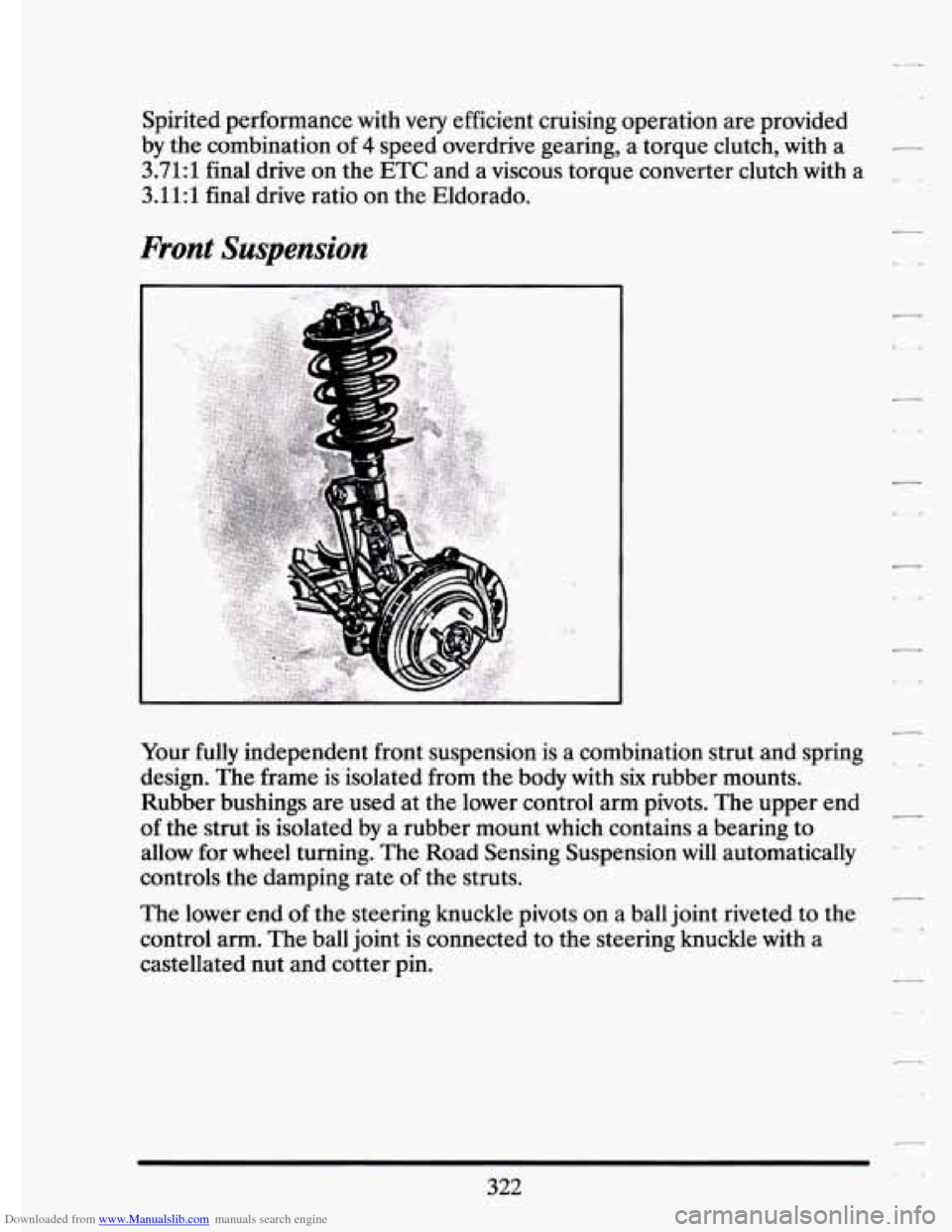

Spirited performance with very efficient cruising operation are provided
by the combination
of 4 speed overdrive gearing, a torque clutch, with a -
3.71:l final drive on the ETC and a viscous torque converter clutch with a a
3.1 1:l final drive ratio on the Eldorado.
Front Suspension
..
Your fully independent front suspension is a combination strut and spring
design. The frame is isolated from the body with
six rubber mounts.
Rubber bushings are used at the lower control arm pivots. The upper end
of the strut is isolated by a rubber mount which contains a bearing to
allow for wheel turning. The Road Sensing Suspension will automatically
controls the damping rate
of the struts.
The lower end
of the steering knuckle pivots on a ball joint riveted to the
control arm. The ball joint is connected to the steering knuckle with a
castellated nut and cotter pin.
c-
322
Page 335 of 398

Downloaded from www.Manualslib.com manuals search engine 1'
r I.

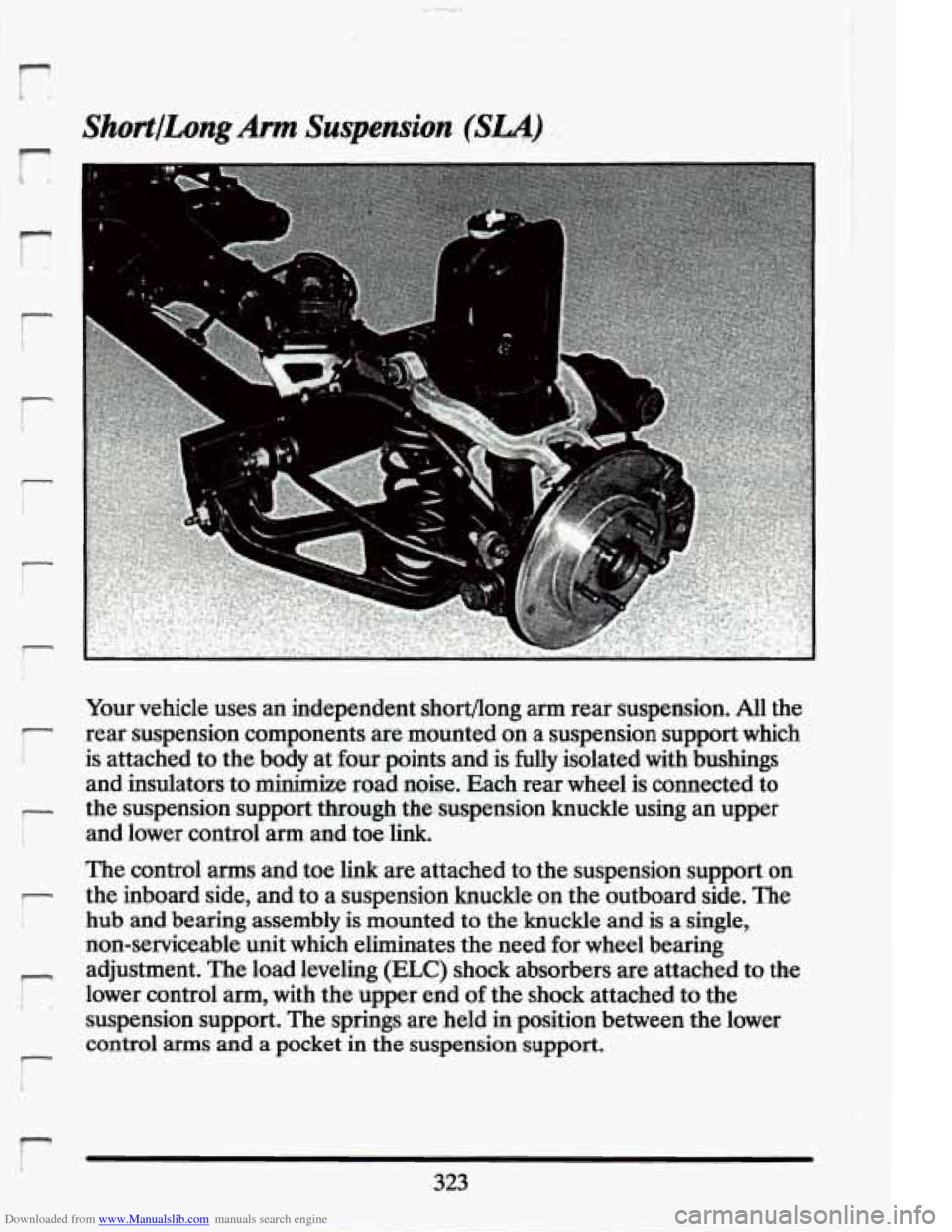

ShortILong Arm Suspension- (SLA)
; f
" s *
"'~"^'''"*
-
7
r
Your vehicle uses an independent shortflong arm rear suspension. All the
rear suspension components
are mounted on a suspension support which
is attached
to the body at four points and is fully isolated with bushings
and insulators to minimize road noise. Each rear wheel
is connected to
the suspension support through the suspension knuckle using an upper
and lower control arm and toe link.
The control arms and toe link are attached to the suspension support on
the inboard side, and to a suspension knuckle on the outboard side. The
hub and bearing assembly is mounted to the knuckle and is a single,
non-serviceable unit which eliminates the need for wheel bearing
adjustment. The load leveling (ELC) shock absorbers are attached to the
lower control arm, with the upper end
of the shock attached to the
suspension support. The springs are held in position between the lower
control
arms and a pocket in the suspension support.
323
Page 336 of 398

Downloaded from www.Manualslib.com manuals search engine The suspension system also incorporates a new damping system known as
Road Sensing Suspension. This system control the damping forces in the
shock absorbers and struts,
in response to various road and driving
conditions. The systems are capable of making these damping changes
extremely fast.
A computer receives inputs from vertical acceleration sensors, wheel to
body position sensors, vehicle speed sensor,
lift and dive signals. This
computer evaluates the inputs from these sensors,
to control the damping
of each of the struts and shocks independently
to provide varied levels of
suspension control.
The system also has the capability of providing Speed Sensitive Ste\
ering
control. This system changes your steering effort based
on your vehicle speed.
This system varies the amount of steering effort proportionate to your
vehicle speed. Steering
is easier at a lower speed for increased
maneuverability and parking ease.
As your vehicle speed increases, the
steering effort
is also increased to provide a manual like steering feel for
maximum control and enhanced vehicle stability.
