1993 VOLKSWAGEN CORRADO diagram

MIRRORS - POWER
Article Text (p. 3)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:21PM
WARNING: Always wear protective gloves while handling mirror glass (in
case of accidental breakage). Hold glass to prevent it from
falling out.
Removal & Installation
1) Disconnect battery ground cable. Lower window. Remove
control knob and boot. Remove door trim, and loosen moisture barrier
in area of rearview mirror control. Remove lock nut. Unplug electrical
connector.
2) Pivot mirror inward, and remove mounting screw. Pivot
mirror outward, and remove second mounting screw. Remove mirror with
base and control. To install, reverse removal procedure.
WIRING DIAGRAMS
See appropriate chassis wiring diagram in WIRING DIAGRAMS.
END OF ARTICLE

SPECIFICATIONS & ELECTRIC COOLING FANS
Article Text (p. 3)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:23PM
allow it to idle. With scan tester in READ MEASUREMENT BLOCK function,
read coolant temperature value in channel No. 1 of scan tester.
2) If temperature value increases uniformly without
interruption, sensor and its circuit are okay. Select END OUTPUT
function on scan tester. If display value is incorrect, test wiring
harness for open or short circuit. See Corrado SLC WIRING DIAGRAMS,
or Passat WIRING DIAGRAMS articles.
3) If necessary, use test leads from Adapter Kit (VAG 1594)
to measure ECT sensor resistance. See ECT SENSOR LOCATION table.
Replace engine coolant temperature sensor if not within specification.
See ECT SENSOR RESISTANCE table.
ECT SENSOR RESISTANCE TABLEÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄTemperature
øF (øC) Ohms
68 (20) ........................................ 3000-2000
86 (30) ........................................ 2000-1500
104 (40) ....................................... 1500-1000
122 (50) ........................................ 1000-800
140 (60) ......................................... 700-500
158 (70) ......................................... 500-375
176 (80) ......................................... 375-275
194 (90) ......................................... 275-225
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄECT SENSOR LOCATION TABLE
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄModel Location
Corrado SLC & Passat GLX
Blue, Brown & Yellow Sensor . On Radiator Near Upper Hose
Passat GL .............................. Below Distributor
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄEND OF ARTICLE

SUN ROOF - POWER
Article Text (p. 7)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

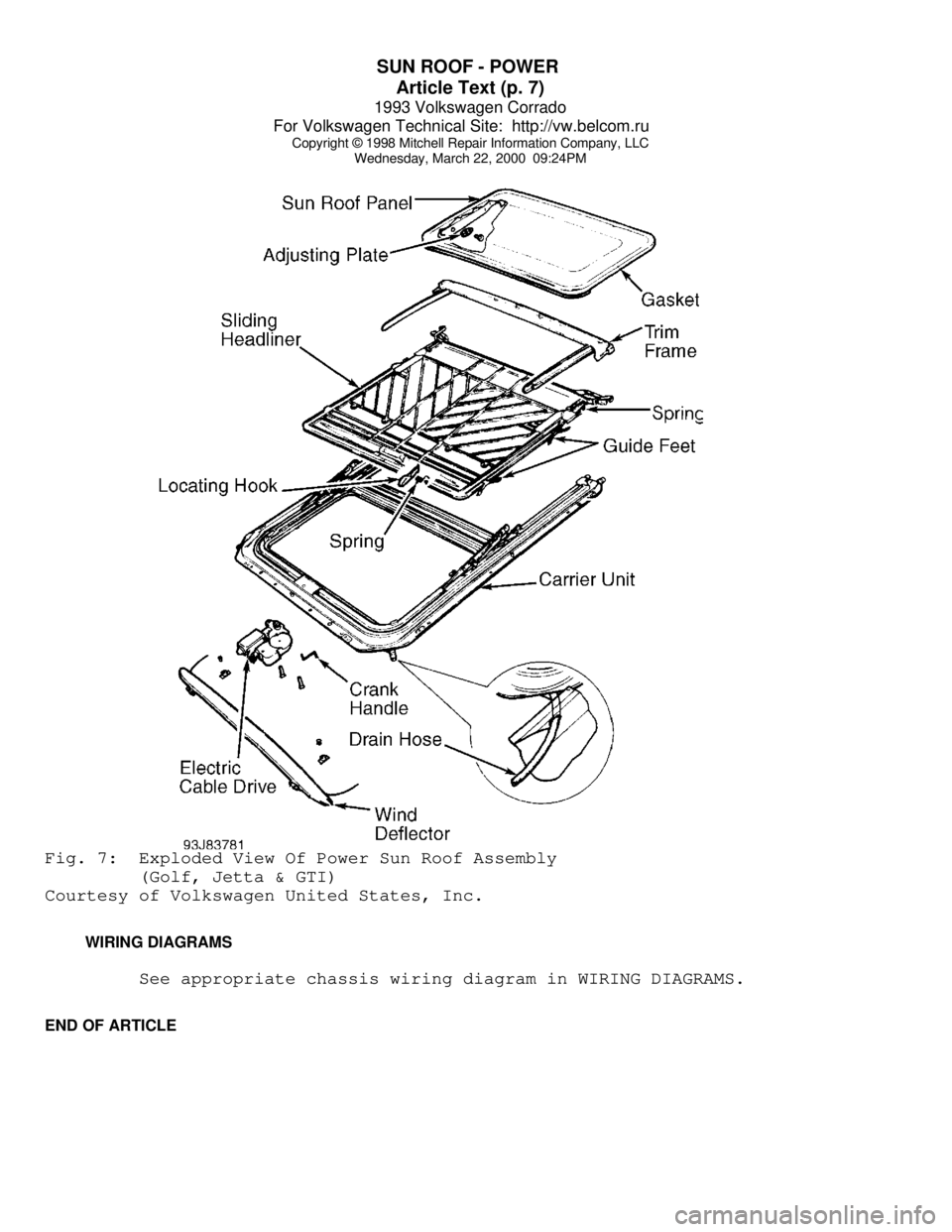

Wednesday, March 22, 2000 09:24PMFig. 7: Exploded View Of Power Sun Roof Assembly
(Golf, Jetta & GTI)
Courtesy of Volkswagen United States, Inc.
WIRING DIAGRAMS
See appropriate chassis wiring diagram in WIRING DIAGRAMS.
END OF ARTICLE

VR65 ENGINE: AFFIX NEW VACUUM HOSE ROUTING LABEL
Article Text
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:26PM
ARTICLE BEGINNING
EMISSION RECALL BULLETIN
VACUUM HOSE ROUTING LABEL REPLACEMENT - RECALL CODE SQ
Model(s): 1992-93 Volkswagen Corrado VR6
Recall No.: SQ
Date: July 6, 1993
Number of Affected Vehicles: 4,300
Beginning Date of Manufacture: August 1991
Ending Date of Manufacture: November 1992
DEFECT INFORMATION REPORT
1. Manufacturer: Volkswagen AG (VWAG)
Importer: Volkswagen of America, Inc. (VWoA)
2. Description of the Defect:
Volkswagen has found that affected Corrado VR6 vehicles were
inadvertently equipped during assembly with a label containing
emission specifications intended and applicable to Passat model
VR6 vehicles. The diagram of the vacuum hose routing is
incorrect as applied to the Corrado.
3. Class or Category of Vehicles Potentially Affected:
The affected vehicles are 1992 and early production model 1993
Volkswagen Corrado VR6 vehicles equipped with a VR6 engine,
identified by the following engine families:
1992 1993
ÄÄÄÄÄÄÄÄÄÄÄÄ ÄÄÄÄÄÄÄÄÄÄÄÄ California and 49-State NVW2.8V5FWE7 PVW2.8V5FWE9
PVW2.8V5FWH1
4.1. Number of Vehicles Estimated to Have the Defect:
According to Volkswagen's records, a total of approximately
3,625 49-states and 675 California equipped vehicles are
affected. These vehicles were manufactured from August 1991
through November 1992 and are within the following vehicle
identification number range:
WVW___50_NK000001 - WVW___50_PK005031
Other Description: Vehicles equipped with VR6 engines
4.2. Production Plants: Wilhelm Karmann GmbH
Osnabrueck Plant

SYSTEM WIRING DIAGRAMS
Article Text
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:24PM
ARTICLE BEGINNING
1993 System Wiring Diagrams
Volkswagen - Corrado

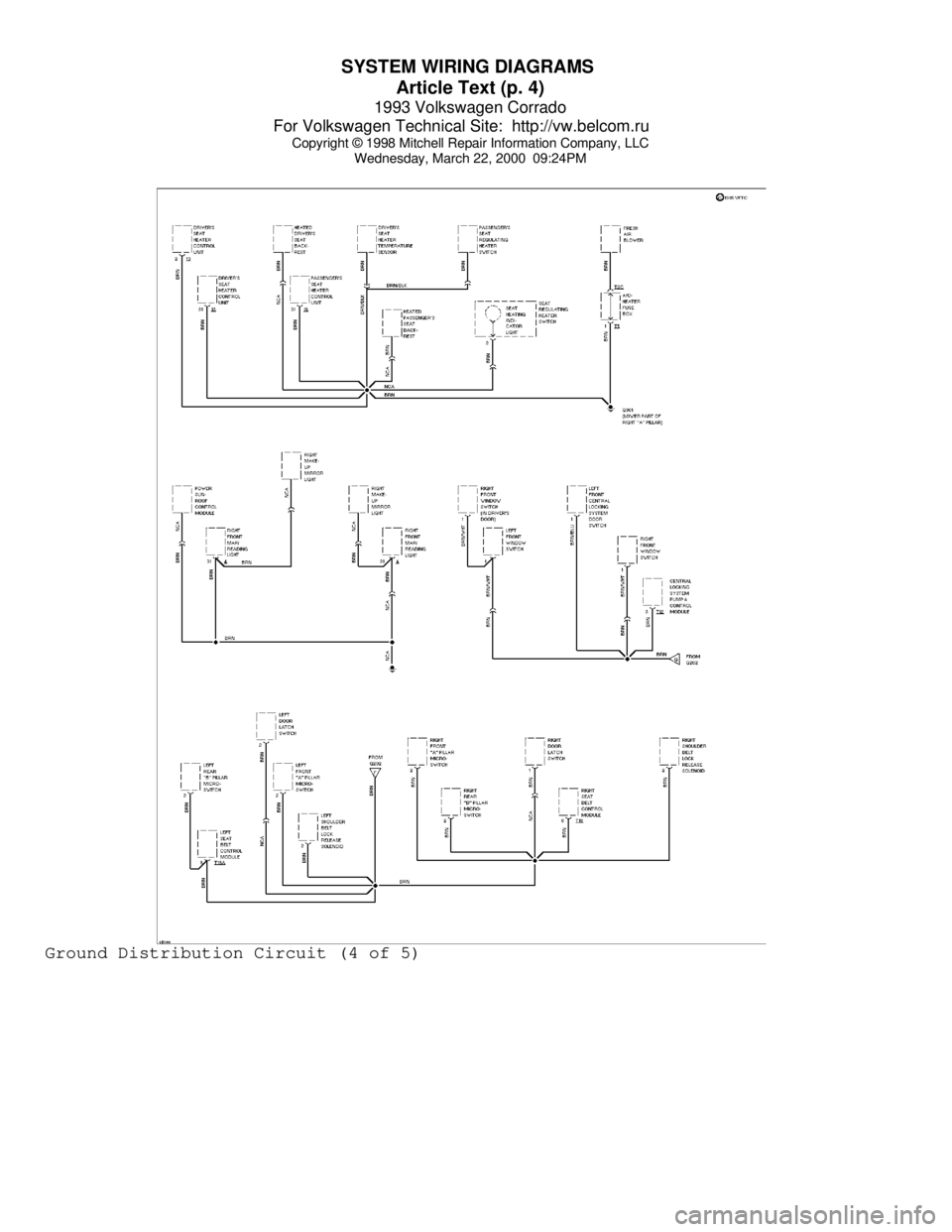

GROUND DISTRIBUTIONGround Distribution Circuit (1 of 5)

SYSTEM WIRING DIAGRAMS
Article Text (p. 2)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

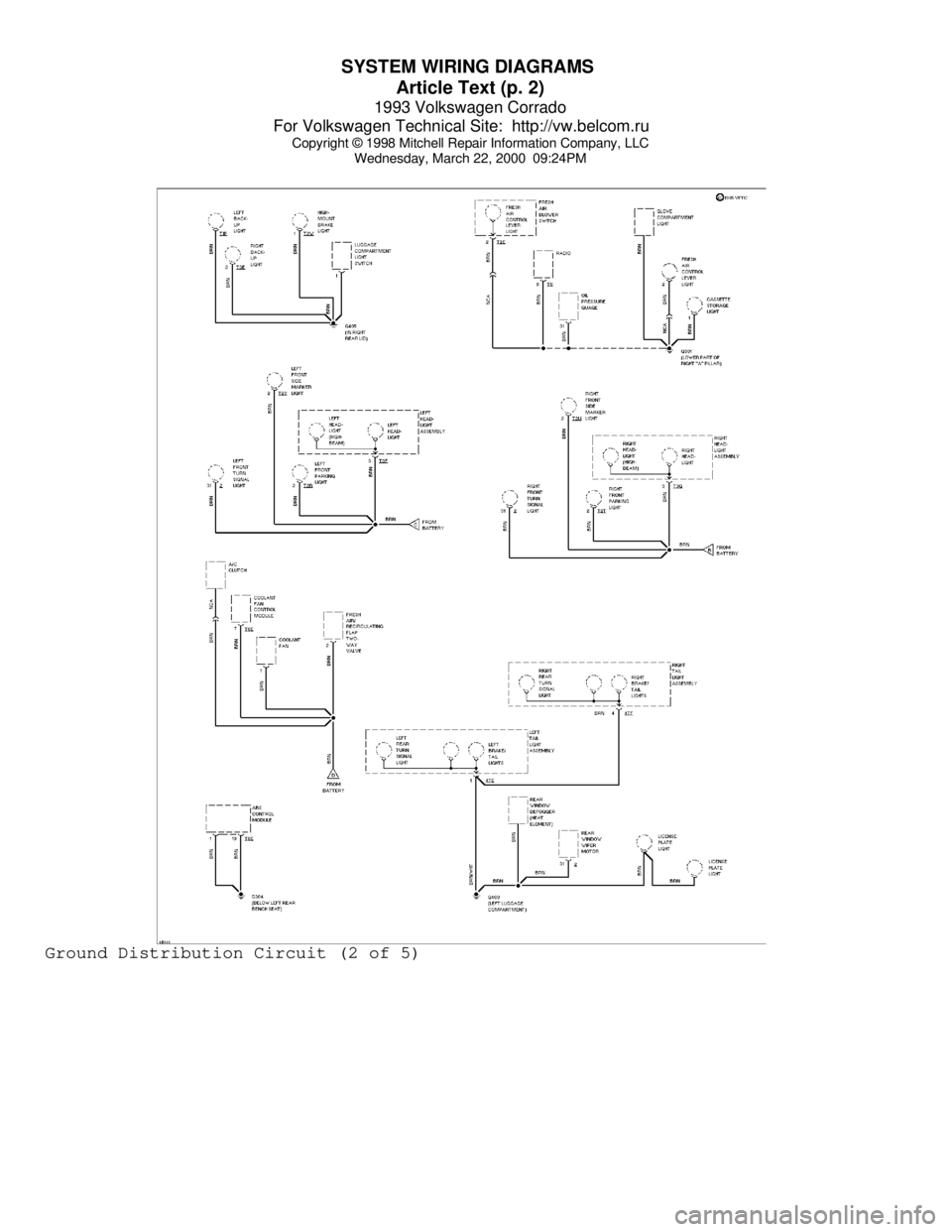

Wednesday, March 22, 2000 09:24PMGround Distribution Circuit (2 of 5)

SYSTEM WIRING DIAGRAMS
Article Text (p. 3)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

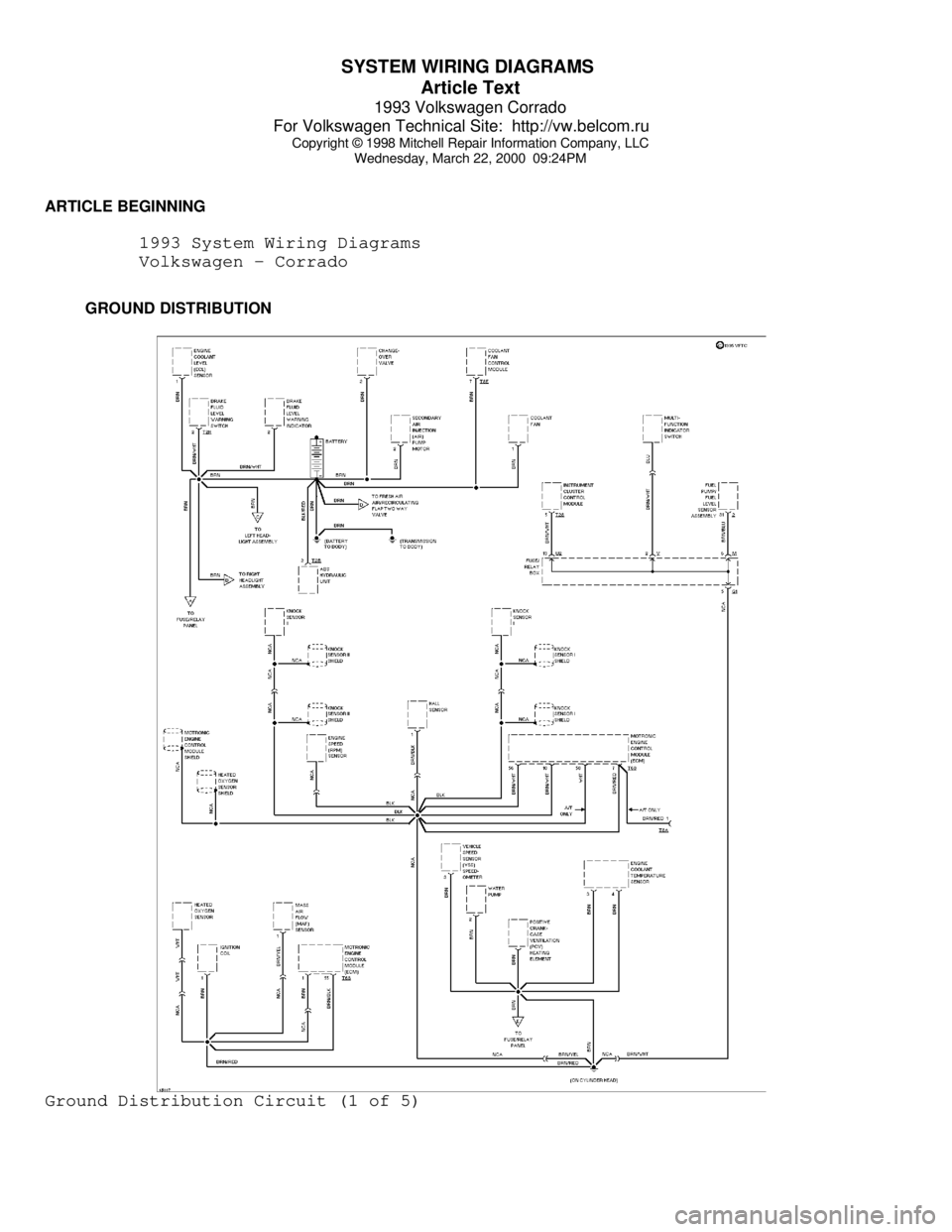

Wednesday, March 22, 2000 09:24PMGround Distribution Circuit (3 of 5)

SYSTEM WIRING DIAGRAMS
Article Text (p. 4)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:24PMGround Distribution Circuit (4 of 5)
