1993 VOLKSWAGEN CORRADO diagram

L - WIRING DIAGRAMS
Article Text (p. 7)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

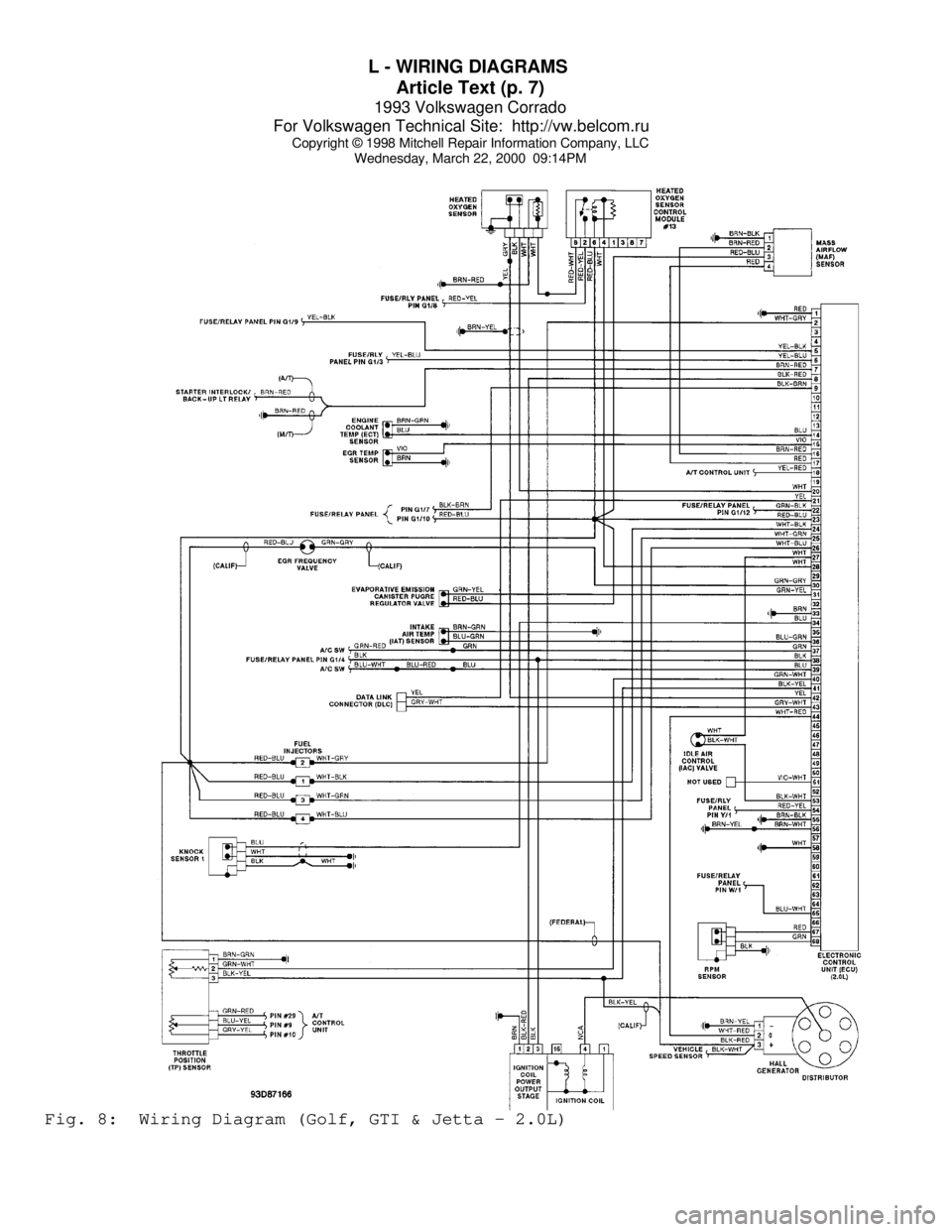

Wednesday, March 22, 2000 09:14PMFig. 8: Wiring Diagram (Golf, GTI & Jetta - 2.0L)

L - WIRING DIAGRAMS
Article Text (p. 8)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

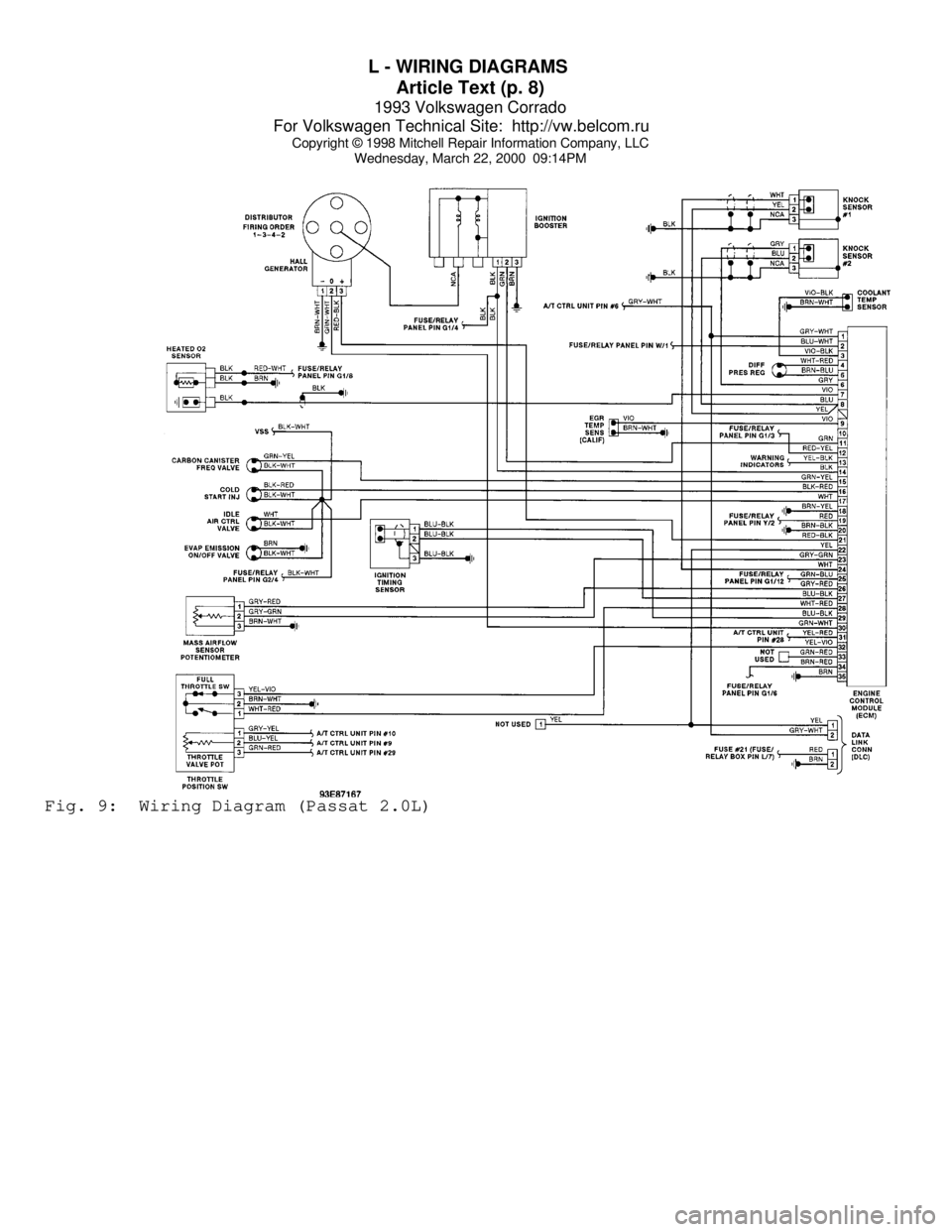

Wednesday, March 22, 2000 09:14PMFig. 9: Wiring Diagram (Passat 2.0L)

L - WIRING DIAGRAMS
Article Text (p. 9)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

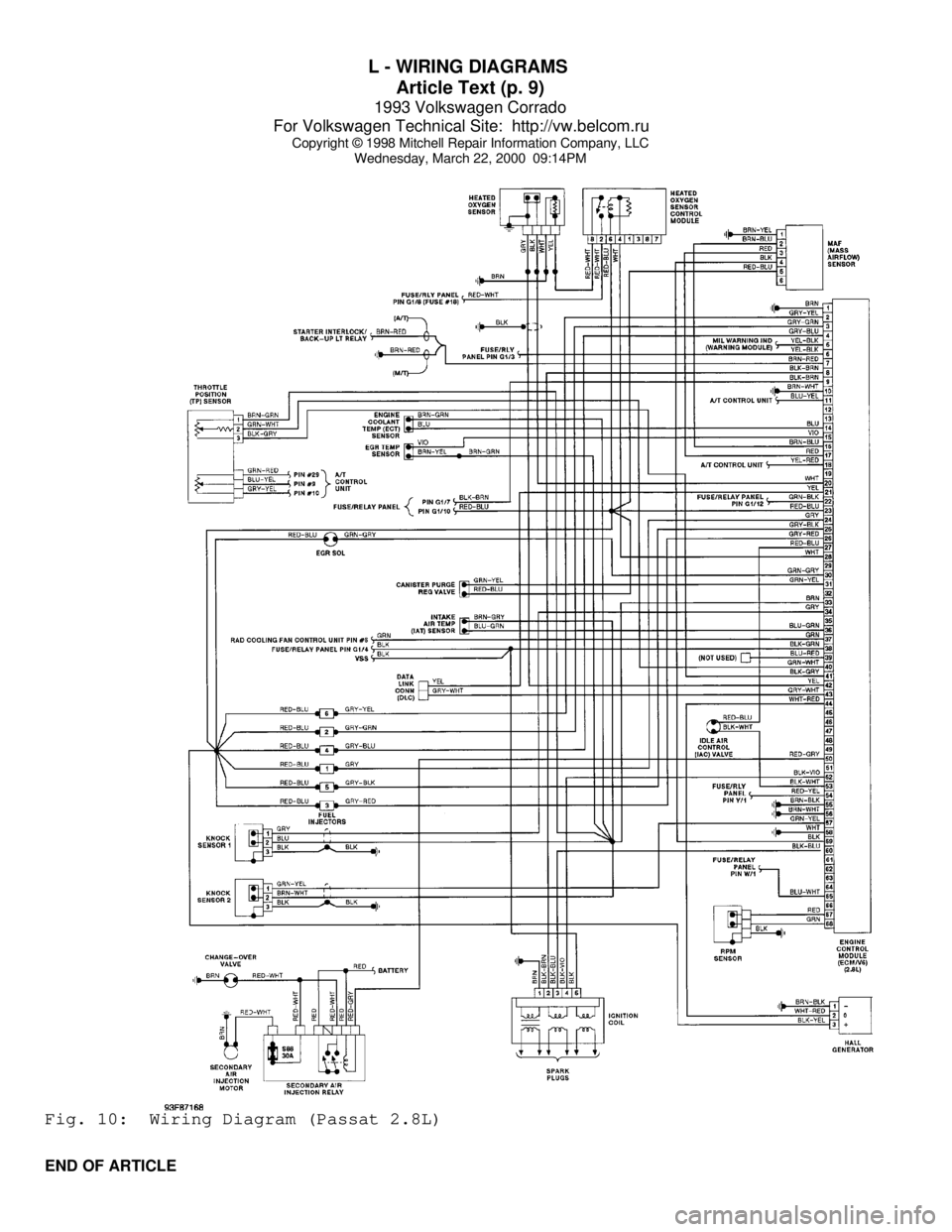

Wednesday, March 22, 2000 09:14PMFig. 10: Wiring Diagram (Passat 2.8L)
END OF ARTICLE

M - VACUUM DIAGRAMS
Article Text
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PM
ARTICLE BEGINNING
1993 ENGINE PERFORMANCE
Vacuum Diagrams
Cabriolet, Corrado SLC, EuroVan,
Fox, Golf, GTI, Jetta, Passat
INTRODUCTION
This article contains underhood views or schematics of vacuum
hose routing. Use these vacuum diagrams during visual inspection. This
will assist in identifying improperly routed vacuum hoses which cause
driveability and/or computer-indicated malfunctions.
CABRIOLET & FOX VACUUM DIAGRAMS
NOTE: Vacuum diagrams are not available for Cabriolet or Fox.
EUROVAN VACUUM DIAGRAMSFig. 1: Fuel Evaporation System Vacuum Diagram (EuroVan)
Courtesy of Volkswagen United States, Inc.

M - VACUUM DIAGRAMS
Article Text (p. 2)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PM

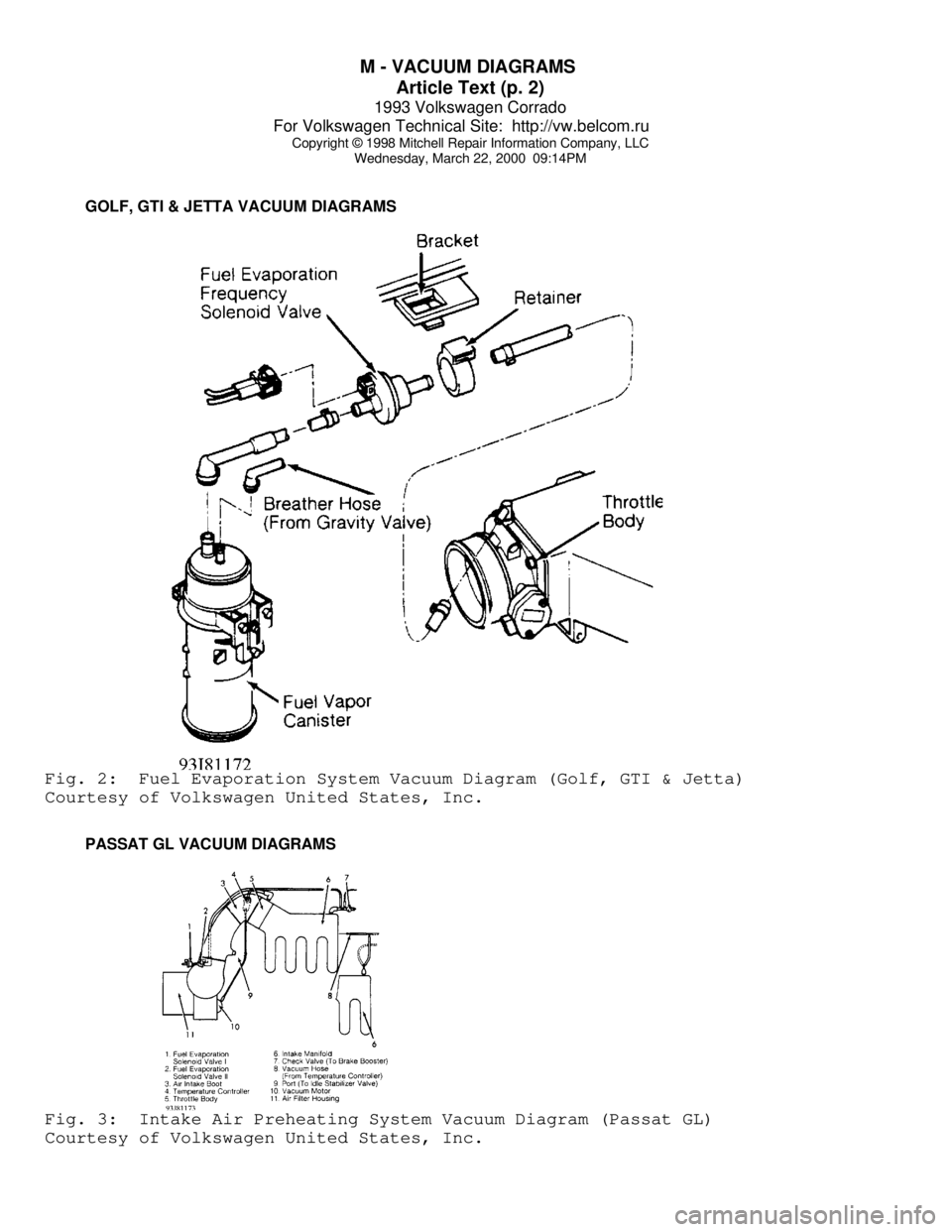

GOLF, GTI & JETTA VACUUM DIAGRAMSFig. 2: Fuel Evaporation System Vacuum Diagram (Golf, GTI & Jetta)
Courtesy of Volkswagen United States, Inc.
PASSAT GL VACUUM DIAGRAMSFig. 3: Intake Air Preheating System Vacuum Diagram (Passat GL)
Courtesy of Volkswagen United States, Inc.

M - VACUUM DIAGRAMS
Article Text (p. 3)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

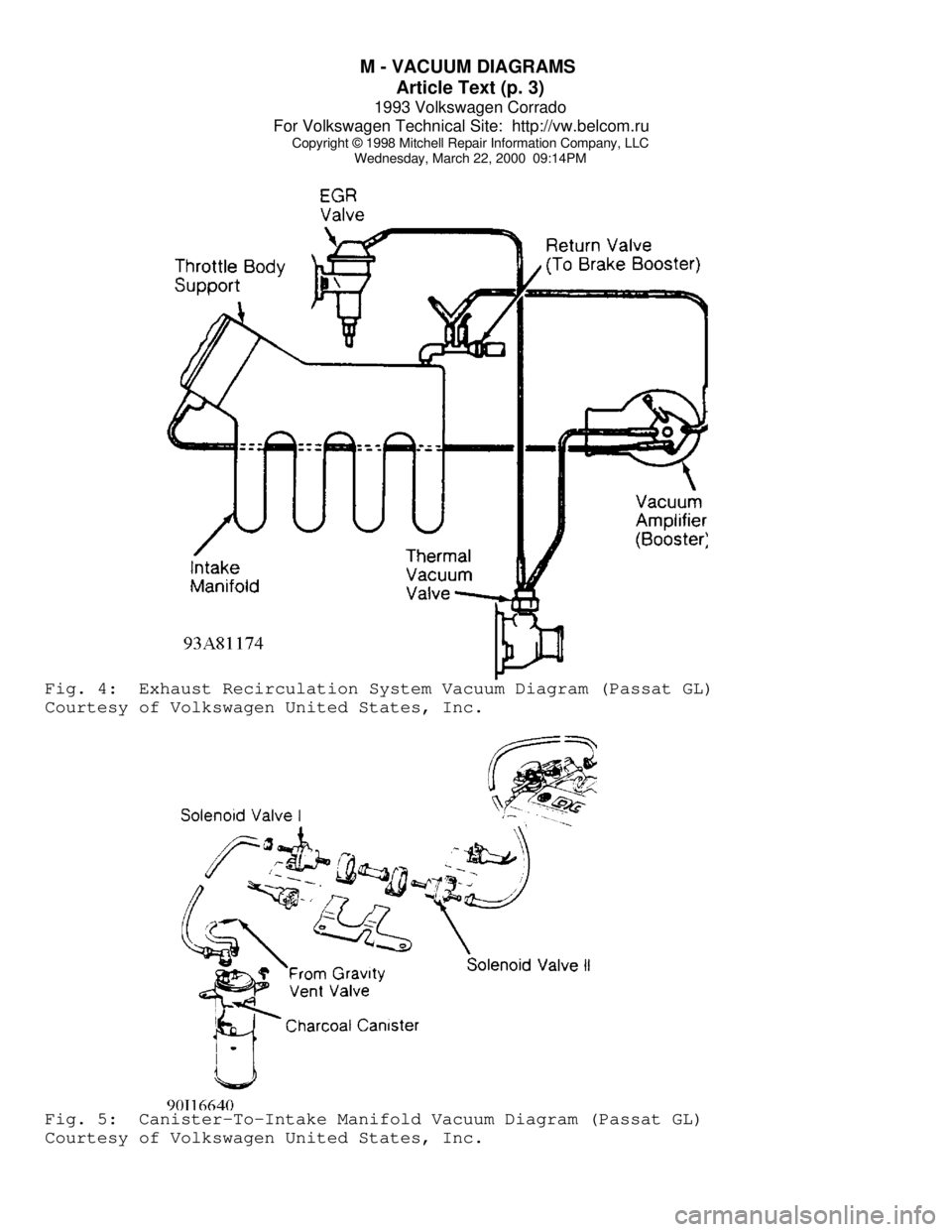

Wednesday, March 22, 2000 09:14PMFig. 4: Exhaust Recirculation System Vacuum Diagram (Passat GL)
Courtesy of Volkswagen United States, Inc.Fig. 5: Canister-To-Intake Manifold Vacuum Diagram (Passat GL)
Courtesy of Volkswagen United States, Inc.

M - VACUUM DIAGRAMS
Article Text (p. 4)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PM

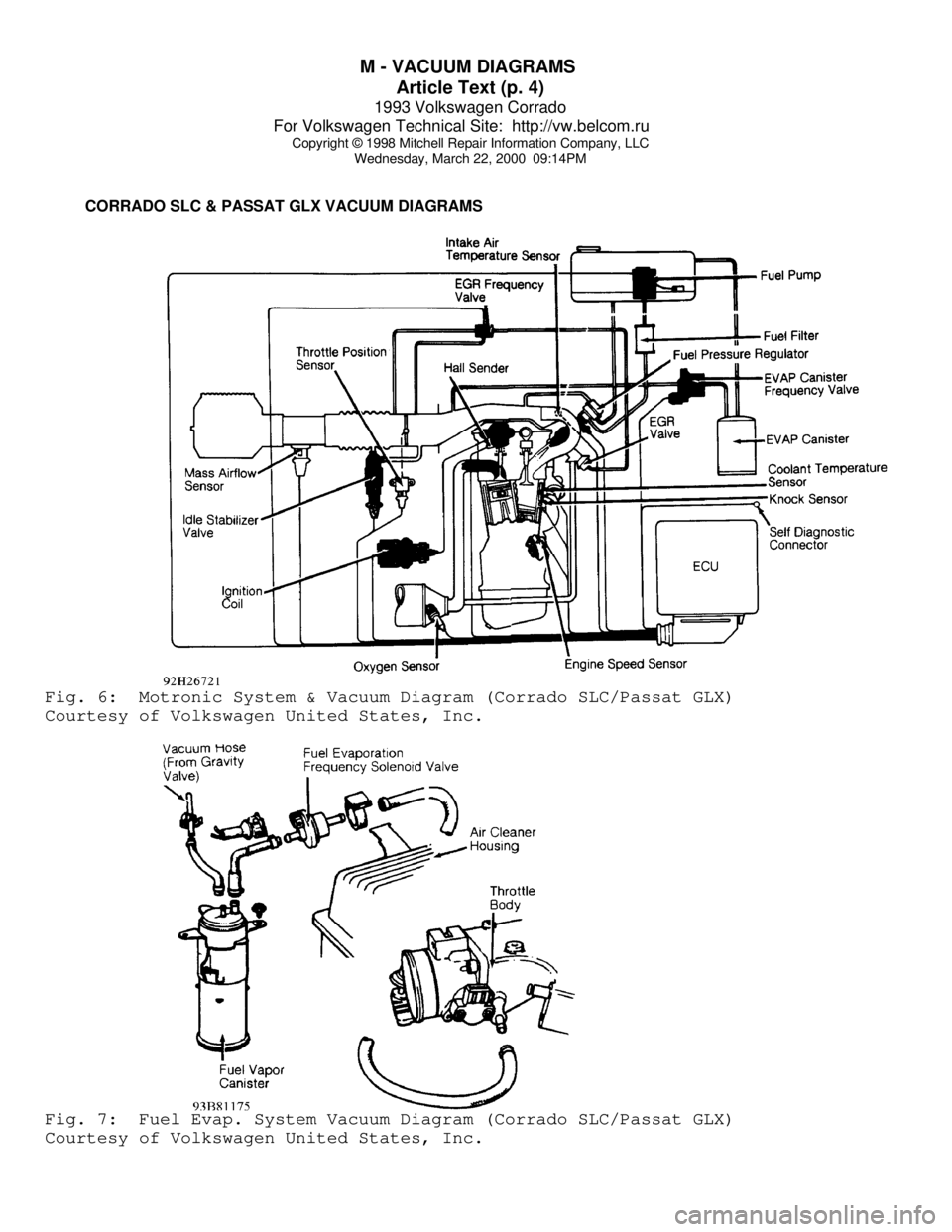

CORRADO SLC & PASSAT GLX VACUUM DIAGRAMSFig. 6: Motronic System & Vacuum Diagram (Corrado SLC/Passat GLX)
Courtesy of Volkswagen United States, Inc.Fig. 7: Fuel Evap. System Vacuum Diagram (Corrado SLC/Passat GLX)
Courtesy of Volkswagen United States, Inc.

M - VACUUM DIAGRAMS
Article Text (p. 5)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:14PM
END OF ARTICLE
