WIRING DIAGRAM SYMBOLS
Article Text (p. 5)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:27PMFig. 24: Two Pin SwitchFig. 25: Variable Resistor or Potentiometer
END OF ARTICLE

WIRING DIAGRAMS
Article Text
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:28PM
ARTICLE BEGINNING
1993 WIRING DIAGRAMS
Volkswagen Wiring Diagrams
Volkswagen; Corrado
COMPONENT LOCATION MENU
COMPONENT LOCATIONS TABLEÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄComponent Figure No. (Location)
A/C COMPRESSOR CLUTCH ................................. 7 (C 3)
A/C PRESSER SWITCH .................................... 1 (C 1)
A/C SWITCH ........................................ 6 (E 20
Ä21)
ABS CONTROL UNIT .................................. 4 (B 12-14)
ABS DIAGNOSTIC CONNECTOR ............................. 4 (D 15)
ABS HYDRAULIC PUMP FUSE .............................. 4 (E 15)
ABS VALVE FUSE ....................................... 4 (A 12)
ABS WARNING SWITCHES ................................. 4 (B 15)
ALTERNATOR ............................................ 1 (B 3)
ANTI-THEFT ALARM CONTROL UNIT ......................... 3 (E 8)
BACK-UP LIGHT SWITCH ........................... 9,10 (E 32
Ä39)
BATTERY ............................................... 1 (A 2)
BEAM SELECT SWITCH ................................... 6 (A 20)
BRAKE FLUID LEVEL SWITCH ............................. 8 (A 31)
CENTRAL LOCK CONTROL UNIT ........................... 10 (A 39)
CIGARETTE LIGHTER AND LIGHT .......................... 7 (A 24)
COOLANT FAN CONTROL/COOLANT TEMPERATURE SENDER UNIT ... 1 (D 1)
COOLANT TEMPERATURE SENDER (EXCEPT SLC) .............. 8 (A 29)
CRUISE CONTROL UNIT ............................... 4 (A 12
Ä15)
DEFOGGER SWITCH ...................................... 8 (E 29)
DIRECTIONAL HAZARD SWITCH ............................ 6 (A 21)
DOOR SWITCHES ....................................... 10 (B 38)
ENGINE CONTROL MODULE (ECM)(SLC) .................... 2 (A
ÄE 7)
FOG LIGHT SWITCH ..................................... 6 (A 23)
FRESH AIR SWITCH ............................. 6,9 (E 22, E 32)
FRESH AIR SWITCH ILLUMINATION LIGHT .................. 6 (D 20)
FUEL INJECTORS ........................................ 2 (D 4)
FUEL TANK SENDER ..................................... 5 (E 18)
FUSE #23 ............................................. 6 (D 20)
FUSE #51 ............................................. 9 (D 34)
FUSE/RELAY PANEL ............................... 5,8 (C 16, 31)
FUSE/RELAY PANEL LAYOUT ...................... 10 (D, E 37, 39)
GLOVE COMPARTMENT LIGHT .......................... 9 (D 30, 31)
HYDRAULIC PUMP RELAY ............................... 5 (D-E 15)
HYDRAULIC UNIT .................................... 5 (E 17
Ä15)
IGNITION COIL ......................................... 2 (E 6)
IGNITION SWITCH ...................................... 5 (A 16)
INSTRUMENT CLUSTER .............................. 9 (A
ÄD 32Ä34)
INTERIOR LIGHT SWITCH ............................... 11 (E 41)

WIRING DIAGRAMS
Article Text (p. 2)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:28PM
LEFT REAR MICRO SWITCH ............................... 9 (D 33)
LEFT SEAT BELT CONTROL UNIT .......................... 9 (D 35)
LIGHT SWITCH ...................................... 5 (A 18Ä19)
LUGGAGE COMPARTMENT LIGHT SWITCH ..................... 7 (A 26)
MAKE UP MIRROR ...................................... 11 (E 42)
O2 SENSOR .................................... 1,2 (A 3, A 5
Ä6)
OIL PRESSER GAUGE ................................... 9 (A 35)
OIL PRESSER SWITCHES ................................. 7 (A 25)
PARK BRAKE SWITCH .................................... 8 (A 31)
POWER MIRRORS ..................................... 11 (B
ÄD 42)
POWER WINDOW CIRCUIT BREAKER ........................ 10 (A 38)
POWER WINDOWS .................................. 11 (B
ÄD 36Ä39)
PROGRAM SWITCH ........................................ 3 (B 8)
RADIATOR COOLING FAN .................................. 1 (D 3)
RADIATOR COOLING FAN CONTROL UNIT ................... 1 (C-D 3)
RADIATOR COOLING FAN THERMO SW (SLC) .................. 1 (C 1)
REAR SPOILER SYSTEM ............................ 12 (A
ÄB 40Ä42)
REAR WIPER SYSTEM ................................. 7 (E 26
Ä27)
RIGHT SEAT BELT CONTROL UNIT ....................... 9 (B
ÄC 35)
SEAT BELT SWITCH ..................................... 8 (E 35)
SEAT HEATER SYSTEM ............................. 11 (C
ÄE 40Ä41)
SPEED SENSOR ......................................... 7 (B 26)
STARTER ............................................... 1 (A 3)
STARTER INTERLOCK/BACK-UP LIGHT RELAY (A/T) ........... 3 (A 8)
STOP LIGHT SWITCH .................................... 8 (B 29)
SUNROOF .......................................... 10 (E 36
Ä37)
THROTTLE POSITION SENSOR .............................. 2 (E 4)
VACUUM VENT VALVE ................................. 4 (B 13
Ä14)
VOLTMETER ............................................ 9 (B 35)
WINDSHIELD WIPER SYSTEM ......................... 7 (D
ÄE 24Ä27)
WARNING MODULE ................................ 4,8 (C
ÄD 12Ä28)
WASHER NOZZLE HEATERS ................................ 7 (E 27)
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ WIRING DIAGRAMS

WIRING DIAGRAMS
Article Text (p. 3)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

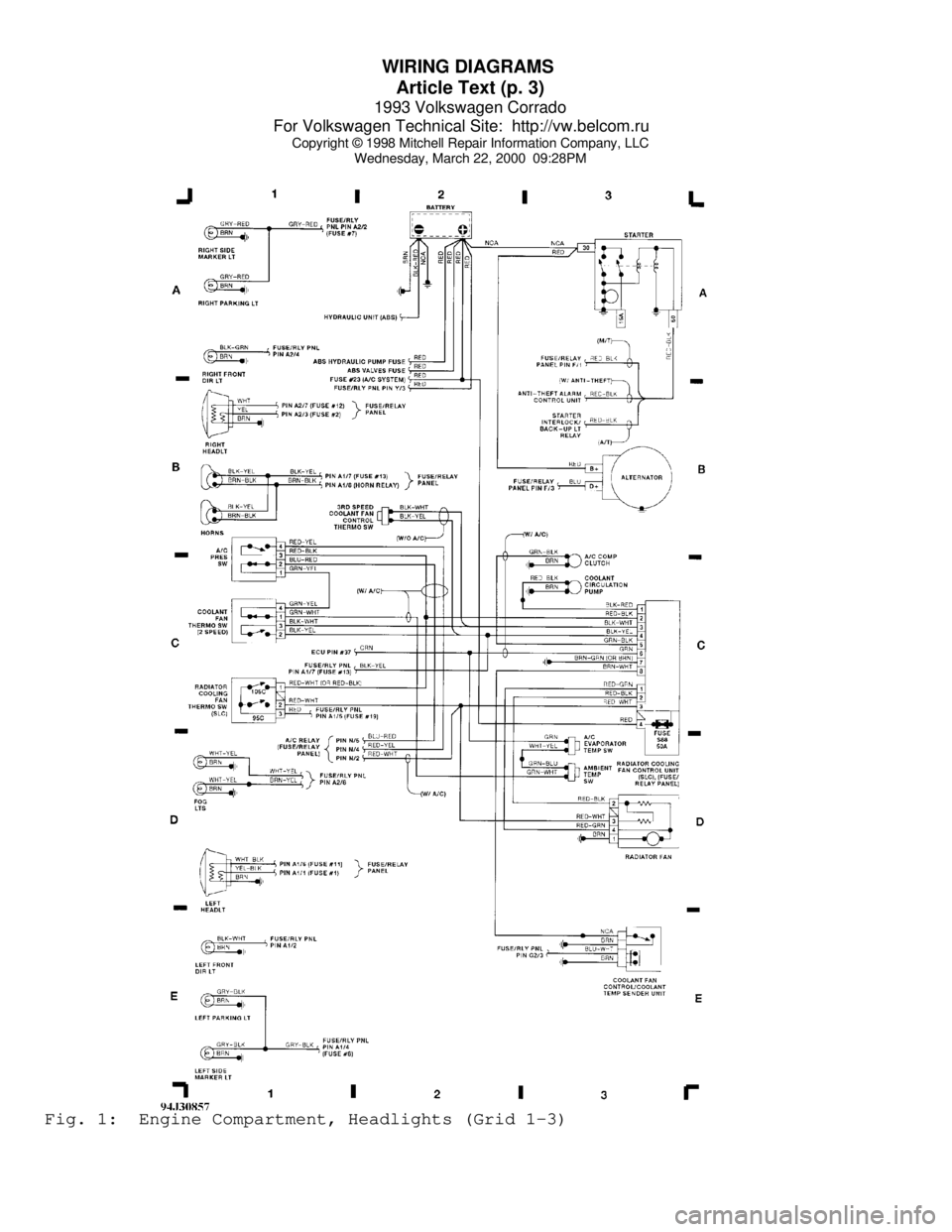

Wednesday, March 22, 2000 09:28PMFig. 1: Engine Compartment, Headlights (Grid 1-3)

WIRING DIAGRAMS
Article Text (p. 4)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:28PMFig. 2: Engine Control Module V6, Ignition Coil (Grid 4-7)

WIRING DIAGRAMS
Article Text (p. 5)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

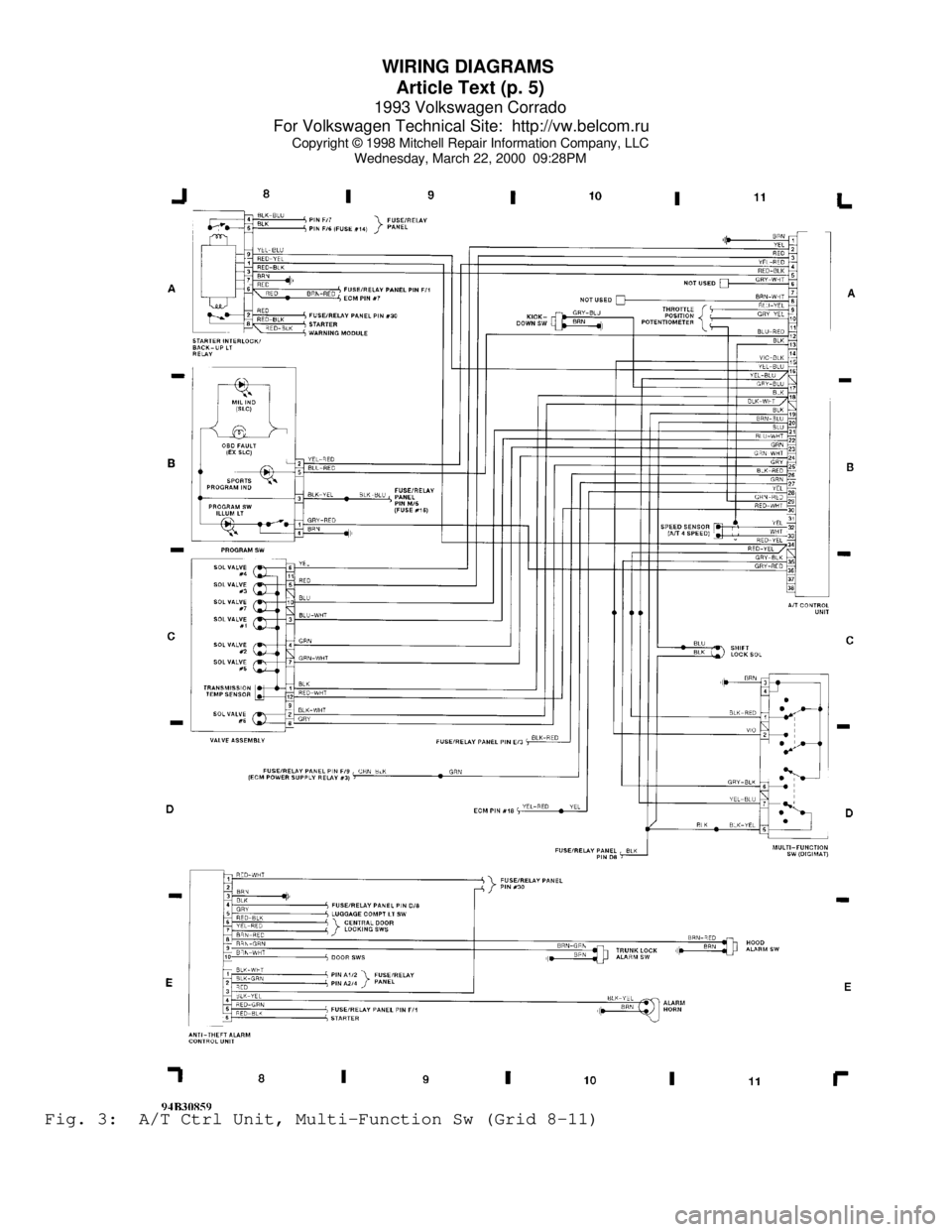

Wednesday, March 22, 2000 09:28PMFig. 3: A/T Ctrl Unit, Multi-Function Sw (Grid 8-11)

WIRING DIAGRAMS
Article Text (p. 6)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

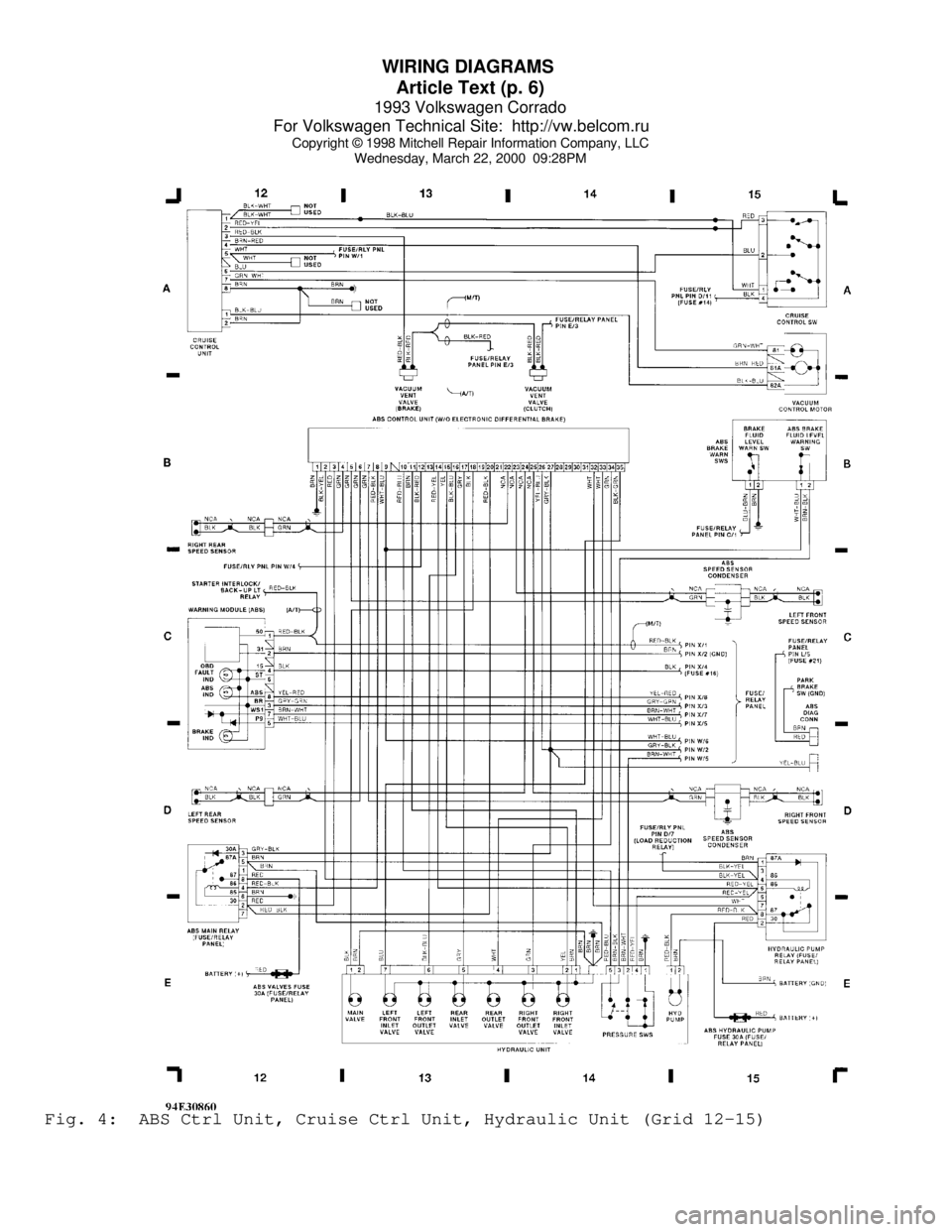

Wednesday, March 22, 2000 09:28PMFig. 4: ABS Ctrl Unit, Cruise Ctrl Unit, Hydraulic Unit (Grid 12-15)

WIRING DIAGRAMS
Article Text (p. 7)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:28PMFig. 5: Fuse/Relay Panel, Ignition Sw, Lt Sw (Grid 16-19)
