1993 ACCESSORIES & EQUIPMENT
Volkswagen Rear Window Defoggers
Volkswagen; Cabriolet, Corrado SLC, EuroVan,
Fox, Golf, GTI, Jetta, Passat
DESCRIPTION & OPERATION
Ignition must be on for rear window defogger to operate.
Power to control switch is applied through fuse in fuse block. An
indicator light in the control switch comes on when the defogger is
turned on. Control switch also provides power to heating element in
both outside mirrors.
TROUBLE SHOOTING
DEFOGGER DOES NOT WORK
Check for blown fuse, defective defogger switch, open wiring
or poor connections. Check for breaks in rear window defogger grid.
See FILAMENT TEST under TESTING.
INDICATOR LIGHT DOES NOT WORK
Check for burned bulb, blown fuse, open wiring or poor
connection.
TESTING
SYSTEM TEST
Ensure and control switch are okay. Turn ignition and control
switch on. After a few minutes, feel glass for warmth. If glass is not
warm, use a test light to check for battery voltage at grid feed wire.
If no voltage is present, check control switch.
FILAMENT TEST
1) To locate breaks in grid filaments, connect test light
negative lead to ground side of grid. Touch opposite (positive) side
of grid with test light probe. If test light glows, grid line is okay.
Test light will glow dimmer as probe is moved toward ground side of
grid.
2) If test light does not glow, grid line is broken. To
locate break, move probe along grid line toward ground side of heat
grid until test light glows, indicating area of damage.
WIRING DIAGRAMS

HOW TO USE SYSTEM WIRING DIAGRAMS
Article Text (p. 6)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:11PM
Power Windows
Remote Keyless Entry
Evaporative (EVAP) Emissions Canister ........... Engine Performance
EVAP Canister Purge Solenoid .................... Engine Performance
EVAP Canister Vent Solenoid ..................... Engine Performance
Exhaust Gas Recirculation (EGR) Valve ........... Engine Performance
Fuel Tank Vacuum Sensor ......................... Engine Performance
Fog Lights ....................................... Headlight Systems
Daytime Running Lights
Fog Light Relay .................................. Headlight Systems
Daytime Running Lights
Fuel Door Release Solenoid ................. Power Fuel Door Release
Fuel Gauge Sending Unit ................... Analog Instrument Panels
Fuel Injectors .................................. Engine Performance
Fuel Pump ....................................... Engine Performance
Fuel Pump Relay ................................. Engine Performance
Power Distribution
Fuse/Relay Block ................................ Power Distribution
Fusible Links ................................... Power Distribution
Generators & Regulators
Starters
Generator .................................. Generators & Regulators
Engine Performance
Power Distribution
Generic Electronic Module (GEM) ............... Body Control Modules
Electronic Suspension
Glow Plug Relay ................................. Engine Performance
Glow Plugs ...................................... Engine Performance
Grounds ........................................ Ground Distribution
Headlight Door Module .............................. Headlight Doors
Headlight Relay .................................. Headlight Systems
Daytime Running Lights
Headlights ....................................... Headlight Systems
Daytime Running Lights
Heated Oxygen Sensor(s) (HO2S) .................. Engine Performance
Heated Windshield Control Module ................ Heated Windshields
Height Sensor ................................ Electronic Suspension
Horns ..................................... Steering Column Switches
Horn Relay ................................ Steering Column Switches
Idle Air Control (IAC) Motor/Valve .............. Engine Performance
Ignition Coil(s) ................................ Engine Performance
Ignition Key Lock Cylinder ....................... Anti-Theft System
Ignition Module ................................. Engine Performance
Ignition Switch ................................. Power Distribution
Engine Performance
Generators & Regulators
Starters
Illuminated Entry Module .............. Illumination/Interior Lights
Illumination Lights ................... Illumination/Interior Lights
Impact Sensor ............................. Air Bag Restraint System
Inertia Fuel Shutoff Switch ..................... Engine Performance
Inhibit Relay ............................................. Starters

HOW TO USE SYSTEM WIRING DIAGRAMS
Article Text (p. 7)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:11PM
Instrument Cluster ........................ Analog Instrument Panels
Intake Air Temperature (IAT) Sensor ............. Engine Performance
Interior Lights ....................... Illumination/Interior Lights
Interlock Switch .......................................... Starters
Junction Block .................................. Power Distribution
Keyless Entry Receiver ........................ Remote Keyless Entry
Key Reminder Switch ....................................... Starters
Knock Sensor .................................... Engine Performance
Lamp Control Module ................................ Exterior Lights
License Plate Lamp ................................. Exterior Lights
Lighting Control Module ................... Lighting Control Modules
Anti-Theft System
Daytime Running Lights
Headlight Systems
Lower Relay .................................. Power Convertible Top
Malfunction Indicator Light (MIL) ............... Engine Performance
Instrument Panels
Manifold Absolute Pressure (MAP) Sensor ......... Engine Performance
Mass Airflow (MAF) Sensor ....................... Engine Performance
Mega Fuse .................................. Generators & Regulators
Memory Seat/Mirror Module ........................... Memory Systems
Mirror Defogger ............................... Rear Window Defogger
Moon Roof Motor .................................... Power Moon Roof
Moon Roof Relay .................................... Power Moon Roof
Multi-Function Control Module ...................... Warning Systems
Neutral Safety Switch ..................................... Starters
Oil Level Switch ................................ Engine Performance
Oil Pressure Switch/Sending Unit .......... Analog Instrument Panels
Engine Performance
Overhead Console .................................. Overhead Console
Oxygen Sensor(s) (O2S) .......................... Engine Performance
Parking Brake Switch ...................... Analog Instrument Panels
Park Lights ........................................ Exterior Lights
Park/Neutral Position Switch .............................. Starters
Engine Performance
Anti-Theft System
Body Control Module
Perimeter Lighting Control Relay ................... Exterior Lights
Power Amplifier ..................................... Power Antennas
Power Antenna Module ................................ Power Antennas
Power Antenna Motor ................................. Power Antennas
Power Distribution Center ....................... Power Distribution
Generators & Regulators
Starters
Power Door Lock Motors ............................ Power Door Locks
Power Mirror Motors .................................. Power Mirrors
Memory Systems
Power Sliding Door Controller .............. Power Sliding Side Door
Power Seat Motors ...................................... Power Seats
Memory Systems
Power Steering Pressure Switch .................. Engine Performance
Power Top Motor .............................. Power Convertible Top

TROUBLE SHOOTING - BASIC PROCEDURES
Article Text (p. 9)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:25PM
malfunction necessaryÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄAlternator Light Loose or worn alternator Check alternator drive
Stays On With drive belt tension and
Engine Running condition, See Belt
Adjustment in TUNE-UP
article in the
TUNE-UP section
Loose alternator wiring Check all charging
connections system connections
Short in alternator light See Indicator Warning
wiring Lights in STANDARD
INSTRUMENTS in the
ACCESSORIES &
EQUIPMENT section
Defective alternator stator See Bench Tests in
or diodes ALTERNATOR article
Defective regulator See Regulator Check in
ALTERNATOR article
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄAlternator Blown fuse See WIRING DIAGRAMS
Light Stays Off
With Ignition
Switch ON
Defective alternator See Testing in
ALTERNATOR article
Defective indicator light See Indicator Warning
bulb or socket Lights in STANDARD
INSTRUMENTS in the
ACCESSORIES &
EQUIPMENT section
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄAlternator Short in alternator wiring See On-Vehicle Tests
Light Stays OFF in ALTERNATOR article
With Ignition
Switch ON
Defective rectifier bridge See Bench Tests in
ALTERNATOR article
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄLights or Fuses Defective alternator wiring See On-Vehicle Tests
Burn Out in ALTERNATOR article
Frequently
Defective regulator See Regulator Check in
ALTERNATOR article

WIRING DIAGRAM SYMBOLS
Article Text (p. 4)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:27PMFig. 9: Defogger GridFig. 10: FuseFig. 11: Fusible LinkFig. 12: GroundFig. 13: Glow Plug Resistor (In-Line) or Mirror HeaterFig. 14: Injector (Diesel) or Photocell (Gasoline)Fig. 15: Internal Fuse, Thermal LimiterFig. 16: Lamp (Dual Element)Fig. 17: Lamp (Single Element)Fig. 18: MotorFig. 19: Resistor (Internal)Fig. 20: Sensor, ThermistorFig. 21: SolenoidFig. 22: Solid State Device, TransistorFig. 23: Switch (Internal)

WIRING DIAGRAMS
Article Text
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:28PM
ARTICLE BEGINNING
1993 WIRING DIAGRAMS
Volkswagen Wiring Diagrams
Volkswagen; Corrado
COMPONENT LOCATION MENU
COMPONENT LOCATIONS TABLEÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄComponent Figure No. (Location)
A/C COMPRESSOR CLUTCH ................................. 7 (C 3)
A/C PRESSER SWITCH .................................... 1 (C 1)
A/C SWITCH ........................................ 6 (E 20
Ä21)
ABS CONTROL UNIT .................................. 4 (B 12-14)
ABS DIAGNOSTIC CONNECTOR ............................. 4 (D 15)
ABS HYDRAULIC PUMP FUSE .............................. 4 (E 15)
ABS VALVE FUSE ....................................... 4 (A 12)
ABS WARNING SWITCHES ................................. 4 (B 15)
ALTERNATOR ............................................ 1 (B 3)
ANTI-THEFT ALARM CONTROL UNIT ......................... 3 (E 8)
BACK-UP LIGHT SWITCH ........................... 9,10 (E 32
Ä39)
BATTERY ............................................... 1 (A 2)
BEAM SELECT SWITCH ................................... 6 (A 20)
BRAKE FLUID LEVEL SWITCH ............................. 8 (A 31)
CENTRAL LOCK CONTROL UNIT ........................... 10 (A 39)
CIGARETTE LIGHTER AND LIGHT .......................... 7 (A 24)
COOLANT FAN CONTROL/COOLANT TEMPERATURE SENDER UNIT ... 1 (D 1)
COOLANT TEMPERATURE SENDER (EXCEPT SLC) .............. 8 (A 29)
CRUISE CONTROL UNIT ............................... 4 (A 12
Ä15)
DEFOGGER SWITCH ...................................... 8 (E 29)
DIRECTIONAL HAZARD SWITCH ............................ 6 (A 21)
DOOR SWITCHES ....................................... 10 (B 38)
ENGINE CONTROL MODULE (ECM)(SLC) .................... 2 (A
ÄE 7)
FOG LIGHT SWITCH ..................................... 6 (A 23)
FRESH AIR SWITCH ............................. 6,9 (E 22, E 32)
FRESH AIR SWITCH ILLUMINATION LIGHT .................. 6 (D 20)
FUEL INJECTORS ........................................ 2 (D 4)
FUEL TANK SENDER ..................................... 5 (E 18)
FUSE #23 ............................................. 6 (D 20)
FUSE #51 ............................................. 9 (D 34)
FUSE/RELAY PANEL ............................... 5,8 (C 16, 31)
FUSE/RELAY PANEL LAYOUT ...................... 10 (D, E 37, 39)
GLOVE COMPARTMENT LIGHT .......................... 9 (D 30, 31)
HYDRAULIC PUMP RELAY ............................... 5 (D-E 15)
HYDRAULIC UNIT .................................... 5 (E 17
Ä15)
IGNITION COIL ......................................... 2 (E 6)
IGNITION SWITCH ...................................... 5 (A 16)
INSTRUMENT CLUSTER .............................. 9 (A
ÄD 32Ä34)
INTERIOR LIGHT SWITCH ............................... 11 (E 41)

WIRING DIAGRAMS
Article Text (p. 7)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

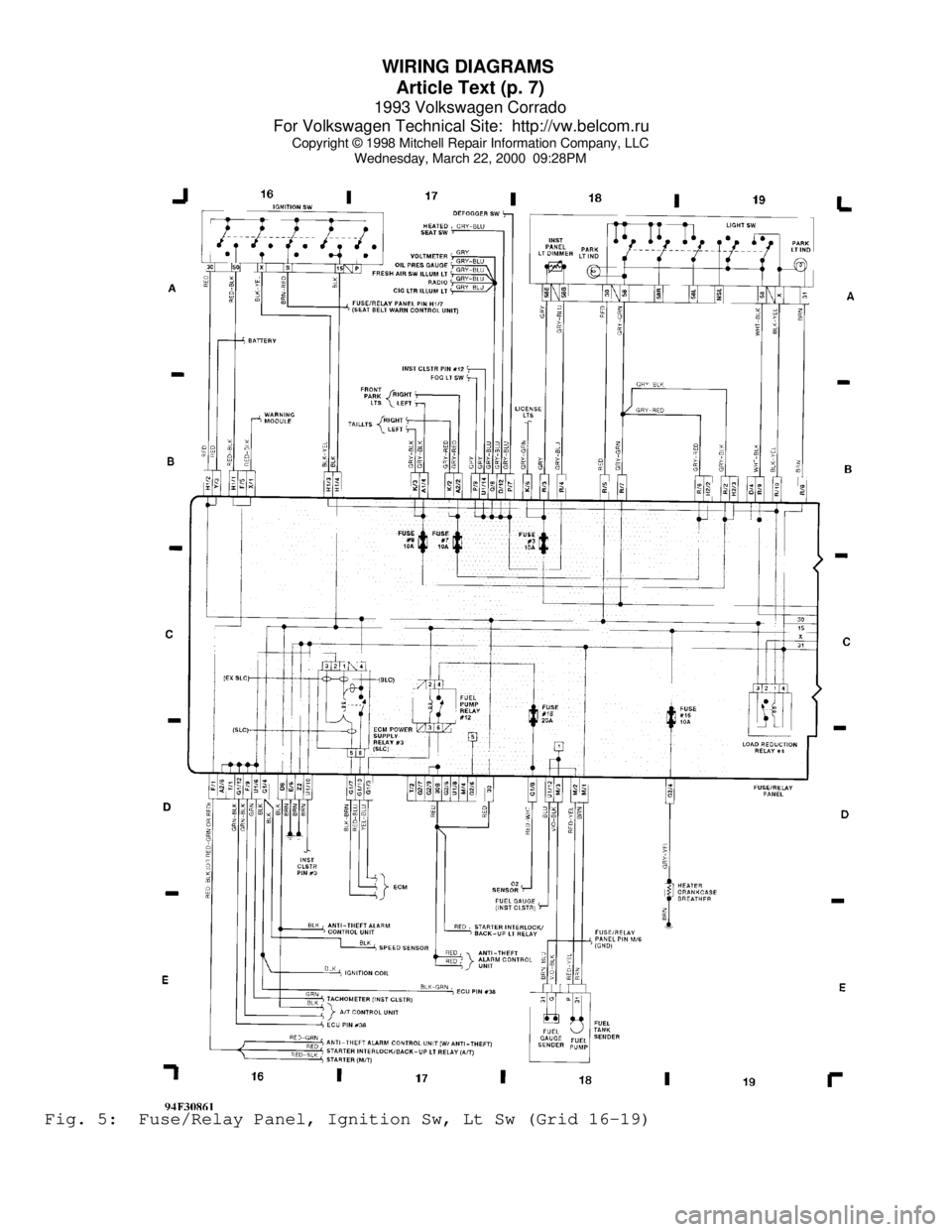

Wednesday, March 22, 2000 09:28PMFig. 5: Fuse/Relay Panel, Ignition Sw, Lt Sw (Grid 16-19)

WIRING DIAGRAMS
Article Text (p. 8)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

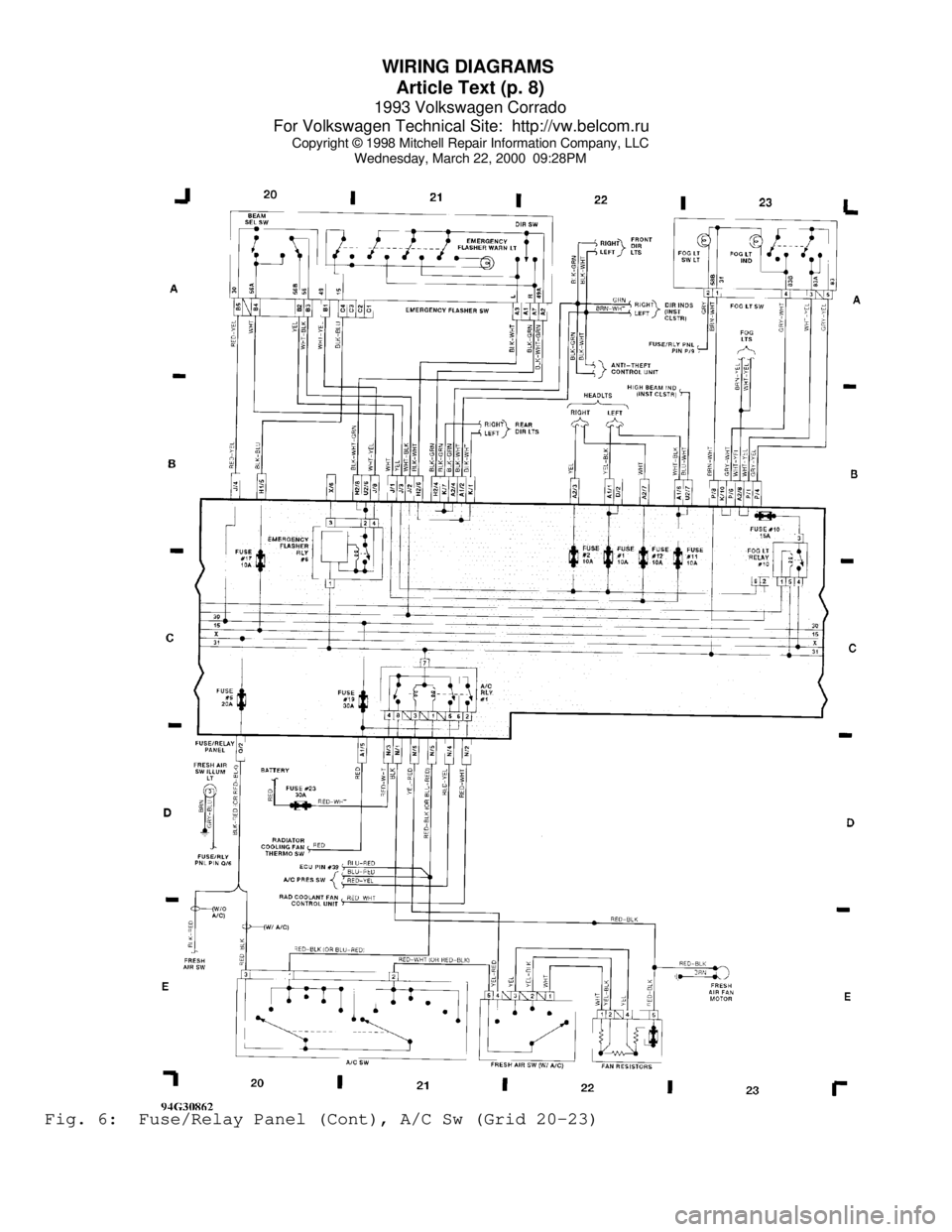

Wednesday, March 22, 2000 09:28PMFig. 6: Fuse/Relay Panel (Cont), A/C Sw (Grid 20-23)
