1993 VOLKSWAGEN CORRADO fuse diagram

WIRING DIAGRAMS
Article Text (p. 9)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC

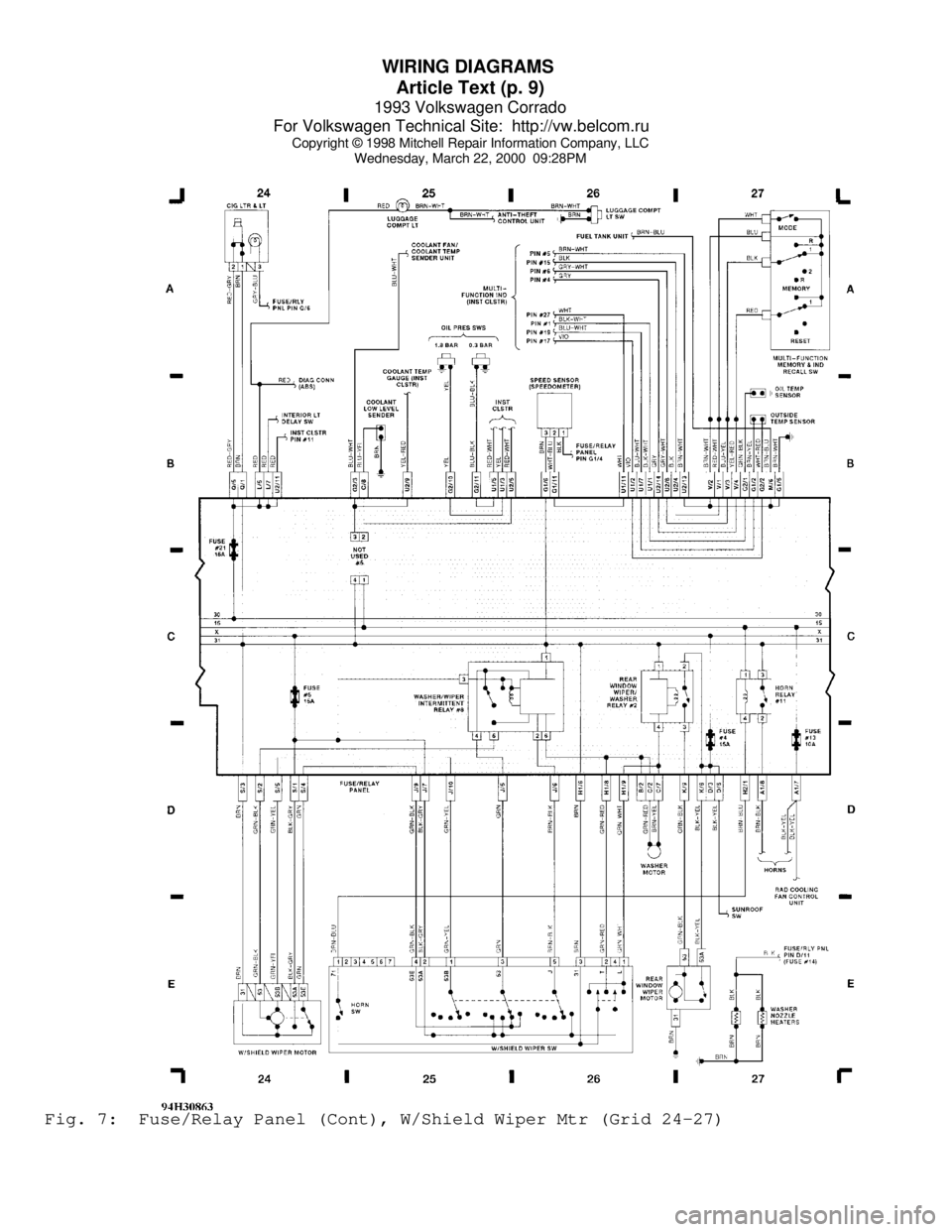

Wednesday, March 22, 2000 09:28PMFig. 7: Fuse/Relay Panel (Cont), W/Shield Wiper Mtr (Grid 24-27)

WIRING DIAGRAMS
Article Text (p. 10)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:28PMFig. 8: Fuse/Relay Panel (Cont), Warning Module (Grid 28-31)

WIRING DIAGRAMS
Article Text (p. 12)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:28PMFig. 10: Fuse/Relay Panel Layout, Sunroof Sw (Grid 36-39)
