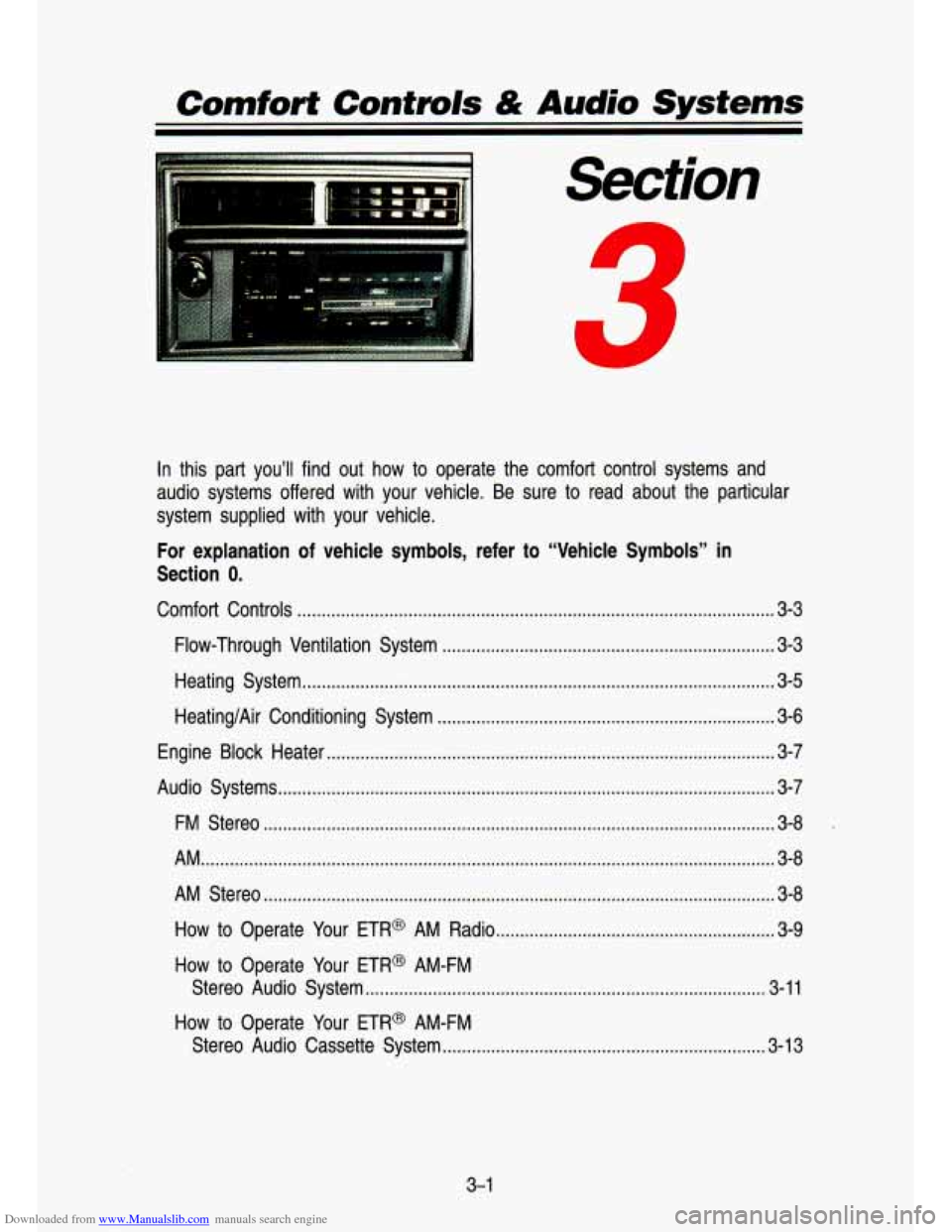

In this part you’ll find out how to operate the comfort contro\
l systems and
audio systems offered with your vehicle. Be sure to read about the particular
system supplied with your vehicle.
For explanation of vehicle
symbols, refer to “Vehicle Symbols” in
Section
0.
Comfort Controls ..............I..........I....I..........................I.......r......\
........................... 3-3
Flow-Through Ventilation System
..................................................................... 3-3
Heating System
.... -..- ........................................................................\
.................. 3-5
Heating/Air Conditioning System
............................................*.......,-.. ........ - ...... 3-6
Engine Block Heater
........................................................................\
..................... 3-7
Audio Systems
..................................................I....I................\
I.I..I.I...................I.I. 3-7
FM Stereo ........................................................................\
.................................. 3-8 .
AM ........ -...... ........ =....... ........ ...... ...... ........ ..... ...... .......... . ....... ........... .............. . .... .3-8
AM Stereo
................... ........................ ............................................................. 3-8
How to Operate Your ETR* AM Radio
..... .................... -.. ............ .......... 3-9
How to Operate
Your ETRB AM-FM
Stereo Audio System
........................................................................\
........... 3-11
How to Operate Your ETR@ AM-FM
Stereo Audio Cassette System
................................................................... 3-1 3
3-1

Downloaded from www.Manualslib.com manuals search engine Comfort Contmls & Audio Systems
How to Operate Your ETRs AM-FM
Stereo Audio Cassette System

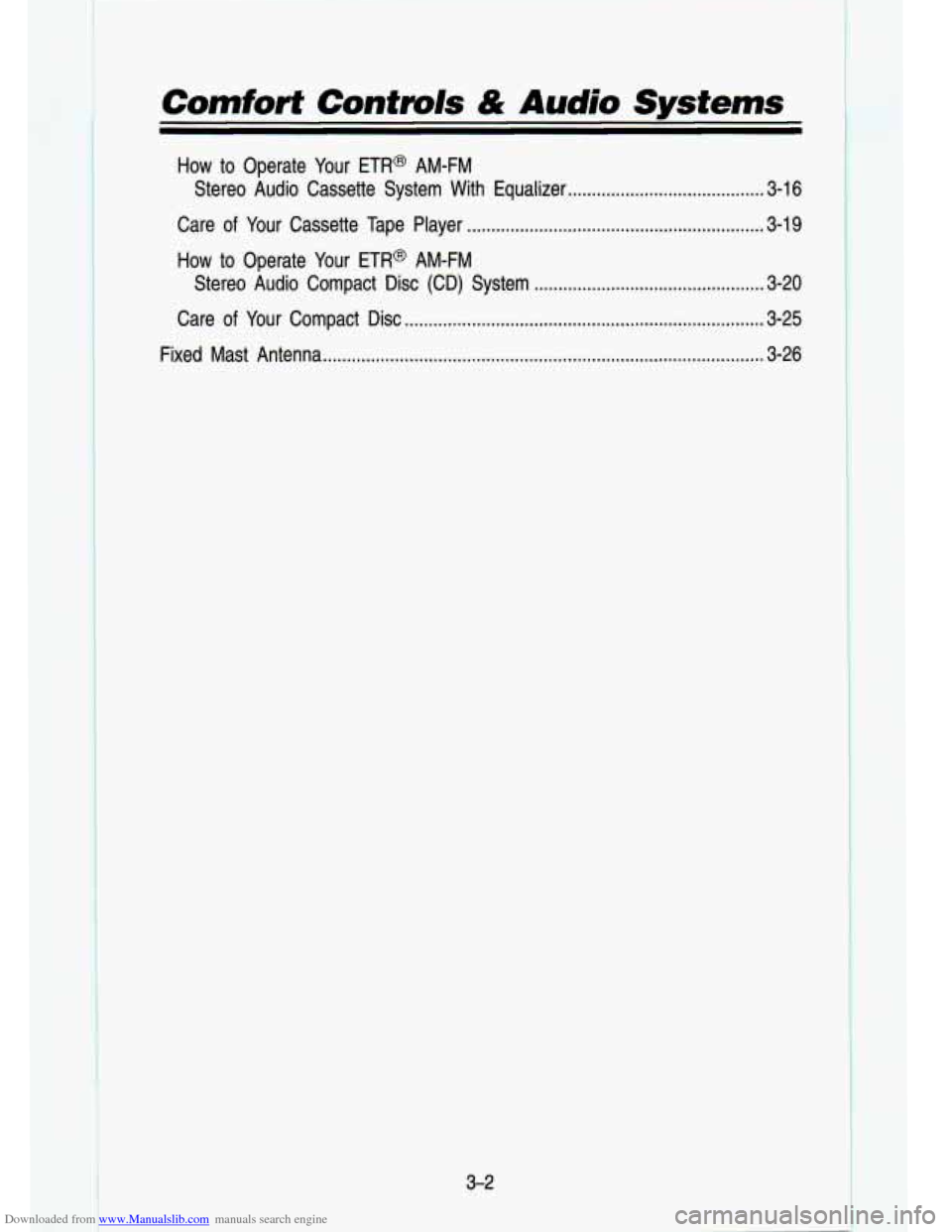

With Equalizer ......................................... 3-1 6
Care
of Your Cassette Tape Player .............................................................. 3-1 9
How to Operate Your ETR@ AM-FM
Stereo Audio Compact Disc (CD) System
........................... - .................... 3-20
Care
of Your Compact Disc ........................................................................\
... 3-25
Fixed Mast Antenna
........................................................................\
.................... 3-26
3-2

Downloaded from www.Manualslib.com manuals search engine Comfort Controls

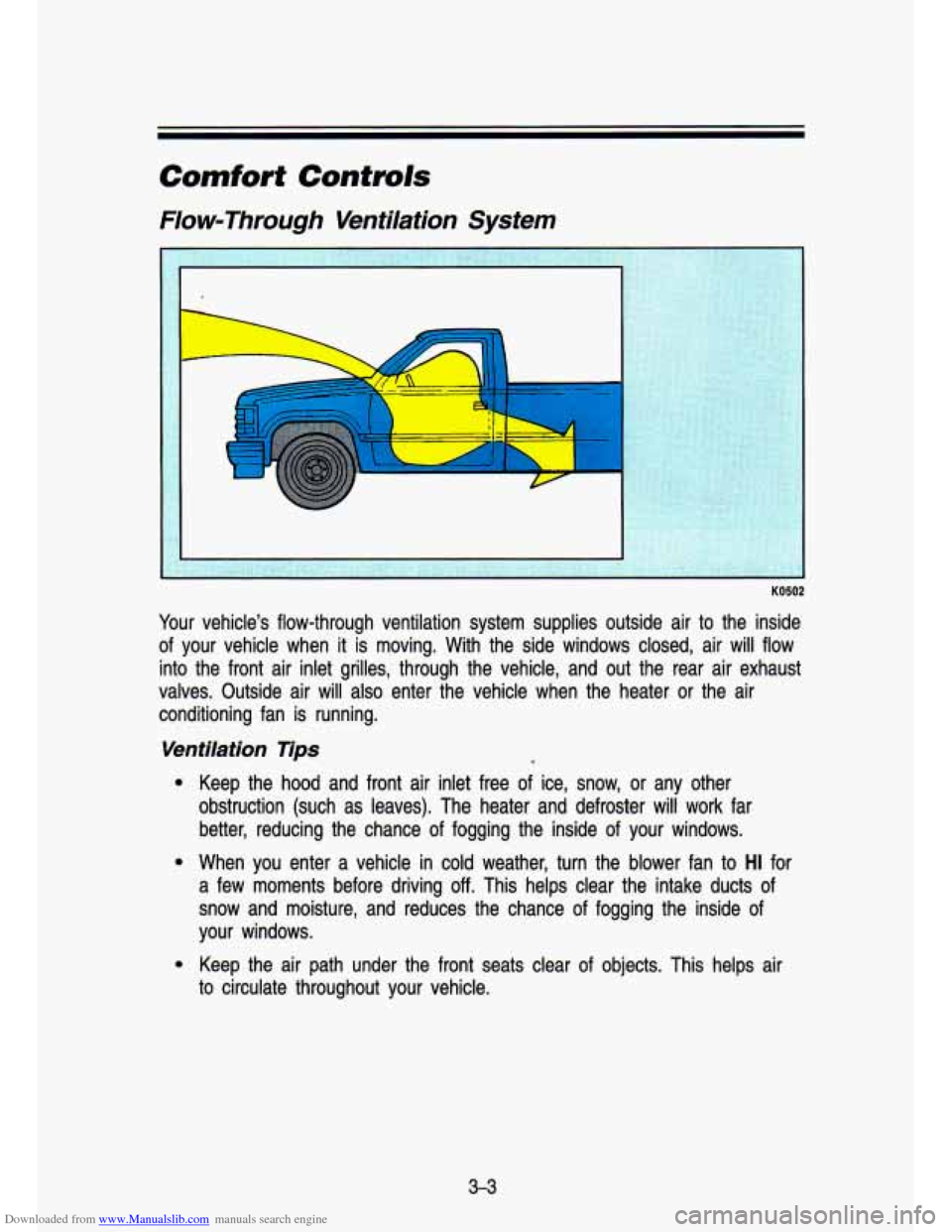

Flow-Through Ventilatr'on System
I
KO502
Your vehicle's flow-through ventilation system supplies outside air to\
the inside
of your vehicle when it
is moving. With the side windows closed, air will flow
into the front air inlet grilles, through the vehicle, and out\
the rear air exhaust
valves. Outside air will also enter the vehicle when the heate\
r or the air
conditioning fan is running.
Ventilation Tips
e
e Keep the hood and front air inlet free of ice, snow, or any other
obstruction (such as leaves). The heater and defroster will w\
ork far better, reducing the chance of fogging the inside of your wind\
ows.
When you enter a vehicle in cold weather, turn the blower fan
to HI for
a few moments before driving off. This helps clear the intake ducts of
snow and moisture, and reduces the chance of fogging the inside of
your windows.
Keep the air path under the front seats clear of objects. This helps air
to circulate throughout your vehicle.
3-3

Downloaded from www.Manualslib.com manuals search engine Comfort Controls & Audio Systems

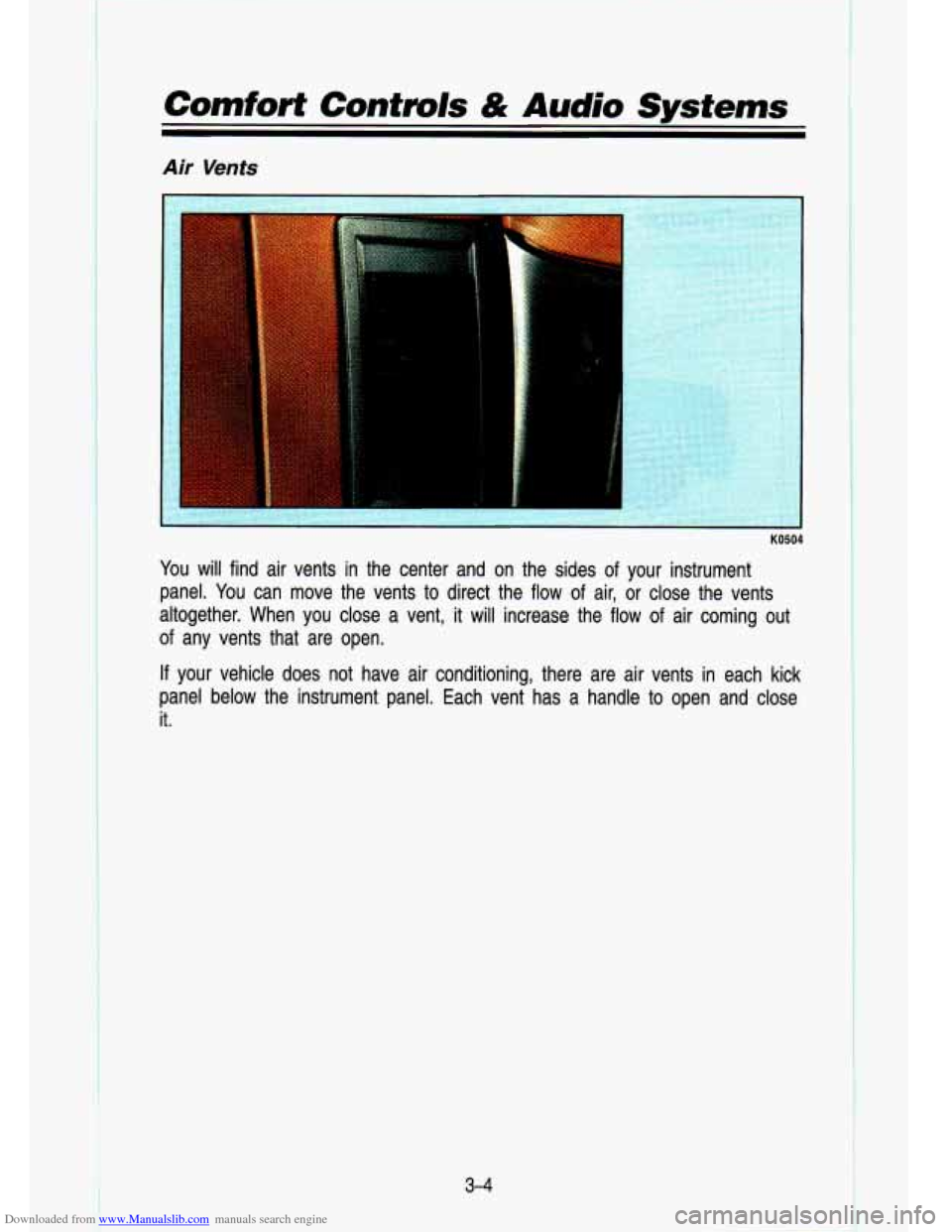

Air Vents
You will find air vents in the center and on the sides of your instrument
panel. You can move the vents to direct the flow of air, or close the vents
altogether. When
you close a vent, it will increase the flow of air coming out
of any vents that are open.
If your vehicle does not have air conditioning, there are air vents in each kick
panel below the instrument panel. Each vent has
a handle to open and close
it.
3-4
t
I

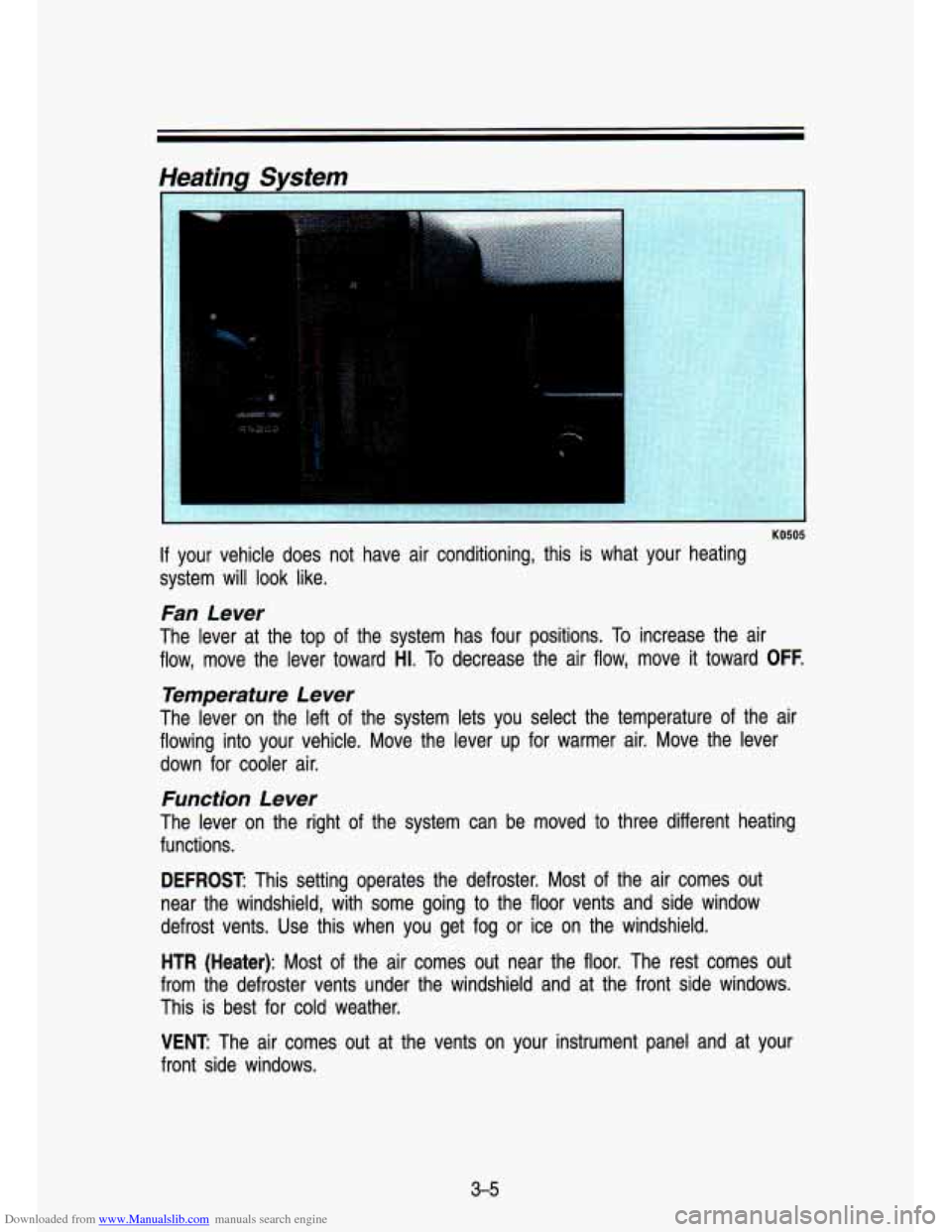

Downloaded from www.Manualslib.com manuals search engine Fan Lever
The lever at the top of the system has four positions. To increase the air
flow, move the lever toward
HI. To decrease the air flow, move it toward OFF.
Temperature Lever
The lever on the left of the system lets you select the temperature of the air
flowing into your vehicle. Move the lever up for warmer air. Move the leve\
r
down for cooler air.
Function Lever
The lever on the right of the system can be moved to three different heating
functions.
DEFROST: This setting operates the defroster. Most of the air comes out
near the windshield, with some going to the floor vents and side window
defrost vents. Use this when you get fog or ice on the windshield.
HTR (Heater): Most of the air comes out near the floor. The rest comes out
from the defroster vents under the windshield and at the front\
side windows.
This is best for cold weather.
VENT: The air comes out at the vents on your instrument panel and \
at your
front side windows.
3-5

Downloaded from www.Manualslib.com manuals search engine Comforf Controls & Audio Systems
HeatingAir Conditioning System

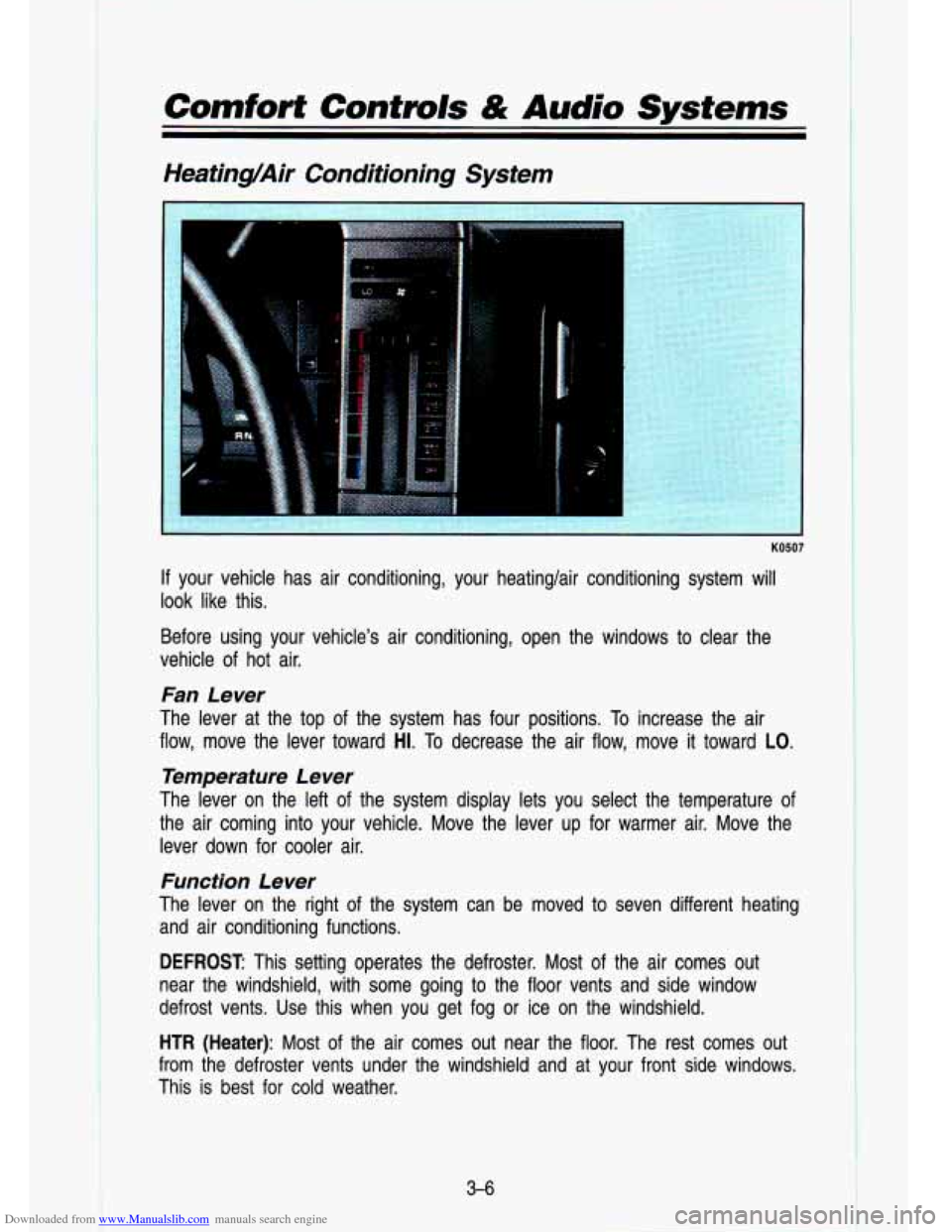

K05ur
If your vehicle has air conditioning, your heatinglair conditioning \
system will
look like this.
Before using your vehicle’s air conditioning, open the window\
s to clear the
vehicle of hot air.
Fan Lever
The lever at the top of the system has four positions. To increase the air
flow, move the lever toward
H1. To decrease the air flow, move it toward LO.
Temperature Lever
The lever on the left of the system display lets you select the temperature of
the air coming into your vehicle. Move the lever up for warmer air. Move the
lever down for cooler air.
Function Lever
The lever on the right of the system can be moved to seven different heating
and air conditioning functions.
DEFROST This setting operates the defroster. Most of the air comes out
near the windshield, with some going to the floor vents and s\
ide window
defrost vents. Use this when you get fog or ice on the windshield.
HTR (Heater): Most of the air comes out near the floor. The rest comes out
from the defroster vents under the windshield and at your front
side windows.
This is best for cold weather.
3-6

Downloaded from www.Manualslib.com manuals search engine VENT: The air comes out at the vents on your instrument panel and \
at your
front side windows.
BI-LEV NC: With this, outside air comes in through the heater floor vent and
the instrument panel vents. This setting is useful in cool weather with bright
sunlight.
NORM
NC: This setting cools the outside air. If you first used MAX, use
NORM as soon as the vehicle has cooled down,
so outside air will be going
through your vehicle.
MAX NC: This cools the air the fastest. Move the other lever all the \
way to
Cold. MAX lets in only a little air from the outside. You can use MAX at first
when it’s really hot outside and you need to cool
off quickly.
OFF: The blower is off, but air still will come from outlets at the front of your
vehicle. The system will try
to keep the air at the chosen temperature.
Engine Block Heater
If you use the optional engine block heater before starting your \
engine, your
heating system will produce warmer air faster, to heat the pas\
senger
compartment in cold weather. See “Engine Block Heater” in the Index.
Audio Systems

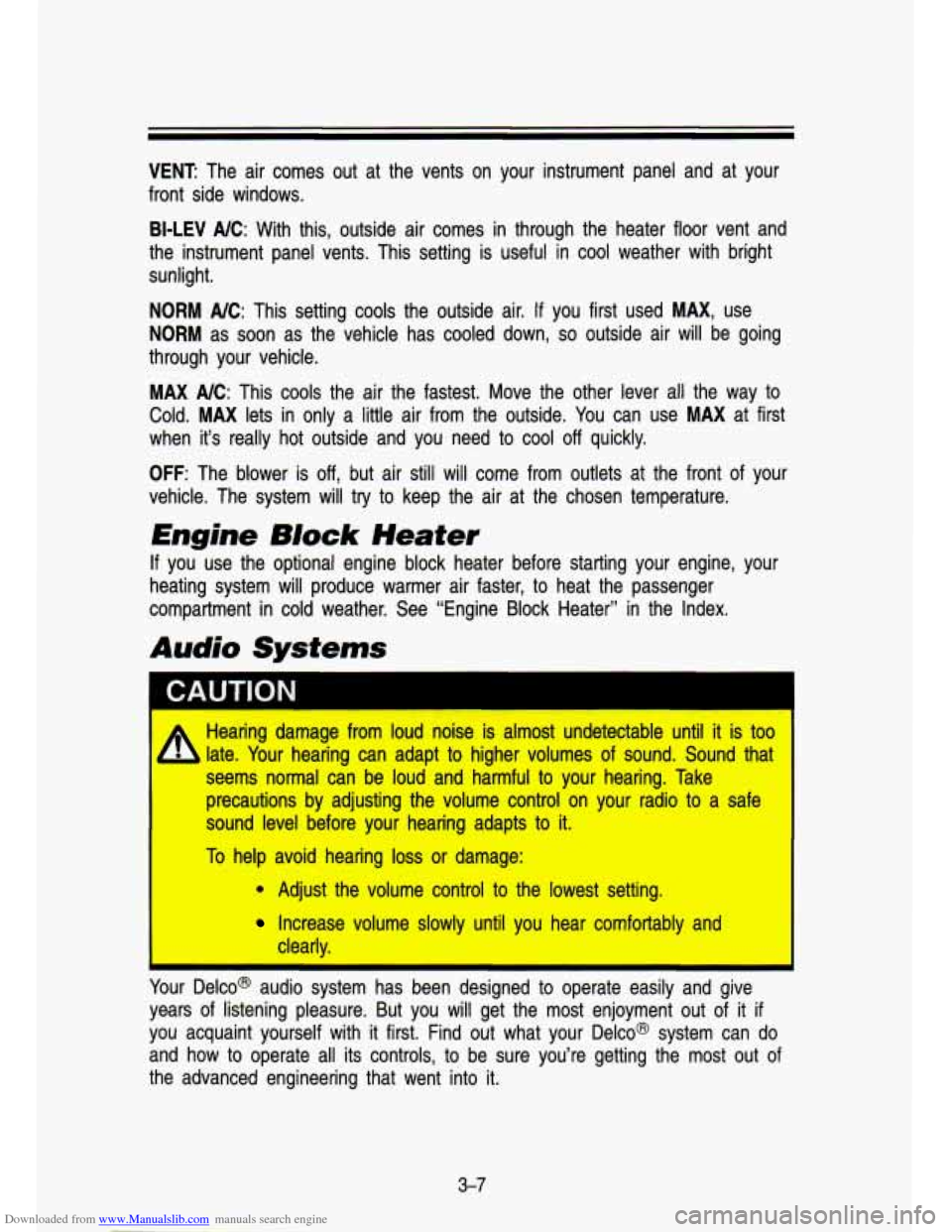

I CAUTION
A
Hearing damage frolm lloud noise is almost undetectable until it is too
late. Your
hearing can adapt to higher volmes of sound. So’und that
seems normal can
be loud an’d harmfull to your hearing. Jake
precaution’s by adjusting the volume control
on your radio to a safe
sound level before your hearing adapts to
it.
To help avoid hearing IOSS or damage:
* Adjust the volume control to the lowest setting.
Increase volume SliOWly until you hear comfortably and
clearlv.
- -
Your L-.CO@ audio system has been designed to operate easily and give
years of listening pleasure. But you will get the most enjoyment out of it if
you acquaint yourself with
it first. Find out what your Delco@ system can do
and how to operate all its controls, to be sure you’re getting the most out of
the advanced engineering that went into it.
3-7

Downloaded from www.Manualslib.com manuals search engine Comfort Contmls & Audio Systems

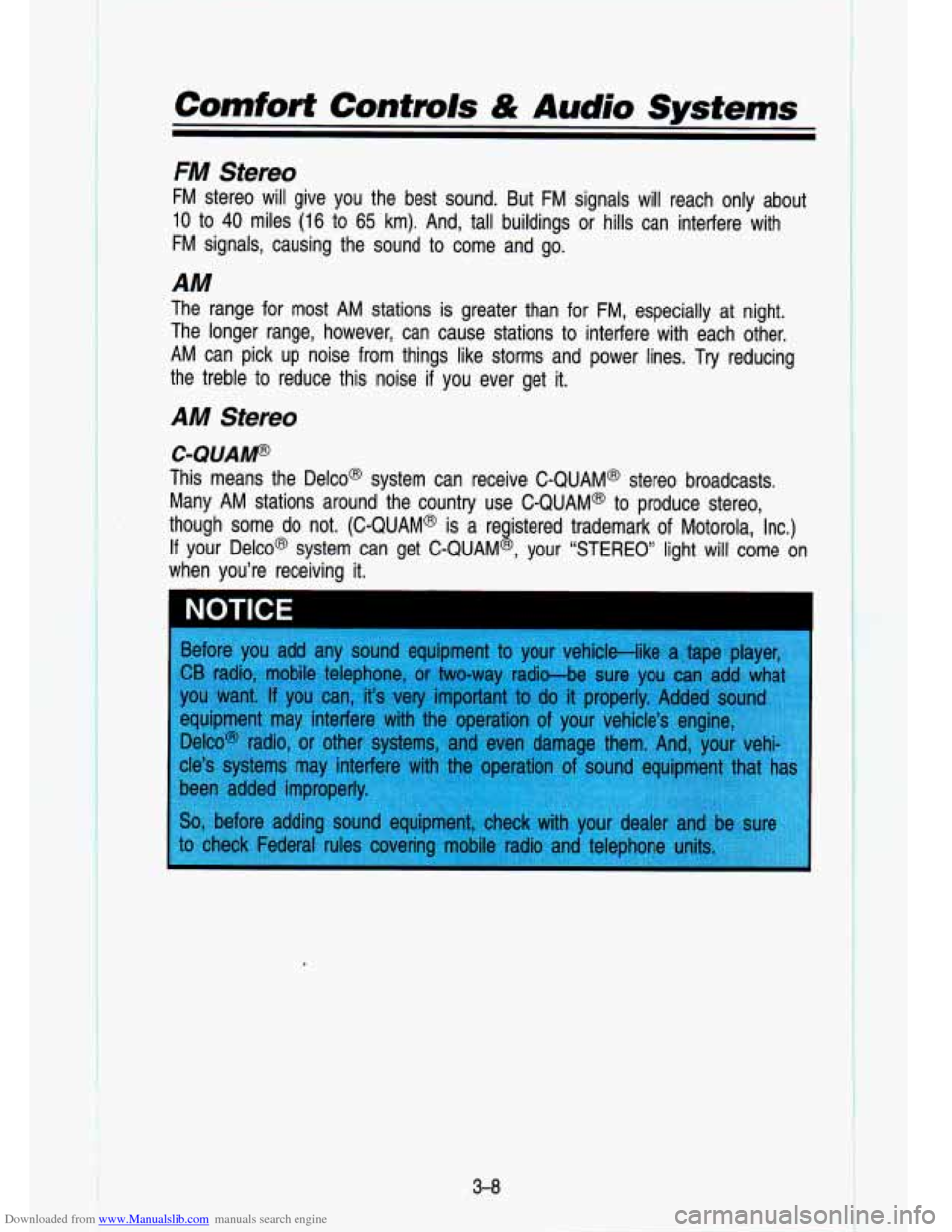

FM Stereo
FM stereo will give you the best sound. But FM signals will \
reach only about
10
to 40 miles (16 to 65 km). And, tall buildings or hills can interfere with
FM signals, causing the sound
to come and go.
AM
The range for most AM stations is greater than for FM, especi\
ally at night.
The longer range, however, can cause stations to interfere with\
each other.
AM can pick up noise from things like storms and power lines.\
Try reducing
the treble to reduce this noise
if you ever get it.
AM Stereo
C-QUA@
This means the Delco@ system can receive C-QUAM@ stereo broadca\
sts. Many AM stations around the country use C-QUAM@ to produce stereo,
though some
do not. (C-QUAM@ is a registered trademark of Motorola, Inc.)
If your Delco@ system can get C-QUAM? your “STEREO” light will come on
when you’re receiving it.
3-8
