1993 CHEVROLET S10 Owners Manual

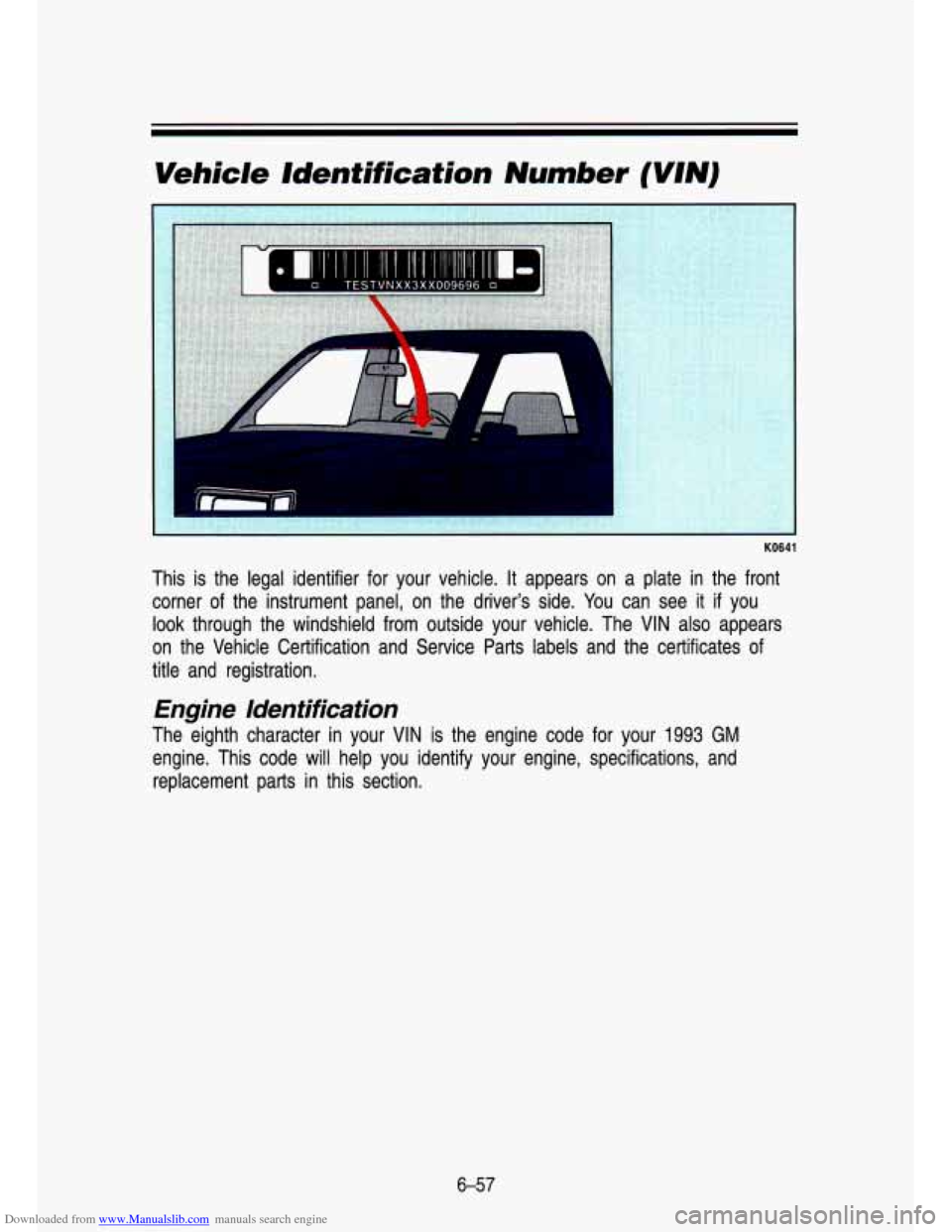

Downloaded from www.Manualslib.com manuals search engine Vehicle Identification Number (VIN)
KO641
This is the legal identifier for your vehicle. It appears on a plate in the front
corner of the instrument panel, on the driver's side. You can see it
if you
look through the windshield from outside your vehicle. The VIN also \
appears
on the Vehicle Certification and Service Parts labels and the \
certificates of
title and registration.
Engine ldenfification
The eighth character in your VIN is the engine code for your 1993 GM
engine. This code will help you identify your engine, specifica\
tions, and
replacement parts in this section.
6-57

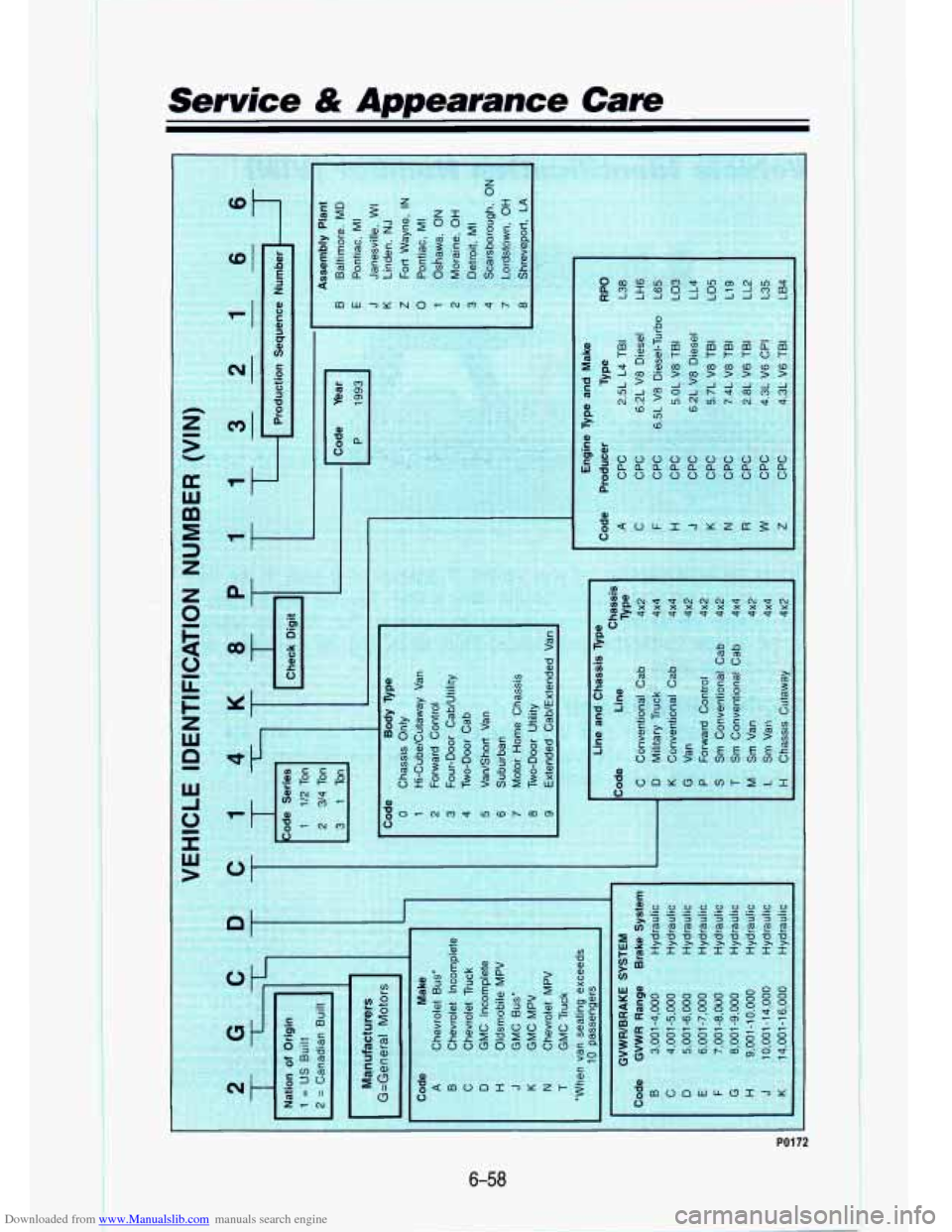

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care
N
L
a
m
W
z
I2
I
1
I:
W
>
.
1
.. .
PO172
6-58

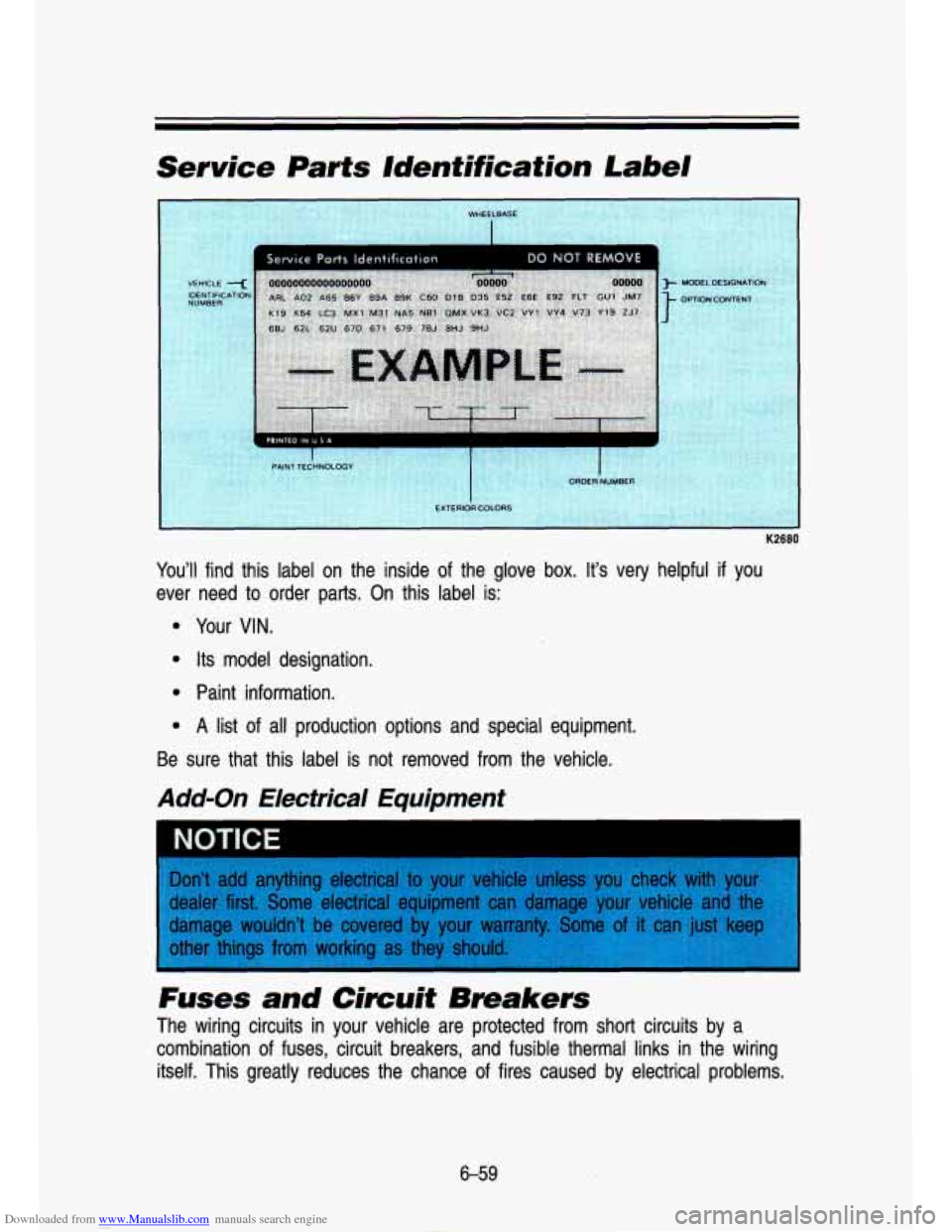

Downloaded from www.Manualslib.com manuals search engine Service Parts Identification Label
Service Parts Identification
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from short circuits by a
combination of fuses, circuit breakers, and fusible thermal links in the wiring
itself. This greatly reduces the chance of fires caused by electrical problems.
6-59

Downloaded from www.Manualslib.com manuals search engine I
Service & Appearance Cave
Headlights
The headlight wiring is protected by a circuit breaker in the \
light switch. An electrical overload will cause the lights to go on and
off, or in some cases to
remain
off. If this happens, have your headlight wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker a\
nd a fuse. If
the motor overheats due to heavy snow, etc., the wiper will s\
top until the
motor cools. If the overload is caused by some electrical problem and not
snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows a\
nd other power
accessories. When the current load is
too heavy, the circuit breaker opens
and closes, protecting the circuit until the problem is fixed \
or goes away.
Trailer Wiring Harness
The optional seven-wire trailer wiring I ;s is protected by an in-line fuse
in the battery feed wire. This fuse is near rhe junction bloc\
k. See “Trailer
Wiring Harness” in the “Features
& Controls’’ section.
Fuse Block
KO631
The fuse block is in the instrument panel on the driver’s side.
- .: .-: 1
.- .
Remove the cover with a screwdriver and then you can remove f\
uses with a
fuse extractor.
6-60

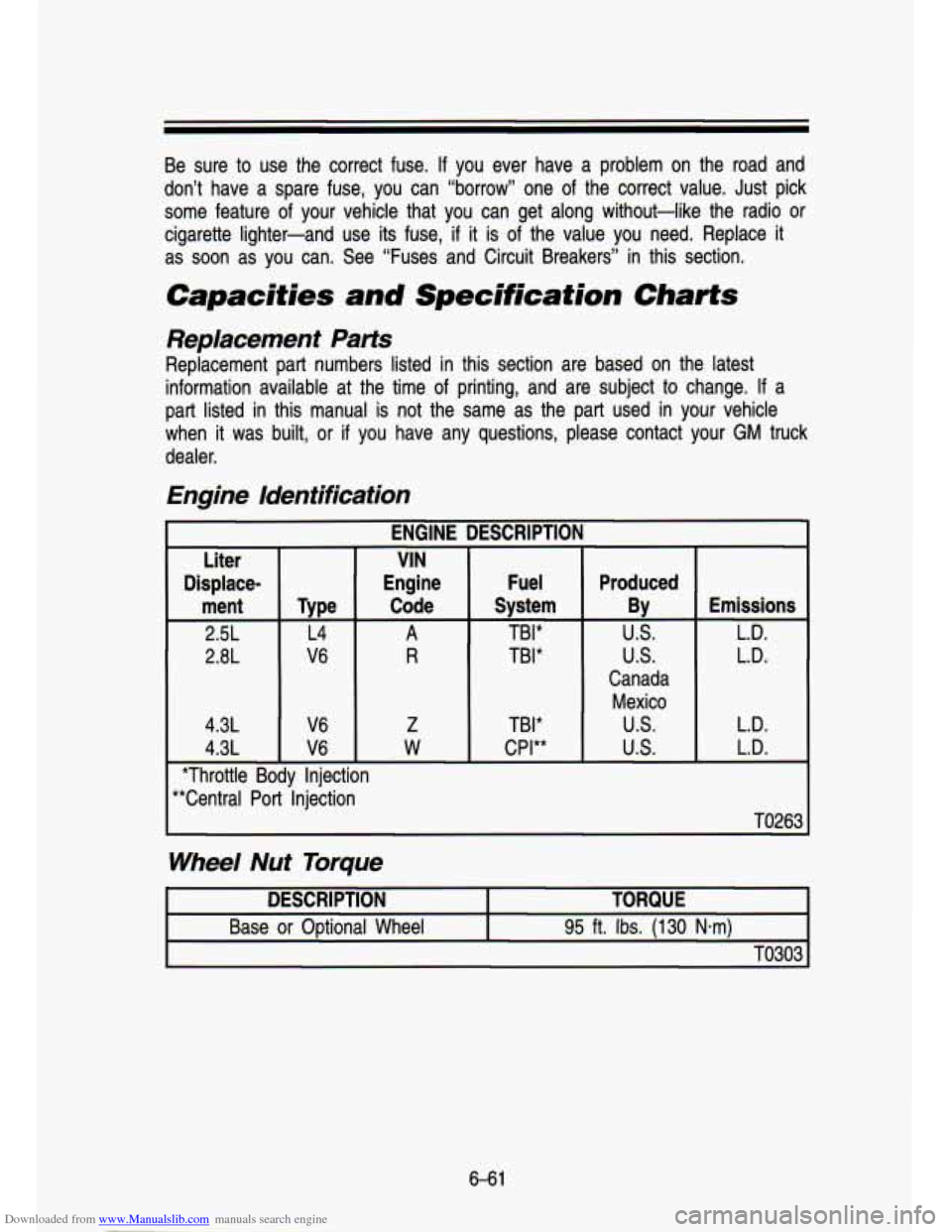

Downloaded from www.Manualslib.com manuals search engine Be sure to use the correct fuse. If you ever have a problem on the road and
don’t have a spare fuse, you can “borrow” one of the correct value. Just pick
some feature of your vehicle that you can get along without-like the radio or
cigarette lighter-and use its fuse,
if it is of the value you need. Replace it
as soon as you can. See “Fuses and Circuit Breakers” in this section.
Cap cities and Specification Charts
Replac -merit Parts
Replacement part numbers listed in this section are based on the latest
information available at the time of printing, and are subject to change.
If a
part listed in this manual is not the same as the part used in your vehicle
when
it was built, or if you have any questions, please contact your GM truck
dealer.
Engine Identification
ENGINE DESCRIPTION I
Liter VJN
Displace- Engine ment Type Cde
2.5L L4
A
2.8L V6 R
4.3L
V6 Z
4.3L V6 W
*Throttle Body Injection
“Central Port Injection Fuel
Svstem
TBI*
TBI*
TBI*
CPI**
Produced
BY
U.S.
us.
Canada Mexico
US.
U.S.
Emissions
L.D.
L.D.
L.D.
L.D.
TO263
Wheel Nut Torque
DESCRIPTION TORQUE
Base or Optional Wheel
95 ft. Ibs. (1 30 Nam)
TO303
6-61

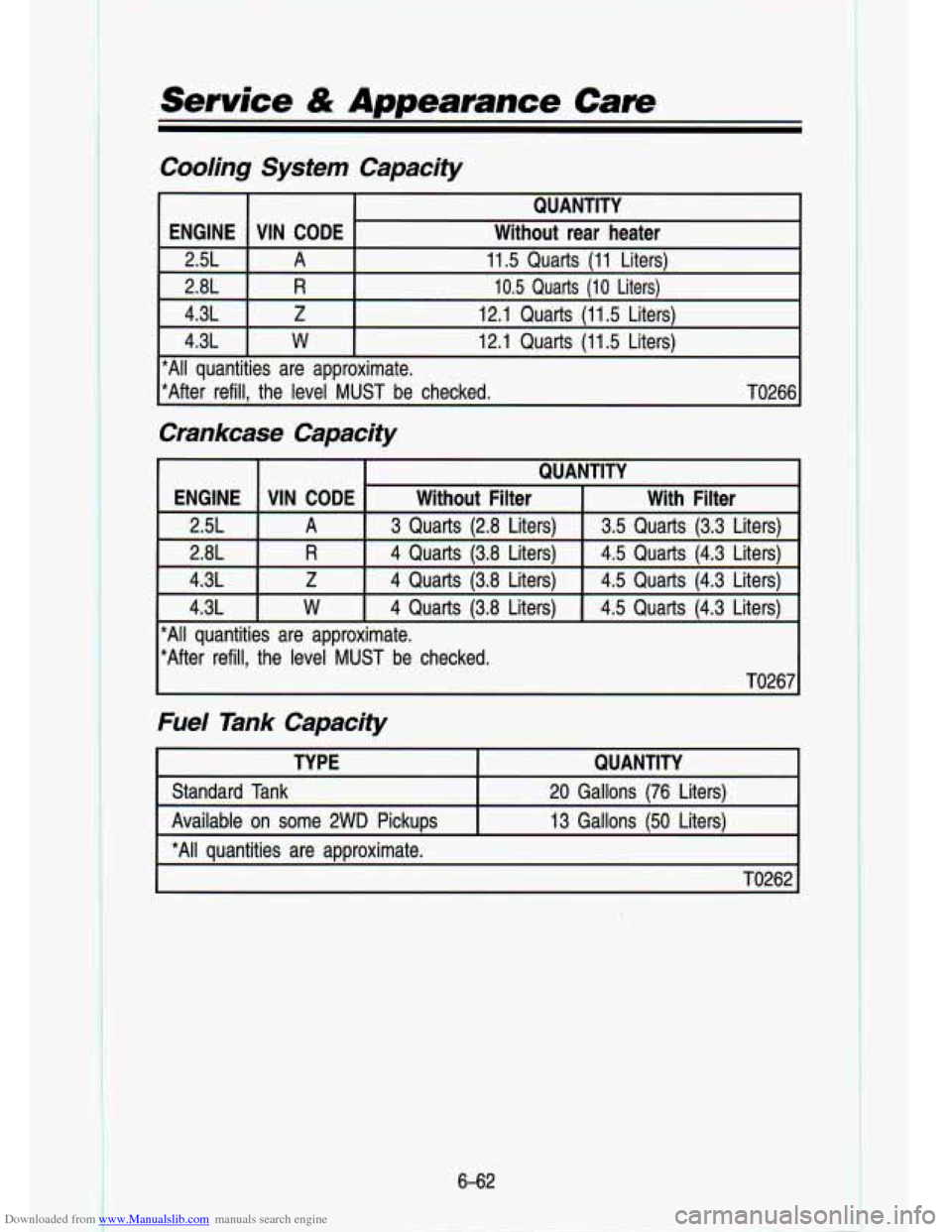

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care
Cooling Sysfem Capacity
QUANTITY
ENGINE VIN CODE Without rear heater 2.5L
A 11.5 Quarts (11 Liters)
2.8L
R 10.5 Quarts (10 Liters)
4.3L
Z 12.1 Quarts (11.5 Liters)
4.3L W
12.1 Quarts (11.5 Liters)
*All quantities are approximate.
*After refill, the level
MUST be checked. TO266
Crankcase Capacity
ENGINE I VIN CODE I Without Filter I With Filter I
2.5L I A I 3 Quarts (2.8 Liters) I 3.5 Quarts (3.3 Liters) I
2.8L R 4 Quarts (3.8 Liters) 4.5 Quarts (4.3 Liters)
4.3L
Z 4 Quarts (3.8 Liters)
4.5 Quarts (4.3 Liters)
4.3L
I W I 4 Quarts (3.8 Liters) I 4.5 Quarts (4.3 Liters)
*All quantities are approximate.
*After refill, the level
MUST be checked.
TO267
Fuel Tank Capacify
TYPE QUANTITY
Standard Tank 20 Gallons
(76 Liters)
Available
on some 2WD Pickups 13 Gallon- ‘50 Liters)
*All quantities are approximate.
TO262
i
6-62

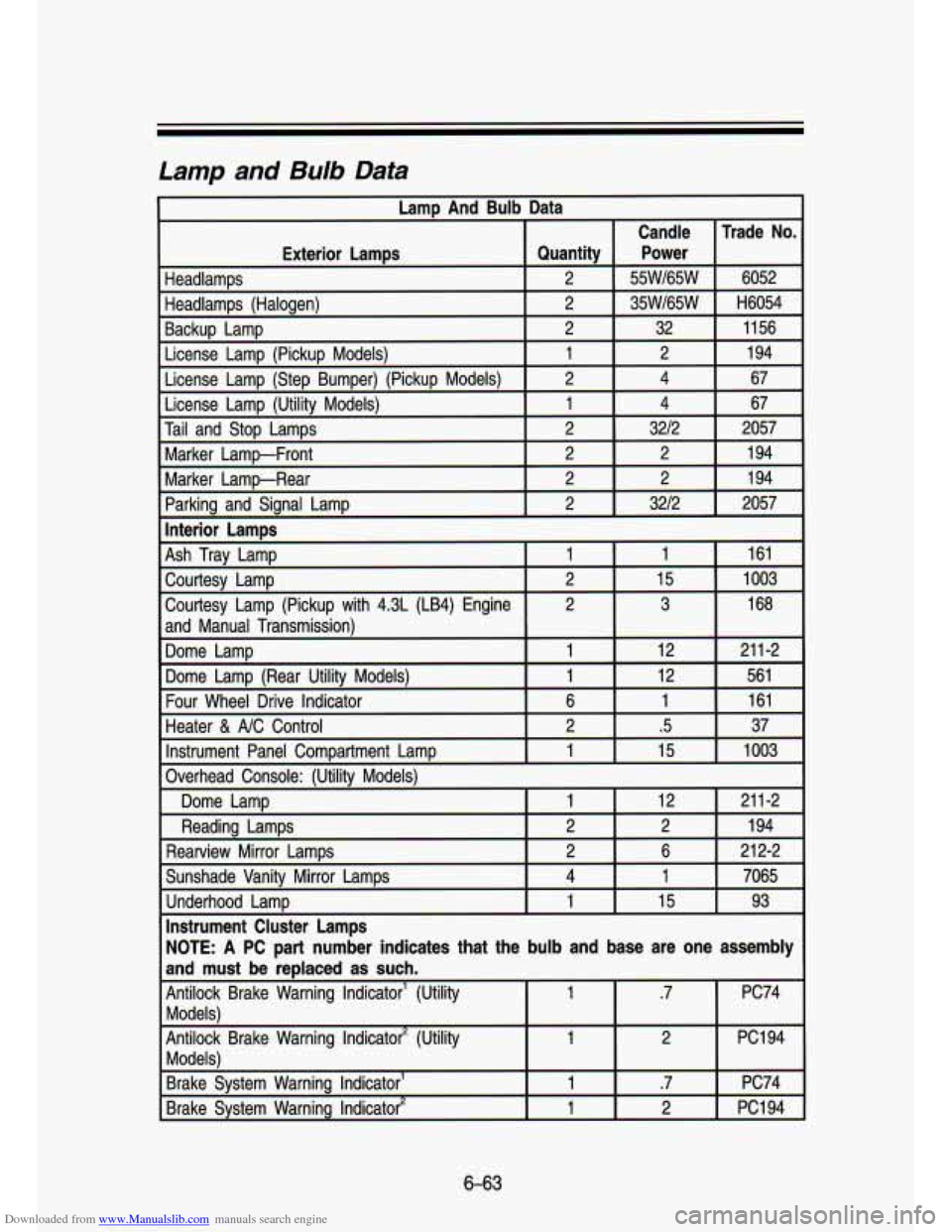

Downloaded from www.Manualslib.com manuals search engine Lamp and Bulb Data
Lam And Bulb Data
6-63

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Cam
Lamp And Bulb Data
Exterior Lamps
Check Gages Indicator' Daytime Running Lights Indicator'
Daytime Running Lights Indicator2
..-
Charging System Indicator' High Beam Indicator'
High Beam lndicato?
I
Quantity 1 1
Trade No.
PC1 94
PC1 74
PC1 94
-
Instrument Cluster Illumination' 6 3 PC1 68
Malfunction Indicator Lamp (Service Engine 1 .7 PC74
Soon)'
Malfunction Indicator Lamp (Service Engine
Soon)'
I I pc194
Seat Belt Indicator'" 1 2 PC1 94
Shift Indicator (PRNDL)'
1 2 PC1 94
Tachometer Warning Band'
1 2 PC1 94
Turn Signal Indicator'
2 .7 PC74
Upshift Indicator' 1 .7 PC74
Upshift Indicator2 1
2 PC1 94
'With Standard Instrument Cluster 'With Digital Instrument Cluster
6-64
