1993 CHEVROLET S10 Owners Manual

Downloaded from www.Manualslib.com manuals search engine prOb/ems on the Road
. .-
r
7

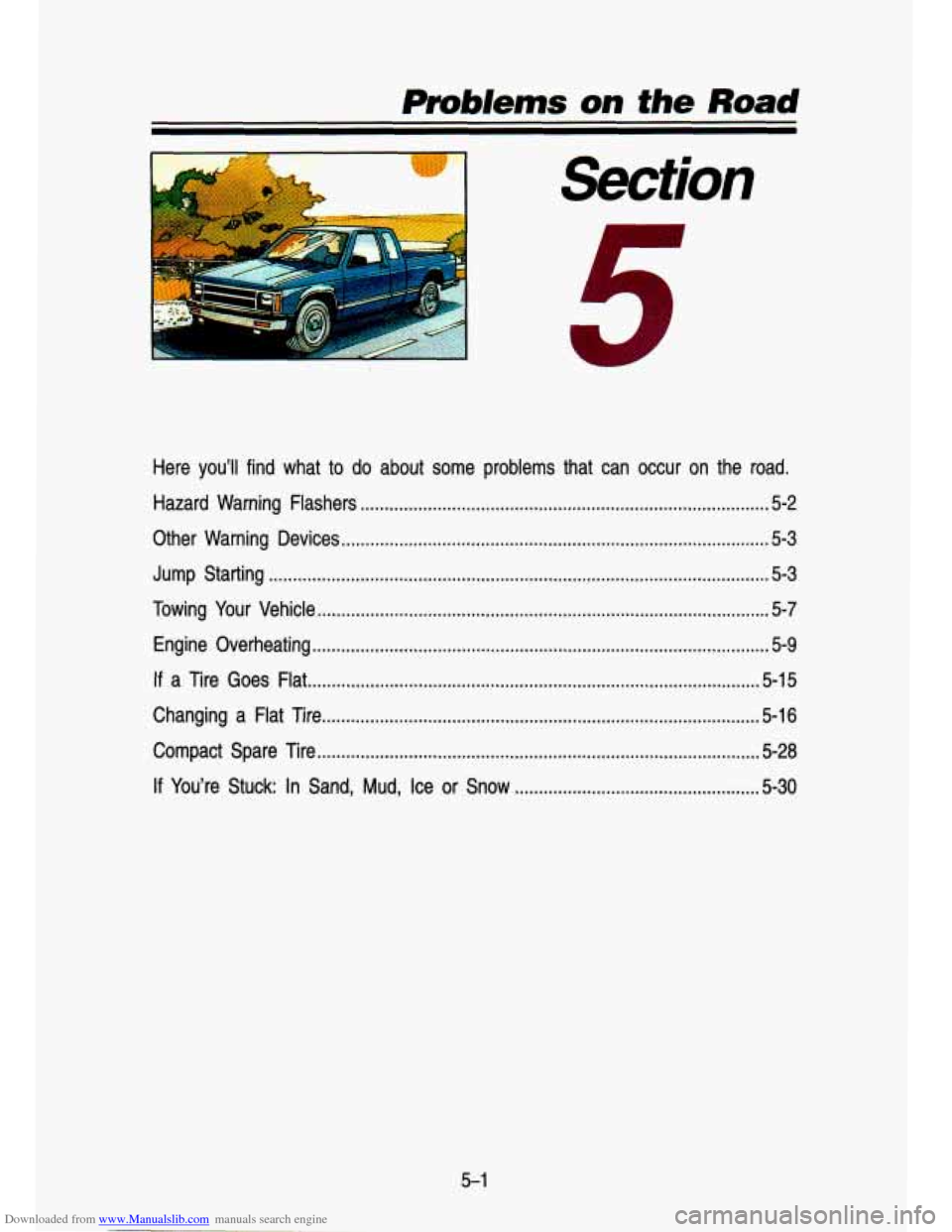

Here you’ll find what to do about some problems that can occur on the road .
Hazard Warning Flashers ........................................................................\
............. 5-2
Other Warning Devices ........................................................................\
................. 5-3
Jump Starting ........................................................................\
................................ 5-3
Towing Your Vehicle ........................................................................\
...................... 5-7
Engine Overheating ........................................................................\
....................... 5-9
If a Tire Goes Flat ........................................................................\
...................... 5-15
Changing a Flat Tire ........................................................................\
................... 5-16
Compact Spare Tire ........................................................................\
.................... 5-28
If You’re Stuck: In Sand, Mud, Ice or Snow ................................................... 5-30

Downloaded from www.Manualslib.com manuals search engine Problems on the Road
AM505003

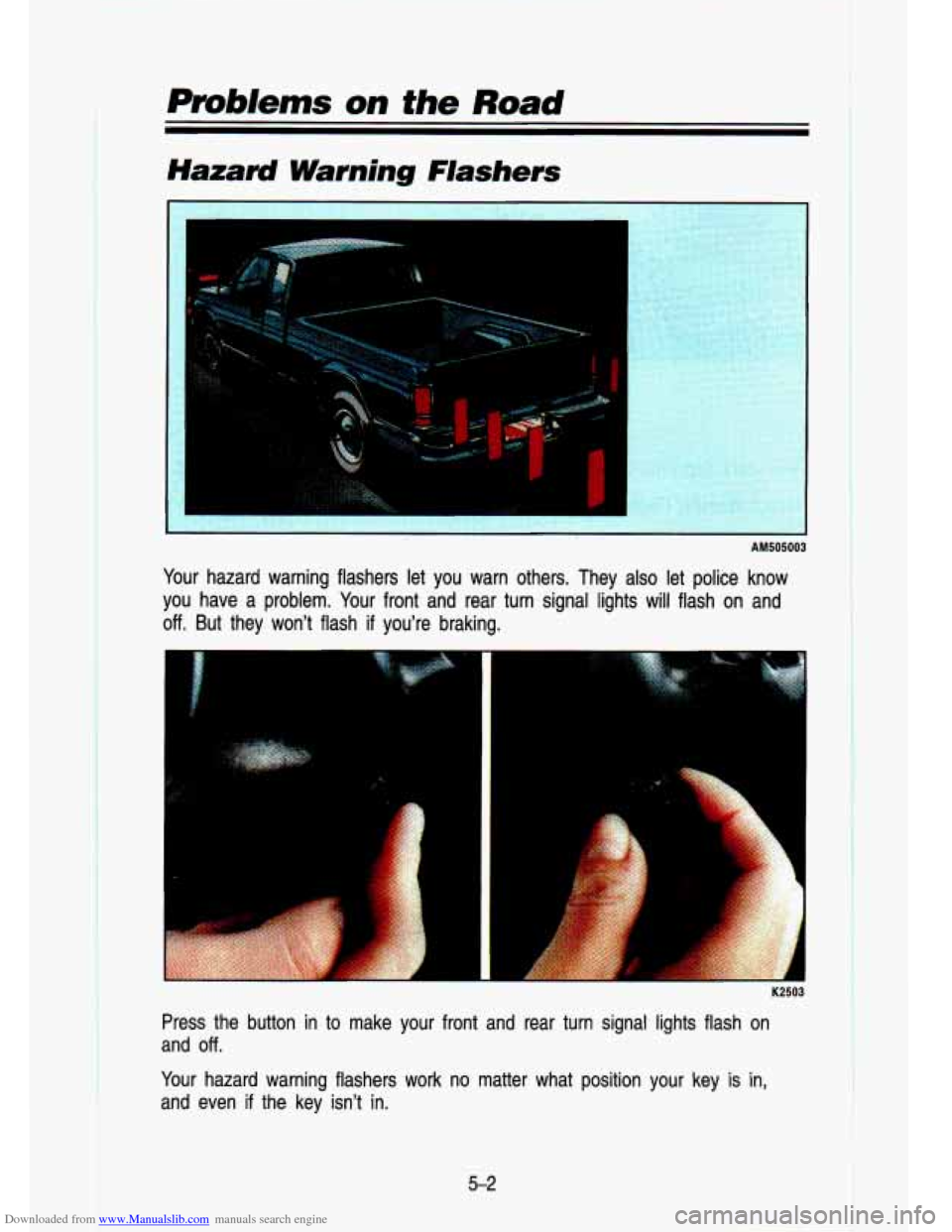

Your hazard warning flashers let you warn others. They also let pol\
ice know
you have a problem. Your front and rear turn signal lights will flash on and
off. But they won’t flash if you’re braking.
i
Press the button in to make your front and rear turn signal lights flash on
and
off.
Your hazard warning flashers work no matter what position your key is in,
and even if the key isn’t in.

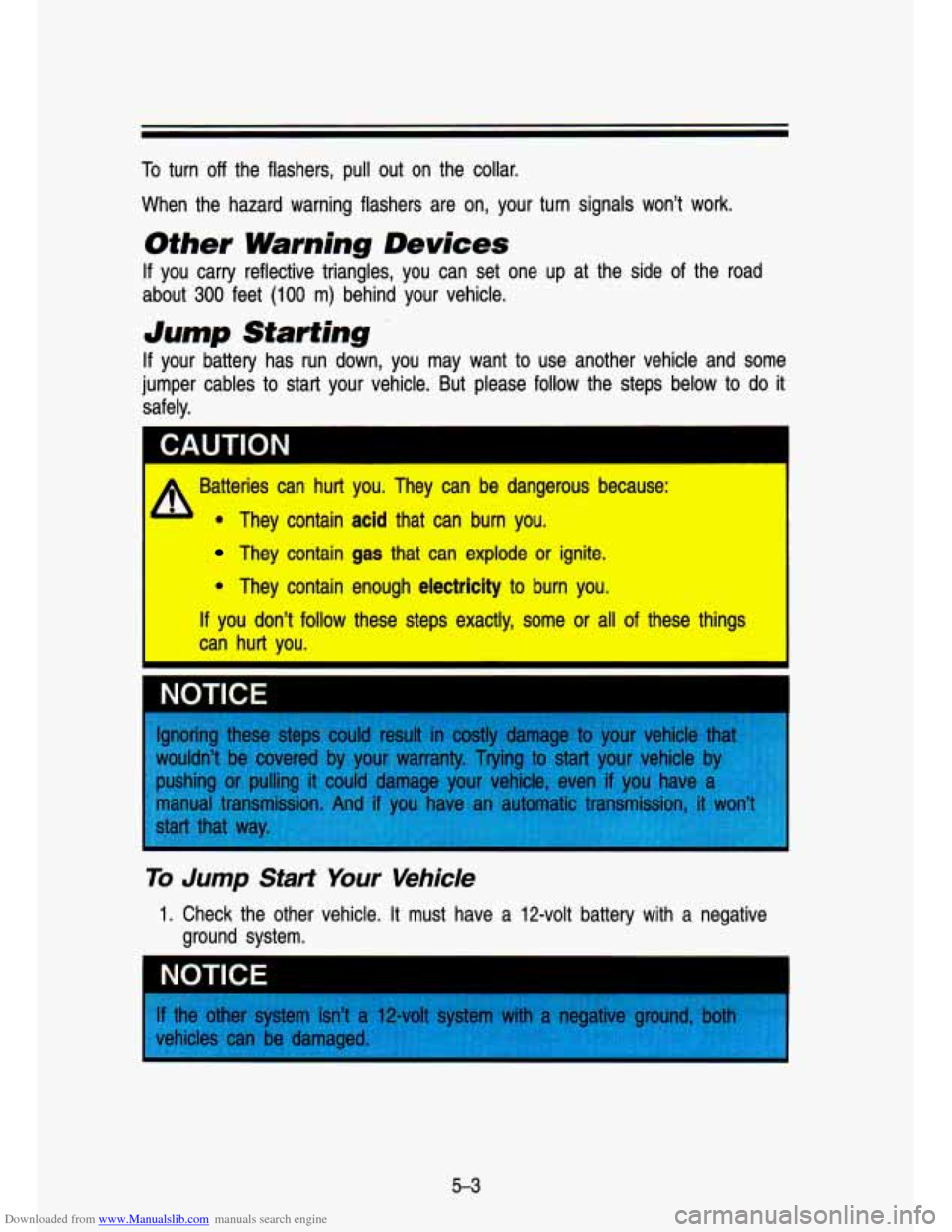

Downloaded from www.Manualslib.com manuals search engine To turn off the flashers, pull out on the collar.
When the hazard warning flashers are on, your turn signals won\
’t work.
Other Warning Devices
If you carry reflective triangles, you can set one up at the sid\
e of the road
about
300 feet (100 m) behind your vehicle.
Jump Starting
If your battery has run down, you may want to use another vehicle and some
jumper cables to start your vehicle. But please follow the ste\
ps below to
do it
safely.
mwlmm A
A Batteries cart hurt you. They m be dangerous because:
* They contain acid that can burn you.
They contain gas that can explode or ignite.
* They contain enough electricity to burn you.
I
If you don’t follow these steps exactly, some 01: all .of thlese things
can hurt
yoW.
To Jump Start Your Vehicle
1. Check the other vehicle. It must have a 12-volt battery with ti negative
ground system.
IWU I IWL I
5-3

Downloaded from www.Manualslib.com manuals search engine 2. Get the vehicles close enough so the jumper cables can reach, but be
sure the vehicles aren’t touching each other. If they are, \
it could cause
a
ground connection you don’t want. You wouldn’t be able to start your
vehicle, and the bad grounding could damage the electrical syst\
ems.
1 CAUTION
* You could be injured if the vehicles roll. Set the parking brake \
firmly I
on each vehicle. Put an automatic transmission in P (Park) or a
manual transmission in
N (Neutral).
If you have a four-wheel-drive vehicle with a manual transfer case\

shift lever, be sure the tra-fer case is not in
N (Neut--’).
3. Turn off the ignition on both vehicles. Turn off all lights that aren’t
I
needed, and radios. This will avoid sparks and help save both \
batteries.
And it could save your radio!
4. Open the hoods and locate the batteries. Find the positive (t) arlu
negative
(-) terminals on each battery.
* Using a match near a battery can cause battery gas to explode. I
People have been hurt doing this, and some have been blinded. \
Use
a flashlight if you need more light.
You don’t need to add water to the Delco Freedom@ battery \
installer’
in every new
GM vehicle. But if a battery has filler caps, be sure thG
right amount of fluid is there.
If it is low, add water to take care of
that first.
If you don’t, explosive gas could be present.
Battery fluid contains acid that can burn you. Don’t get it on you.
If
you accidentally get it in your eyes or on your skin, flush the place
I with water and get medical help immediately.
5. Check that the jumper cables don’t have loose or missing insulation. If
they do, you could get a shock. The vehicles could be damaged, too.
5-4
I

Downloaded from www.Manualslib.com manuals search engine CAUTION

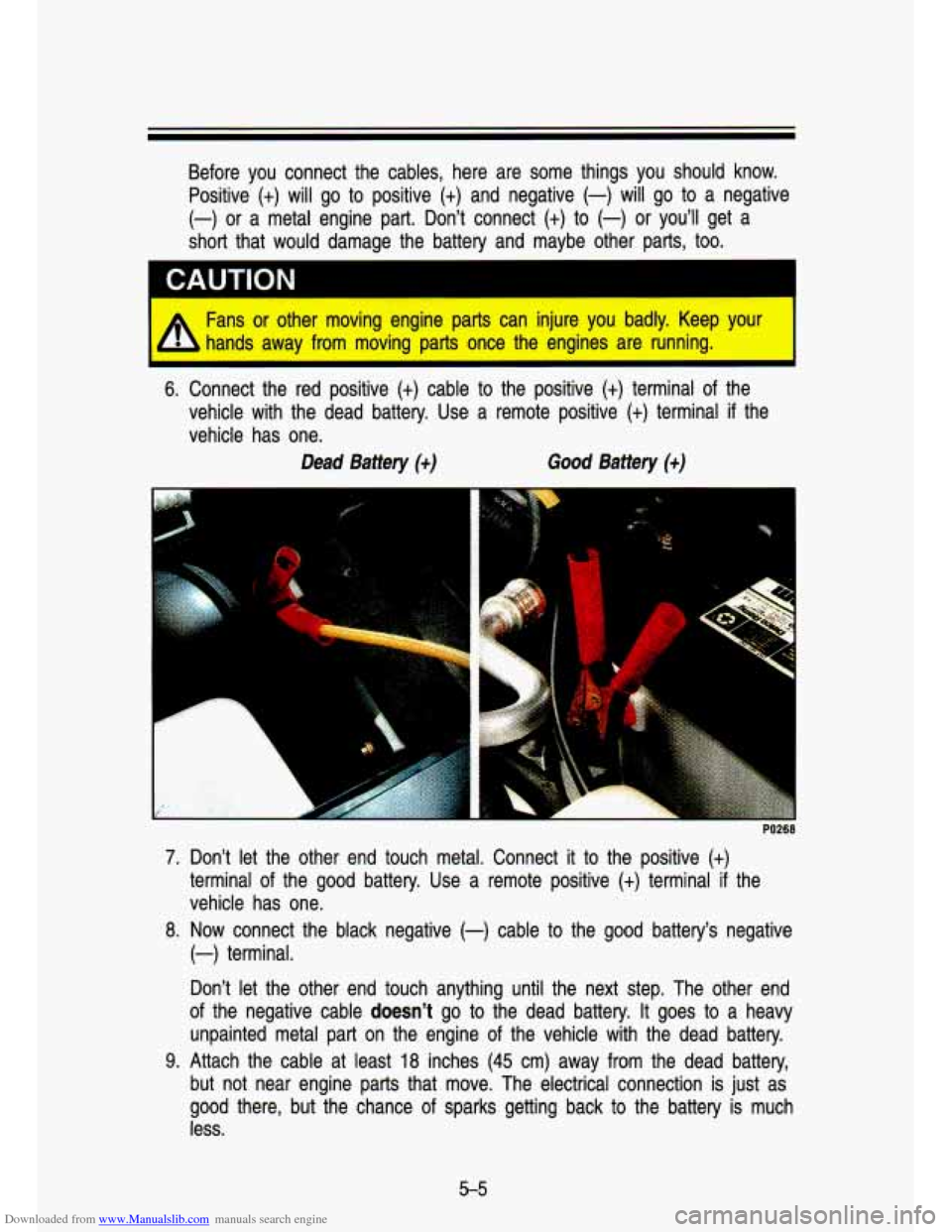

Before you connect the cables, here are some things you should\
know. Positive
(t) will go to positive (t) and negative, (-) will go to a negative
(-) or a metal engine part. Don't connect (t) to (-) or you'll get a
short that would damage the battery and maybe other parts, too\
.
/ Fans or other moving engine parts can injure you badly. Keep \
your
hands away from moving parts once the engines are running.
6. Connect the red positive (t) cable to the positive (t) terminal of the
Y
vehicle with the dead battery. Use a remote positive (t) terminal if the
vehicle has one.
Dead Battery (+) Good Battery (t)
7.
8.
9.
Don't let the other end touch metal. Connect it to the positi\
ve (t)
terminal of the good battery. Use a remote positive (t) terminal if the
vehicle has one.
Now connect the black negative
(-) cable to the good battery's negative
(-) terminal.
Don't let the other end touch anything until the next step. T\
he other end
of the negative cable doesn't go to the dead battery. It goes to a heavy
unpainted metal part on the engine of the vehicle with the dead battery.
Attach the cable at least
18 inches (45 cm) away from the dead battery,
but not near engine parts that move. The electrical connection \
is just as good there, but the chance of sparks getting back to the battery is much
less.
5-5

Downloaded from www.Manualslib.com manuals search engine Prob/ems on the Road

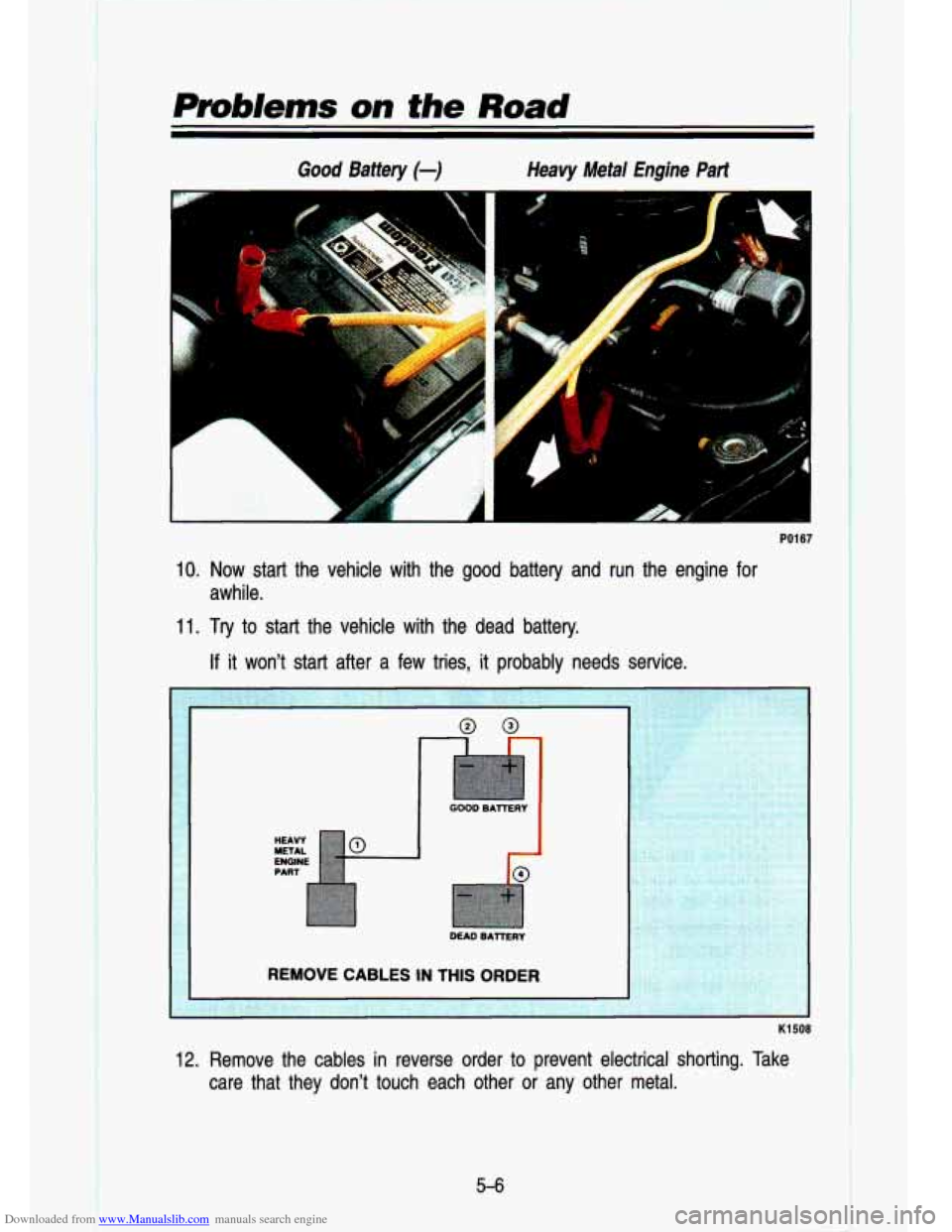

Good Battery (-) Heavy Metal Engine Part
r“ 1 -L
L
PO1 67
10. Now start the vehicle with the good battery and run the engine fo\
r
awhile.
11. Try to start the vehicle with the dead battery.
If it won’t start after a few tries, it probably needs service.
12. Remove the cables in reverse order to prevent electrical shorting. Take
care that they don’t touch each other or any other metal.
5-6
I !

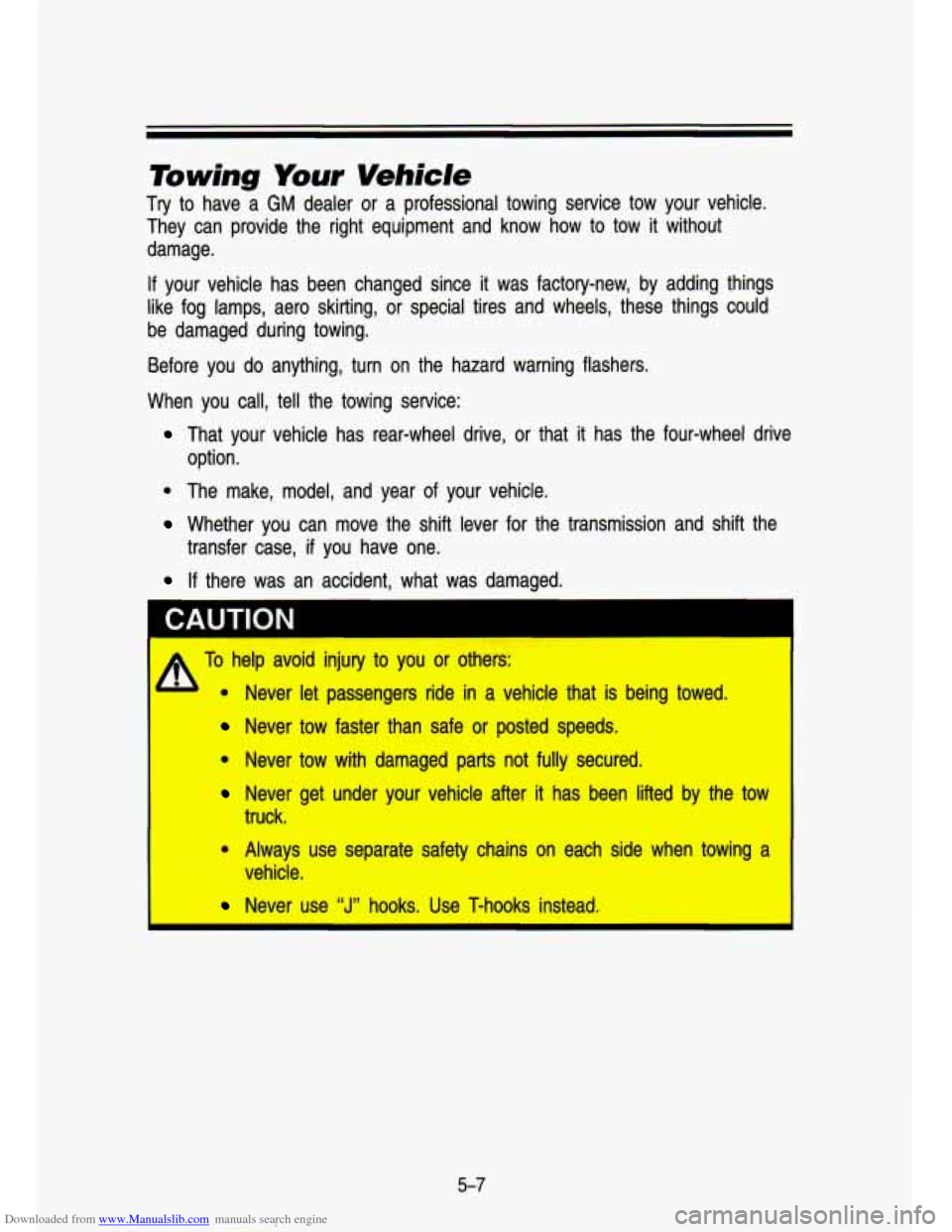

Downloaded from www.Manualslib.com manuals search engine Towing Your Vehicle
Try to have a GM dealer or a professional towing service tow your vehicle.
They can provide the right equipment and know how to tow it without
damage.
If your vehicle has been changed since it was factory-new, by adding things
like fog lamps, aero skirting, or special tires and wheels, th\
ese things could
be damaged during towing.
Before you do anything, turn on the hazard warning flashers.
When you call, tell the towing service:
That your vehicle has rear-wheel drive, or that it has the fo\
ur-wheel drive
0 The make, model, and year of your vehicle.
Whether you can move the shift lever for the transmission and \
shift the
If there was an accident, what was damaged.
option.
transfer case,
if you have one.
I CAUTION
To help avoid injury to you or others:
A * Never let passengers ride ‘in a vehicle that is being towed.
Never tow faster than safe or posted speeds.
0 Never tow with damaged pads not fully secured.
Never get under your vehide after it has been lifted by the tow
. 0 Always use separate safety chains on each side when towing a
truck.
vehicle.

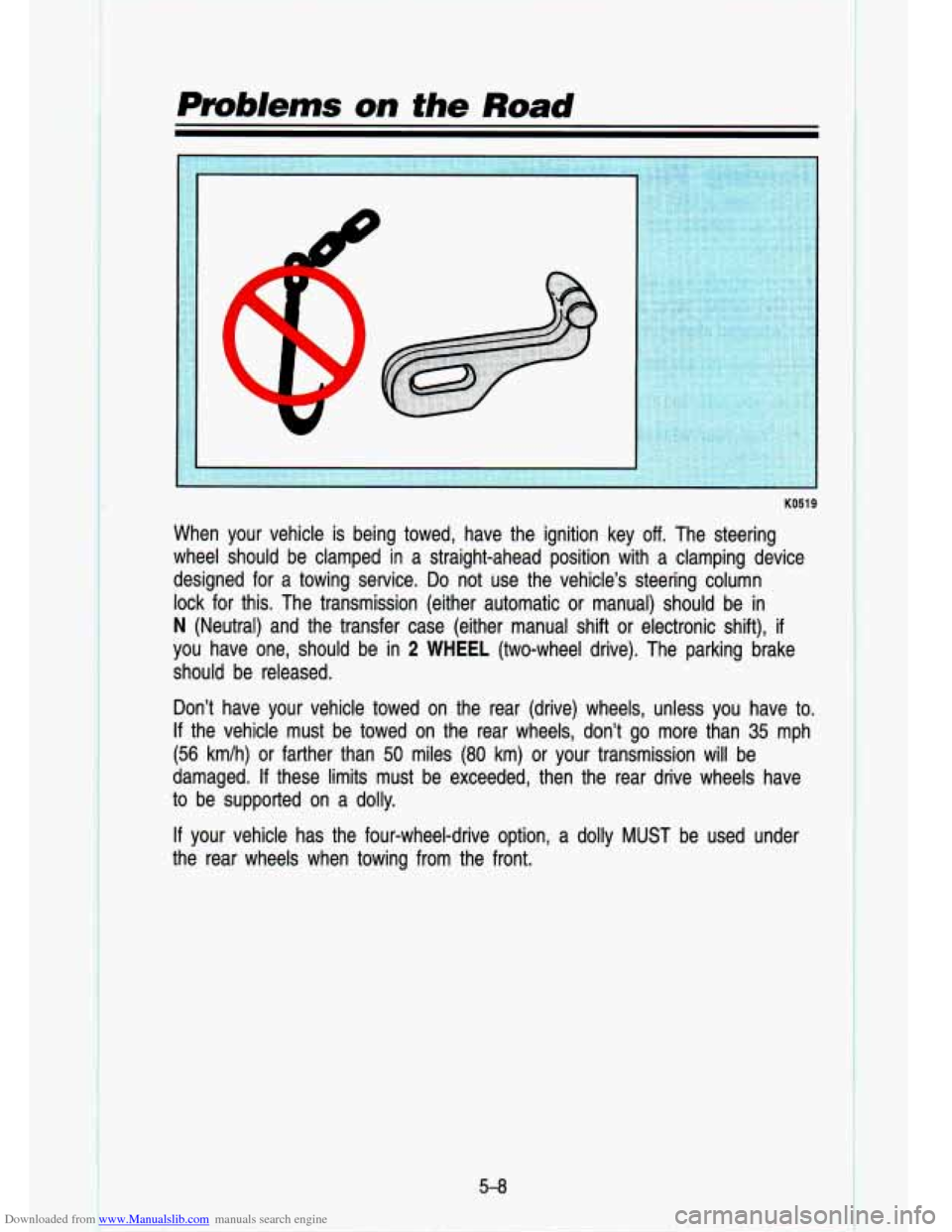

Never use “J” hooks. Use T-hooks instead.
5-7

Downloaded from www.Manualslib.com manuals search engine , vr
KO51 9
When your vehicle is being towed, have the ignition key off. The steering
wheel should be clamped in a straight-ahead position with a clamping device
designed for a towing service. Do not use the vehicle's steeri\
ng column
lock for this. The transmission (either automatic or manual) should\
be in
N (Neutral) and the transfer case (either manual shift or elec\
tronic shift), if
you have one, should be in 2 WHEEL (two-wheel drive). The parking brake
should be released.
Don't have your vehicle towed on the rear (drive) wheels, un\
less you have
to,
If the vehicle must be towed on the rear wheels, don't go more than 35 mph
(56 km/h) or farther than 50 miles (80 km) or your transmission will be
damaged.
If these limits must be exceeded, then the rear drive wheels have\

to be supported on a dolly.
If your vehicle has the four-wheel-drive option, a dolly
MUST be used under
the rear wheels when towing from the front.
5-8
