1993 CHEVROLET S10 Owners Manual

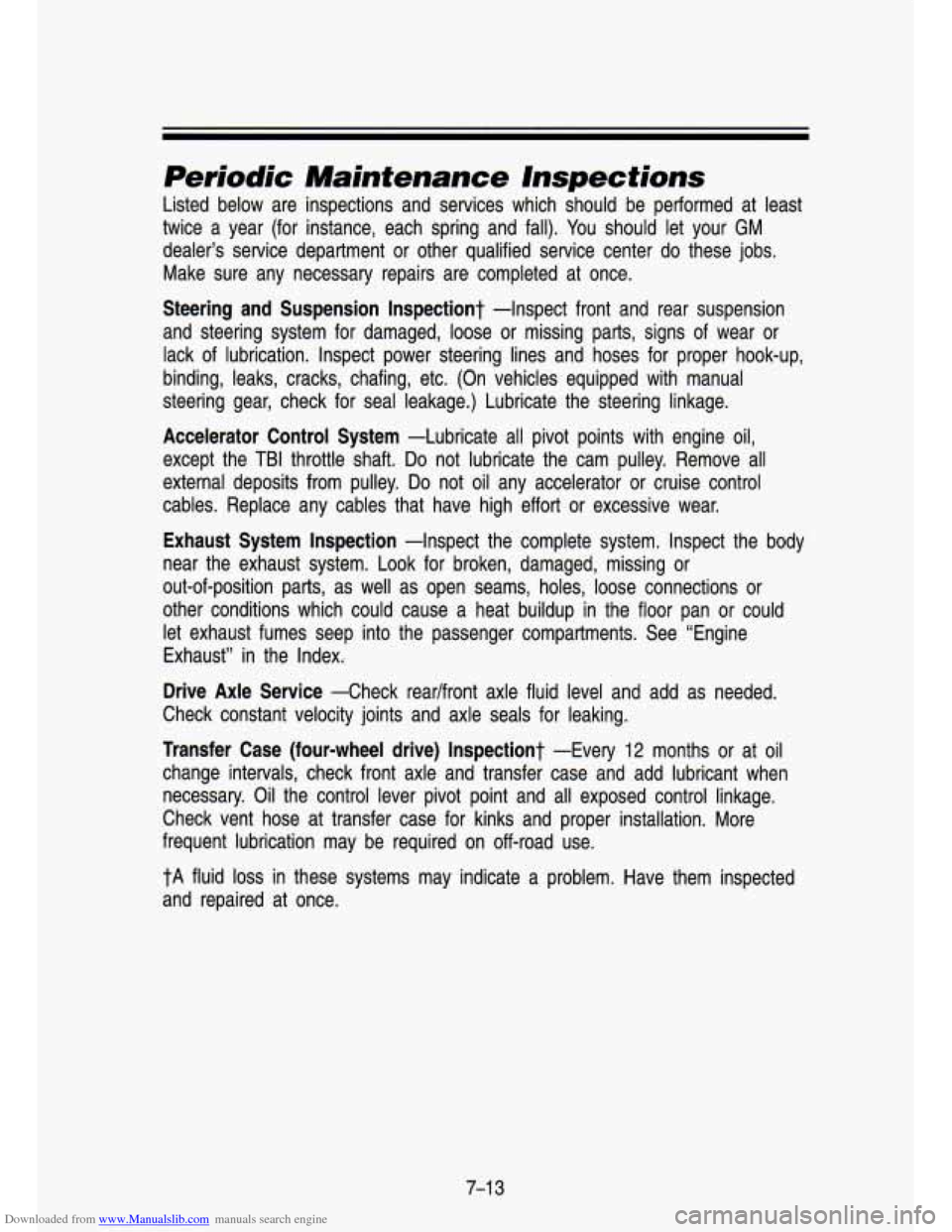

Downloaded from www.Manualslib.com manuals search engine Periodic Maintenance Inspections
Listed below are inspections and services which should be performed at least
twice a year (for instance, each spring and fall). You should let your GM
dealer’s service department or other qualified service center
do these jobs.
Make sure any necessary repairs are completed at once.
Steering and Suspension lnspectiont -Inspect front and rear suspension
and steering system for damaged, loose or missing parts, signs \
of wear or
lack of lubrication. Inspect power steering lines and hoses for\
proper hook-up,
binding, leaks, cracks, chafing, etc. (On vehicles equipped with manual
steering gear, check for seal leakage.) Lubricate the steering linkage.
Accelerator Control System -Lubricate all pivot points with engine oil,
except the
TBI throttle shaft. Do not lubricate the cam pulley. Remove all
external deposits from pulley. Do not oil any accelerator or cruise control
cables. Replace any cables that have high effort or excessive wear.
Exhaust System Inspection -Inspect the complete system. Inspect the body
near the exhaust system. Look for broken, damaged, missing or
out-of-position parts, as well as open seams, holes, loose connections or
other conditions which could cause a heat buildup in the floor pan or could
let exhaust fumes seep into the passenger compartments. See “\
Engine Exhaust” in the Index..
Drive Axle Service -Check rear/front axle fluid level and add as needed.
Check constant velocity joints and axle seals for leaking.
Transfer Case (four-wheel drive) lnspectiont -Every
12 months or at oil
change intervals, check front axle and transfer case and add l\
ubricant when
necessary. Oil the control lever pivot point and all exposed control linkage. \
Check vent
hose at transfer case for kinks and proper installation. More
frequent lubrication may be required on off-road use.
tA fluid loss in these systems may indicate a problem. Have them inspected
and repaired at once.
7-1 3

Downloaded from www.Manualslib.com manuals search engine i
I

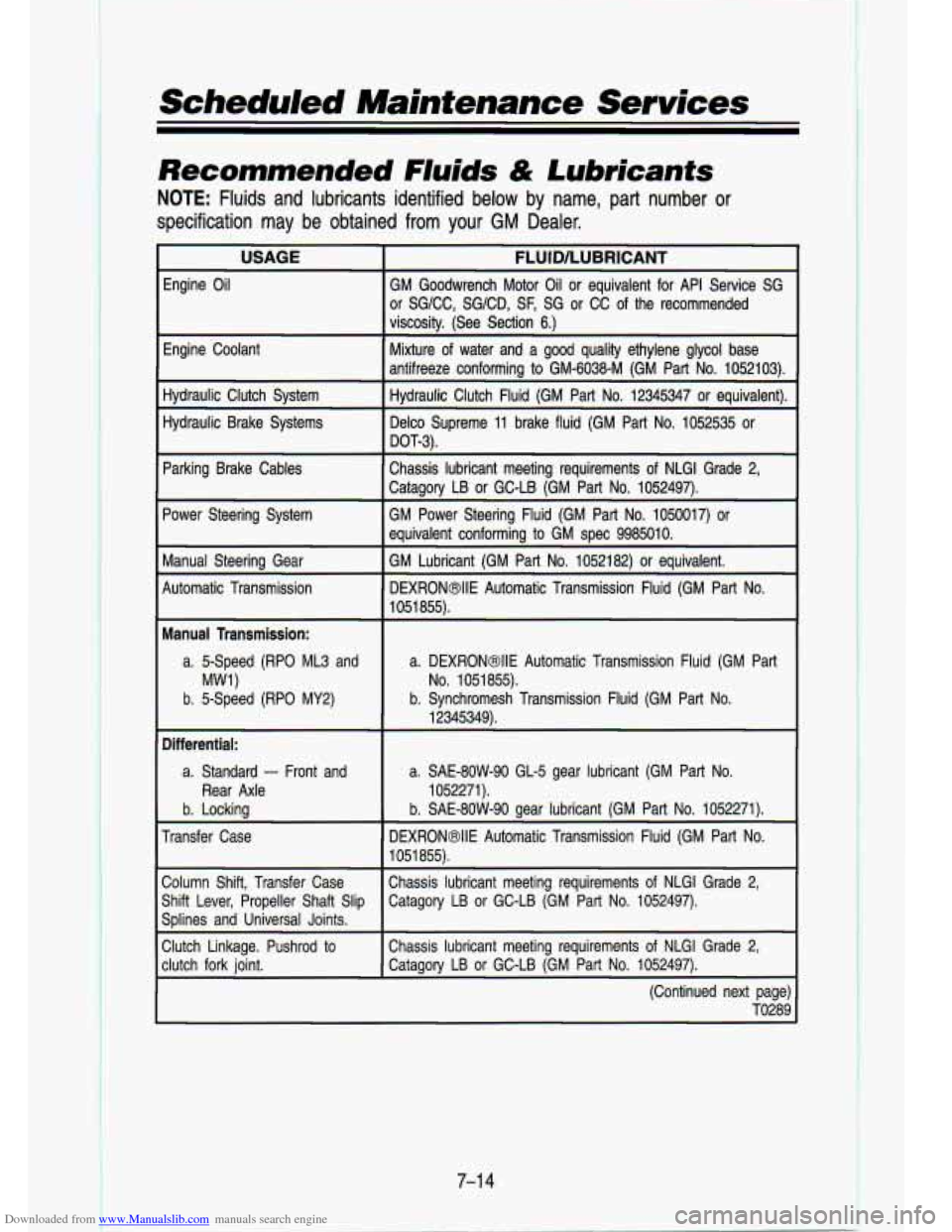

Scheduled Maintenance Services
Recommended FIuids & Lubricants
NOTE: Fluids and lubricants identified below by name, part number or \
specification may be obtained from your
GM Dealer.
USAGE FLUlD/LUBRICANT
Engine Oil GM Goodwrench Motor Oil or equivalent for API Service SG
or SGICC, SG/CD, SF, SG or CC
of the recommended
viscosity. (See Section 6.)
Engine Coolant Mixture
of water and a good quality ethylene glycol base
antifreeze conforming
to GM-6038-M (GM Part No. 1052103).
Hydraulic Clutch System Hydraulic Clutch Fluid (GM Part No. 12345347 or equivalent).
Hydraulic Brake Systems Delco Supreme 11 brake fluid (GM Part No. 1052535 or
Parking Brake Cables Chassis lubricant meeting requirements
of NLGl Grade 2,
Power Steering System GM Power Steering Fluid (GM Part No. 10\
50017) or
Manual Steering Gear GM Lubricant (GM Part
No. 1052182) or equivalent.
Automatic Transmission DEXRONBIIE Automatic Transmission Fluid (GM Part No.
Manual Transmission:
DOT-3).
Catagoty LB or GC-LB (GM Part No. 1052497).
equivalent conforming
to GM spec 9985010.
1051
RKK).
a. 5-Speed (RPO ML3 and a. DEXRONBIIE Automatic Transmission Fluid (GM Part
b. 5-Speed (RPO MY2) b. Synchromesh Transmission Fluid (GM P\
art No. 12345349).
MW1) No. 1051855).
Differential:
a. Standard - Front and
a. SAE-80W-90 GL-5 gear lubricant (GM Part No.
b. Locking
b. SAE-80W-90 gear lubricant (GM Part No. 1052271).
Transfer Case DEXRONBIIE
Automatic Transmission Fluid (GM Part No.
Column Shift, Transfer Case Chassis lubricant meeting requirement\
s of NLGI Grade 2,
Shift Lever, Propeller Shaft Slip Catagory LB or GC-LB (GM Part No.\
1052497).
Splines and Universal Joints.
Clutch Linkage. Pushrod
to Chassis lubricant meeting requirements of NLGl Grade 2,
clutch fork joint. Catagory LB or GC-LB (GM Part No. 1052497).
Rear Axle 1052271).
1051 855).
(Continued next page) TO289
7-1 4
1

Downloaded from www.Manualslib.com manuals search engine li
I
I

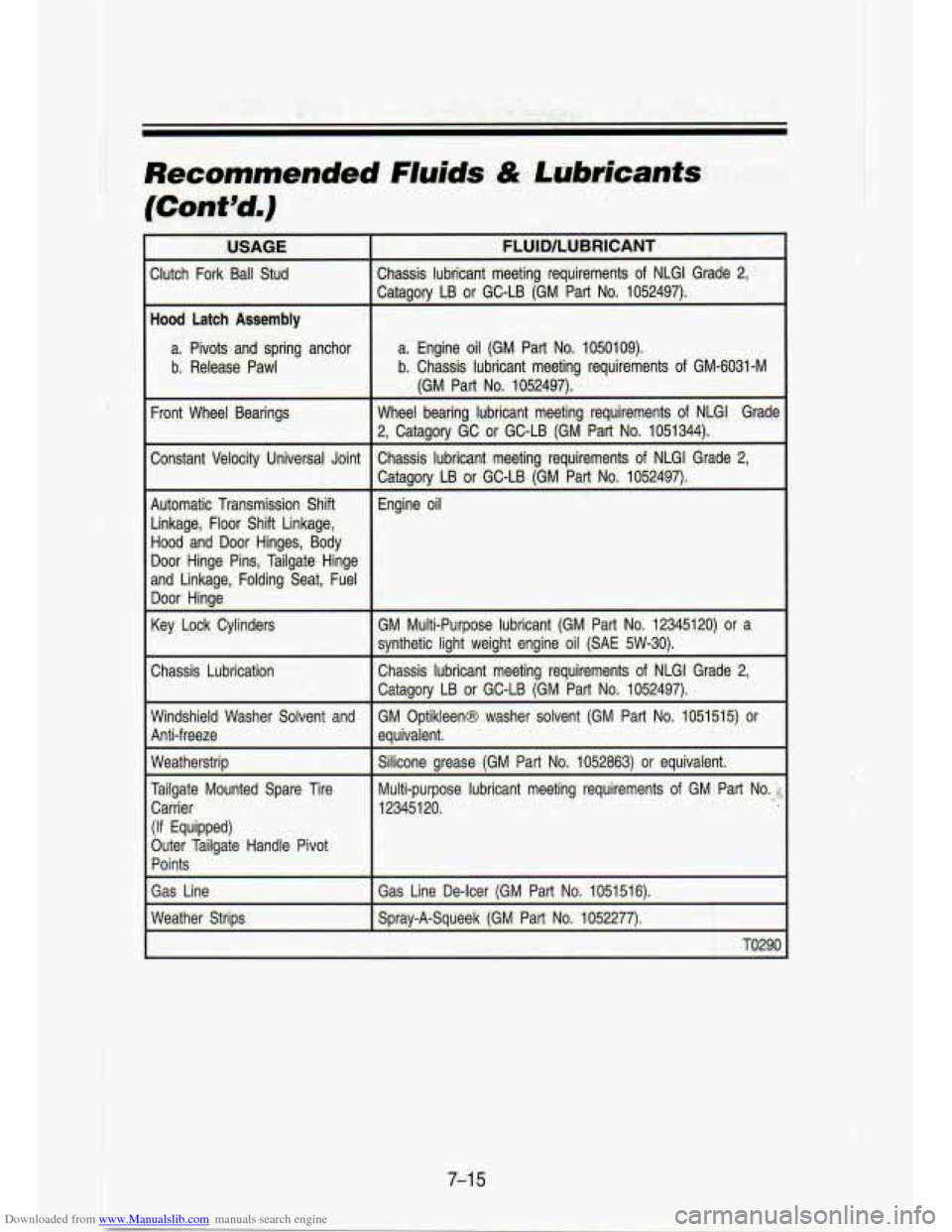

Recomm'ended Fluids & Lubricants
[Cont'cs,)
USAGE
Clutch Fork Ball Stud
Hood Latch Assembly
a. Pivots and spring anchor
b. Release Pawl
Front Wheel Bearings
Constant Velocity Universal Joint
Automatic Transmission Shift Linkage, Floor Shift Linkage,
Hood and Door Hinges, Body
Door Hinge Pins, Tailgate Hinge
.and Linkage, Folding Seat, Fuel Door Hinge
Key Lock Cylinders
Chassis Lubrication
Windshield Washer Solvent and
Anti-freeze Weatherstrip
Tailgate Mountea spare
I
Carrier
(If Equipped)
Outer Tailgate Handle Pivot Points
Gas Line
Weather Strips
-
FLUID/LUBRICANT
Chassis lubricant meeting requirements of NLGl Grade 2,
Cataaorv LB or GC-LB IGM Part No. 10524971.
a. Engine oil (GM Part
No. 1050109).
b. Chassis lubricant meeting requirements
of GM-6031-M
Wheel bearing lubricant meeting requirements of NLGI Grade
2, Catagory GC or GC-LB (GM Part
No. 1051344).
Chassis lubricant meeting requirements
of NLGl Grade 2,
Catagory LB
or GC-LB (GM Part No. 1052497).
Engine oil
(GM Part No. 1052497).
GM Multi-Purpose lubricant (GM Part No. 12345120) or a
synthetic light weight engine oil (SAE 5W-30).
Chassis lubricant meeting requirements
of NLGl Grade 2,
Catagory LB or GC-LB (GM Part No. 1052497).
GM OptikIeenB washer solvent (GM Part
No. 1051515) or
equivalent.
~~ ~~~
Silicone grease (GM Part No. 1052863) or equivalent.
Multi-purpose lubricant meeting requirements
of GM Part No. .!
123451 20.
~~ ~
Gas Line De-lcer (GM Part No. 1051516).
Stxav-A-Saueek IGM Part No. 1052277).

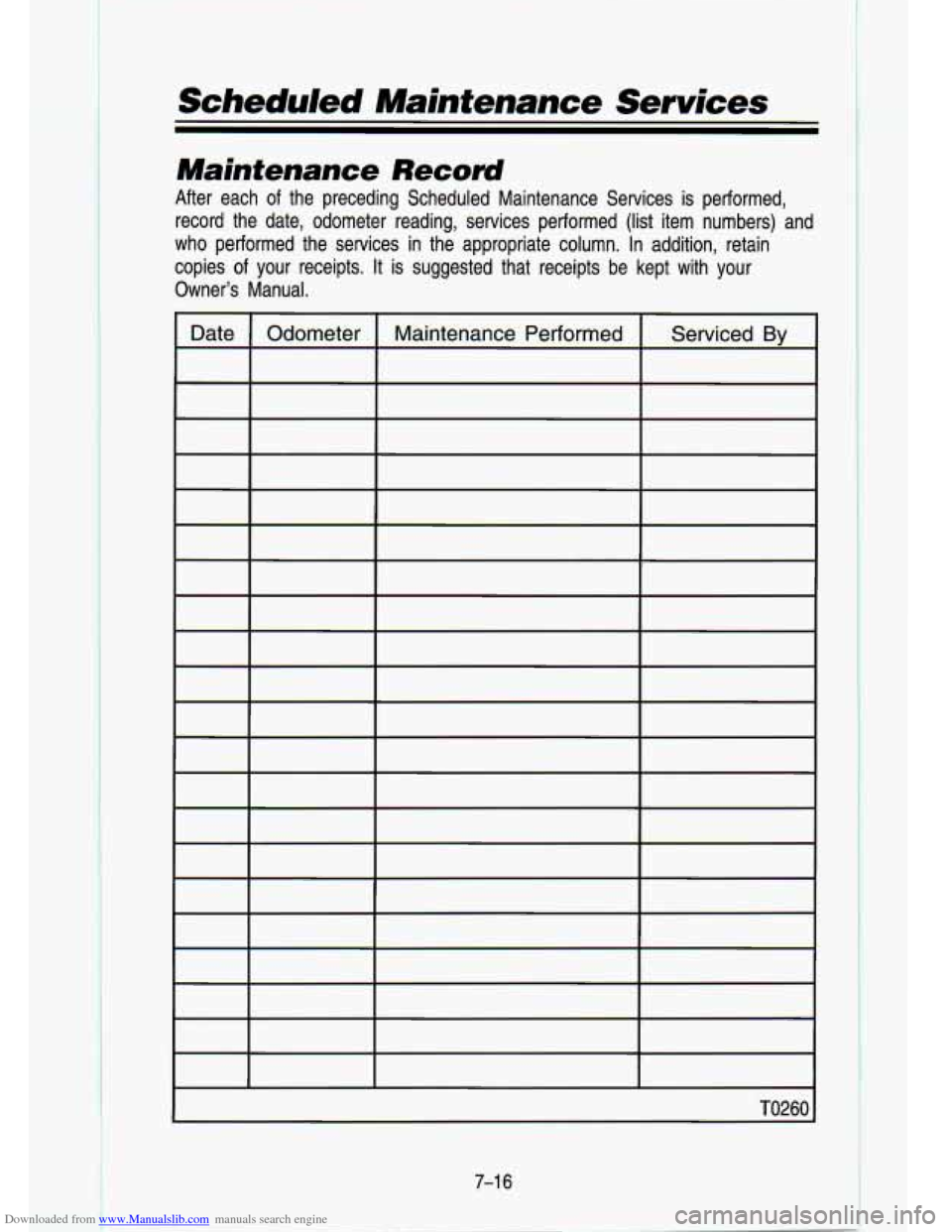

Downloaded from www.Manualslib.com manuals search engine Scheduled Maintenance Services
Maintenance Record
After each of the preceding Scheduled Maintenance Services is performed,
record the date, odometer reading, services performed (list ite\
m numbers) and
who performed the services in the appropriate column. In addition, retain
copies of your receipts.
It is suggested that receipts be kept with your
Owner's Manual.
I
TO260 I
7-1 6
1 E

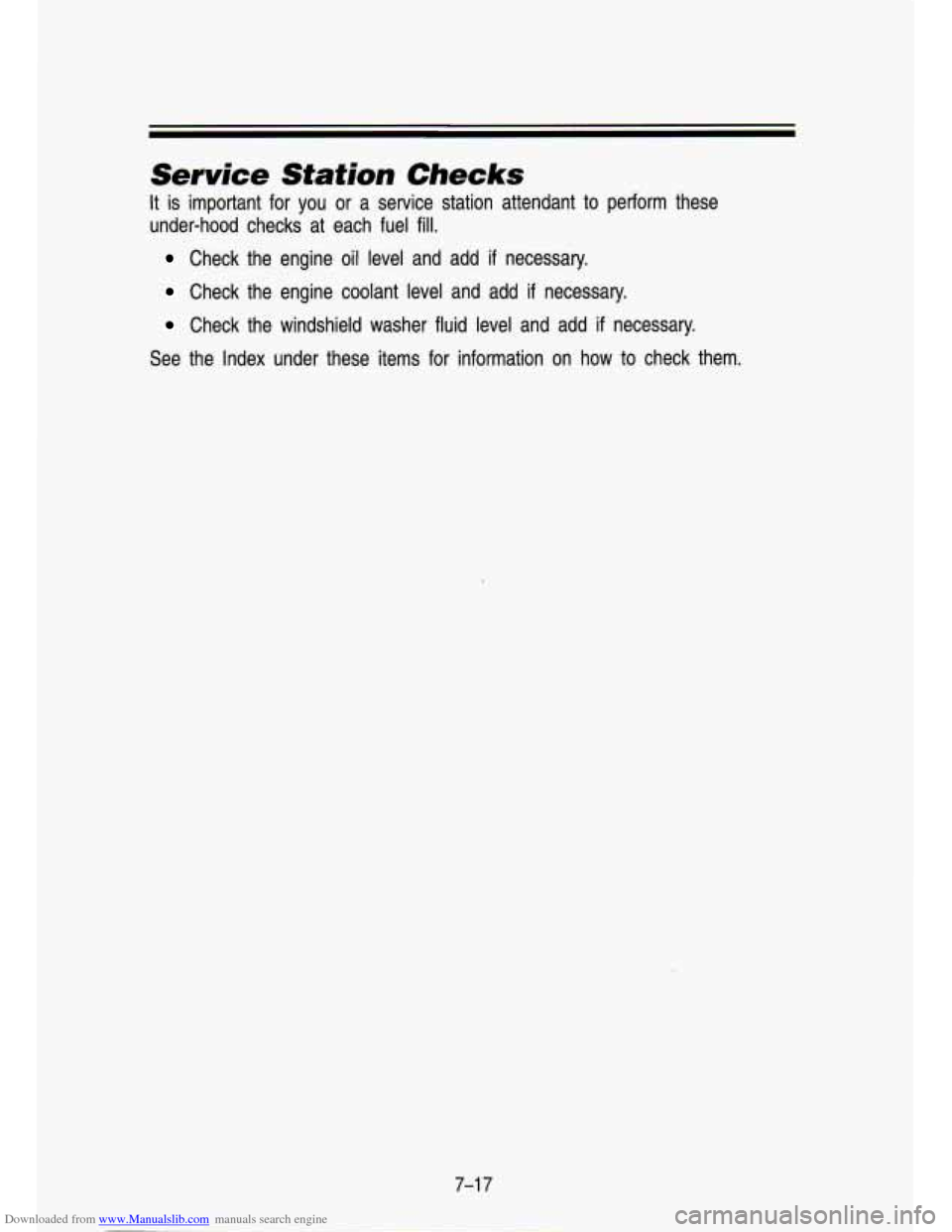

Downloaded from www.Manualslib.com manuals search engine Service Station Checks
It is important for you or a service station attendant to perform these
under-hood checks at each fuel
fill.
Check the engine oil level and add if necessary.
Check the engine coolant level and add if necessary.
Check the windshield washer fluid level and add if necessary.
See the Index under these items for information on how to che\
ck them.
7-17

Downloaded from www.Manualslib.com manuals search engine c:
Scheduled Maintenance Services

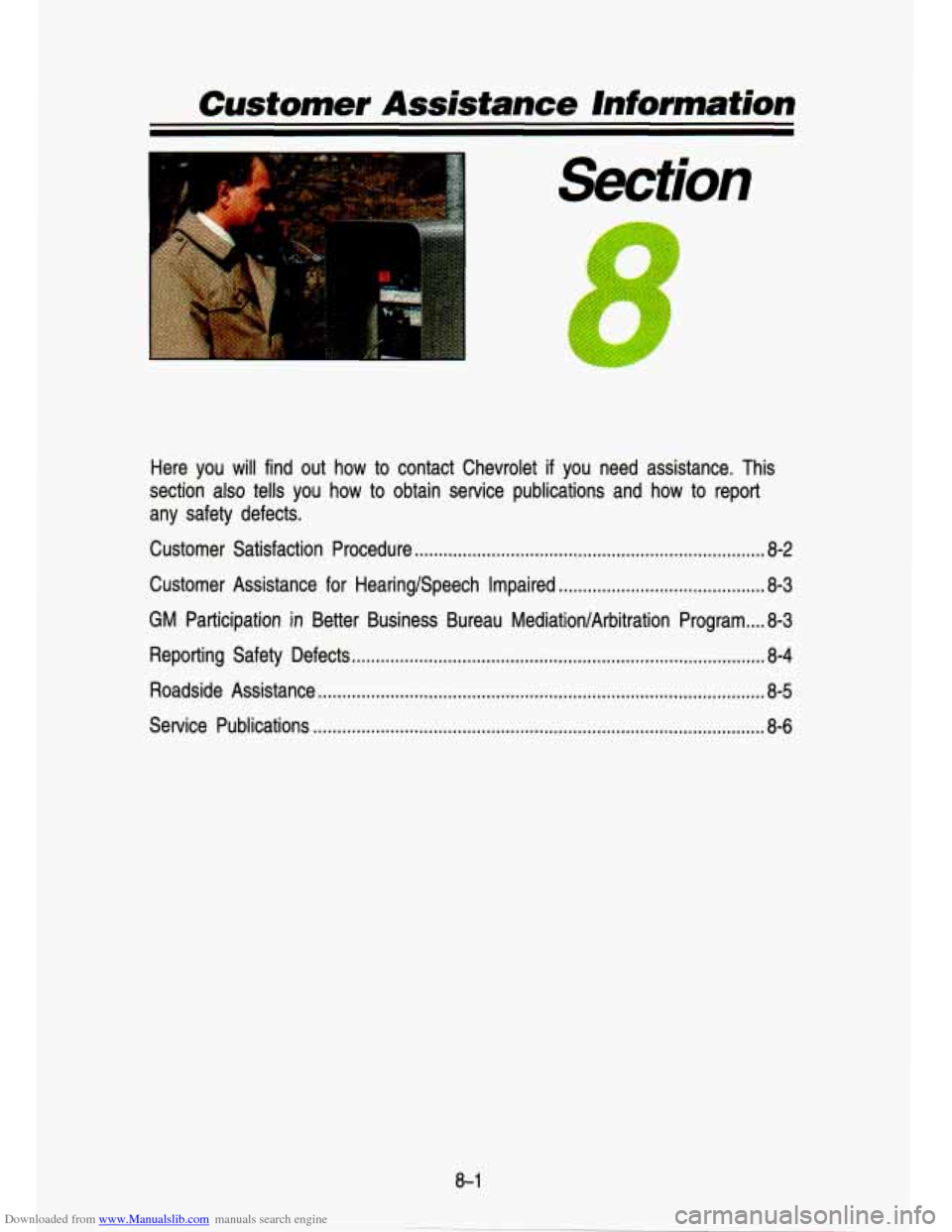

Downloaded from www.Manualslib.com manuals search engine Customer Assistance information
Section
Here you will find out how to contact Chevrolet if you need \
assistance. This
section also tells you how to obtain service publications and \
how to report
any safety defects.
Customer Satisfaction Procedure
........................................................................\
. 8-2
Customer Assistance for HearinglSpeech Impaired ........................................... 8-3
GM Participation in Better Business Bureau MediatiodArbitration Progr\
am .... 8-3
Reporting Safety Defects ........................................................................\
.............. 8-4
Roadside Assistance ........................................................................\
.................... .8-5
Service Publications ........................................................................\
...................... 8-6
8-1

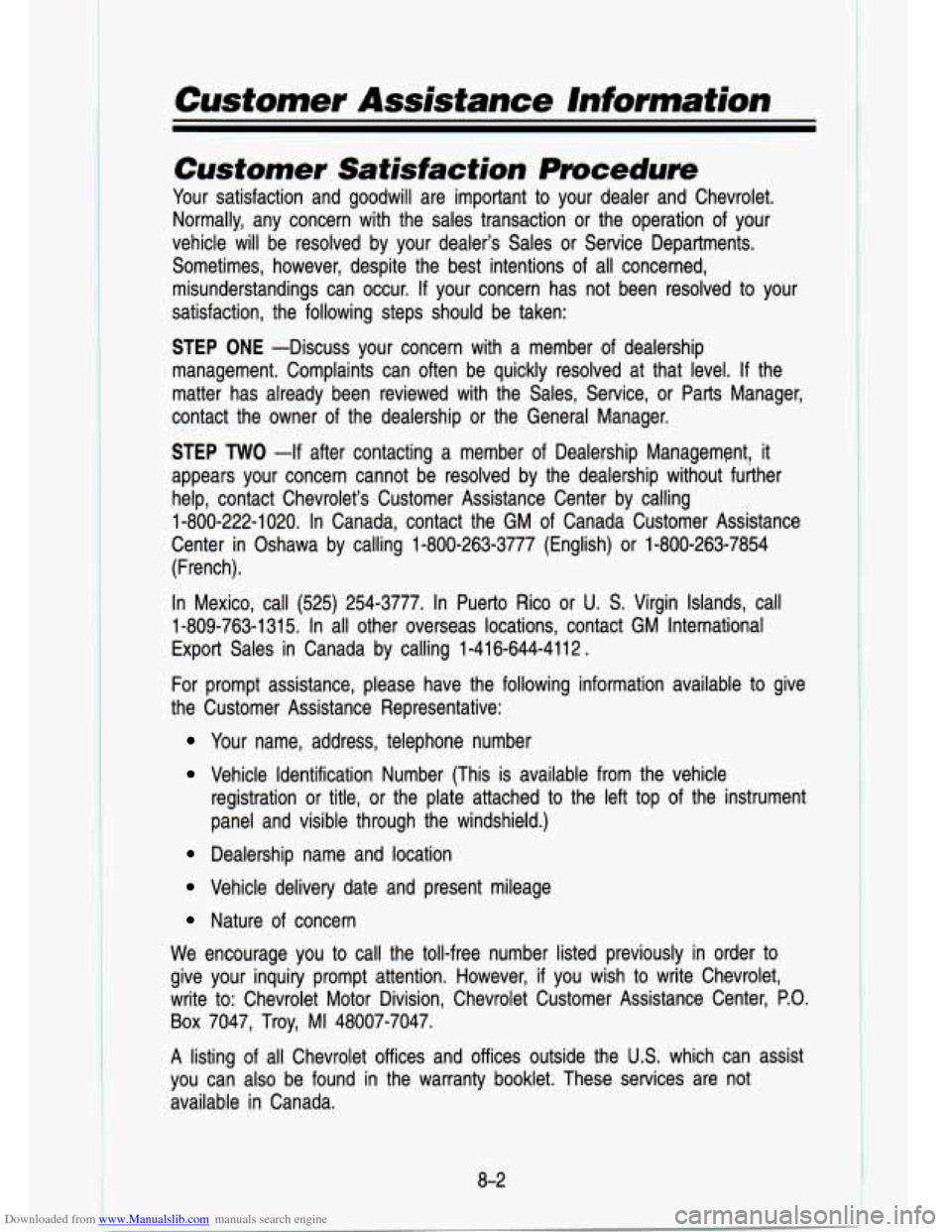

Downloaded from www.Manualslib.com manuals search engine Customer Assistance Information
Customer Satisfaction Procedure
Your satisfaction and goodwill are important to your dealer and Chev\
rolet.
Normally, any concern with the sales transaction or the operati\
on of your
vehicle will be resolved by your dealer's Sales or Service Dep\
artments. Sometimes, however, despite the best intentions of all concerned,
misunderstandings can occur.
If your concern has not been resolved to your
satisfaction, the following steps should be taken:
STEP ONE -Discuss your concern with a member of dealership
management. Complaints can often be quickly resolved at that le\
vel.
If the
matter has already been reviewed with the Sales, Service, or P\
arts Manager,
contact the owner of the dealership or the General Manager.
STEP TWO -If after contacting a member of Dealership Management, it
appears your concern cannot be resolved, by the dealership without fuhher
help, contact Chevrolet's Customer Assistance Center by calling
1-800-222-1020. In Canada, contact the GM of Canada Customer Assistance
Center in Oshawa by calling 1-800-263-3777 (English) or 1-800-263-7854
(French).
In Mexico, call (525) 254-3777. In Puerto Rico or
U. S. Virgin Islands, call
1-809-763-1 315. In all other overseas locations, contact GM International
Export Sales in Canada by calling 1-416-644-4112.
For prompt assistance, please have the following information availabl\
e to give
the Customer Assistance Representative:
Your name, address, telephone number
Vehicle Identification Number (This is available from the vehicle
registration or title, or the plate attached to the left top of the instrument
panel and visible through the windshield.)
Dealership name and location
Vehicle delivery date and present mileage
Nature of concern
We encourage you to call the toll-free number listed previously in order to
give your inquiry prompt attention. However,
if you wish to write Chevrolet,
write to: Chevrolet Motor Division, Chevrolet Customer Assistance\
Center, P.O.
Box 7047, Troy, MI 48007-7047.
A listing of all Chevrolet offices and offices outside the
U.S. which can assist
you can also be found in the warranty booklet. These services \
are not available in Canada.
8-2
