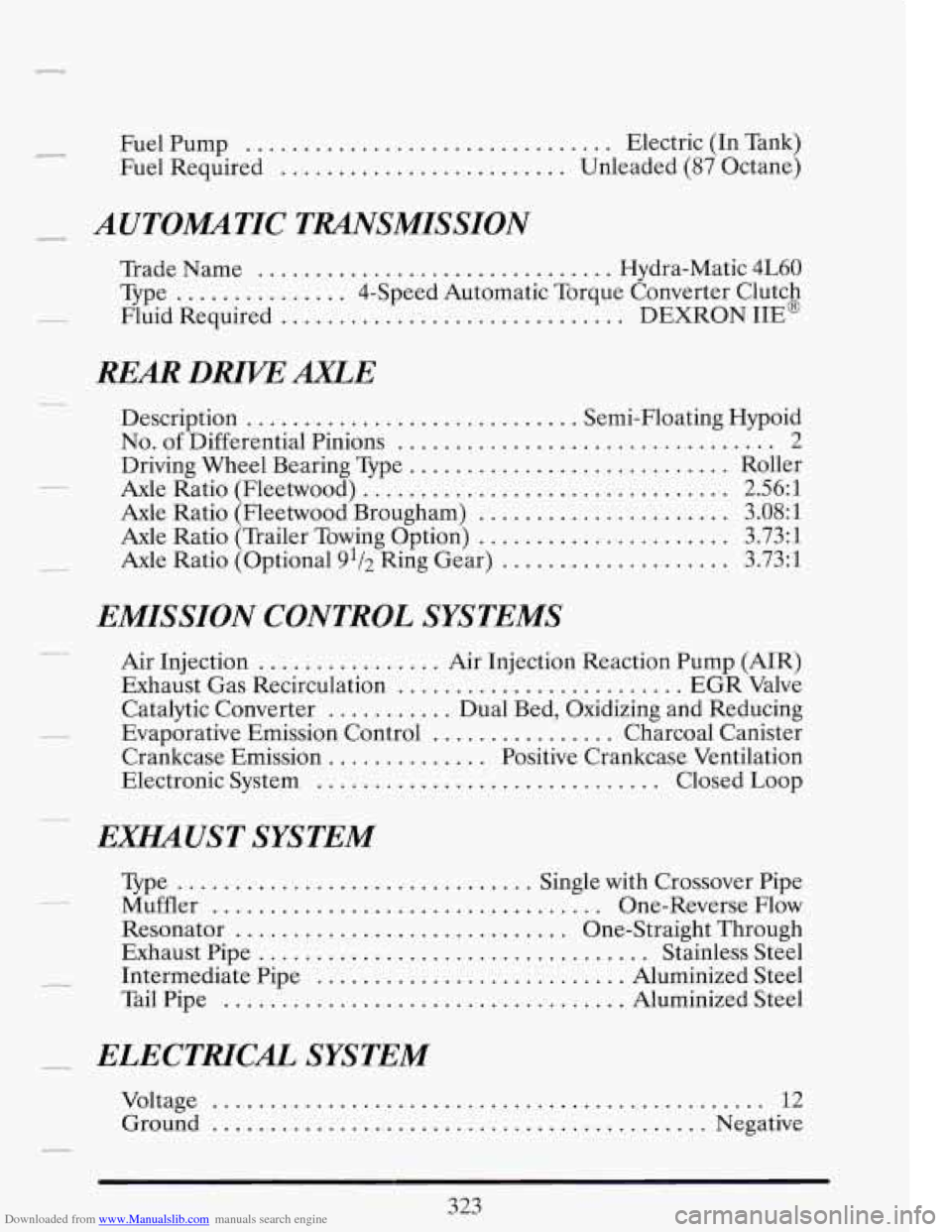

Downloaded from www.Manualslib.com manuals search engine Fuel Pump ................................ Electric (In Tank)
Fuel Required
......................... Unleaded (87 Octane)
AUTOMMTIC TMSMISSION
Trade Name ............................... Hydra-Matic 4L60
Fluid Required
.............................. DEXRON IIE@
Type
............... 4-Speed Automatic Torque Converter Clutch
Description
............................. Semi-Floating Hypoid
No. of Differential Pinions
................................. 2
Driving Wheel Bearing Type ............................ Roller
Axle Ratio (Fleetwood)
................................ 2.56:l
Axle Ratio (Fleetwood Brougham)
...................... 3.08:l
Axle Ratio (Trailer Towing Option)
...................... 3.73:l
Axle Ratio (Optional
g1/2 Ring Gear) .................... 3.73:l
EMISSION CONTROL SYSTEMS
Air Injection ................ Air Injection Reaction Pump (AIR)
Exhaust Gas Recirculation
......................... EGR Valve
Catalytic Converter
........... Dual Bed, Oxidizing and Reducing
Evaporative Emission Control
................ Charcoal Canister
Crankcase Emission
.............. Positive Crankcase Ventilation
Electronic System
.............................. Closed Loop
EXHAUST SYSTEM
Type ............................... Single with Crossover Pipe
Muffler
.................................. One-Reverse Flow
Resonator
............................. One-Straight Through
Exhaust Pipe
.................................. Stainless Steel
Intermediate Pipe
........................... Aluminized Steel
Tail Pipe
................................... Aluminized Steel
-_ ELECTRICAL SYSTEM
Voltage ................................................ 12
Ground
........................................... Negative
323

Downloaded from www.Manualslib.com manuals search engine Generator ........................................ 140 AMP
Regulator
................................ Integral Solid State
AIR CONDITIONING SYSTEM
Refrigerant-12 (R-12) ......................... 3.125 lb (1.4 kg)
Not all air conditioning refrigerants are the same.
If the air condi-
tioning system in your vehicle needs refrigerant, be sure the proper
refrigerant
is used. If you're not sure, ask your Cadillac dealership. ~~ ... -- 1 ..-i ~ ,
FLUID CAPACITIES
Auto Trans (4L60) Pan Removal .................. 5 qts. (4.7 L)
.Auto Trans (4UO Overhaul (245mm Torq. Conv.)
.... 8 qts. (7.9 L)
.,Auto Trans (4MO Overhaul (298mm Torq. Conv.)
. . 11 qts. (10.6 L)
.Engine Oil
.......... .-. ....................... 4.0 qts. (3.8 L)
"With Filter Change
............................ 5.0 qts. (4.7 L)
Engine Cooling ...............................
.Engine Cooling System (H.D.) ...................
'Fuel Tank ................................. 23 gallons (87.1L)
.Power Steering
................................. .2 qts. (1.9 L)
lRearAxle
....................................
'Washer Solvent ................................
TIGHTEN TORQUE
"Spark Plug ................................ 15 N-m (11 lb. ft.)
Oil Pan Drain Plug .......................... 41 N-m (30 lb. ft.)
'Wheel Lug Nut. .......................... 135 N-m (100 lb. ft.)
:Re,ar Axle.Filler.Plug ......... ........................ 35 N.m (26 lb. ft.)
, :+- 8 i - ' .. ~, . > ._ , ,-
KlEHICLE DIMENSIONS
Shipping Weight (Fleetwood Brougham) ...... .4361 lbs. (1978 kg)
'Wheel
Base ................................ 121.5 in (3085 mm)
Shipping Weight (Fleetwood) ................ .4295 lbs. (1948 kg)
'Length
.................................... .224 in (5696 mm)
Height ..................................... .57 in (1451 mm)
Width
...................................... .77 in (1952 mm)

Downloaded from www.Manualslib.com manuals search engine .. , ,. .. .. . . ..88 '

Downloaded from www.Manualslib.com manuals search engine ---
We employ technicians certified by the
National Institute for
AUTOMOTIVE SERVICE
EXCELLENCE
Let us show you their credentials
Catalog Number H-3022
Part Number 3532629-B
-,
IL;
.-..
-.

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine r

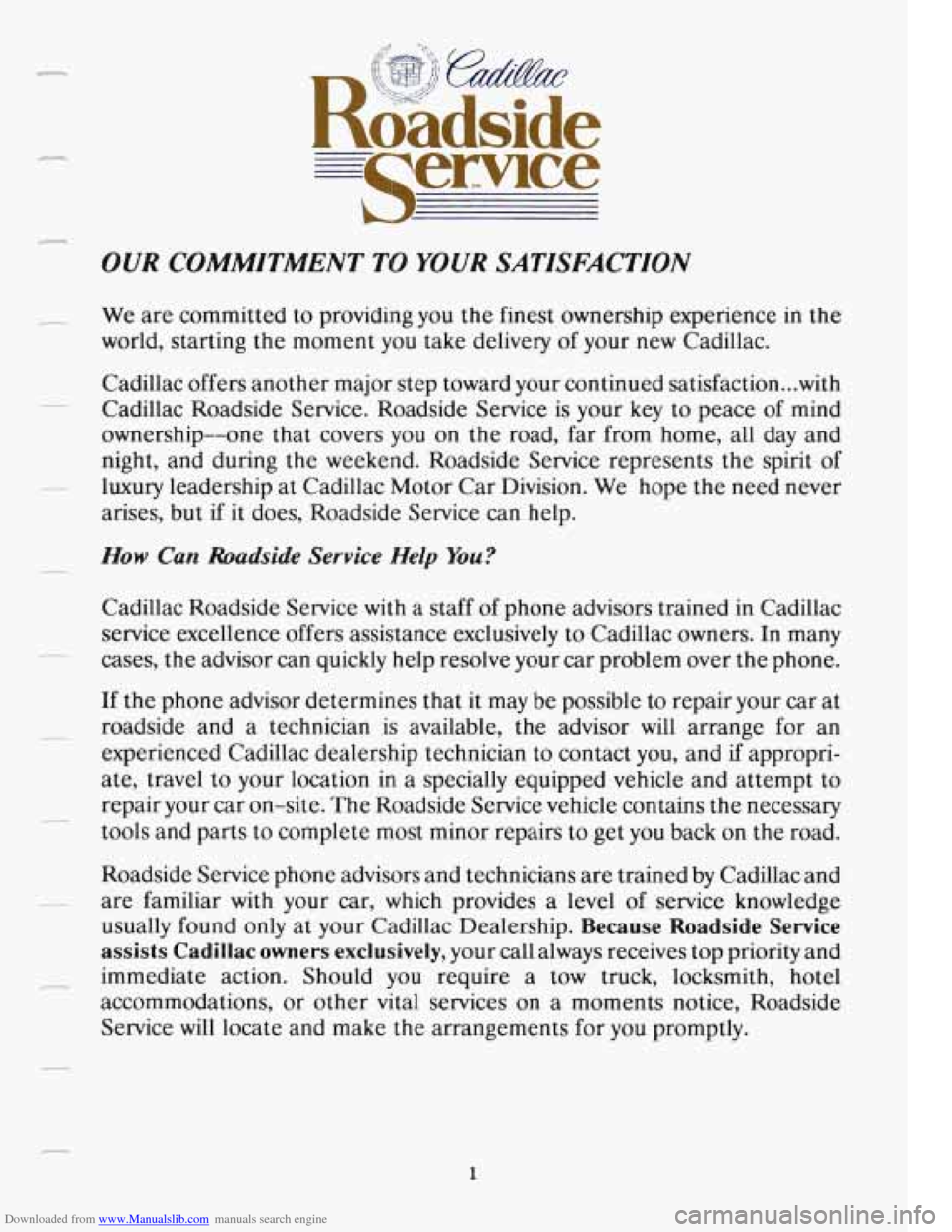

OUR COMMITMENT TO YOUR SATISFACTION
c We are committed to providing you the finest ownership experience in the
world, starting the moment you take delivery of your new Cadillac.
Cadillac offers another major step toward your continued satisfaction
... with
Cadillac Roadside Service. Roadside Service is your key to peace of mind
ownership--one that covers you on the road, far from home, all day and
night, and during the weekend. Roadside Service represents the spirit
of
luxury leadership at Cadillac Motor Car Division. We hope the need never
arises,
but if it does, Roadside Service can help.
How Can Roadside Service Help You?
Cadillac Roadside Service with a staff of phone advisors trained in Cadillac
service excellence offers assistance exclusively to Cadillac owners. In many
cases, the advisor can quickly help resolve your car problem over the phone.
If the phone advisor determines
that it may be possible to repair your car at
-- roadside and a technician is available, the advisor will arrange for an
experienced Cadillac dealership technician to contact you, and
if appropri-
ate, travel to your location in a specially equipped vehicle and attempt to
repair your car on-site. The Roadside Service vehicle contains the necessary
tools and parts to complete most minor repairs to get you back on the road.
__
Roadside Service phone advisors and technicians are trained by Cadillac and
__ are familiar with your car, which provides a level of service knowledge
usually found only at your Cadillac Dealership.
Because Roadside Service
assists Cadillac owners exclusively,
your call always receives top priority and
w immediate action. Should you require a tow truck, locksmith, hotel
accommodations, or other vital services on
a moments notice, Roadside
Service
will locate and make the arrangements for you promptly.
1

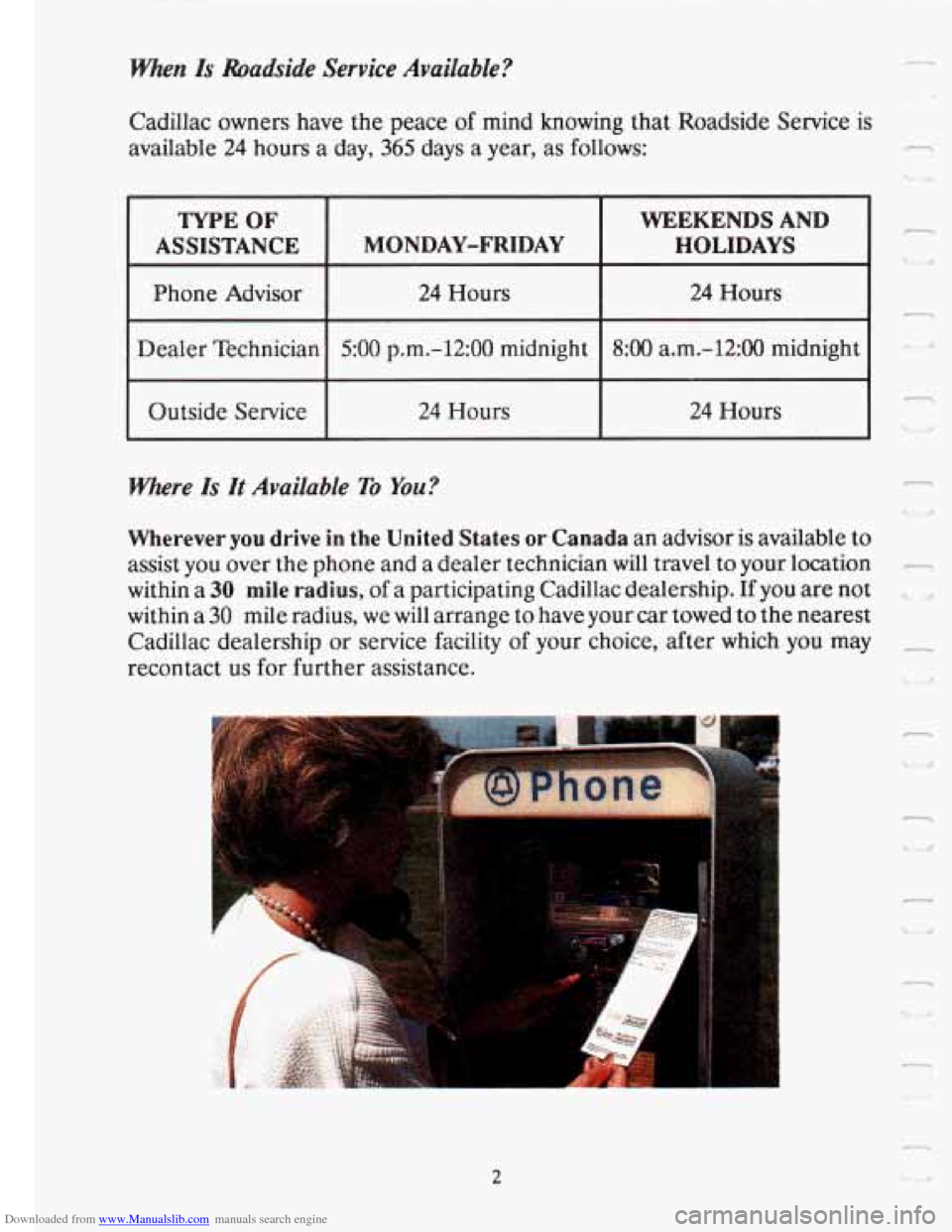

Downloaded from www.Manualslib.com manuals search engine when Is Roadside Service Available?
