1993 CADILLAC FLEETWOOD Owners Manual

Downloaded from www.Manualslib.com manuals search engine . I

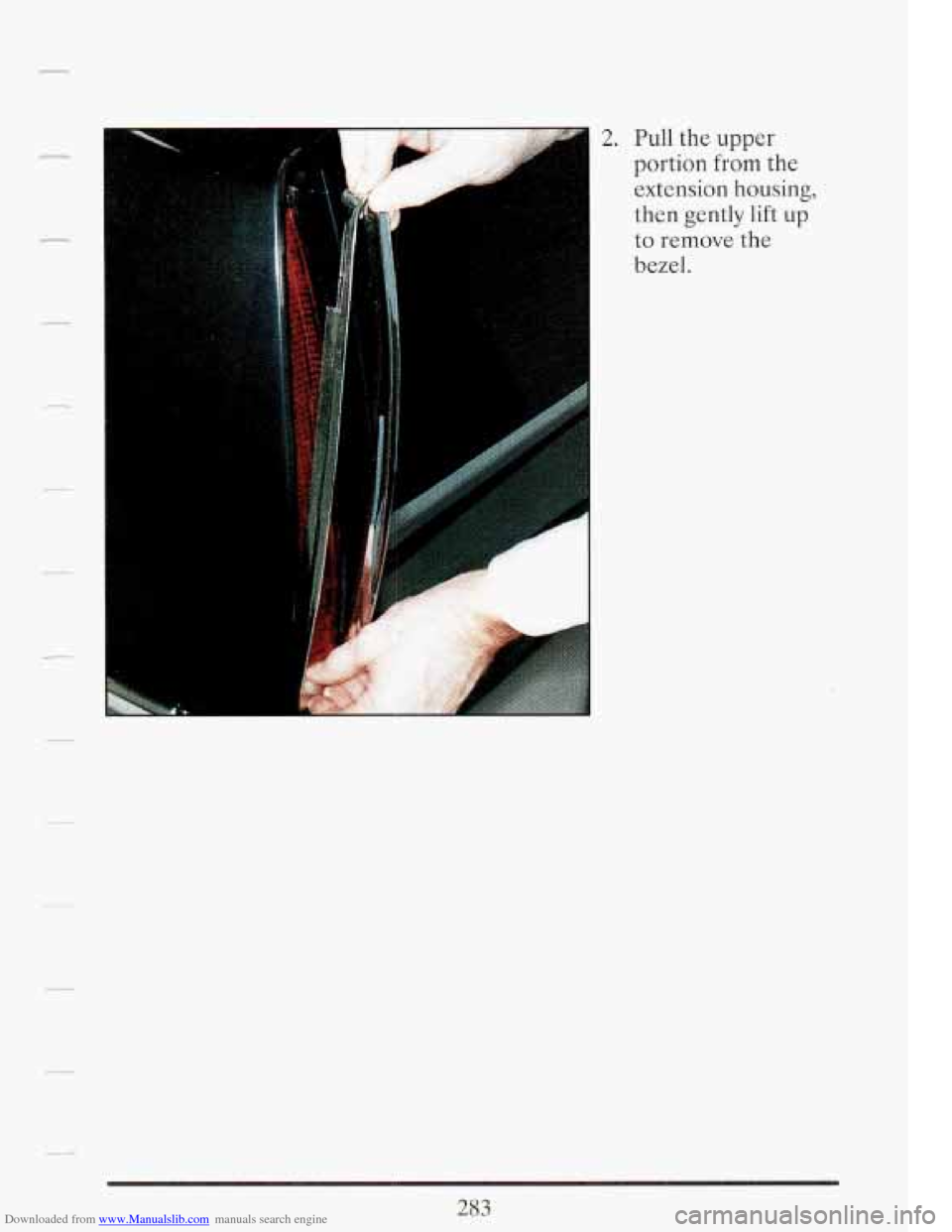

2. Pull the upper
portion
from the
extension
housing,
then gently lift up
to
remove the
bezel.

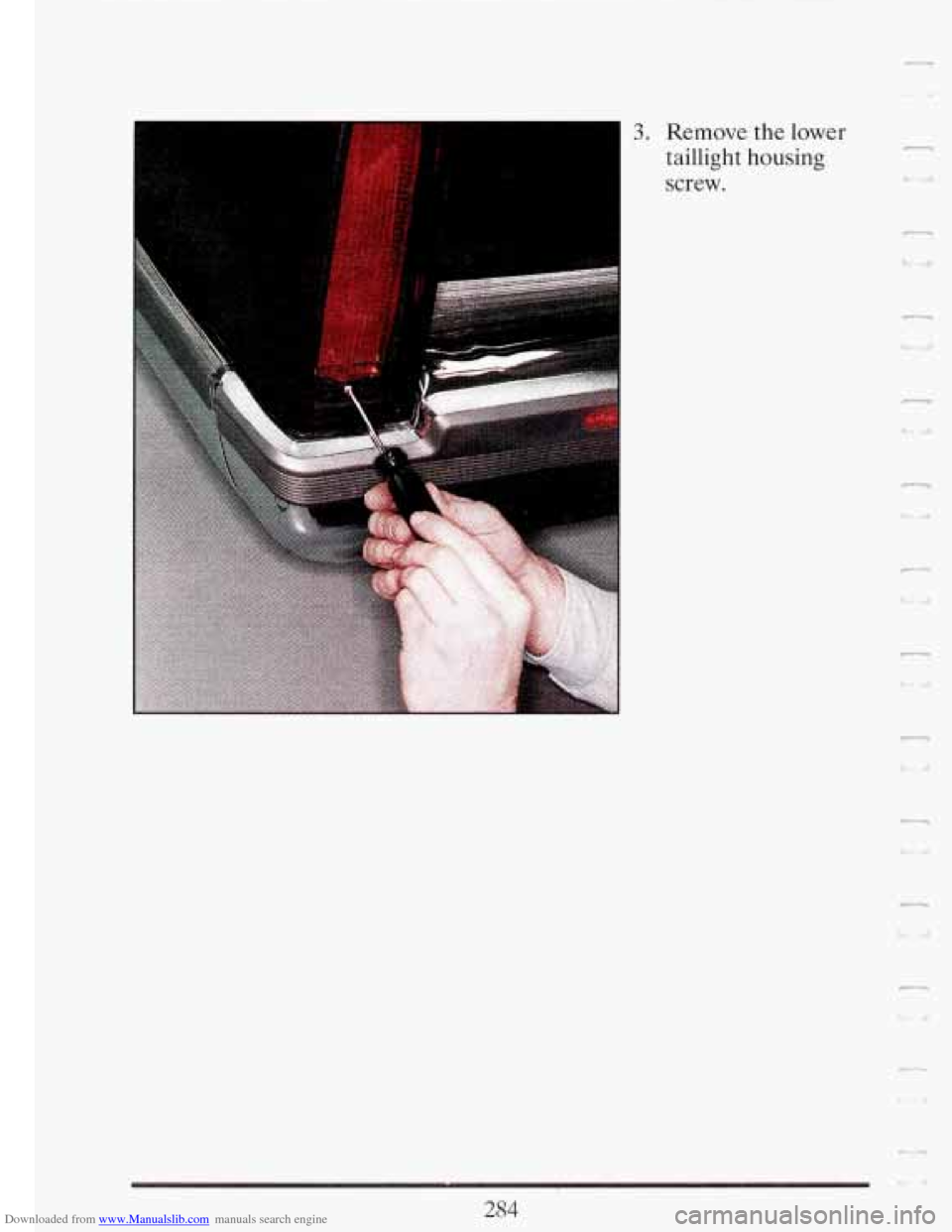

Downloaded from www.Manualslib.com manuals search engine 3. Remove the lower
taillight housing
screw.
1,
284

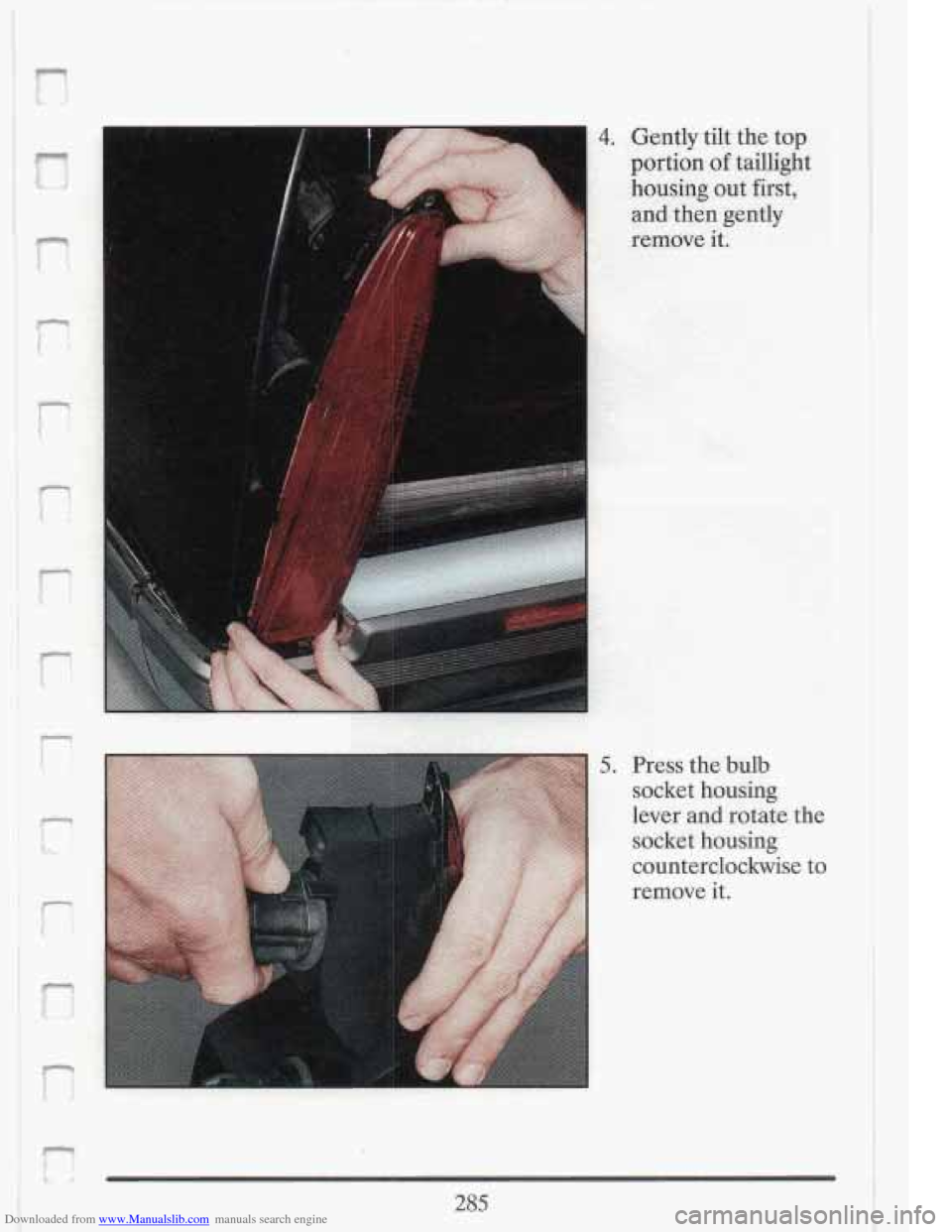

Downloaded from www.Manualslib.com manuals search engine r i 5. Press the bulb
socket housing
lever and-rotate the
socket
housing
counterclockwise to
remove it.
I
285

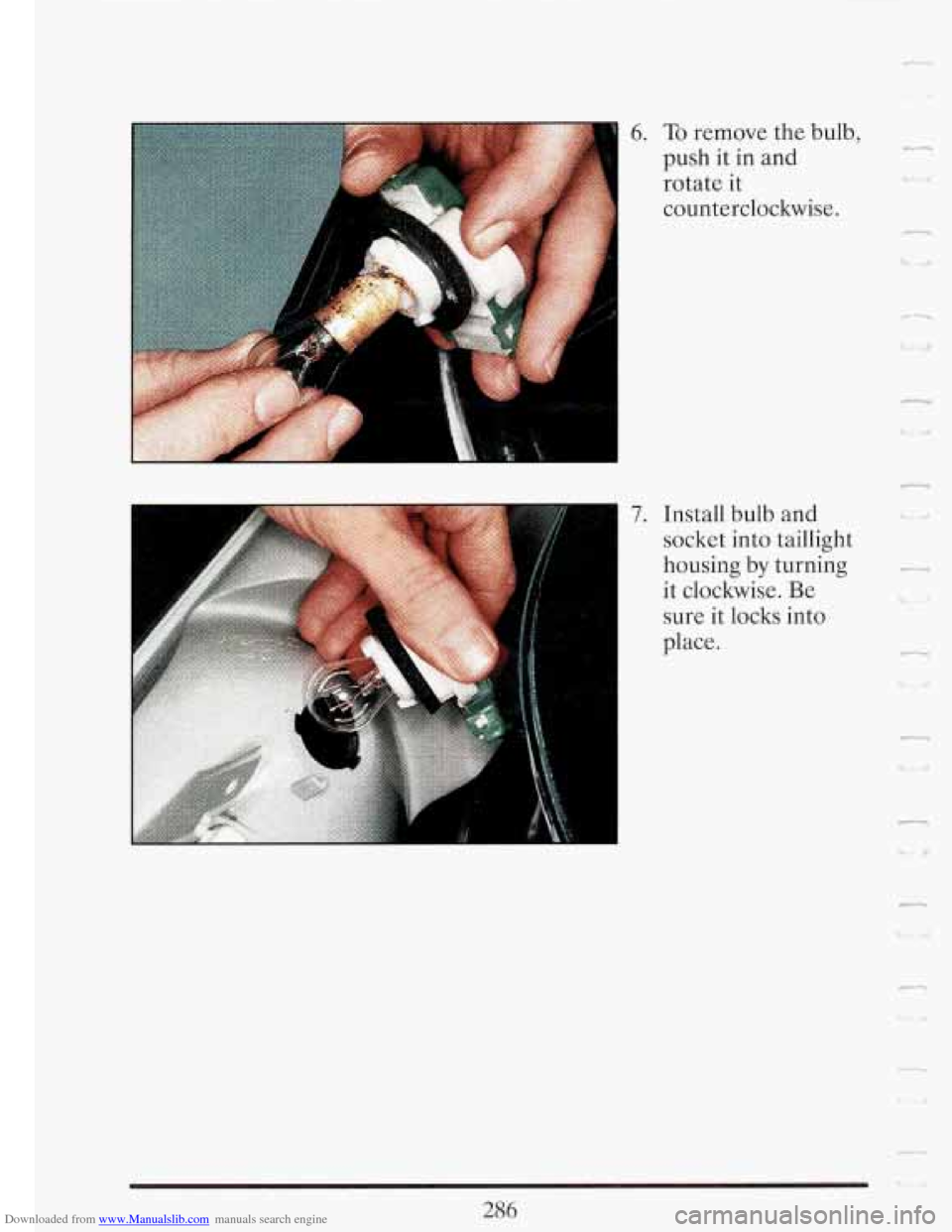

Downloaded from www.Manualslib.com manuals search engine 6. To remove the bulb,
push it in and
rotate it
counterclockwise. p_
d
7. Install bulb and
socket into taillight
housing by turning
it clockwise. Be
sure it locks into
place.
286
n L

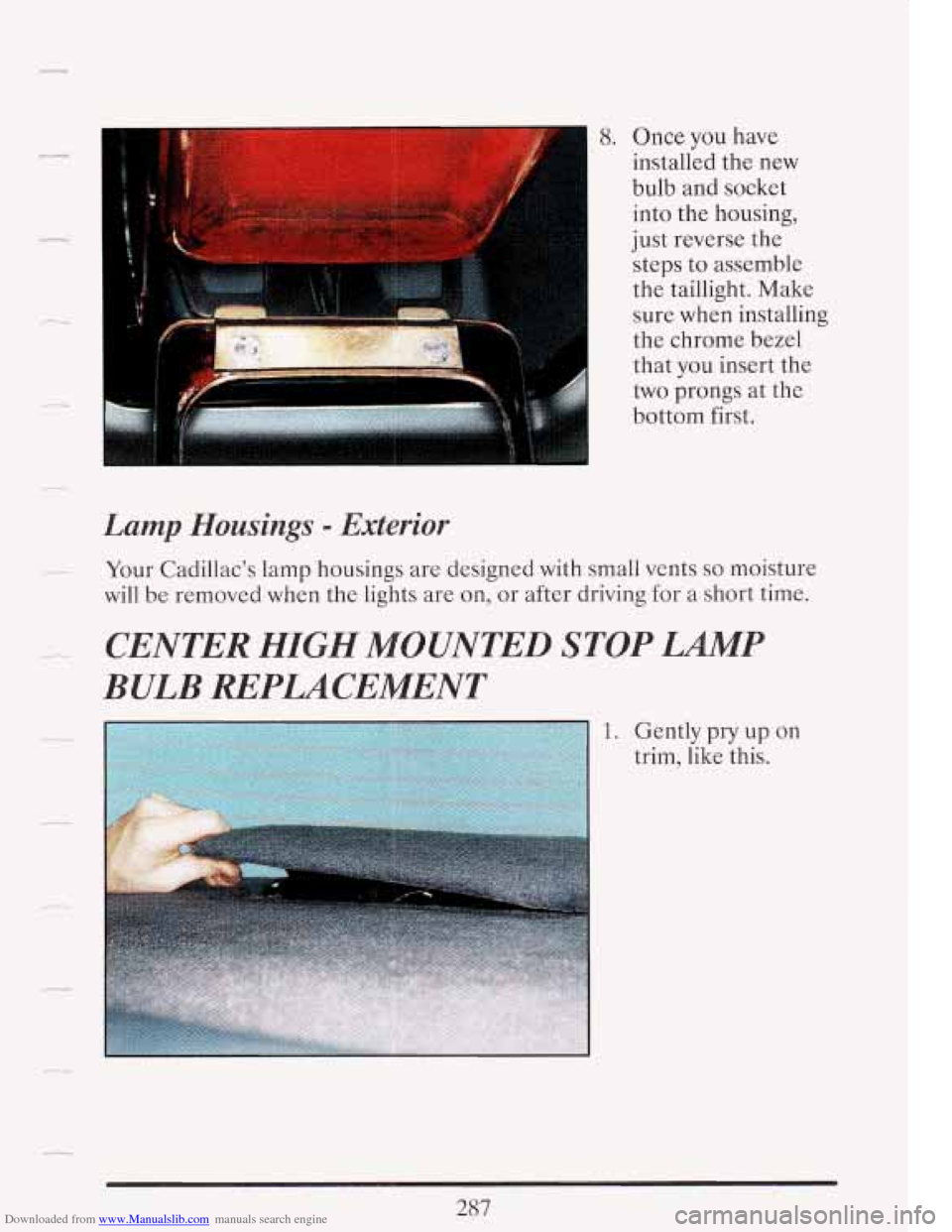

Downloaded from www.Manualslib.com manuals search engine Once you have
installed the new
bulb and socket
into the housing,
just reverse the
steps to assemble
the taillight. Make
sure when installing
the chrome bezel
that you insert the
two prongs at the
bottom first.
Lamp Housings - Exterior
- -_ Your Cadillac’s lamp housings are designed with small vents so moisture
will be removed when the lights are on, or after driving
for a short time.
CENTER HIGH MOUNTED STOP LAMP
BULB REPLACEMENT
1. Gently pry up on
trim, like this.
287

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine n
p1
n
f:
r:
r t'
r
I- t'
f
, .. ..

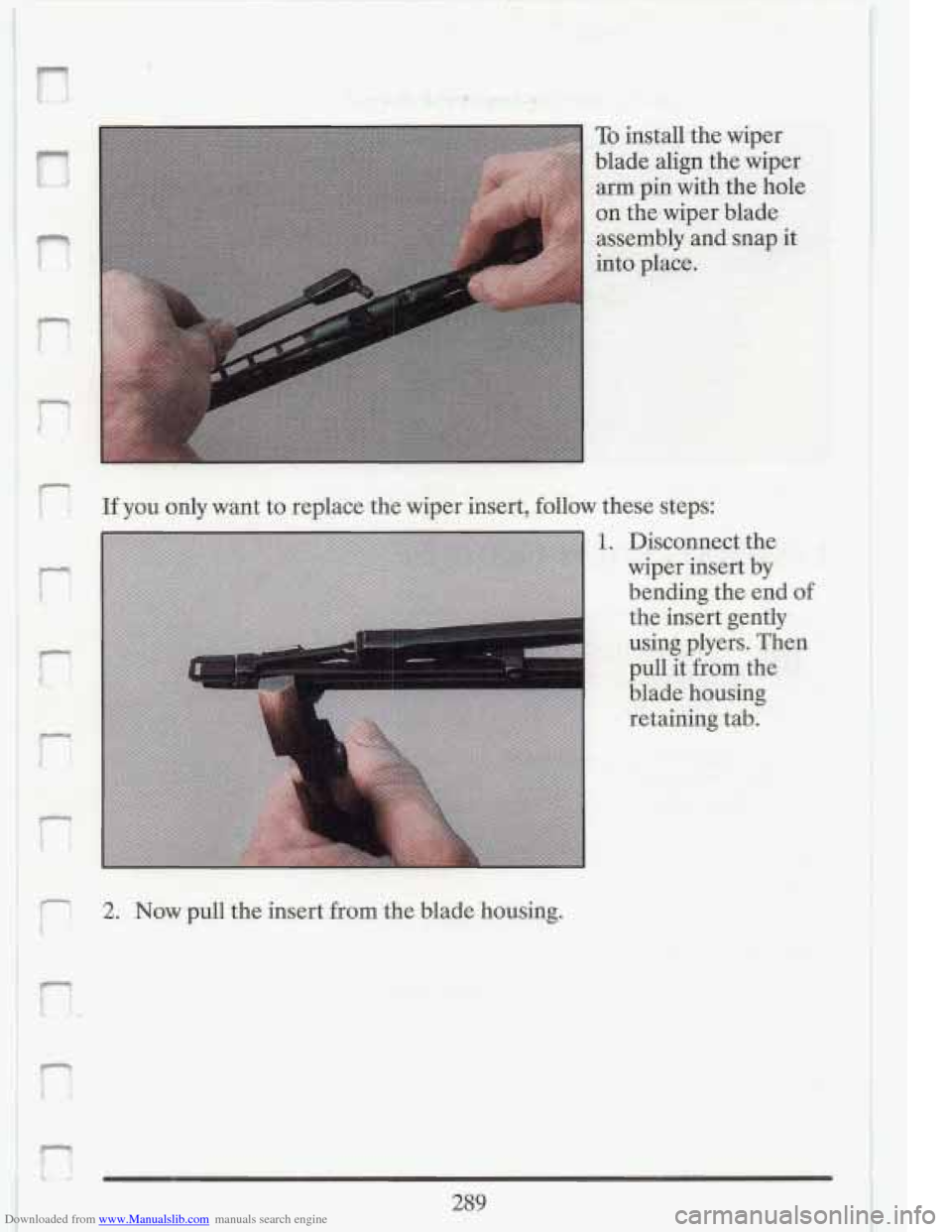

If you only want to replace the wiper insert, folJow these steps:
2. Now pull the insert from the blade housing.
289 I

Downloaded from www.Manualslib.com manuals search engine I

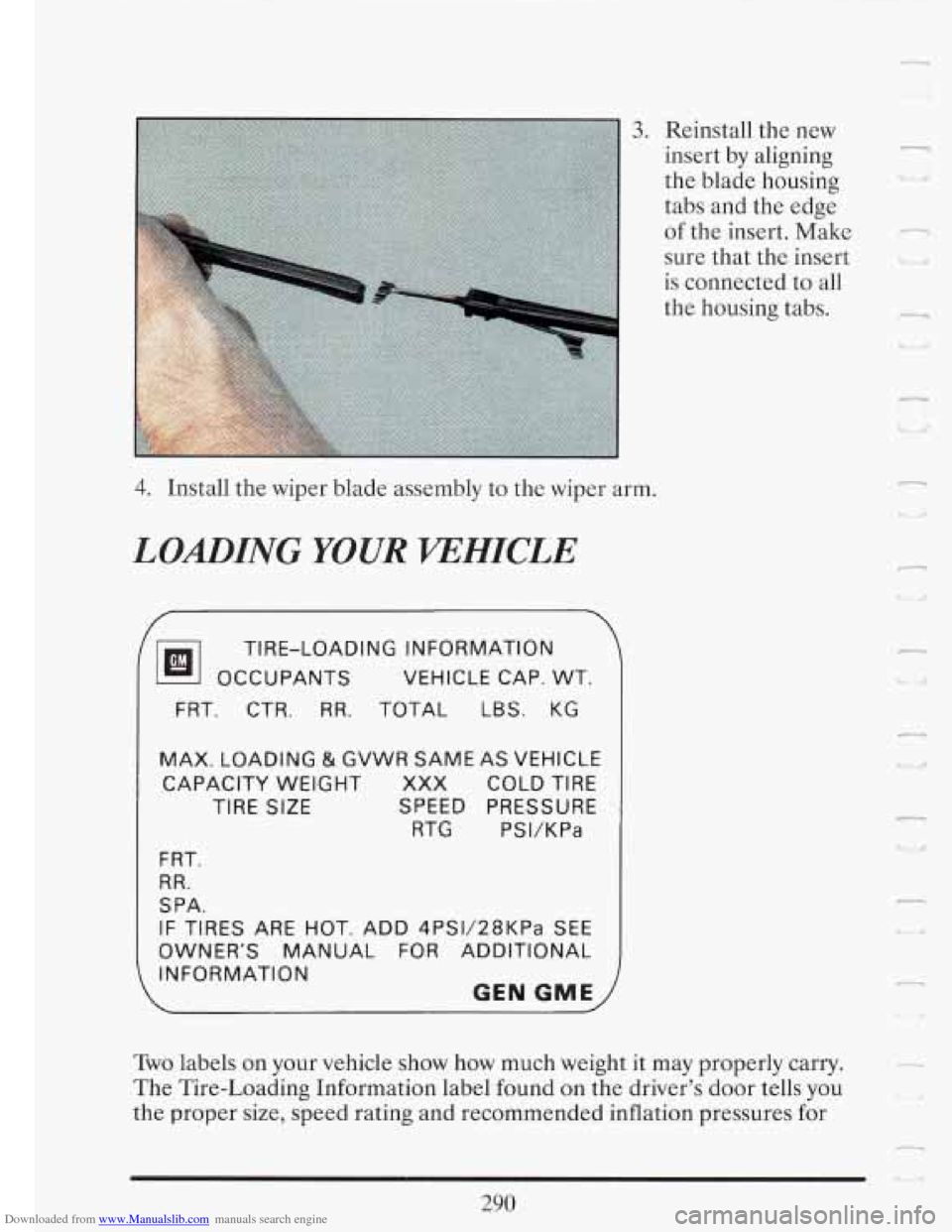

3. Reinstall the new
insert by aligning
the blade housing
tabs and the edge
of the insert. Make
sure that the insert
is connected to all
the housing tabs.
4. Install the wiper blade assembly to the wiper arm.
LOmING YOUR VEHICLE
OCCUPANTS VEHICLE CAP.
WT.
TIRE-LOADING INFORMATION
FRT. CTR.
RR. TOTAL LBS. KG
MAX. LOADING & GVWR SAME AS VEHICLE
CAPACITY WEIGHT XXX COLD TIRE
TIRE
SIZE SPEED PRESSURE RTG
PSVKPa
FRT.
R R.
SPA.
IF TIRES ARE HOT. ADD 4PSV28KPa SEE
OWNER’S MANUAL FOR ADDITIONAL

INFORMATION
GEN GME
Two labels on your vehicle show how much weight it may properly carry.
The Tire-Loading Information label found on the driver’s door tells you
the proper size, speed rating and recommended inflation pressures for
n
