1993 CADILLAC FLEETWOOD Owners Manual

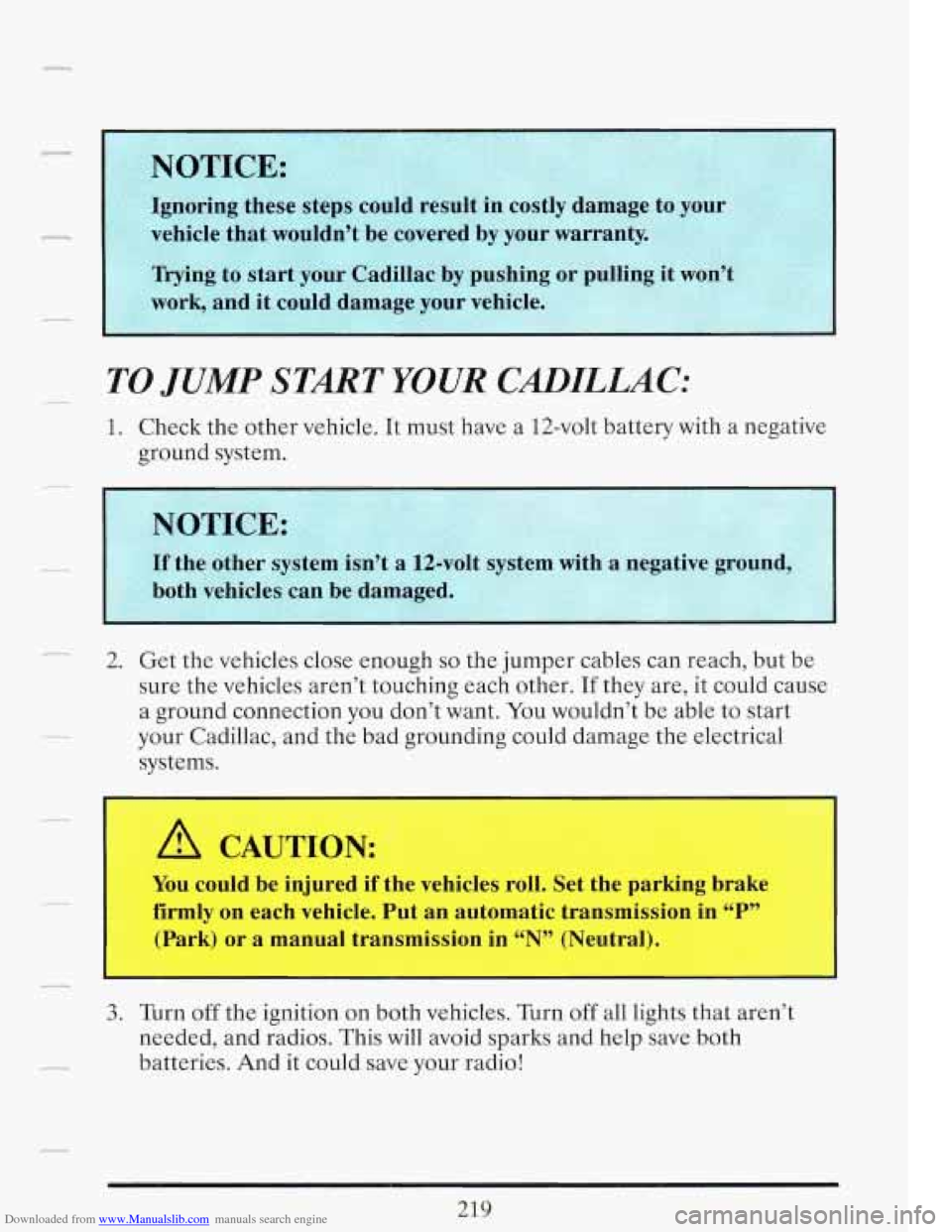

Downloaded from www.Manualslib.com manuals search engine - TO JUMP START YOUR CDILLAC:
1. Check the other vehicle. It must have a 12-volt battery with a negative
ground system.
- 2. Get the vehicles close enough so the jumper cables can reach, but be
sure the vehicles aren’t touching each other.
If they are, it could cause
a ground connection you don’t want. You wouldn’t be able to start
your Cadillac, and the bad grounding could damage the electrical
systems.
r
A CAUTION:
I You could be injured if the vehicles roll. Set the parking brake
firmly on each vehicle. Put an automatic transmission in
“P”
(Park) or a manual transmission in “N” ‘Ye1 ’ ,alj.
I -
3. Turn off the ignition on both vehicles. Turn off all lights that aren’t
needed, and radios. This will avoid sparks and help save both
batteries. And it could save your radio!
219

Downloaded from www.Manualslib.com manuals search engine I I

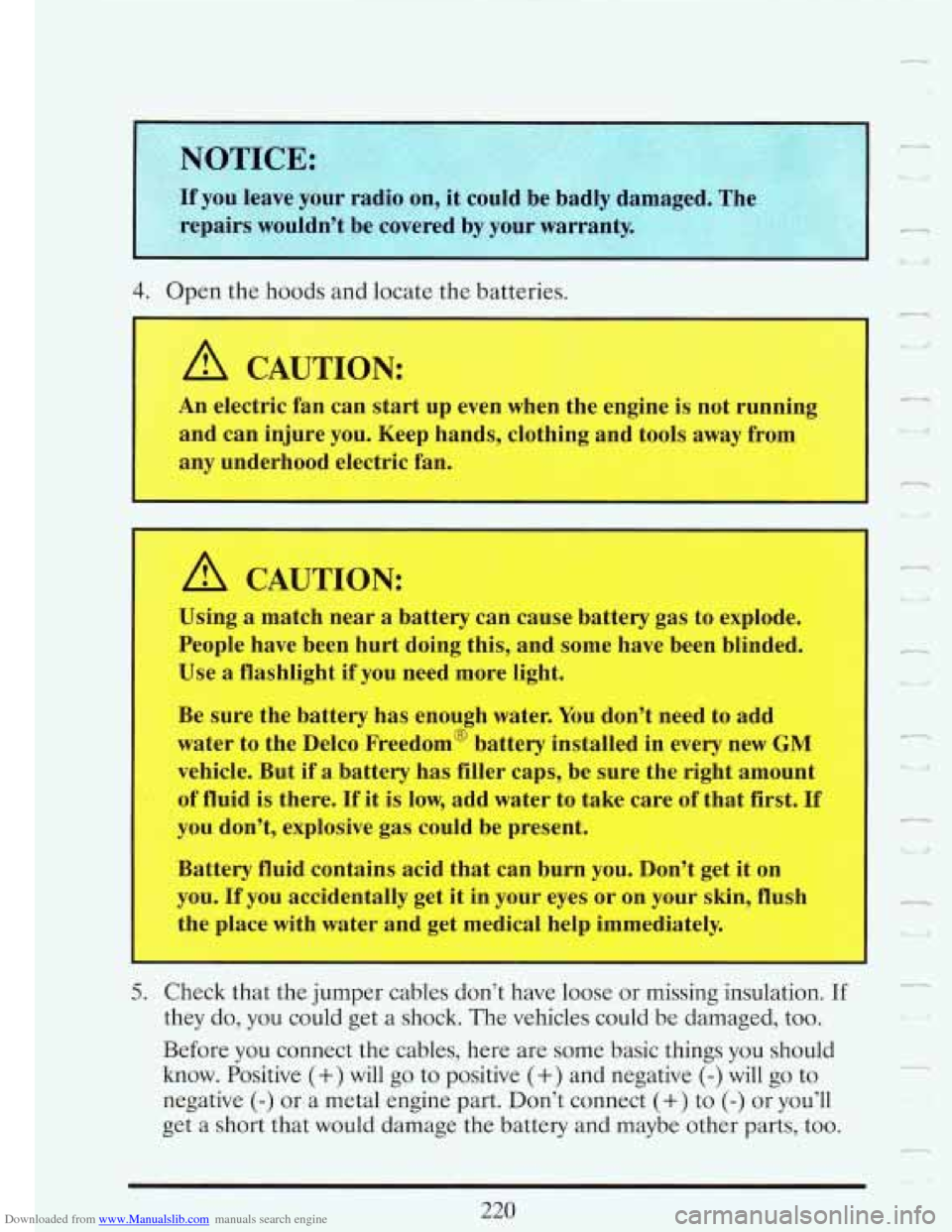

4. Open the hoods and locate the batteries.
and can injure you. Keep hands, clothing and tools away from
any underhood electric fan.
I
I A CAUTION:
Using a match near a battery can cause battery gas to explode.
People have been hurt doing this, and some have been blinded.
Use
a flashlight if you need more light.
Be sure the battery has enough water. You don’t need to add
water to the Delco Freedom@ battery installed in every new
GM
vehicle. But if a battery has filler caps, be sure the right amount
of fluid is there.
If it is low, add water to take care of that first. If
you don’t, explosive gas could be present.
Battery fluid contains acid that can burn you. Don’t get it on
you.
If you accidentally get it in your eyes or on your skin, flush
the place with water and get medical help immediately.
I
5. Check that the jumper cables don’t have loose or missing insulation. If
they do, you could get a shock. The vehicles could be damaged, too.
Before you connect the cables, here are
some basic things you should
know. Positive
(+) will go to positive (+) and negative (-) will go to
negative
(-) or a metal engine part. Don’t connect (+) to (-) or you’ll
get a short that would damage the battery and maybe other parts, too.
n
W #E
cup
220

Downloaded from www.Manualslib.com manuals search engine n
A CAUTION:
Fans or other moving engine parts can injure you badly. Keep
your hands away from moving parts once the engines are
running.
6. Connect the red
positive
(+) cable
to the positive
(+)
terminal of the
vehicle with the
dead battery.
7. Don’t let the other end touch metal. Connect it to the positive (+)
terminal of the good battery. Use a remote positive (+) terminal if the
vehicle has one.
-- 8. Now connect the black negative (-) cable to the good battery’s
negative
(-) terminal.
Don’t let the other end touch anything until the next step. The other
end of the negative cable doesn’t go to the dead battery.
It goes to a
heavy unpainted metal part on the engine
of the vehicle with the dead
battery.
9. Attach the cable at least 18 inches (45 cm) away from the dead
battery, but not near engine parts that move. The electrical connection
is just as good there, but the chance of sparks getting back to the
battery is much less.
221

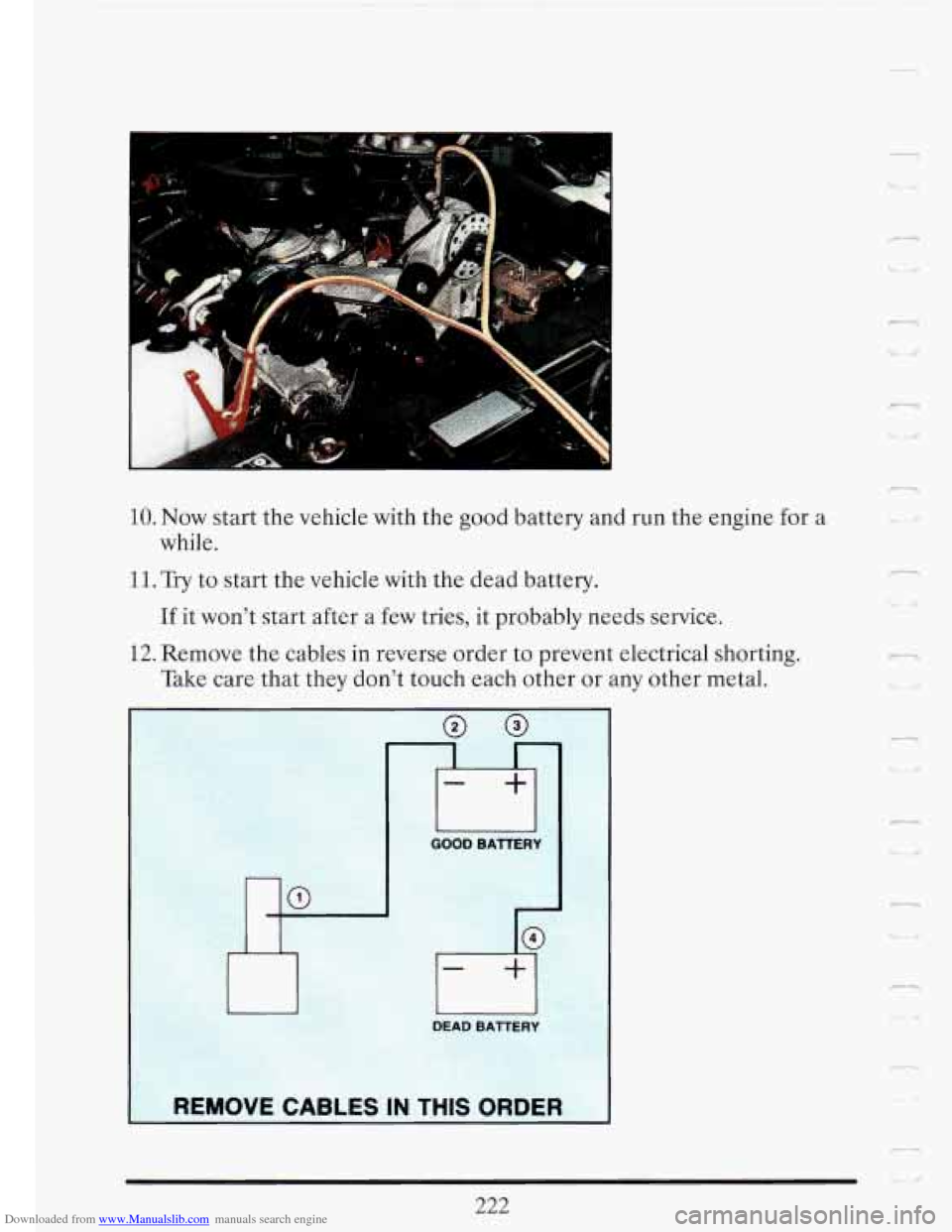

Downloaded from www.Manualslib.com manuals search engine 10. Now start the vehicle with the good battery and run the engine for a
while.
11. Try to start the vehicle with the dead battery.
If it won’t start after a few tries, it probably needs service.
12. Remove the cables in reverse order to prevent electrical shorting.
Take care that they don’t touch each other or any other metal.
DEAD BATTERY
I.~ REMOVE CABLES IN THIS ORDER
222
.--

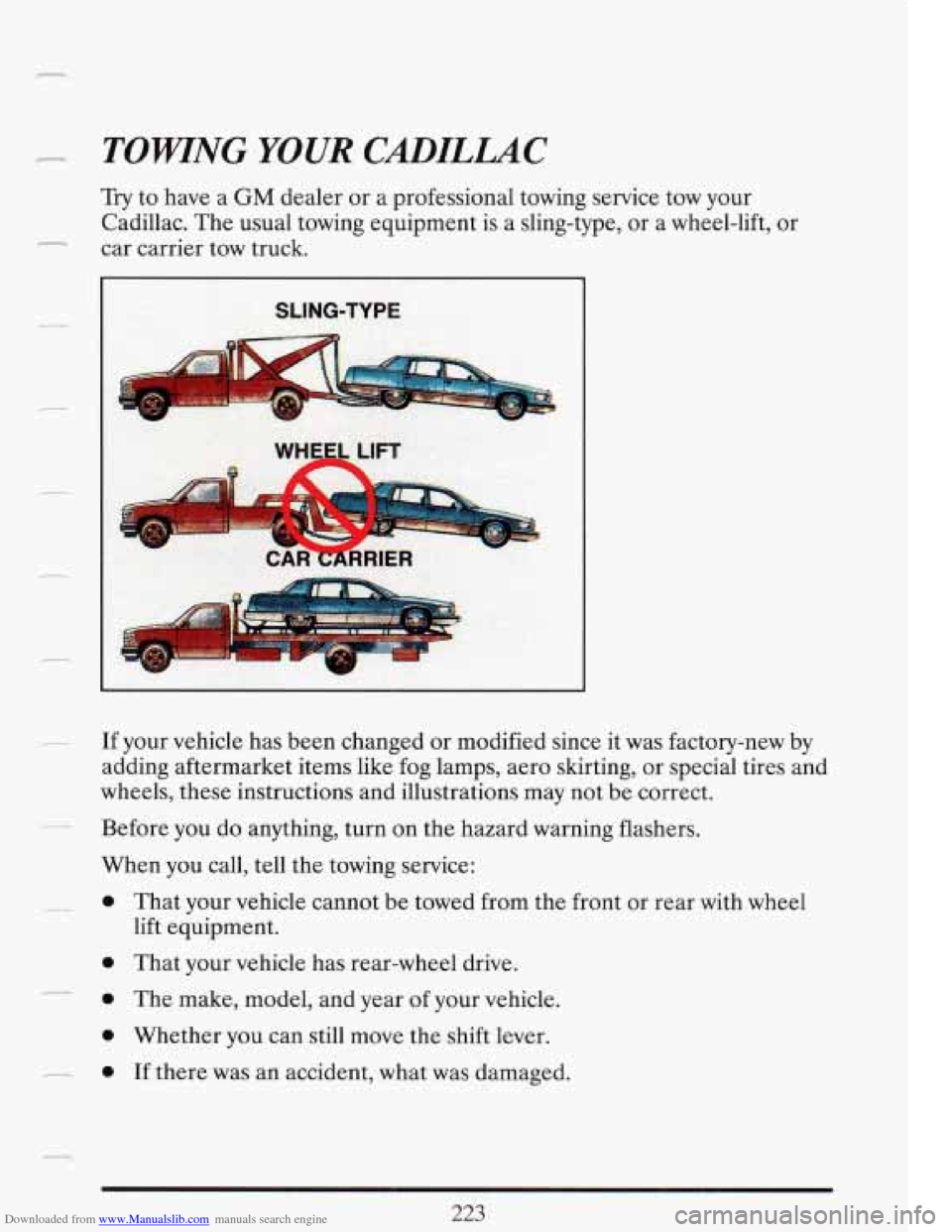

Downloaded from www.Manualslib.com manuals search engine TOWNG YOUR CXDILLAC
Try to have a GM dealer or a professional towing service tow your
Cadillac. The usual towing equipment
is a sling-type, or a wheel-lift, or
car carrier tow truck.
If your vehicle has been changed or modified since it was factory-new by
adding aftermarket items like fog lamps, aero skirting,
or special tires and
wheels, these instructions and illustrations may not be correct.
-- Before you do anything, turn on the hazard warning flashers.
When you call, tell the towing service:
0
0
0
-0
-
That your vehicle cannot be towed from the front or rear with wheel
lift equipment.
That your vehicle has rear-wheel drive.
The make, model, and year
of your vehicle.
Whether you can still move the shift lever.
If there was an accident, what was damaged.
223

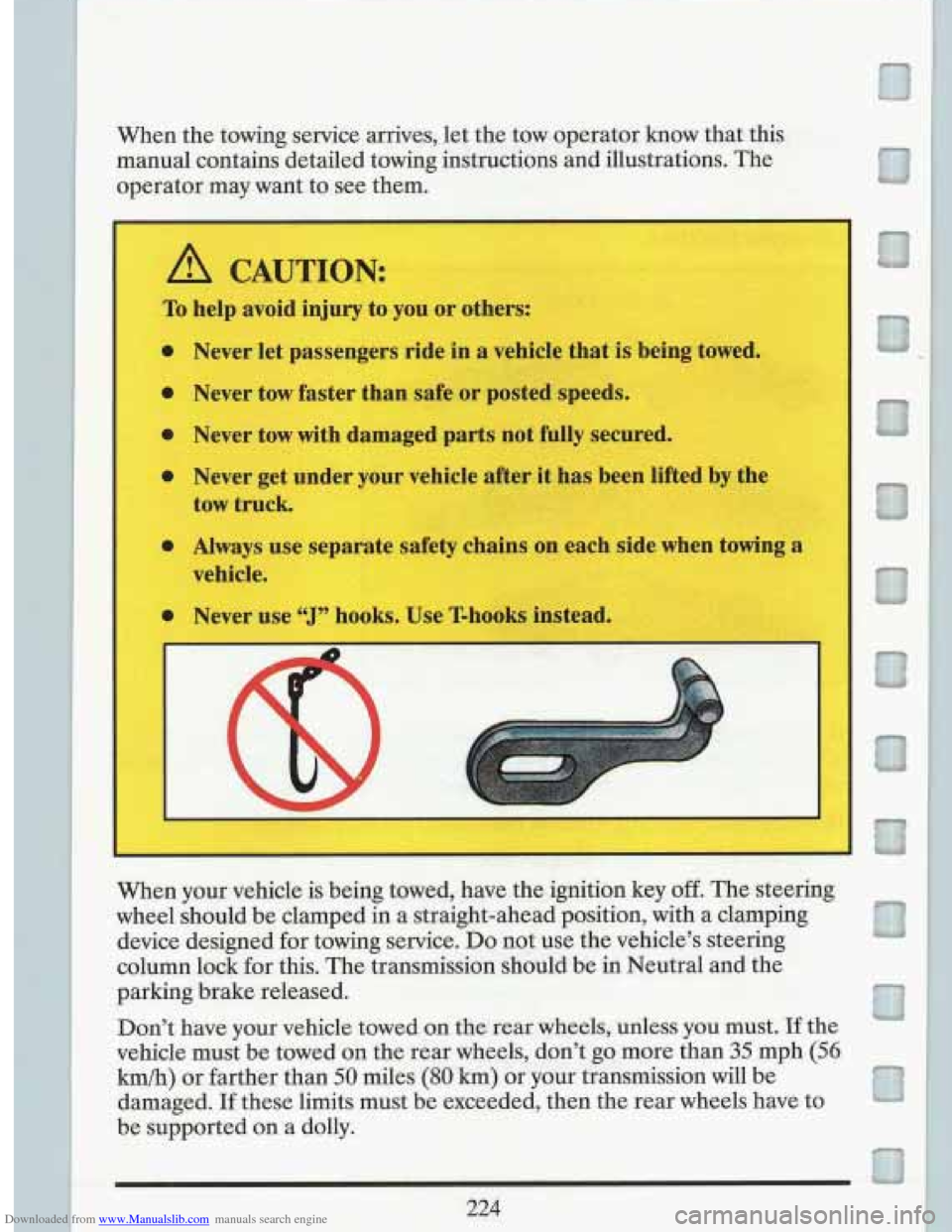

Downloaded from www.Manualslib.com manuals search engine When the towing service arrives, let the tow operator know that this
manual contains detailed towing instructions and illustrations. The
operator may want to
see them.
I
.. .
When your vehicle is being towed, have the ignition key off. The steering
wheel should be clamped in a straight-ahead position, with a clamping
device designed for towing service.
Do not use the vehicle's steering
column lock for this. The transmission should be in Neutral and the
parking brake released.
Don't have your vehicle towed on the rear wheels, unless you must.
If the
vehicle must be towed on the rear wheels, don't go more than
35 mph (56
krn/h) or farther than 50 miles (80 km) or your transmission will be
damaged. If these limits must be exceeded, then the rear wheels have to
be supported on a dolly.
224

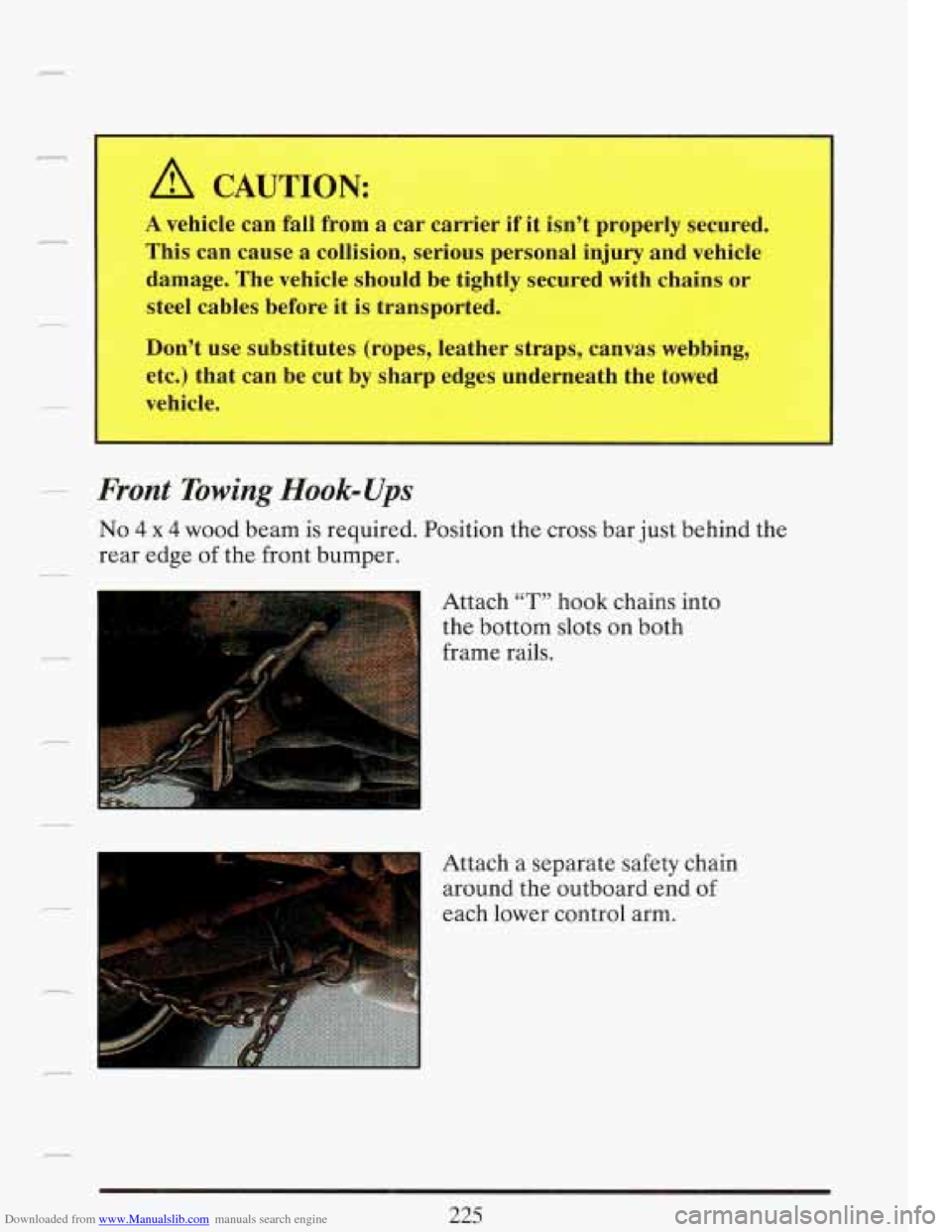

Downloaded from www.Manualslib.com manuals search engine A CAUTION:
A vehicle can fall from a car carrier if it isn’t properly secured.
This can cause
a collision, serious personal injury and vehicle
damage. The vehicle should be tightly secured with chains
or
steel cables before it is transported.
Don’t use substitutes (ropes, leather straps, canvas webbing,
etc.) that can be cut by sharp edges underneath the towed
vehicle.
~ Front Towing Hook-Ups
No 4 x 4 wood beam is required. Position the cross bar just behind the
rear edge of the front bumper.
Attach
“T” hook chains into
the bottom slots on both
frame rails.
I
Attach a separate safety chain
around the outboard end
of
each lower control arm.
225
