1993 CADILLAC FLEETWOOD Owners Manual

Downloaded from www.Manualslib.com manuals search engine A green arrow on the
instrument panel will
flash in the direction of
the turn or lane
change.
If the turn signal remains on after you have driven about .5 mile (.8 km),
a reminder chime will sound until you turn the turn signal off.
To signal a lane change, just raise or lower the lever until the green arrow
starts to flash. Hold it there until you complete your lane change. The
lever will return by itself when you release it.
AS you signal a turn or a lane change, if the arrows don’t flash but just
stay on, a signal bulb may be burned out and other drivers won’t see your
turn signal.
If a bulb is burned out, replace it to help avoid an accident. If the green
arrows don’t go on at all when you signal a turn, check the fuse (see
“Fuses” in the Index) and for burned-out bulbs.
If you have a trailer towing option with added wiring for the trailer lights,
a different turn signal flasher is used. With this flasher installed, the
signal indicator will flash even if a turn signal bulb is burned out. Check
the front and rear turn signal lights regularly to make sure they are
working.
Operation of Lights
Although your vehicle’s lighting system (headlights, parking lights, side
marker lights and taillights) meet all applicable federal lighting
requirements, certain states and provinces may apply their own lighting
regulations that may require special attention before you operate these
lights. For example, some jurisdictions may require that headlights be
turned on whenever you must use your windshield wipers. In addition,

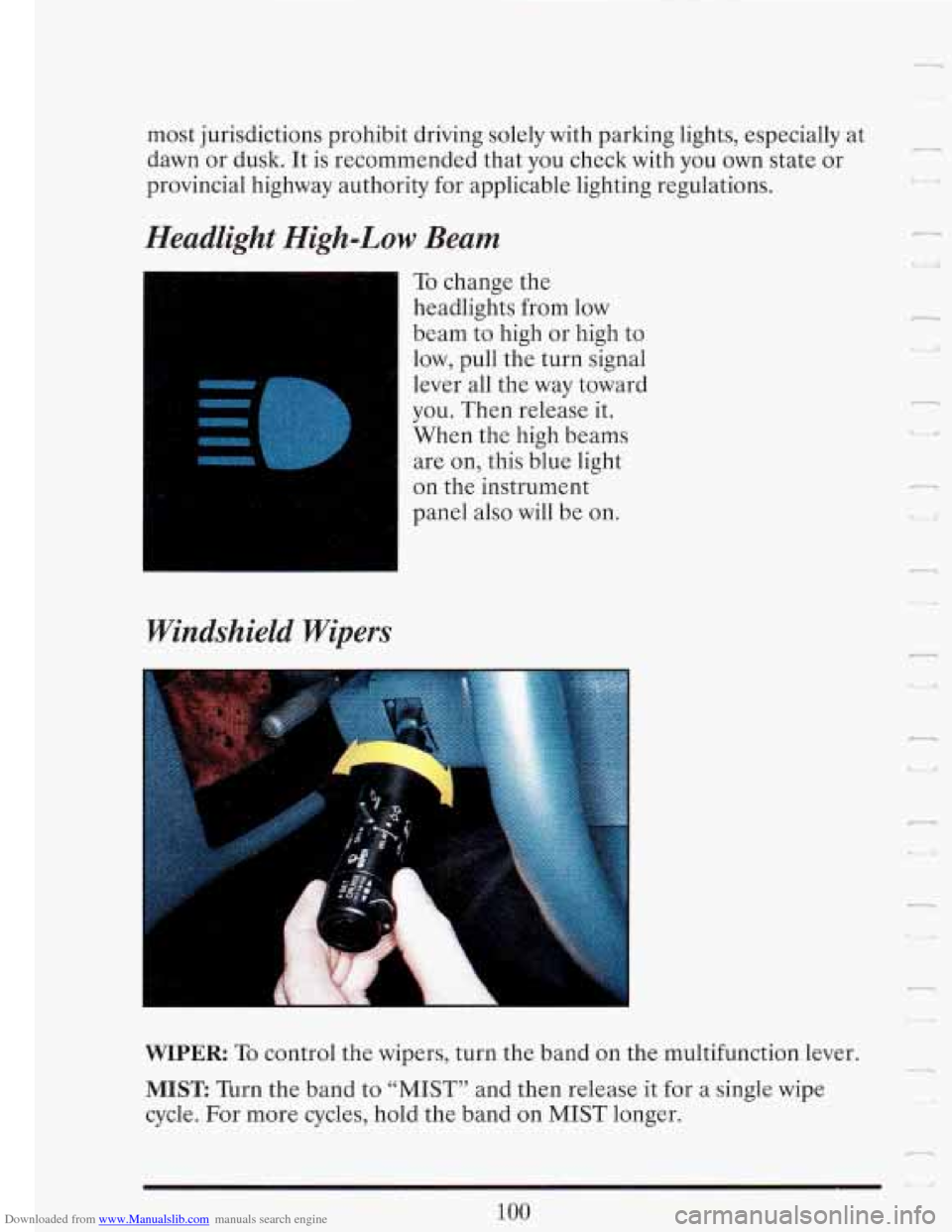

Downloaded from www.Manualslib.com manuals search engine most jurisdictions prohibit driving solely with parking lights, especially at
dawn or dusk. It is recommended that you check with
you own state or
provincial highway authority for applicable lighting regulations.
Headlight High-Low Beam
Windshield Wipers
To change the
headlights from low
beam to high or high to
low, pull the turn signal
lever all the way toward
you. Then release it.
When the high beams
are on, this blue light
on the instrument
panel also will be on.
WIPER To control the wipers, turn the band on the multifunction lever.
MIST: Turn the band to “MIST” and then release it for a single wipe
cycle. For more cycles, hold the band on MIST longer.
1 :I, U
100

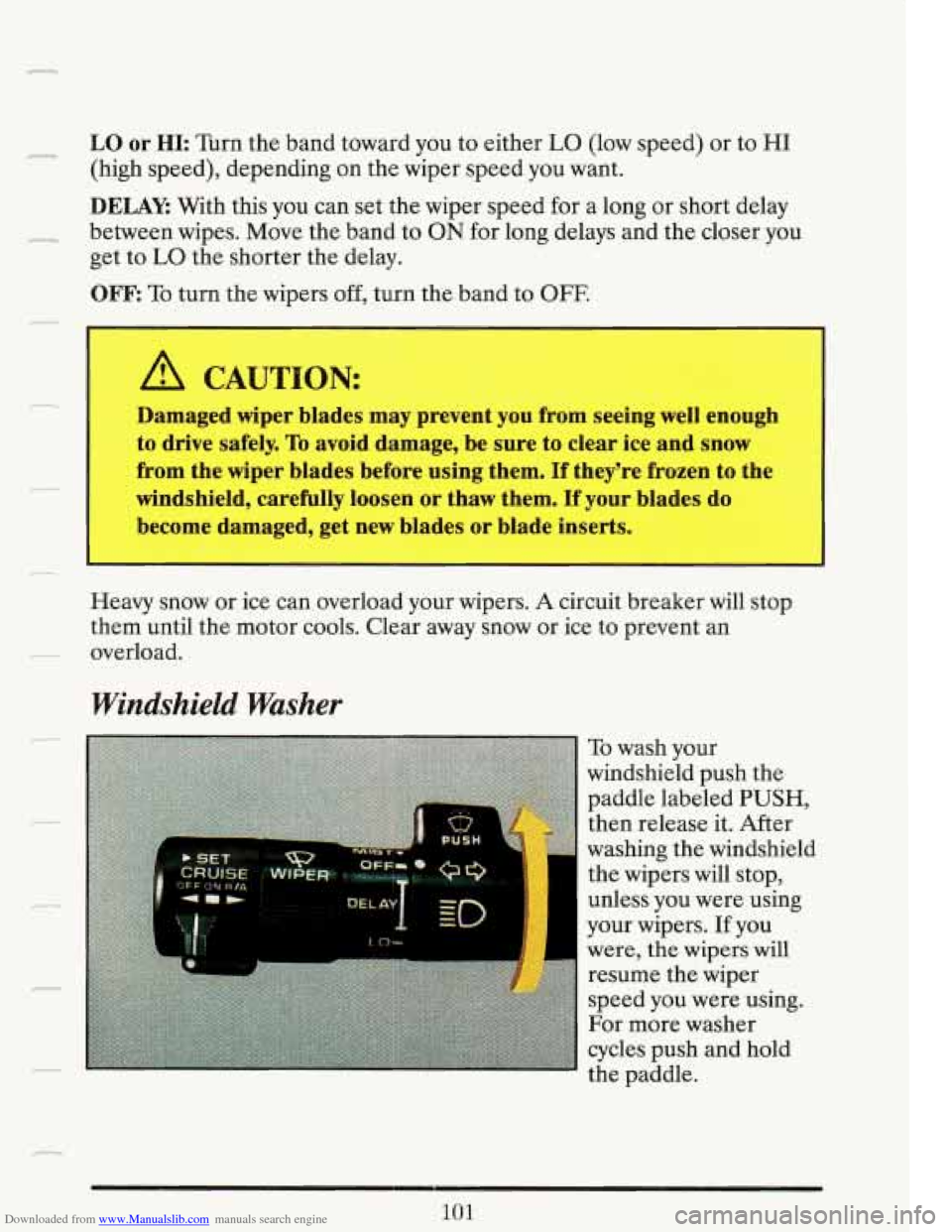

Downloaded from www.Manualslib.com manuals search engine - LO or HI: Turn the band toward you to either LO (low speed) or to HI
(high speed), depending on the wiper speed you want.
DELAY With this you can set the wiper speed for a long or short delay
get to
LO the shorter the delay.
7 between wipes. Move the band to ON for long delays and the closer you
OFI? To turn the wipers off, turn the band to OFF.
A CAUTION:
Damaged wiper blades may prevent you from seeing well enough
to drive safely.
To avoid damage, be sure to clear ice and snow
from the wiper blades before using them.
If they're frozen to the
windshield, carefully loosen or thaw them.
If your blades do
become damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wipers.
A circuit breaker will stop
them until the motor cools. Clear away snow or ice to prevent an
-- overload.
Windshield Washer
- To wash your
windshield push the
paddle labeled PUSH,
then release it. After
washing the windshield
the wipers will stop,
your wipers.
If you
were,
the wipers will
- resume the wiper
speed you were using.
For more washer
cycles push and hold
the paddle.
-
L_ unless you were using
_I
1111
101

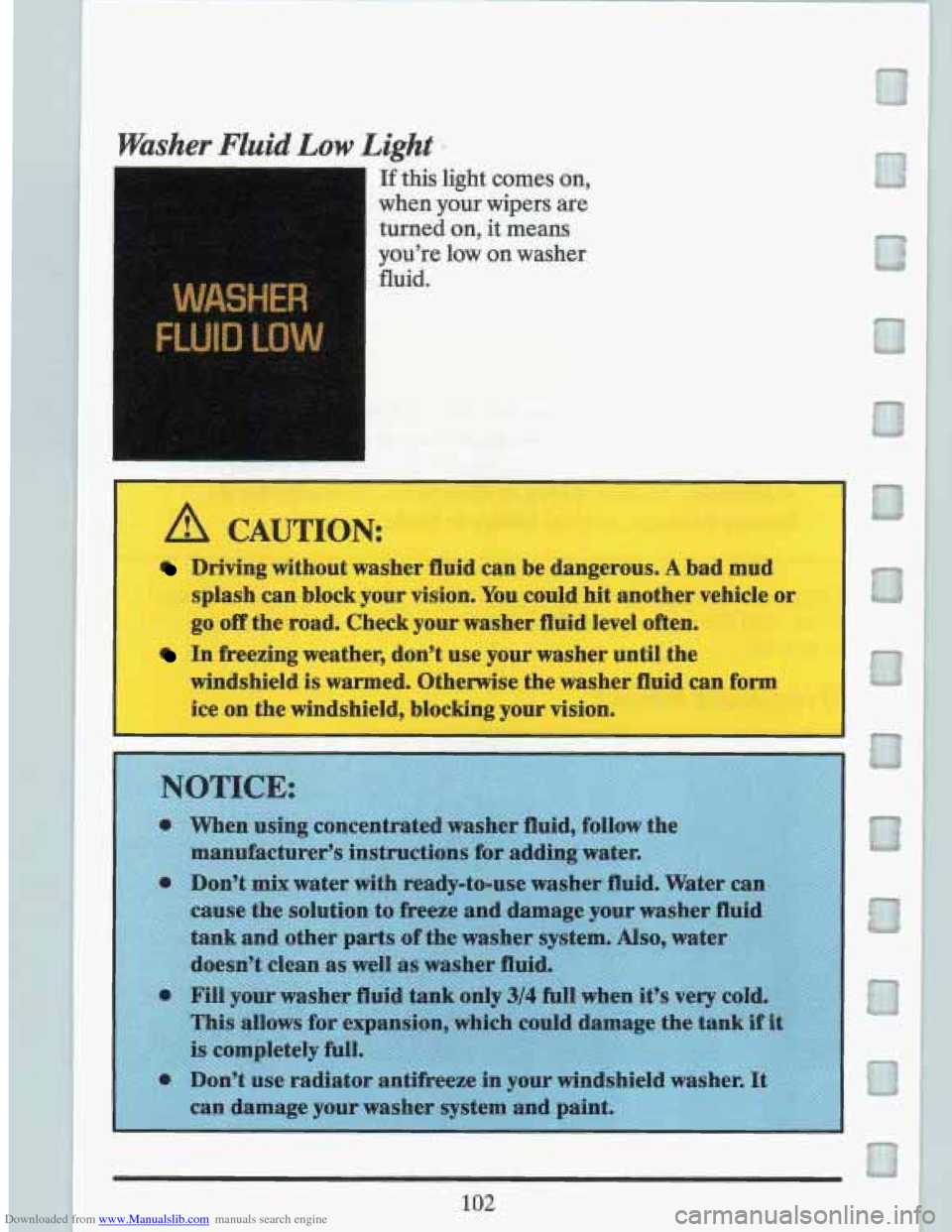

Downloaded from www.Manualslib.com manuals search engine Washer Fluid Low Light -
If this light comes on,
when your wipers are
turned on, it means
you’re low on washer
fluid.
-
A CAUTION:
II
Driving without washer fluid can be dangerous. A bad mud
splash can block your vision. You could hit another vehicle or
-
go off the road. Check your washer fluid level often.
In freezing weather, don’t use your washer until the
windshield
is warmed. Otherwise the washer fluid can form
ice
on the windshield, blocking your vision.

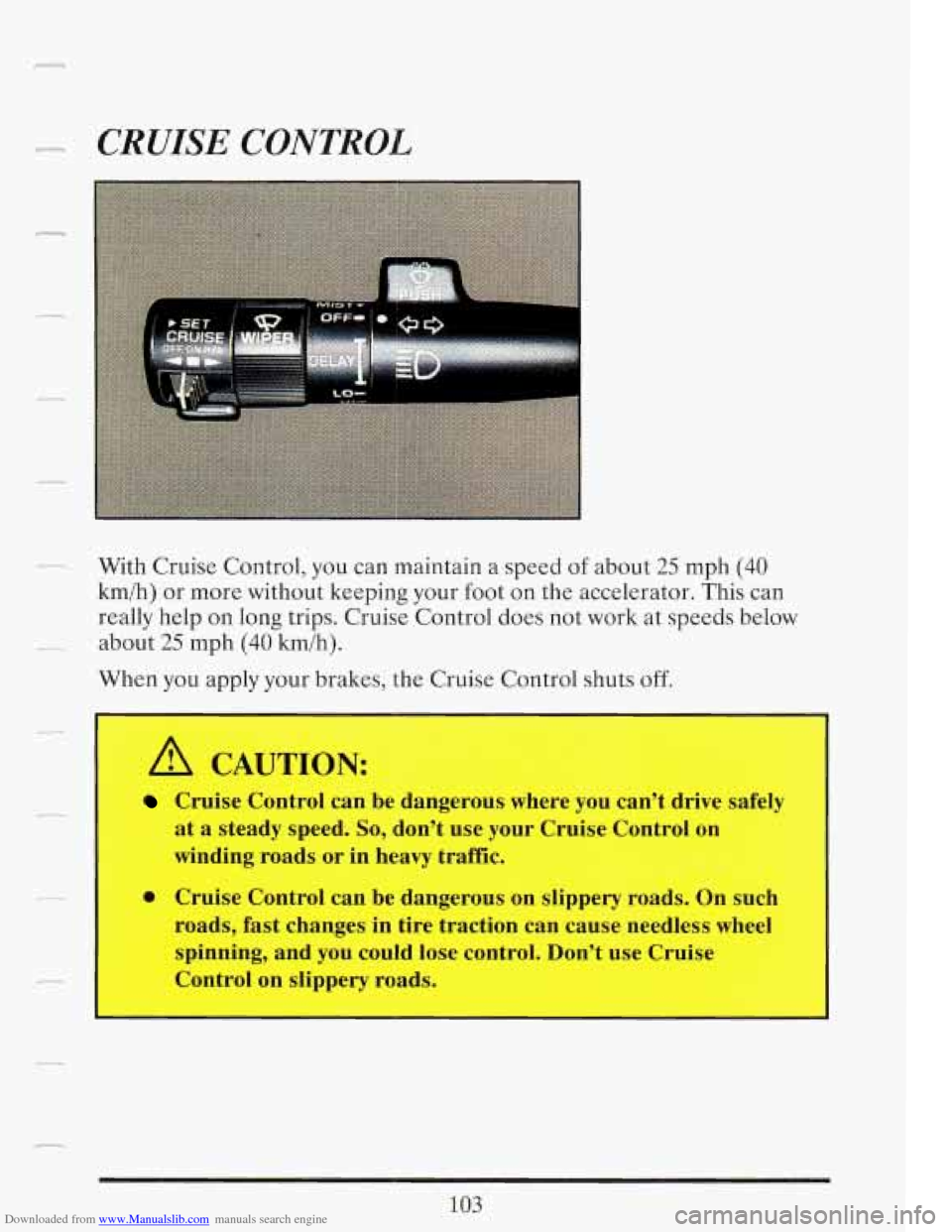

Downloaded from www.Manualslib.com manuals search engine CRUISE CONTROL
With Cruise Control, you can maintain a speed of about 25 mph (40
km/h) or more without keeping your foot on the accelerator. This can
really help
on long trips. Cruise Control does not work at speeds below
about
25 rnph (40 km/h).
When you apply your brakes, the Cruise Control shuts
off.
A CAUTION:
Cruise Control can be dangerous where you can’t drive safely
at a steady speed.
So, don’t use your Cruise Control on
winding roads or in heavy traffic.
0 Cruise Control can be dangerous on slippery roads. On such
roads, fast changes in tire traction can cause needless wheel
spinning, and you could lose control. Don’t use Cruise
Control on slippery roads.
103

Downloaded from www.Manualslib.com manuals search engine I I

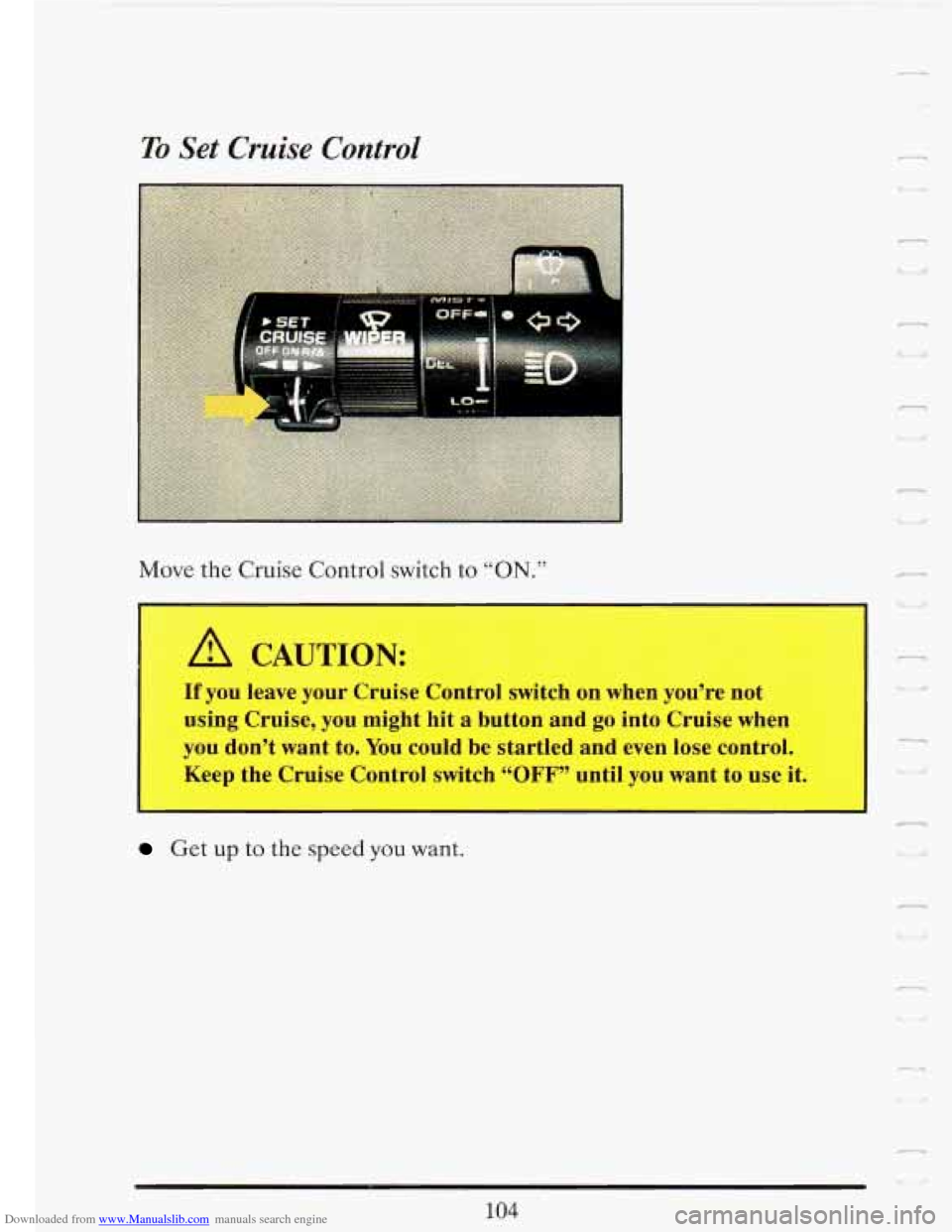

To Set Cruise Control
Move the Cruise Control switch to “ON.”
A CAUTION:
If you leave your Cruise Control switch on when you’re not
using Cruise, you might hit a button and go into Cruise when
I you don’t want to. You could be startled and even lose control.
Keep the Cruise Control switch
“OFF” until you want to use it.
I
Get up to the speed you want.
-
6
r 1 U
104

Downloaded from www.Manualslib.com manuals search engine n
r I

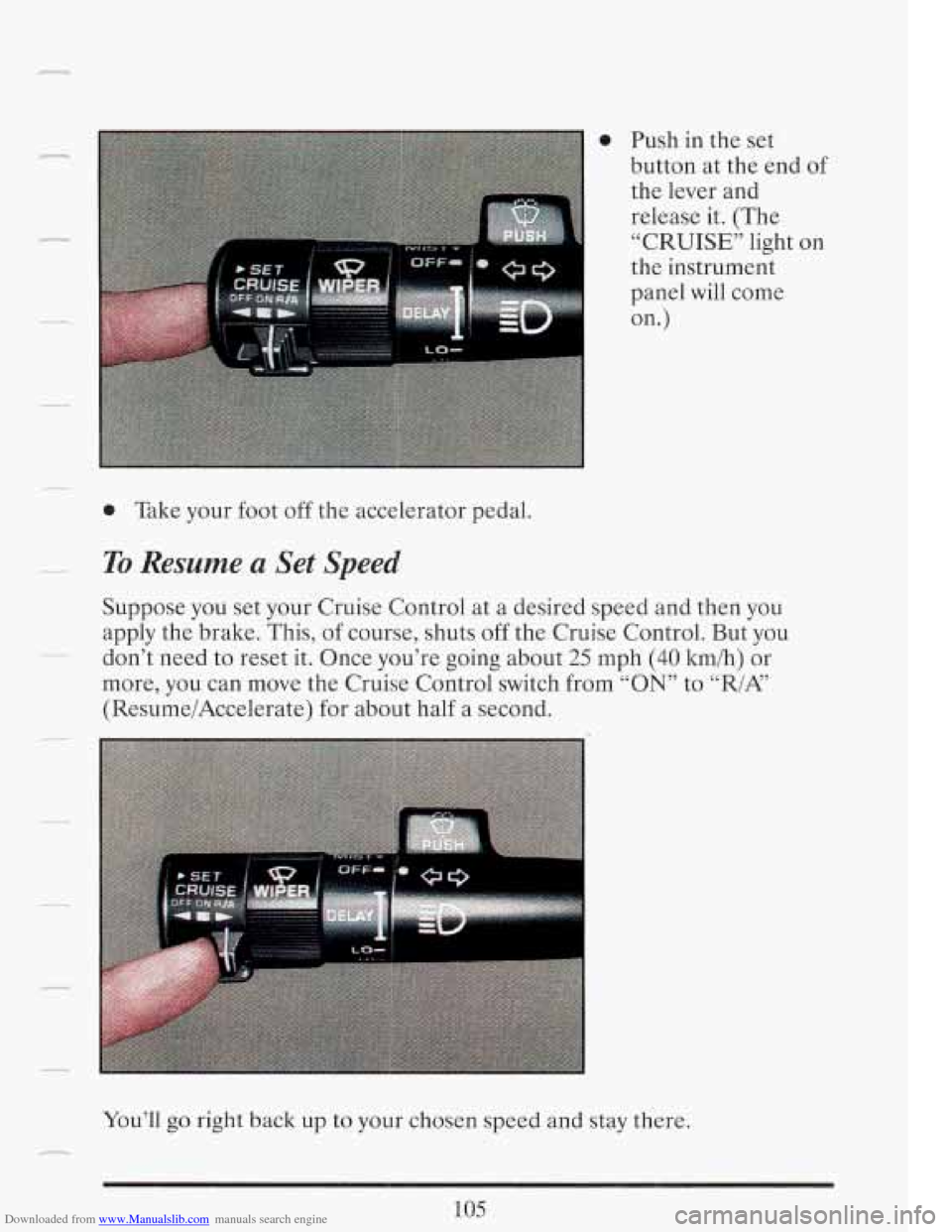

0 Push in the set
button at the end of
the lever and
release it. (The
“CRUISE” light on
the instrument
panel will come
on.
)
0 Take your foot off the accelerator pedal.
To Resume a Set Speed
Suppose you set your Cruise Control at a desired speed and then you
apply the brake. This, of course, shuts
off the Cruise Control. But you
don’t need to reset it. Once you’re going about
25 mph (40 kmih) or
more, you can move the Cruise Control switch from
“ON” to “./A”
(ResumeiAccelerate) for about half a second.
105
You’ll go right back up to your chosen speed and stay there.

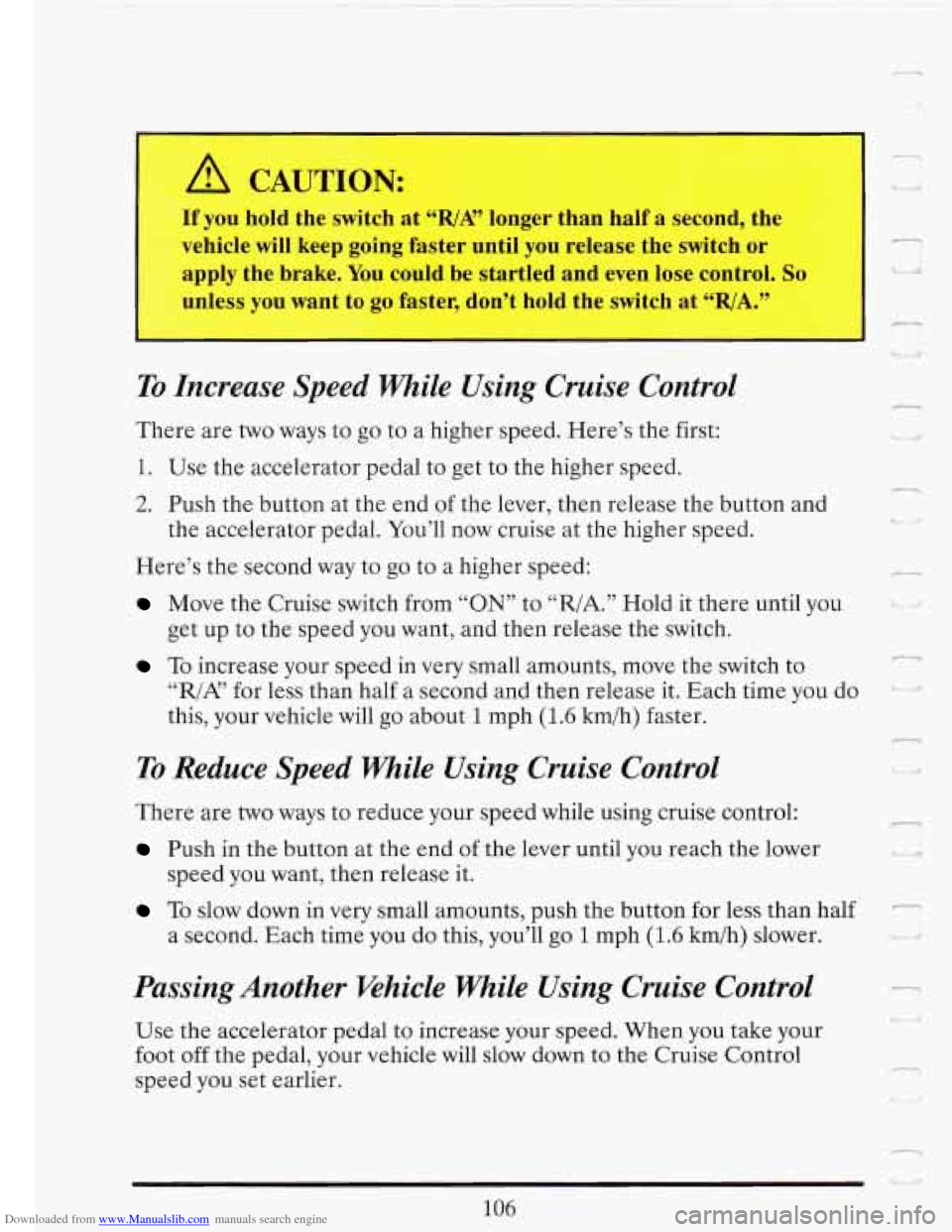

Downloaded from www.Manualslib.com manuals search engine 1 /i CAU 1ION: I
you hold the switch at “R/A” longer than half a second, the
-,ply the brake. You could be startled and even lose control.
So
I vehicle will keep going faster until you release the switch or
I unless ynll vnt to go faster, don’t hold the switch at “R/A.”
To Increase Speed While Using Cruise Control
There are two ways to go to a higher speed. Here’s the first:
1. Use the accelerator pedal to get to the higher speed.
2. Push the button at the end of the lever, then release the button and
the accelerator pedal. You’ll now cruise at the higher speed.
Here’s the second way to
go to a higher speed:
Move the Cruise switch from “ON” to “R/A.” Hold it there until you
get up to the speed you want, and then release the switch.
To increase your speed in very small amounts, move the switch to ---
“R/A” for less than half a second and then release it. Each time you do
this, your vehicle will go about
1 rnph (1.6 km/h) faster.
To Reduce Speed While Using Cruise Control
There are two ways to reduce your speed while using cruise control:
Push in the button at the end of the lever until you reach the lower
speed you want, then release it.
To slow down in very small amounts, push the button for less than half c-T
a second. Each time you do this, you’ll go 1 mph (1.6 km/h) slower. Lul
Passing Another Ehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When you take your
foot off the pedal, your vehicle will slow down to the Cruise Control
speed you set earlier.
