2023 TOYOTA VENZA HYBRID Owners Manual

4978-1. Specifications
8
Vehicle specifications
Intended outboard side-
wall
(a)The sidewall that contains a whitewall, bears
white lettering, or bear s manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other
sidewall of the tire, or
(b)The outward facing sidewall of an asymmetri-
cal tire that has a par ticular side that must
always face outward whe n mounted on a vehi-
cle
Light truck (LT) tire
A tire designated by its manufacturer as primar-
ily intended for use on lightweight trucks or mul-
tipurpose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which a
tire may be inflated
Measuring rimThe rim on which a tire is fitted for physical
dimension requirements
Open spliceAny parting at any junction of tread, sidewall, or
innerliner that extends to cord material
Outer diameterThe overall diameter o f an inflated new tire
Overall width
The linear distance between the exteriors of the
sidewalls of an inflated ti re, including elevations
due to labeling, decorations, or protective bands
or ribs
Passenger car tire
A tire intended for use on passenger cars, multi-
purpose passenger vehicles, and trucks, that
have a gross vehicle weight rating (GVWR) of
10,000 lb. or less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adjacent
plies
Tire related termMeaning

4988-1. Specifications
Pneumatic tire
A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an aut omotive wheel, pro-
vides the traction and co ntains the gas or fluid
that sustains the load
Radial ply tire
A pneumatic tire in whic h the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and at
higher inflation pressures than the correspond-
ing standard tire
Section width
The linear distance between the exteriors of the
sidewalls of an inflated tire, excluding elevations
due to labeling, decoratio n, or protective bands
SidewallThat portion of a tire between the tread and
bead
Sidewall separationThe parting of the rubber compound from the
cord material in the sidewall
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when using
the snow traction test a s described in ASTM F-
1805-00, Standard Test Method for Single
Wheel Driving Traction i n a Straight Line on
Snow-and Ice-Covered Su rfaces, and which is
marked with an Alpine Symbol ( ) on at least
one sidewall
Test rim
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
TreadThat portion of a tire t hat comes into contact
with the road
Tread ribA tread section running circumferentially around
a tire
Tread separationPulling away of the tread from the tire carcass
Tire related termMeaning

4998-1. Specifications
8
Vehicle specifications

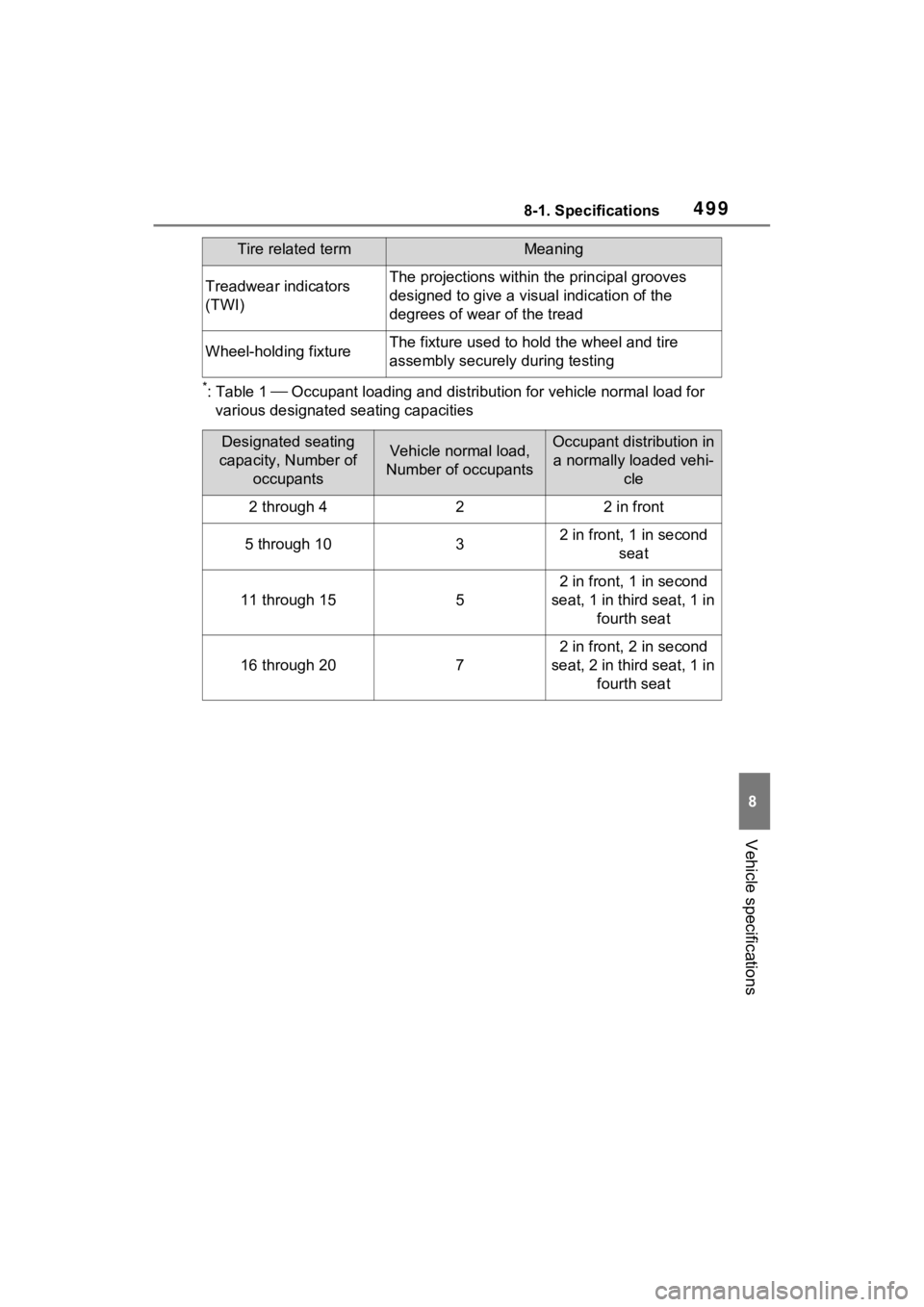

*:Table 1  Occupant loading and distribution for vehicle normal load for
various designated seating capacities
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehi- cle
2 through 422 in front
5 through 1032 in front, 1 in second
seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat
Tire related termMeaning

5008-2. Customization
8-2.Customization
■Changing by using the Mul-
timedia Display
1 Press on the main menu.
2 Press “Vehicle customize” on
the sub menu.
3 Select the item to change the
settings of from the list.
Various setting can be changed.
Refer to the list o f settings that can
be changed for details.
For functions that can be turned
on/off, select (ON)/
(OFF).
The settings, such as the volume
and sensor sensitivity can be
changed by dragging the round
icon on the display.
■Changing using the multi-
information display
Vehicles with 7-inch multi-
information display
1 Press or of the meter
control switches and select
.
2 Press or of the meter
control switches, select the
item.
3 To switch the function on and
off, press to switch to the
desired setting.
4 To perform detailed setting of
functions that support
detailed settings, press and
hold and display the set-
ting screen.
The method of pe rforming detailed
setting differs for each screen.
Please refer to the advice sentence
displayed on the screen.
To go back to the p revious screen
or exit the customize mode, press
.
Vehicles with 12.3-inch multi-
information display
1 Press and hold to display
the cursor on the content dis-
play area (center) of the
multi-information display.
2 Press or of the meter
control switches to select
and then press .
Customizable features
Your vehicle includes a vari-
ety of electronic features
that can be personalized to
suit your preferences. The
settings of these features
can be changed using the
multi-information display,
Multimedia Display, or at
your Toyota dealer.
Customizing vehicle fea-
tures

5018-2. Customization
8
Vehicle specifications
3Press or of the meter
control switches, select the
item.
4 To switch the function on and
off, press to switch to the
desired setting.
5 To perform detailed setting of
functions that support
detailed settings, press and
hold and display the set-
ting screen.
The method of perf orming detailed
setting differs for each screen.
Please refer to the advice sentence
displayed on the screen.
To go back to the previous screen
or exit the customize mode, press
.
■When customizing using the
Multimedia Display or multi-
information display
Stop the vehicle i n a safe place, apply the parking brake, and shift
the shift lever to P. Also, to prevent
12-volt battery discharge, leave the
hybrid system operating while cus-
tomizing the features.
Some function settings are changed simultaneously with other fu
nc-
tions being customized. Contact y our Toyota dealer for further
details.
Settings that can be changed using the navigation system or mul -
timedia system
Settings that can be changed using the multi-information displa y
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, – =Not available
WARNING
■During customization
As the hybrid system needs to be
operating during customization,
ensure that the vehicle is parked
in a place with adequate ventila-
tion. In a closed area such as a
garage, exhaust gases including
harmful carbon monoxide (CO)
may collect and enter the vehicle.
This may lead to death or a seri-
ous health hazard.
NOTICE
■During customization
To prevent 12-vo lt battery dis-
charge, ensure that the hybrid
system is operating while custom-
izing features.
Customizable Features
A
B
C

5028-2. Customization

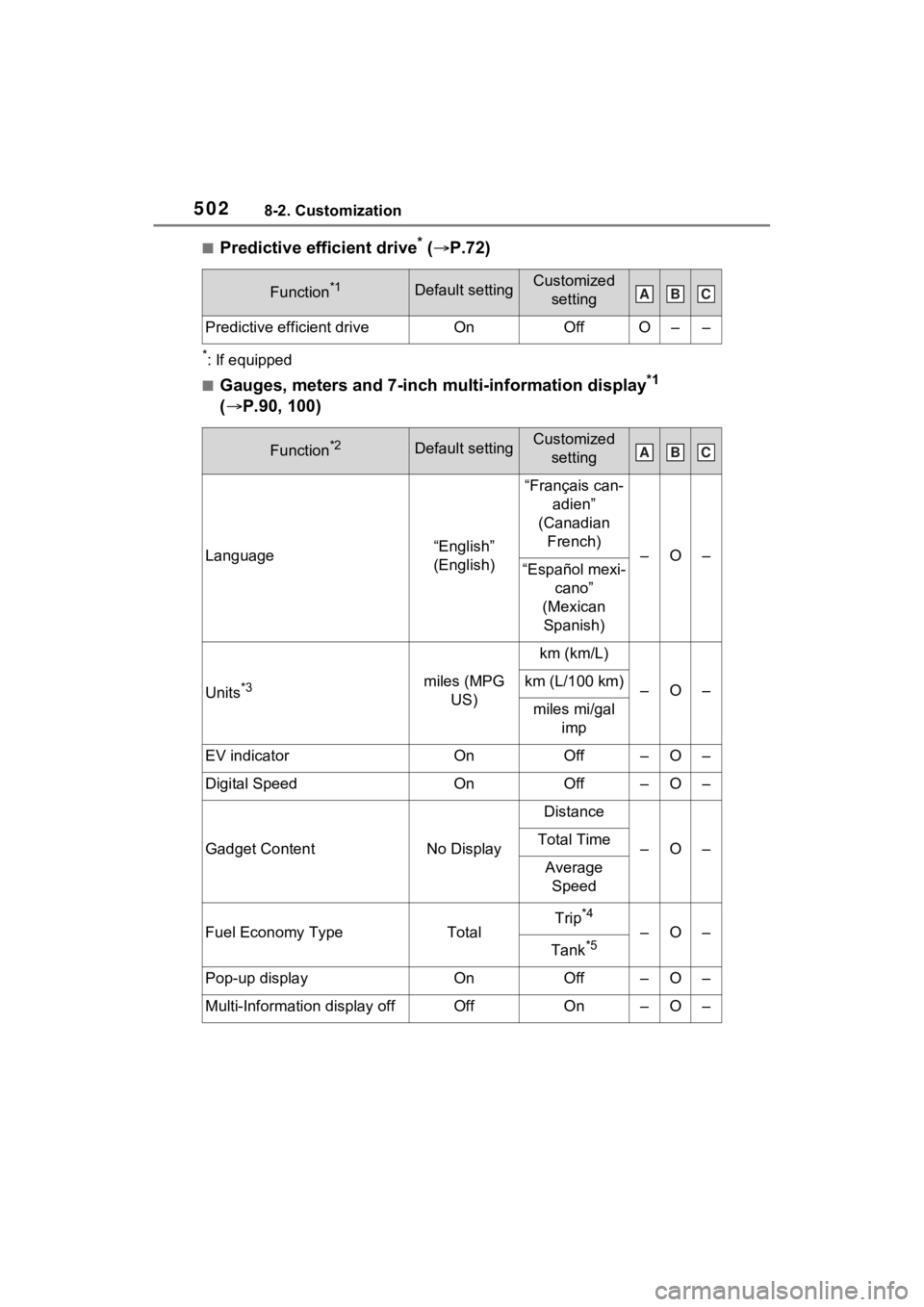

■Predictive efficient drive* ( P.72)
*: If equipped
■Gauges, meters and 7-inch multi-information display*1
( P.90, 100)
Function*1Default settingCustomized
setting
Predictive efficient driveOnOffO––
Function*2Default settingCustomized setting
Language“English”
(English)
“Français can- adien”
(Canadian French)
–O–“Español mexi- cano”
(Mexican Spanish)
Units*3miles (MPG US)
km (km/L)
–O–km (L/100 km)
miles mi/gal imp
EV indicatorOnOff–O–
Digital SpeedOnOff–O–
Gadget ContentNo Display
Distance
–O–Total Time
Average Speed
Fuel Economy TypeTotalTrip*4
–O–
Tank*5
Pop-up displayOnOff–O–
Multi-Information display offOffOn–O–
ABC
ABC

5038-2. Customization
8
Vehicle specifications
*1: If equipped
*2: For details about each function: P.106
*3: The default setting varies according to country.
*4: Even if “Trip” is selected, the display of the average fuel co nsumption will
not change.
*5: If “Tank” is selected, t he gadget will be hidden.
■Gauges, 12.3-inch multi-information display*1 ( P.94, 111)
Suggestion functionOn
On (when the
vehicle is stopped)
O–O
Off
Sensor sensitivity for darken-
ing the brightness of the
instrument cluster depend-
ing on the outside brightness
Standard-2 to 2––O
Sensor sensitivity for return-
ing the brightness of the
instrument cluster to the orig-
inal level depending on the
outside brightness
Standard-2 to 2––O
Function*2Default settingCustomized setting
Language“English”
(English)
“Français can- adien”
(Canadian French)
–O–
“Español mexi- cano”(Mexi-
can Spanish)
Units*3miles (MPG US)
km (km/L)
–O–km (L/100 km)
miles mi/gal imp
Function*2Default settingCustomized settingABC
ABC

5048-2. Customization

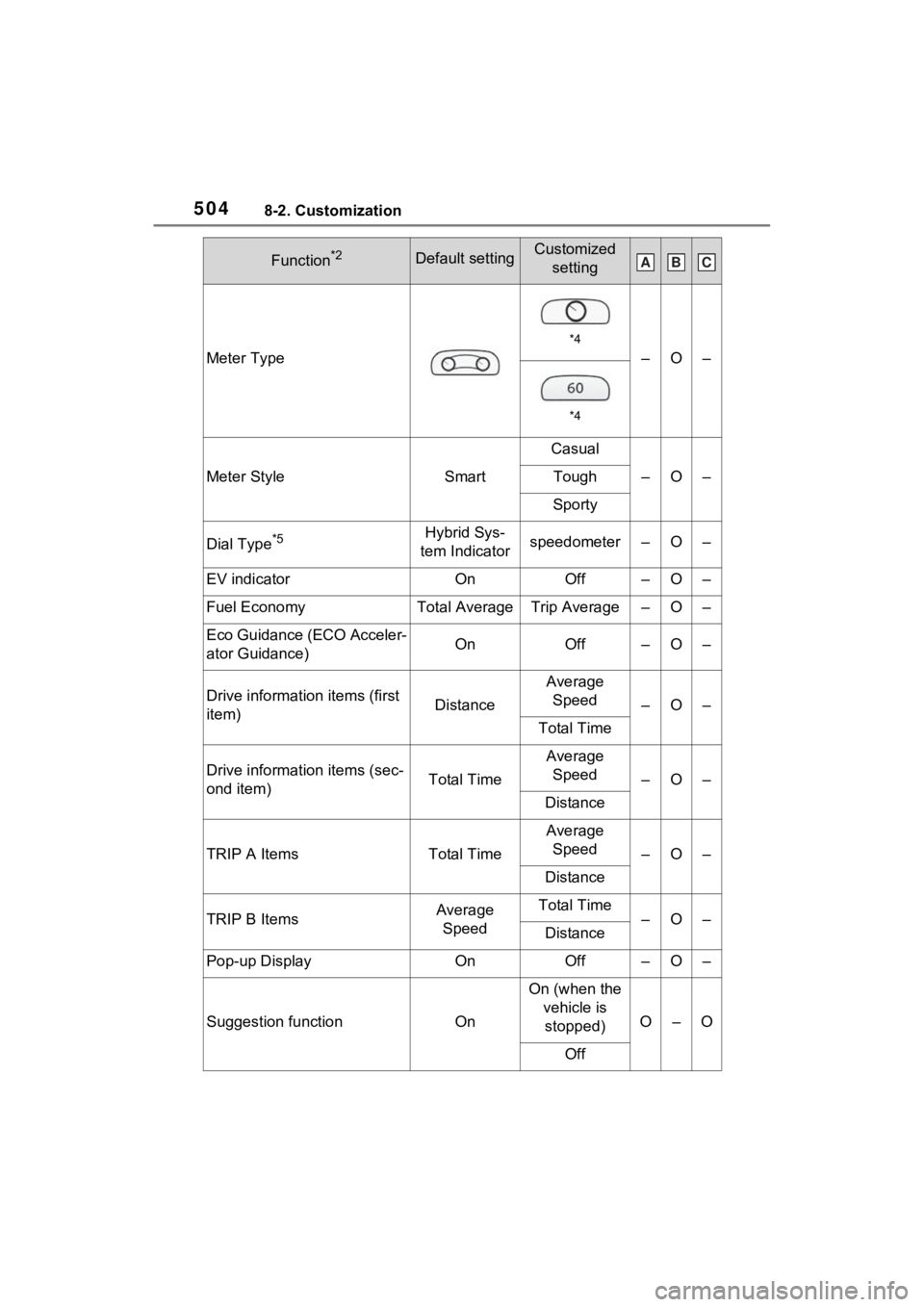

Meter Type
*4
–O–
*4
Meter StyleSmart
Casual
–O–Tough
Sporty
Dial Type*5Hybrid Sys-
tem Indicatorspeedometer–O–
EV indicatorOnOff–O–
Fuel EconomyTotal AverageTrip Average–O–
Eco Guidance (ECO Acceler-
ator Guidance)OnOff–O–
Drive informatio n items (first
item)Distance
Average Speed
–O–
Total Time
Drive information items (sec-
ond item)Total Time
Average Speed
–O–
Distance
TRIP A ItemsTotal Time
Average Speed
–O–
Distance
TRIP B ItemsAverage SpeedTotal Time–O–Distance
Pop-up DisplayOnOff–O–
Suggestion functionOn
On (when the vehicle is stopped)
O–O
Off
Function*2Default settingCustomized settingABC
