Driving Your Vehicle
6-18
B6002301

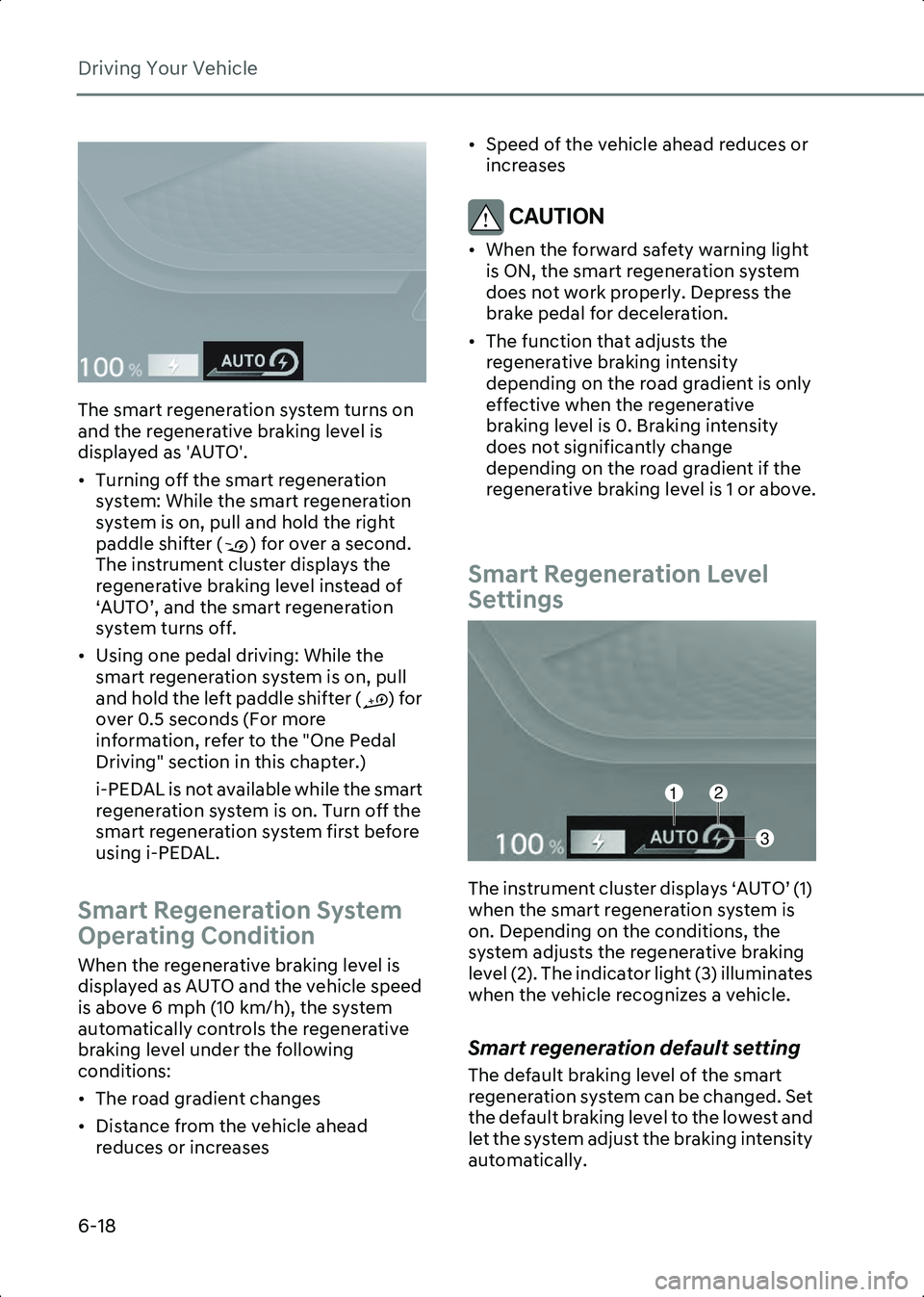

The smart regeneration system turns on
and the regenerative braking level is
displayed as 'AUTO'.
• Turning off the smart regeneration system: While the smart regeneration
system is on, pull and hold the right
paddle shifter ( ) for over a second.
The instrument cluster displays the
regenerative braking level instead of
‘AUTO’, and the smart regeneration
system turns off.
• Using one pedal driving: While the smart regeneration system is on, pull
and hold the left paddle shifter ( ) for
over 0.5 seconds (For more
information, refer to the "One Pedal
Driving" section in this chapter.)
i-PEDAL is not available while the smart
regeneration system is on. Turn off the
smart regeneration system first before
using i-PEDAL.
Smart Regeneration System
Operating Condition
When the regenerative braking level is
displayed as AUTO and the vehicle speed
is above 6 mph (10 km/h), the system
automatically controls the regenerative
braking level under the following
conditions:
• The road gradient changes
• Distance from the vehicle ahead reduces or increases • Speed of the vehicle ahead reduces or
increases
CAUTION • When the forward safety warning light is ON, the smart regeneration system
does not work properly. Depress the
brake pedal for deceleration.
• The function that adjusts the regenerative braking intensity
depending on the road gradient is only
effective when the regenerative
braking level is 0. Braking intensity
does not significantly change
depending on the road gradient if the
regenerative braking level is 1 or above.

Smart Regeneration Level
Settings
B6002501
The instrument cluster displays ‘AUTO’ (1)
when the smart regeneration system is
on. Depending on the conditions, the
system adjusts the regenerative braking
level (2). The indicator light (3) illuminates
when the vehicle recognizes a vehicle.
Smart regeneration default setting
The default braking level of the smart
regeneration system can be changed. Set
the default braking level to the lowest and
let the system adjust the braking intensity
automatically.
3
21
Hyundai_CE_en_US.book Page 18

6
6-19
To change the default level of the smart
regeneration system, pull the right paddle
shifter ( ) once while the system is on.
Smart regeneration intensity setting
Regenerative braking intensity of the
smart regeneration system can be
adjusted to match the driver’s
preference. Adjust the braking intensity
makes the decelerating faster or slower.
B6001903
To adjust the regenerative braking level of
the smart regeneration system, go to
Setup > EV > Smart Regeneration
System from the infotainment system.
Pausing Smart Regeneration
System
The smart regeneration system is
temporarily turned off in the following
conditions. While the system is turned off,
the driver must keep eyes on the road and
depress the brake pedal to decelerate.
• The gear is shifted to N (Neutral), R
(Reverse) or P (Park)
• Smart Cruise Control is ON
• ESC (Electronic Stability Control) is operating
• ABS is operating
Front Sensors
B6003001(1) Front radar
(2) Front corner radar
Front sensors recognize the distance
from the vehicle ahead to control the
regenerative braking intensity. If the
sensor is covered with snow, rain, or other
foreign substances, the performance of
the sensors may deteriorate, and the
smart regeneration system may turn off.
Always keep the sensors clean.
System Check Message
B6003101
When the front radar is covered or
blocked, the smart regeneration system
may be temporarily disabled. The 'Check
Smart Regeneration System' warning
message may appear, and the
regenerative braking level is displayed on
the instrument cluster.
The system operates normally when such
foreign material is removed, and the
system is turned on by pulling and
2
2
1
$IFDL
4NBSU
3FHFOFSBUJPO
4ZTUFN
Hyundai_CE_en_US.book Page 19

Driving Your Vehicle
6-20
holding the right paddle shifter ( ) for
over one second.
If the smart regeneration system does not
operate normally after the sensor has
been uncovered or unblocked, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Smart Regeneration System
Precautions
• Always monitor the distance to vehicles ahead on the road. The smart
regeneration system is not a substitute
for safe driving practices, but a
supplemental function only.
• Always maintain a safe distance from the vehicles ahead and adjust your
vehicle speed to the road conditions.
The smart regeneration system may not
recognize unexpected and sudden
situations or complex driving
situations.
General precautions
• Always maintain a safe distance from the vehicles ahead and adjust your
vehicle speed depending on the road
conditions.
• Always prepare for unexpected situations and depress the brake pedal
to decelerate when necessary. The
smart regeneration system cannot
react to pedestrians, vehicles making a
sudden stop and vehicles coming from
the opposite lane.
• If the vehicle ahead frequently changes the lane, keep your eyes forward to be
prepared for hazardous situations. In
this case, the smart regeneration
system may respond late and may
inappropriately respond to vehicle
movements from the side lanes.
• The driver must depress the brake pedal when stopping the vehicle.
• Depress the brake pedal to decelerate in the following conditions when: - The front part of the vehicle is lifted
up because of the cargo loaded on
the rear part of the vehicle.
- You are operating the steering wheel.
- You are not driving in the center of the lane.
- You are driving on a narrow or curved road.
• The smart regeneration system may be temporarily turn off when exposed to
strong electromagnetic waves.
• If the vehicle starts coasting near the speed camera and engages the brake
with the smart regeneration system,
the vehicle may not be able to keep the
speed limit. Always comply with the
road and traffic law.
Sensor precautions
• Never disassemble the radar or radar assembly, and never apply any impact
on it.
• If there is impact on or near the radar, the sensors may be damaged or not be
properly aligned near the radar, even
though a warning message does not
appear on the instrument cluster, the
Smart Regeneration System may not
operate properly. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
• If the radars have been replaced or repaired, have the vehicle inspected by
an authorized HYUNDAI dealer.
• Use only genuine parts to repair the bumper where the radar is located.
• Do not install a license plate frame or other objects such as bumper sticker,
film, bumper guard, or bumper wrap
near the radar.
• The Smart Regeneration System may not work properly if the bumper has
been replaced, or the surroundings of
the radar has been damaged or
painted.
Hyundai_CE_en_US.book Page 20

6
6-29

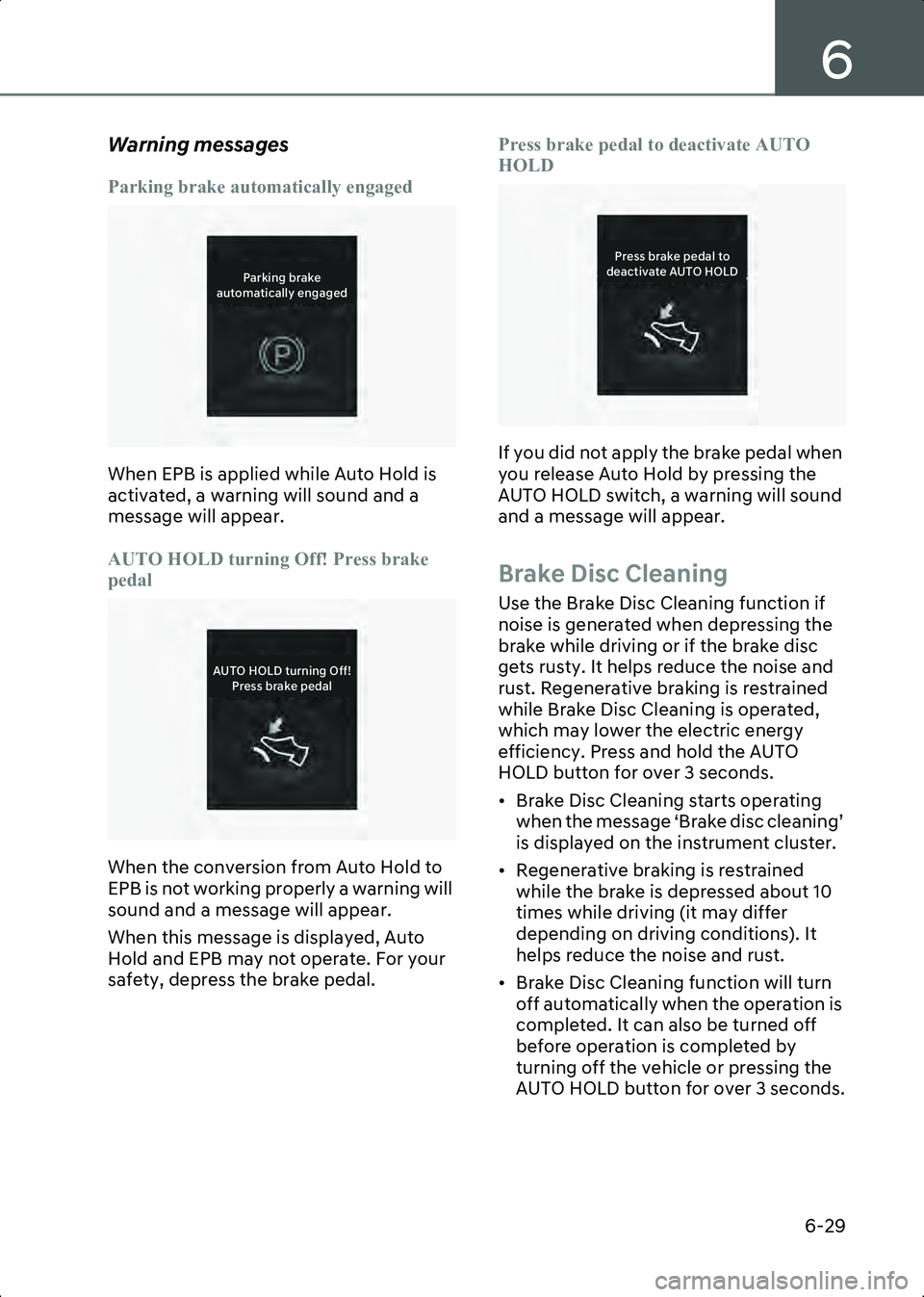

Warning messages
Parking brake automatically engaged
B6003802
When EPB is applied while Auto Hold is
activated, a warning will sound and a
message will appear.
AUTO HOLD turning Off! Press brake
pedal
B6003904
When the conversion from Auto Hold to
EPB is not working properly a warning will
sound and a message will appear.
When this message is displayed, Auto
Hold and EPB may not operate. For your
safety, depress the brake pedal.Press brake pedal to deactivate AUTO
HOLD
B6003905
If you did not apply the brake pedal when
you release Auto Hold by pressing the
AUTO HOLD switch, a warning will sound
and a message will appear.
Brake Disc Cleaning
Use the Brake Disc Cleaning function if
noise is generated when depressing the
brake while driving or if the brake disc
gets rusty. It helps reduce the noise and
rust. Regenerative braking is restrained
while Brake Disc Cleaning is operated,
which may lower the electric energy
efficiency. Press and hold the AUTO
HOLD button for over 3 seconds.
• Brake Disc Cleaning starts operating
when the message ‘Brake disc cleaning’
is displayed on the instrument cluster.
• Regenerative braking is restrained while the brake is depressed about 10
times while driving (it may differ
depending on driving conditions). It
helps reduce the noise and rust.
• Brake Disc Cleaning function will turn off automatically when the operation is
completed. It can also be turned off
before operation is completed by
turning off the vehicle or pressing the
AUTO HOLD button for over 3 seconds.
1BSLJOH
CSBLF
BVUPNBUJDBMMZ
FOHBHFE
"650
)0-%
UVSOJOH
0GG 1SFTT
CSBLF
QFEBM
1SFTT
CSBLF
QFEBM
UP
EFBDUJWBUF
"650
)0-%
Hyundai_CE_en_US.book Page 29

Driving Your Vehicle
6-40

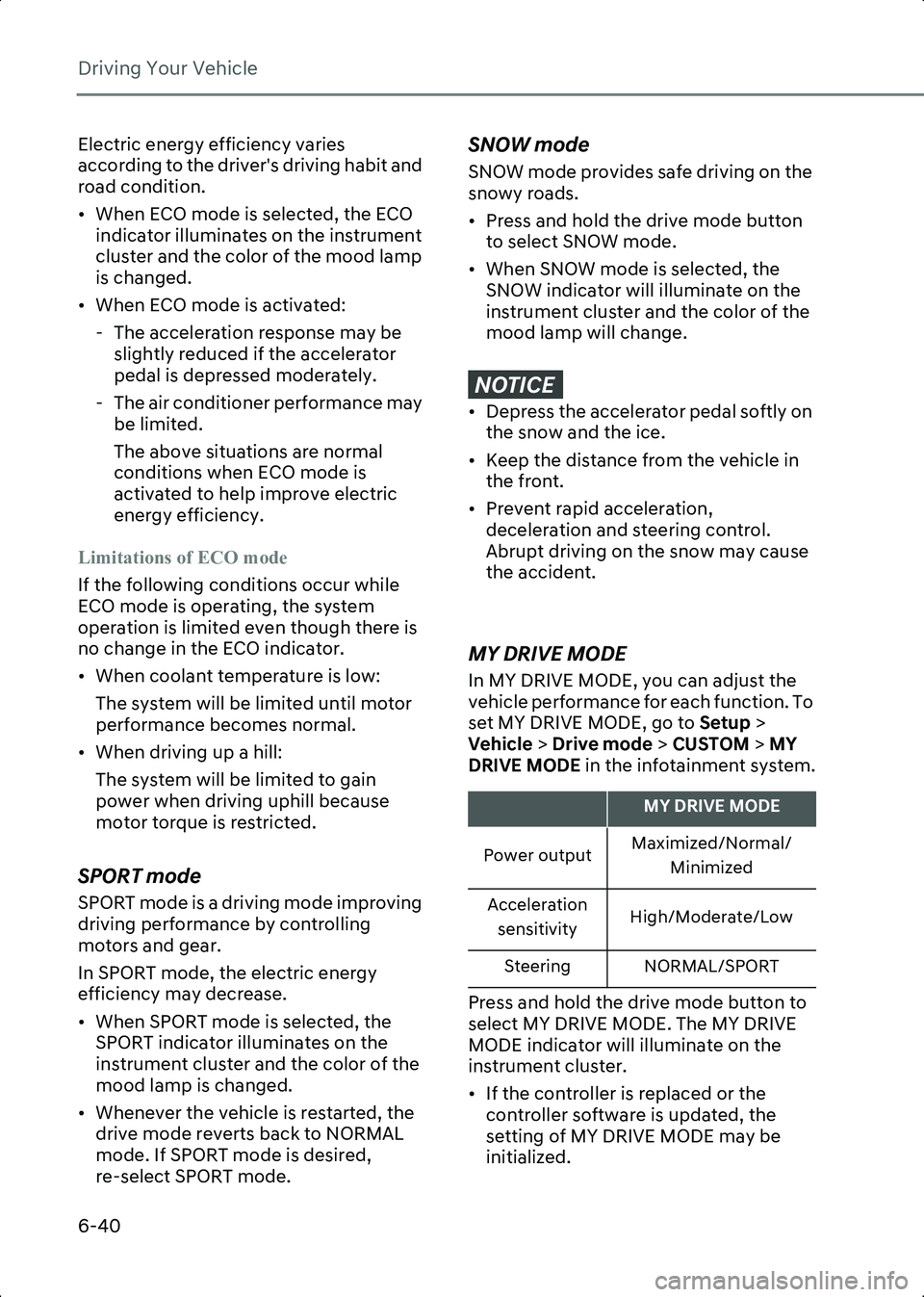

Electric energy efficiency varies
according to the driver's driving habit and
road condition.
• When ECO mode is selected, the ECO indicator illuminates on the instrument
cluster and the color of the mood lamp
is changed.
• When ECO mode is activated: - The acceleration response may be slightly reduced if the accelerator
pedal is depressed moderately.
- The air conditioner performance may be limited.
The above situations are normal
conditions when ECO mode is
activated to help improve electric
energy efficiency.
Limitations of ECO mode
If the following conditions occur while
ECO mode is operating, the system
operation is limited even though there is
no change in the ECO indicator.
• When coolant temperature is low: The system will be limited until motor
performance becomes normal.
• When driving up a hill: The system will be limited to gain
power when driving uphill because
motor torque is restricted.
SPORT mode
SPORT mode is a driving mode improving
driving performance by controlling
motors and gear.
In SPORT mode, the electric energy
efficiency may decrease.
• When SPORT mode is selected, the SPORT indicator illuminates on the
instrument cluster and the color of the
mood lamp is changed.
• Whenever the vehicle is restarted, the drive mode reverts back to NORMAL
mode. If SPORT mode is desired,
re-select SPORT mode.
SNOW mode
SNOW mode provides safe driving on the
snowy roads.
• Press and hold the drive mode button to select SNOW mode.
• When SNOW mode is selected, the SNOW indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.
NOTICE
[ 'HSUHVVWKHDFFHOHUDWRUSHGDOVRIWO\RQWKHVQRZDQGWKHLFH

[ .HHSWKHGLVWDQFHIURPWKHYHKLFOHLQ WKHIURQW

[ 3UHYHQWUDSLGDFFHOHUDWLRQ GHFHOHUDWLRQDQGVWHHULQJFRQWURO
$EUXSWGULYLQJRQWKHVQRZPD\FDXVH
WKHDFFLGHQW

MY DRIVE MODE
In MY DRIVE MODE, you can adjust the
vehicle performance for each function. To
set MY DRIVE MODE, go to Setup >
Vehicle > Drive mode > CUSTOM > MY
DRIVE MODE in the infotainment system.
Press and hold the drive mode button to
select MY DRIVE MODE. The MY DRIVE
MODE indicator will illuminate on the
instrument cluster.
• If the controller is replaced or the controller software is updated, the
setting of MY DRIVE MODE may be
initialized.
MY DRIVE MODE
Power output Maximized/Normal/
Minimized
Acceleration sensitivity High/Moderate/Low
Steering NORMAL/SPORT
Hyundai_CE_en_US.book Page 40

6
6-41
Drive mode Integrated
if equipped
Control System (AWD)
Drive Mode
B6009701
Drive mode may be selected according to
the driver's preference or road condition.
B6009702
The mode changes whenever the driver
pushes the DRIVE mode button.
NORMAL mode
Normal mode is a driving that provides
comfortable driving with normal motor
response. The vehicle is driven mainly
with the rear wheels (2WD), and
automatically converts to AWD according
to the road and driving conditions.
ECO mode
ECO mode is a driving mode vehicles
could change the engagement status of the motor according to the situation
required. Auto changing the driving
mode(2WD/AWD)helps improve energy
efficiency.
Electric energy efficiency varies
according to the driver's driving habit and
road condition.
• When ECO mode is selected, the ECO
indicator illuminates on the instrument
cluster and the color of the mood lamp
is changed.
• When ECO mode is activated: - The acceleration response may be slightly reduced if the accelerator
pedal is depressed moderately.
- The air conditioner performance may be limited.
- The shift pattern of the gear may change.
The above situations are normal
conditions when ECO mode is
activated to help improve electric
energy efficiency.
Limitations of ECO mode
If the following conditions occur while
ECO mode is operating, the system
operation is limited even though there is
no change in the ECO indicator.
• When coolant temperature is low: The system will be limited until motor
performance becomes normal.
• When driving up a hill: The system will be limited to gain
power when driving uphill because
motor torque is restricted.
SPORT mode
SPORT mode is a driving mode improving
driving performance by fixing AWD
system and controlling gear.
In SPORT mode, the electric energy
efficiency may decrease.
• When SPORT mode is selected, the SPORT indicator illuminates on the
)PME
Hyundai_CE_en_US.book Page 41

Driving Your Vehicle
6-42
instrument cluster and the color of the
mood lamp is changed.
• Whenever the vehicle is restarted, the drive mode reverts back to NORMAL
mode. If SPORT mode is desired,
re-select SPORT mode.
SNOW mode
SNOW mode is a driving mode improving
driving performance by changing the
engagement status of the motor
according to the situation required. Auto
changing the driving
mode(2WD/AWD)helps improve driving
stability.
• Press and hold the drive mode button to select SNOW mode.
• When SNOW mode is selected, the SNOW indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.
• When SNOW mode is activated, the driving power is distributed to four
wheels automatically, increasing the
stability of the vehicle.
NOTICE
[ 'HSUHVVWKHDFFHOHUDWRUSHGDOVRIWO\RQWKHVQRZDQGWKHLFH

[ .HHSWKHGLVWDQFHIURPWKHYHKLFOHLQ WKHIURQW

[ 3UHYHQWUDSLGDFFHOHUDWLRQ GHFHOHUDWLRQDQGVWHHULQJFRQWURO
$EUXSWGULYLQJRQWKHVQRZPD\FDXVH
WKHDFFLGHQW

MY DRIVE MODE
In MY DRIVE MODE, you can adjust the
vehicle performance for each function. To
set MY DRIVE MODE, go to Setup >
Vehicle > Drive mode > CUSTOM > MY
DRIVE MODE in the infotainment system.
Press and hold the drive mode button to
select MY DRIVE MODE. The MY DRIVE
MODE indicator will illuminate on the
instrument cluster.
• When driving in 2WD, AWD will operate under following conditions:
- Driving at low speed or stopping
- Driving on an uphill or slippery road
- Malfunction of the rear-wheel motor
• If the controller is replaced or the controller software is updated, the
setting of MY DRIVE MODE may be
initialized.
MY DRIVE MODE
Power output Maximized/Normal/Mini
mized
Acceleration sensitivity High/Moderate/Low
Steering NORMAL/SPORT
Driveline AWD/AUTO
AWD/2WD
Hyundai_CE_en_US.book Page 42

6
6-43

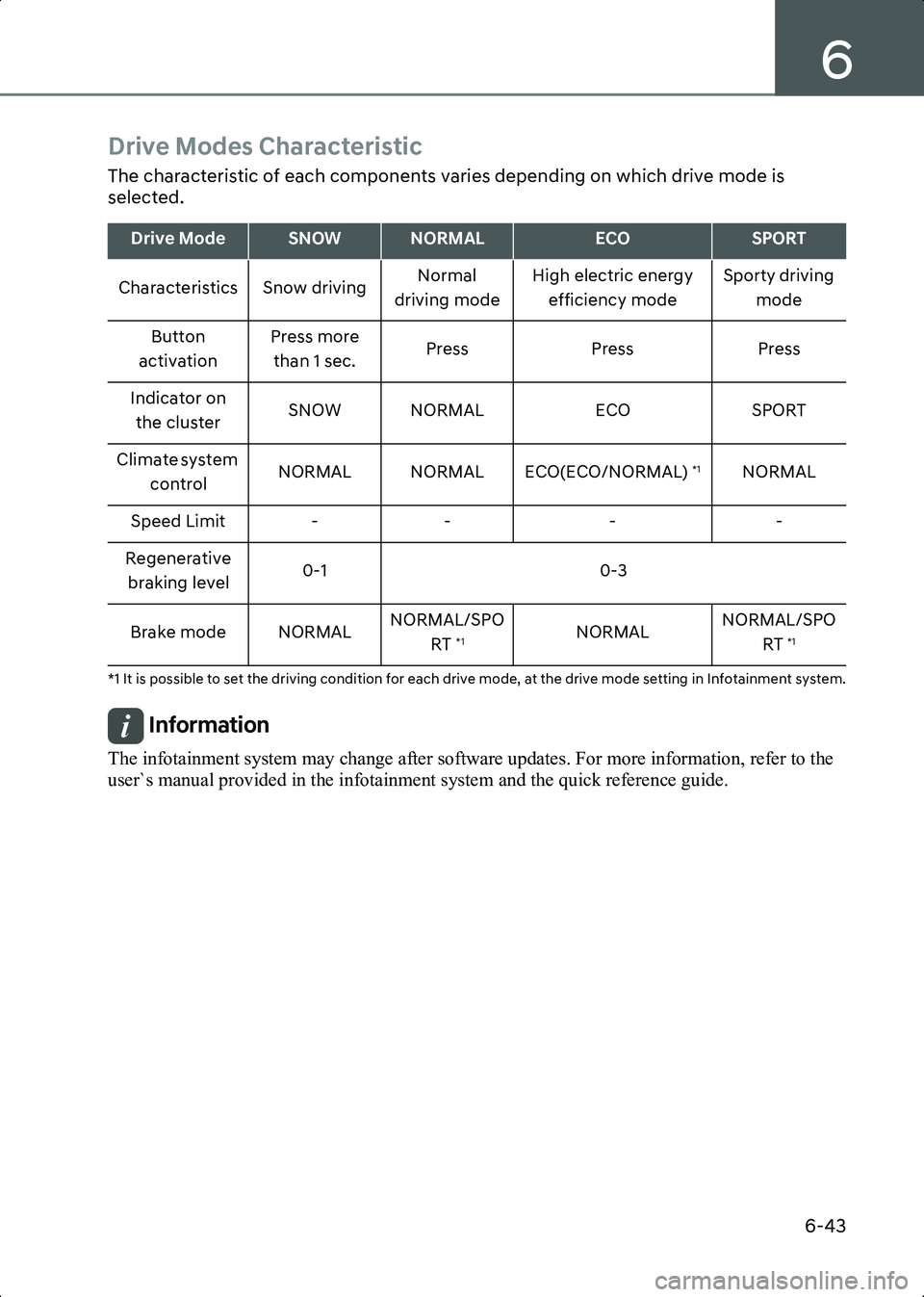

Drive Modes Characteristic
The characteristic of each components varies depending on which drive mode is
selected.
*1 It is possible to set the driving condition for each drive mode, at the drive mode setting in Infotainment system.
Information The infotainment system may change after software updates. For more information, refer to the
user`s manual provided in the infotainment system and the quick reference guide.

Drive ModeSNOWNORMALECOSPORT
Characteristics Snow driving Normal
driving mode High electric energy
efficiency mode Sporty driving
mode
Button
activation Press more
than 1 sec. Press
Press Press
Indicator on the cluster SNOW NORMAL
ECOSPORT
Climate system control NORMAL NORMAL ECO(ECO/NORMAL)
*1NORMAL
Speed Limit - -- -
Regenerative braking level 0-1
0-3
Brake mode NORMAL NORMAL/SPO
RT
*1NORMAL NORMAL/SPO
RT *1
Hyundai_CE_en_US.book Page 43
