Convenience Features

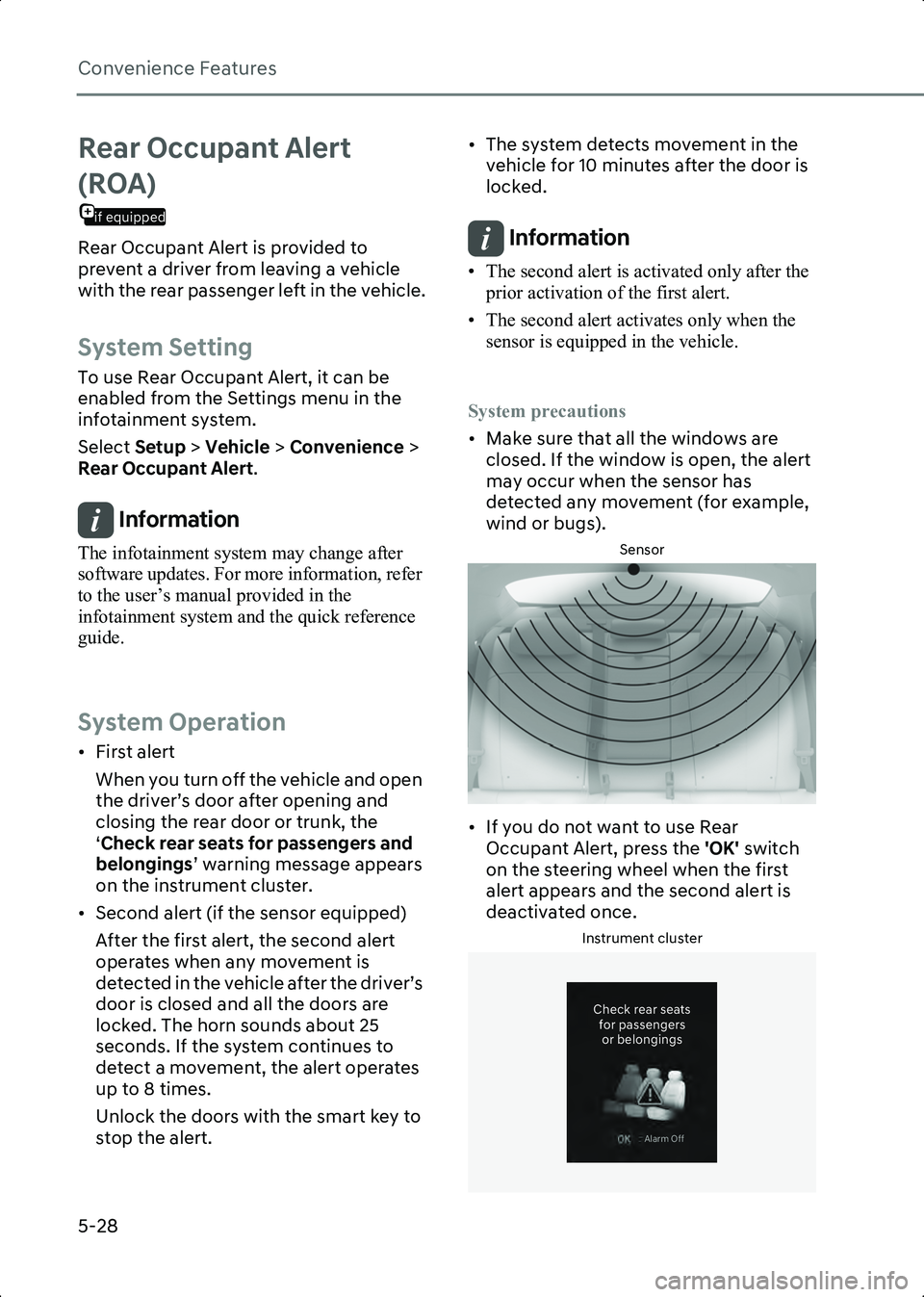

5-28
Rear Occupant Alert
if equipped
(ROA)
Rear Occupant Alert is provided to
prevent a driver from leaving a vehicle
with the rear passenger left in the vehicle.
System Setting
To use Rear Occupant Alert, it can be
enabled from the Settings menu in the
infotainment system.
Select Setup > Vehicle > Convenience >
Rear Occupant Alert .
Information The infotainment system may change after
software updates. For more information, refer
to the user’s manual provided in the
infotainment system and the quick reference
guide.

System Operation
• First alert
When you turn off the vehicle and open
the driver’s door after opening and
closing the rear door or trunk, the
‘Check rear seats for passengers and
belongings ’ warning message appears
on the instrument cluster.
• Second alert (if the sensor equipped) After the first alert, the second alert
operates when any movement is
detected in the vehicle after the driver’s
door is closed and all the doors are
locked. The horn sounds about 25
seconds. If the system continues to
detect a movement, the alert operates
up to 8 times.
Unlock the doors with the smart key to
stop the alert. • The system detects movement in the
vehicle for 10 minutes after the door is
locked.
Information • The second alert is activated only after the prior activation of the first alert.
• The second alert activates only when the sensor is equipped in the vehicle.

System precautions
• Make sure that all the windows are closed. If the window is open, the alert
may occur when the sensor has
detected any movement (for example,
wind or bugs).
Sensor
B5003803
• If you do not want to use Rear Occupant Alert, press the 'OK' switch
on the steering wheel when the first
alert appears and the second alert is
deactivated once.
Instrument cluster
OJX1059019L
$IFDL
SFBS
TFBUT
GPS
QBTTFOHFSTPS
CFMPOHJOHT
"MBSN
0GG
Hyundai_CE_en_US.book Page 28

Convenience Features
5-32
Seat Easy Access
Seat easy access will move the driver’s
seat automatically as follows:
• Exiting the vehicle:The driver’s seat will move as follows
when the Start/Stop button is in the
OFF position with the gear in P (Park)
and the driver’s door open.
- Driver seat: Moves rearward depending on the distance selected
from the Settings menu in the
infotainment system.
However, the driver’s seat may not
move rearward if there is not enough
space between the driver’s seat and the
rear seats.
• Entering the vehicle: The driver’s seat will move as follows
when the Start/Stop button is pressed
to the ACC, ON or START position or
while carrying the smart key, the
driver’s door is closed with the
Start/Stop button in the OFF position.
- Driver seat: Moves back to its original position.
• You can set the 'Seat Easy Access' function from the Settings menu in the
infotainment system. Select:
- Driver seat
Setup > Vehicle > Seat > Seating
Easy Access > Driver Seat Easy
Access > Extended/Normal/Off
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

Steering Wheel
Motor Driven Power Steering
(MDPS)
The system assists you with steering the
vehicle. If the vehicle is turned off or if the
power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
If you notice any change in the effort
required to steer during normal vehicle
operation, have the system inspected by
an authorized HYUNDAI dealer.
CAUTION If Motor Driven Power Steering does not
operate normally, the warning light and
the message 'Check motor driven power
steering' will illuminate on the instrument
cluster. You may steer the vehicle, but it
will require increased steering efforts.
Take the vehicle to an authorized
HYUNDAI dealer and have the system
inspected as soon as possible.

Information During normal vehicle operation:
• The steering effort may be high immediately after pressing the Start/Stop
button to the ON position.
This happens as the system performs the
MDPS system diagnostics. When the
diagnostics are completed, the steering
wheel effort will return to its normal
condition.
• When the 12 V battery voltage is low, you might have to put more steering effort.
However, it is a temporary condition so that
it will return to normal condition after
charging the battery.
Hyundai_CE_en_US.book Page 32

5
5-33
• A click noise may be heard from the MDPS relay after the Start/Stop button is in the ON
or OFF position.
• Motor noise may be heard when the vehicle is at a stop or at a low driving speed.
• When you operate the steering wheel in low temperatures, abnormal noise may occur. If
the temperature rises, the noise will
disappear. This is a normal condition.
• When an error is detected from MDPS, the steering effort assist function will not be
activated in order to prevent fatal accidents.
Instrument cluster warning lights may be on
or the steering effort may be high. If these
symptoms occur, drive the vehicle to a safe
area as soon as it is safe to do so. Have the
system inspected by an authorized
HYUNDAI dealer as soon as possible.

Tilt/Telescopic Steering
When adjusting the steering wheel to a
comfortable position, adjust the steering
wheel so that it points toward your chest,
not toward your face. Make sure you can
see the instrument cluster warning lights
and gauges. After adjusting, push the
steering wheel both up and down to be
certain it is locked in position.
Always adjust the position of the steering
wheel before driving.
WARNING NEVER adjust the steering wheel while
driving. This may cause loss of vehicle
control resulting in an accident.

NOTICE:KLOHDGMXVWLQJWKHVWHHULQJZKHHO
KHLJKWSOHDVHGRQRWSXVKRUSXOOLWKDUG
VLQFHWKHIL[WXUHFDQEHGDPDJHG

Manual adjustment
B5006301
To adjust the steering wheel angle and
height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the desired angle (2) and distance forward/back
(3).
3. Pull up the lock-release lever to lock the steering wheel in place.
Information Sometimes the lock-release lever may not
engage completely. Pull down on the
lock-release lever, readjust the steering wheel
again, and then pull back up on the
lock-release lever to lock the steering wheel in
place.

Horn
B5006501
To sound the horn, press the area
indicated by the horn symbol on your
2
13
2
Hyundai_CE_en_US.book Page 33

5

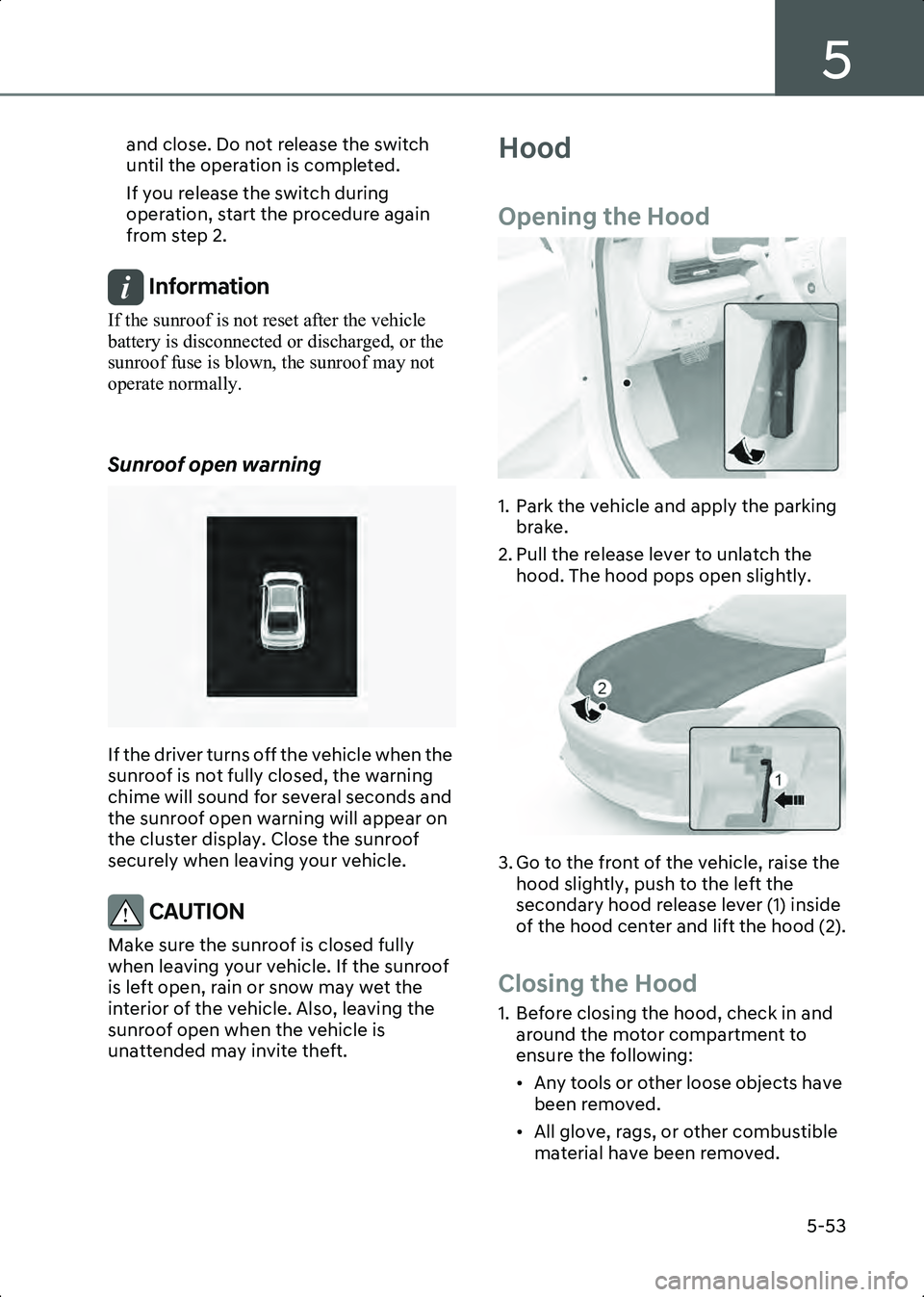

5-53
and close. Do not release the switch
until the operation is completed.
If you release the switch during
operation, start the procedure again
from step 2.
Information If the sunroof is not reset after the vehicle
battery is disconnected or discharged, or the
sunroof fuse is blown, the sunroof may not
operate normally.

Sunroof open warning
B5027901
If the driver turns off the vehicle when the
sunroof is not fully closed, the warning
chime will sound for several seconds and
the sunroof open warning will appear on
the cluster display. Close the sunroof
securely when leaving your vehicle.
CAUTION Make sure the sunroof is closed fully
when leaving your vehicle. If the sunroof
is left open, rain or snow may wet the
interior of the vehicle. Also, leaving the
sunroof open when the vehicle is
unattended may invite theft.

Hood
Opening the Hood
B5010001
1. Park the vehicle and apply the parking brake.
2. Pull the release lever to unlatch the hood. The hood pops open slightly.
B5010002
3. Go to the front of the vehicle, raise the hood slightly, push to the left the
secondary hood release lever (1) inside
of the hood center and lift the hood (2).
Closing the Hood
1. Before closing the hood, check in and around the motor compartment to
ensure the following:
• Any tools or other loose objects have been removed.
• All glove, rags, or other combustible material have been removed.
Hyundai_CE_en_US.book Page 53

Convenience Features
5-54
• All filler caps are tightly and correctly installed
2. Lower the hood until it is about 12 in. (30 cm) above the closed position and then
let it drop.
3. Check the hood has locked properly. If the hood is raised slightly, open it again
and drop it from a little higher. Check
again.
WARNING • Before closing the hood, ensure all obstructions are removed from around
the hood opening. The hood will rise up
or move down automatically if the
height is not firmly adjusted. Be aware
of the damage caused by the
unintended hood movements.
• Always double check to make sure that the hood is firmly latched before driving
away. Check there is no hood open
warning light or message displayed on
the instrument cluster. Driving with the
hood open may cause a total loss of
visibility, resulting in a collision.
• Do not move the vehicle with the hood raised. It may block your vision and may
result in a collision.

Front Trunk
Opening the Front Trunk
B5010702
Opening the hood reveals the front trunk
and you can store your belongings.
Information Front trunk weight limit: 25 lbs. (10 kg)
The front trunk’s weight limit depends on the
specifications.

WARNING • NEVER make an attempt to get inside the front trunk. It will cause a fatal
injury.
• Before closing the hood, ensure all obstructions are removed from around
the hood opening. The hood will rise up
or move down automatically if the
height is not firmly adjusted. Be aware
of the damage caused by the
unintended hood movements.
• Never store cigarette lighters, propane cylinders, or other
flammable/explosive materials in the
vehicle. These items may catch fire
and/or explode if the vehicle is exposed
to hot temperatures for extended
periods.

Hyundai_CE_en_US.book Page 54

Convenience Features
5-74
if equipped
High Beam Assist (HBA)
B5016701
High Beam Assist automatically controls
the headlights between high beam and
low beam depending on the detected
ambient light, such as an oncoming
vehicle or leading vehicle.
Detecting sensor
B5016702(1) front view camera
The front view camera is used as a
detecting sensor to detect ambient light
and brightness while driving.
Refer to the illustration above for the
detailed location of the detecting sensor.
NOTICE
[ $OZD\VNHHSWKHIURQWYLHZFDPHUDLQJRRGFRQGLWLRQWRPDLQWDLQRSWLPDO
SHUIRUPDQFHRI+LJK%HDP$VVLVW

[ )RUPRUHLQIRUPDWLRQRQWKH SUHFDXWLRQVRIWKHIURQWYLHZFDPHUD UHIHUWRWKH
U)RUZDUG
&ROOLVLRQ$YRLGDQFH$VVLVW)&$\f
V
VHFWLRQLQFKDSWHU

High Beam Assist Settings
Setting features
ONE1051248L
With the Start/Stop button in the ON
position, select Setup > Vehicle > High
Beam Assist from the Settings menu to
turn on High Beam Assist and deselect to
turn off the function.
WARNING For your safety, change the Settings after
parking the vehicle at a safe location.

High Beam Assist Operation
Display and control
• After selecting 'High Beam Assist' in
the Settings menu, High Beam Assist
will operate by following the procedure
below.
- Place the headlight switch in the AUTO position and push the
headlight lever towards the
instrument cluster. The High Beam
Assist ( ) indicator light will
illuminate on the instrument cluster
1
Hyundai_CE_en_US.book Page 74

5
5-75
and High Beam Assist will be
enabled.
- When High Beam Assist is enabled, high beam will turn on when vehicle
speed is above 25 mph (40 km/h).
When vehicle speed is below 15 mph
(25 km/h), high beam will turn off and
the High Beam Assist ( ) indicator
will be displayed in white on the
instrument cluster.
- The High Beam ( ) indicator light will illuminate on the instrument cluster
when high beam is on.
• When High Beam Assist is operating, if the headlight lever or switch is used,
High Beam Assist operates as follow:
- If the headlight lever is pulled towards you when the high beam is
off, the high beam will turn on
without High Beam Assist canceled.
When you let go of the headlight
lever, the lever will move to the
middle and the high beam will turn
off.
- If the headlight lever is pulled towards you when the high beam is
on by High Beam Assist, low beam
will turn on and the function will turn
off.
- If the headlight switch is placed from AUTO to another position
(headlight/position/off), High Beam
Assist will turn off and the
corresponding light will turn on.
• When High Beam Assist is operating, high beam switches to low beam if any
of the following conditions occur:
- When the headlight of an oncoming vehicle is detected.
- When the tail light of a vehicle in front is detected.
- When the headlight or tail light of a motorcycle or a bicycle is detected.
- When the surrounding ambient light is bright enough that high beams are
not required. - When streetlights or other lights are
detected.
Information The images and colors in the instrument
cluster may differ depending on the cluster
type or theme selected from the settings menu.

High Beam Assist Malfunction
and Limitations
High Beam Assist malfunction
OJK050059L
When High Beam Assist is not working
properly, the ‘Check High Beam Assist
system’ warning message will appear and
warning light will illuminate on the
instrument cluster. Have the function
inspected by an authorized HYUNDAI
dealer.
Limitations of High Beam Assist
High Beam Assist may not work properly
in the following situations:
• Light from an oncoming or front vehicle is not detected because of light
damage, or because it is hidden from
sight, etc.
• Headlight of an oncoming or front vehicle is covered with dust, snow or
water.
• A front vehicle’s headlights are off, but the fog lights are on, etc.
$IFDL

)JHI
#FBN
"TTJTU TZTUFN
Hyundai_CE_en_US.book Page 75

Convenience Features
5-104
Wireless Smartphone
if equipped
Charging System
B5023901[A] Indicator light
[B] Charging pad
On certain models, the vehicle comes
equipped with a wireless smartphone
charger.
The system is available when all doors are
closed, and when the Start/Stop button is
in the ON or START position.
Charging smartphone
The wireless smartphone charging
system charges only the Qi-enabled
smartphones ( ). Read the label on the
smartphone accessory cover or visit your
smartphone manufacturer’s website to
check whether your smartphone supports
the Qi technology.
The wireless charging process starts
when you put a Qi-enabled smartphone
on the wireless charging unit.
1. Remove other items, including the smart key, from the wireless charging
unit. If not, the wireless charging
process may be interrupted. Place the
smartphone on the center of the
charging pad.
2. The indicator light is orange when the smartphone is charging. The indicator
light will turn green when phone
charging is complete.
3. You can turn ON or OFF the wireless charging function from the Settings menu in the infotainment system.
Select
Setup > Vehicle > Convenience
> Wireless Charging System for Mobile
Devices
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

If your smartphone is not charging:
• Slightly change the position of the smartphone on the charging pad.
• Make sure the indicator light is orange.
The indicator light will blink orange for 10
seconds if there is a malfunction in the
wireless charging system.
In this case, temporarily stop the charging
process, and re-attempt to charge your
smartphone again.
The system warns you with a message on
the cluster display if the smartphone is
still on the wireless charging unit after the
vehicle is turned OFF and the front door is
opened.
For some manufacturer’s smartphones,
the system may not warn you even
though the smartphone is left on the
wireless charging unit. This is due to the
particular characteristic of the
smartphone and not a malfunction of the
wireless charging.
NOTICE
[ 6PDUWSKRQHVWKDWGRQRWKDYHZLUHOHVV FKDUJLQJVWDQGDUG \fFHUWLILFDWLRQ
VXFKDVL3KRQHVPD\QRWFKDUJH
QRUPDOO\

[ :KHQSODFLQJ\RXUVPDUWSKRQHRQWKH FKDUJLQJSDGSRVLWLRQWKHSKRQHLQWKH
PLGGOHRIWKHPDWIRURSWLPDOFKDUJLQJ
SHUIRUPDQFH,I\RXUVPDUWSKRQHLVRII
WRWKHVLGHWKHFKDUJLQJUDWHPD\EH
OHVVDQGLQVRPHFDVHVWKHVPDUWSKRQH
B
A
Hyundai_CE_en_US.book Page 104
