OWNER’S MANUAL
Operation
Maintenance
Specifications
All information in this Owner’s Manual is current at the time of
publication. However, HYUNDAI reserves the right to make
changes at any time so that our policy of continual product
improvement may be carried out.
This manual applies to all models of this vehicle and includes
descriptions and explanations of optional as well as standard
equipment.
As a result, you may find material in this manual that does not
apply to your specific vehicle.
Hyundai_CE_en_US.book Page 1
Page 36 of 582
Introduction/Getting Started with Your Electric Vehicle
1-30
• If an error occurs, you can reset the portable charger by disconnecting and reconnecting the power plug, and then pressing the button on the control box for more
than two seconds.
• If the same symptom repeats after resetting the portable charger, have the vehicle inspected by an authorized HYUNDAI dealer.
• If there is no status change for more than one minute, the portable charger will be switched to power saving mode, and the display light will be turned off.
Charging with a portable charger
Follow the instructions below to charge the vehicle with a portable charger.
1. Connect the power plug of the portable charger to the electrical outlet at tour home.
• The power indicator light on the control box will turn green.
2. Set the charging current by pressing the button on the back of the control box for more than two seconds until the number on the charging current indicator blinks.
NOTICE An example of a portable charger charging current setting suitable for the rated current
of the power supplied is as follows. However, the appropriate charging current may
vary depending on the environment, such as the power usage inside the building.
• The charging current is changed each time the button is pressed, in the order of "6 A - 8 A - 10 A - 12 A."
• If 10 seconds have passed without pressing any button, the blinking will stop and the charging current will be finished.
3. With the vehicle started, apply the Electronic Parking Brake (EPB) while pressing the brake pedal.
4. Turn all switches off, shift to P (Park), and stop the vehicle.
5. With the vehicle door unlocked, press the open indicator on the charging door to open the charging door.
6. Open the charging inlet cover and check the charging connector and charging inlet for dust or other contaminants.
• If there is any dirt or contaminants, remove it using the air gun.
Outlet CurrentICCB Charge level
14-16 A 12 A
12-13 A 10 A
10-11 A 8 A
8-9 A 6 A
Hyundai_CE_en_US.book Page 30
Page 41 of 582
1
1-35

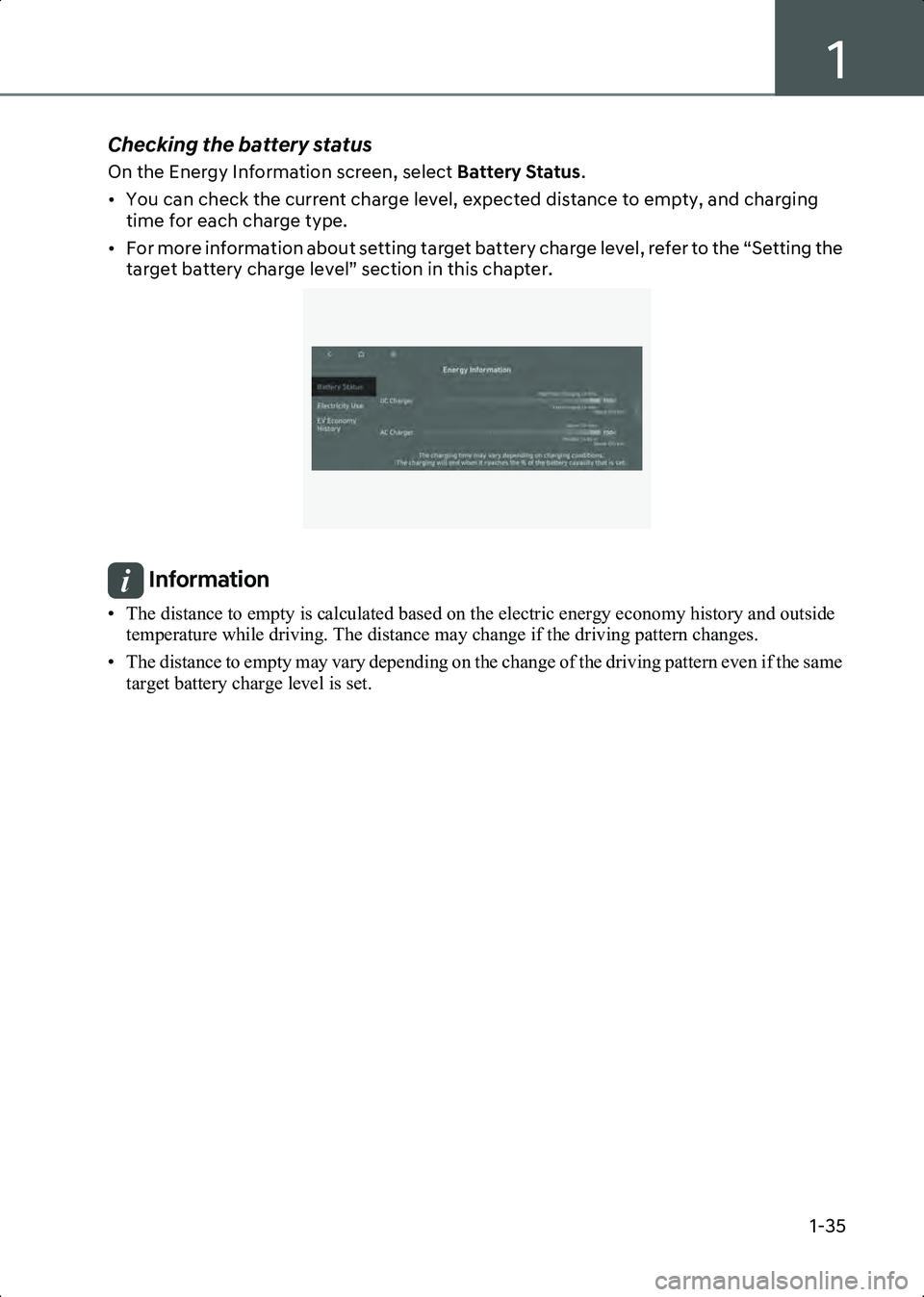

Checking the battery status
On the Energy Information screen, select Battery Status.
• You can check the current charge level, expected distance to empty, and charging time for each charge type.
• For more information about setting target battery charge level, refer to the “Setting the target battery charge level” section in this chapter.
B0001702
Information • The distance to empty is calculated based on the electric energy economy history and outside temperature while driving. The distance may change if the driving pattern changes.
• The distance to empty may vary depending on the change of the driving pattern even if the same target battery charge level is set.
Hyundai_CE_en_US.book Page 35
Page 101 of 582
3
3-7
Seatback angle
B3000202
To recline the seatback:
1. Lean forward slightly and lift up the seatback lever.
2. Carefully lean back on the seat and adjust the seatback to the position you
desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections of
your restraint system (seat belts and/or
airbags) is greatly reduced by reclining
your seatback.
WARNING NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback increases
your chance of serious or fatal injuries in
the event of a collision or sudden stop.
Drivers and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.
Seat belts must be snug against your hips
and chest to work properly. When the
seatback is reclined, the shoulder belt
cannot do its job because it will not be snug against your chest. Instead, it will be
in front of you. During an accident, you
could be thrown into the seat belt,
causing neck or other injuries.
The more the seatback is reclined, the
greater chance the passenger’s hips will
slide under the lap belt or the passenger’s
neck will strike the shoulder belt.
Seat height
To change the height of the seat cushion:
B3000203
• Push down the lever several times, to
lower the seat cushion.
• Pull up the lever several times, to raise the seat cushion.
if equipped
Power adjustment
The front seat can be adjusted by using
the control switches located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control the
steering wheel, foot pedals and controls
on the instrument panel.
Hyundai_CE_en_US.book Page 7
Page 109 of 582
3
3-15
WARNING The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of time.
Passengers must be able to feel if the seat
is becoming too warm so they can turn it
off, if needed.
Seat warmer consume large amounts of
electricity. Please avoid using seat
warmers while the vehicle is off in order
to prevent battery discharge.
People who cannot detect temperature
change or pain to the skin should use
extreme caution, especially the following
types of passengers:
• Infants, children, elderly or disabled persons, or hospital outpatients.
• People with sensitive skin or who burn easily.
• Fatigued individuals.
• Intoxicated individuals.
• People taking medication that can cause drowsiness or sleepiness.
WARNING NEVER place anything on the seat that
insulates against heat when the seat
warmer is in operation, such as a blanket
or seat cushion. This may cause the seat
warmer to overheat, causing a burn or
damage to the seat.
NOTICE 7 R S U H Y H Q W G D P D J H W R W K H V H D W Z D U P H U V
D Q G V H D W V
[ 1 H Y H U X V H D V R O Y H Q W V X F K D V S D L Q W W K L Q Q H U E H Q ] H Q H D O F R K R O R U J D V R O L Q H W R
F O H D Q W K H V H D W V
[ ' R Q R W S O D F H K H D Y \ R U V K D U S R E M H F W V R Q V H D W V H T X L S S H G Z L W K V H D W Z D U P H U V [ ' R Q R W F K D Q J H W K H V H D W F R Y H U , W P D \
G D P D J H W K H V H D W Z D U P H U
if equipped
Front seat warmers
Infotainment system
ONE1031085L
While the vehicle is running, touch
Heating/Ventilation icon in the
infotainment system.
Climate control panel
B3000602
Press in the front climate control
panel.
Hyundai_CE_en_US.book Page 15
Page 110 of 582
Seats & Safety System
3-16
ONE1031080L
To activate seat warmer of each front
seats, touch icon on the infotainment
system. Adjust the temperature by
pressing either or icons.
The seat warmer will automatically stop
when the seat temperature reaches
certain level and will automatically
reactivate when the seat temperature
drops below certain temperature.
• Automatic temperature controlThe seat warmer starts to automatically
control the seat temperature in order to
prevent low temperature burns after
being manually turned on.
You may manually touch the icon to
increase seat temperature. However,
the seat temperature is automatically
adjusted again.
• Auto. Controls That Use Climate Control Settings (for driver’s seat)
The seat warmer automatically controls
the seat temperature depending on the
ambient temperature when the vehicle
is on ( indicator on).
To use this function, it can be enabled
from the Settings menu in the
infotainment system. Select: Setup >
Vehicle > Seat > Heated/Ventilated
Features > Auto. Controls That Use
Climate Control Settings > Seat
Warmer/Ventilation • The seat warmer defaults to the OFF
position whenever the Start/Stop
button is pressed to the ON position.
However, if the Auto. Controls That Use
Climate Control Settings function is on,
the driver’s seat warmer turns on and
off depending on the ambient
temperature.
Information The infotainment system may change after
software updates. For more information, refer
to the user`s manual provided in the
infotainment system and the quick reference
guide.
if equipped
Rear seat warmers
B3000604
• While the vehicle is running, press seat warmer switches located in each seats
to warm the rear seat.
• The seat warmer will automatically stop when the seat temperature reaches
certain level and will automatically
reactivate when the seat temperature
drops below certain temperature.
• Manual temperature control Each time you press the switch, the
temperature setting of the seat is
changed as follows :
OFF → HIGH ( 3 ) → MEDIUM ( 2 ) → LOW ( 1 )
30 min 60 min
OFF → HIGH ( ) → LOW ( )
Hyundai_CE_en_US.book Page 16
Page 112 of 582
Seats & Safety System
3-18
if equipped
Front air ventilation seats
Infotainment system
ONE1031085L
While the vehicle is running, touch
Heating/Ventilation icon in the
infotainment system.
Climate control panel
B3000602
Press in the front climate control
panel.
ONE1031080L
To activate air ventilation of each front
seats, touch icon on the infotainment
system. Adjust the airflow by pressing
either or icons.• If the air ventilation seat is position to
'HIGH', fan speed increases depending
on the vehicle speed and driving time.
• Use the air ventilation seat with the air conditioning on for more effective
ventilation.
• It may take 3-5 minutes after switch operation to feel the temperature
change.
• Auto. Controls That Use Climate Control Settings (for driver’s seat)
The air ventilation seat automatically
controls the seat temperature
depending on the ambient temperature
when the vehicle is on ( indicator
on).
To use this function, it can be enabled
from the Settings menu in the
infotainment system. Select: Setup >
Vehicle > Seat > Heated/Ventilated
Features > Auto. Controls That Use
Climate Control Settings > Seat
Warmer/Ventilation
• The air ventilation seats defaults to the OFF position whenever the Start/Stop
button is pressed to the ON position.
However, if the Auto. Controls That Use
Climate Control Settings function is on,
the driver’s air ventilation seat turns on
and off depending on the ambient
temperature.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Hyundai_CE_en_US.book Page 18
Page 163 of 582
4
4-13
if equipped
All Wheel Drive (AWD) Warning Light
WL_4WDWarningLamp
This warning light illuminates:
Whenever a malfunction with the AWD
system is detected.
If this occurs frequently, have the vehicle
inspected by an authorized HYUNDAI
dealer.
For more information, refer to the "All
Wheel Drive (AWD)" section in chapter 6.
LED Headlight Warning Light
WL_LEDHeadlampWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The LED headlight warning
light illuminates for about 3 seconds
and then goes off.
• Whenever there is a malfunction with the LED headlight.
If the LED headlight warning light
remains illuminated while driving, have
the vehicle inspected by an authorized
HYUNDAI dealer.
This warning light blinks:
Whenever there is a malfunction with a
LED headlight related part.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
NOTICE & R Q W L Q X R X V G U L Y L Q J Z L W K W K H / ( '
+ H D G O L J K W Z D U Q L Q J O L J K W R Q R U E O L Q N L Q J F D Q
U H G X F H / ( ' K H D G O L J K W O L I H
if equipped
Icy Road Warning Light
WL_IcyLoadWarningLamp
This indicator light illuminates:
To warn the driver the road may be icy.
When the outside temperature on the
temperature gauge is below 40 °F (4 °C),
a single chime sounds, both the outside
temperature gauge and Icy Road Warning
indicator blink several times, and then
they remain illuminated.
You can activate or deactivate Icy Road
Warning function from the Settings menu
in the infotainment system.
Select: Setup > Vehicle > Cluster >
Content Selection > Icy Road Warning
Information • If the Icy Road warning light appears while
driving, avoid speeding, rapid acceleration,
sudden braking, or sharp turning.
• The infotainment system may change after software updates. For more information,
refer to the user's manual provided in the
infotainment system and the quick
reference guide.
Hyundai_CE_en_US.book Page 13
