Instrument Cluster

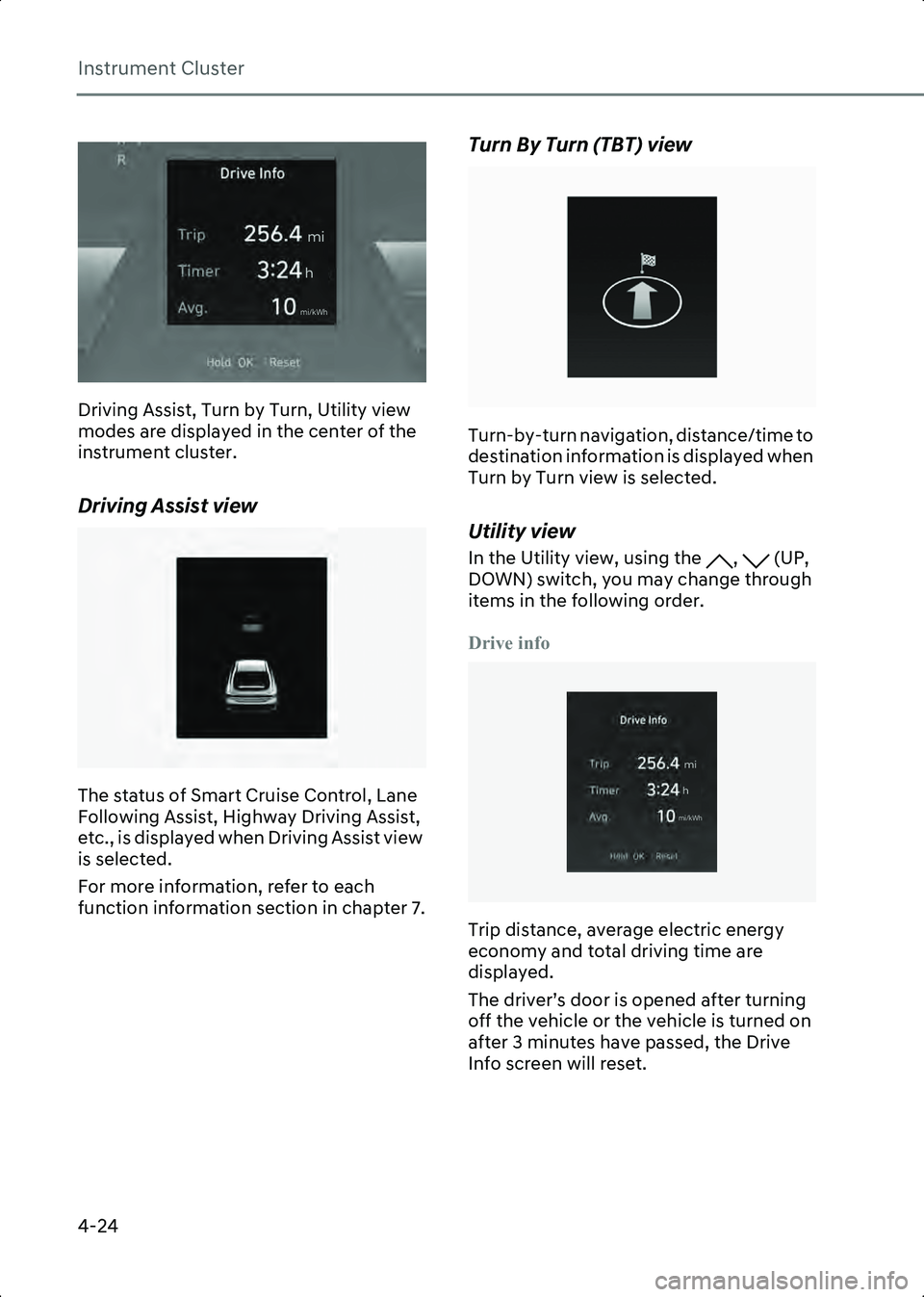

4-24
ONE1041019L
Driving Assist, Turn by Turn, Utility view
modes are displayed in the center of the
instrument cluster.
Driving Assist view
B4000902
The status of Smart Cruise Control, Lane
Following Assist, Highway Driving Assist,
etc., is displayed when Driving Assist view
is selected.
For more information, refer to each
function information section in chapter 7.
Turn By Turn (TBT) view
B4000903
Turn-by-turn navigation, distance/time to
destination information is displayed when
Turn by Turn view is selected.
Utility view
In the Utility view, using the , (UP, DOWN) switch, you may change through
items in the following order.
Drive info
ONE1041047L_1
Trip distance, average electric energy
economy and total driving time are
displayed.
The driver’s door is opened after turning
off the vehicle or the vehicle is turned on
after 3 minutes have passed, the Drive
Info screen will reset.
NJ
I
NJL8I
NJ
I
NJL8I
Hyundai_CE_en_US.book Page 24

Instrument Cluster

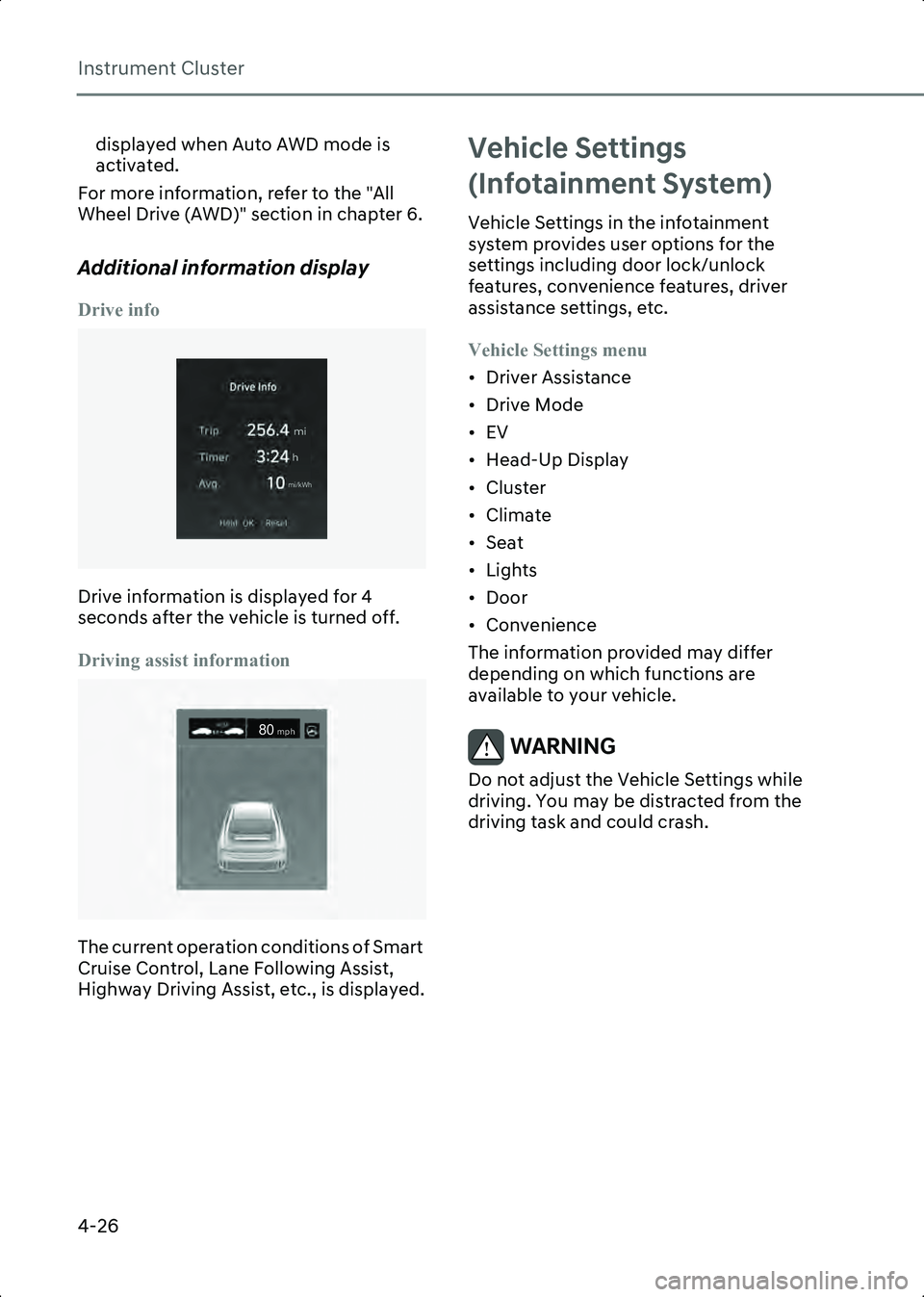

4-26
displayed when Auto AWD mode is
activated.
For more information, refer to the "All
Wheel Drive (AWD)" section in chapter 6.
Additional information display
Drive info
ONE1041047L_1
Drive information is displayed for 4
seconds after the vehicle is turned off.
Driving assist information
B4000911
The current operation conditions of Smart
Cruise Control, Lane Following Assist,
Highway Driving Assist, etc., is displayed.
Vehicle Settings
(Infotainment System)
Vehicle Settings in the infotainment
system provides user options for the
settings including door lock/unlock
features, convenience features, driver
assistance settings, etc.
Vehicle Settings menu
• Driver Assistance
• Drive Mode
• EV
• Head-Up Display
• Cluster
• Climate
• Seat
• Lights
• Door
• Convenience
The information provided may differ
depending on which functions are
available to your vehicle.
WARNING Do not adjust the Vehicle Settings while
driving. You may be distracted from the
driving task and could crash.

NJ
I
NJL8I
80NQI
Hyundai_CE_en_US.book Page 26

Convenience Features

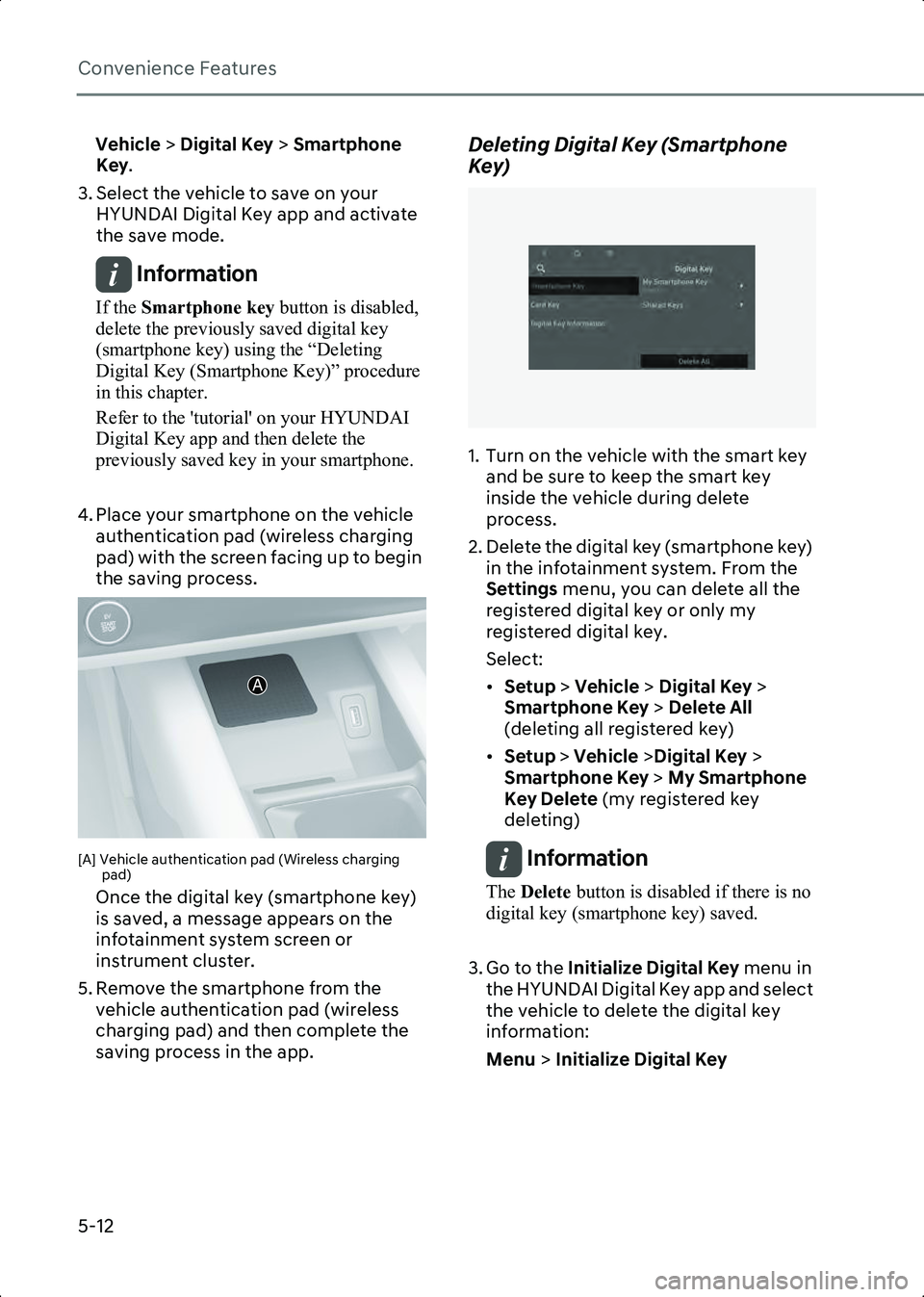

5-12
Vehicle > Digital Key > Smartphone
Key .
3. Select the vehicle to save on your HYUNDAI Digital Key app and activate
the save mode.
Information If the Smartphone key button is disabled,
delete the previously saved digital key
(smartphone key) using the “Deleting
Digital Key (Smartphone Key)” procedure
in this chapter.
Refer to the 'tutorial' on your HYUNDAI
Digital Key app and then delete the
previously saved key in your smartphone.

4. Place your smartphone on the vehicle authentication pad (wireless charging
pad) with the screen facing up to begin
the saving process.
B5026502[A] Vehicle authentication pad (Wireless charging pad)
Once the digital key (smartphone key)
is saved, a message appears on the
infotainment system screen or
instrument cluster.
5. Remove the smartphone from the vehicle authentication pad (wireless
charging pad) and then complete the
saving process in the app.
Deleting Digital Key (Smartphone
Key)
B0901EU05
1. Turn on the vehicle with the smart key and be sure to keep the smart key
inside the vehicle during delete
process.
2. Delete the digital key (smartphone key) in the infotainment system. From the
Settings menu, you can delete all the
registered digital key or only my
registered digital key.
Select:
• Setup > Vehicle > Digital Key >
Smartphone Key > Delete All
(deleting all registered key)
• Setup > Vehicle >Digital Key >
Smartphone Key > My Smartphone
Key Delete (my registered key
deleting)
Information The Delete button is disabled if there is no
digital key (smartphone key) saved.

3. Go to the Initialize Digital Key menu in
the HYUNDAI Digital Key app and select
the vehicle to delete the digital key
information:
Menu > Initialize Digital Key
A
Hyundai_CE_en_US.book Page 12

5
5-13
Information • If the saved digital key (smartphone key) information in your vehicle is deleted while
in vehicle maintenance, the digital key
(smartphone key) in your smartphone must
be deleted.
• For more information, refer to the 'tutorial' in your HYUNDAI Digital Key app.

Information The following do not allow the saving process
to be completed:
• If the smartphone is removed from the vehicle authentication pad (wireless
charging pad).
• If the infotainment system or instrument cluster screen is changed during this
process.
• If the vehicle is turned off.
• If the gear is shifted.
• If you try to save using a smartphone that is not logged in with the vehicle owner’s ID or
if you try to save the card key.
• If the NFC setting on your smartphone is off.
• If the smartphone screen is changed to off or locked status.
• If there is no smart key during the saving process.

When user changes
smartphone or deletes digital
key application
Setting digital key after smartphone
change or reset
If you have changed or reset your
smartphone, the previously registered
digital key may not be used. To set up the
digital key again:
1. Install the HYUNDAI Digital Key app and log in.
2. If you are the owner, try the digital key save process.
3. If you are the sharer, ask the owner to share the key.
Reinstalling digital key app after
deleting
If you have deleted the HYUNDAI Digital
Key app, download the digital key app
again:
1. Reinstall the app and log in.
2. Input the PIN number for user verification.
If the PIN is correct, the digital key data is
downloaded to your smartphone. You can
use it without any further registration or
sharing.
How to save/delete the digital
key (Card Key)
Saving Digital Key (Card Key)
1. Turn on the vehicle with the smart key and be sure to keep the smart key
inside the vehicle during digital key
registration.
2. Install the HYUNDAI Digital Key app on your smartphone and set up the digital
key.
3. Using the Pair Card Key menu in the app, activate the Card Key registration
mode.
Hyundai_CE_en_US.book Page 13

Convenience Features
5-14
• NFC authentication: Enter the NFC authentication menu and touch your
smartphone to the outside door
handle.
• Bluetooth authentication: Enter the Bluetooth authentication menu and
press the OK button.
Information • If you activate the registration
mode,complete the card key saving
process within 5 minutes.
• If you have not registered the digital key (card key), register the digital key(card
key) with two smart keys.

B0902EU01
4. Register the digital key (card key) in the infotainment system. From the Settings
menu, go to Setup > Vehicle > Digital
Key > Card Key and then select Enable
Card Key.
Information The Enable Card Key button is disabled if
the digital key (card key) is already saved.
If you need to save a new digital key(card
key), delete the previous digital key (card
key) using “Deleting Digital key(Card
key)” procedure in this chapter.

5. Place the digital key (card key) on the vehicle authentication pad (wireless charging pad). The process begins
automatically.
If successful, a message appears on the
infotainment system screen or
instrument cluster.
Once a digital key (card key) has been
registered, it cannot be used with
another vehicle.
Deleting digital key (card key)
B0902EU03
1. Turn on the vehicle with the smart key
and be sure to keep the smart key
inside the vehicle during delete
process.
2. Delete your digital key (card key) from in the infotainment system. From the
Settings menu, go to Setup > Vehicle >
Digital Key > Card Key and then select
Delete .
Information • The Delete button is disabled if there is
no digital key (card key) saved.
• If the digital key (card key) is deleted,it can be re-registered to the same vehicle
as long as a new digital key (card key)
has not been registered.
• If you set up a new digital key (card key), the previously registered digital key (card
key) is no longer active and cannot be
re-registered.

Hyundai_CE_en_US.book Page 14

Convenience Features
5-18
Vehicle personalization with digital key
The infotainment system may change after software updates. For more information,
refer to the user's manual provided in the infotainment system and the quick reference
guide.
SystemPersonalization Item
Vehicle settings Light
Blink number of one-touch
signal lights
Cluster Information display on the
cluster, Voice volume, Welcome sound
Seat/Mirror Seat position, Side view
mirror position, Easy Access
Intelligent driving posture assist (Smart IMS)
Door Automatic door lock/unlock,
Two Press Unlock
Head Up Display (HUD) Position adjustment of
image, Information display selection
Infotainment system Navigation
Preferred volume of the
navigation system, Recent destination
User preset My menu list settings, Radio
preset
Phone connectivity Bluetooth preferential
connect CarPlay/Android Auto On/Off
Air conditioning Operating conditionLatest operation setup of the
following functions:
Temperature, AUTO, air flow direction, air volume, air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
Hyundai_CE_en_US.book Page 18

5
5-19
Information Do not leave your digital key (smartphone key
or card key) in the vehicle after locking or
unlocking the doors or starting the vehicle.
The doors can be locked using the switches on
the driver’s or the passenger’s doors. Always
take your digital key (smartphone key or card
key) when leaving the vehicle.

Used Vehicle/Digital Key
Maintenance
Purchasing used vehicle
Delete Digital Key Settings when
purchasing a used vehicle.
If any digital key (smartphone key or card
key) is already registered when you press
the Statr/Stop button, the message,
“Digital key(s) active” appears on the
instrument cluster once. If you sell your
vehicle or purchase a used HYUNDAI
vehicle equipped with the Digital Key
feature, confirm the message and delete
the registered smartphone key and card
key. For more information, contact the
HYUNDAI Customer Care Center. If the
card key does not work properly, delete
the card key, register the smartphone
key, and re-register the card key.
Digital Key Maintenance
If you need to have your Digital Key
System repaired or replaced, make sure
your Smartphone Key is still active. You
may have to pair your phone again using
the HYUNDAI Digital Key app.
Limitations of the System
HYUNDAI Digital Key app on the
smartphone and card key may not work if:
• HYUNDAI Digital Key app is deleted.
• Account login information for HYUNDAI Digital Key app has expired. • Logged in with another smartphone
instead of the registered smartphone
with the same user account.
• Smartphone rooting or app hacking is detected.
• Smartphone battery or the vehicle battery is discharged.
• Smartphone screen is off or locked.
• NFC or Bluetooth is turned off on the smartphone settings.
• Smartphone’s mobile network setting is off or airplane mode is activated.
• The card key is in a wallet or card holder, or overlapped with other cards.
• If you use a smartphone cover that uses wireless communication or is made of
metal, remove the smartphone cover.
The vehicle may not be controlled by the
smartphone if any of the following
occurs:
• Other smartphone functions (calls,urgent call, audio or NFC
payment), apps, or wireless earphones
are operating.
• The digital key app function such as basic setting or app launching is limited
by the prior policy according to the
manufacturer.
• If you have changed the smartphone number, modify the user account
information on the HYUNDAI customer
web site.
• If the vehicle owner has changed the smartphone, register the new
smartphone in the vehicle after
deleting the registered digital key
(smartphone).
• If a sharer have changed or reset the smartphone, share the key again.Information • Do not leave the registered digital key (smartphone key or card key) in your
vehicle. Carry it when leaving the vehicle.
Hyundai_CE_en_US.book Page 19

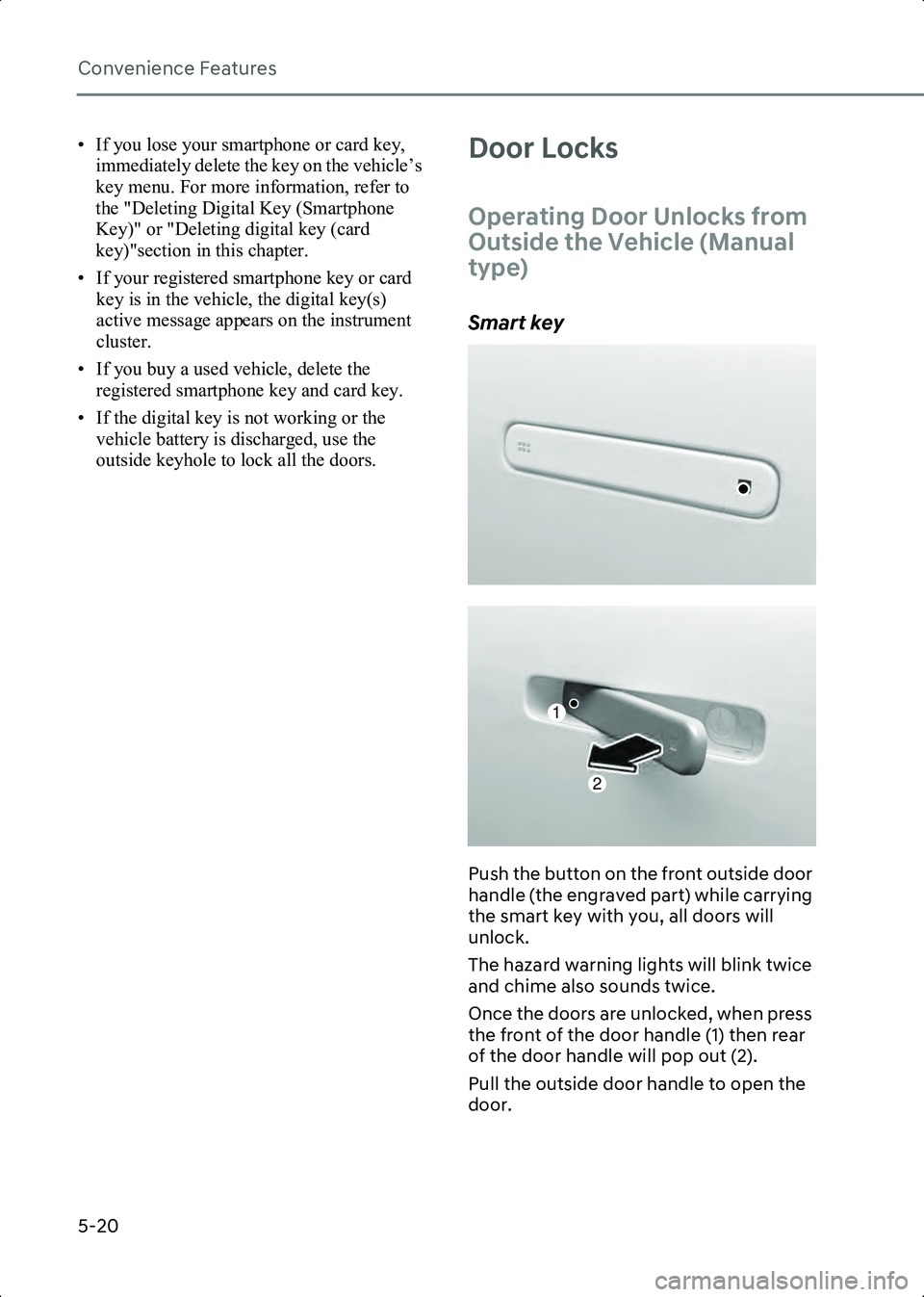

Convenience Features
5-20
• If you lose your smartphone or card key, immediately delete the key on the vehicle’s
key menu. For more information, refer to
the "Deleting Digital Key (Smartphone
Key)" or "Deleting digital key (card
key)"section in this chapter.
• If your registered smartphone key or card key is in the vehicle, the digital key(s)
active message appears on the instrument
cluster.
• If you buy a used vehicle, delete the registered smartphone key and card key.
• If the digital key is not working or the vehicle battery is discharged, use the
outside keyhole to lock all the doors.
Door Locks
Operating Door Unlocks from
Outside the Vehicle (Manual
type)
Smart key
B5002803
B5002802
Push the button on the front outside door
handle (the engraved part) while carrying
the smart key with you, all doors will
unlock.
The hazard warning lights will blink twice
and chime also sounds twice.
Once the doors are unlocked, when press
the front of the door handle (1) then rear
of the door handle will pop out (2).
Pull the outside door handle to open the
door.
1
2
Hyundai_CE_en_US.book Page 20
