2023 HYUNDAI IONIQ 6 cluster

4
4-3
Instrument Cluster Control
Instrument panel illumination
ONE1041044L
When the vehicle’s parking lights or
headlights are on, press the illumination
control switch to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
switch, the interior switch illumination
intensity is also adjusted.
WARNING Never adjust the instrument panel
illumination while driving to prevent
death, serious injury, or vehicle damage.

ONE1041056N
• The brightness of the instrument panel illumination is displayed.
• When the brightness setting reaches either the minimum or maximum level,
a chime sounds.
Gauges and Meters
Speedometer
B4000301
The speedometer indicates the speed of
the vehicle and is calibrated in mi. per
hour (MPH).
Power/Charge Gauge
B4000306
The Power/Charge gauge shows the
energy consumption rate of the vehicle
and the charge/discharge status of the
regenerative brakes.
• POWER :
The discharging status of the electric
motor is shown when the vehicle is
accelerating or driving on an uphill
road. As the electric energy discharged
increases, the gauge level also
increases.
• CHARGE : The charging status of the electric
motor is shown when the vehicle is
.1)

Hyundai_CE_en_US.book Page 3

Instrument Cluster
4-4
decelerating or driving on a downhill
road (being charged by the
regenerative brakes). As more electric
energy charges, the lower the gauge
level.
State of Charge (SOC) Gauge
for High Voltage Battery
B4000307
• The SOC gauge shows the charging status of the high voltage battery.
• The low percentage number on the indicator indicates that there is not
enough energy in the high voltage
battery. 100 % indicates that the high
voltage battery is fully charged.
• When driving on highways, make sure to check in advance if the high voltage
battery is charged enough.
B4000308
1. When the remaining battery is lower than 10 % on the SOC gauge, the High
Voltage Battery Level ( ) warning
light Illuminates, to alert you of the
battery level. 2. When the High Voltage Battery Level
( ) warning light Illuminates, the
vehicle can drive an additional 18-25 mi.
(30-40 km) depending on the driving
speed, heater/air conditioner, weather,
driving style, and other factors.
Charging is required.
NOTICE:KHQWKHKLJKYROWDJHEDWWHU\OHYHOLV
ORZWKH3RZHU'RZQ \fLQGLFDWRUOLJKW
LOOXPLQDWHVDQGWKHYHKLFOHSRZHULV
OLPLWHG
&KDUJHWKHEDWWHU\LPPHGLDWHO\VLQFH
\RXUYHKLFOHPD\QRWEHGULYHQRUPD\
UROOEDFNRQDVORSHZLWKWKHLQGLFDWRUOLJKW
LOOXPLQDWHG

Outside temperature gauge
B4000304
The temperature reads in Fahrenheit or
Celsius depending on the units selected
from the Settings menu in the
infotainment system. The temperature
indicated on the instrument cluster may
not change as quickly as the outside
temperature.
Select: Setup > General > Units >
Temperature Unit > °F/°C
Both the temperature unit on the
instrument cluster and climate control
screen is changed.
'
Hyundai_CE_en_US.book Page 4

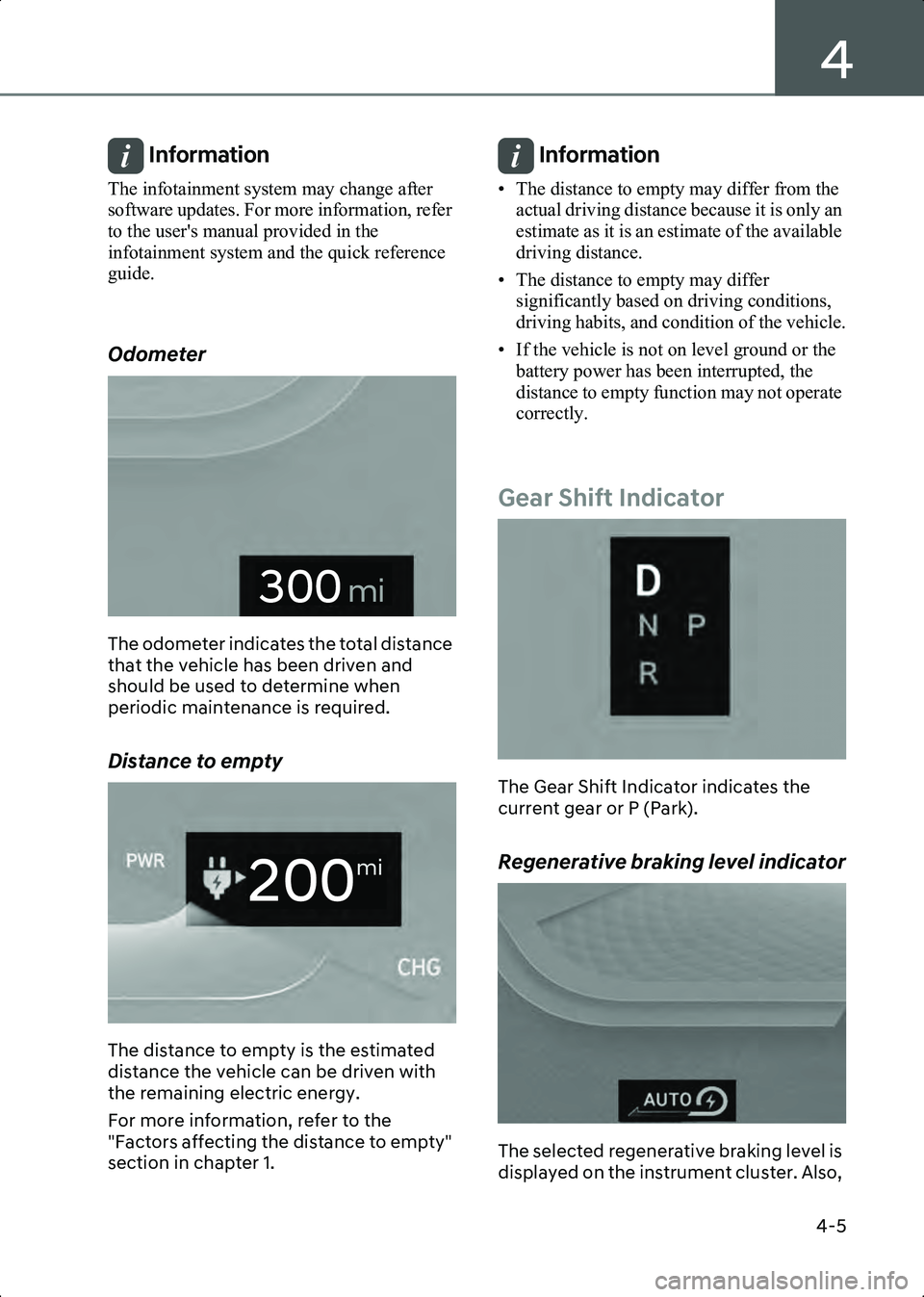

4
4-5
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

Odometer
B4000302
The odometer indicates the total distance
that the vehicle has been driven and
should be used to determine when
periodic maintenance is required.
Distance to empty
B4000303
The distance to empty is the estimated
distance the vehicle can be driven with
the remaining electric energy.
For more information, refer to the
"Factors affecting the distance to empty"
section in chapter 1.
Information • The distance to empty may differ from the actual driving distance because it is only an
estimate as it is an estimate of the available
driving distance.
• The distance to empty may differ significantly based on driving conditions,
driving habits, and condition of the vehicle.
• If the vehicle is not on level ground or the battery power has been interrupted, the
distance to empty function may not operate
correctly.

Gear Shift Indicator
B4000305
The Gear Shift Indicator indicates the
current gear or P (Park).
Regenerative braking level indicator
B4000309
The selected regenerative braking level is
displayed on the instrument cluster. Also,
NJ
NJ

Hyundai_CE_en_US.book Page 5

Instrument Cluster
4-6
the Smart Regenerative System’s
operation status is displayed.
For more information, refer to the
"Regenerative Braking System (Paddle
Shifter)" section in chapter 6.
Warning and Indicator Lights
Information Make sure that all warning lights are OFF
after starting the vehicle. If any light is still
ON, this indicates a situation that needs
attention.

Ready Indicator Light
WL_ReadyLamp
This indicator illuminates:
When the vehicle is ready to be driven.
• ON: Normal driving is possible.
• OFF: Normal driving is not possible, or a problem has occurred.
• Blinking: Emergency driving.
When the indicator goes off or blinks,
there is a problem with the system. In this
case, have your vehicle inspected by an
authorized HYUNDAI dealer.
Service Warning Light
WL_ServiceWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The Service warning light
illuminates for 3 seconds and then goes
off.
• When there is a problem with related parts of the electric vehicle control
system, such as sensors, etc.
When the warning light illuminates while
driving, or does not go off after starting
the vehicle, have your vehicle inspected
by an authorized HYUNDAI dealer.
Power Down Indicator Light
WL_PowerDownLamp
This indicator light illuminates:
When the power is limited for the safety
of the high-powered parts of an electric
vehicle. The power is limited for the
following reasons:
• The high voltage battery level is too low or voltage is decreasing
• The temperature of the high voltage battery is too high or too low
• The temperature of the motor is high
Hyundai_CE_en_US.book Page 6

Instrument Cluster
4-8
• When there is a malfunction with the SRS.
If the Airbag warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Regenerative Brake Warning Light
WL_RegenerativeBreakWarningLamp
This warning light illuminates:
When the regenerative brake does not
operate and the brake does not perform
well. This causes the Brake Warning light
(red) and Regenerative Parking Brake
Warning Light (yellow) to illuminate
simultaneously.
In this case, drive safely and have your
vehicle inspected by an authorized
HYUNDAI dealer.
The operation of the brake pedal may be
more difficult than normal and the
braking distance can increase.
Parking Brake and Brake Fluid
Warning Light
WL_BreakWarningLamp
This warning light illuminates:
When the Start/Stop button is in the ON
position. The Parking Brake warning light
illuminates for about 3 seconds and then goes off once the parking brake is
released.
• Whenever the parking brake is applied.
• Whenever the brake fluid level in the
reservoir is low.
- If the warning light illuminates with the parking brake released, it
indicates the brake fluid level in the
reservoir is low.
• When the regenerative brake does not operate.
If the brake fluid level in the reservoir is
low:
1. Drive carefully to the nearest safe location and stop your vehicle.
2. With the motor stopped, check the brake fluid level immediately and add
fluid as required (For more information,
refer to the “Brake Fluid” section in
chapter 9). After adding brake fluid,
check all brake components for fluid
leaks. If a brake fluid leak is found, or if
the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
Dual-diagonal braking system
Your vehicle is equipped with the
dual-diagonal braking system. This
means you still have braking on two
wheels even if one of the dual systems
fails.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal force are required to
stop the vehicle.
Also, the vehicle does not stop in a short
distance if only a portion of the braking
system is working.
Hyundai_CE_en_US.book Page 8

Instrument Cluster
4-10
Motor Driven Power Steering
(MDPS) Warning Light
WL_PowerStreeringWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The Motor Driven Power
Steering warning light illuminates for
about 3 seconds and then goes off.
• Whenever there is a malfunction with Motor Driven Power Steering.
If the MDPS warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Master Warning Light
WL_MasterWarningLamp
This warning light illuminates:
If a malfunction is detected in any of the
following:
• Forward Collision-Avoidance Assist malfunction
• Forward Collision-Avoidance Assist radar blocked
• Blind-Spot Collision-Avoidance Assist malfunction
• Blind-Spot Collision-Avoidance Assist radar blocked
• LED headlight malfunction
• High Beam Assist malfunction
• Smart Cruise Control malfunction
• Smart Cruise Control radar blocked • Tire Pressure Monitoring System
(TPMS) malfunction
If the issue is resolved, the Master
Warning Light turns off.
Electronic Parking Brake (EPB)
Warning Light
WL_EPBWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The EPB warning light
illuminates for about 3 seconds and
then goes off.
• Whenever there is a malfunction with EPB.
If the EPB warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Information The Electronic Parking Brake (EPB) warning
light may illuminate when the Electronic
Stability Control (ESC) indicator light comes
on to indicate that ESC is not working
properly. This does not indicate malfunction
of EPB.

Hyundai_CE_en_US.book Page 10

4
4-11
Low Tire Pressure Warning Light
WL_TPMSWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The low tire pressure warning
light illuminates for about 3 seconds
and then goes off.
• When one or more tires are significantly underinflated. (The location of the
underinflated tire appears on the
instrument cluster.)
For more information, refer to the “Tire
Pressure Monitoring System (TPMS)”
section in chapter 8.
This warning light remains ON after
blinking for about 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as soon
as possible.
For more information, refer to the “Tire
Pressure Monitoring System (TPMS)”
section in chapter 8.
WARNING • The TPMS cannot alert you to severe and sudden tire damage caused by
external factors.
• If you notice any vehicle instability, immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

Driver Attention Warning Light
WL_DriverAttentionWarningLamp
This warning light illuminates:
• When you set the ignition switch to the ON position, the yellow indicator light
illuminates for about 3 seconds and
then goes off
• [Continuously Yellow] When the front view camera is blocked or Driver
Attention Warning is
disable/malfunction
• [Blinking Yellow] When the function suggest that the driver take a break
If the yellow warning light is still on even
after removing foreign material from the
front of the sensor, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible
For more information, refer to the “Driver
Attention Warning (DAW)” section in
chapter 7
Forward Safety Warning Light
WL_FrontSafetyWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The Forward Safety warning
light illuminates for about 3 seconds
and then goes off.
• [Yellow] When Forward Safety is deselected or Forward
Hyundai_CE_en_US.book Page 11

Instrument Cluster
4-12
Collision-Avoidance Assist
disable/malfunction
• [Blinking Red] When Forward Safety/Forward Cross-Traffic Safety of
Forward Collision-Avoidance Assist is
operating
If the yellow warning light is still on even
after removing foreign material from the
front of the sensors after Forward Safety
select in settings, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
For more information, refer to the
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
if equipped
Emergency Steering Warning Light
WL_EmergencySteeringWarningLamp
This indicator light illuminates:
• When you set the Start/Stop button to the ON position, the yellow warning
light illuminates for about 3 seconds
and then goes off
• [Continuously Yellow] When Forward/Side Safety is deselected or
Forward Collision-Avoidance Assist
disable/malfunction
• [Blinking Red] When Forward/Side Safety of Forward Collision-Avoidance
Assist is operating
If the yellow warning light is still on even
after removing foreign material from the
front of the sensors after Forward Safety
select in settings, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible. For more information, refer to the
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Lane Safety Indicator Light
WL_LaneSafetyWarningLamp
This indicator light illuminates:
• When you set the ignition switch to the
ON position, the yellow indicator light
illuminates for about 3 seconds and
then goes off
• [Gray] When Lane Keeping Assist operational conditions are not met
• [Continuously Green] When Lane Keeping Assist operational conditions
are met
• [Blinking Green] When Lane Keeping Assist is operating
• [Yellow] When Lane Safety is deselected or Lane Keeping Assist
disable/malfunction
If the yellow warning light is still on even
after removing foreign material from the
front of the sensor after Lane Safety
select in settings, have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
For more information, refer to the “Lane
Keeping Assist (LKA)” section in chapter
7.
Hyundai_CE_en_US.book Page 12
