All Wheel Drive (AWD) Warning Light
WL_4WDWarningLamp
This warning light illuminates:
Whenever a malfunction with the AWD
system is detected.
If this occurs frequently, have the vehicle
inspected by an authorized HYUNDAI
dealer.
For more information, refer to the "All
Wheel Drive (AWD)" section in chapter 6.
LED Headlight Warning Light
WL_LEDHeadlampWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The LED headlight warning
light illuminates for about 3 seconds
and then goes off.
• Whenever there is a malfunction with the LED headlight.
If the LED headlight warning light
remains illuminated while driving, have
the vehicle inspected by an authorized
HYUNDAI dealer.
This warning light blinks:
Whenever there is a malfunction with a
LED headlight related part.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
NOTICE&RQWLQXRXVGULYLQJZLWKWKH/('
+HDGOLJKWZDUQLQJOLJKWRQRUEOLQNLQJFDQ
UHGXFH/('KHDGOLJKWOLIH

if equipped
Icy Road Warning Light
WL_IcyLoadWarningLamp
This indicator light illuminates:
To warn the driver the road may be icy.
When the outside temperature on the
temperature gauge is below 40 °F (4 °C),
a single chime sounds, both the outside
temperature gauge and Icy Road Warning
indicator blink several times, and then
they remain illuminated.
You can activate or deactivate Icy Road
Warning function from the Settings menu
in the infotainment system.
Select: Setup > Vehicle > Cluster >
Content Selection > Icy Road Warning
Information • If the Icy Road warning light appears while
driving, avoid speeding, rapid acceleration,
sudden braking, or sharp turning.
• The infotainment system may change after software updates. For more information,
refer to the user's manual provided in the
infotainment system and the quick
reference guide.

Hyundai_CE_en_US.book Page 13

Instrument Cluster
4-14
Electronic Stability Control (ESC)
Indicator Light
WL_ESCOnLamp
This indicator light illuminates:
• When the Start/Stop button is in the ON position. The Electronic Stability
Control indicator light illuminates for
about 3 seconds and then goes off.
• Whenever a malfunction with ESC system is detected.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
This indicator light blinks:
While ESC is operating.
For more information, refer to the
“Electronic Stability Control (ESC)”
section in chapter 6.
Electronic Stability Control (ESC)
OFF Indicator Light
WL_ESCOffLamp
This indicator light illuminates:
• When the Start/Stop button is in the ON position. The Electronic Stability
Control indicator light illuminates for
about 3 seconds and then goes off.
• When you deactivate ESC system by pressing the ESC OFF button. For more information, refer to the
“Electronic Stability Control (ESC)”
section in chapter 6.
Immobilizer Indicator Light
WL_ImmobilizerLamp
This indicator light illuminates for up to 30
seconds:
When the vehicle detects the smart key in
the vehicle with the Start/Stop button in
the ACC or ON position.
• At this time, you can start the vehicle.
• The indicator light goes off after
starting the vehicle.
This indicator light blinks for a few
seconds:
When the smart key is not in the vehicle,
you cannot start the vehicle.
This indicator light illuminates for 2
seconds and goes off:
If the smart key is in the vehicle and the
Start/Stop button is ON, but the vehicle
cannot detect the smart key, have the
vehicle inspected by an authorized
HYUNDAI dealer.
This indicator light blinks:
Whenever there is a malfunction with the
immobilizer system, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Hyundai_CE_en_US.book Page 14

Instrument Cluster
4-16
For more information, refer to the “High
Beam Assist (HBA)” section in chapter 5.
AUTO HOLD Indicator Light
WL_AutoHoldWarningLamp
This indicator light illuminates:
• [White] When you activate Auto Hold by pressing the AUTO HOLD switch.
• [Green] When you stop the vehicle completely by depressing the brake
pedal with Auto Hold activated.
• [Yellow] Whenever a malfunction with the Auto Hold is detected. If the AUTO
HOLD indicator light remains YELLOW
while driving, have the vehicle
inspected by an authorized HYNDAI
dealer.
For more information, refer to the
“Electronic Parking Brake (EPB)” section
in chapter 6.
Cluster Display Messages
Shift to P
This message is displayed if you try to turn
off the vehicle without the gear in the P
(Park) position.
If this occurs, the Start/Stop button turns
to the ACC position.
Low key battery
When the Start/Stop button is pressed to
the OFF position, a message may appear,
indicating the internal battery of the
Smart Key is low.
Replace the Smart Key battery.
Press START button while turning
if equipped
wheel
This message is displayed if the steering
wheel does not unlock normally when the
Start/Stop button is pressed.
You should press the Start/Stop button
while turning the steering wheel right and
left.
Press brake pedal to start vehicle
This message is displayed if the
Start/Stop button changes to the ACC
position twice by pressing the button
repeatedly without depressing the brake
pedal.
You can start the vehicle by depressing
the brake pedal and then pressing the
Start/Stop button.
Key not in vehicle
This message is displayed if the smart key
is not in the vehicle when you leave the
vehicle with the Start/Stop button in the
ON or Start position.
Always turn off the vehicle before leaving
your vehicle.
Key not detected
This message is displayed if the smart key
is not detected when you press the
Start/Stop button.
Press START button again
If you cannot start the vehicle after the
Start/Stop button is pressed, attempt to
start the vehicle by pressing the
Start/Stop button again.
If the warning message appears each
time you press the Start/Stop button,
have the vehicle inspected by an
authorized HYUNDAI dealer.
Hyundai_CE_en_US.book Page 16

4
4-17
Press START button with key
This message is displayed and the
immobilizer indicator blinks if you press
the Start/Stop button while the warning
message, “Key not detected” appears.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH fuse
This message is displayed if the brake
switch fuse is disconnected.
Replace the fuse with a new one before
starting the vehicle.
If that is not possible, start the vehicle by
pressing the Start/Stop button for 10
seconds in the ACC position.
Shift to P to start vehicle
This message is displayed if you try to
start the vehicle in any other position
except P (Park).
Information For your safety, You start the vehicle with the
gear shifted to P (Park).

Check smart key system
This message is displayed when there is a
problem with the smart key system. Have
the vehicle inspected by an authorized
HYUNDAI dealer.
Door, Hood, Trunk open indicator
B4000521
This warning is displayed if any door or
hood or trunk is left open. The warning
indicates which door is on the cluster
display.
CAUTION Before driving the vehicle, confirm the
door, hood, and trunk are fully closed.
Also, check there are no door, hood, and
trunk open warning lights or messages
displayed on the instrument cluster.

Low tire pressure
ONE1081021L
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle illuminates.
For more information, refer to the “Tire
Pressure Monitoring System (TPMS)”
section in chapter 8.
-PX
UJSF
QSFTTVSF

-PX
-PX-PX
-PX
Hyundai_CE_en_US.book Page 17

Instrument Cluster
4-18

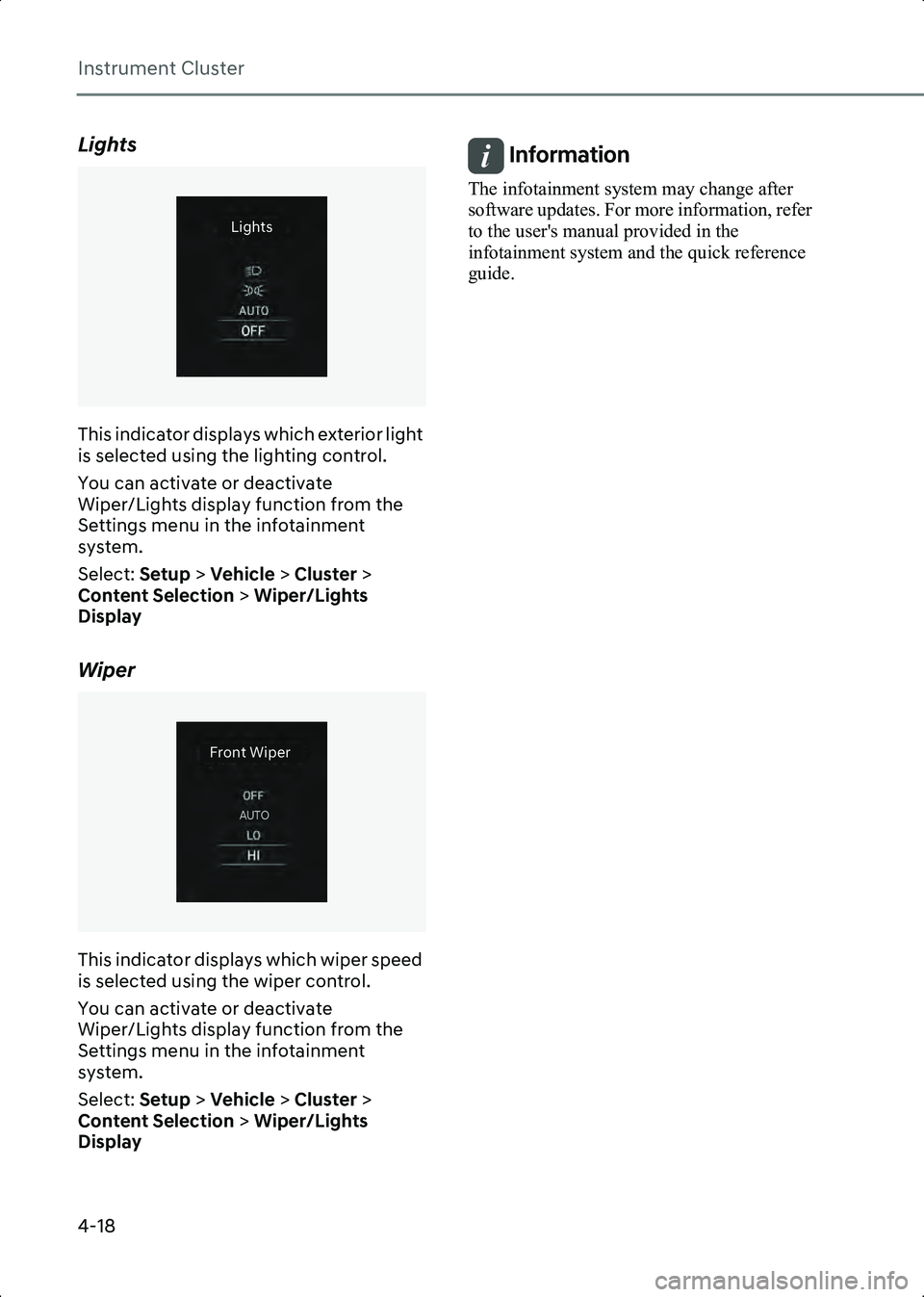

Lights
ONE1041032L
This indicator displays which exterior light
is selected using the lighting control.
You can activate or deactivate
Wiper/Lights display function from the
Settings menu in the infotainment
system.
Select: Setup > Vehicle > Cluster >
Content Selection > Wiper/Lights
Display
Wiper
ONE1041004L
This indicator displays which wiper speed
is selected using the wiper control.
You can activate or deactivate
Wiper/Lights display function from the
Settings menu in the infotainment
system.
Select: Setup > Vehicle > Cluster >
Content Selection > Wiper/Lights
Display
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

-JHIUT
'SPOU
8JQFS

"650
Hyundai_CE_en_US.book Page 18

Instrument Cluster
4-20

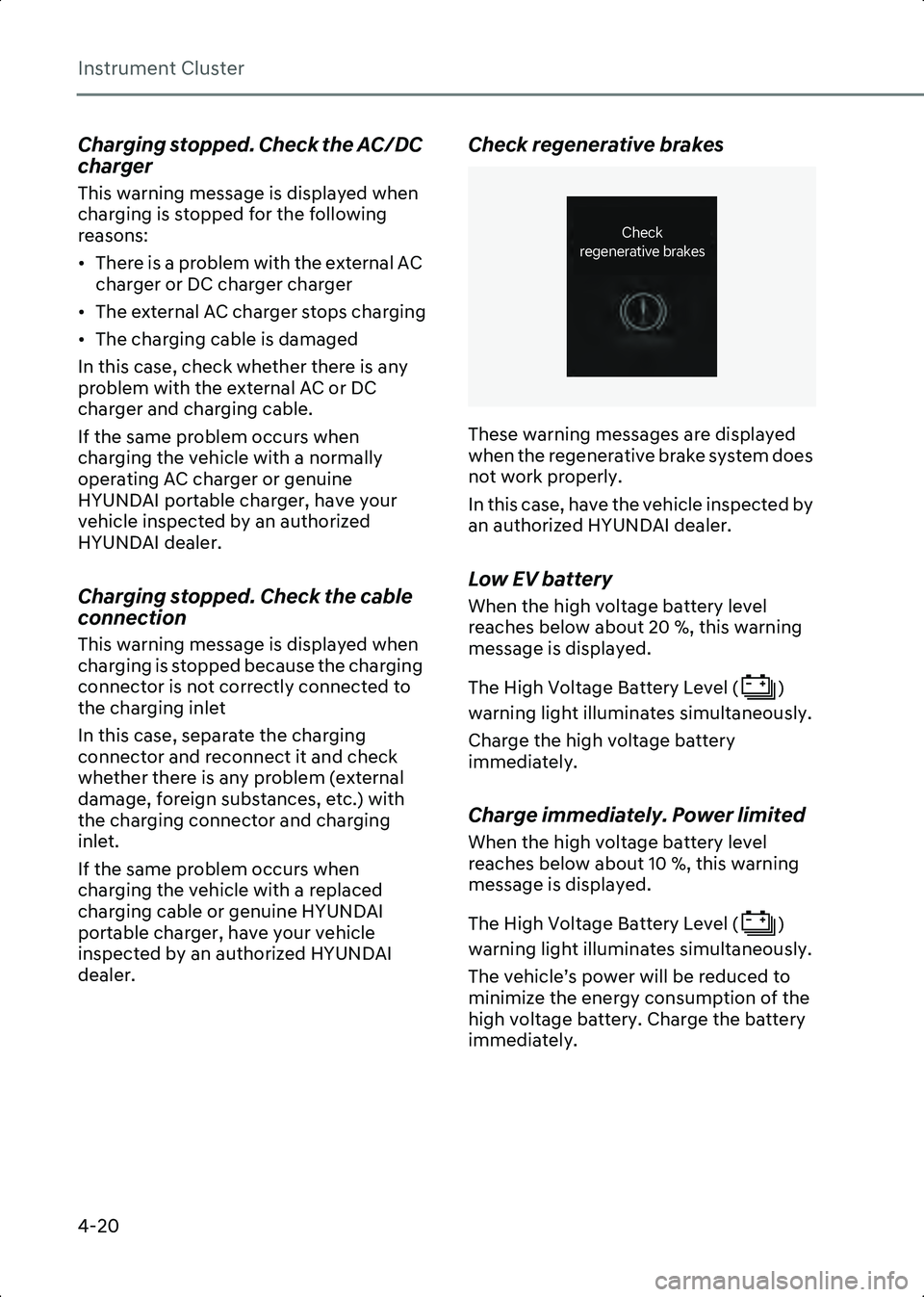

Charging stopped. Check the AC/DC
charger
This warning message is displayed when
charging is stopped for the following
reasons:
• There is a problem with the external AC charger or DC charger charger
• The external AC charger stops charging
• The charging cable is damaged
In this case, check whether there is any
problem with the external AC or DC
charger and charging cable.
If the same problem occurs when
charging the vehicle with a normally
operating AC charger or genuine
HYUNDAI portable charger, have your
vehicle inspected by an authorized
HYUNDAI dealer.
Charging stopped. Check the cable
connection
This warning message is displayed when
charging is stopped because the charging
connector is not correctly connected to
the charging inlet
In this case, separate the charging
connector and reconnect it and check
whether there is any problem (external
damage, foreign substances, etc.) with
the charging connector and charging
inlet.
If the same problem occurs when
charging the vehicle with a replaced
charging cable or genuine HYUNDAI
portable charger, have your vehicle
inspected by an authorized HYUNDAI
dealer.
Check regenerative brakes
OOSEV040503E
These warning messages are displayed
when the regenerative brake system does
not work properly.
In this case, have the vehicle inspected by
an authorized HYUNDAI dealer.
Low EV battery
When the high voltage battery level
reaches below about 20 %, this warning
message is displayed.
The High Voltage Battery Level ( )
warning light illuminates simultaneously.
Charge the high voltage battery
immediately.
Charge immediately. Power limited
When the high voltage battery level
reaches below about 10 %, this warning
message is displayed.
The High Voltage Battery Level ( )
warning light illuminates simultaneously.
The vehicle’s power will be reduced to
minimize the energy consumption of the
high voltage battery. Charge the battery
immediately.
$IFDL
SFHFOFSBUJWF
CSBLFT
Hyundai_CE_en_US.book Page 20

Instrument Cluster
4-22
Stop vehicle and check power
supply
This warning message is displayed when
a failure occurs in the power supply
system.
In this case, park the vehicle in a safe
location and tow your vehicle to the
nearest authorized HYUNDAI dealer and
have the vehicle inspected.
Check electric vehicle system
This warning message is displayed when
there is a problem with the electric
vehicle control system.
Refrain from driving when the warning
message is displayed.
In this case, have the vehicle inspected by
an authorized HYUNDAI dealer.
Check active air flap system
OOSEV040510L
This warning message is displayed in the
following situations:
• There is a malfunction with the actuator flap
• There is a malfunction with the actuator air flap controller
• The air flap does not open
When all of the above conditions are
fixed, the warning will disappear.
Check virtual engine sound system
OOSEV040512L
This message is displayed when there is a
problem with the Virtual Engine Sound
System (VESS).
In this case, have the vehicle inspected by
an authorized HYUNDAI dealer.
$IFDL
"DUJWF
"JS
'MBQ
4ZTUFN
$IFDL
7JSUVBM
&OHJOF 4PVOE
4ZTUFN
Hyundai_CE_en_US.book Page 22

4
4-23
Cluster Display
Cluster Display Control
B4000701
The cluster display modes can be changed by using the control switches.
View Modes
The information provided may differ depending on which features are available to your
vehicle.
SwitchOperationFunction
Press MODE button for changing View modes
, Press UP, DOWN switch for changing items in Utility view and
Option menu
OK Press SELECT/RESET switch for entering Option menu
Press and hold SELECT/RESET switch for retrieving assist information or
resetting the selected item
View modesExplanation
Driving Assist Driving Assist view displays the status of the vehicle’s Driver
Assistance systems.
Turn by Turn Turn By Turn view displays the state of the navigation.
Utility Utility view displays driving information such as the trip distance,
electric energy economy and etc.
Hyundai_CE_en_US.book Page 23
