2
2-9
Dimensions
Itemsin. (mm)
Overall length 191.14 (4,855)
Overall width 74.02 (1,880)
Overall height 58.86 (1,495)
Tread Tire size
Front Rear
18 in. 64.37 (1,635) 64.72 (1,644)
20 in. 64.17 (1,630) 64.53 (1,639)
Wheelbase 116.14 (2,950)
Hyundai_CE_en_US.book Page 9
3
3-3
Seats
A3000101The actual shape may differ from the illustration.
(1) Front seat sliding forward or rearward/Cushion height/Seat cushion angle
(2) Front seatback angle
(3) Front seat lumbar support
(4) Front seat warmer/Air ventilation seat
(5) Front head restraints
(6) Rear seat warmer
(7) Rear armrest
(8) Rear seatback folding lever
(9) Rear head restraints
1
1
1
2
23
8
A
AA
CC
C
B
BD
E
EE
D
6
5
999
5
4
7
Hyundai_CE_en_US.book Page 3
3
3-7
Seatback angle
B3000202
To recline the seatback:
1. Lean forward slightly and lift up the seatback lever.
2. Carefully lean back on the seat and adjust the seatback to the position you
desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections of
your restraint system (seat belts and/or
airbags) is greatly reduced by reclining
your seatback.
WARNING NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback increases
your chance of serious or fatal injuries in
the event of a collision or sudden stop.
Drivers and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.
Seat belts must be snug against your hips
and chest to work properly. When the
seatback is reclined, the shoulder belt
cannot do its job because it will not be snug against your chest. Instead, it will be
in front of you. During an accident, you
could be thrown into the seat belt,
causing neck or other injuries.
The more the seatback is reclined, the
greater chance the passenger’s hips will
slide under the lap belt or the passenger’s
neck will strike the shoulder belt.
Seat height
To change the height of the seat cushion:
B3000203
• Push down the lever several times, to
lower the seat cushion.
• Pull up the lever several times, to raise the seat cushion.
if equipped
Power adjustment
The front seat can be adjusted by using
the control switches located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control the
steering wheel, foot pedals and controls
on the instrument panel.
Hyundai_CE_en_US.book Page 7
Seats & Safety System
3-8
Forward and rearward adjustment
B3000204
To move the seat forward or rearward:
1. Push the control switch forward or rearward.
2. Release the switch once the seat reaches the desired position.
Seat cushion tilt/height adjustment
B3000206
• Seat cushion tilt (1)
To change the angle of the front part of
the seat cushion:
Push the front portion of the control
switch up to raise or down to lower the
front part of the seat cushion.
Release the switch once the seat reaches
the desired position.
• Seat height (2)
To change the height of the seat cushion:
Push the rear portion of the control switch
up to raise or down to lower the height of
the seat cushion. Release the switch once the seat reaches
the desired position.
Seatback angle adjustment
B3000205
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seatback reaches the desired position.
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections of
your restraint system (seat belts and
airbags) is greatly reduced by reclining
your seatback.
WARNING NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback increases
your chance of serious or fatal injuries in
the event of a collision or sudden stop.
Driver and passengers should ALWAYS sit
well back in their seats, properly belted,
and with the seatbacks upright.
Seat belts must be snug against your hips
and chest to work properly. When the
seatback is reclined, the shoulder belt
cannot do its job because it will not be
snug against your chest. Instead, it will be
in front of you. During an accident, you
Hyundai_CE_en_US.book Page 8
3
3-11
4. Fold the seatback toward the front of the vehicle.
B3000303
5. To use the rear seat, lift and pull the seatback rearward. Pull the seatback
firmly until it clicks in to place. Make
sure the seatback is locked in place.
B3000305
Armrest
B3000311
The armrest is located in the center of the
rear seat. Pull the armrest down from the
seatback to use it.
CAUTION The armrest handle may be pressed when
folding the rear seatback, but it will be
restored after a certain period of time.
Head Restraint
The vehicle’s front and rear seats have
adjustable head restraints. The head
restraints provide comfort for
passengers, but more importantly they
are designed to help protect passengers
from whiplash and other neck and spinal
injuries during an accident, especially in a
rear impact collision.
WARNING To help reduce the risk of serious injury or
death in an accident, take the following
precautions when adjusting your head
restraints:
• Always properly adjust the head restraints for all passengers BEFORE
starting the vehicle.
• NEVER let anyone ride in a seat with the head restraint removed or reversed.
• Adjust the head restraints so the middle of the head restraint is at the same
height as the height of the top of the
eyes.
OHI039190N
• NEVER adjust the head restraint position of the driver’s seat when the
vehicle is in motion.
Hyundai_CE_en_US.book Page 11

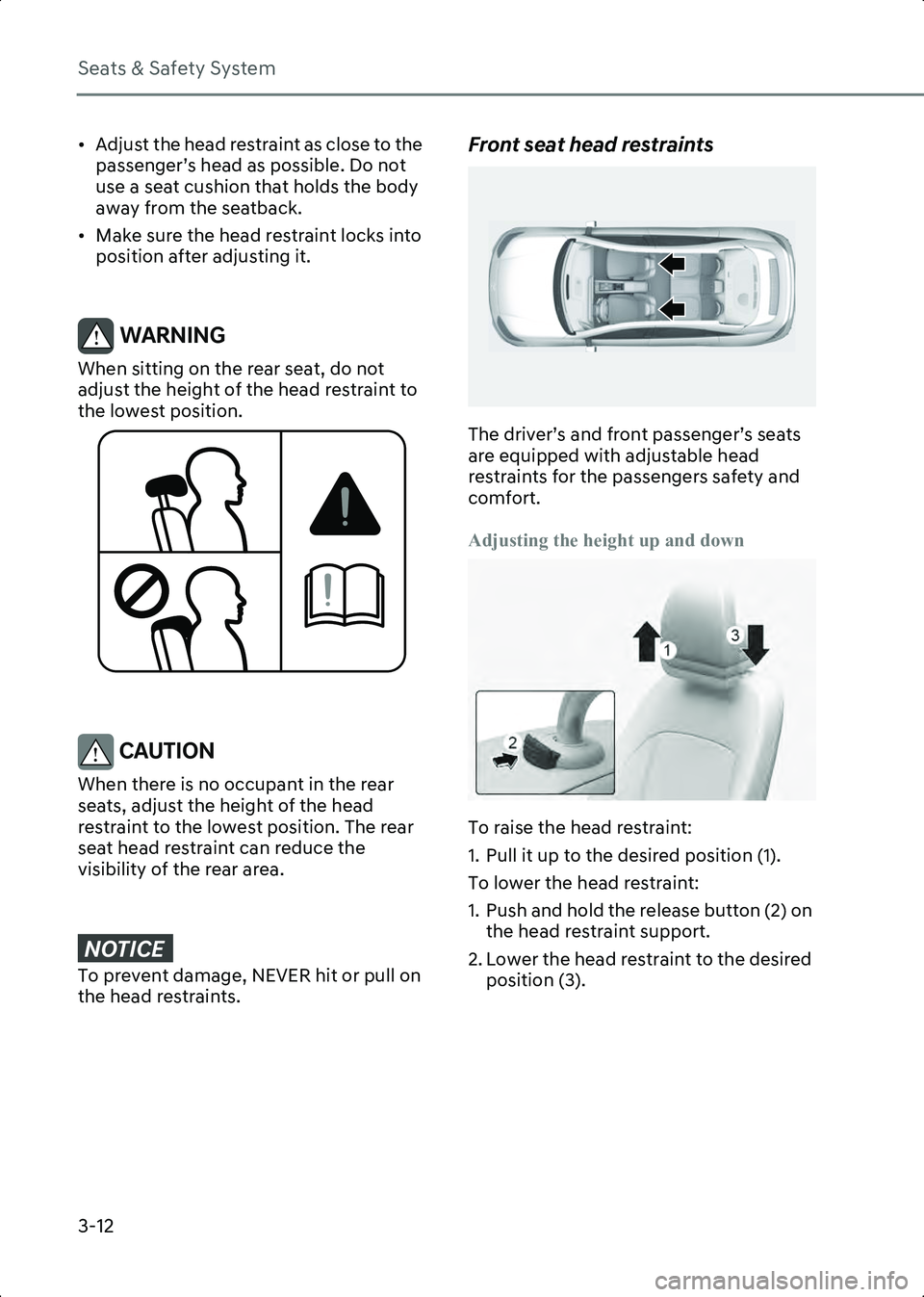

Seats & Safety System
3-12
• Adjust the head restraint as close to the passenger’s head as possible. Do not
use a seat cushion that holds the body
away from the seatback.
• Make sure the head restraint locks into position after adjusting it.
WARNING When sitting on the rear seat, do not
adjust the height of the head restraint to
the lowest position.
B3000310
CAUTION When there is no occupant in the rear
seats, adjust the height of the head
restraint to the lowest position. The rear
seat head restraint can reduce the
visibility of the rear area.
NOTICE 7 R S U H Y H Q W G D P D J H 1 ( 9 ( 5 K L W R U S X O O R Q
W K H K H D G U H V W U D L Q W V
Front seat head restraints
B3000213
The driver’s and front passenger’s seats
are equipped with adjustable head
restraints for the passengers safety and
comfort.
Adjusting the height up and down
B3000216
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Push and hold the release button (2) on the head restraint support.
2. Lower the head restraint to the desired position (3).
Hyundai_CE_en_US.book Page 12
