2023 HYUNDAI IONIQ 6 cluster

Driving Your Vehicle
6-44
Active Air Flap
B6014001
Active air flap system controls the air flap
below the front bumper to cool the
vehicle parts and improve energy
efficiency.
Information Active air flap system could be activate
regardless of the vehicle condition. (Parking,
driving, charging, etc.)

Malfunction
B6014101
The active air flap system may not
operate normally if the air flap is
temporarily opened due to foreign factors
or if the controller is contaminated by
snow or rain, etc.
When 'Check the active air flap system'
is popped up on cluster display, stop the
vehicle in a safe place and check the
status of the air flap.
Start the vehicle after performing the
necessary work like foreign matter
removal and waiting 10 minutes. If the
pop-up remains up, contact an
authorized HYUNDAI dealer.
CAUTION • Regardless of the pop-up, if the air flaps aren't in the same position, stop the
vehicle and wait for 10 minutes and
start the vehicle and inspect the air flap.
• The active air flap system is actuated by motors. Do not disturb actuation or
apply force excessively. It may cause
failure.

$IFDL
"DUJWF
"JS
'MBQ
4ZTUFN
Hyundai_CE_en_US.book Page 44

Driver Assistance System

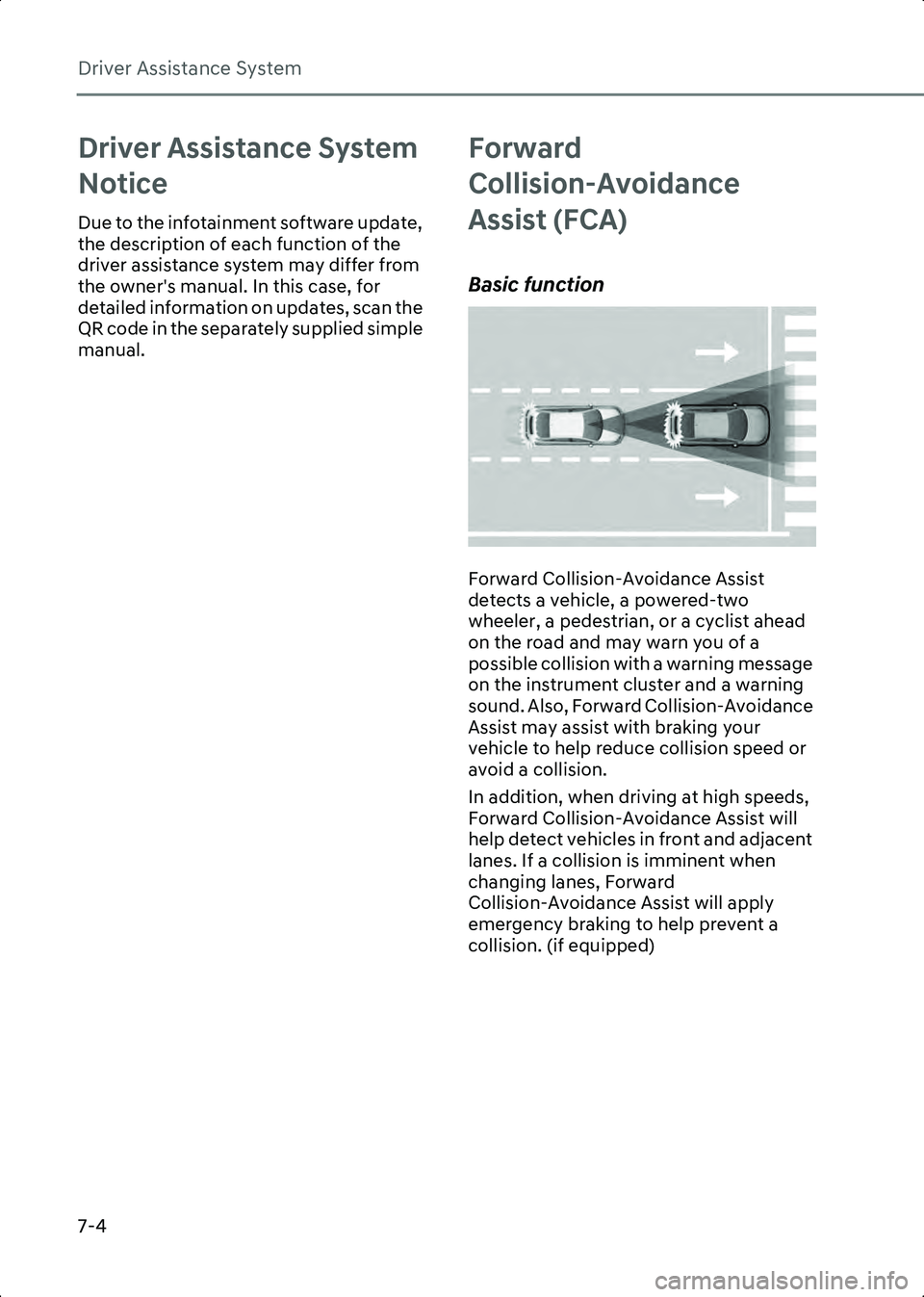

7-4
Driver Assistance System
Notice
Due to the infotainment software update,
the description of each function of the
driver assistance system may differ from
the owner's manual. In this case, for
detailed information on updates, scan the
QR code in the separately supplied simple
manual.
Forward
Collision-Avoidance
Assist (FCA)
Basic function
B7000101
Forward Collision-Avoidance Assist
detects a vehicle, a powered-two
wheeler, a pedestrian, or a cyclist ahead
on the road and may warn you of a
possible collision with a warning message
on the instrument cluster and a warning
sound. Also, Forward Collision-Avoidance
Assist may assist with braking your
vehicle to help reduce collision speed or
avoid a collision.
In addition, when driving at high speeds,
Forward Collision-Avoidance Assist will
help detect vehicles in front and adjacent
lanes. If a collision is imminent when
changing lanes, Forward
Collision-Avoidance Assist will apply
emergency braking to help prevent a
collision. (if equipped)
Hyundai_CE_en_US.book Page 4

7

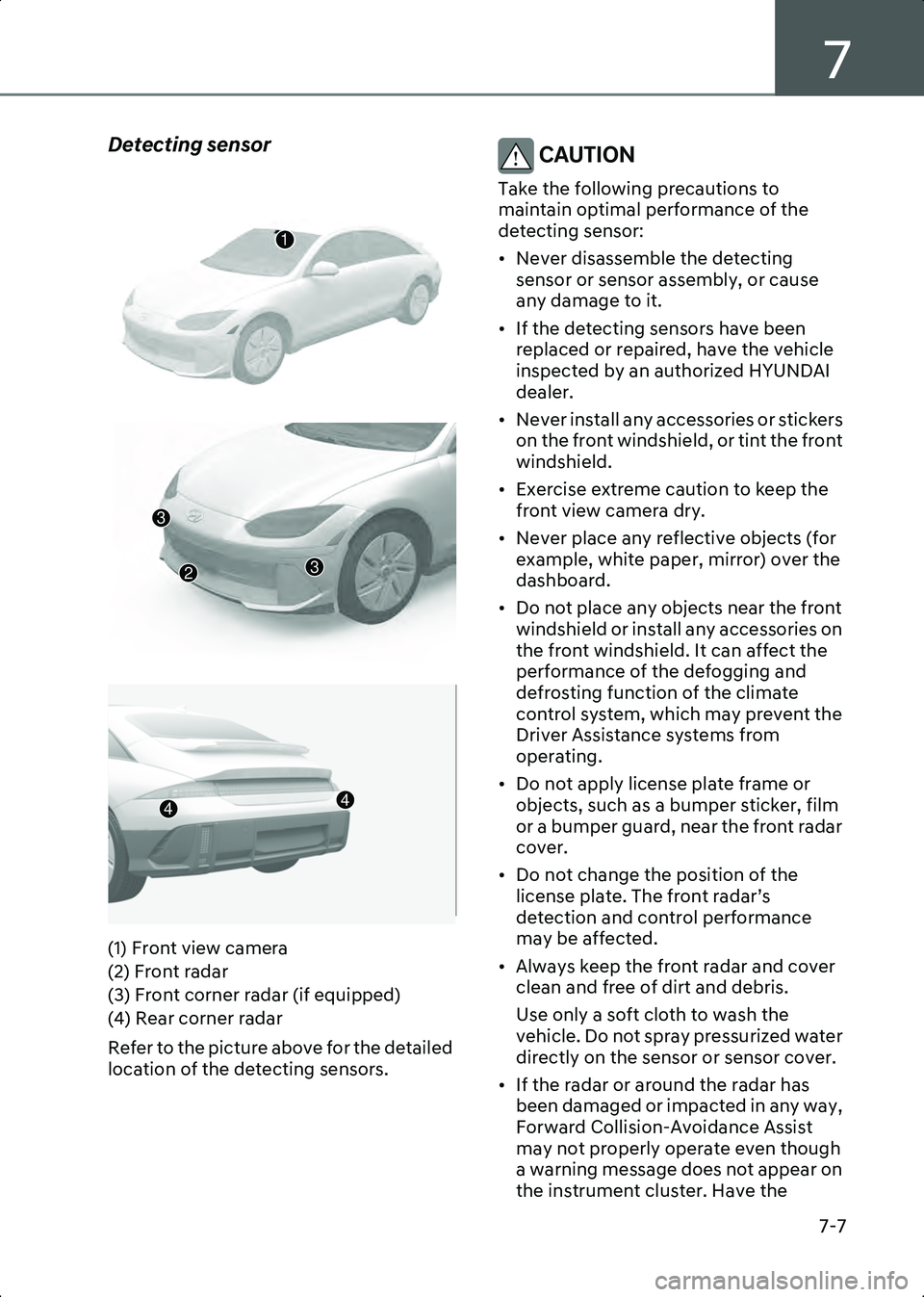

7-7
Detecting sensor
B7000108
B7000109
B7000110
(1) Front view camera
(2) Front radar
(3) Front corner radar (if equipped)
(4) Rear corner radar
Refer to the picture above for the detailed
location of the detecting sensors.
CAUTION Take the following precautions to
maintain optimal performance of the
detecting sensor:
• Never disassemble the detecting sensor or sensor assembly, or cause
any damage to it.
• If the detecting sensors have been replaced or repaired, have the vehicle
inspected by an authorized HYUNDAI
dealer.
• Never install any accessories or stickers on the front windshield, or tint the front
windshield.
• Exercise extreme caution to keep the front view camera dry.
• Never place any reflective objects (for example, white paper, mirror) over the
dashboard.
• Do not place any objects near the front windshield or install any accessories on
the front windshield. It can affect the
performance of the defogging and
defrosting function of the climate
control system, which may prevent the
Driver Assistance systems from
operating.
• Do not apply license plate frame or objects, such as a bumper sticker, film
or a bumper guard, near the front radar
cover.
• Do not change the position of the license plate. The front radar’s
detection and control performance
may be affected.
• Always keep the front radar and cover clean and free of dirt and debris.
Use only a soft cloth to wash the
vehicle. Do not spray pressurized water
directly on the sensor or sensor cover.
• If the radar or around the radar has been damaged or impacted in any way,
Forward Collision-Avoidance Assist
may not properly operate even though
a warning message does not appear on
the instrument cluster. Have the
1
3
32
44
Hyundai_CE_en_US.book Page 7

Driver Assistance System
7-8
vehicle inspected by an authorized
HYUNDAI dealer.
• The performance of the front radar cover genuine parts have been proven.
Replacing or painting the front radar
cover may result in poor performance
of Forward Collision-Avoidance Assist.
When the parts need to be replaced or
modified, make sure to use genuine
HYUNDAI parts.
• Vehicles equipped with front corner radar and/or rear corner radar
- Do not apply license plate frame or objects, such as a bumper sticker,
film or a bumper guard, near the front
corner radar or rear corner radar.
- The function may not work properly when the bumper has been replaced,
or the surroundings of the front
corner radar or rear corner radar has
been damaged or paint has been
applied.
- If a trailer, carrier, etc., is installed, it may adversely affect the
performance of the rear corner radar
or Forward Collision-Avoidance
Assist may not operate properly.
Forward Collision-Avoidance
Assist Settings
Forward Safety
B7000201_1
With the vehicle on, select or deselect
Setup > Vehicle > Driver Assistance >
Driving Safety > Forward Safety from the
Settings menu to set whether to use each
function.
• If Forward Safety is selected, Forward
Collision-Avoidance Assist will warn the
driver with a warning message, an
audible warning depending on the
collision risk levels. Braking assist will
be applied depending on the collision
risk levels. If Forward Safety is
deselected, Forward Safety will turn
off. The warning light ( ) will
illuminate on the instrument cluster.
Hyundai_CE_en_US.book Page 8

7

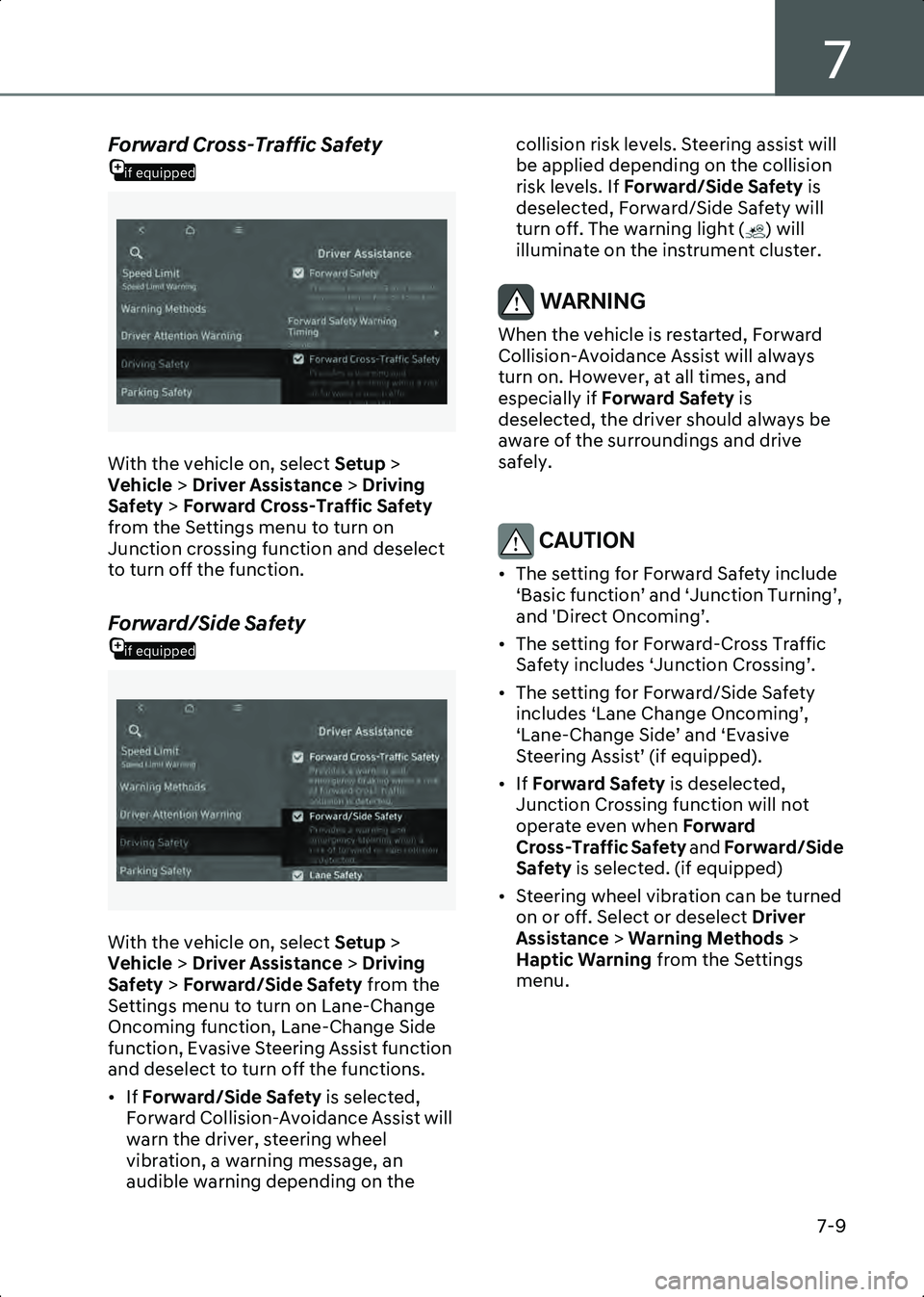

7-9
if equipped
Forward Cross-Traffic Safety
B7000201_2
With the vehicle on, select Setup >
Vehicle > Driver Assistance > Driving
Safety > Forward Cross-Traffic Safety
from the Settings menu to turn on
Junction crossing function and deselect
to turn off the function.
if equipped
Forward/Side Safety
B7000203
With the vehicle on, select Setup >
Vehicle > Driver Assistance > Driving
Safety > Forward/Side Safety from the
Settings menu to turn on Lane-Change
Oncoming function, Lane-Change Side
function, Evasive Steering Assist function
and deselect to turn off the functions.
• If Forward/Side Safety is selected,
Forward Collision-Avoidance Assist will
warn the driver, steering wheel
vibration, a warning message, an
audible warning depending on the collision risk levels. Steering assist will
be applied depending on the collision
risk levels. If
Forward/Side Safety is
deselected, Forward/Side Safety will
turn off. The warning light ( ) will
illuminate on the instrument cluster.
WARNING When the vehicle is restarted, Forward
Collision-Avoidance Assist will always
turn on. However, at all times, and
especially if Forward Safety is
deselected, the driver should always be
aware of the surroundings and drive
safely.

CAUTION • The setting for Forward Safety include ‘Basic function’ and ‘Junction Turning’,
and 'Direct Oncoming’.
• The setting for Forward-Cross Traffic Safety includes ‘Junction Crossing’.
• The setting for Forward/Side Safety includes ‘Lane Change Oncoming’,
‘Lane-Change Side’ and ‘Evasive
Steering Assist’ (if equipped).
• If Forward Safety is deselected,
Junction Crossing function will not
operate even when Forward
Cross-Traffic Safety and Forward/Side
Safety is selected. (if equipped)
• Steering wheel vibration can be turned on or off. Select or deselect Driver
Assistance > Warning Methods >
Haptic Warning from the Settings
menu.

Hyundai_CE_en_US.book Page 9

7

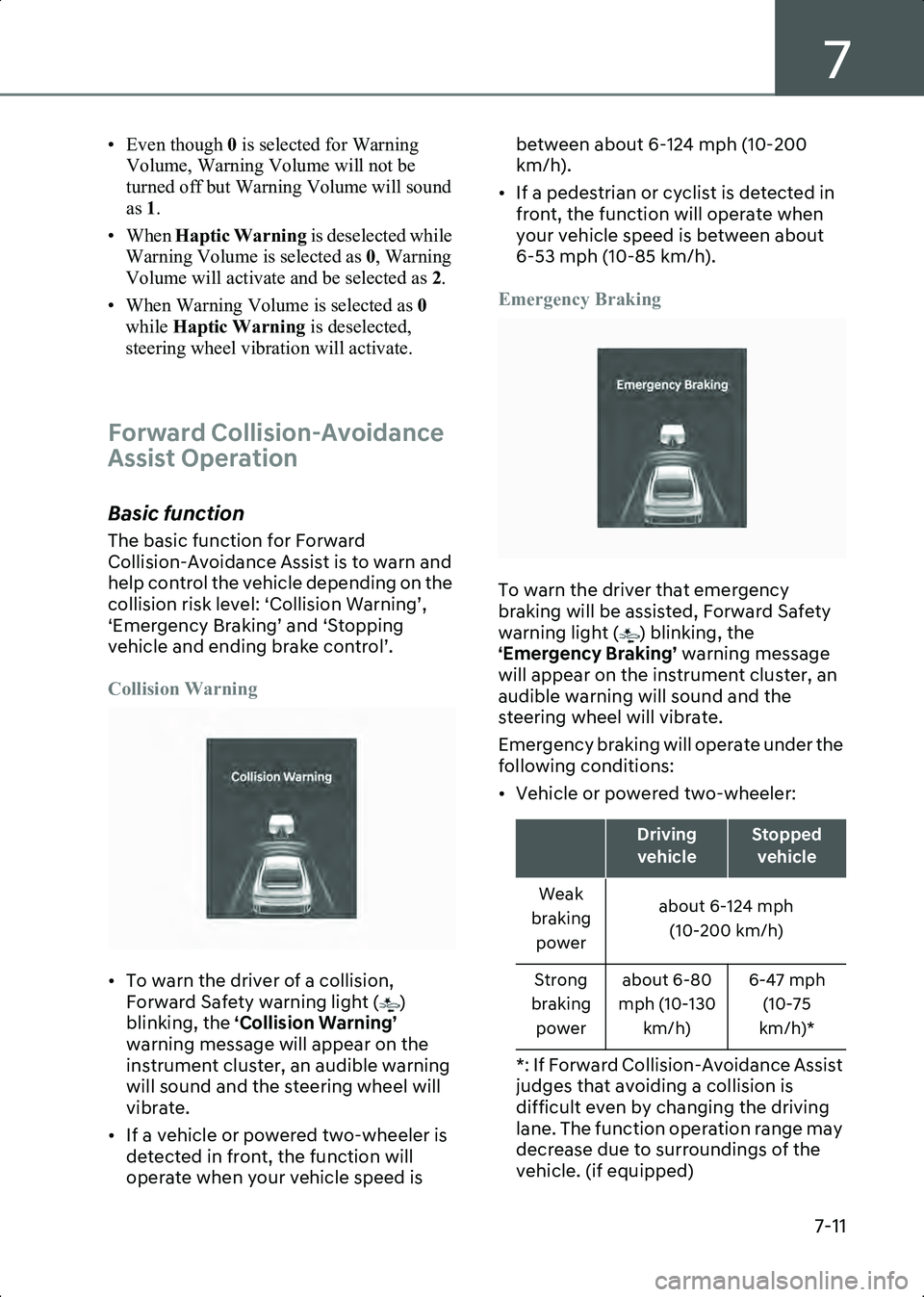

7-11
• Even though 0 is selected for Warning
Volume, Warning Volume will not be
turned off but Warning Volume will sound
as 1.
• When Haptic Warning is deselected while
Warning Volume is selected as 0, Warning
Volume will activate and be selected as 2.
• When Warning Volume is selected as 0
while Haptic Warning is deselected,
steering wheel vibration will activate.

Forward Collision-Avoidance
Assist Operation
Basic function
The basic function for Forward
Collision-Avoidance Assist is to warn and
help control the vehicle depending on the
collision risk level: ‘Collision Warning’,
‘Emergency Braking’ and ‘Stopping
vehicle and ending brake control’.
Collision Warning
B7000301
• To warn the driver of a collision, Forward Safety warning light ( )
blinking, the ‘Collision Warning’
warning message will appear on the
instrument cluster, an audible warning
will sound and the steering wheel will
vibrate.
• If a vehicle or powered two-wheeler is detected in front, the function will
operate when your vehicle speed is between about 6-124 mph (10-200
km/h).
• If a pedestrian or cyclist is detected in front, the function will operate when
your vehicle speed is between about
6-53 mph (10-85 km/h).
Emergency Braking
B7000302
To warn the driver that emergency
braking will be assisted, Forward Safety
warning light ( ) blinking, the
‘Emergency Braking’ warning message
will appear on the instrument cluster, an
audible warning will sound and the
steering wheel will vibrate.
Emergency braking will operate under the
following conditions:
• Vehicle or powered two-wheeler:
*: If Forward Collision-Avoidance Assist
judges that avoiding a collision is
difficult even by changing the driving
lane. The function operation range may
decrease due to surroundings of the
vehicle. (if equipped)
Driving vehicleStopped vehicle
Weak
braking power about 6-124 mph
(10-200 km/h)
Strong
braking power about 6-80
mph (10-130 km/h) 6-47 mph
(10-75
km/h)*
Hyundai_CE_en_US.book Page 11

Driver Assistance System

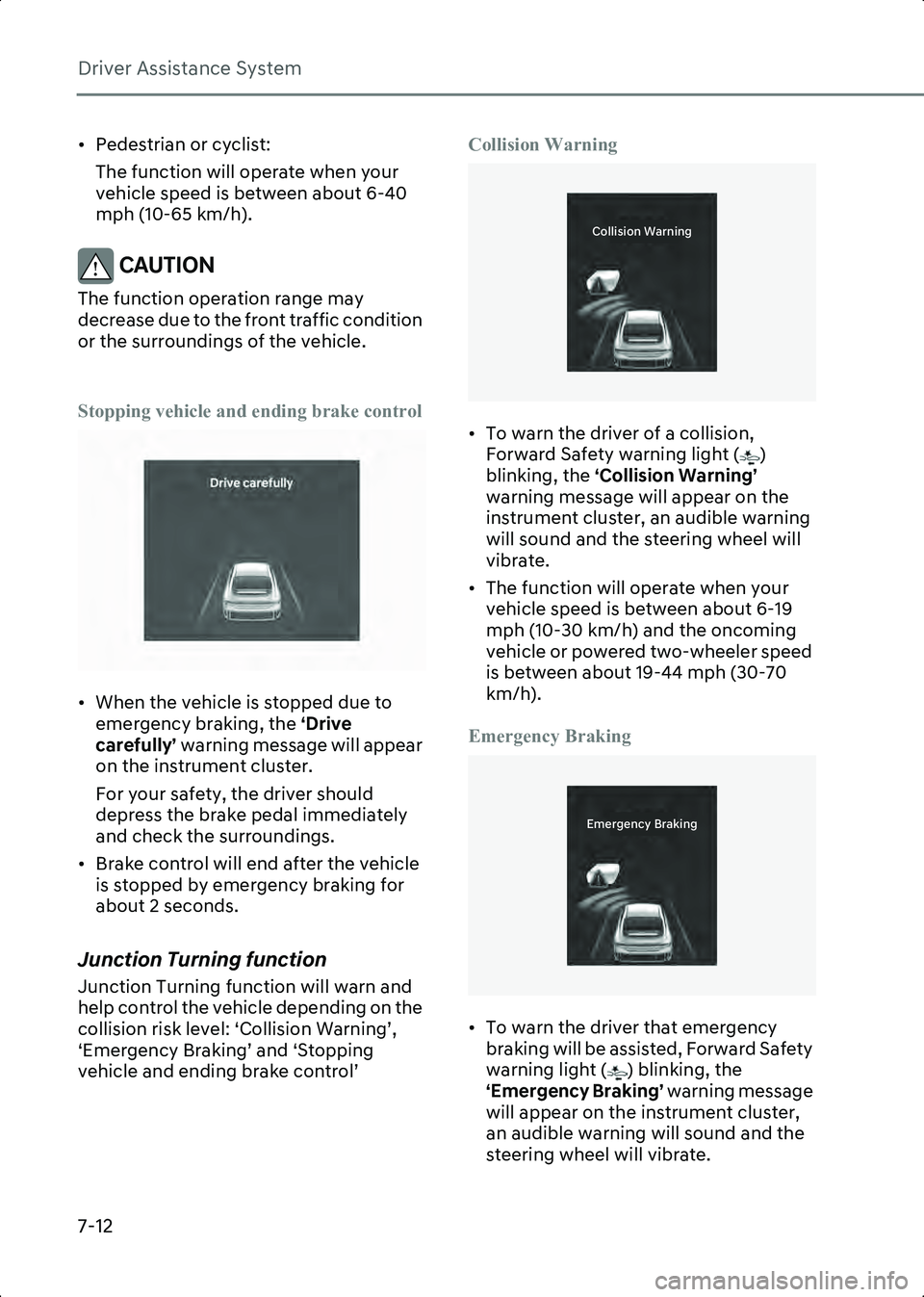

7-12
• Pedestrian or cyclist:The function will operate when your
vehicle speed is between about 6-40
mph (10-65 km/h).
CAUTION The function operation range may
decrease due to the front traffic condition
or the surroundings of the vehicle.

Stopping vehicle and ending brake control
B7000303
• When the vehicle is stopped due to emergency braking, the ‘Drive
carefully’ warning message will appear
on the instrument cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.
• Brake control will end after the vehicle is stopped by emergency braking for
about 2 seconds.
Junction Turning function
Junction Turning function will warn and
help control the vehicle depending on the
collision risk level: ‘Collision Warning’,
‘Emergency Braking’ and ‘Stopping
vehicle and ending brake control’ Collision Warning
B7000315_3
• To warn the driver of a collision,
Forward Safety warning light ( )
blinking, the ‘Collision Warning’
warning message will appear on the
instrument cluster, an audible warning
will sound and the steering wheel will
vibrate.
• The function will operate when your vehicle speed is between about 6-19
mph (10-30 km/h) and the oncoming
vehicle or powered two-wheeler speed
is between about 19-44 mph (30-70
km/h).
Emergency Braking
B7000315_1
• To warn the driver that emergency braking will be assisted, Forward Safety
warning light ( ) blinking, the
‘Emergency Braking’ warning message
will appear on the instrument cluster,
an audible warning will sound and the
steering wheel will vibrate.
$PMMJTJPO
8BSOJOH
&NFSHFODZ
#SBLJOH
Hyundai_CE_en_US.book Page 12

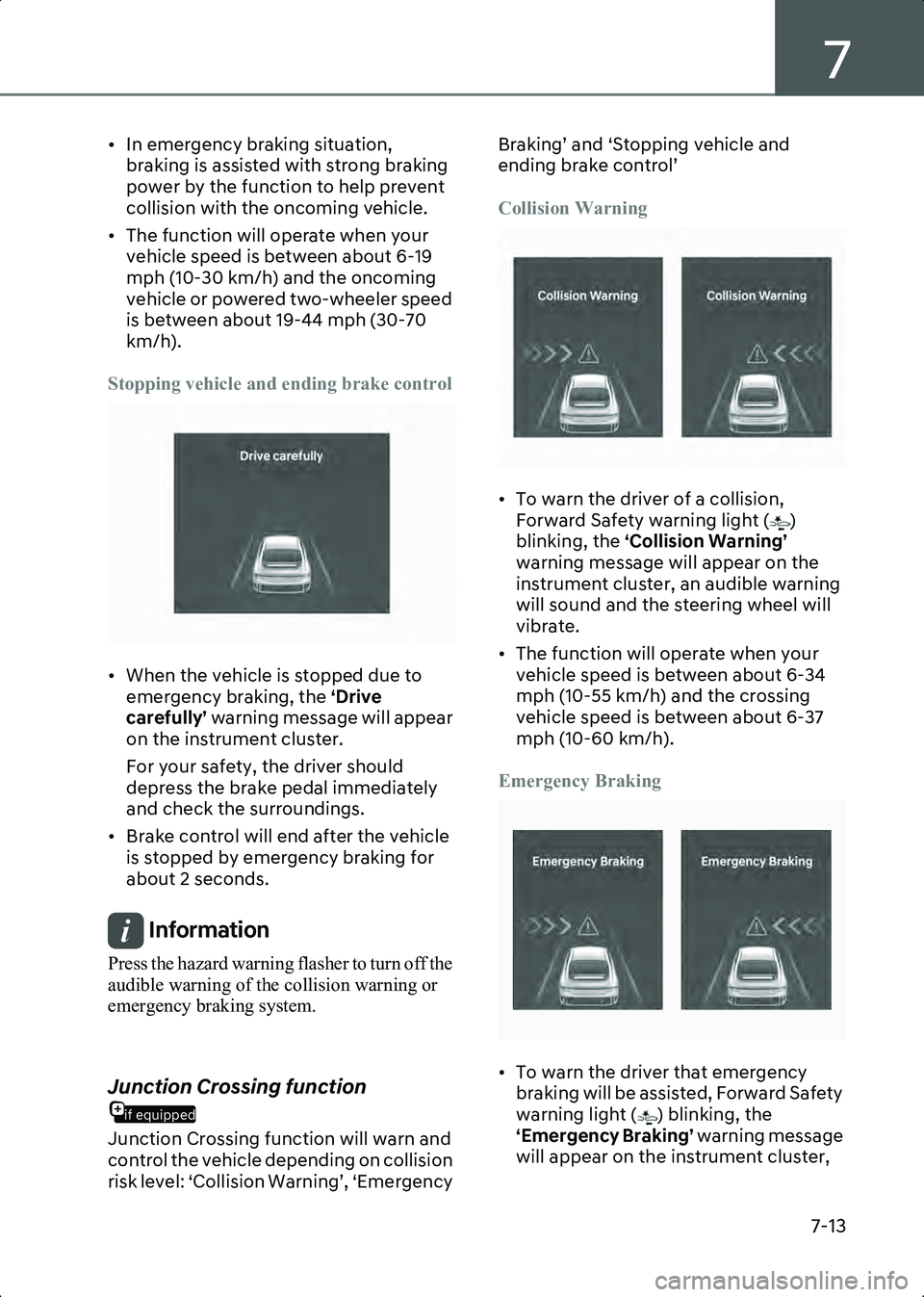

7
7-13
• In emergency braking situation, braking is assisted with strong braking
power by the function to help prevent
collision with the oncoming vehicle.
• The function will operate when your vehicle speed is between about 6-19
mph (10-30 km/h) and the oncoming
vehicle or powered two-wheeler speed
is between about 19-44 mph (30-70
km/h).
Stopping vehicle and ending brake control
B7000303
• When the vehicle is stopped due to emergency braking, the ‘Drive
carefully’ warning message will appear
on the instrument cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.
• Brake control will end after the vehicle is stopped by emergency braking for
about 2 seconds.
Information Press the hazard warning flasher to turn off the
audible warning of the collision warning or
emergency braking system.

if equipped
Junction Crossing function
Junction Crossing function will warn and
control the vehicle depending on collision
risk level: ‘Collision Warning’, ‘Emergency Braking’ and ‘Stopping vehicle and
ending brake control’
Collision Warning
B7000307
• To warn the driver of a collision,
Forward Safety warning light ( )
blinking, the ‘Collision Warning’
warning message will appear on the
instrument cluster, an audible warning
will sound and the steering wheel will
vibrate.
• The function will operate when your vehicle speed is between about 6-34
mph (10-55 km/h) and the crossing
vehicle speed is between about 6-37
mph (10-60 km/h).
Emergency Braking
B7000308
• To warn the driver that emergency braking will be assisted, Forward Safety
warning light ( ) blinking, the
‘Emergency Braking’ warning message
will appear on the instrument cluster,
Hyundai_CE_en_US.book Page 13
