2023 HYUNDAI IONIQ 6 cluster

Driver Assistance System

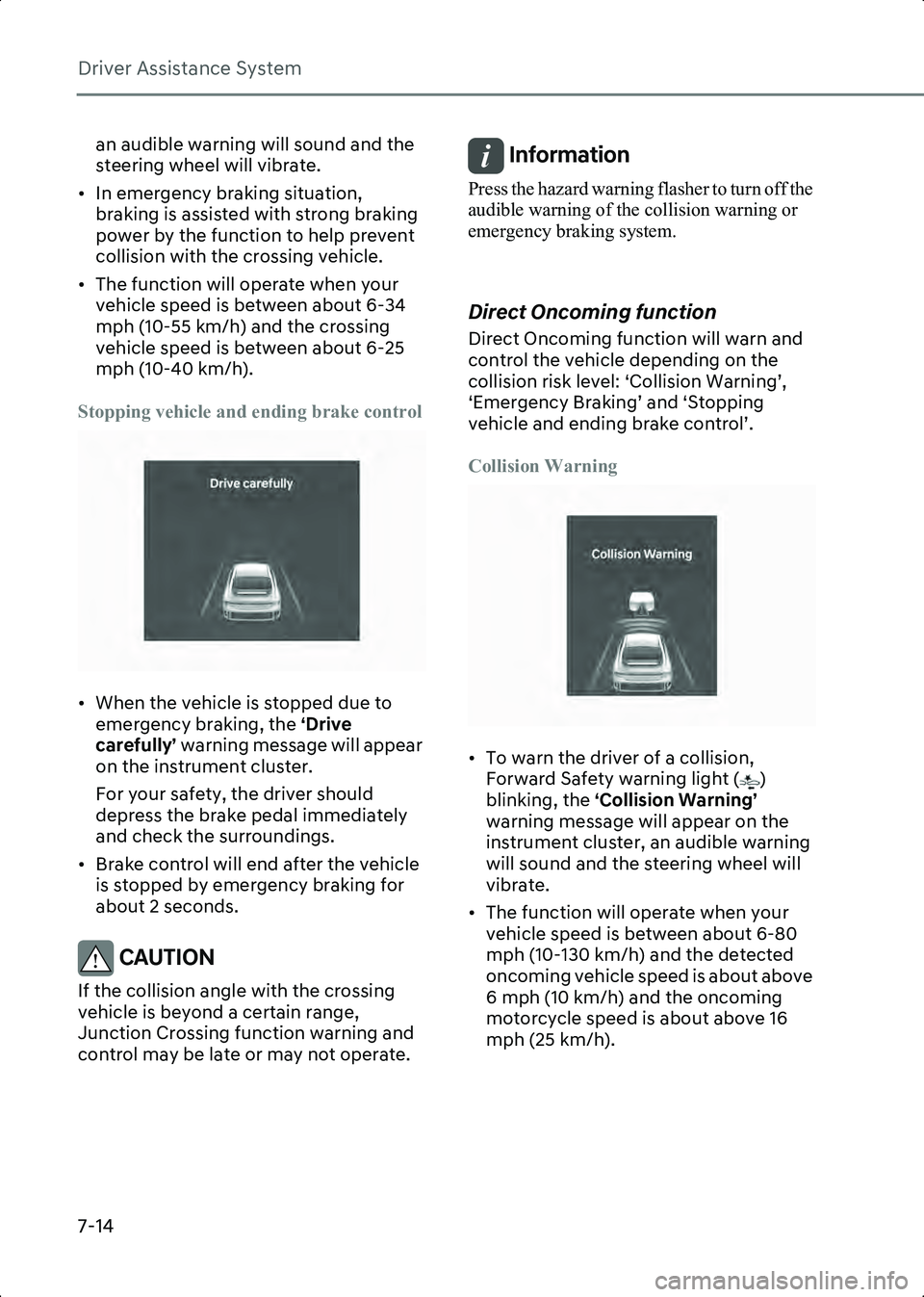

7-14
an audible warning will sound and the
steering wheel will vibrate.
• In emergency braking situation, braking is assisted with strong braking
power by the function to help prevent
collision with the crossing vehicle.
• The function will operate when your vehicle speed is between about 6-34
mph (10-55 km/h) and the crossing
vehicle speed is between about 6-25
mph (10-40 km/h).
Stopping vehicle and ending brake control
B7000303
• When the vehicle is stopped due to emergency braking, the ‘Drive
carefully’ warning message will appear
on the instrument cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.
• Brake control will end after the vehicle is stopped by emergency braking for
about 2 seconds.
CAUTION If the collision angle with the crossing
vehicle is beyond a certain range,
Junction Crossing function warning and
control may be late or may not operate.

Information Press the hazard warning flasher to turn off the
audible warning of the collision warning or
emergency braking system.

Direct Oncoming function
Direct Oncoming function will warn and
control the vehicle depending on the
collision risk level: ‘Collision Warning’,
‘Emergency Braking’ and ‘Stopping
vehicle and ending brake control’.
Collision Warning
B7000301
• To warn the driver of a collision, Forward Safety warning light ( )
blinking, the ‘Collision Warning’
warning message will appear on the
instrument cluster, an audible warning
will sound and the steering wheel will
vibrate.
• The function will operate when your vehicle speed is between about 6-80
mph (10-130 km/h) and the detected
oncoming vehicle speed is about above
6 mph (10 km/h) and the oncoming
motorcycle speed is about above 16
mph (25 km/h).
Hyundai_CE_en_US.book Page 14

7

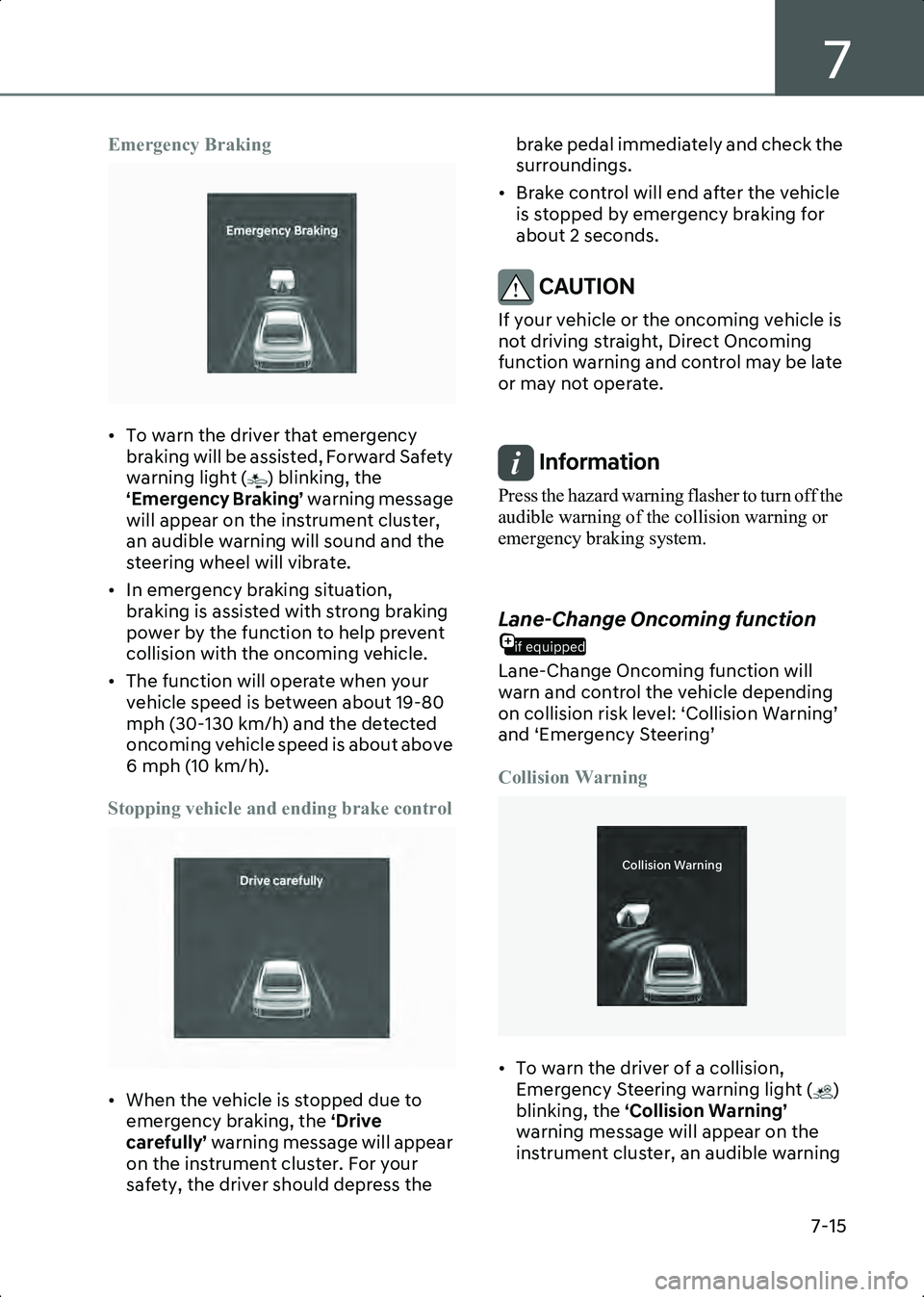

7-15
Emergency Braking
B7000302
• To warn the driver that emergency braking will be assisted, Forward Safety
warning light ( ) blinking, the
‘Emergency Braking’ warning message
will appear on the instrument cluster,
an audible warning will sound and the
steering wheel will vibrate.
• In emergency braking situation, braking is assisted with strong braking
power by the function to help prevent
collision with the oncoming vehicle.
• The function will operate when your vehicle speed is between about 19-80
mph (30-130 km/h) and the detected
oncoming vehicle speed is about above
6 mph (10 km/h).
Stopping vehicle and ending brake control
B7000303
• When the vehicle is stopped due to emergency braking, the ‘Drive
carefully’ warning message will appear
on the instrument cluster. For your
safety, the driver should depress the brake pedal immediately and check the
surroundings.
• Brake control will end after the vehicle is stopped by emergency braking for
about 2 seconds.
CAUTION If your vehicle or the oncoming vehicle is
not driving straight, Direct Oncoming
function warning and control may be late
or may not operate.

Information Press the hazard warning flasher to turn off the
audible warning of the collision warning or
emergency braking system.

if equipped
Lane-Change Oncoming function
Lane-Change Oncoming function will
warn and control the vehicle depending
on collision risk level: ‘Collision Warning’
and ‘Emergency Steering’
Collision Warning
B7000315_3
• To warn the driver of a collision, Emergency Steering warning light ( )
blinking, the ‘Collision Warning’
warning message will appear on the
instrument cluster, an audible warning
$PMMJTJPO
8BSOJOH
Hyundai_CE_en_US.book Page 15

Driver Assistance System

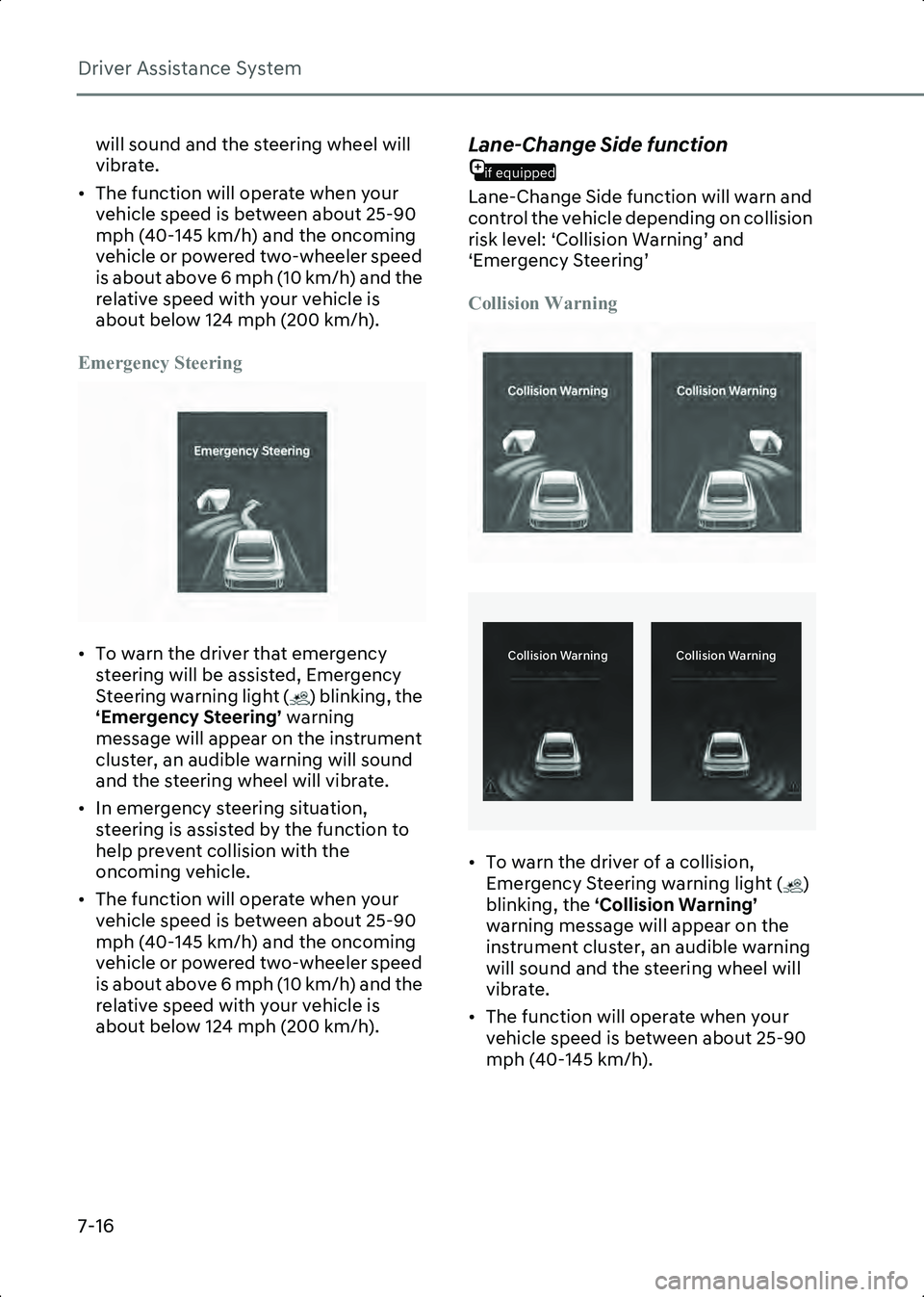

7-16
will sound and the steering wheel will
vibrate.
• The function will operate when your vehicle speed is between about 25-90
mph (40-145 km/h) and the oncoming
vehicle or powered two-wheeler speed
is about above 6 mph (10 km/h) and the
relative speed with your vehicle is
about below 124 mph (200 km/h).
Emergency Steering
B7000314
• To warn the driver that emergency steering will be assisted, Emergency
Steering warning light ( ) blinking, the
‘Emergency Steering’ warning
message will appear on the instrument
cluster, an audible warning will sound
and the steering wheel will vibrate.
• In emergency steering situation, steering is assisted by the function to
help prevent collision with the
oncoming vehicle.
• The function will operate when your vehicle speed is between about 25-90
mph (40-145 km/h) and the oncoming
vehicle or powered two-wheeler speed
is about above 6 mph (10 km/h) and the
relative speed with your vehicle is
about below 124 mph (200 km/h).
if equipped
Lane-Change Side function
Lane-Change Side function will warn and
control the vehicle depending on collision
risk level: ‘Collision Warning’ and
‘Emergency Steering’
Collision Warning
B7000315
B7000315_2
• To warn the driver of a collision, Emergency Steering warning light ( )
blinking, the ‘Collision Warning’
warning message will appear on the
instrument cluster, an audible warning
will sound and the steering wheel will
vibrate.
• The function will operate when your vehicle speed is between about 25-90
mph (40-145 km/h).
$PMMJTJPO
8BSOJOH$PMMJTJPO
8BSOJOH
Hyundai_CE_en_US.book Page 16

7
7-17
Emergency Steering
B7000316
B7000316_1
• To warn the driver that emergency steering will be assisted, Emergency
Steering warning light ( ) blinking, the
‘Emergency Steering’ warning
message will appear on the instrument
cluster, an audible warning will sound
and the steering wheel will vibrate.
• In emergency steering situation, steering is assisted by the function to
help prevent collision with the
front-side vehicle.
• The function will operate when your vehicle speed is between about 25-90
mph (40-145 km/h) and front-side
vehicle and powered two-wheeler is
driving.
CAUTION • Lane-Change Side function does not operate if the speed of the side vehicle
from the front side is 0 mph (0 km/h).
• The detecting range of the front corner radar and the rear corner radar is
determined by a standard road width,
therefore, on a narrow road,
Lane-Change Side function may detect
other vehicles two lanes over and warn
you. In contrast, on a wide road,
Lane-Change Side function may not be
able to detect a vehicle driving in the
next lane and may not warn you.
• Collision-avoidance assist will be canceled under the following
circumstances:
• Your vehicle enters the next lane by a certain distance
• Your vehicle is away from the collision risk
• The steering wheel is sharply steered
• The brake pedal is depressed
• Forward Collision-Avoidance Assist is operating
• After Lane-Change Side function operation or lane change, you must
drive to the center of the lane.
Lane-Change Side function will not
operate if the vehicle is not driven in the
center of the lane.

Information • When an additional accident is expected, Lane-Change Side function will not assist
with steering and only warn the driver of a
collision.
• If the driver’s seat is on the left side, collision warning will operate when you
turn left, and when it is on the right side, the
system will operate when you turn right.

&NFSHFODZ
4UFFSJOH&NFSHFODZ
4UFFSJOH
Hyundai_CE_en_US.book Page 17

Driver Assistance System

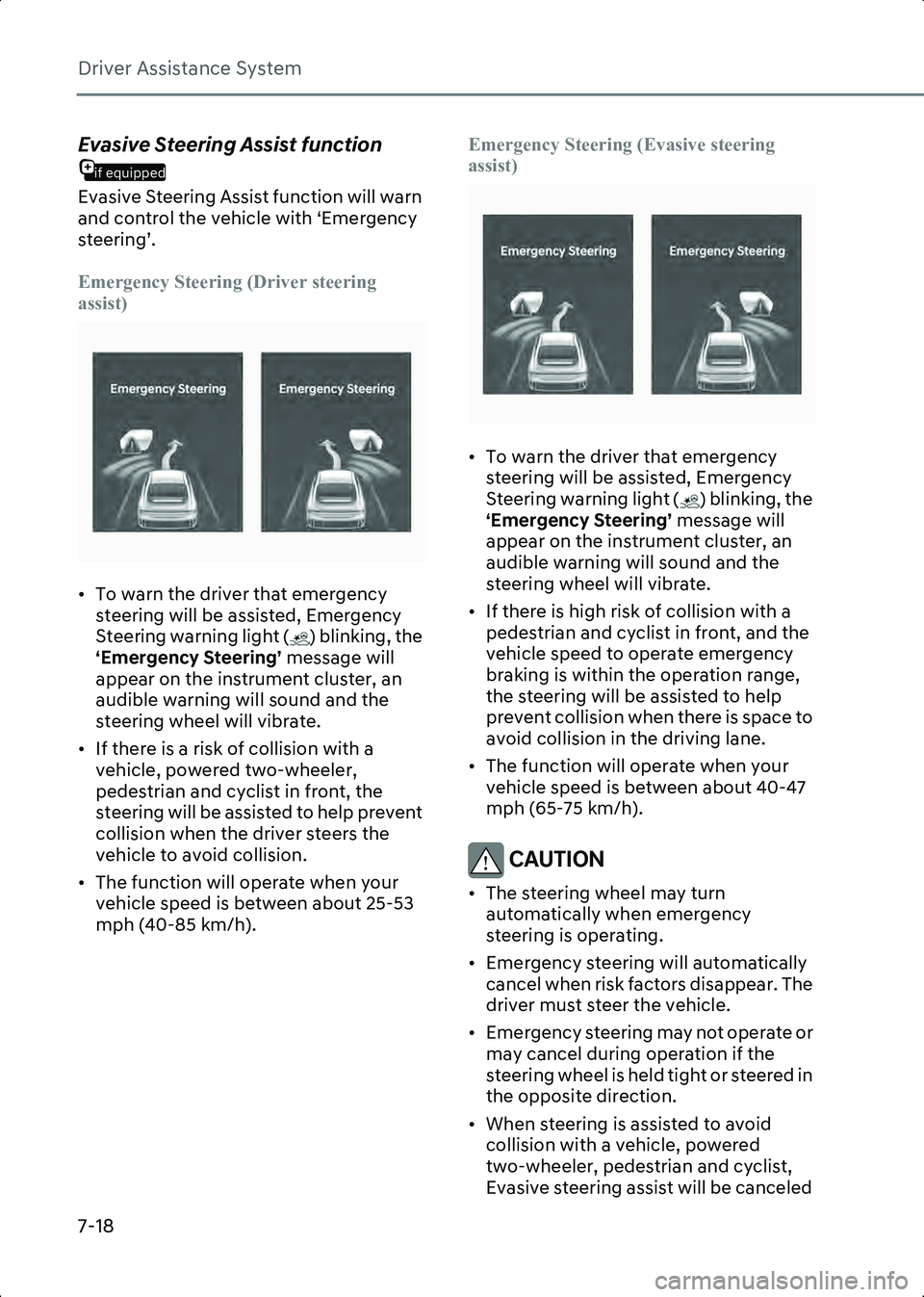

7-18
if equipped
Evasive Steering Assist function
Evasive Steering Assist function will warn
and control the vehicle with ‘Emergency
steering’.
Emergency Steering (Driver steering
assist)
B7000317
• To warn the driver that emergency steering will be assisted, Emergency
Steering warning light ( ) blinking, the
‘Emergency Steering’ message will
appear on the instrument cluster, an
audible warning will sound and the
steering wheel will vibrate.
• If there is a risk of collision with a vehicle, powered two-wheeler,
pedestrian and cyclist in front, the
steering will be assisted to help prevent
collision when the driver steers the
vehicle to avoid collision.
• The function will operate when your vehicle speed is between about 25-53
mph (40-85 km/h). Emergency Steering (Evasive steering
assist)
B7000317
• To warn the driver that emergency
steering will be assisted, Emergency
Steering warning light ( ) blinking, the
‘Emergency Steering’ message will
appear on the instrument cluster, an
audible warning will sound and the
steering wheel will vibrate.
• If there is high risk of collision with a pedestrian and cyclist in front, and the
vehicle speed to operate emergency
braking is within the operation range,
the steering will be assisted to help
prevent collision when there is space to
avoid collision in the driving lane.
• The function will operate when your vehicle speed is between about 40-47
mph (65-75 km/h).
CAUTION • The steering wheel may turn automatically when emergency
steering is operating.
• Emergency steering will automatically cancel when risk factors disappear. The
driver must steer the vehicle.
• Emergency steering may not operate or may cancel during operation if the
steering wheel is held tight or steered in
the opposite direction.
• When steering is assisted to avoid collision with a vehicle, powered
two-wheeler, pedestrian and cyclist,
Evasive steering assist will be canceled
Hyundai_CE_en_US.book Page 18

Driver Assistance System
7-20
• Forward Collision-Avoidance Assist may be limited or disabled if the vehicle
speed is too high or the distance to the
vehicle ahead is far.
• When a collision with a surrounding vehicle is expected, Lane-Change
Oncoming, Lane-Change Side and
Evasive Steering Assist will not assist
you with steering but only warn the you
of a collision (if equipped).

Information • In a situation where collision is imminent, braking may be assisted by Forward
Collision-Avoidance Assist when braking
is insufficient by the driver.
• The images and colors in the instrument cluster may differ depending on the
instrument cluster type or theme selected
from the settings menu.

Forward Collision-Avoidance
Assist Malfunction and
Limitations
Forward Collision-Avoidance Assist
malfunction
B7000401
When Forward Collision-Avoidance Assist
is not working properly, the ‘Check
Forward Safety system’ and ‘Check
Forward/Side Safety system’ warning message will appear, and the , and
warning lights will illuminate on the
instrument cluster. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
Forward Collision-Avoidance Assist
disabled
B7000402
When the front windshield where the
front view camera is located, front radar
cover, bumper (if equipped) or sensor is
covered with foreign material, such as
snow or rain, it can reduce the detecting
performance and temporarily limit or
disable Forward Collision-Avoidance
Assist.
If this occurs the ‘Critical Forward Safety
functions disabled. Camera obscured’ or
the ‘Critical Forward Safety functions
disabled. Radar blocked’ warning
message, and the , and warning
lights will illuminate on the instrument
cluster.
Forward Collision-Avoidance Assist will
operate properly when snow, rain or
foreign material is removed.
If Forward Collision-Avoidance Assist
does not operate properly after
obstruction (snow, rain, or foreign
material) is removed (including trailer,
carrier, etc., from the rear bumper), have
the vehicle inspected by an authorized
HYUNDAI dealer.
Hyundai_CE_en_US.book Page 20

7
7-21
WARNING • Even though the warning message or warning light does not appear on the
instrument cluster, Forward
Collision-Avoidance Assist may not
properly operate.
• Forward Collision-Avoidance Assist may not properly operate in an area (for
example, open terrain), where any
objects are not detected after turning
ON the vehicle.
• If the vehicle is turned off and restarted while the camera is blocked or
malfunctioned, the condition is
maintained. Therefore, Forward
Collision-Avoidance Assist may not
operate properly.

Limitations of Forward
Collision-Avoidance Assist
Forward Collision-Avoidance Assist may
not operate properly, or it may operate
unexpectedly under the following
circumstances:
• The detecting sensor or the surroundings are contaminated or
damaged
• The temperature around the front view camera is high or low due to
surrounding environment
• The camera lens is contaminated due to tinted, filmed or coated windshield,
damaged glass, or sticky foreign
material (sticker, bug, etc.) on the glass
• Moisture is not removed or frozen on the windshield
• Washer fluid is continuously sprayed, or the wiper is on
• Driving in heavy rain or snow, or thick fog
• The field of view of the front view camera is obstructed by sun glare • Street light or light from an oncoming
traffic is reflected on the wet road
surface, such as a puddle on the road
• An object is placed on the dashboard
• Your vehicle is being towed
• The surrounding is very bright
• The surrounding is very dark, such as in a tunnel, etc.
• The brightness changes suddenly, for example when entering or exiting a
tunnel
• The brightness outside is low, and the headlights are not on or are not bright
• Driving through steam, smoke or shadow
• Only part of the vehicle, powered two-wheeler, pedestrian or cyclist is
detected
• The vehicle or powered two-wheeler in front is a bus, heavy truck, truck with an
unusually shaped cargo, trailer, etc.
• The vehicle or powered two-wheeler in front has no tail lights, tail lights are
located unusually, etc.
• The brightness outside is low, and the tail lights are not on or are not bright
• The rear of the front vehicle is small or the vehicle does not look normal, such
as when the vehicle is tilted,
overturned, or the side of the vehicle is
visible, etc.
• The front vehicle’s ground clearance is low or high
• A vehicle, powered two-wheeler, pedestrian or cyclist suddenly cuts in
front
• The bumper around the front radar is impacted, damaged or the front radar is
out of position
• The temperature around the front radar is high or low
• Driving through a tunnel or iron bridge
• Driving in vast areas where there are few vehicles or structures (for example,
desert, meadow, suburb, etc.)
Hyundai_CE_en_US.book Page 21

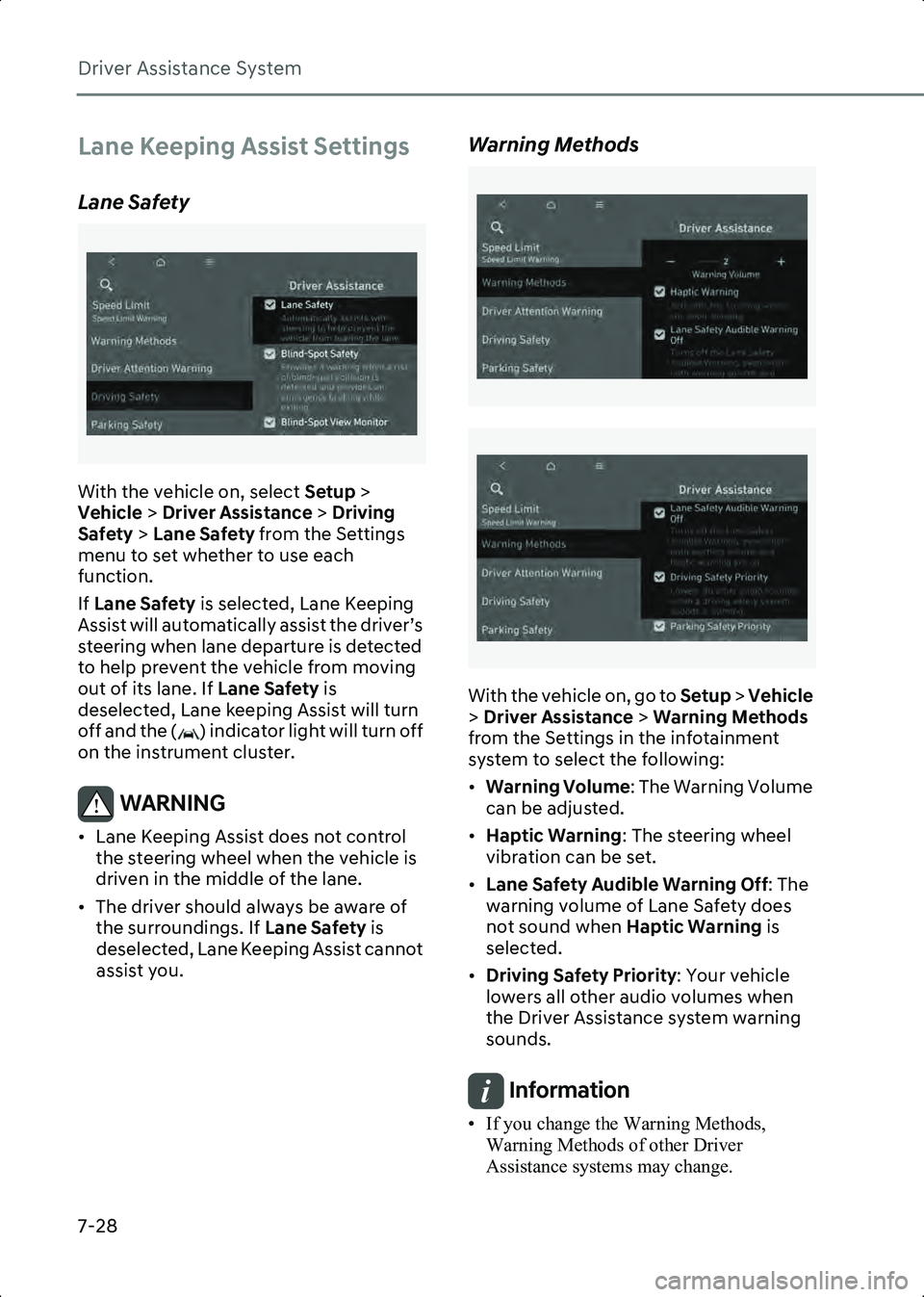

Driver Assistance System
7-28
Lane Keeping Assist Settings
Lane Safety
B7001001
With the vehicle on, select Setup >
Vehicle > Driver Assistance > Driving
Safety > Lane Safety from the Settings
menu to set whether to use each
function.
If Lane Safety is selected, Lane Keeping
Assist will automatically assist the driver’s
steering when lane departure is detected
to help prevent the vehicle from moving
out of its lane. If Lane Safety is
deselected, Lane keeping Assist will turn
off and the ( ) indicator light will turn off
on the instrument cluster.
WARNING • Lane Keeping Assist does not control the steering wheel when the vehicle is
driven in the middle of the lane.
• The driver should always be aware of the surroundings. If Lane Safety is
deselected, Lane Keeping Assist cannot
assist you.

Warning Methods
B7000205_2
B7000205_3
With the vehicle on, go to Setup > Vehicle
> Driver Assistance > Warning Methods
from the Settings in the infotainment
system to select the following:
• Warning Volume : The Warning Volume
can be adjusted.
• Haptic Warning : The steering wheel
vibration can be set.
• Lane Safety Audible Warning Off : The
warning volume of Lane Safety does
not sound when Haptic Warning is
selected.
• Driving Safety Priority : Your vehicle
lowers all other audio volumes when
the Driver Assistance system warning
sounds.
Information • If you change the Warning Methods, Warning Methods of other Driver
Assistance systems may change.
Hyundai_CE_en_US.book Page 28
