2023 HYUNDAI IONIQ 6 cluster

7

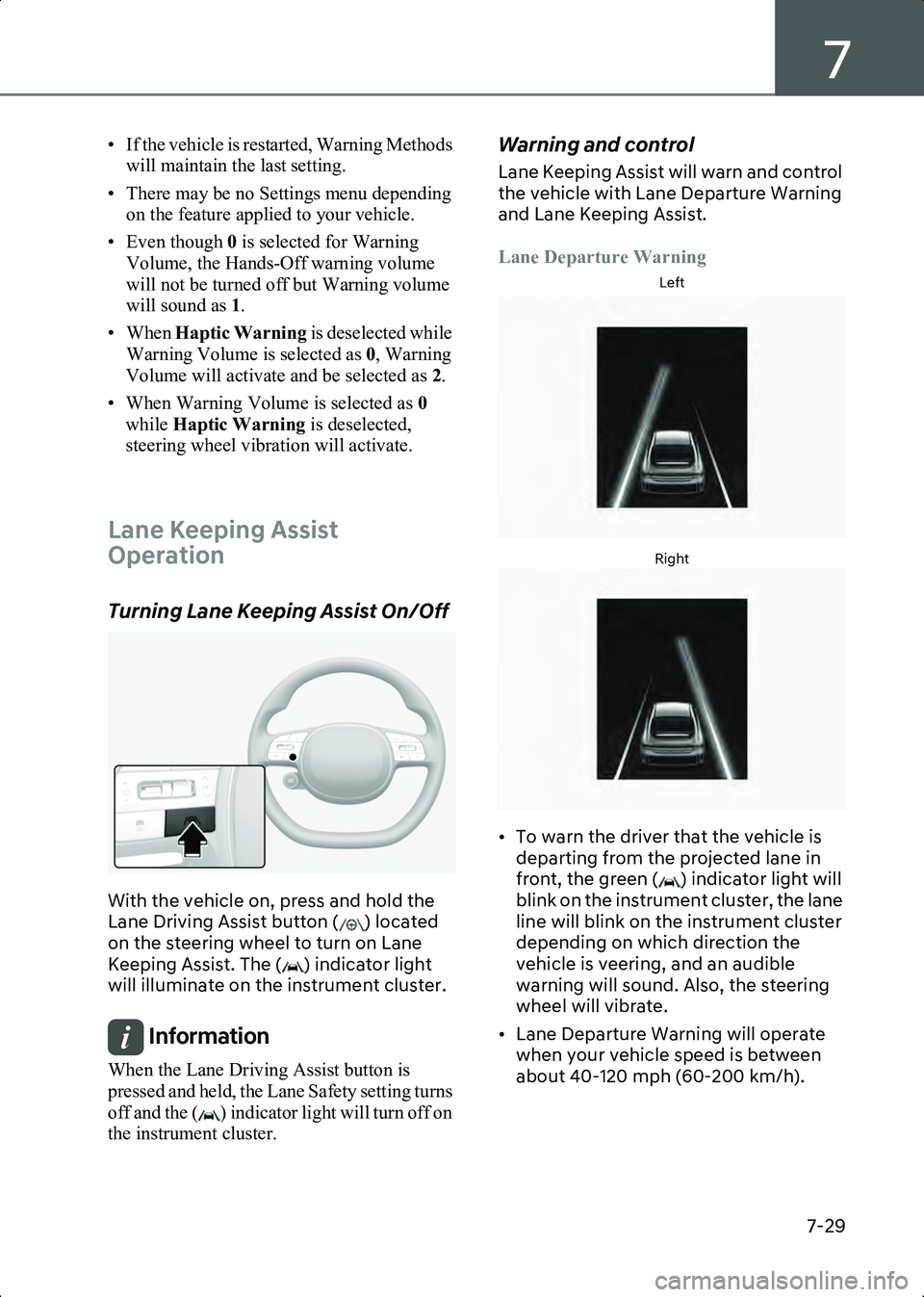

7-29
• If the vehicle is restarted, Warning Methods will maintain the last setting.
• There may be no Settings menu depending on the feature applied to your vehicle.
• Even though 0 is selected for Warning
Volume, the Hands-Off warning volume
will not be turned off but Warning volume
will sound as 1.
• When Haptic Warning is deselected while
Warning Volume is selected as 0, Warning
Volume will activate and be selected as 2.
• When Warning Volume is selected as 0
while Haptic Warning is deselected,
steering wheel vibration will activate.

Lane Keeping Assist
Operation
Turning Lane Keeping Assist On/Off
B7001101
With the vehicle on, press and hold the
Lane Driving Assist button ( ) located
on the steering wheel to turn on Lane
Keeping Assist. The ( ) indicator light
will illuminate on the instrument cluster.
Information When the Lane Driving Assist button is
pressed and held, the Lane Safety setting turns
off and the ( ) indicator light will turn off on
the instrument cluster.

Warning and control
Lane Keeping Assist will warn and control
the vehicle with Lane Departure Warning
and Lane Keeping Assist.
Lane Departure Warning
Left
B7001102Right
B7001103
• To warn the driver that the vehicle is departing from the projected lane in
front, the green ( ) indicator light will
blink on the instrument cluster, the lane
line will blink on the instrument cluster
depending on which direction the
vehicle is veering, and an audible
warning will sound. Also, the steering
wheel will vibrate.
• Lane Departure Warning will operate when your vehicle speed is between
about 40-120 mph (60-200 km/h).
Hyundai_CE_en_US.book Page 29

Driver Assistance System
7-30
Lane Keeping Assist
• To warn the driver that the vehicle is departing from the projected lane in
front, the green ( ) indicator light will
blink on the cluster, and the steering
wheel will make adjustments to keep
vehicle inside the lane.
• Lane Keeping Assist will operate when your vehicle speed is between about
40-120 mph (60-200 km/h).
Hands-off warning
B7001104
If the driver takes their hands off the
steering wheel for several seconds, the
'Keep hands on steering wheel' warning
message will appear on the instrument
cluster, and an audible warning will sound
in stages.
WARNING • The steering wheel may not be assisted if the steering wheel is held very tight or
the steering wheel is steered over a
certain degree.
• Lane Keeping Assist does not operate at all times. It is the responsibility of the
driver to safely steer the vehicle and to
maintain the vehicle in its lane.
• The hands-off warning message may appear late depending on road
conditions. Always have your hands on
the steering wheel while driving.
• If the steering wheel is held very lightly, the hands-off warning message may appear because Lane Keeping Assist
may not recognize that the driver has
their hands on the steering wheel.
• If you attach objects to the steering wheel, the hands-off warning may not
work properly.

Information • For more information on instrument cluster settings, refer to the “Cluster Display
Control” section in chapter 4.
• When lane markings (or road edges) are detected, the lane lines on the instrument
cluster will change from grey to white and
the green ( ) indicator light will
illuminate.
• When the lane markings (or road edges) are detected and Highway Lane Change Assist
is on, the lane lines on the instrument
cluster may change to green.
Lane undetected
B7001105Lane detected
B7001106
Hyundai_CE_en_US.book Page 30

7
7-31
• The images and colors in the instrument cluster may differ depending on the
instrument cluster type or theme selected
from the instrument cluster.
• Even though the steering is assisted by Lane Keeping Assist, the driver may control the
steering wheel.
• The steering wheel may feel heavier or lighter when the steering wheel is assisted
by Lane Keeping Assist than when it is not.

Lane Keeping Assist
Malfunction and Limitations
Lane Keeping Assist malfunction
B7001201
When Lane Keeping Assist is not working
properly, the 'Check Lane Safety system'
warning message will appear and the
yellow ( ) indicator light will illuminate
on the instrument cluster. If this occurs,
have the vehicle inspected by an
authorized HYUNDAI dealer.
Lane Keeping Assist disabled
B7001202
When the front windshield where the
front view camera is located, or sensor is
covered with foreign material, such as
snow or rain, it can reduce the detecting
performance and temporarily limit or
disable Lane Keeping Assist.
If this occurs, the 'Lane Keeping Assist
system disabled. Camera obscured'
warning message and master ( ) light or
Lane Keeping Assist warning light ( )
will appear on the instrument cluster.
Lane Keeping Assist will operate properly
when snow, rain or foreign material is
removed.
If Lane Keeping Assist does not operate
properly after it is removed, have the
vehicle inspected by an authorized
HYUNDAI dealer.
WARNING • Even though the warning message or warning light does not appear on the
instrument cluster, Lane Keeping Assist
may not properly operate.
• If the vehicle is turned off and restarted while the camera is blocked or
malfunctioned, the condition is
maintained. Therefore, Lane Keeping
Assist may not operate properly.

Hyundai_CE_en_US.book Page 31

Driver Assistance System
7-34
B7001302
Blind-Spot Collision-Avoidance Assist
helps detect and informs the driver that a
vehicle is approaching at high speed from
the blind spot area.
CAUTION Warning timing may vary depending on
the speed of the vehicle approaching at
high speed.

B7001303
When you are driving forward out of a
parking space, if Blind-Spot
Collision-Avoidance Assist judges that
there is a collision risk with an
approaching vehicle in the blind spot, it
can help avoid collision by applying the
brake.
Detecting sensor
B7001802(1) Rear corner radar
Refer to the picture above for the detailed
location of the detecting sensors.
CAUTION Take the following precautions to
maintain optimal performance of the
detecting sensor:
• Never disassemble the detecting sensor assembly, or cause any damage
to it.
• If the rear corner radar or near the radar has been damaged or impacted in any
way, even though the warning message
does not appear on the instrument
cluster, Blind-Spot Collision-Avoidance
Assist may not operate properly. Have
the vehicle inspected by an authorized
HYUNDAI dealer.
• If the rear corner radars have been replaced or repaired, have the vehicle
inspected by an authorized HYUNDAI
dealer.
• Rear bumper genuine parts with rear corner radars have proven their
performance. Replacing or painting the
rear bumper may result in poor
performance of Blind-Spot
Collision-Avoidance Assist. When the
parts need to be replaced or modified,
make sure to use genuine HYUNDAI
parts.
• Do not apply license plate frame or objects, such as a bumper sticker, film
11
Hyundai_CE_en_US.book Page 34

7

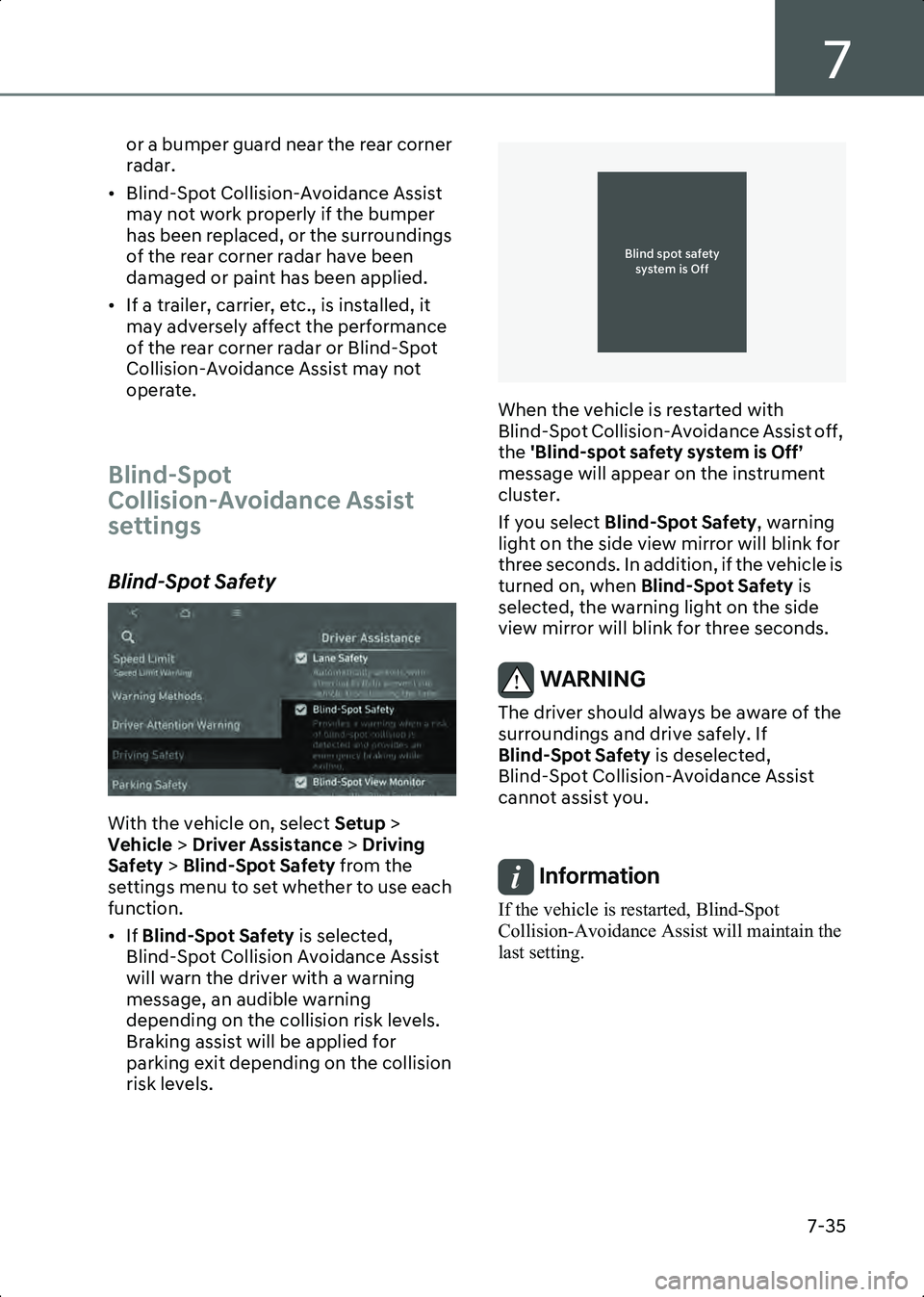

7-35
or a bumper guard near the rear corner
radar.
• Blind-Spot Collision-Avoidance Assist may not work properly if the bumper
has been replaced, or the surroundings
of the rear corner radar have been
damaged or paint has been applied.
• If a trailer, carrier, etc., is installed, it may adversely affect the performance
of the rear corner radar or Blind-Spot
Collision-Avoidance Assist may not
operate.

Blind-Spot
Collision-Avoidance Assist
settings
Blind-Spot Safety
B0320EE01
With the vehicle on, select Setup >
Vehicle > Driver Assistance > Driving
Safety > Blind-Spot Safety from the
settings menu to set whether to use each
function.
• If Blind-Spot Safety is selected,
Blind-Spot Collision Avoidance Assist
will warn the driver with a warning
message, an audible warning
depending on the collision risk levels.
Braking assist will be applied for
parking exit depending on the collision
risk levels.
OTM070097N
When the vehicle is restarted with
Blind-Spot Collision-Avoidance Assist off,
the 'Blind-spot safety system is Off’
message will appear on the instrument
cluster.
If you select Blind-Spot Safety , warning
light on the side view mirror will blink for
three seconds. In addition, if the vehicle is
turned on, when Blind-Spot Safety is
selected, the warning light on the side
view mirror will blink for three seconds.
WARNING The driver should always be aware of the
surroundings and drive safely. If
Blind-Spot Safety is deselected,
Blind-Spot Collision-Avoidance Assist
cannot assist you.

Information If the vehicle is restarted, Blind-Spot
Collision-Avoidance Assist will maintain the
last setting.

#MJOE
TQPU
TBGFUZ
TZTUFN
JT
0GG
Hyundai_CE_en_US.book Page 35

7
7-37
• When the turn signal is turned off, the collision warning will be canceled and
Blind-Spot Collision Avoidance Assist
will return to vehicle detection state.
WARNING • The detecting range of the rear corner radar is determined by a standard road
width, therefore, on a narrow road,
Blind-Spot Collision-Avoidance Assist
may detect other vehicles two lanes
over and warn you. In contrast, on a
wide road, Blind-Spot
Collision-Avoidance Assist may not be
able to detect a vehicle driving in the
next lane and may not warn you.
• When the hazard warning flasher is on, the collision warning by the turn signal
will not operate.

Information The images and colors in the instrument
cluster may differ depending on the
instrument cluster type or theme selected from
the settings menu.

Collision-Avoidance Assist (while
exiting parallel spot)
B7001503
• To warn the driver of a collision, the warning light on the side view mirror
will blink and a warning message will
appear on the instrument cluster. At the same time, an audible warning will
sound, warning light on the head-up
display (if equipped) will blink and the
steering wheel will vibrate.
• Emergency braking will be assisted to help prevent collision with the vehicle
in the blind spot area.
• Blind-Spot Collision-Avoidance Assist will operate when your vehicle speed is
below 2 mph (3 km/h) and the speed of
the vehicle in the blind spot area is
above 3 mph (5 km/h).
B7001504
• When the vehicle is stopped due to emergency braking, the ‘Drive
carefully’ warning message will appear
on the instrument cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.
• Brake control will end after the vehicle is stopped by emergency braking for
about 2 seconds.
WARNING Take the following precautions when
using Blind-Spot Collision-Avoidance
Assist:
• For your safety, only change the Settings after parking the vehicle at a
safe location.
• If any other system’s warning message is displayed or audible warning is
generated, Blind-Spot
Collision-Avoidance Assist’s warning
Hyundai_CE_en_US.book Page 37

Driver Assistance System

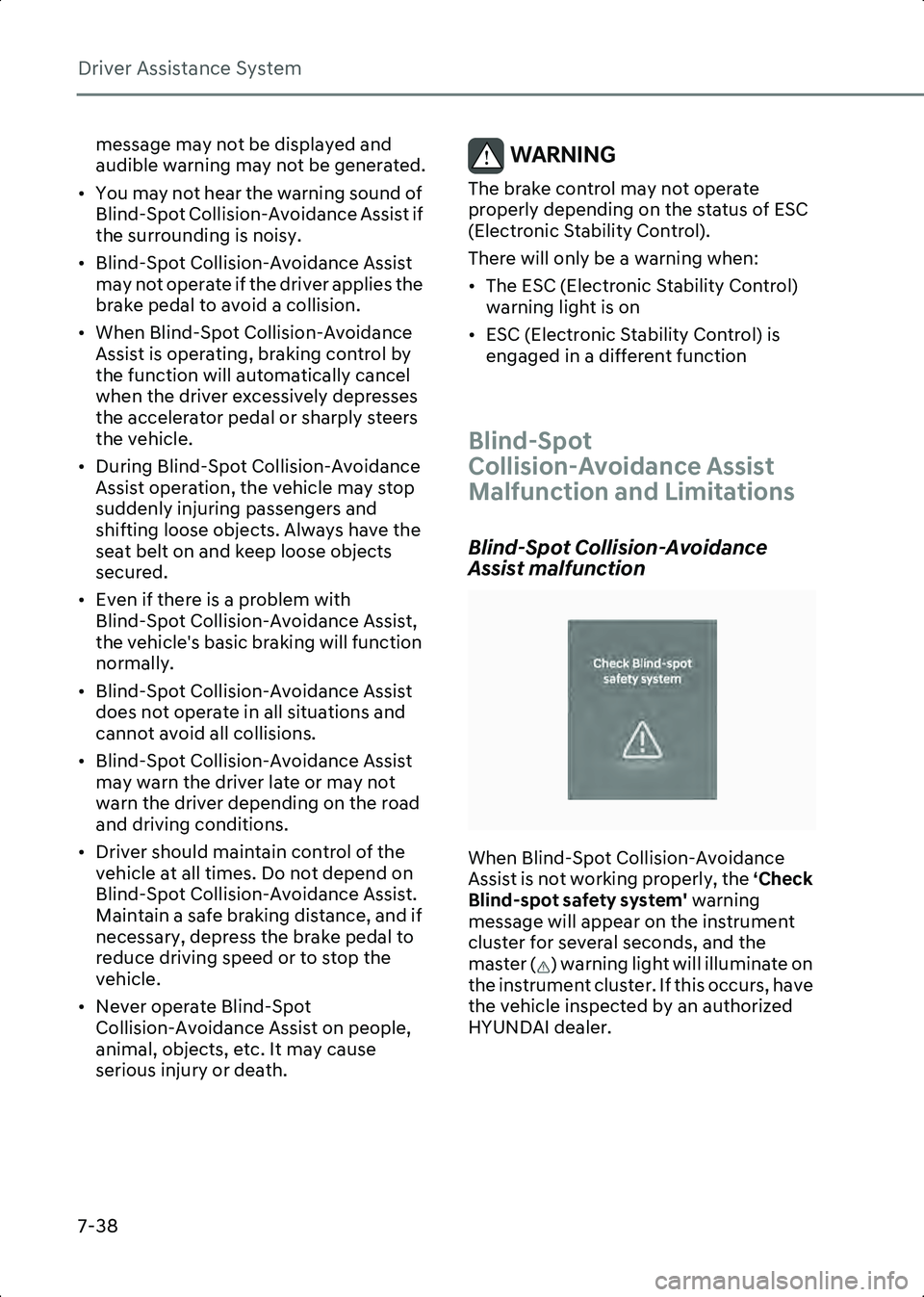

7-38
message may not be displayed and
audible warning may not be generated.
• You may not hear the warning sound of Blind-Spot Collision-Avoidance Assist if
the surrounding is noisy.
• Blind-Spot Collision-Avoidance Assist may not operate if the driver applies the
brake pedal to avoid a collision.
• When Blind-Spot Collision-Avoidance Assist is operating, braking control by
the function will automatically cancel
when the driver excessively depresses
the accelerator pedal or sharply steers
the vehicle.
• During Blind-Spot Collision-Avoidance Assist operation, the vehicle may stop
suddenly injuring passengers and
shifting loose objects. Always have the
seat belt on and keep loose objects
secured.
• Even if there is a problem with Blind-Spot Collision-Avoidance Assist,
the vehicle's basic braking will function
normally.
• Blind-Spot Collision-Avoidance Assist does not operate in all situations and
cannot avoid all collisions.
• Blind-Spot Collision-Avoidance Assist may warn the driver late or may not
warn the driver depending on the road
and driving conditions.
• Driver should maintain control of the vehicle at all times. Do not depend on
Blind-Spot Collision-Avoidance Assist.
Maintain a safe braking distance, and if
necessary, depress the brake pedal to
reduce driving speed or to stop the
vehicle.
• Never operate Blind-Spot Collision-Avoidance Assist on people,
animal, objects, etc. It may cause
serious injury or death.
WARNING The brake control may not operate
properly depending on the status of ESC
(Electronic Stability Control).
There will only be a warning when:
• The ESC (Electronic Stability Control) warning light is on
• ESC (Electronic Stability Control) is engaged in a different function

Blind-Spot
Collision-Avoidance Assist
Malfunction and Limitations
Blind-Spot Collision-Avoidance
Assist malfunction
B7001601
When Blind-Spot Collision-Avoidance
Assist is not working properly, the ‘Check
Blind-spot safety system' warning
message will appear on the instrument
cluster for several seconds, and the
master ( ) warning light will illuminate on
the instrument cluster. If this occurs, have
the vehicle inspected by an authorized
HYUNDAI dealer.
Hyundai_CE_en_US.book Page 38

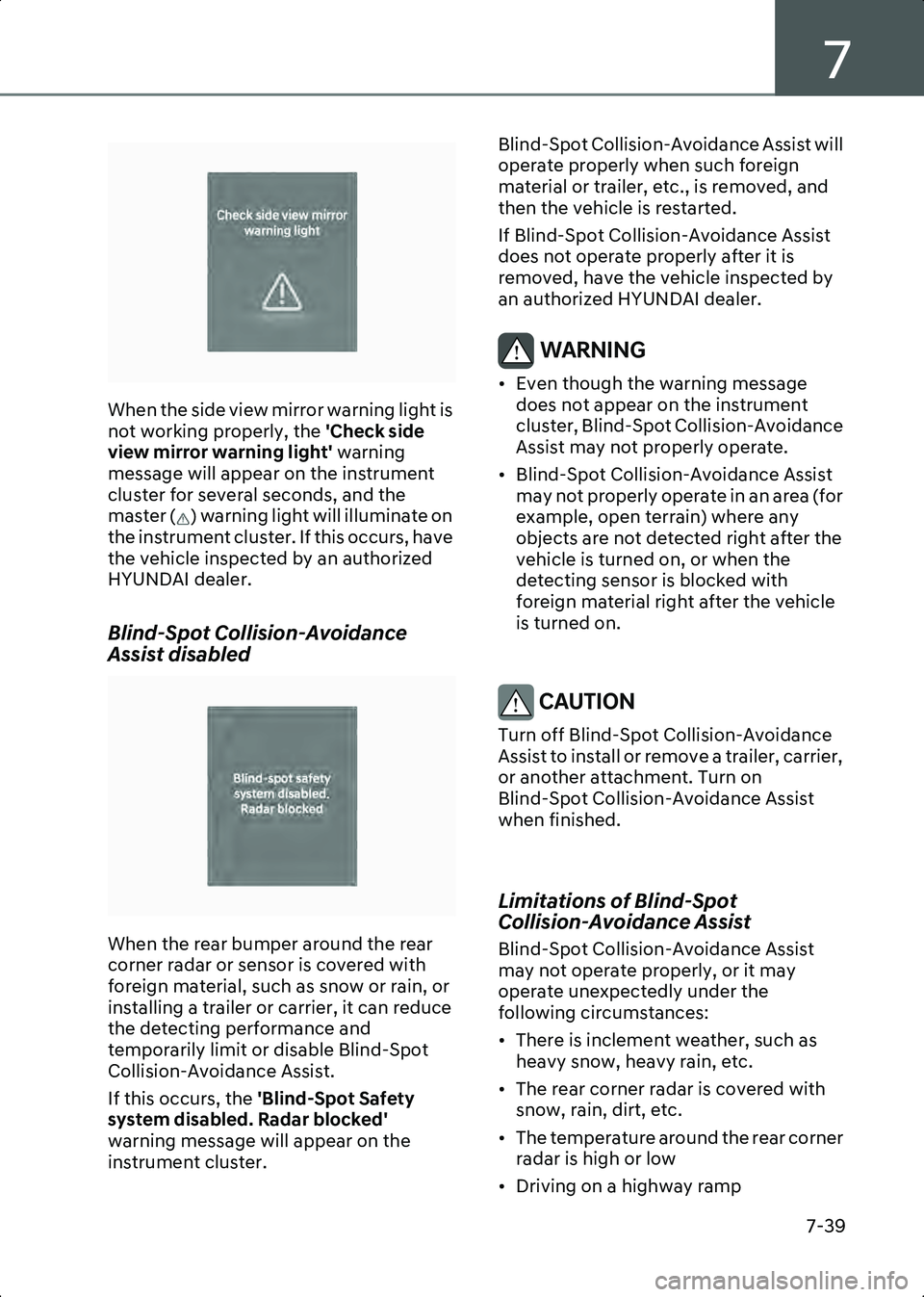

7
7-39
B7001602
When the side view mirror warning light is
not working properly, the 'Check side
view mirror warning light' warning
message will appear on the instrument
cluster for several seconds, and the
master ( ) warning light will illuminate on
the instrument cluster. If this occurs, have
the vehicle inspected by an authorized
HYUNDAI dealer.
Blind-Spot Collision-Avoidance
Assist disabled
B7001603
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain, or
installing a trailer or carrier, it can reduce
the detecting performance and
temporarily limit or disable Blind-Spot
Collision-Avoidance Assist.
If this occurs, the 'Blind-Spot Safety
system disabled. Radar blocked'
warning message will appear on the
instrument cluster. Blind-Spot Collision-Avoidance Assist will
operate properly when such foreign
material or trailer, etc., is removed, and
then the vehicle is restarted.
If Blind-Spot Collision-Avoidance Assist
does not operate properly after it is
removed, have the vehicle inspected by
an authorized HYUNDAI dealer.
WARNING • Even though the warning message
does not appear on the instrument
cluster, Blind-Spot Collision-Avoidance
Assist may not properly operate.
• Blind-Spot Collision-Avoidance Assist may not properly operate in an area (for
example, open terrain) where any
objects are not detected right after the
vehicle is turned on, or when the
detecting sensor is blocked with
foreign material right after the vehicle
is turned on.

CAUTION Turn off Blind-Spot Collision-Avoidance
Assist to install or remove a trailer, carrier,
or another attachment. Turn on
Blind-Spot Collision-Avoidance Assist
when finished.

Limitations of Blind-Spot
Collision-Avoidance Assist
Blind-Spot Collision-Avoidance Assist
may not operate properly, or it may
operate unexpectedly under the
following circumstances:
• There is inclement weather, such as heavy snow, heavy rain, etc.
• The rear corner radar is covered with snow, rain, dirt, etc.
• The temperature around the rear corner radar is high or low
• Driving on a highway ramp
Hyundai_CE_en_US.book Page 39
