Driving Your Vehicle
6-40
Electric energy efficiency varies
according to the driver's driving habit and
road condition.
• When ECO mode is selected, the ECO indicator illuminates on the instrument
cluster and the color of the mood lamp
is changed.
• When ECO mode is activated: - The acceleration response may be slightly reduced if the accelerator
pedal is depressed moderately.
- The air conditioner performance may be limited.
The above situations are normal
conditions when ECO mode is
activated to help improve electric
energy efficiency.
Limitations of ECO mode
If the following conditions occur while
ECO mode is operating, the system
operation is limited even though there is
no change in the ECO indicator.
• When coolant temperature is low: The system will be limited until motor
performance becomes normal.
• When driving up a hill: The system will be limited to gain
power when driving uphill because
motor torque is restricted.
SPORT mode
SPORT mode is a driving mode improving
driving performance by controlling
motors and gear.
In SPORT mode, the electric energy
efficiency may decrease.
• When SPORT mode is selected, the SPORT indicator illuminates on the
instrument cluster and the color of the
mood lamp is changed.
• Whenever the vehicle is restarted, the drive mode reverts back to NORMAL
mode. If SPORT mode is desired,
re-select SPORT mode.
SNOW mode
SNOW mode provides safe driving on the
snowy roads.
• Press and hold the drive mode button to select SNOW mode.
• When SNOW mode is selected, the SNOW indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.
NOTICE [ ' H S U H V V W K H D F F H O H U D W R U S H G D O V R I W O \ R Q W K H V Q R Z D Q G W K H L F H
[ . H H S W K H G L V W D Q F H I U R P W K H Y H K L F O H L Q W K H I U R Q W
[ 3 U H Y H Q W U D S L G D F F H O H U D W L R Q G H F H O H U D W L R Q D Q G V W H H U L Q J F R Q W U R O
$ E U X S W G U L Y L Q J R Q W K H V Q R Z P D \ F D X V H
W K H D F F L G H Q W
MY DRIVE MODE
In MY DRIVE MODE, you can adjust the
vehicle performance for each function. To
set MY DRIVE MODE, go to Setup >
Vehicle > Drive mode > CUSTOM > MY
DRIVE MODE in the infotainment system.
Press and hold the drive mode button to
select MY DRIVE MODE. The MY DRIVE
MODE indicator will illuminate on the
instrument cluster.
• If the controller is replaced or the controller software is updated, the
setting of MY DRIVE MODE may be
initialized.
MY DRIVE MODE
Power output Maximized/Normal/
Minimized
Acceleration sensitivity High/Moderate/Low
Steering NORMAL/SPORT
Hyundai_CE_en_US.book Page 40
Driving Your Vehicle
6-42
instrument cluster and the color of the
mood lamp is changed.
• Whenever the vehicle is restarted, the drive mode reverts back to NORMAL
mode. If SPORT mode is desired,
re-select SPORT mode.
SNOW mode
SNOW mode is a driving mode improving
driving performance by changing the
engagement status of the motor
according to the situation required. Auto
changing the driving
mode(2WD/AWD)helps improve driving
stability.
• Press and hold the drive mode button to select SNOW mode.
• When SNOW mode is selected, the SNOW indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.
• When SNOW mode is activated, the driving power is distributed to four
wheels automatically, increasing the
stability of the vehicle.
NOTICE [ ' H S U H V V W K H D F F H O H U D W R U S H G D O V R I W O \ R Q W K H V Q R Z D Q G W K H L F H
[ . H H S W K H G L V W D Q F H I U R P W K H Y H K L F O H L Q W K H I U R Q W
[ 3 U H Y H Q W U D S L G D F F H O H U D W L R Q G H F H O H U D W L R Q D Q G V W H H U L Q J F R Q W U R O
$ E U X S W G U L Y L Q J R Q W K H V Q R Z P D \ F D X V H
W K H D F F L G H Q W
MY DRIVE MODE
In MY DRIVE MODE, you can adjust the
vehicle performance for each function. To
set MY DRIVE MODE, go to Setup >
Vehicle > Drive mode > CUSTOM > MY
DRIVE MODE in the infotainment system.
Press and hold the drive mode button to
select MY DRIVE MODE. The MY DRIVE
MODE indicator will illuminate on the
instrument cluster.
• When driving in 2WD, AWD will operate under following conditions:
- Driving at low speed or stopping
- Driving on an uphill or slippery road
- Malfunction of the rear-wheel motor
• If the controller is replaced or the controller software is updated, the
setting of MY DRIVE MODE may be
initialized.
MY DRIVE MODE
Power output Maximized/Normal/Mini
mized
Acceleration sensitivity High/Moderate/Low
Steering NORMAL/SPORT
Driveline AWD/AUTO
AWD/2WD
Hyundai_CE_en_US.book Page 42
6
6-45
if equipped
Active Sound Design
• Active Sound Design provides various virtual driving sounds based on the
driving mode, vehicle speed, and
accelerator pedal. You can adjust the
volume and change the settings for
acceleration pedal response and sound
style.
• To change the volume of the Active Sound Design in the infotainment
system, select: Setup > Vehicle >
Active Sound Design , or Setup >
Sound > Active Sound Design .
• The volume of the Active Sound Design is adjusted according to the drive mode
(Eco, Normal, Sport) selected.
• Any unauthorized replacement of the vehicle’s speaker and amplifier may
cause Active Sound Design to
malfunction.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Special Driving
Conditions
Hazardous Driving Conditions
When hazardous driving elements are
encountered such as water, snow, ice,
mud and sand, take the following
precautions:
• Drive cautiously and maintain a longer braking distance.
• Avoid abrupt braking or steering.
• When your vehicle is stuck in snow, mud, or sand, accelerate slowly to
avoid unnecessary wheel spin.
• Put sand, rock salt, tire chains or other non-slip materials under the wheels to
provide additional traction while the
vehicle becomes stuck in ice, snow, or
mud.
WARNING Changing the tire speed suddenly could
cause the tires to skid while driving on
slippery surface. Be careful when driving
on slippery surfaces.
Hyundai_CE_en_US.book Page 45
Driving Your Vehicle
6-46
Rocking the Vehicle
If it is necessary to rock the vehicle to free
it from snow, sand, or mud, first turn the
steering wheel right and left to clear the
area around your front wheels. Then, shift
back and forth between R (Reverse) and a
forward gear.
Try to avoid spinning the wheels, and do
not race the vehicle.
To prevent gear wear, wait until the
wheels stop spinning before shifting
gears. Release the accelerator pedal
while shifting, and press lightly on the
accelerator pedal while the vehicle is in
gear. Slowly spinning the wheels in
forward and reverse directions causes a
rocking motion that may free the vehicle.
WARNING Always turn off the ESC system before
rocking the vehicle. If the vehicle is stuck
and excessive wheel spin occurs, the
temperature in the tires may increase
very quickly. If the tires become
damaged, a tire blow out or tire explosion
may occur - you and others may be
injured. Do not attempt this procedure if
people or objects are near the vehicle.
If you attempt to free the vehicle, the
vehicle may overheat quickly, possibly
causing a motor compartment fire or
other damage. Try to avoid spinning the
wheels as much as possible to prevent
overheating of the tires or the motor. DO
NOT allow the vehicle to spin the wheels
above 35 mph (56 km/h).
If you are still stuck after rocking the
vehicle a few times, have the vehicle
pulled out by a tow vehicle to avoid motor
overheating, possible damage to the
transmission, and tire damage. Refer to
the “Towing” section in chapter 8.
Smooth Cornering
Avoid braking or gear changing in
corners, especially when roads are wet.
Ideally, cornering should be taken under
gentle acceleration.
Driving at Night
Night driving presents more hazards than
driving in the daylight. Here are some
important tips to remember:
• Slow down and keep more distance between you and other vehicles, as it
may be more difficult to see at night,
especially in areas where there may not
be any street lights.
• Adjust your mirrors to reduce the glare from other drivers’ headlights.
• Keep your headlights clean and properly aimed. Dirty or improperly
aimed headlights will make it much
more difficult to see at night.
• Avoid staring directly at the headlights of oncoming vehicles. You could be
temporarily blinded, and it will take
several seconds for your eyes to
readjust to the darkness.
Driving in the Rain
Rain and wet roads can make driving
dangerous. When driving in the rain or on
slick pavement:
• Slow down and allow extra following distance. A heavy rainfall makes it
harder to see and increases the
distance needed to stop your vehicle.
• Turn OFF your Smart Cruise Control.
• Replace your windshield wiper blades when they show signs of streaking or
missing areas on the windshield.
• Make sure your tires have enough tread. If your tires do not have enough
tread, making a quick stop on wet
pavement may cause a skid and
possibly lead to a collision. Refer to the
Hyundai_CE_en_US.book Page 46
6
6-51
Check battery and cables
Winter temperatures affect battery
performance. Inspect the battery and
cables, as specified in chapter 9. The
battery charging level can be inspected
by an authorized HYUNDAI dealer or in a
service station.
To prevent locks from freezing
Spray approved de-icing fluid or glycerin
into key holes. When a lock opening is
already covered with ice, spray approved
de-icing fluid over the ice to remove it.
When an internal part of a lock freezes, try
to thaw it with a heated key. Carefully use
the heated key to avoid an injury.
Use approved window washer anti-freeze
solution
Add authorized window washer
anti-freeze solution, as specified on the
window washer container. Window
washer anti-freeze solution is available
from an authorized HYUNDAI dealer, and
most vehicle accessory outlets. Do not
use coolant or other types of anti-freeze
solution, to prevent any damage to the
vehicle paint.
Do not let your parking brake freeze
Under some conditions, your parking
brake may freeze in the engaged position.
This is most likely to happen when there is
an accumulation of snow or ice around or
near the rear brakes or the brakes are wet.
When there is the risk that your parking
brake may freeze: temporarily apply the
parking brake with the gear in P (Park),
then block the rear wheels, and then
release the parking brake.Do not let ice and snow accumulate
underneath
Under some conditions, snow and ice
may build up under the fenders and
interfere with the steering. When driving
in such conditions during the severe
winter, check underneath the vehicle on a
regular basis, to make sure that the front
wheels and the steering components are
not blocked.
Carry emergency equipment
In accordance with weather conditions,
carry appropriate emergency equipment,
while driving. Some of the items you may
want to carry include tire chains, tow
straps or chains, flashlight, emergency
flares, sand, shovel, jumper cables,
window scraper, gloves, ground cloth,
coveralls, blanket, etc.
Do not place objects or materials in the
motor compartment
Putting objects or materials in the motor
compartment may cause a motor failure.
Such damage is not be covered by the
manufacturer’s warranty.
Hyundai_CE_en_US.book Page 51
7
7-5

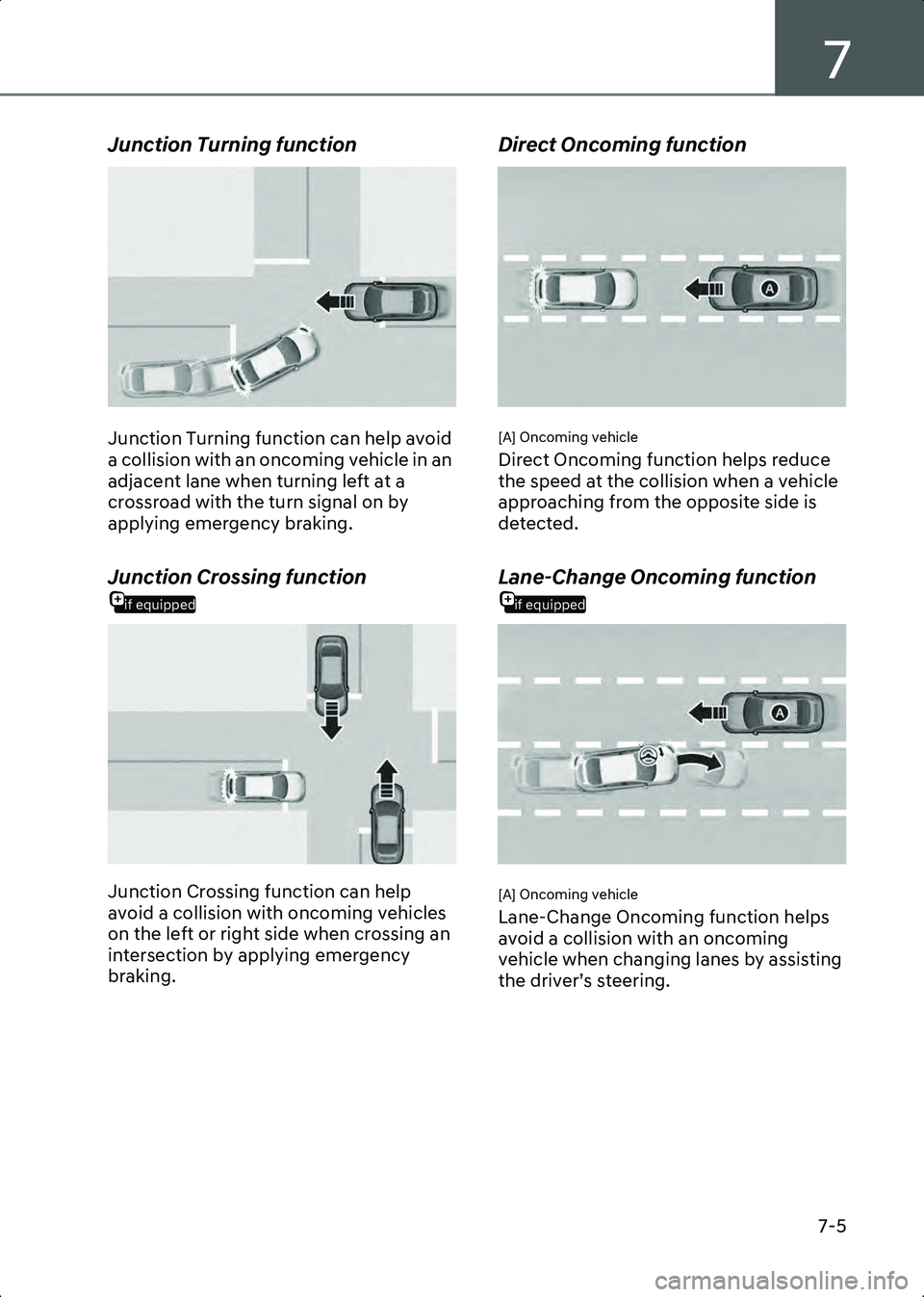

Junction Turning function
B7000102
Junction Turning function can help avoid
a collision with an oncoming vehicle in an
adjacent lane when turning left at a
crossroad with the turn signal on by
applying emergency braking.
if equipped
Junction Crossing function
B7000103
Junction Crossing function can help
avoid a collision with oncoming vehicles
on the left or right side when crossing an
intersection by applying emergency
braking.
Direct Oncoming function
B7000104
[A] Oncoming vehicle
Direct Oncoming function helps reduce
the speed at the collision when a vehicle
approaching from the opposite side is
detected.
if equipped
Lane-Change Oncoming function
B7000105
[A] Oncoming vehicle
Lane-Change Oncoming function helps
avoid a collision with an oncoming
vehicle when changing lanes by assisting
the driver’s steering.
Hyundai_CE_en_US.book Page 5
Driver Assistance System
7-6
if equipped

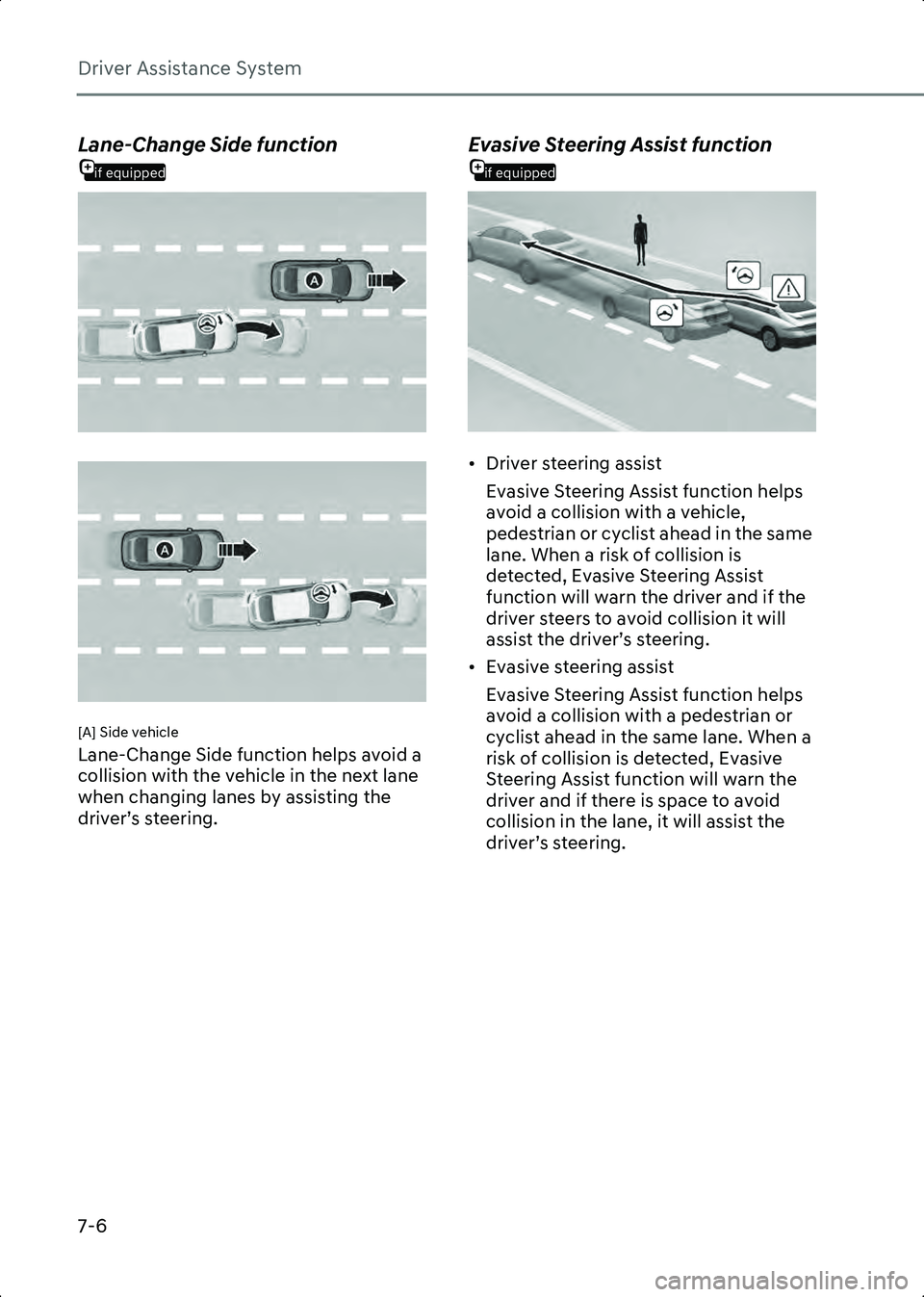

Lane-Change Side function
B7000106
B7000106_1
[A] Side vehicle
Lane-Change Side function helps avoid a
collision with the vehicle in the next lane
when changing lanes by assisting the
driver’s steering.
if equipped
Evasive Steering Assist function
B7000107
• Driver steering assistEvasive Steering Assist function helps
avoid a collision with a vehicle,
pedestrian or cyclist ahead in the same
lane. When a risk of collision is
detected, Evasive Steering Assist
function will warn the driver and if the
driver steers to avoid collision it will
assist the driver’s steering.
• Evasive steering assist Evasive Steering Assist function helps
avoid a collision with a pedestrian or
cyclist ahead in the same lane. When a
risk of collision is detected, Evasive
Steering Assist function will warn the
driver and if there is space to avoid
collision in the lane, it will assist the
driver’s steering.
Hyundai_CE_en_US.book Page 6
7
7-9
if equipped
Forward Cross-Traffic Safety
B7000201_2
With the vehicle on, select Setup >
Vehicle > Driver Assistance > Driving
Safety > Forward Cross-Traffic Safety
from the Settings menu to turn on
Junction crossing function and deselect
to turn off the function.
if equipped
Forward/Side Safety
B7000203
With the vehicle on, select Setup >
Vehicle > Driver Assistance > Driving
Safety > Forward/Side Safety from the
Settings menu to turn on Lane-Change
Oncoming function, Lane-Change Side
function, Evasive Steering Assist function
and deselect to turn off the functions.
• If Forward/Side Safety is selected,
Forward Collision-Avoidance Assist will
warn the driver, steering wheel
vibration, a warning message, an
audible warning depending on the collision risk levels. Steering assist will
be applied depending on the collision
risk levels. If
Forward/Side Safety is
deselected, Forward/Side Safety will
turn off. The warning light ( ) will
illuminate on the instrument cluster.
WARNING When the vehicle is restarted, Forward
Collision-Avoidance Assist will always
turn on. However, at all times, and
especially if Forward Safety is
deselected, the driver should always be
aware of the surroundings and drive
safely.
CAUTION • The setting for Forward Safety include ‘Basic function’ and ‘Junction Turning’,
and 'Direct Oncoming’.
• The setting for Forward-Cross Traffic Safety includes ‘Junction Crossing’.
• The setting for Forward/Side Safety includes ‘Lane Change Oncoming’,
‘Lane-Change Side’ and ‘Evasive
Steering Assist’ (if equipped).
• If Forward Safety is deselected,
Junction Crossing function will not
operate even when Forward
Cross-Traffic Safety and Forward/Side
Safety is selected. (if equipped)
• Steering wheel vibration can be turned on or off. Select or deselect Driver
Assistance > Warning Methods >
Haptic Warning from the Settings
menu.
Hyundai_CE_en_US.book Page 9
