Seats & Safety System
3-38
ability to control the SRS deployment
based on whether or not the seat belts are
fastened, and how severe the impact is.
The advanced SRS offers the ability to
control the airbag inflation within two
levels. A first stage level is provided for
moderate-severity impacts. A second
stage level is provided for more severe
impacts.
According to the impact severity, and
seat belt usage, the SRS Control Module
(SRSCM) controls the airbag inflation.
Failure to properly wear seat belts can
increase the risk or severity of injury in an
accident.
WARNING To reduce the risk of serious injury or
death from inflating front airbags, take
the following precautions:
• Seat belts must be worn at all times to help keep occupants positioned
properly.
• Move your seat as far back as possible from front airbags, while still
maintaining control of the vehicle.
• Never lean against the door or center console.
• Do not allow the front passenger to place their feet or legs on the
dashboard.
• Never place any objects (such as dashboard cover, mobile phone holder,
cup holder, perfume or stickers) over or
near the airbag modules on the steering
wheel, instrument panel, windshield
glass, and the front passenger’s panel
above the glove box. Such objects may
cause harm if the vehicle is in a collision
severe enough to cause the airbags to
deploy.
• Do not attach any objects on the front windshield and inside mirror.
Side airbags
Side airbag
B3003202
B3003203
Your vehicle is equipped with a side
airbag in each front seat. The purpose of
the airbag is to provide the vehicle’s
driver and the front passenger with
additional protection than that offered by
the seat belt alone.
The side airbags are designed to deploy
during certain side impact collisions,
depending on the crash severity, angle,
speed and point of impact.
The side airbags on both sides of the
vehicle are designed to deploy when a
rollover is detected by a rollover sensor.
(if equipped with rollover sensor)
The side airbags are not designed to
deploy in all side impact or rollover
situations.
The side airbags are designed to deploy
during certain side impact collisions,
depending on the crash severity.
For vehicles equipped with a rollover
sensor the side and/or curtain airbags and
Hyundai_CE_en_US.book Page 38
Page 133 of 582
3
3-39
pretensioners on both sides of the vehicle
may deploy if a rollover or possible
rollover is detected.
The side airbags are not designed to
deploy in all side impact or rollover
situations.
WARNING To reduce the risk of serious injury or
death from an inflating side airbag, take
the following precautions:
• Seat belts must be worn at all times to help keep occupants positioned
properly.
• Do not allow passengers to lean their heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.
• Hold the steering wheel at the 9 o’clock and 3 o’clock positions, to minimize the
risk of injuries to your hands and arms.
• Do not use any accessory seat covers. This could reduce or prevent the
effectiveness of the system.
• Do not hang other objects except clothes. In an accident it may cause
vehicle damage or personal injury
especially when airbag is inflated.
• Do not place any objects over the airbag or between the airbag and
yourself. Also, do not attach any objects
around the area the airbag inflates such
as the door, side door glass, front and
rear pillar.
• Do not place any objects between the door and the seat. They may become
dangerous projectiles if the side airbag
inflates.
• Do not install any accessories on the side or near the side airbags.
• Do not impact the doors when the Start/Stop button is in the ON or START
position as this may cause the side
airbags to inflate. • If the seat or seat cover is damaged,
have the system serviced by an
authorized HYUNDAI dealer.
Curtain airbags
B3003301
B3003302
Curtain airbags are located along both
sides of the roof rails above the front and
rear doors.
They are designed to help protect the
heads of the front seat occupants and the
rear outboard seat occupants in certain
side impact collisions.
The curtain airbags are designed to
deploy during certain side impact
collisions, depending on the crash
severity.
For vehicles equipped with a rollover
sensor the side and/or curtain airbags and
pretensioners on both sides of the vehicle
may deploy if a rollover or possible
rollover is detected.
Hyundai_CE_en_US.book Page 39
Page 134 of 582
Seats & Safety System
3-40
The curtain airbags are not designed to
deploy in all side impact or rollover
situations.
WARNING To reduce the risk of serious injury or
death from an inflating curtain airbag,
take the following precautions:
• All occupants must wear seat belts at all times to help keep occupants
positioned properly.
• Properly secure Child Restraint System as far away from the door as possible.
• Do not place any objects over the airbag. Also, do not attach any objects
around the area the airbag inflates such
as the door, side door glass, front and
rear pillar, roof side rail.
• Do not hang other objects except clothes, especially hard or breakable
objects.
In an accident, it may cause vehicle
damage or personal injury.
• Do not allow passengers to lean their heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.
• Do not attempt to open or repair the side curtain airbags yourself. If
necessary, have the airbag inspected
by an authorized HYUNDAI dealer.
How does the Airbags System
Operate?
A3002401
The SRS consists of the following
components:
(1) Driver’s front airbag module
(2) Passenger’s front airbag module
(3) Side airbag modules
(4) Curtain airbag modules
(5) Retractor pretensioner
(6) Airbag warning light
(7) SRS control module (SRSCM)/Rollover sensor
(8) Front impact sensors
(9) Side impact sensors (acceleration)
(10) Side impact sensors (pressure)
(11) Occupant classification system
(12) Driver’s and front passenger’s seat belt buckle sensors.
The SRSCM (Supplemental Restraint
System Control Module) continually
monitors all SRS components while the
Start/Stop button is ON to determine if a
crash impact is severe enough to require
airbag deployment or pretensioner seat
belt deployment.
4
5
5
11
1
23
37
8
86
9
49
10
10
12
Hyundai_CE_en_US.book Page 40

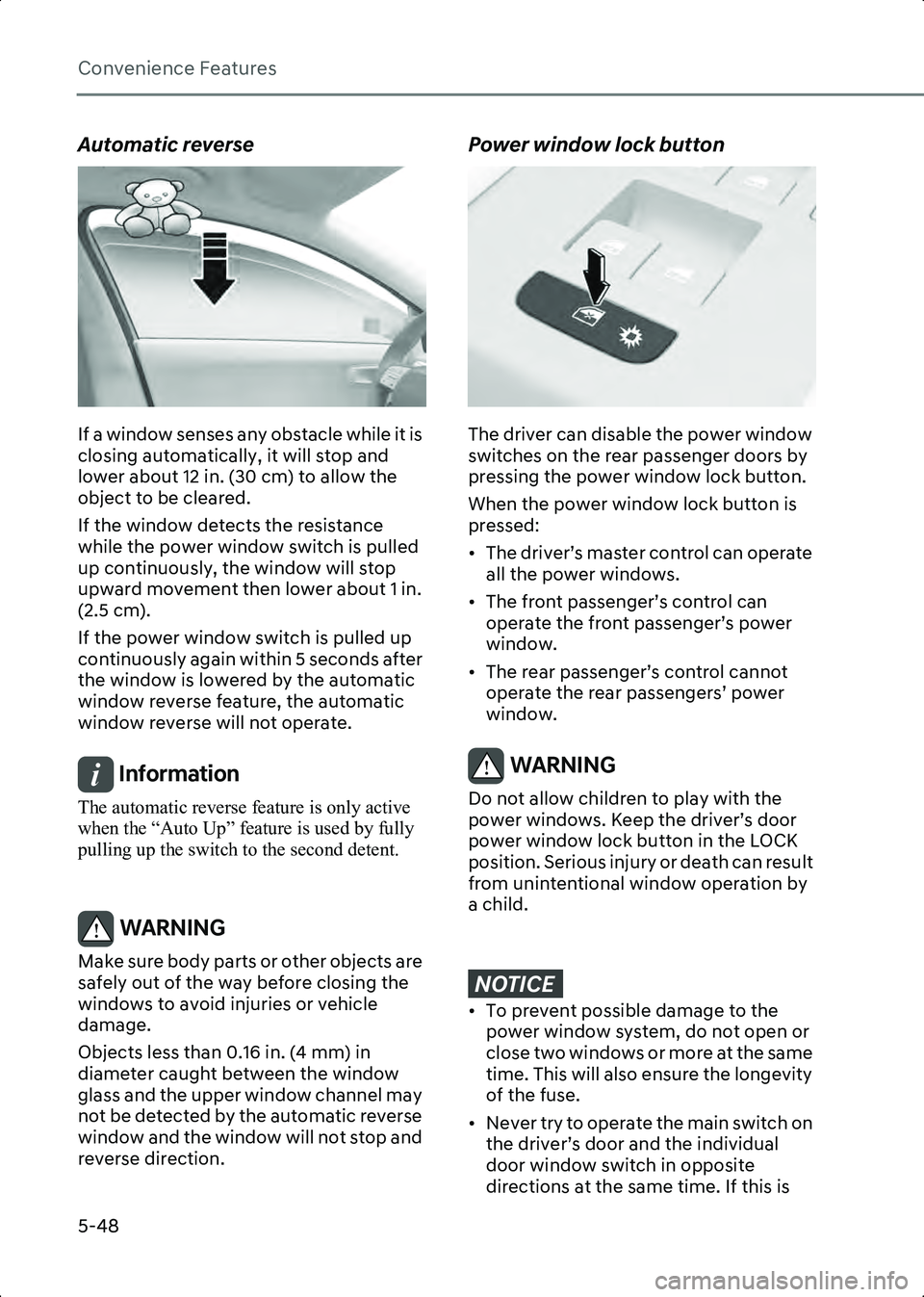

Page 226 of 582
Convenience Features
5-48
Automatic reverse
B5008202
If a window senses any obstacle while it is
closing automatically, it will stop and
lower about 12 in. (30 cm) to allow the
object to be cleared.
If the window detects the resistance
while the power window switch is pulled
up continuously, the window will stop
upward movement then lower about 1 in.
(2.5 cm).
If the power window switch is pulled up
continuously again within 5 seconds after
the window is lowered by the automatic
window reverse feature, the automatic
window reverse will not operate.
Information The automatic reverse feature is only active
when the “Auto Up” feature is used by fully
pulling up the switch to the second detent.
WARNING Make sure body parts or other objects are
safely out of the way before closing the
windows to avoid injuries or vehicle
damage.
Objects less than 0.16 in. (4 mm) in
diameter caught between the window
glass and the upper window channel may
not be detected by the automatic reverse
window and the window will not stop and
reverse direction.
Power window lock button
B5008203
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock button.
When the power window lock button is
pressed:
• The driver’s master control can operate all the power windows.
• The front passenger’s control can operate the front passenger’s power
window.
• The rear passenger’s control cannot operate the rear passengers’ power
window.
WARNING Do not allow children to play with the
power windows. Keep the driver’s door
power window lock button in the LOCK
position. Serious injury or death can result
from unintentional window operation by
a child.
NOTICE [ 7 R S U H Y H Q W S R V V L E O H G D P D J H W R W K H S R Z H U Z L Q G R Z V \ V W H P G R Q R W R S H Q R U
F O R V H W Z R Z L Q G R Z V R U P R U H D W W K H V D P H
W L P H 7 K L V Z L O O D O V R H Q V X U H W K H O R Q J H Y L W \
R I W K H I X V H
[ 1 H Y H U W U \ W R R S H U D W H W K H P D L Q V Z L W F K R Q W K H G U L Y H UT V G R R U D Q G W K H L Q G L Y L G X D O
G R R U Z L Q G R Z V Z L W F K L Q R S S R V L W H
G L U H F W L R Q V D W W K H V D P H W L P H , I W K L V L V
Hyundai_CE_en_US.book Page 48
Page 228 of 582
Convenience Features
5-50
if equipped
Wide Sunroof
If your vehicle is equipped with a sunroof,
you can slide or tilt your sunroof with the
sunroof switch located on the overhead
console.
B5027301
The sunroof can only be operated when
the Start/Stop button is in the ON or
START position.
The sunroof can be operated for about 3
minutes after the Start/Stop button is in
the ACC or OFF position. However, if the
front door is open, the sunroof cannot be
operated even within the 3 minute period.
WARNING • Adjust the sunroof or sunshade when your vehicle stops. This could result in
loss of control and an accident that may
cause injury, or property damage.
• Do not leave the vehicle running and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.
• Do not sit on the top of the vehicle. It may cause injury or vehicle damage.
NOTICE ' R Q R W R S H U D W H W K H V X Q U R R I Z K H Q U R R I
E D U V D U H L Q V W D O O H G R Q W K H Y H K L F O H R U Z K H Q
W K H U H L V O X J J D J H R Q W K H U R R I
Power sunshade
B5027401
Use the power sunshade to block direct
sunlight coming through the sunroof
glass.
• Push the sunroof switch rearward to the first detent position, the power
sunshade automatically slides open.
• Push the sunroof switch forward to the first detent position, the power
sunshade automatically closes.
However, if the sunroof glass is open,
the glass will close first.
To stop the power sunshade at any point,
push the sunroof switch in any direction.
NOTICE ' R Q R W S X O O R U S X V K W K H S R Z H U V X Q V K D G H
E \ K D Q G D V V X F K D F W L R Q P D \ G D P D J H W K H
S R Z H U V X Q V K D G H R U F D X V H L W W R
P D O I X Q F W L R Q
Information Wrinkles formed on the power sunshade are
normal due to material characteristic.
Hyundai_CE_en_US.book Page 50

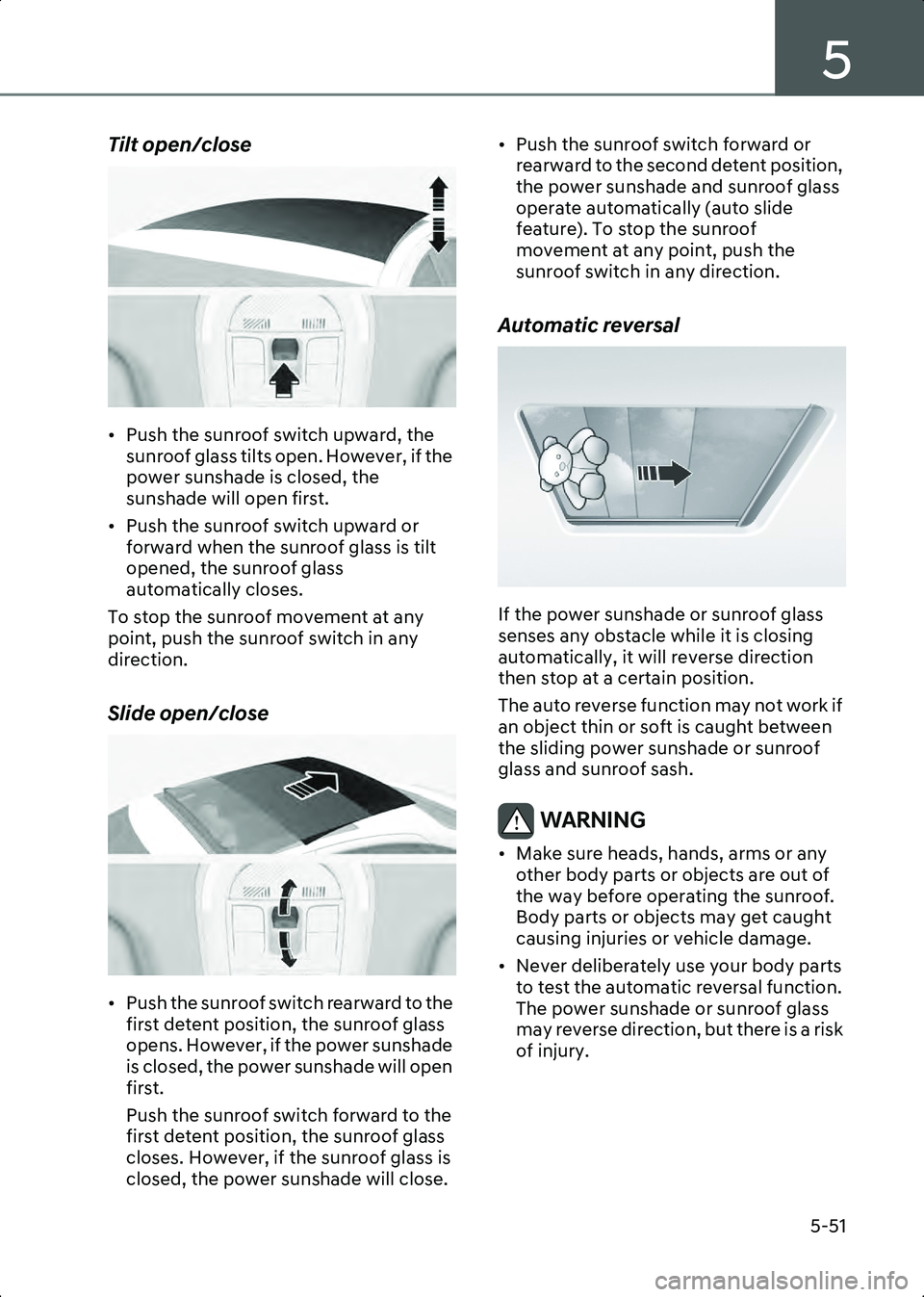

Page 229 of 582
5
5-51
Tilt open/close
B5027501
• Push the sunroof switch upward, the sunroof glass tilts open. However, if the
power sunshade is closed, the
sunshade will open first.
• Push the sunroof switch upward or forward when the sunroof glass is tilt
opened, the sunroof glass
automatically closes.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
Slide open/close
B5027601
• Push the sunroof switch rearward to the first detent position, the sunroof glass
opens. However, if the power sunshade
is closed, the power sunshade will open
first.
Push the sunroof switch forward to the
first detent position, the sunroof glass
closes. However, if the sunroof glass is
closed, the power sunshade will close. • Push the sunroof switch forward or
rearward to the second detent position,
the power sunshade and sunroof glass
operate automatically (auto slide
feature). To stop the sunroof
movement at any point, push the
sunroof switch in any direction.
Automatic reversal
B5027701
If the power sunshade or sunroof glass
senses any obstacle while it is closing
automatically, it will reverse direction
then stop at a certain position.
The auto reverse function may not work if
an object thin or soft is caught between
the sliding power sunshade or sunroof
glass and sunroof sash.
WARNING • Make sure heads, hands, arms or any other body parts or objects are out of
the way before operating the sunroof.
Body parts or objects may get caught
causing injuries or vehicle damage.
• Never deliberately use your body parts to test the automatic reversal function.
The power sunshade or sunroof glass
may reverse direction, but there is a risk
of injury.
Hyundai_CE_en_US.book Page 51
Page 230 of 582
Convenience Features
5-52
NOTICE [ ' R Q R W F R Q W L Q X H W R S X V K W K H V X Q U R R I V Z L W F K D I W H U W K H V X Q U R R I L V I X O O \ R S H Q H G
F O R V H G R U W L O W H G ' D P D J H W R W K H V X Q U R R I
P R W R U F R X O G R F F X U
[ & R Q W L Q X R X V R S H U D W L R Q V V X F K D V V O L G H R S H Q F O R V H W L O W R S H Q F O R V H H W F P D \
F D X V H W K H P R W R U R U V X Q U R R I V \ V W H P W R
P D O I X Q F W L R Q
[ 5 H J X O D U O \ U H P R Y H D Q \ D F F X P X O D W H G G X V W R Q W K H V X Q U R R I U D L O
[ ' X V W D F F X P X O D W H G E H W Z H H Q W K H V X Q U R R I D Q G U R R I S D Q H O F D Q P D N H Q R L V H 2 S H Q
W K H V X Q U R R I D Q G U H P R Y H G X V W U H J X O D U O \
X V L Q J D F O H D Q F O R W K
[ ' R Q R W W U \ W R R S H Q W K H V X Q U R R I Z K H Q W K H W H P S H U D W X U H L V E H O R Z I U H H ] L Q J R U Z K H Q
W K H V X Q U R R I L V F R Y H U H G Z L W K V Q R Z R U L F H
7 K H V X Q U R R I P D \ Q R W Z R U N S U R S H U O \ D Q G
P D \ E U H D N L I R S H Q H G E \ I R U F H
[ ' R Q R W R S H Q R U G U L Y H Z L W K W K H V X Q U R R I J O D V V R S H Q L P P H G L D W H O \ D I W H U U D L Q R U
Z D V K L Q J W K H Y H K L F O H : D W H U P D \ Z H W W K H
L Q W H U L R U R I W K H Y H K L F O H
[ ' R Q R W H [ W H Q G D Q \ O X J J D J H R X W V L G H W K H V X Q U R R I Z K L O H G U L Y L Q J 9 H K L F O H G D P D J H
P D \ R F F X U L I W K H Y H K L F O H V X G G H Q O \
V W R S V
WARNING Do not extend your head, arms, body
parts or objects outside the sunroof while
driving. Injuries may occur if the vehicle
suddenly stops.
Resetting the sunroof
B5027801
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:
• When the 12 V battery is either disconnected or discharged
• When the sunroof fuse is replaced
• If the sunroof one-touch AUTO OPEN/CLOSE operation is not
functioning properly
Sunroof resetting procedure:
1. It is recommended to perform the reset procedure with the vehicle running.
Start the vehicle in P (Park).
2. Make sure the power sunshade and sunroof glass are in the fully closed
position. If the power sunshade and
sunroof glass are open, push the switch
forward until the power sunshade and
sunroof glass are fully closed.
3. Release the switch when the power sunshade and sunroof glass are fully
closed.
4. Push the switch forward until the power sunshade and sunroof glass move
slightly. Then release the switch.
5. Once again push and hold the sunroof switch forward until the power
sunshade and sunroof glass slide open
Hyundai_CE_en_US.book Page 52
Page 241 of 582
5
5-63
if equipped
Head-up Display
B5014101
The Head-up display is an optional
feature that allows the driver to view
information projected onto a transparent
screen while still keeping your eyes safely
on the road ahead while driving.
Head-up Display Settings
B5014201
• Head-up display can be enabled from the Settings menu in the infotainment
system.
Select Setup > Vehicle > Head-Up
Display > Enable Head-Up Display .
• After turning on the Head-up display, you can change the settings of ‘Display
Control’ and ‘Content Selection’ of the
Head-Up Display.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Head-up Display Information
B5014301
1. Turn by Turn (TBT) navigation
2. Traffic
3. Speedometer
4. SCC set speed
5. SCC vehicle distance
6. Lane Following Assist
7. Lane Safety
8. Blind-Spot Safety
9. Highway Auto Speed Change
10.Highway Driving Assist
11.Surrounding vehicle
Precautions while Using the
Head-up Display
• It may sometimes be difficult to read information on the Head-up display in
the following situations.
- The driver is improperly positioned in the driver’s seat
- The driver wears polarizing-filter sunglasses
2
11
10
5
67
1
349
8
/ B N Z B O H 4 U S F F U
G U
N Q I
Hyundai_CE_en_US.book Page 63
