2023 HYUNDAI IONIQ 6 infotainment

Driving Your Vehicle
6-40
Electric energy efficiency varies
according to the driver's driving habit and
road condition.
• When ECO mode is selected, the ECO indicator illuminates on the instrument
cluster and the color of the mood lamp
is changed.
• When ECO mode is activated: - The acceleration response may be slightly reduced if the accelerator
pedal is depressed moderately.
- The air conditioner performance may be limited.
The above situations are normal
conditions when ECO mode is
activated to help improve electric
energy efficiency.
Limitations of ECO mode
If the following conditions occur while
ECO mode is operating, the system
operation is limited even though there is
no change in the ECO indicator.
• When coolant temperature is low: The system will be limited until motor
performance becomes normal.
• When driving up a hill: The system will be limited to gain
power when driving uphill because
motor torque is restricted.
SPORT mode
SPORT mode is a driving mode improving
driving performance by controlling
motors and gear.
In SPORT mode, the electric energy
efficiency may decrease.
• When SPORT mode is selected, the SPORT indicator illuminates on the
instrument cluster and the color of the
mood lamp is changed.
• Whenever the vehicle is restarted, the drive mode reverts back to NORMAL
mode. If SPORT mode is desired,
re-select SPORT mode.
SNOW mode
SNOW mode provides safe driving on the
snowy roads.
• Press and hold the drive mode button to select SNOW mode.
• When SNOW mode is selected, the SNOW indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.
NOTICE
[ 'HSUHVVWKHDFFHOHUDWRUSHGDOVRIWO\RQWKHVQRZDQGWKHLFH

[ .HHSWKHGLVWDQFHIURPWKHYHKLFOHLQ WKHIURQW

[ 3UHYHQWUDSLGDFFHOHUDWLRQ GHFHOHUDWLRQDQGVWHHULQJFRQWURO
$EUXSWGULYLQJRQWKHVQRZPD\FDXVH
WKHDFFLGHQW

MY DRIVE MODE
In MY DRIVE MODE, you can adjust the
vehicle performance for each function. To
set MY DRIVE MODE, go to Setup >
Vehicle > Drive mode > CUSTOM > MY
DRIVE MODE in the infotainment system.
Press and hold the drive mode button to
select MY DRIVE MODE. The MY DRIVE
MODE indicator will illuminate on the
instrument cluster.
• If the controller is replaced or the controller software is updated, the
setting of MY DRIVE MODE may be
initialized.
MY DRIVE MODE
Power output Maximized/Normal/
Minimized
Acceleration sensitivity High/Moderate/Low
Steering NORMAL/SPORT
Hyundai_CE_en_US.book Page 40

Driving Your Vehicle
6-42
instrument cluster and the color of the
mood lamp is changed.
• Whenever the vehicle is restarted, the drive mode reverts back to NORMAL
mode. If SPORT mode is desired,
re-select SPORT mode.
SNOW mode
SNOW mode is a driving mode improving
driving performance by changing the
engagement status of the motor
according to the situation required. Auto
changing the driving
mode(2WD/AWD)helps improve driving
stability.
• Press and hold the drive mode button to select SNOW mode.
• When SNOW mode is selected, the SNOW indicator will illuminate on the
instrument cluster and the color of the
mood lamp will change.
• When SNOW mode is activated, the driving power is distributed to four
wheels automatically, increasing the
stability of the vehicle.
NOTICE
[ 'HSUHVVWKHDFFHOHUDWRUSHGDOVRIWO\RQWKHVQRZDQGWKHLFH

[ .HHSWKHGLVWDQFHIURPWKHYHKLFOHLQ WKHIURQW

[ 3UHYHQWUDSLGDFFHOHUDWLRQ GHFHOHUDWLRQDQGVWHHULQJFRQWURO
$EUXSWGULYLQJRQWKHVQRZPD\FDXVH
WKHDFFLGHQW

MY DRIVE MODE
In MY DRIVE MODE, you can adjust the
vehicle performance for each function. To
set MY DRIVE MODE, go to Setup >
Vehicle > Drive mode > CUSTOM > MY
DRIVE MODE in the infotainment system.
Press and hold the drive mode button to
select MY DRIVE MODE. The MY DRIVE
MODE indicator will illuminate on the
instrument cluster.
• When driving in 2WD, AWD will operate under following conditions:
- Driving at low speed or stopping
- Driving on an uphill or slippery road
- Malfunction of the rear-wheel motor
• If the controller is replaced or the controller software is updated, the
setting of MY DRIVE MODE may be
initialized.
MY DRIVE MODE
Power output Maximized/Normal/Mini
mized
Acceleration sensitivity High/Moderate/Low
Steering NORMAL/SPORT
Driveline AWD/AUTO
AWD/2WD
Hyundai_CE_en_US.book Page 42

6
6-43
Drive Modes Characteristic
The characteristic of each components varies depending on which drive mode is
selected.
*1 It is possible to set the driving condition for each drive mode, at the drive mode setting in Infotainment system.
Information The infotainment system may change after software updates. For more information, refer to the
user`s manual provided in the infotainment system and the quick reference guide.

Drive ModeSNOWNORMALECOSPORT
Characteristics Snow driving Normal
driving mode High electric energy
efficiency mode Sporty driving
mode
Button
activation Press more
than 1 sec. Press
Press Press
Indicator on the cluster SNOW NORMAL
ECOSPORT
Climate system control NORMAL NORMAL ECO(ECO/NORMAL)
*1NORMAL
Speed Limit - -- -
Regenerative braking level 0-1
0-3
Brake mode NORMAL NORMAL/SPO
RT
*1NORMAL NORMAL/SPO
RT *1
Hyundai_CE_en_US.book Page 43

6
6-45
if equipped
Active Sound Design
• Active Sound Design provides various virtual driving sounds based on the
driving mode, vehicle speed, and
accelerator pedal. You can adjust the
volume and change the settings for
acceleration pedal response and sound
style.
• To change the volume of the Active Sound Design in the infotainment
system, select: Setup > Vehicle >
Active Sound Design , or Setup >
Sound > Active Sound Design .
• The volume of the Active Sound Design is adjusted according to the drive mode
(Eco, Normal, Sport) selected.
• Any unauthorized replacement of the vehicle’s speaker and amplifier may
cause Active Sound Design to
malfunction.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

Special Driving
Conditions
Hazardous Driving Conditions
When hazardous driving elements are
encountered such as water, snow, ice,
mud and sand, take the following
precautions:
• Drive cautiously and maintain a longer braking distance.
• Avoid abrupt braking or steering.
• When your vehicle is stuck in snow, mud, or sand, accelerate slowly to
avoid unnecessary wheel spin.
• Put sand, rock salt, tire chains or other non-slip materials under the wheels to
provide additional traction while the
vehicle becomes stuck in ice, snow, or
mud.
WARNING Changing the tire speed suddenly could
cause the tires to skid while driving on
slippery surface. Be careful when driving
on slippery surfaces.

Hyundai_CE_en_US.book Page 45

Driver Assistance System
7-4
Driver Assistance System
Notice
Due to the infotainment software update,
the description of each function of the
driver assistance system may differ from
the owner's manual. In this case, for
detailed information on updates, scan the
QR code in the separately supplied simple
manual.
Forward
Collision-Avoidance
Assist (FCA)
Basic function
B7000101
Forward Collision-Avoidance Assist
detects a vehicle, a powered-two
wheeler, a pedestrian, or a cyclist ahead
on the road and may warn you of a
possible collision with a warning message
on the instrument cluster and a warning
sound. Also, Forward Collision-Avoidance
Assist may assist with braking your
vehicle to help reduce collision speed or
avoid a collision.
In addition, when driving at high speeds,
Forward Collision-Avoidance Assist will
help detect vehicles in front and adjacent
lanes. If a collision is imminent when
changing lanes, Forward
Collision-Avoidance Assist will apply
emergency braking to help prevent a
collision. (if equipped)
Hyundai_CE_en_US.book Page 4

Driver Assistance System
7-10
Forward Safety Warning Timing
B7000204
With the vehicle on, select Setup >
Vehicle > Driver Assistance > Driving
Safety > Forward Safety Warning Timing
from the Settings menu to change the
initial warning activation time for Forward
Collision-Avoidance Assist. The warning
time can be set to either Standard or
Late.
• Use Standard in normal driving
conditions. If the Warning Timing
seems sensitive, change it to Late.
• If Late is selected, Forward
Collision-Avoidance Assist, warns the
driver more slowly.
CAUTION • Even though Standard is selected for
Warning Timing, if a detected vehicle in
front suddenly stops, the warning may
seem late.
• Select Late for Warning Timing when
traffic is light and when driving speed is
slow.

Information • If you change the Warning timing, the Warning timing of other Driver assistance
systems may change.
• If the vehicle is restarted, Warning timing will maintain the last setting.

Warning Methods
B7000205
B7000205_1
With the vehicle on, go to Setup > Vehicle
> Driver Assistance > Warning Methods
from the Settings in the infotainment
system to select the following:
• Warning Volume : The Warning Volume
can be adjusted.
• Haptic Warning : The steering wheel
vibration can be set.
• Driving Safety Priority : Your vehicle
lowers all other audio volumes when
the Driver Assistance system warning
sounds.
Information • If you change the Warning Methods, Warning Methods of other Driver
Assistance systems may change.
• If the vehicle is restarted, Warning Methods will maintain the last setting.
• There may be no Settings menu depending on the feature applied to your vehicle.
Hyundai_CE_en_US.book Page 10

Driver Assistance System
7-28
Lane Keeping Assist Settings
Lane Safety
B7001001
With the vehicle on, select Setup >
Vehicle > Driver Assistance > Driving
Safety > Lane Safety from the Settings
menu to set whether to use each
function.
If Lane Safety is selected, Lane Keeping
Assist will automatically assist the driver’s
steering when lane departure is detected
to help prevent the vehicle from moving
out of its lane. If Lane Safety is
deselected, Lane keeping Assist will turn
off and the ( ) indicator light will turn off
on the instrument cluster.
WARNING • Lane Keeping Assist does not control the steering wheel when the vehicle is
driven in the middle of the lane.
• The driver should always be aware of the surroundings. If Lane Safety is
deselected, Lane Keeping Assist cannot
assist you.

Warning Methods
B7000205_2
B7000205_3
With the vehicle on, go to Setup > Vehicle
> Driver Assistance > Warning Methods
from the Settings in the infotainment
system to select the following:
• Warning Volume : The Warning Volume
can be adjusted.
• Haptic Warning : The steering wheel
vibration can be set.
• Lane Safety Audible Warning Off : The
warning volume of Lane Safety does
not sound when Haptic Warning is
selected.
• Driving Safety Priority : Your vehicle
lowers all other audio volumes when
the Driver Assistance system warning
sounds.
Information • If you change the Warning Methods, Warning Methods of other Driver
Assistance systems may change.
Hyundai_CE_en_US.book Page 28

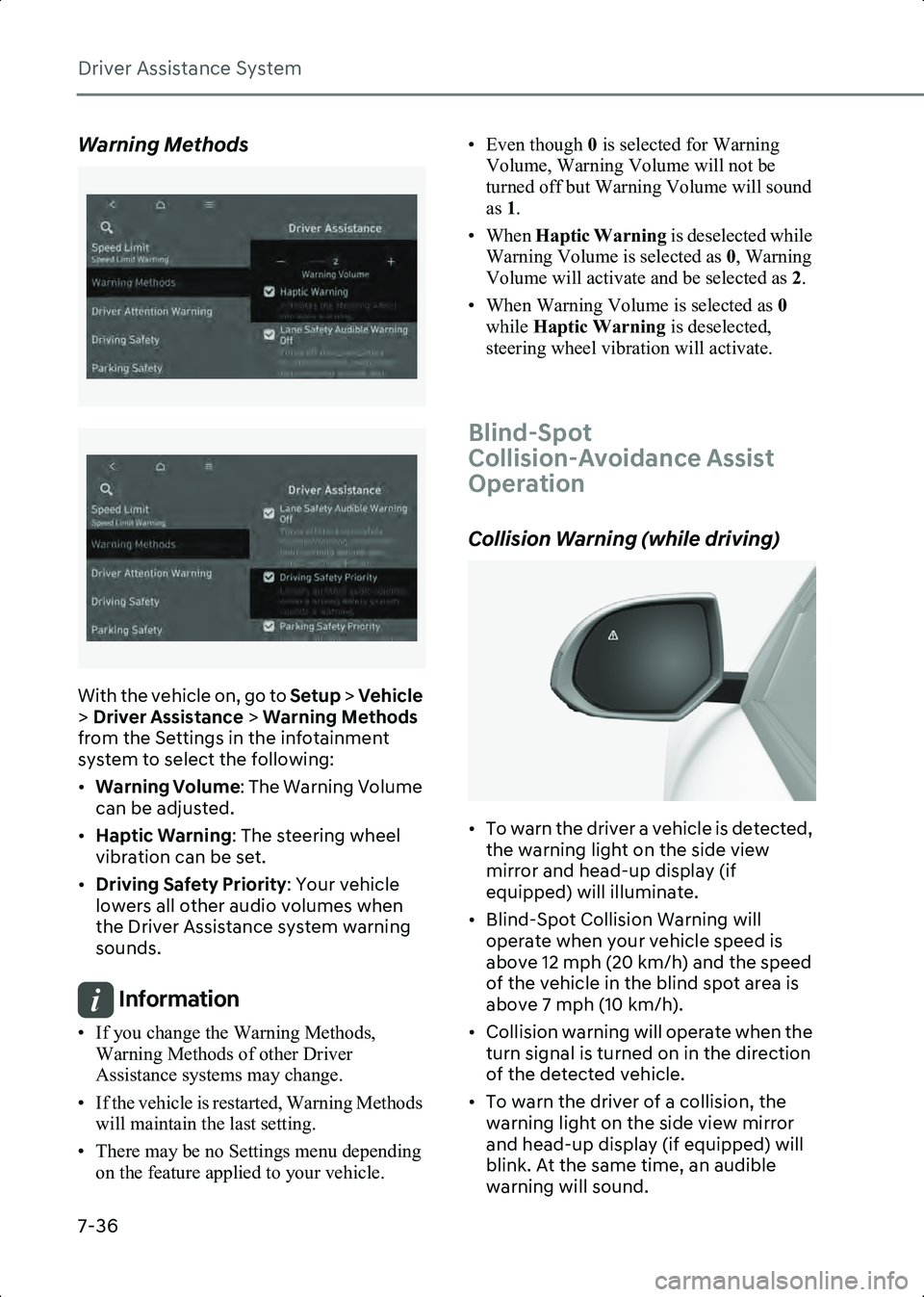

Driver Assistance System
7-36
Warning Methods
B7000205
B7000205_1
With the vehicle on, go to Setup > Vehicle
> Driver Assistance > Warning Methods
from the Settings in the infotainment
system to select the following:
• Warning Volume : The Warning Volume
can be adjusted.
• Haptic Warning : The steering wheel
vibration can be set.
• Driving Safety Priority : Your vehicle
lowers all other audio volumes when
the Driver Assistance system warning
sounds.
Information • If you change the Warning Methods, Warning Methods of other Driver
Assistance systems may change.
• If the vehicle is restarted, Warning Methods will maintain the last setting.
• There may be no Settings menu depending on the feature applied to your vehicle. • Even though
0 is selected for Warning
Volume, Warning Volume will not be
turned off but Warning Volume will sound
as 1.
• When Haptic Warning is deselected while
Warning Volume is selected as 0, Warning
Volume will activate and be selected as 2.
• When Warning Volume is selected as 0
while Haptic Warning is deselected,
steering wheel vibration will activate.

Blind-Spot
Collision-Avoidance Assist
Operation
Collision Warning (while driving)
B7001501
• To warn the driver a vehicle is detected, the warning light on the side view
mirror and head-up display (if
equipped) will illuminate.
• Blind-Spot Collision Warning will operate when your vehicle speed is
above 12 mph (20 km/h) and the speed
of the vehicle in the blind spot area is
above 7 mph (10 km/h).
• Collision warning will operate when the turn signal is turned on in the direction
of the detected vehicle.
• To warn the driver of a collision, the warning light on the side view mirror
and head-up display (if equipped) will
blink. At the same time, an audible
warning will sound.
Hyundai_CE_en_US.book Page 36
