5
5-103
electronic systems or devices used in
your vehicle.
• Push the plug in as far as it will go. If good contact is not made, the plug may
overheat and the fuse may open.
• Plug in battery equipped electrical/electronic devices with
reverse current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
if equipped
USB Charger
Front
B5023701Rear
B5023702
The USB charger is designed to recharge
batteries of small size electrical devices
using a USB cable.
The electrical devices can be recharged
when the Start/Stop button is in the ON or
START position. The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the USB
port after use.
• A smartphone or a tablet PC may get
warmer during the recharging process.
It does not indicate any malfunction
with the charging system.
• A smartphone or a tablet PC, which adopts a different recharging method,
may not be properly recharged. In this
case, use an exclusive charger of your
device.
• The charging terminal is only to recharge a device. Do not use the
charging terminal either to turn ON an
audio or to play media In the
infotainment system.
NOTICE [ 8 V H W K H 8 6 % F K D U J H U Z K H Q W K H Y H K L F O H R Q L Q G L F D W R U R Q \f 8 V L Q J W K H 8 6 %
F K D U J H U I R U S U R O R Q J H G S H U L R G V R I W L P H
Z L W K W K H Y H K L F O H R I I F R X O G F D X V H W K H
E D W W H U \ W R G L V F K D U J H
[ 7 R S U H Y H Q W G D P D J H W R W K H 8 6 % F K D U J H U ' R Q R W L Q V H U W I R U H L J Q R E M H F W V R U V S L O O O L T X L G L Q W R W K H R X W O H W 7 K H 8 6 %
F K D U J L Q J W H U P L Q D O P D \ E H G D P D J H G
' R Q R W X V H G H Y L F H V Z L W K F X U U H Q W F R Q V X P S W L R Q H [ F H H G L Q J P $
$ \f
Hyundai_CE_en_US.book Page 103
Page 282 of 582
![HYUNDAI IONIQ 6 2023 Owners Manual Convenience Features
5-104
Wireless Smartphone
if equipped
Charging System
B5023901[A] Indicator light
[B] Charging pad
On certain models, the vehicle comes
equipped with a wireless smartphone
char](/manual-img/35/58885/w960_58885-281.png "HYUNDAI IONIQ 6 2023 Owners Manual Convenience Features
5-104
Wireless Smartphone
if equipped
Charging System
B5023901[A] Indicator light
[B] Charging pad
On certain models, the vehicle comes
equipped with a wireless smartphone
char")
Convenience Features
5-104
Wireless Smartphone
if equipped
Charging System
B5023901[A] Indicator light
[B] Charging pad
On certain models, the vehicle comes
equipped with a wireless smartphone
charger.
The system is available when all doors are
closed, and when the Start/Stop button is
in the ON or START position.
Charging smartphone
The wireless smartphone charging
system charges only the Qi-enabled
smartphones ( ). Read the label on the
smartphone accessory cover or visit your
smartphone manufacturer’s website to
check whether your smartphone supports
the Qi technology.
The wireless charging process starts
when you put a Qi-enabled smartphone
on the wireless charging unit.
1. Remove other items, including the smart key, from the wireless charging
unit. If not, the wireless charging
process may be interrupted. Place the
smartphone on the center of the
charging pad.
2. The indicator light is orange when the smartphone is charging. The indicator
light will turn green when phone
charging is complete.
3. You can turn ON or OFF the wireless charging function from the Settings menu in the infotainment system.
Select
Setup > Vehicle > Convenience
> Wireless Charging System for Mobile
Devices
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
If your smartphone is not charging:
• Slightly change the position of the smartphone on the charging pad.
• Make sure the indicator light is orange.
The indicator light will blink orange for 10
seconds if there is a malfunction in the
wireless charging system.
In this case, temporarily stop the charging
process, and re-attempt to charge your
smartphone again.
The system warns you with a message on
the cluster display if the smartphone is
still on the wireless charging unit after the
vehicle is turned OFF and the front door is
opened.
For some manufacturer’s smartphones,
the system may not warn you even
though the smartphone is left on the
wireless charging unit. This is due to the
particular characteristic of the
smartphone and not a malfunction of the
wireless charging.
NOTICE [ 6 P D U W S K R Q H V W K D W G R Q R W K D Y H Z L U H O H V V F K D U J L Q J V W D Q G D U G \f F H U W L I L F D W L R Q
V X F K D V L 3 K R Q H V P D \ Q R W F K D U J H
Q R U P D O O \
[ : K H Q S O D F L Q J \ R X U V P D U W S K R Q H R Q W K H F K D U J L Q J S D G S R V L W L R Q W K H S K R Q H L Q W K H
P L G G O H R I W K H P D W I R U R S W L P D O F K D U J L Q J
S H U I R U P D Q F H , I \ R X U V P D U W S K R Q H L V R I I
W R W K H V L G H W K H F K D U J L Q J U D W H P D \ E H
O H V V D Q G L Q V R P H F D V H V W K H V P D U W S K R Q H
B
A
Hyundai_CE_en_US.book Page 104
Page 284 of 582
Convenience Features
5-106
Clock
The clock can be set from the
infotainment system.
For more information, refer to the user’s
manual provided in the infotainment
system and the quick reference guide.
WARNING Do not attempt to adjust the clock while
driving. Doing so may result in distracted
driving which may lead to an accident
involving personal injury or death.
Coat Hook
B5024201
These hooks are not designed to hold
large or heavy items.
WARNING
B5024202
Do not hang other objects such as
hangers or hard objects except clothes. Also, do not put heavy, sharp or breakable
objects in the clothes pockets. In an
accident or when the curtain airbag is
inflated, it may cause vehicle damage or
personal injury.
Floor Mat Anchor(s)
ALWAYS use the Floor Mat Anchors to
attach the front floor mats to the vehicle.
The anchors on the front floor carpet keep
the floor mats from sliding forward.
WARNING Do not overlay additional mats or liners
over the floor mats. If using All Weather
mats, remove the carpeted floor mats
before installing them. Only use floor
mats designed to connect to the anchors.
WARNING The following must be observed when
installing ANY floor mat to the vehicle.
• Ensure to remove a protective film
attached on the carpet before
attaching a floor mat on the front floor
carpet. Otherwise, the floor mat may
move freely on the protective film and it
could result in unintentional braking or
accelerating.
• Ensure that the floor mats are securely attached to the vehicle’s floor mat
anchor(s) before driving the vehicle.
• Do not use ANY floor mat that cannot be firmly attached to the vehicle’s floor
mat anchors.
• Do not stack floor mats on top of one another (for example, all-weather
rubber mat on top of a carpeted floor
mat). Only a single floor mat should be
installed in each position.
IMPORTANT Your vehicle was
manufactured with driver’s side floor mat
anchors that are designed to securely
Hyundai_CE_en_US.book Page 106
Page 285 of 582
5

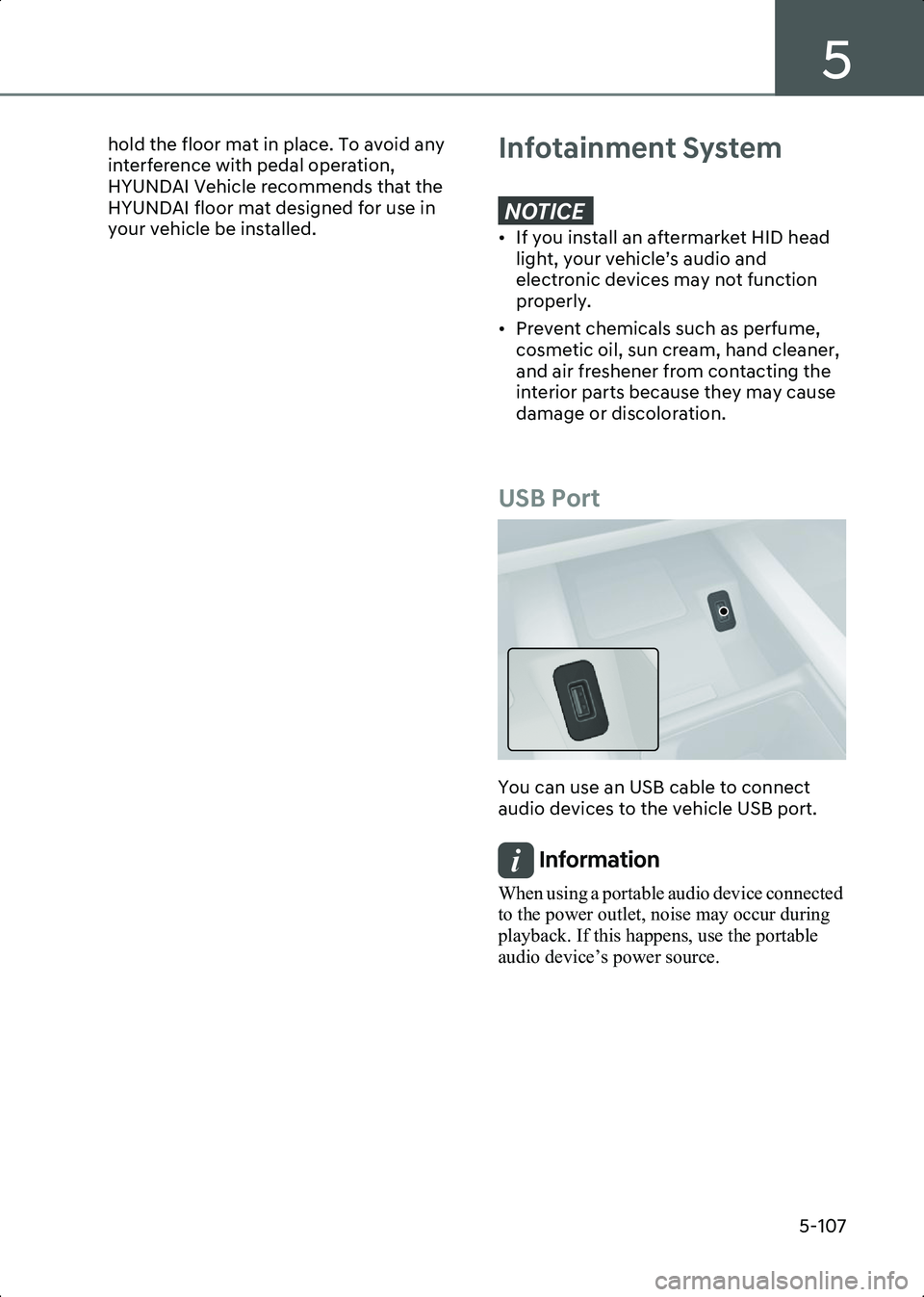

5-107
hold the floor mat in place. To avoid any
interference with pedal operation,
HYUNDAI Vehicle recommends that the
HYUNDAI floor mat designed for use in
your vehicle be installed.
Infotainment System
NOTICE • If you install an aftermarket HID head light, your vehicle’s audio and
electronic devices may not function
properly.
• Prevent chemicals such as perfume, cosmetic oil, sun cream, hand cleaner,
and air freshener from contacting the
interior parts because they may cause
damage or discoloration.
USB Port
B5025901
You can use an USB cable to connect
audio devices to the vehicle USB port.
Information When using a portable audio device connected
to the power outlet, noise may occur during
playback. If this happens, use the portable
audio device’s power source.
Hyundai_CE_en_US.book Page 107
Page 286 of 582
Convenience Features
5-108
Antenna
B5025101
The shark fin antenna will receive AM, FM
broadcast signals and transmit data.
Steering Wheel Remote
Controls
B5025401
NOTICE ' R Q R W R S H U D W H P X O W L S O H D X G L R U H P R W H
F R Q W U R O E X W W R Q V V L P X O W D Q H R X V O \
VOLUME (VOL + / VOL -) (1)
• Rotate the VOLUME scroll up to increase volume.
• Rotate the VOLUME scroll down to decrease volume.
Information You can set the volume level of each source
(FM, AM, SXM, USB, BT, etc.) individually
by adjusting the VOLUME scroll.
Then the infotainment system saves the last
volume level of each source in the system
sound settings.
If you change the source, the volume will
revert to the previously set volume for that
source.
SEEK/PRESET ( / ) (2)
If the SEEK/PRESET switch is pressed up
or down and held for 0.8 second or more,
it will function in the following modes:
RADIO mode
It will function as the AUTO SEEK select
button. It will SEEK until you release the
button.
MEDIA mode
It will function as the FF/RW button.
If the SEEK/PRESET switch is pressed up
or down, it will function in the following
modes:
RADIO mode
It will function as the PRESET STATION
UP/DOWN button.
MEDIA mode
It will function as the TRACK UP/ DOWN
button.
MODE (3)
Press the MODE button to toggle through
Radio or AUX modes.
MUTE ( ) (4)
Press the MUTE( )button to mute or
activate the sound.
12
3
4
Hyundai_CE_en_US.book Page 108
Page 287 of 582
5

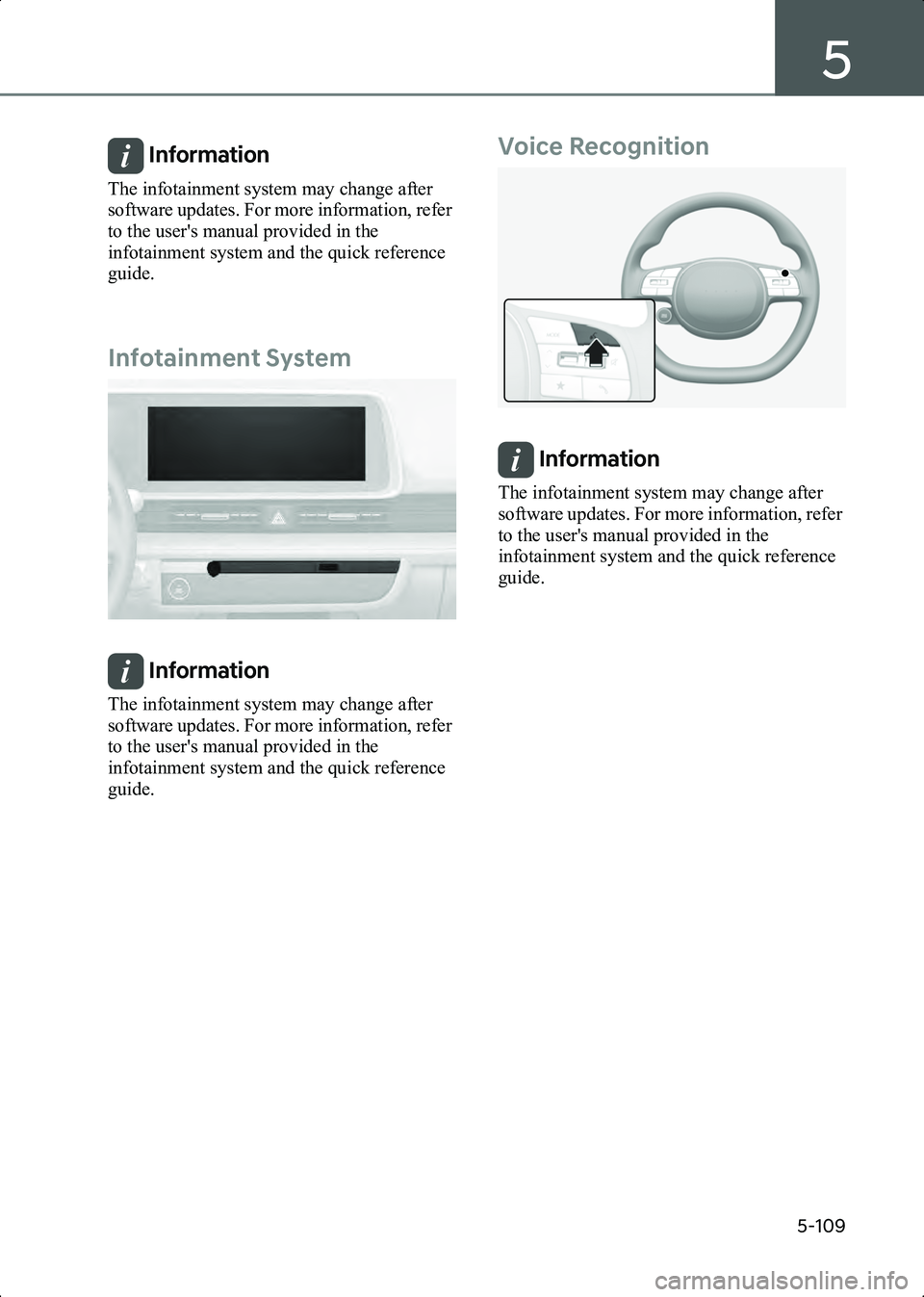

5-109
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Infotainment System
B5025501
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Voice Recognition
B5026101
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Hyundai_CE_en_US.book Page 109
Page 288 of 582
Convenience Features

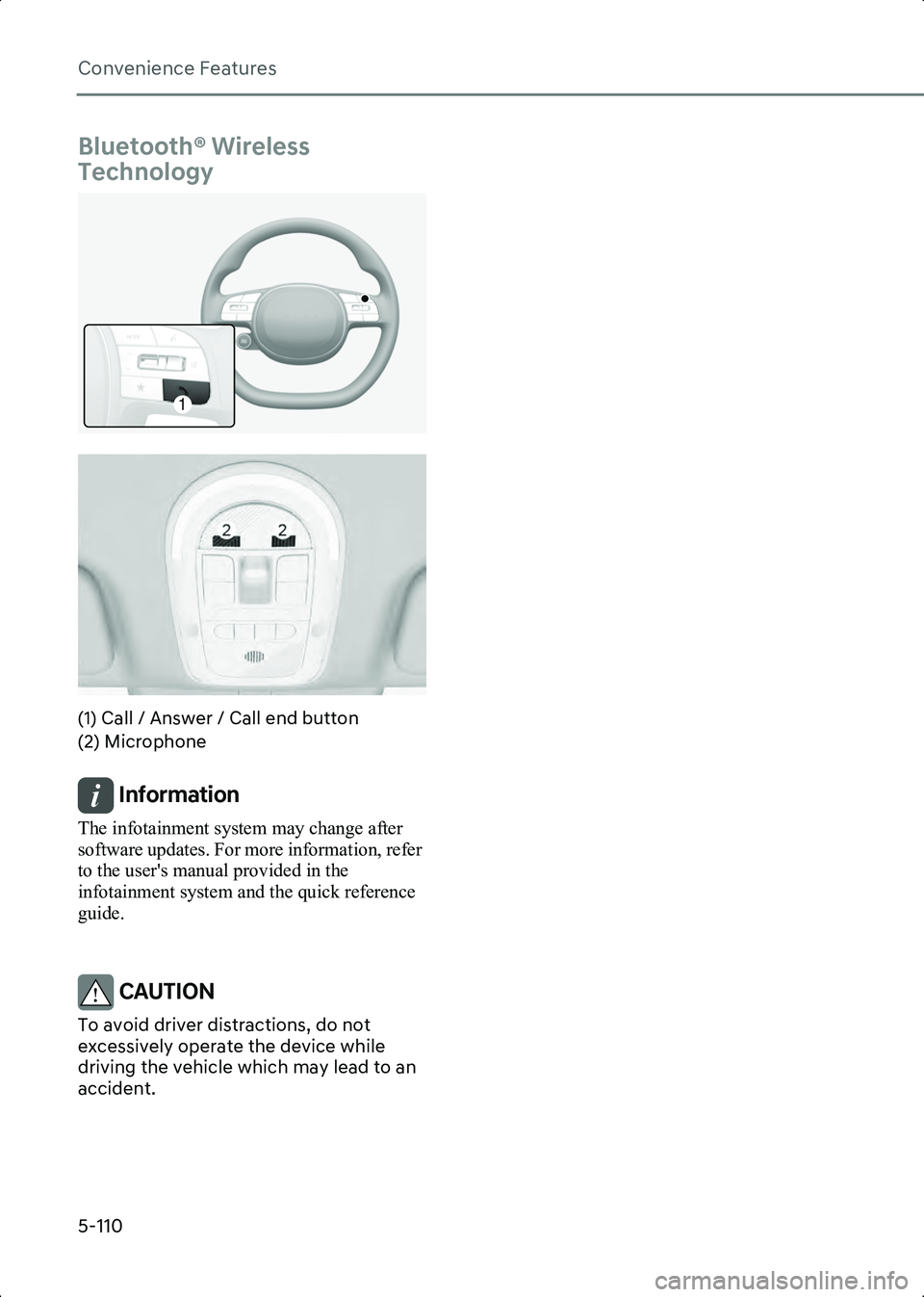

5-110
Bluetooth® Wireless
Technology
B5026001
B5026002
(1) Call / Answer / Call end button
(2) Microphone
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
CAUTION To avoid driver distractions, do not
excessively operate the device while
driving the vehicle which may lead to an
accident.
1
Hyundai_CE_en_US.book Page 110
Page 307 of 582
6
6-19
To change the default level of the smart
regeneration system, pull the right paddle
shifter ( ) once while the system is on.
Smart regeneration intensity setting
Regenerative braking intensity of the
smart regeneration system can be
adjusted to match the driver’s
preference. Adjust the braking intensity
makes the decelerating faster or slower.
B6001903
To adjust the regenerative braking level of
the smart regeneration system, go to
Setup > EV > Smart Regeneration
System from the infotainment system.
Pausing Smart Regeneration
System
The smart regeneration system is
temporarily turned off in the following
conditions. While the system is turned off,
the driver must keep eyes on the road and
depress the brake pedal to decelerate.
• The gear is shifted to N (Neutral), R
(Reverse) or P (Park)
• Smart Cruise Control is ON
• ESC (Electronic Stability Control) is operating
• ABS is operating
Front Sensors
B6003001(1) Front radar
(2) Front corner radar
Front sensors recognize the distance
from the vehicle ahead to control the
regenerative braking intensity. If the
sensor is covered with snow, rain, or other
foreign substances, the performance of
the sensors may deteriorate, and the
smart regeneration system may turn off.
Always keep the sensors clean.
System Check Message
B6003101
When the front radar is covered or
blocked, the smart regeneration system
may be temporarily disabled. The 'Check
Smart Regeneration System' warning
message may appear, and the
regenerative braking level is displayed on
the instrument cluster.
The system operates normally when such
foreign material is removed, and the
system is turned on by pulling and
2
2
1
$ I F D L 4 N B S U
3 F H F O F S B U J P O 4 Z T U F N
Hyundai_CE_en_US.book Page 19
