Convenience Features
5-14
• NFC authentication: Enter the NFC authentication menu and touch your
smartphone to the outside door
handle.
• Bluetooth authentication: Enter the Bluetooth authentication menu and
press the OK button.
Information • If you activate the registration
mode,complete the card key saving
process within 5 minutes.
• If you have not registered the digital key (card key), register the digital key(card
key) with two smart keys.

B0902EU01
4. Register the digital key (card key) in the infotainment system. From the Settings
menu, go to Setup > Vehicle > Digital
Key > Card Key and then select Enable
Card Key.
Information The Enable Card Key button is disabled if
the digital key (card key) is already saved.
If you need to save a new digital key(card
key), delete the previous digital key (card
key) using “Deleting Digital key(Card
key)” procedure in this chapter.

5. Place the digital key (card key) on the vehicle authentication pad (wireless charging pad). The process begins
automatically.
If successful, a message appears on the
infotainment system screen or
instrument cluster.
Once a digital key (card key) has been
registered, it cannot be used with
another vehicle.
Deleting digital key (card key)
B0902EU03
1. Turn on the vehicle with the smart key
and be sure to keep the smart key
inside the vehicle during delete
process.
2. Delete your digital key (card key) from in the infotainment system. From the
Settings menu, go to Setup > Vehicle >
Digital Key > Card Key and then select
Delete .
Information • The Delete button is disabled if there is
no digital key (card key) saved.
• If the digital key (card key) is deleted,it can be re-registered to the same vehicle
as long as a new digital key (card key)
has not been registered.
• If you set up a new digital key (card key), the previously registered digital key (card
key) is no longer active and cannot be
re-registered.

Hyundai_CE_en_US.book Page 14

Convenience Features
5-16
[A] Vehicle authentication pad (Wireless charging pad)
1. After placing your registered card key
on the vehicle authentication pad
(wireless charging pad), depress the
brake pedal and press the Start/Stop
button.
2. After start-up, the digital key data will be automatically updated within 5 to 20
seconds. Remove the digital key (card
key) from the pad.
Information • If you do not place the digital key(card key) on the center of the vehicle authentication
pad (wireless charging pad), the vehicle
may not start. Remove the digital key (card
key) and then try again.
• If the digital key (card key) is near other NFC-enabled cards such as a transportation
card or credit card, it may not be
recognized.
For more information, refer to the
"Start/Stop Button" section in Chapter 6.
• Always remove the digital key (card key) from the vehicle authentication pad
(wireless charging pad) after turning on the
vehicle. If you place the card key on the
wireless charging pad while driving, the
digital key (card key) may malfunction.

Disabling digital key
B5026401_3
If you do not want to use the digital key
(smartphone key and card key), disable the function temporarily. Have the smart
key in the vehicle to change the settings.
From the Settings menu, go to Setup
>
Vehicle > Digital Key > Enable Card Key
(deselect) in the infotainment system.
Personalized profile and
vehicle settings
You can set the registered digital key
profiles for Driver 1 and Driver 2. When
you use the digital card key or the
HYUNDAI Digital Key app, the vehicle can
be set to the user-defined personalized
profile (includes items such as driver
settings and audio preferences).
Linking/Unlinking profile
Profile link
1. Select Setup > User Profile > Profile
Settings > Link Digital Key
(Smartphone) in the infotainment
system.
2. Unlock your smartphone and place it on the vehicle authentication pad
(wireless charging pad).
3. Select Link to connect the registered
phone’s digital key and the user’s
profile.
Profile unlink
Select Digital Key Information from the
infotainment system Settings menu to
unlink a profile.
Information If you connect both Driver 1 and Driver 2 with
a single smartphone, the digital key
(smartphone key) always uses the profile
settings for Driver 1. If you unlink Driver 1,
the Driver 2 profile settings are used.

Hyundai_CE_en_US.book Page 16

5
5-17

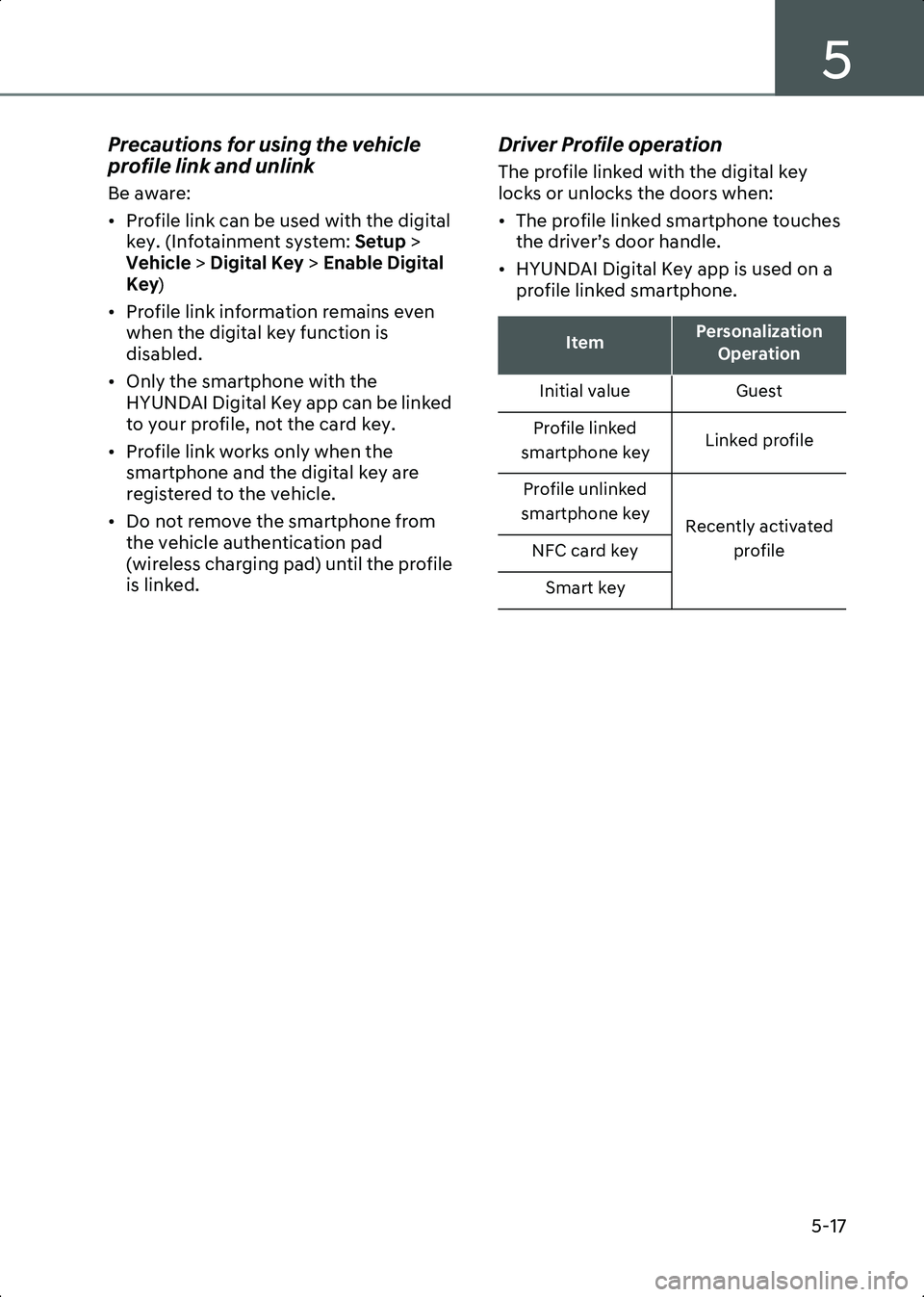

Precautions for using the vehicle
profile link and unlink
Be aware:
• Profile link can be used with the digital key. (Infotainment system: Setup >
Vehicle > Digital Key > Enable Digital
Key )
• Profile link information remains even when the digital key function is
disabled.
• Only the smartphone with the HYUNDAI Digital Key app can be linked
to your profile, not the card key.
• Profile link works only when the smartphone and the digital key are
registered to the vehicle.
• Do not remove the smartphone from the vehicle authentication pad
(wireless charging pad) until the profile
is linked.
Driver Profile operation
The profile linked with the digital key
locks or unlocks the doors when:
• The profile linked smartphone touches the driver’s door handle.
• HYUNDAI Digital Key app is used on a profile linked smartphone.
ItemPersonalization
Operation
Initial value Guest
Profile linked
smartphone key Linked profile
Profile unlinked
smartphone key Recently activated
profile
NFC card key
Smart key
Hyundai_CE_en_US.book Page 17

Convenience Features
5-18
Vehicle personalization with digital key
The infotainment system may change after software updates. For more information,
refer to the user's manual provided in the infotainment system and the quick reference
guide.
SystemPersonalization Item
Vehicle settings Light
Blink number of one-touch
signal lights
Cluster Information display on the
cluster, Voice volume, Welcome sound
Seat/Mirror Seat position, Side view
mirror position, Easy Access
Intelligent driving posture assist (Smart IMS)
Door Automatic door lock/unlock,
Two Press Unlock
Head Up Display (HUD) Position adjustment of
image, Information display selection
Infotainment system Navigation
Preferred volume of the
navigation system, Recent destination
User preset My menu list settings, Radio
preset
Phone connectivity Bluetooth preferential
connect CarPlay/Android Auto On/Off
Air conditioning Operating conditionLatest operation setup of the
following functions:
Temperature, AUTO, air flow direction, air volume, air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
Hyundai_CE_en_US.book Page 18

5
5-21

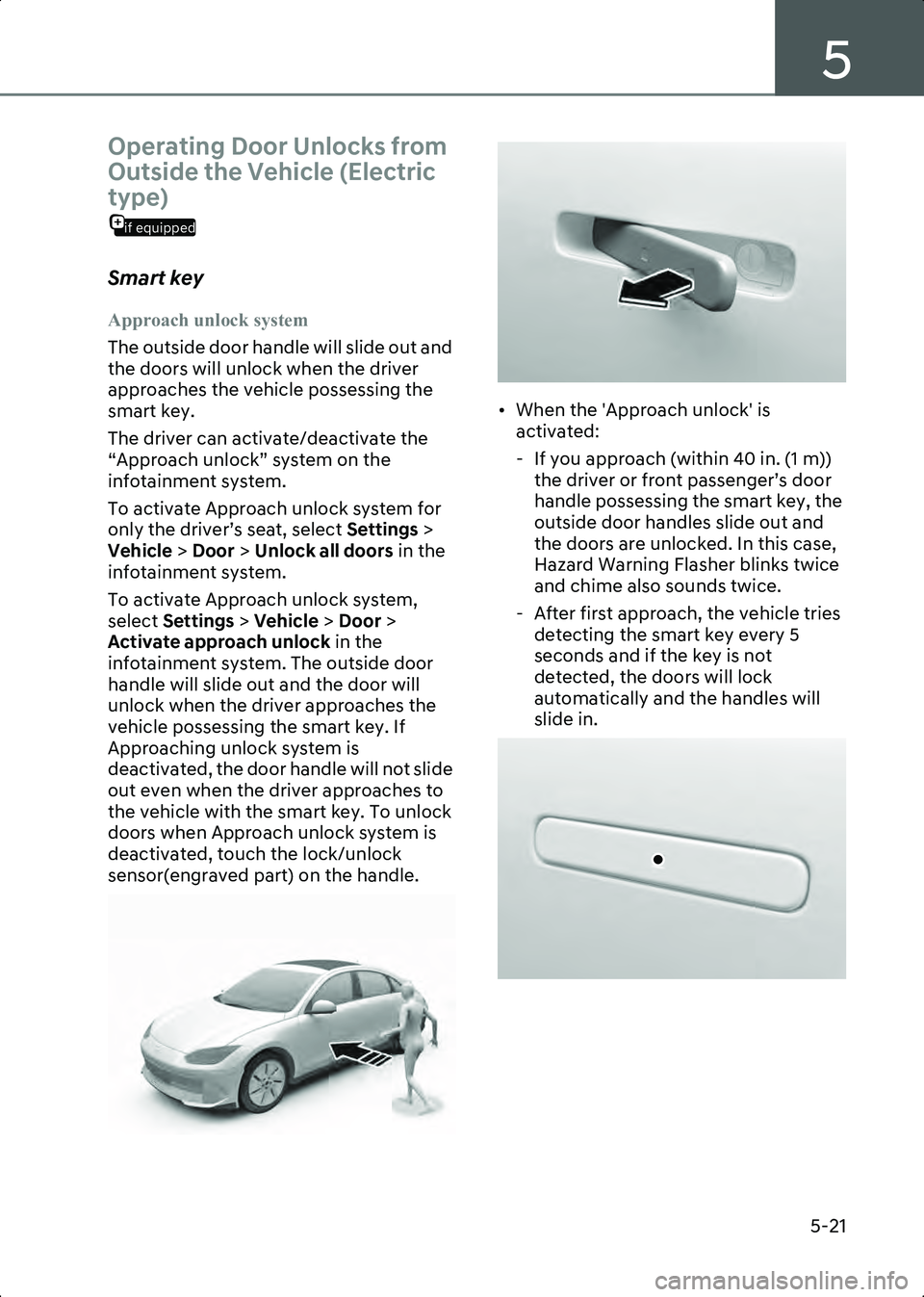

Operating Door Unlocks from
Outside the Vehicle (Electric
if equipped
type)
Smart key
Approach unlock system
The outside door handle will slide out and
the doors will unlock when the driver
approaches the vehicle possessing the
smart key.
The driver can activate/deactivate the
“Approach unlock” system on the
infotainment system.
To activate Approach unlock system for
only the driver’s seat, select Settings >
Vehicle > Door > Unlock all doors in the
infotainment system.
To activate Approach unlock system,
select Settings > Vehicle > Door >
Activate approach unlock in the
infotainment system. The outside door
handle will slide out and the door will
unlock when the driver approaches the
vehicle possessing the smart key. If
Approaching unlock system is
deactivated, the door handle will not slide
out even when the driver approaches to
the vehicle with the smart key. To unlock
doors when Approach unlock system is
deactivated, touch the lock/unlock
sensor(engraved part) on the handle.
B5002801 B5002802_1
• When the 'Approach unlock' is
activated:
- If you approach (within 40 in. (1 m)) the driver or front passenger’s door
handle possessing the smart key, the
outside door handles slide out and
the doors are unlocked. In this case,
Hazard Warning Flasher blinks twice
and chime also sounds twice.
- After first approach, the vehicle tries detecting the smart key every 5
seconds and if the key is not
detected, the doors will lock
automatically and the handles will
slide in.
B5002804
Hyundai_CE_en_US.book Page 21

5
5-25

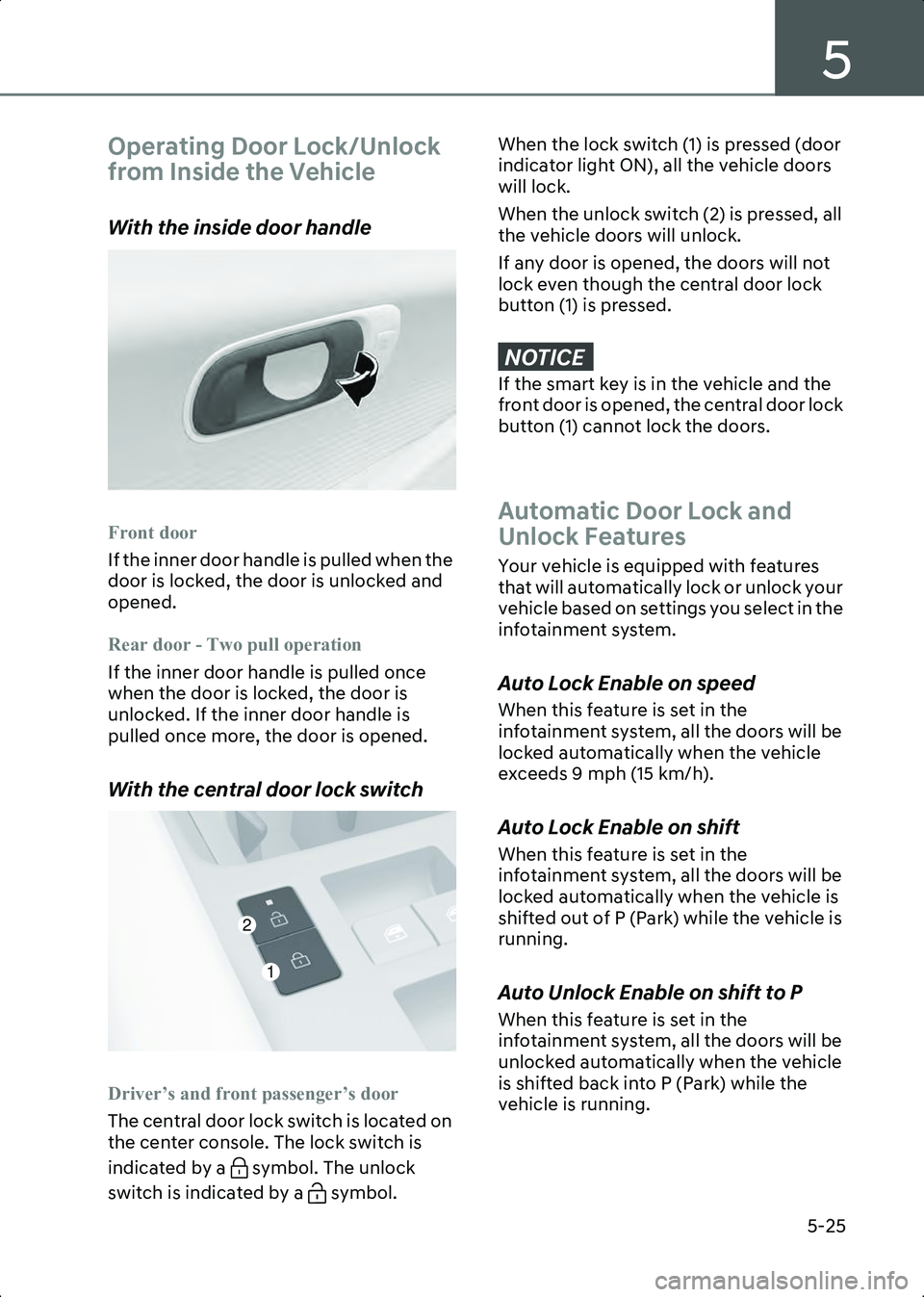

Operating Door Lock/Unlock
from Inside the Vehicle
With the inside door handle
B5003101
Front door
If the inner door handle is pulled when the
door is locked, the door is unlocked and
opened.
Rear door - Two pull operation
If the inner door handle is pulled once
when the door is locked, the door is
unlocked. If the inner door handle is
pulled once more, the door is opened.
With the central door lock switch
B5003102
Driver’s and front passenger’s door
The central door lock switch is located on
the center console. The lock switch is
indicated by a symbol. The unlock
switch is indicated by a symbol.When the lock switch (1) is pressed (door
indicator light ON), all the vehicle doors
will lock.
When the unlock switch (2) is pressed, all
the vehicle doors will unlock.
If any door is opened, the doors will not
lock even though the central door lock
button (1) is pressed.
NOTICE,IWKHVPDUWNH\LVLQWKHYHKLFOHDQGWKH
IURQWGRRULVRSHQHGWKHFHQWUDOGRRUORFN
EXWWRQ\fFDQQRWORFNWKHGRRUV

Automatic Door Lock and
Unlock Features
Your vehicle is equipped with features
that will automatically lock or unlock your
vehicle based on settings you select in the
infotainment system.
Auto Lock Enable on speed
When this feature is set in the
infotainment system, all the doors will be
locked automatically when the vehicle
exceeds 9 mph (15 km/h).
Auto Lock Enable on shift
When this feature is set in the
infotainment system, all the doors will be
locked automatically when the vehicle is
shifted out of P (Park) while the vehicle is
running.
Auto Unlock Enable on shift to P
When this feature is set in the
infotainment system, all the doors will be
unlocked automatically when the vehicle
is shifted back into P (Park) while the
vehicle is running.
1
2
Hyundai_CE_en_US.book Page 25

Convenience Features
5-26

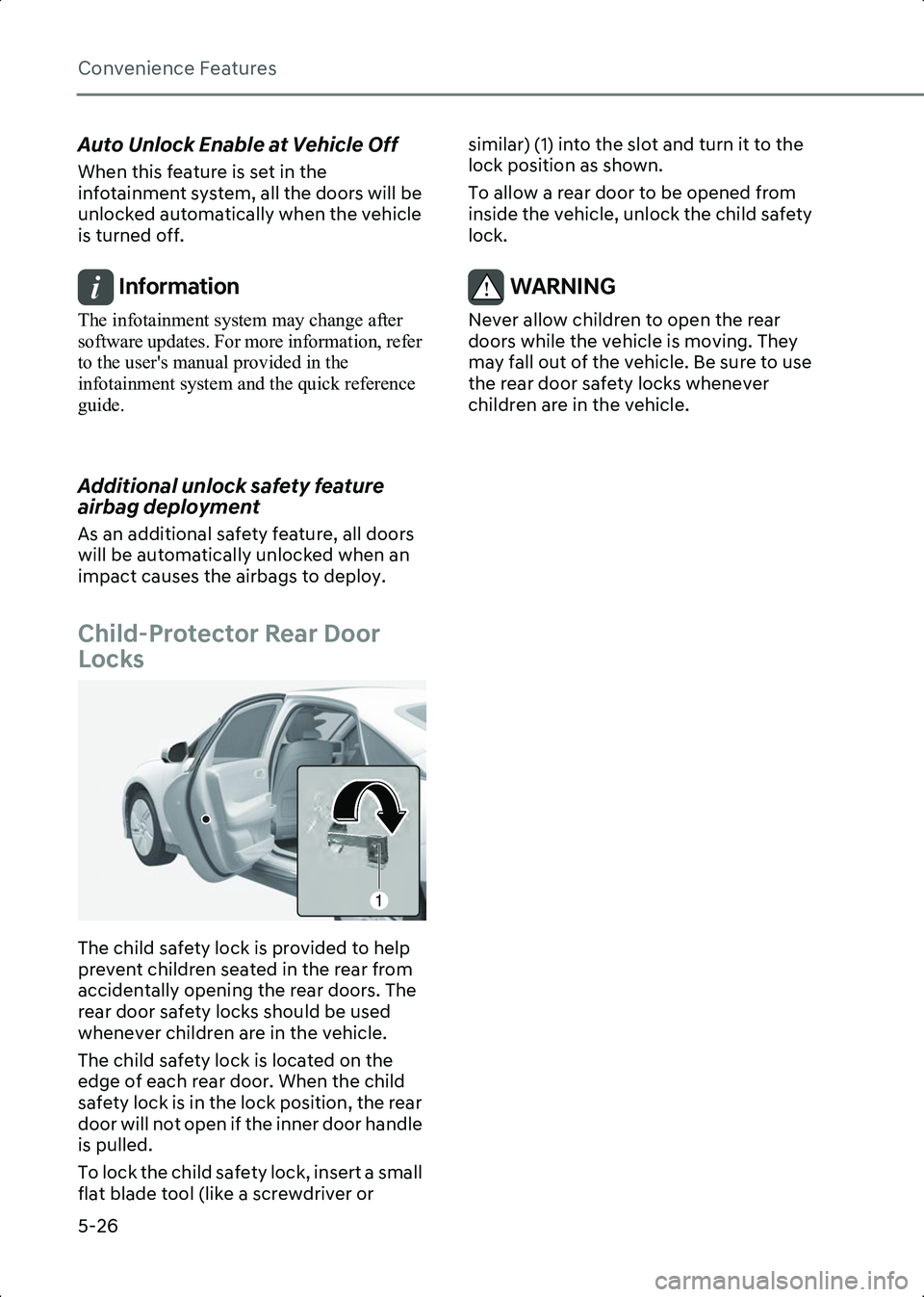

Auto Unlock Enable at Vehicle Off
When this feature is set in the
infotainment system, all the doors will be
unlocked automatically when the vehicle
is turned off.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

Additional unlock safety feature
airbag deployment
As an additional safety feature, all doors
will be automatically unlocked when an
impact causes the airbags to deploy.
Child-Protector Rear Door
Locks
B5003601
The child safety lock is provided to help
prevent children seated in the rear from
accidentally opening the rear doors. The
rear door safety locks should be used
whenever children are in the vehicle.
The child safety lock is located on the
edge of each rear door. When the child
safety lock is in the lock position, the rear
door will not open if the inner door handle
is pulled.
To lock the child safety lock, insert a small
flat blade tool (like a screwdriver or similar) (1) into the slot and turn it to the
lock position as shown.
To allow a rear door to be opened from
inside the vehicle, unlock the child safety
lock.
WARNING Never allow children to open the rear
doors while the vehicle is moving. They
may fall out of the vehicle. Be sure to use
the rear door safety locks whenever
children are in the vehicle.

1
Hyundai_CE_en_US.book Page 26

Convenience Features
5-28
Rear Occupant Alert
if equipped
(ROA)
Rear Occupant Alert is provided to
prevent a driver from leaving a vehicle
with the rear passenger left in the vehicle.
System Setting
To use Rear Occupant Alert, it can be
enabled from the Settings menu in the
infotainment system.
Select Setup > Vehicle > Convenience >
Rear Occupant Alert .
Information The infotainment system may change after
software updates. For more information, refer
to the user’s manual provided in the
infotainment system and the quick reference
guide.

System Operation
• First alert
When you turn off the vehicle and open
the driver’s door after opening and
closing the rear door or trunk, the
‘Check rear seats for passengers and
belongings ’ warning message appears
on the instrument cluster.
• Second alert (if the sensor equipped) After the first alert, the second alert
operates when any movement is
detected in the vehicle after the driver’s
door is closed and all the doors are
locked. The horn sounds about 25
seconds. If the system continues to
detect a movement, the alert operates
up to 8 times.
Unlock the doors with the smart key to
stop the alert. • The system detects movement in the
vehicle for 10 minutes after the door is
locked.
Information • The second alert is activated only after the prior activation of the first alert.
• The second alert activates only when the sensor is equipped in the vehicle.

System precautions
• Make sure that all the windows are closed. If the window is open, the alert
may occur when the sensor has
detected any movement (for example,
wind or bugs).
Sensor
B5003803
• If you do not want to use Rear Occupant Alert, press the 'OK' switch
on the steering wheel when the first
alert appears and the second alert is
deactivated once.
Instrument cluster
OJX1059019L
$IFDL
SFBS
TFBUT
GPS
QBTTFOHFSTPS
CFMPOHJOHT
"MBSN
0GG
Hyundai_CE_en_US.book Page 28
