1
1-41
B0002001

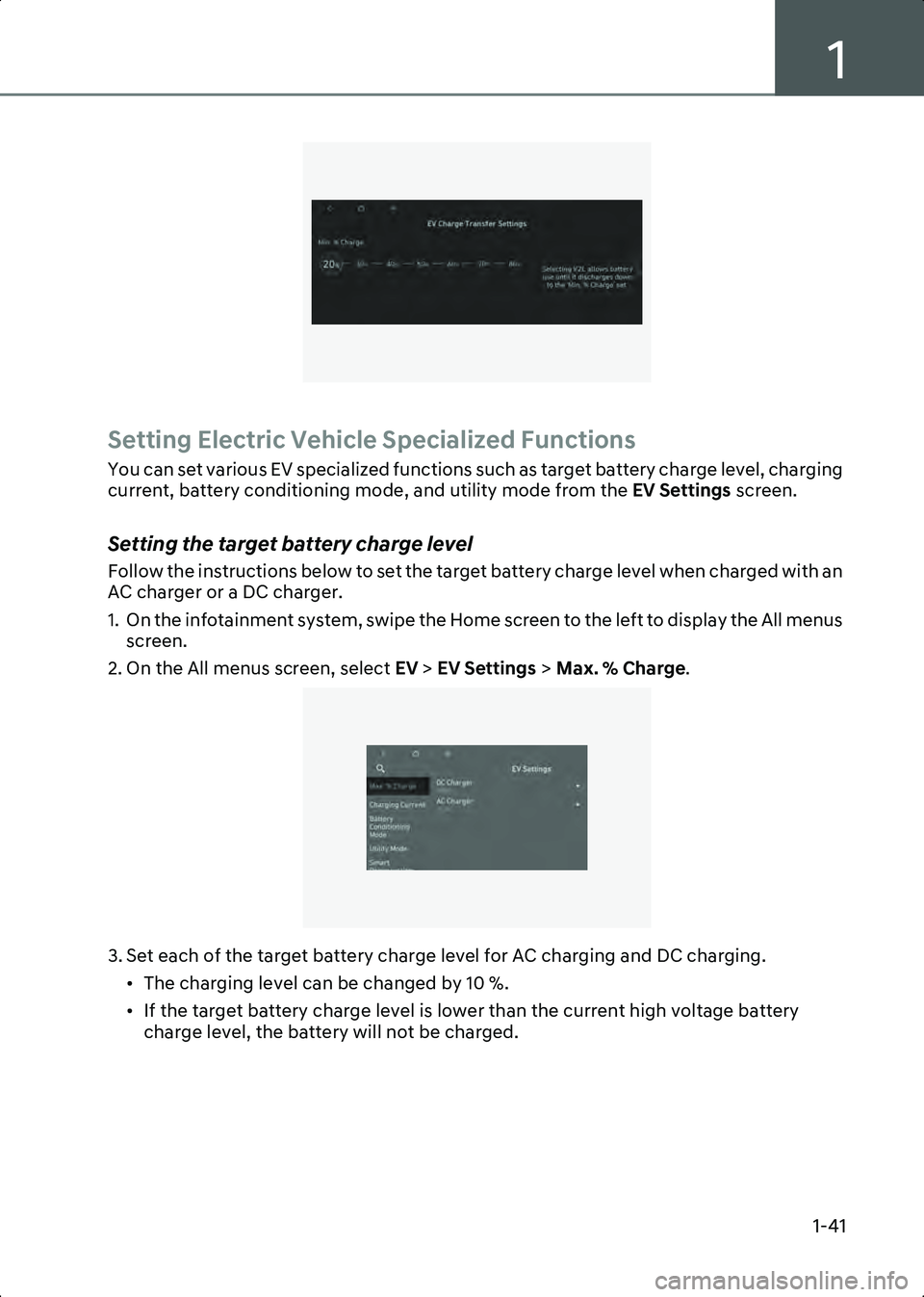

Setting Electric Vehicle Specialized Functions
You can set various EV specialized functions such as target battery charge level, charging
current, battery conditioning mode, and utility mode from the EV Settings screen.
Setting the target battery charge level
Follow the instructions below to set the target battery charge level when charged with an
AC charger or a DC charger.
1. On the infotainment system, swipe the Home screen to the left to display the All menus
screen.
2. On the All menus screen, select EV > EV Settings > Max. % Charge .
B0002101
3. Set each of the target battery charge level for AC charging and DC charging.
• The charging level can be changed by 10 %.
• If the target battery charge level is lower than the current high voltage battery charge level, the battery will not be charged.
Hyundai_CE_en_US.book Page 41
Page 48 of 582
Introduction/Getting Started with Your Electric Vehicle
1-42
Setting the charging current
Follow the instructions below to set the charging current when using an AC charger or a
portable charger.
1. On the infotainment system, swipe the Home screen to the left to display the All menus screen.
2. On the All menus screen, select EV > (EV Settings) > Charging Current
• If the charging stops before reaching the target battery charge level while charging with an AC charger or a portable charger, reduce the size of the input current and
retry charging.
• The charging time may differ depending on which charging current is selected.
B0002102
Setting battery conditioning mode
You can raise the battery temperature to maintain optimal driving performance and DC
charging performance at conditions when the low temperature of the high voltage
battery temperature may degrade the battery performance.
1. On the infotainment system, swipe the Home screen to the left to display the All menus screen.
2. On the All menus screen, select EV > (EV Settings) and select Battery Conditioning
Mode .
• The battery temperature while driving will be maintained adequately.
B0002103
Hyundai_CE_en_US.book Page 42
Page 49 of 582
1
1-43
Information Be aware of the followings when using battery conditioning mode.
• The driving distance may be reduced as energy is required to increase the battery temperature.
• If the battery temperature is low during driving or when the scheduled air conditioner/heater is activated, the battery conditioning mode is operated to improve driving performance. To ensure
driving distance the battery conditioning mode will not be operated when the battery level is too
low.
• If you set the DC charging station as your destination while using the battery conditioning mode, the battery temperature is optimized for charging and you can shorten the charging time after
you arrive and start charging.
• Battery conditioning mode is available for vehicles equipped with the battery heater.
Setting Utility Mode
Utility mode allows the high voltage battery to be used instead of the 12 V auxiliary
battery for purposes other than driving. You can use the audio and lights of the vehicle
without discharging the 12 V auxiliary battery and even use the indoor V2L feature.
Information • You cannot drive the vehicle while the utility mode is activated, and the gear can only be shifted to P (Park).
• You can use every electric device in the vehicle while the utility mode is activated.
• When the utility mode is activated, the Electronic Parking Brake (EPB) is applied automatically.
Follow the instructions below to set the utility mode.
1. Check the operation conditions of the utility mode. • The (ready indicator) is displayed on the instrument cluster.
• The gear is shifted to P (Park).
2. On the infotainment system, swipe the Home screen to the left to display the All menus screen.
3. On the All menus screen, select EV > (EV Settings) > Utility mode and select Activate
Utility mode to activate the function (Utility Mode: ON).
Hyundai_CE_en_US.book Page 43
Page 50 of 582
Introduction/Getting Started with Your Electric Vehicle
1-44
B0002104
• The (ready indicator) turns off and the UTIL (utility indicator) illuminates on the
instrument cluster and the EPB is applied.
• The utility mode can be deactivated by pressing the Start/Stop button to the OFF position.
• If you want to utilize V2L function in the vehicle while the utility mode is activated, refer to the “Using Electricity Inside the Vehicle” section in this chapter.
Information If the utility mode is not activated when the vehicle is in the ready ( ) mode and the gear is
shifted to P (Park), inspect the operation status of EPB.
Searching for nearby charging stations
Around the course, around the current site, around the selected destination or charging
stations of interest can be searched. If you choose the charging station, the detailed
information is provided.
Information • When you sign up HYUNDAI BlueLink service, the available chargers at each charging station are displayed.
• The HYUNDAI Carpay function in the in-vehicle payment app allows for convenient payments to affiliated charging stations and parking lots without using physical cards. For more
information, refer to the user's manual provided in the infotainment system and the quick
reference guide.
1. On the infotainment system, swipe the Home screen to the left to display the All menus screen.
2. On the All menus screen, select EV and select the charging station icon next to the
vehicle
Hyundai_CE_en_US.book Page 44
Page 59 of 582
1
1-53
Driving Your Electric Vehicle
Check how to use the devices inside the vehicle that you must know for driving, such as
starting, braking, and shifting the electric vehicle.
Starting and Stopping the Vehicle
Follow the instructions below to start or stop the vehicle.
CAUTION • Always fasten the seat belt before starting the vehicle for safety.
• Check if the EBP is applied before starting the vehicle.
Starting the vehicle
1. Holding the smart key, sit in the driver’s seat.
2. Press the Start/Stop button while pressing the brake pedal.• On the instrument cluster, (ready indicator) is displayed.
Information While the (ready indicator) is displayed, press the brake pedal, shift to D (Drive) or R
(Reverse), and release the EBP and the brake pedal to start moving the vehicle forward or
backward. You can start driving by pressing the accelerator pedal slowly and decelerate or stop by
pressing the brake pedal.
Stopping the vehicle
1. Stop the vehicle completely by pressing the brake pedal.
2. Apply the EPB while pressing the brake pedal, and press the gear’s P button to shift to P (Park).
3. Press the Start/Stop button. • The (ready indicator) on the instrument cluster turns off.
Information There are other Start/Stop button positions besides the ON/OFF. Use it appropriately paying
attention to the discharging of the 12 V battery.
•ACC : The 12 V battery power is turned on, allowing some devices, such as infotainment system
and air conditioning system to operate. Press the Start/Stop button when it is in the OFF position
to turn on ACC.
• ON : The 12 V battery power is turned on, allowing to check the instrument cluster and use all
the electric devices inside the vehicle. Press the Start/Stop button when it is in the ACC position
to turn it ON.
Hyundai_CE_en_US.book Page 53
Page 79 of 582
2
2-5
Center Console Overview
A1000601The actual shape may differ from the illustration.
(1) Instrument cluster ...................................................................................................... 4-2
(2) Horn........................................................................................................................... 5-33
(3) Driver’s front airbag ................................................................................................. 3-37
(4) Infotainment system ...............................................................................................5-107
(5) Hazard warning flasher button.................................................................................. 8-2
(6) Start/Stop button ....................................................................................................... 6-4
(7) Automatic climate control system ..........................................................................5-80
(8) Parking/View button ................................................................................................ 7-96
14
5
67
12
13
14
1815
10
11
16
2
3
A
A
B
B
CC
17
89
Hyundai_CE_en_US.book Page 5
Page 98 of 582
Seats & Safety System
3-4
ONE1031077L

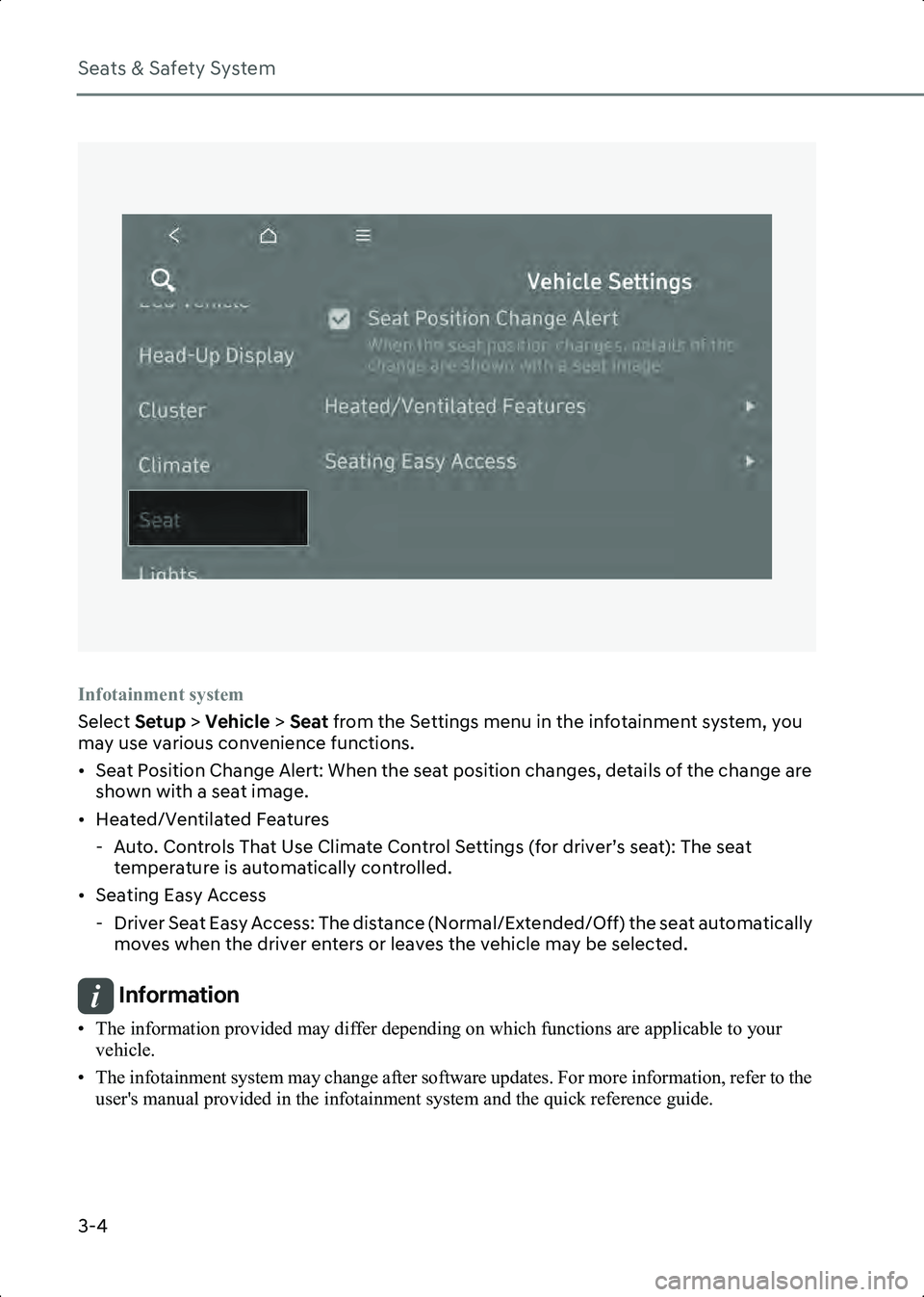

Infotainment system
Select Setup > Vehicle > Seat from the Settings menu in the infotainment system, you
may use various convenience functions.
• Seat Position Change Alert: When the seat position changes, details of the change are shown with a seat image.
• Heated/Ventilated Features - Auto. Controls That Use Climate Control Settings (for driver’s seat): The seat temperature is automatically controlled.
• Seating Easy Access - Driver Seat Easy Access: The distance (Normal/Extended/Off) the seat automatically moves when the driver enters or leaves the vehicle may be selected.
Information • The information provided may differ depending on which functions are applicable to your vehicle.
• The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.
Hyundai_CE_en_US.book Page 4
Page 109 of 582
3
3-15
WARNING The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of time.
Passengers must be able to feel if the seat
is becoming too warm so they can turn it
off, if needed.
Seat warmer consume large amounts of
electricity. Please avoid using seat
warmers while the vehicle is off in order
to prevent battery discharge.
People who cannot detect temperature
change or pain to the skin should use
extreme caution, especially the following
types of passengers:
• Infants, children, elderly or disabled persons, or hospital outpatients.
• People with sensitive skin or who burn easily.
• Fatigued individuals.
• Intoxicated individuals.
• People taking medication that can cause drowsiness or sleepiness.
WARNING NEVER place anything on the seat that
insulates against heat when the seat
warmer is in operation, such as a blanket
or seat cushion. This may cause the seat
warmer to overheat, causing a burn or
damage to the seat.
NOTICE 7 R S U H Y H Q W G D P D J H W R W K H V H D W Z D U P H U V
D Q G V H D W V
[ 1 H Y H U X V H D V R O Y H Q W V X F K D V S D L Q W W K L Q Q H U E H Q ] H Q H D O F R K R O R U J D V R O L Q H W R
F O H D Q W K H V H D W V
[ ' R Q R W S O D F H K H D Y \ R U V K D U S R E M H F W V R Q V H D W V H T X L S S H G Z L W K V H D W Z D U P H U V [ ' R Q R W F K D Q J H W K H V H D W F R Y H U , W P D \
G D P D J H W K H V H D W Z D U P H U
if equipped
Front seat warmers
Infotainment system
ONE1031085L
While the vehicle is running, touch
Heating/Ventilation icon in the
infotainment system.
Climate control panel
B3000602
Press in the front climate control
panel.
