2023 HYUNDAI IONIQ 6 infotainment

Instrument Cluster
4-26
displayed when Auto AWD mode is
activated.
For more information, refer to the "All
Wheel Drive (AWD)" section in chapter 6.
Additional information display
Drive info
ONE1041047L_1
Drive information is displayed for 4
seconds after the vehicle is turned off.
Driving assist information
B4000911
The current operation conditions of Smart
Cruise Control, Lane Following Assist,
Highway Driving Assist, etc., is displayed.
Vehicle Settings
(Infotainment System)
Vehicle Settings in the infotainment
system provides user options for the
settings including door lock/unlock
features, convenience features, driver
assistance settings, etc.
Vehicle Settings menu
• Driver Assistance
• Drive Mode
• EV
• Head-Up Display
• Cluster
• Climate
• Seat
• Lights
• Door
• Convenience
The information provided may differ
depending on which functions are
available to your vehicle.
WARNING Do not adjust the Vehicle Settings while
driving. You may be distracted from the
driving task and could crash.

NJ
I
NJL8I
80NQI
Hyundai_CE_en_US.book Page 26

4
4-27

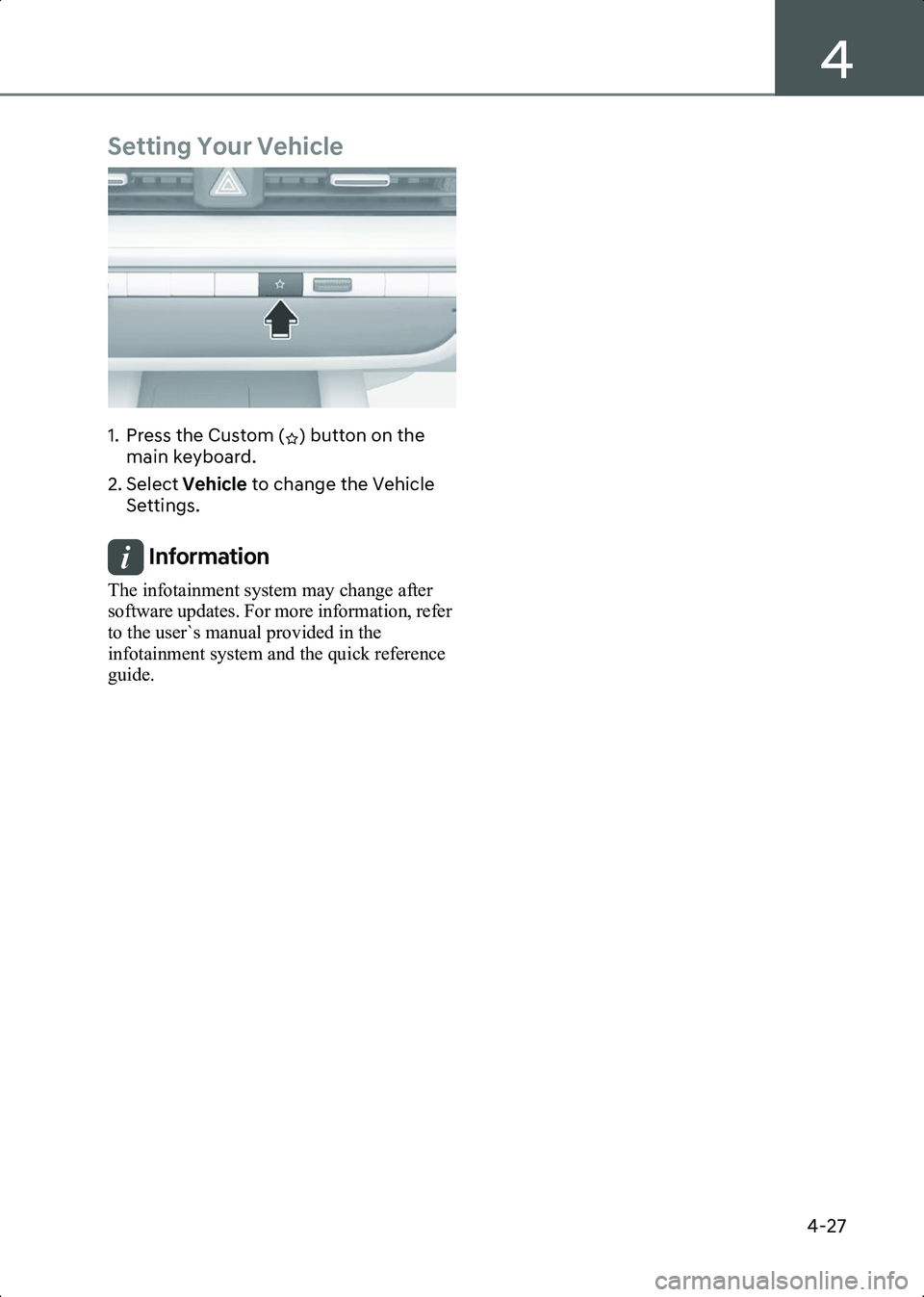

Setting Your Vehicle
B4001701
1. Press the Custom ( ) button on the main keyboard.
2. Select Vehicle to change the Vehicle
Settings.
Information The infotainment system may change after
software updates. For more information, refer
to the user`s manual provided in the
infotainment system and the quick reference
guide.

Hyundai_CE_en_US.book Page 27

5
Interior Features............................................................................................................5-101Cup Holder .................................................................................................................5-101
Sunvisor......................................................................................................................5-101
Power Outlet ............................................................................................................. 5-102
USB Charger ............................................................................................................. 5-103
Wireless Smartphone Charging System ................................................................. 5-104
Vehicle to Load (V2L) ............................................................................................... 5-105
Clock.......................................................................................................................... 5-106
Coat Hook ................................................................................................................. 5-106
Floor Mat Anchor(s).................................................................................................. 5-106
Infotainment System ................................................................................................... 5-107 USB Port .................................................................................................................... 5-107
Antenna ..................................................................................................................... 5-108
Steering Wheel Remote Controls ............................................................................ 5-108
Infotainment System................................................................................................ 5-109
Voice Recognition .................................................................................................... 5-109
Bluetooth® Wireless Technology..............................................................................5-110
Hyundai_CE_en_US.book Page 4

Convenience Features
5-6
smart key with you locks all doors and
let the door handle to retract back.
Information • The side view mirror will fold if ‘Enable on
Door Unlock’ is selected from the Settings
menu in the infotainment system. Select
Setup > Vehicle > Lights > Welcome
Mirror/Light > Enable on Door Unlock .
• The door handle touch sensor operates when the smart key is within 28-40 in.
(0.7-1 m) from the outside door handle.
• If you lock the doors using the door handle touch sensor, the doors are not locked under
the following circumstances:
- The smart key is in the vehicle.
- The Start/Stop button is from ACC or ON position.
- Any door is open (except for the trunk).
• If this occurs, a chime sounds for about 3 seconds. Check the vehicle before
attempting to lock the vehicle again.

WARNING Do not leave the smart key in your vehicle
with children that are unattended or
unsupervised.
Children could unintentionally press the
Start/Stop button or could operate the
power windows or other vehicle controls
or even cause the vehicle to move. This
may result in serious injury or death.

Information • To fold/unfold the side view mirror simultaneously when the door is
locked/unlocked, select Setup > Vehicle >
Lights > Welcome Mirror/Light >
Enable on Door Unlock in the
infotainment system.
• The door handle button will only operate when the smart key is within 28-40 in. (0.7-1 m) from the outside door handle.
Other people can also open the doors
without the smart key in possession.
• After unlocking the doors, the doors will lock automatically after 30 seconds unless a
door is opened.
The infotainment system may change after
software updates. For more information, refer
to the user’s manual provided in the
infotainment system and the quick reference
guide.

Unlocking your vehicle
Manual type
B5000204
To unlock your vehicle using the door
handle button or the smart key:
1. Have the smart key with you.
2. Pushing the button on the door handle(engraved part) or press the
Door Unlock button (2) on the smart
key. All doors handles will be unlocked
and the hazard warning lights will blink
twice.
3. After unlocking the doors, the doors will automatically re-lock after 30 seconds
unless a door is opened.
Hyundai_CE_en_US.book Page 6

5
5-7
Electric type (if equipped)
B5002804
When you release the Two Press Unlock
function
To unlock your vehicle using the door
handle touch sensor or the smart key:
1. Have the smart key with you.
2. Touch the touch sensor on the door handle(engraved part) or press the
Door Unlock button (2) on the smart
key. All door handles will pop out and
the doors will be unlocked and the
hazard warning lights will blink and the
chime will sound.
• If you unlock the doors using the passenger side door handle, all the
doors are unlocked. If you unlock the
doors using the driver side door
handle, either the driver’s side door is
unlocked or all the doors are
unlocked depending on the setting
for the Two Press Unlock feature.
Change the Driver Door unlock mode
by referring to “Setting the Two Press
Unlock feature”.
Information • The side view mirror will unfold if ‘Enable
on Door Unlock’ is selected from the
Settings menu in the infotainment system.
Select Setup > Vehicle > Lights >
Welcome Mirror/Light > Enable on Door
Unlock .
• The door handle button or touch sensor only operates when the smart key is within 28-40
in. (0.7-1 m) from the outside door handle. • If you do not open the door after unlocking
within 30 seconds, it returns to the lock
mode.

Setting the Two Press Unlock feature
You can activate or deactivate the Two
Press Unlock feature from the Settings
menu in the infotainment system. Select
Setup > Vehicle > Door > Two Press
Unlock .
Information The infotainment system may change after
software updates. For more information, refer
to the user’s manual provided in the
infotainment system and the quick reference
guide.

Setting the door lock/unlock prevention
feature
The doors may lock or unlock if the touch
sensor of the outside door handle is
recognized while washing your vehicle or
due to heavy rain.
To prevent unintentional door lock or
unlock:
Press the lock button on the smart key
and immediately press the unlock button
along with the lock button for more than
4 seconds. The hazard warning lights
blink four times. At this time, the doors do
not lock or unlock even though the touch
sensor is touched on the outside door
handle. To deactivate the function, press
the door lock or unlock button on the
smart key.
Information During a vehicle wash or rain, in order to
minimize unintentional operation of the touch
sensor, the touch sensor may become
insensitive. This is not a malfunction.

Hyundai_CE_en_US.book Page 7

5
5-11
If the system repeatedly does not
recognize the coding of the key, contact
an authorized HYUNDAI dealer.
Do not attempt to alter this system or add
other devices to it. Electrical problems
could result that may make your vehicle
inoperable.
WARNING In order to prevent theft of your vehicle,
do not leave spare keys anywhere in your
vehicle. Your immobilizer password is a
customer unique password and should be
kept confidential.

NOTICE7KHWUDQVSRQGHULQ\RXUNH\LVDQ
LPSRUWDQWSDUWRIWKHLPPRELOL]HUV\VWHP
,WLVGHVLJQHGWRJLYH\HDUVRIWURXEOHIUHH
VHUYLFHKRZHYHU\RXVKRXOGDYRLG
H[SRVXUHWRPRLVWXUHVWDWLFHOHFWULFLW\
DQGURXJKKDQGOLQJ,PPRELOL]HUV\VWHP
PDOIXQFWLRQFRXOGRFFXU

Information This device complies with Part 15 of the FCC
rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority
to operate the device

if equipped
Hyundai Digital Key
Digital Key Application
To use HYUNDAI Digital Key mobile app,
install the HYUNDAI Digital Key app on
your smartphone.
Refer to the instructions in the digital key
app:
Menu > Application Info > Tutorial
Available smartphone models can be
found on smartphone manufactures'
website or HYUNDAI website.
How To Save/Delete The
Digital Key (Smartphone Key)
Setting digital key(smartphone key)
If the Near Field Communication (NFC)
setting is enabled on your phone and your
smartphone screen is unlocked, you can
use the Digital Key feature.
Saving digital key(smartphone key)
B5026401
1. Turn on the vehicle with the smart key and be sure to keep the smart key
inside the vehicle during digital key
registration.
2. Register your digital key (smartphone key) in the infotainment system. From
the Settings menu, go to Setup >
Hyundai_CE_en_US.book Page 11

Convenience Features
5-12
Vehicle > Digital Key > Smartphone
Key .
3. Select the vehicle to save on your HYUNDAI Digital Key app and activate
the save mode.
Information If the Smartphone key button is disabled,
delete the previously saved digital key
(smartphone key) using the “Deleting
Digital Key (Smartphone Key)” procedure
in this chapter.
Refer to the 'tutorial' on your HYUNDAI
Digital Key app and then delete the
previously saved key in your smartphone.

4. Place your smartphone on the vehicle authentication pad (wireless charging
pad) with the screen facing up to begin
the saving process.
B5026502[A] Vehicle authentication pad (Wireless charging pad)
Once the digital key (smartphone key)
is saved, a message appears on the
infotainment system screen or
instrument cluster.
5. Remove the smartphone from the vehicle authentication pad (wireless
charging pad) and then complete the
saving process in the app.
Deleting Digital Key (Smartphone
Key)
B0901EU05
1. Turn on the vehicle with the smart key and be sure to keep the smart key
inside the vehicle during delete
process.
2. Delete the digital key (smartphone key) in the infotainment system. From the
Settings menu, you can delete all the
registered digital key or only my
registered digital key.
Select:
• Setup > Vehicle > Digital Key >
Smartphone Key > Delete All
(deleting all registered key)
• Setup > Vehicle >Digital Key >
Smartphone Key > My Smartphone
Key Delete (my registered key
deleting)
Information The Delete button is disabled if there is no
digital key (smartphone key) saved.

3. Go to the Initialize Digital Key menu in
the HYUNDAI Digital Key app and select
the vehicle to delete the digital key
information:
Menu > Initialize Digital Key
A
Hyundai_CE_en_US.book Page 12

5
5-13
Information • If the saved digital key (smartphone key) information in your vehicle is deleted while
in vehicle maintenance, the digital key
(smartphone key) in your smartphone must
be deleted.
• For more information, refer to the 'tutorial' in your HYUNDAI Digital Key app.

Information The following do not allow the saving process
to be completed:
• If the smartphone is removed from the vehicle authentication pad (wireless
charging pad).
• If the infotainment system or instrument cluster screen is changed during this
process.
• If the vehicle is turned off.
• If the gear is shifted.
• If you try to save using a smartphone that is not logged in with the vehicle owner’s ID or
if you try to save the card key.
• If the NFC setting on your smartphone is off.
• If the smartphone screen is changed to off or locked status.
• If there is no smart key during the saving process.

When user changes
smartphone or deletes digital
key application
Setting digital key after smartphone
change or reset
If you have changed or reset your
smartphone, the previously registered
digital key may not be used. To set up the
digital key again:
1. Install the HYUNDAI Digital Key app and log in.
2. If you are the owner, try the digital key save process.
3. If you are the sharer, ask the owner to share the key.
Reinstalling digital key app after
deleting
If you have deleted the HYUNDAI Digital
Key app, download the digital key app
again:
1. Reinstall the app and log in.
2. Input the PIN number for user verification.
If the PIN is correct, the digital key data is
downloaded to your smartphone. You can
use it without any further registration or
sharing.
How to save/delete the digital
key (Card Key)
Saving Digital Key (Card Key)
1. Turn on the vehicle with the smart key and be sure to keep the smart key
inside the vehicle during digital key
registration.
2. Install the HYUNDAI Digital Key app on your smartphone and set up the digital
key.
3. Using the Pair Card Key menu in the app, activate the Card Key registration
mode.
Hyundai_CE_en_US.book Page 13
