5
5-87

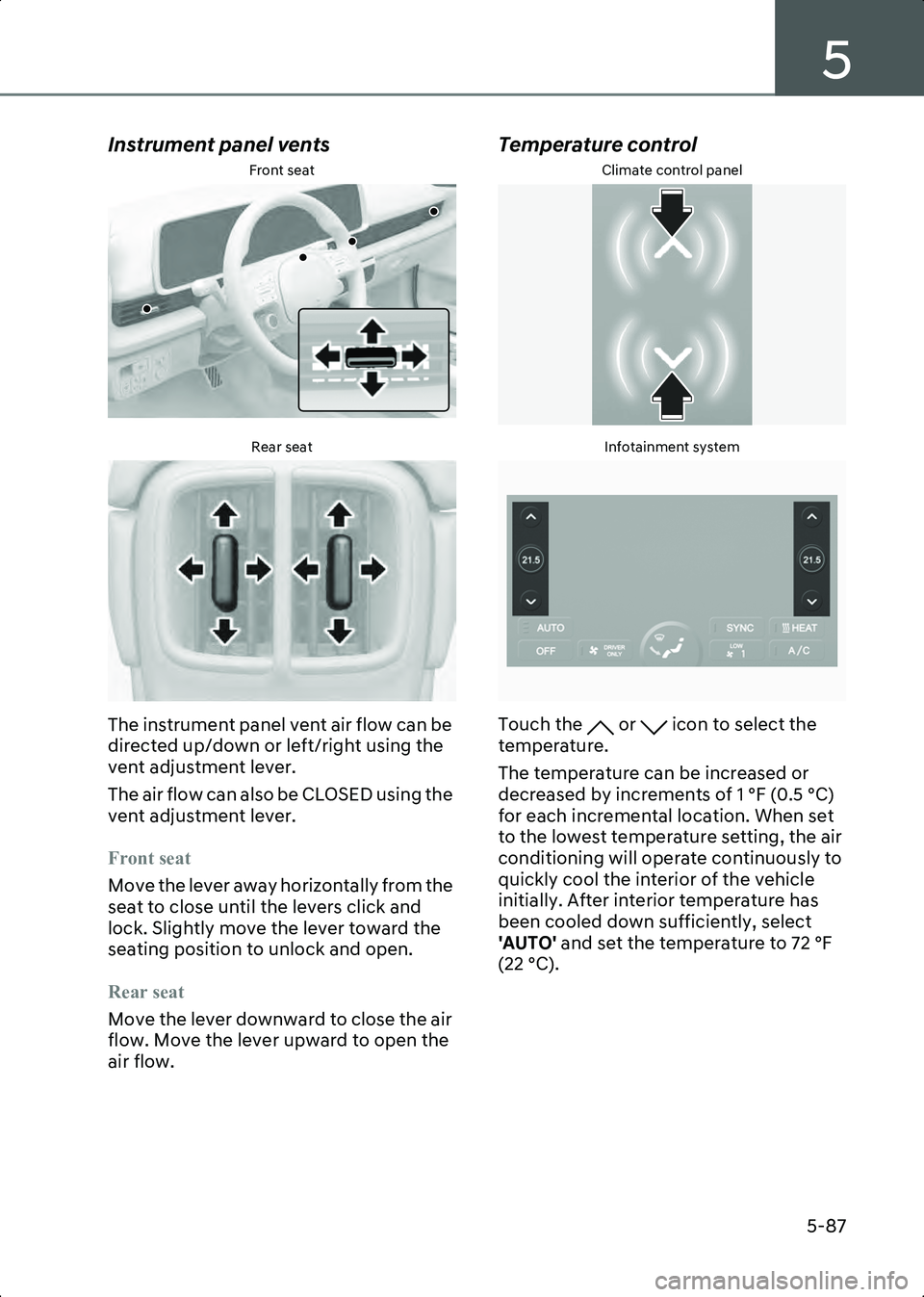

Instrument panel vents
Front seat
B5020004Rear seat
B5020005
The instrument panel vent air flow can be
directed up/down or left/right using the
vent adjustment lever.
The air flow can also be CLOSED using the
vent adjustment lever.
Front seat
Move the lever away horizontally from the
seat to close until the levers click and
lock. Slightly move the lever toward the
seating position to unlock and open.
Rear seat
Move the lever downward to close the air
flow. Move the lever upward to open the
air flow.
Temperature control
Climate control panel
B5020006Infotainment system
B5020007
Touch the or icon to select the
temperature.
The temperature can be increased or
decreased by increments of 1 °F (0.5 °C)
for each incremental location. When set
to the lowest temperature setting, the air
conditioning will operate continuously to
quickly cool the interior of the vehicle
initially. After interior temperature has
been cooled down sufficiently, select
'AUTO' and set the temperature to 72 °F
(22 °C).
Hyundai_CE_en_US.book Page 87

5
5-89
WARNING • Continued use of the climate control system operation in Recirculation
mode for a prolonged period of time
may cause drowsiness to the
occupants in the cabin. This may lead to
loss of vehicle control which may lead
to an accident.
• Continued use of the climate control system operation in Recirculation
mode with the air conditioning OFF
may allow humidity to increase inside
the cabin. This may cause
condensation to accumulate on the
windshield and obscure visibility.
• Do not sleep in your vehicle or remain parked in your vehicle with the
windows up and either the heater or the
air conditioning ON for prolonged
periods of time. Doing so may increase
the levels of carbon dioxide in the cabin
which may lead to serious injury or
death.

Fan speed control
Climate control panel
B5020012Infotainment system
B5020013
The fan speed can be set to the desired
speed by adjusting the icon in the
climate control panel.
More air is delivered with higher fan
speeds.
Pressing and holding the icon turns off
the fan.
Information To help improve microphone voice input
sound, fan speed may automatically slow
down for a couple of minutes when you
activate voice recognition or hands free.

NOTICE2SHUDWLQJWKHIDQZKHQWKH6WDUW6WRS
EXWWRQLVLQWKH2))SRVLWLRQFRXOGFDXVH
WKHEDWWHU\WRGLVFKDUJH2SHUDWHWKHIDQ
ZKHQWKHYHKLFOHLVUXQQLQJ

Hyundai_CE_en_US.book Page 89

Convenience Features
5-90
Driver only
B5020014
If you touch the 'DRIVER ONLY' icon
( ) and the indicator light illuminates
in the infotainment climate control
screen, cold air mostly blows in the
driver’s seat. However, some of the cold
air may come out of other seating
position ducts to keep indoor air pleasant.
If you use the icon with no passenger in
the front passenger seat, energy
consumption will be reduced.
'DRIVER ONLY' icon will be turned off
under the following conditions:
1. Defrost on
2. DRIVER ONLY button re-touch
Air conditioning
B5020015
Touch the 'CLIMATE' icon in the climate
control screen. The climate information
screen will appear on the infotainment
system. Touch the A/C icon in the
infotainment system to turn the air conditioning on (indicator light ON) and
off.
HEAT icon
B5020016
Touch
'CLIMATE' icon in the climate
control screen. The climate information
screen will appear on the infotainment
system. Touch the HEAT icon in the
infotainment system to turn the heater on
(indicator light will illuminate).
Touch the button again to turn the heater
off.
The air conditioner and heater uses
energy from the battery. If you use the
heater or air conditioner for too long,
distance to empty can be reduced due to
too much power consumption.
Turn off the heater and air conditioner if
you do not need them.
OFF mode
B5020017
Touch the 'OFF' icon to turn the climate
control system off.
Hyundai_CE_en_US.book Page 90

5
5-91
System Operation
Cooling/Ventilation
1. Select the Face Level ( ) mode in the infotainment system.
2. Set the air intake control to fresh or recirculation mode.
3. Set the temperature to the desired position.
4. Set the fan speed to the desired speed.
Heating
1. Select the Floor Level ( ) mode in the infotainment system.
2. Set the air intake control to fresh or recirculation mode.
3. Set the temperature to the desired position.
4. Set the fan speed to the desired speed.
5. If desired, turn the air conditioning ON with the temperature set high in order
to dehumidify the air before it enters
into the cabin.
If the windshield fogs up, select the Front
Defrost ( ) mode.
Operation Tips
• To keep dust or unpleasant fumes from entering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Return the control to the
Recirculation mode to the Fresh mode
when the unpleasant air outside has
diminished. This will help keep the
driver alert and comfortable.
• To help prevent the inside of the windshield from fogging, set the air
intake control to fresh mode and the
fan speed to the desired position, turn
on the air conditioning system, and
adjust the temperature control to the
desired temperature.
Air conditioning
Your HYUNDAI Vehicle air conditioning
system is filled with R-1234yf refrigerant.
1. Touch the 'CLIMATE' icon to display
climate information the infotainment
system.
2. Select 'A/C' icon (indicator light ON) in
the climate information screen to
activate the air-condition.
3. Set the temperature low.
4. Set the direction of air flow by touching the mode selection icon.
5. Touch the 'HEAT' icon (indicator light
OFF) to turn on the air-condition.
When maximum cooling is desired, set
the temperature to the lowest position,
then set the fan speed control to the
highest setting.
Air conditioning system operation tips
• If the vehicle has been parked in direct sunlight during hot weather, open the
windows for a short time to let the hot
air inside the vehicle escape.
• After sufficient cooling has been achieved, switch back from
recirculation mode to fresh mode.
• To help reduce moisture inside of the windows on rainy or humid days,
decrease the humidity inside the
vehicle by operating the air
conditioning system with the windows
and vision roof closed.
• Use the air conditioning system every month only for a few minutes to ensure
maximum system performance.
• If you operate air conditioner excessively, the difference between the
temperature of the outside air and that
of the windshield could cause the outer
surface of the windshield to fog up,
causing loss of visibility. In this case, set
the mode selection to the position
and fan speed control to the lowest
speed.
Hyundai_CE_en_US.book Page 91

Convenience Features
5-96
Climate Control
Additional Features
if equipped
A/C Automatic Drying
A/C Automatic Drying feature dries the
moisture in the air conditioner and
reduces air conditioner odor. The blower
motor automatically operates after 30
minutes the vehicle is turned off.
Turning A/C Automatic Drying On or
off
The A/C Automatic Drying feature can be
turned on and off by selecting Setup >
Vehicle Settings > Climate > Climate
Features > A/C Automatic Drying from
the infotainment system.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

If the operating condition is satisfied after
setting the feature, the operating
condition is displayed on the
infotainment system and the blower
motor automatically operates.
When the A/C Automatic Drying feature is
activated, the air conditioner sets the fan
speed to the third level, selects Fresh
mode, and directs the air flow to the floor.
Operating conditions
The A/C Automatic Drying feature
operates under the following conditions:
• The vehicle is turned off after operating the air conditioner for a certain period
• The 12 V battery level is sufficient • The outside temperature is above a
certain level
Non-operating conditions
The A/C Automatic Drying feature stops
operating under the following conditions:
• The A/C Automatic Drying feature has operated for 3 minutes
• The Start/Stop button is pressed, or the vehicle is on
• The climate control system is operated remotely
Information • The A/C Automatic Drying feature reduces air conditioner odors but may not remove
all odors.
• The A/C Automatic Drying feature does not operate if the remaining battery level is
insufficient to prevent battery discharge.

Auto Defogging System
B5021201
Auto defogging helps reduce the
possibility of fogging up the inside of the
windshield by automatically sensing the
moisture on inside the windshield.
Information The auto defogging system may not operate
normally, when the outside temperature is
below 14 °F (-10 °C).

Hyundai_CE_en_US.book Page 96

5
5-97
When the Auto Defogging System
operates, the indicator will illuminate.
If a high amount of humidity is detected in
the vehicle, the Auto Defogging System
will be enabled. The following steps will
be performed automatically:
Step 1)
Air conditioning will turn ON.
Step 2)
Air intake control will change to Fresh
mode.
Step 3)
Mode will change to defrost to direct
airflow to the windshield.
Step 4)
Fan speed will be set to MAX.
If the air conditioning is off or
recirculation mode is manually selected
while Auto Defogging System is ON, the
Auto Defogging System indicator will
blink 3 times to signal that the manual
operation has been canceled.
Turning the Auto Defogging System
ON or OFF
Climate control system
Touch the front windshield defroster icon
for 3 seconds when the Start/Stop button
is in the ON position. When the Auto
Defogging System is turned off, the ADS
OFF symbol will blink 3 times and ADS
OFF will be displayed on the climate
control information system.
When the Auto Defogging System is
turned on, the ADS OFF symbol will blink
6 times without a signal.
Infotainment system
Auto Defogging System can be turned on
and off by selecting Setup > Vehicle > Climate
> Defog /Defrost Options > Auto
Defog from the infotainment system.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

Information • When the air conditioning is turned on by
Auto Defogging System, if you try to turn
off the air conditioning, the indicator will
blink 3 times and the air conditioning will
not be turned off.
• To maintain the effectiveness and efficiency of the Auto Defogging System,
do not select Recirculation mode while the
system is operating.
• When Auto Defogging System is operating, fan speed adjustment, temperature
adjustment, and air intake control selection
are all disabled.

NOTICE'RQRWUHPRYHWKHVHQVRUFRYHUORFDWHG
RQWKHXSSHUHQGRIWKHZLQGVKLHOGJODVV
'DPDJHWRV\VWHPSDUWVFRXOGRFFXUDQG
PD\QRWEHFRYHUHGE\\RXUYHKLFOH
ZDUUDQW\

if equipped
Auto Dehumidify
To increase cabin air quality and reduce
windshield misting, recirculation mode
switches off automatically after about 5
minutes, depending on the outside
temperature, and the air intake will
change to fresh mode.
Hyundai_CE_en_US.book Page 97

Convenience Features
5-98
Turning Auto Dehumidify ON or OFF
Climate control system
To turn the Auto Dehumidify feature on or
off, select Face level ( ) mode and touch
the air intake control icon at least five
times within three seconds. When Auto
Dehumidify is turned on, the air intake
control button indicator will blink 6 times.
When turned off, the indicator will blink 3
times.
Infotainment system
Auto Dehumidify can be turned on and off
by selecting Setup > Vehicle > Climate >
Automatic Ventilation > Auto
Dehumidify from the infotainment
system.
Information If the battery (12 V) is discharged or
disconnected, Auto dehumidify settings will
be reset. Readjust the settings to turning Auto
dehumidify option ON or OFF.

NOTICE7KHLQIRWDLQPHQWV\VWHPPD\FKDQJH
DIWHUVRIWZDUHXSGDWHV)RUPRUH
LQIRUPDWLRQUHIHUWRWKHXVHU
VPDQXDO
SURYLGHGLQWKHLQIRWDLQPHQWV\VWHPDQG
WKHTXLFNUHIHUHQFHJXLGH

Sunroof Inside Air
if equipped
recirculation
When the is sunroof opened, fresh mode
will be automatically selected. At this
time, if you press the air intake control
button, recirculation mode will be
selected but will change back to fresh
mode after 3 minutes. When the sunroof
is closed, the air intake position will return
to the original position that was selected.
Recirculating Air When
Washer Fluid Is Used
Recirculation mode automatically
activates to reduce any objectionable
scent of the washer fluid from entering
the cabin when the windshield washer is
used.
Turning Activate upon Washer Fluid
Use ON or OFF
Activate upon Washer Fluid Use can be
turned on and off by selecting Setup >
Vehicle > Climate > Internal air
circulation > Activation on washer fluid
use from the infotainment system.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

if equipped
Recirculation Mode Plus
• To prevent the inflow of polluted air
into the vehicle when passing through a
tunnel, this function automatically
closes the windows and switches the
climate control system to Recirculation
mode for about 7 seconds before
entering a tunnel based on the map
information of the navigation and the
speed of the vehicle.
• The windows automatically closes before entering a tunnel and area
requiring air recirculation. The windows
open to the previous position after
passing the area. If the power window
switch is operated before the window
opens, the window does not open to
the previous position.
• Tunnel linkage automatic control is available only for models with
Hyundai_CE_en_US.book Page 98

5
5-99
one-touch automatic window function
for all seats. To use this feature, it must
be enabled from the Settings menu in
the infotainment system. Select Setup
> Vehicle > Climate > Recirculate air >
Others .
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

Automatic Controls Linked to
Climate Control Settings (for
driver’s seat)
The temperature of the driver’s seat
warmer, air ventilated seat and heated
steering wheel is automatically controlled
depending on the inside and outside
temperature of the vehicle when the
vehicle is running.
To use these features, it must be enabled
from the Settings menu in the
infotainment system.
Select Setup > Vehicle > Seat >
Warmer/Ventilation Features > Link to
Climate Settings for Auto-Adjustment >
Driver Seat Warmer/Ventilation .
For more information on Auto Comfort
Control, refer to the "Seat Warmers" and
"Air Ventilation Seats" section in chapter 3
and "Heated Steering Wheel" section in this chapter.
Smart Ventilation
The smart ventilation system maintains
pleasant/fresh air condition inside the
passenger compartment by
automatically detecting/controlling the
temperature and humidity, when you
drive the vehicle with the climate control
system in the OFF position. When the smart ventilation system starts to
operate, the message
'SMART
VENTILATION ON' appears for 5 seconds.
• The smart ventilation system stops operating, when the BLOWER DOWN
OFF button of the climate control
system is selected.
• The smart ventilation system stops operating, when any button of the
climate control system is selected for
operation.
• The smart ventilation system may not operate, when the vehicle is driven at
low speed.
Hyundai_CE_en_US.book Page 99
