2023 HYUNDAI IONIQ 6 infotainment

7

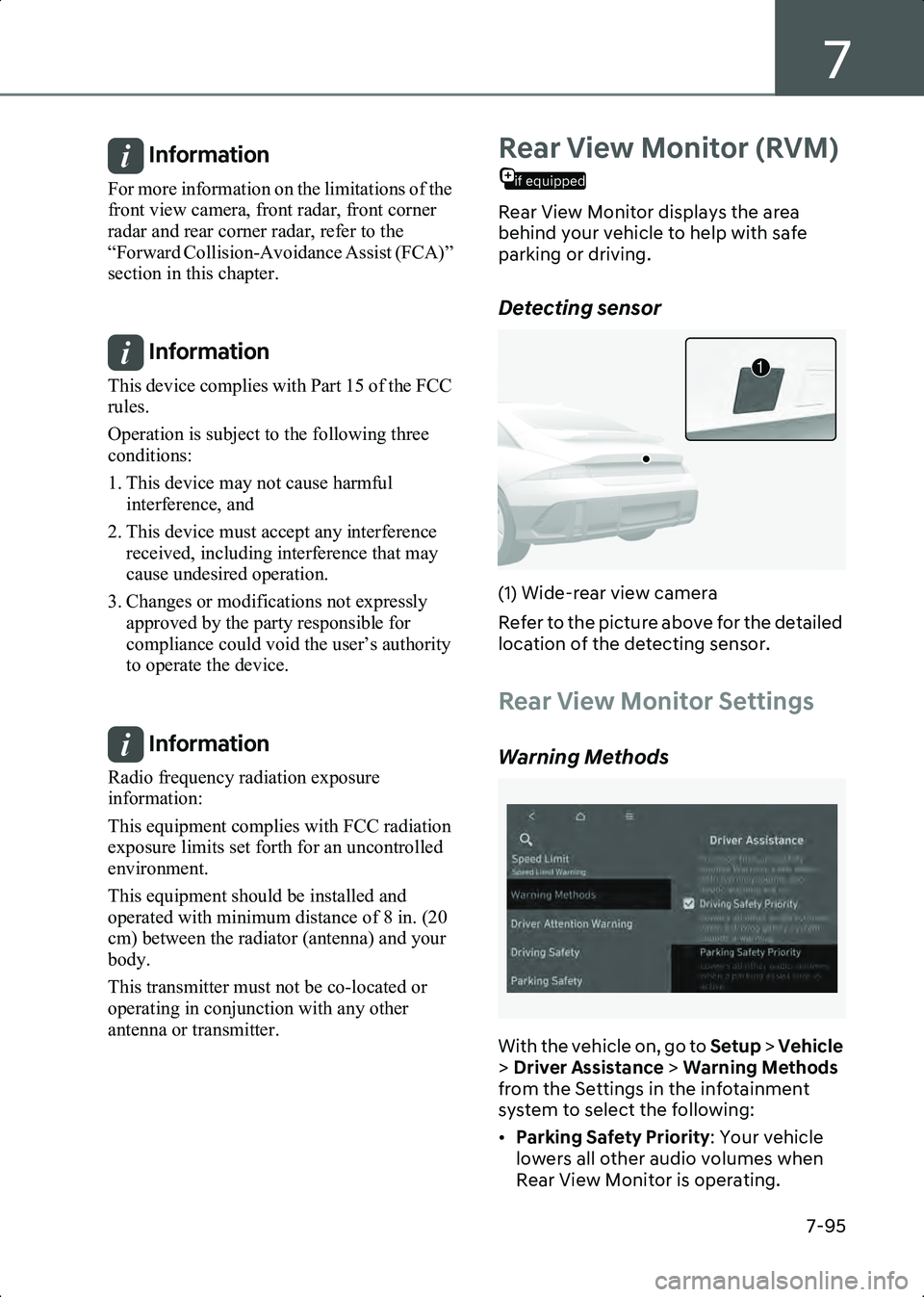

7-95
Information For more information on the limitations of the
front view camera, front radar, front corner
radar and rear corner radar, refer to the
“Forward Collision-Avoidance Assist (FCA)”
section in this chapter.

Information This device complies with Part 15 of the FCC
rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority
to operate the device.

Information Radio frequency radiation exposure
information:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and
operated with minimum distance of 8 in. (20
cm) between the radiator (antenna) and your
body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

if equipped
Rear View Monitor (RVM)
Rear View Monitor displays the area
behind your vehicle to help with safe
parking or driving.
Detecting sensor
B7005801(1) Wide-rear view camera
Refer to the picture above for the detailed
location of the detecting sensor.
Rear View Monitor Settings
Warning Methods
B7005901
With the vehicle on, go to Setup > Vehicle
> Driver Assistance > Warning Methods
from the Settings in the infotainment
system to select the following:
• Parking Safety Priority : Your vehicle
lowers all other audio volumes when
Rear View Monitor is operating.
1
Hyundai_CE_en_US.book Page 95

Driver Assistance System
7-96
Information • If you change the Warning Methods, Warning Methods of other Driver
Assistance systems may change.
• If the vehicle is restarted, Warning Methods will maintain the last setting.
• There may be no Settings menu depending on the feature applied to your vehicle.

Camera settings
B7005903
• You can change Rear View Monitor Display Contents by touching the
setup icon ( ) on the screen while Rear
View Monitor is operating, or selecting
Setup > Vehicle > Driver Assistance >
Parking Safety > Camera Settings from
the Settings menu while the vehicle is
on.
• In the Display Contents , you can
change settings for Extended Rear
View Monitor and Rear View Parking
Lines .
Information There may be no Setting menu depending on
the feature applied to your vehicle.

Extended Rear View Monitor
With the vehicle on, select Camera
Settings > Display Contents > Extended
Rear View Monitor from the Settings
menu to turn on Extended Rear View
Monitor function and deselect to turn off
the function
Rear View Parking Lines
If Rear View Parking Lines is selected, the
rear view parking guide lines and rear top
view guide lines will be displayed at the
left side of the infotainment system.
Information • The horizontal guideline of the Rear View Parking Guidance shows the distance of 1.6
ft. (0.5 m), 3.3 ft. (1 m) and 7.6 ft. (2.3 m)
from the vehicle.
• The horizontal guideline of the Rear Top View Parking Guidance shows the distance
1 ft. (0.3 m), 4.9 ft. (1.5 m) from the vehicle.

Rear View Monitor Operation
Parking/View button
B7006001
Press the Parking/View button (1) while
the gear is in P (Park) to turn on Rear View
Monitor.
Press the Parking/View button (1) while
the gear is in D (Drive) or N (Neutral) to
turn on Rear View Monitor while driving.
Hyundai_CE_en_US.book Page 96

Driver Assistance System
7-98
Rear View Monitor
Malfunction and Limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display properly,
have the vehicle inspected by an
authorized HYUNDAI dealer.
WARNING • The rear view camera does not cover the complete area behind the vehicle.
The driver should always check the rear
area directly through the inside
rearview mirror and outer side view
mirror before parking or backing up.
• The image shown on the screen may differ from the actual distance of the
object. Make sure to directly check the
vehicle's surroundings for safety.
• Always keep the rear view camera lens clean. If the lens is covered with foreign
material, it may adversely affect
camera performance and Rear View
Monitor may not operate properly.
However, do not use chemical solvents
such as strong detergents containing
high alkaline or volatile organic
solvents (gasoline, acetone, etc.). This
may damage the camera lens.

Surround View Monitor
if equipped
(SVM)
Surround View Monitor uses the wide
view cameras and displays images
around your vehicle through the
infotainment system screen to help with
safe parking or driving.
Detecting sensor
B7006201
B7006202
(1) Wide-front view camera
(2) Wide-side view camera (Below the side view mirror)
(3) Wide-side view camera (Below the side view mirror)
(4) Wide-rear view camera
Refer to the picture above for the detailed
location of the detecting sensors.
2
3
1
4
Hyundai_CE_en_US.book Page 98

7

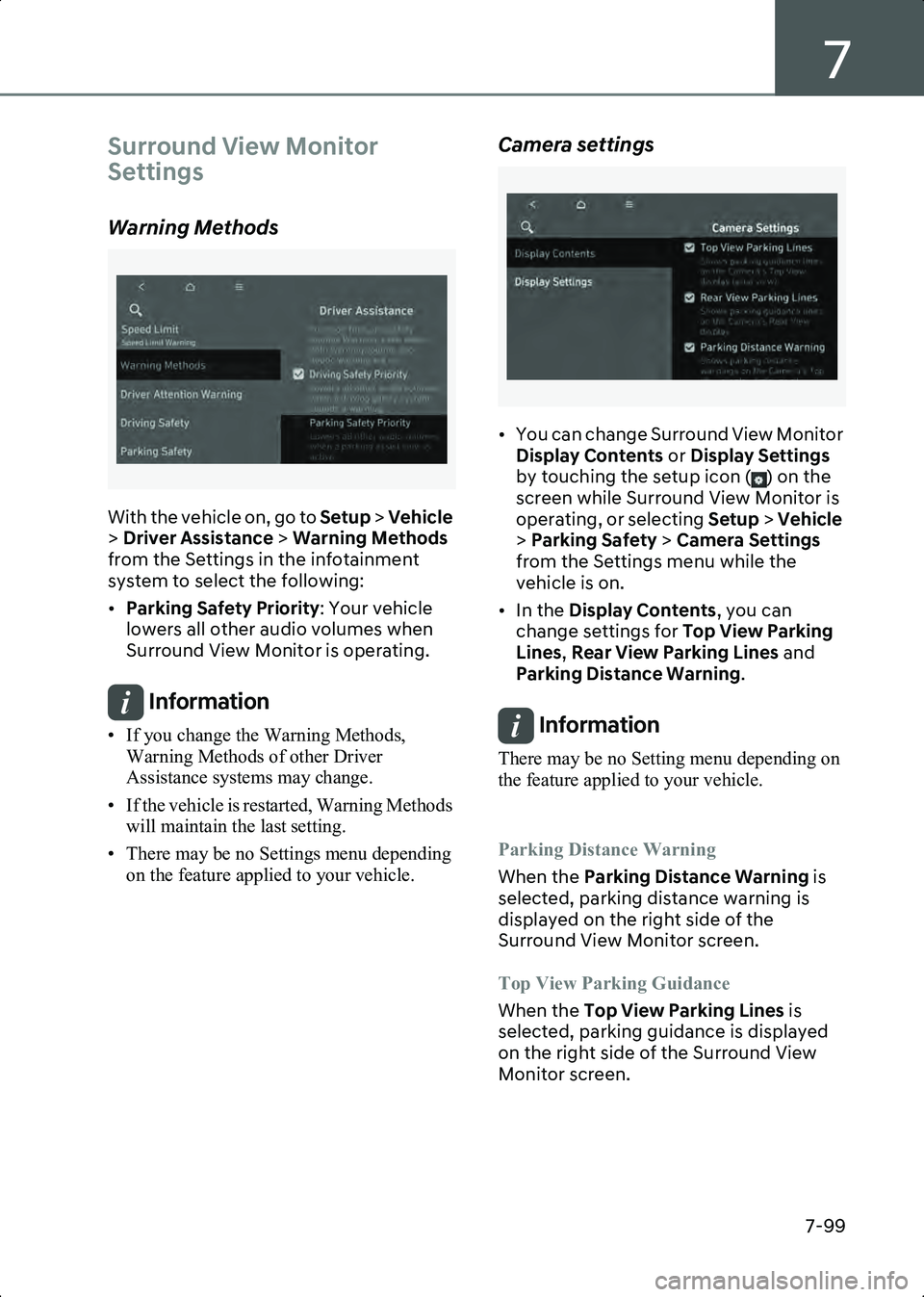

7-99
Surround View Monitor
Settings
Warning Methods
B7005901
With the vehicle on, go to Setup > Vehicle
> Driver Assistance > Warning Methods
from the Settings in the infotainment
system to select the following:
• Parking Safety Priority : Your vehicle
lowers all other audio volumes when
Surround View Monitor is operating.
Information • If you change the Warning Methods, Warning Methods of other Driver
Assistance systems may change.
• If the vehicle is restarted, Warning Methods will maintain the last setting.
• There may be no Settings menu depending on the feature applied to your vehicle.

Camera settings
B7006303
• You can change Surround View Monitor Display Contents or Display Settings
by touching the setup icon ( ) on the
screen while Surround View Monitor is
operating, or selecting Setup > Vehicle
> Parking Safety > Camera Settings
from the Settings menu while the
vehicle is on.
• In the Display Contents , you can
change settings for Top View Parking
Lines , Rear View Parking Lines and
Parking Distance Warning .
Information There may be no Setting menu depending on
the feature applied to your vehicle.

Parking Distance Warning
When the Parking Distance Warning is
selected, parking distance warning is
displayed on the right side of the
Surround View Monitor screen.
Top View Parking Guidance
When the Top View Parking Lines is
selected, parking guidance is displayed
on the right side of the Surround View
Monitor screen.
Hyundai_CE_en_US.book Page 99

7
7-101
(Drive), and vehicle speed is 6 mph (10
km/h) or less.
• Surround View Monitor Auto On function will operate when the
following conditions are satisfied:
- With Setup > Vehicle > Driver
Assistance > Parking Safety >
Surround View Monitor Auto On
selected from the Settings menu, the
front view while parking is displayed.
Off conditions
• The Parking/View button (1) or the Infotainment system button (3) is
Pressed.
• Vehicle speed is above 6 mph (10 km/h).
• The gear is shifted to P (Park).
Information Surround View Monitor will turn off when
vehicle speed is above 6 mph (10 km/h).
However, Surround View Monitor will not
turn on again although vehicle speed drops
below 6 mph (10 km/h).

Rear view
The rear image is displayed on the screen
when the gear is in R (Reverse) or P (Park)
to assist in parking. Using the view button
(2) you may select top view, rear view and
side view.
Operating conditions
• The gear is shifted to R (Reverse).
• The Parking/View button (1) is pressed, while the gear is in P (Park).
Off conditions
• The gear is shifted from R (Reverse) to P (Park).
• The Parking/View button (1) is pressed, while the gear is in P (Park).
Information When the gear is in R (Reverse), the rear view
does not turn off even if the infotainment
system button (3) is pressed.

3D view
The 3D view shows the image around the
vehicle from various angles.
You can change angles by tapping the
screen. Press the 3D View button again to
return to the initial angle.
3D view will turn on when the 3D view is
selected among the view buttons (2)
under the following conditions:
• The gear is in P (Park), N (Neutral) or D (Drive) when vehicle speed is below 6
mph (10 km/h).
• The Surround View Monitor is turned on when the gear is in R (Reverse).
When the gear is in P (Park), N (Neutral) or
D (Drive), 3D view will turn off under the
following conditions:
• The gear is shifted to P (Park).
• The Parking/View button (1) is pressed.
• The infotainment system button (3) is pressed.
• The Home button (2) is pressed.
• Vehicle speed is above 6 mph (10 km/h).
When the gear is in R (reverse), 3D view
will turn off under the following
conditions.
• The gear is shifted to P (Park).
Information 3D view does not display guidelines.

Hyundai_CE_en_US.book Page 101

Driver Assistance System

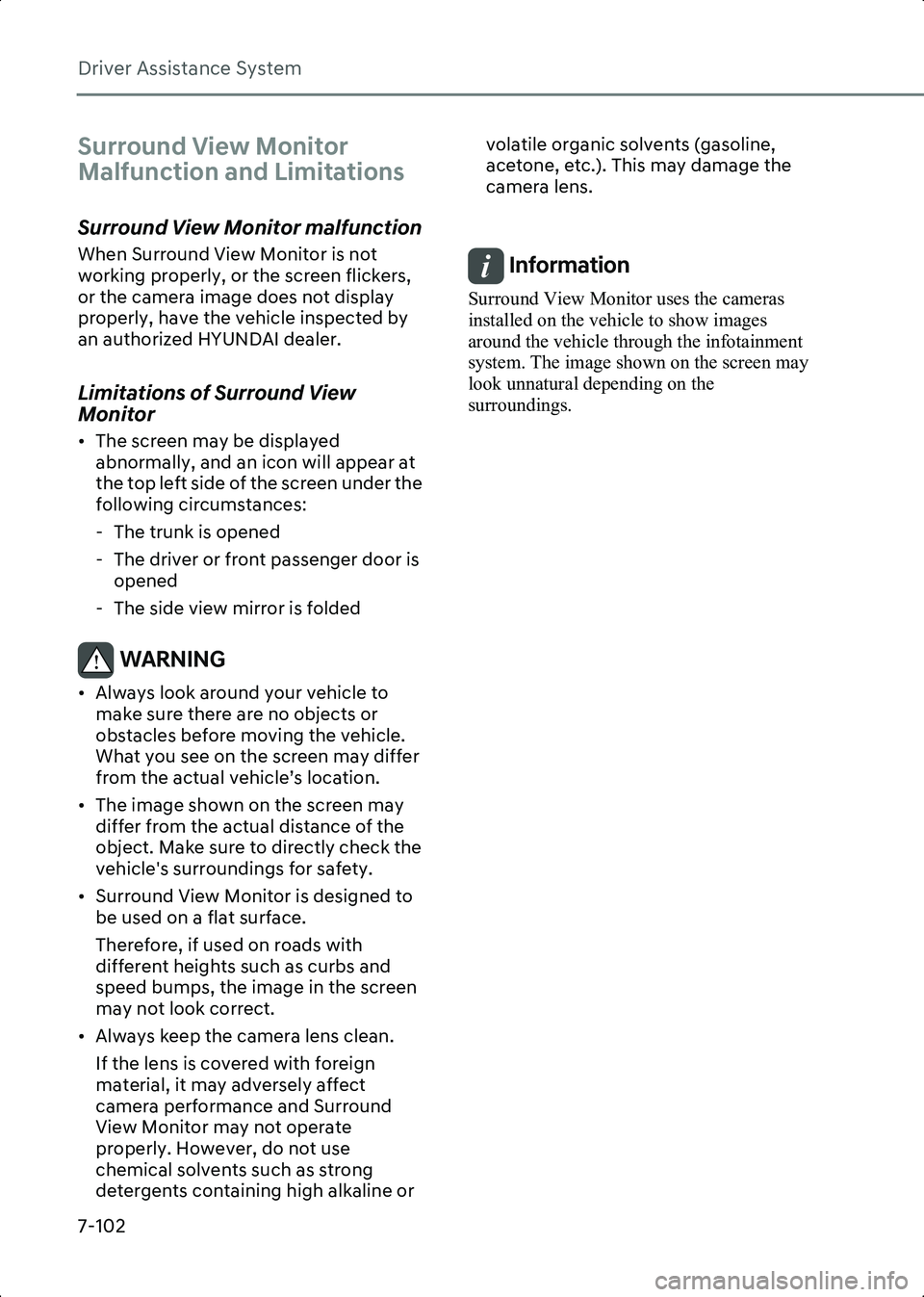

7-102
Surround View Monitor
Malfunction and Limitations
Surround View Monitor malfunction
When Surround View Monitor is not
working properly, or the screen flickers,
or the camera image does not display
properly, have the vehicle inspected by
an authorized HYUNDAI dealer.
Limitations of Surround View
Monitor
• The screen may be displayed abnormally, and an icon will appear at
the top left side of the screen under the
following circumstances:
- The trunk is opened
- The driver or front passenger door is opened
- The side view mirror is folded
WARNING • Always look around your vehicle to make sure there are no objects or
obstacles before moving the vehicle.
What you see on the screen may differ
from the actual vehicle’s location.
• The image shown on the screen may differ from the actual distance of the
object. Make sure to directly check the
vehicle's surroundings for safety.
• Surround View Monitor is designed to be used on a flat surface.
Therefore, if used on roads with
different heights such as curbs and
speed bumps, the image in the screen
may not look correct.
• Always keep the camera lens clean. If the lens is covered with foreign
material, it may adversely affect
camera performance and Surround
View Monitor may not operate
properly. However, do not use
chemical solvents such as strong
detergents containing high alkaline or volatile organic solvents (gasoline,
acetone, etc.). This may damage the
camera lens.

Information Surround View Monitor uses the cameras
installed on the vehicle to show images
around the vehicle through the infotainment
system. The image shown on the screen may
look unnatural depending on the
surroundings.

Hyundai_CE_en_US.book Page 102

Driver Assistance System
7-104
Collision-Avoidance Assist and deselect
to turn off the function.
WARNING When the vehicle is restarted, Rear
Cross-Traffic Collision-Avoidance Assist
will always turn on. However, the driver
should always be aware of the
surroundings and drive safely especially if
Rear Cross-Traffic Safety is deselected.

Warning Methods
B7000205
With the vehicle on, go to Setup > Vehicle
> Driver Assistance > Warning Methods
from the Settings in the infotainment
system to select the following:
• Warning Volume : The Warning Volume
can be adjusted.
• Haptic Warning : The steering wheel
vibration can be set.
Information • If you change the Warning Methods, Warning Methods of other Driver
Assistance systems may change.
• If the vehicle is restarted, Warning Methods will maintain the last setting.
• There may be no Settings menu depending on the feature applied to your vehicle.
• Even though 0 is selected for Warning
Volume, Warning Volume will not be turned off but Warning Volume will sound
as
1.
• When Haptic Warning is deselected while
Warning Volume is selected as 0, Warning
Volume will activate and be selected as 2.
• When Warning Volume is selected as 0
while Haptic Warning is deselected,
steering wheel vibration will activate.

Rear Cross-Traffic
Collision-Avoidance Assist
Operation
Rear Cross-Traffic Collision-Avoidance
Assist will warn and help control the
vehicle depending on collision risk level:
‘Collision Warning’, ‘Emergency Braking’
and ‘Stopping vehicle and ending brake
control’.
Collision Warning
B7006801
B7006803
$IFDL
TVSSPVOEJOH
GPS
ZPVS
TBGFUZ$IFDL
TVSSPVOEJOH
GPS
ZPVS
TBGFUZ
Hyundai_CE_en_US.book Page 104

7
7-105
• To warn the driver of an approaching vehicle from the rear left/right side of
your vehicle, the warning light on the
side view mirror will blink and a warning
will appear on the instrument cluster. At
the same time, an audible warning will
sound. If Rear View Monitor is
operating, a warning will also appear on
the infotainment system.
• Rear Cross-Traffic Collision-Avoidance Assist will operate when all the
following conditions are satisfied:
• The gear is shifted to R (Reverse)
• Vehicle speed is below 5 mph (8 km/h)
• The approaching vehicle is within about 82 ft. (25 m) from the left and right side
of your vehicle
• The speed of the vehicle approaching from the left and right is above 3 mph (5
km/h)
Information • If the operating conditions are satisfied, there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).
• The images and colors in the instrument cluster may differ depending on the
instrument cluster type or theme selected
from the instrument cluster.

Emergency Braking
B7006804 B7006803
• To warn the driver of an approaching
vehicle from the rear left/right side of
your vehicle, the warning light on the
side view mirror will blink and a warning
message will appear on the instrument
cluster. At the same time, an audible
warning will sound. A warning will also
appear on the infotainment system.
• Rear Cross-Traffic Collision-Avoidance Assist will operate when all the
following conditions are satisfied:
• The gear is shifted to R (Reverse)
• Vehicle speed is below 5 mph (8 km/h)
• The approaching vehicle is within about 5 ft. (1.5 m) from the left and right side
of your vehicle
• The speed of the vehicle approaching from the left and right is above 3 mph (5
km/h)
• Emergency braking will be assisted to help prevent collision with approaching
vehicles from the left and right.
WARNING Brake control will end when:
• The approaching vehicle is out of the detecting range
• The approaching vehicle passes behind your vehicle
• The approaching vehicle does not drive toward your vehicle
• The approaching vehicle speed slows down
$IFDL
TVSSPVOEJOH
GPS
ZPVS
TBGFUZ$IFDL
TVSSPVOEJOH
GPS
ZPVS
TBGFUZ
Hyundai_CE_en_US.book Page 105
