7
7-131

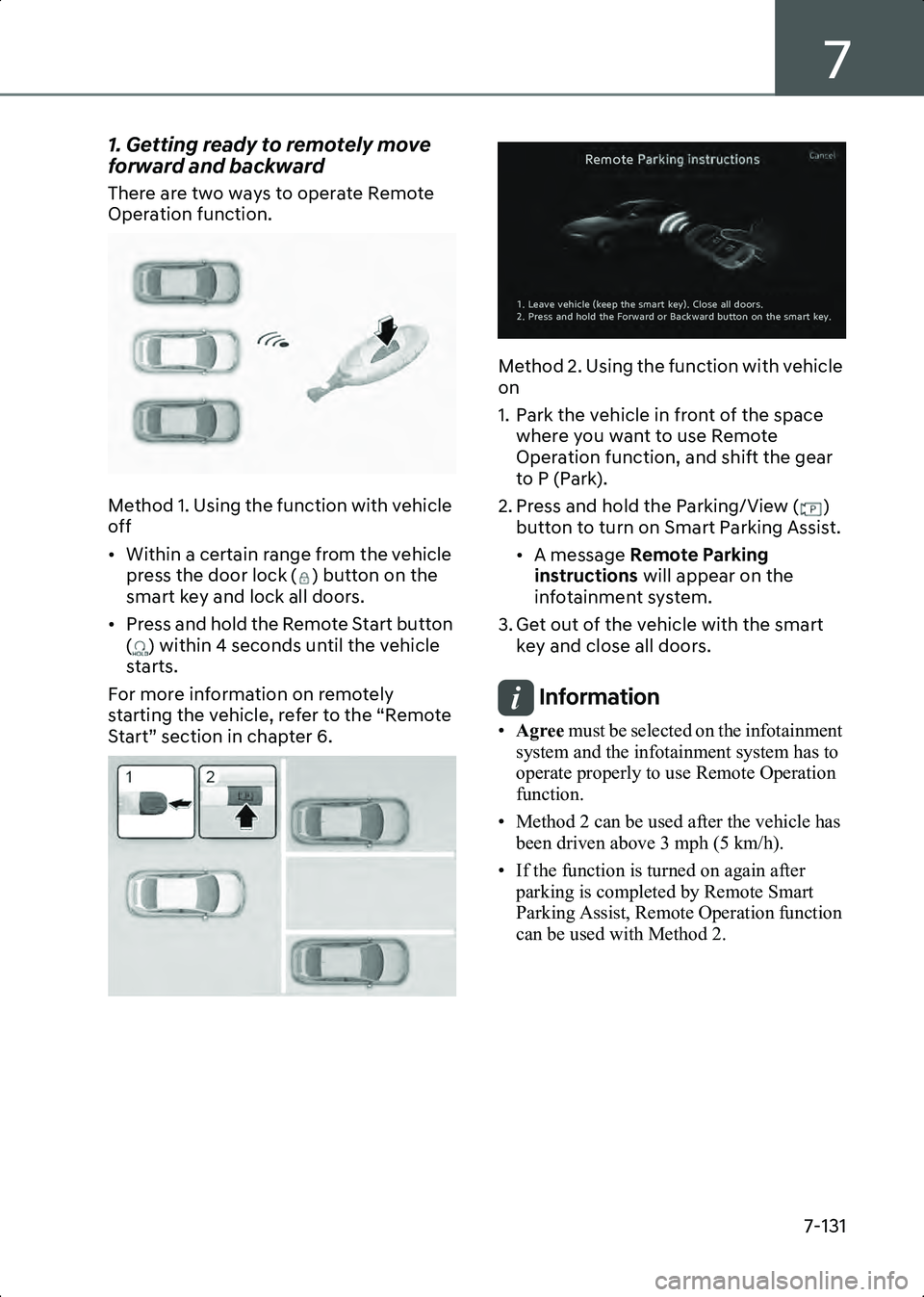

1. Getting ready to remotely move
forward and backward
There are two ways to operate Remote
Operation function.
B7008809
Method 1. Using the function with vehicle
off
• Within a certain range from the vehicle press the door lock ( ) button on the
smart key and lock all doors.
• Press and hold the Remote Start button ( ) within 4 seconds until the vehicle
starts.
For more information on remotely
starting the vehicle, refer to the “Remote
Start” section in chapter 6.
B7008810 B7008811
Method 2. Using the function with vehicle
on
1. Park the vehicle in front of the space
where you want to use Remote
Operation function, and shift the gear
to P (Park).
2. Press and hold the Parking/View ( ) button to turn on Smart Parking Assist.
• A message Remote Parking
instructions will appear on the
infotainment system.
3. Get out of the vehicle with the smart key and close all doors.
Information •Agree must be selected on the infotainment
system and the infotainment system has to
operate properly to use Remote Operation
function.
• Method 2 can be used after the vehicle has been driven above 3 mph (5 km/h).
• If the function is turned on again after parking is completed by Remote Smart
Parking Assist, Remote Operation function
can be used with Method 2.
6 I Q S X I
0 I E Z I Z I L M G P I O I I T X L I W Q E V X O I ]
' P S W I E P P H S S V W
4 V I W W E R H L S P H X L I * S V [ E V H S V & E G O [ E V H F Y X X S R S R X L I W Q E V X O I ]
Hyundai_CE_en_US.book Page 131
Page 476 of 582
Driver Assistance System
7-132
2. Remotely moving forward and
backward
B7008812
1. Press and hold one of the Forward ( ) or Backward ( ) button on the smart
key.
• Remote Smart Parking Assist will automatically control the steering
wheel, vehicle speed and gearshift.
The vehicle will move in the direction
of the button pressed.
• While Remote Operation function is operating, if the you let the button,
the vehicle will stop and function
control will pause. The function will
start operating again when the
button is pressed and held again.
2. Hold down the Forward ( ) or Backward ( ) button until the vehicle
reaches the target location.
3. When Remote Operation is done, get in the vehicle with the smart key or press
the Remote Start ( ) button on the
smart key from outside the vehicle.
• The message will appear on the infotainment system. The vehicle will
automatically shift to P (Park) and
engage the parking brake.
• When the Remote Start ( ) button is pressed, the vehicle will turn off. If
the driver is in the vehicle, the vehicle
will retain ON position.
Information • Remote Operation can control the vehicle remotely using the smart key outside the
vehicle.
• Check that all smart keys are outside the vehicle when using Remote Operation
function.
• Remote Operation function will operate only when the smart key is within 13 ft. (4
m) from the vehicle. If there is no vehicle
movement even when the Forward or
Backward button is pressed on the smart
key, check the distance to the vehicle and
press the button again.
• The detecting range of the smart key may vary depending on the surroundings that are
affected by radio waves such as
transmission tower, broadcast station, etc.
• When remotely moving forward using Method 1, it is recognized as an exit
situation, and the vehicle moves 13 ft. (4 m)
to check for parking lines, pedestrians,
animals or objects around the vehicle. After
confirmation, the steering wheel is
controlled according to the condition ahead.
• When remotely moving forward using Method 2, it is recognized as a parking
situation, and will immediately control the
steering wheel according to the condition
ahead to assist with entering the parking
space and aligning the vehicle. However,
performance may reduce depending on the
parking lines, pedestrians, animals, shape
of objects, location, etc., around the vehicle.
• For moving remotely backward, both Method 1 and 2 aligns the steering wheel
first, and then will only move the vehicle
straight.
WARNING • When using Remote Operation function, make sure that all passengers
have gotten out of the vehicle.
• If the vehicle’s battery is discharged or Remote Smart Parking Assist
Hyundai_CE_en_US.book Page 132
Page 477 of 582
7
7-133
malfunctions when parked in a narrow
parking space, Remote Operation
function will not operate. Always park
your vehicle in a space wide enough for
you to get in or out of your vehicle.
• Please note that depending on the parking space, you may not be able to
exit from the space you have entered
by using Remote Operation function.
• After parking, the surrounding may change due to the movement of
surrounding vehicles. If this occurs,
Remote Operation function may not
operate.
• Before leaving the vehicle, close windows and sunroofs, and make sure
the vehicle is off before locking the
doors.
Remote Operation function operation
statusInformation • Operation status by the hazard warning light may not be applicable based on the
regulation of your state.
• If the smart key is not within the operating range from the vehicle (about 13 ft. (4 m)),
the smart key LED will not illuminate or
blink. Use the smart key within the
operating range.
How to turn off Remote Operation function
while operating
• Press the Parking/View ( ) button while the infotainment system guides
the driver using method 2.
• Shift the gear from P (Park) to any other position while the infotainment system
guides the driver using method 2.
• Press the Parking Safety ( ) button or select Cancel on the infotainment
system.
• Press the Remote Start ( ) button on the smart key while the vehicle is being
controlled by Remote Operation
function. Remote Operation function
will turn off. At this time, the vehicle will
turn off.
• Get on the vehicle with the smart key. Remote Operation function will turn
off. At this time, the vehicle will remain
on.
The function will pause in the following
conditions when:
• There is a pedestrian, animal or object in the direction the vehicle is moving
• The door or trunk is open
• The Forward ( ) or Backward ( ) button is not continuously pressed
• Simultaneously pressing multiple buttons on a smart key
• The smart key is not operated within 13 ft. (4 m) from the vehicle
Operation
StatusSmart Key LED
Hazard
Warning Light
Under
control Green LED
continuously
blinks
-
Pause Red LED
continuously
blinks Blinks
Off Red LED
illuminates for
4 seconds and
then turns off Blinks 3
times and
turns off
Complete Green LED
illuminates for
4 seconds and
then turns off Blinks 1
time and
turns off
Hyundai_CE_en_US.book Page 133
Page 479 of 582
7
7-135

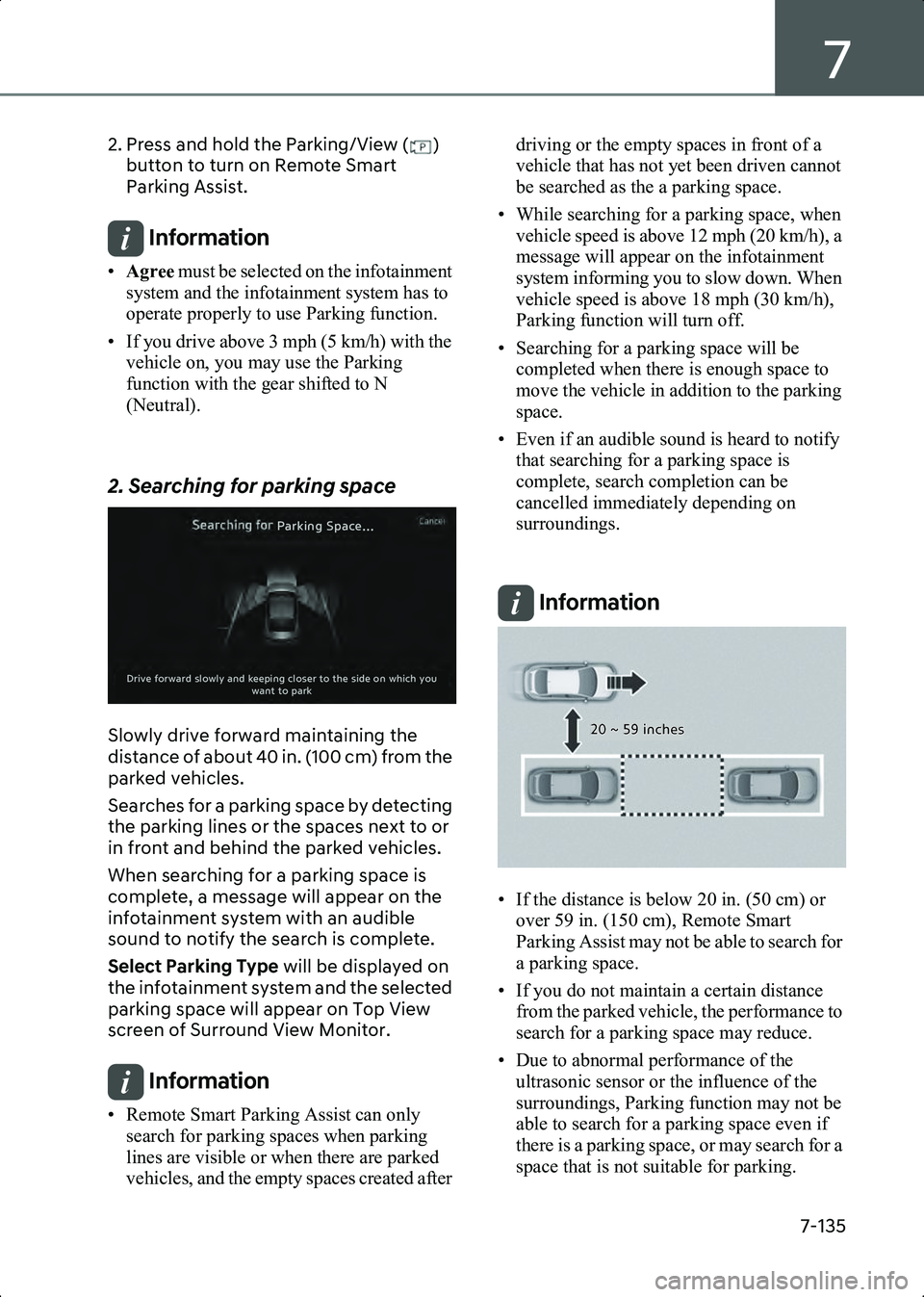

2. Press and hold the Parking/View ( ) button to turn on Remote Smart
Parking Assist.
Information •Agree must be selected on the infotainment
system and the infotainment system has to
operate properly to use Parking function.
• If you drive above 3 mph (5 km/h) with the vehicle on, you may use the Parking
function with the gear shifted to N
(Neutral).
2. Searching for parking space
B7008902
Slowly drive forward maintaining the
distance of about 40 in. (100 cm) from the
parked vehicles.
Searches for a parking space by detecting
the parking lines or the spaces next to or
in front and behind the parked vehicles.
When searching for a parking space is
complete, a message will appear on the
infotainment system with an audible
sound to notify the search is complete.
Select Parking Type will be displayed on
the infotainment system and the selected
parking space will appear on Top View
screen of Surround View Monitor.
Information • Remote Smart Parking Assist can only search for parking spaces when parking
lines are visible or when there are parked
vehicles, and the empty spaces created after driving or the empty spaces in front of a
vehicle that has not yet been driven cannot
be searched as the a parking space.
• While searching for a parking space, when vehicle speed is above 12 mph (20 km/h), a
message will appear on the infotainment
system informing you to slow down. When
vehicle speed is above 18 mph (30 km/h),
Parking function will turn off.
• Searching for a parking space will be completed when there is enough space to
move the vehicle in addition to the parking
space.
• Even if an audible sound is heard to notify that searching for a parking space is
complete, search completion can be
cancelled immediately depending on
surroundings.
Information
B7008903
• If the distance is below 20 in. (50 cm) or over 59 in. (150 cm), Remote Smart
Parking Assist may not be able to search for
a parking space.
• If you do not maintain a certain distance from the parked vehicle, the performance to
search for a parking space may reduce.
• Due to abnormal performance of the ultrasonic sensor or the influence of the
surroundings, Parking function may not be
able to search for a parking space even if
there is a parking space, or may search for a
space that is not suitable for parking.
4 E V O M R K 7 T E G I
( V M Z I J S V [ E V H W P S [ P ] E R H O I I T M R K G P S W I V X S X L I W M H I S R [ L M G L ] S Y
[ E R X X S T E V O
b M R G L I W b M R G L I W
Hyundai_CE_en_US.book Page 135
Page 480 of 582
Driver Assistance System
7-136

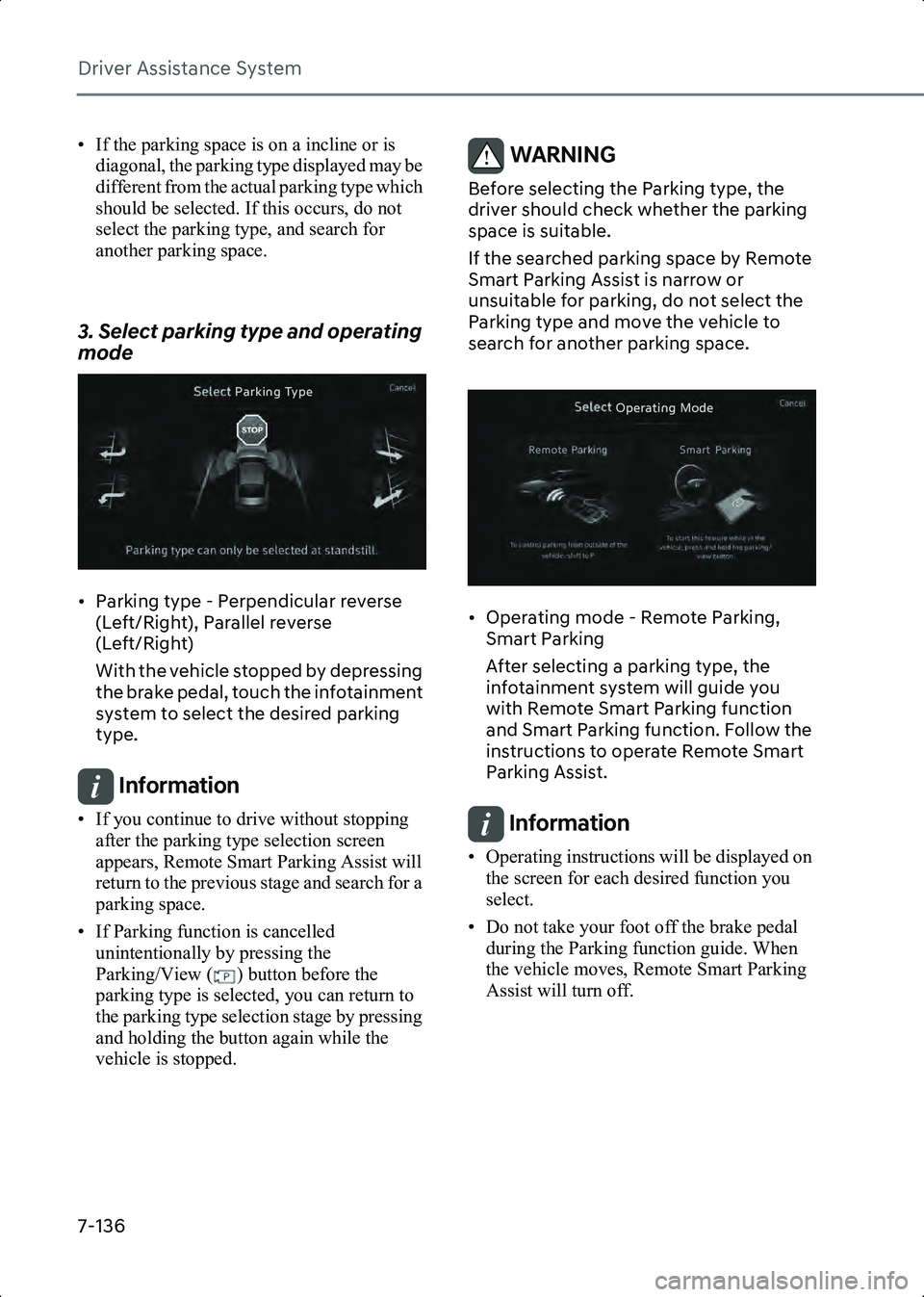

• If the parking space is on a incline or is diagonal, the parking type displayed may be
different from the actual parking type which
should be selected. If this occurs, do not
select the parking type, and search for
another parking space.
3. Select parking type and operating
mode
B7008904
• Parking type - Perpendicular reverse (Left/Right), Parallel reverse
(Left/Right)
With the vehicle stopped by depressing
the brake pedal, touch the infotainment
system to select the desired parking
type.
Information • If you continue to drive without stopping after the parking type selection screen
appears, Remote Smart Parking Assist will
return to the previous stage and search for a
parking space.
• If Parking function is cancelled unintentionally by pressing the
Parking/View ( ) button before the
parking type is selected, you can return to
the parking type selection stage by pressing
and holding the button again while the
vehicle is stopped.
WARNING Before selecting the Parking type, the
driver should check whether the parking
space is suitable.
If the searched parking space by Remote
Smart Parking Assist is narrow or
unsuitable for parking, do not select the
Parking type and move the vehicle to
search for another parking space.
B7008905
• Operating mode - Remote Parking, Smart Parking
After selecting a parking type, the
infotainment system will guide you
with Remote Smart Parking function
and Smart Parking function. Follow the
instructions to operate Remote Smart
Parking Assist.
Information • Operating instructions will be displayed on the screen for each desired function you
select.
• Do not take your foot off the brake pedal during the Parking function guide. When
the vehicle moves, Remote Smart Parking
Assist will turn off.
4 E V O M R K 8 ] T I 3 T I V E X M R K 1 S H I
6 I Q S X I 7 Q E V X
Hyundai_CE_en_US.book Page 136
Page 481 of 582
7
7-137
Information
B7008906
If Remote Smart Parking Assist cannot
activate Remote Smart Parking function, only
the Smart Parking guide will be displayed on
the infotainment system.
4. Smart Parking
B7008907
B7008908
1. Press the Parking/View ( ) button when the vehicle is stopped by
depressing the brake pedal. 2. Release the brake pedal while pressing
the Parking/View ( ) button.
• Remote Smart Parking Assist will automatically control the steering
wheel, vehicle speed and gearshift.
• While Smart Parking function is operating, if you do not hold down
the Parking/View ( ) button, the
function will stop and function
control will pause. The function will
start operating again when the
Parking/View ( ) button is pressed
and held again.
3. Press and hold the Parking/View ( ) button until parking is completed.
• When the vehicle reaches the target parking position, a message will
appear on the infotainment system to
inform you that parking is complete.
The vehicle will automatically shift to
P (Park) and engage EPB (Electronic
Parking Brake).
4. If you need to change the vehicle's position or location, manually complete
parking your vehicle.
Information • Smart Parking function will not operate if the door is open or the seat belt is not
fastened.
• The parking location indicator is displayed on Surround View Monitor screen and is
displayed until the vehicle enters the
parking space for the first time by Smart
Parking function.
• Vehicle speed can be adjusted by depressing the brake pedal while Smart
Parking function is operating. However, the
vehicle does not accelerate even when the
accelerator pedal is depressed.
• Depending on parking environments, if the vehicle is stopped by a stopper, parking
may be completed.
4 E V O M R K : M I [
7 Q E V X
Hyundai_CE_en_US.book Page 137
Page 482 of 582
Driver Assistance System
7-138
5. Remote Smart Parking
B7008909
1. Depress the brake pedal and shift the gear to P (Park).
2. Get out of the vehicle with the smart key, and close all doors.
3. Press one of the Forward ( ) or Backward ( ) button on the smart key.
• While pressing the button, Remote Smart Parking Assist will
automatically control the steering
wheel, vehicle speed and gearshift.
• While Remote Smart Parking function is operating, if you do not
hold down the button, the vehicle will
stop and function control will pause.
The function will start operating
again when the button is pressed and
held again.
4. Press and hold the Forward ( ) or Backward ( ) button until parking is
completed.
• When the vehicle reaches the target parking position, a message will
appear on the infotainment system to
inform you that parking is complete.
The vehicle will automatically shift to
P (Park), engage EPB (Electronic
Parking Brake) and the vehicle will
turn off.
5. If you need to change the vehicle's position or location, manually complete
parking your vehicle.
Information • When operating Remote Smart Parking function, make sure all smart keys are
outside of the vehicle.
• Remote Smart Parking function will operate only when the smart key is within
13 ft. (4 m) from the vehicle. If there is no
vehicle movement even when the Remote
Forward or Backward button is pressed on
the smart key, check the distance to the
vehicle and press the button again.
• The detecting range of the smart key may vary depending on the surroundings that are
affected by radio waves such as
transmission tower, broadcast station, etc.
• The parking location indicator is displayed on Surround View Monitor screen and is
displayed until the vehicle enters the
parking space for the first time by Remote
Smart Parking function.
• Depending on parking environments, if the vehicle is stopped by a stopper, parking
may be completed.
WARNING • When using Remote Smart Parking function, make sure that all passengers
have gotten out of the vehicle.
• After ending or turning off Remote Smart Parking function, before leaving
the vehicle, close windows and
sunroofs, and make sure the vehicle is
off before locking the doors.
6 I Q S X I
0 I E Z I Z I L M G P I O I I T X L I W Q E V X O I ]
' P S W I E P P H S S V W
4 V I W W E R H L S P H X L I * S V [ E V H S V & E G O [ E V H F Y X X S R S R X L I W Q E V X O I ]
Hyundai_CE_en_US.book Page 138
Page 484 of 582
Driver Assistance System
7-140
How to turn off Parking function
while operating
• Press the Parking/View ( ) button in the following stage:
- Searching for parking space
- Select parking type
• Shift the gear to R (Reverse) in the following stage:
- Searching for parking space
- Select parking type
- Select operating mode
• Press the Parking Safety ( ) button or select Cancel on the infotainment
system to turn off Parking function.
• While Smart Parking function is operating:
- If the vehicle is stopped by depressing the brake pedal, and the
gear is shifted, Parking function will
turn off. At this time, EPB (Electronic
Parking Brake) will not be engaged.
• While Remote Smart Parking function is operating:
- Press the Remote Start ( ) button on the smart key. Parking function will
turn off.
Information Get on the vehicle with the smart key. Parking
function will turn off. At this time, the vehicle
will remain on.
The function will pause in the
following conditions when:
• Smart Parking
- There is a pedestrian, animal or object in the direction the vehicle is
moving
- The door or trunk is open
- The driver’s seat belt is not fastened
- Blind-Spot Collision-Avoidance Assist or Rear-Cross Traffic Collision-Avoidance Assist operates
while the vehicle is being controlled
in the reverse direction
- The Parking/View ( ) button is not continuously pressed
- The vehicle is stopped by depressing the brake pedal
• Remote Smart Parking - There is a pedestrian, animal or object in the direction the vehicle is
moving
- The door or trunk is open
- The Forward ( ) or Backward ( ) button is not continuously pressed
- Simultaneously pressing multiple buttons on a smart key
- The smart key is not operated within 13 ft. (4 m) from the vehicle
- Button of another smart key is pressed in addition to the operating
smart key
- Blind-Spot Collision-Avoidance Assist, Rear-Cross Traffic
Collision-Avoidance Assist, or
Parking Collision-Avoidance Assist
operates
When Parking function is paused, the
vehicle will automatically stop. If the
condition that made the function to
pause disappears, the function may
operate again.
The function will cancel in the
following conditions when:
• Smart Parking - The steering wheel is steered
- The gear is shifted while the vehicle is moving
- Operating EPB while the vehicle is moving
- The hood is open
- The driver opens the door with the seatbelt unfastened
- Rapid acceleration occurs
Hyundai_CE_en_US.book Page 140
