2023 HONDA ACCORD Owners Manual

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
ECON Mode
Indicator●Comes on when the ECON mode is on.
2ECON Mode P. 306
Immobilizer System
Indicator
•Blinks if the immobilizer system cannot
recognize the key information.•Blinks - You cannot start the engine. Set the
power mode to VEHICLE OFF, then select the ON
mode again.
Depress and hold the brake pedal before setting
the power mode to ON.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked by a
dealer.
• Do not attempt to alter this system or add other
devices to it. Electrical problems can occur.
Security System
Alarm Indicator
•Blinks when the securi ty system alarm has
been set.
2 Security System Alarm P. 156
IndicatorCanadian models
Indicator
23 ACCORD 4D US PET MAP-3130A6000_01.book 95 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop OFF
Indicator
●Comes on when the Auto Idle Stop system
has been turned off by the Auto Idle Stop
OFF button.
2Auto Idle Stop System ON/OFF P. 309
Auto Idle Stop
System Indicator
(Amber)●Blinks if there is a problem with the Auto
Idle Stop system.●Have your vehicle checked by a dealer.
Auto Idle Stop
Indicator (Green)●Comes on when Auto Idle Stop is in
operation. The engine automatically shuts
off.
2 Auto Idle Stop P. 307
23 ACCORD 4D US PET MAP-3130A6000_01.book 96 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop
Suspend Indicator
●Comes on while Auto Idle Stop is
temporarily suspended in the following
situations.
—
-Brake pedal is not fully pressed●Depress the brake pedal firmly.
-The transmission is in a position other than
(D
2 Auto Idle Stop P. 307
-System charging is prioritized
-Climate control system is prioritized
- is ON (indicator on).
-Engine coolant temperature is not in
operating range
-The battery temperature is too low.
- Auto Idle Stop does not activate for some
reason.
23 ACCORD 4D US PET MAP-3130A6000_01.book 97 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator (Amber)
●Comes on if there is a problem with ACC
with Low Speed Follow.●Comes on while driving - Have your vehicle
checked by a dealer.
●Comes on if the ACC with Low Speed
Follow is deactivated temporarily after the
battery has been disconnected, then re-
connected.●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.
●ACC with Low Speed Follow has been
automatically canceled.
●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 293●Stays on constantly - Have your vehicle checked
by a dealer.
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator
(White/Green)
●Lights up in white when you press the
button.
●Lights up in white and green if no vehicle is
detected ahead of yo u while ACC with Low
Speed Follow is in operation.
●Lights up in green if a vehicle is detected
ahead of you while ACC with Low Speed
Follow is in operation.
2 Adaptive Cruise Control (ACC) with Low
Speed Follow P. 342
23 ACCORD 4D US PET MAP-3130A6000_01.book 98 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

99
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Lane Keeping
Assist System
(LKAS) Indicator
(Amber)
●Comes on if there is a problem with the
LKAS.●Stays on constantly - Have your vehicle checked
by a dealer.
●Indicator may come on temporarily when
the Maximum Load Li mit is exceeded.●Make sure the total load is within the Maximum
Load Limit.
2Maximum Load Limit P. 293●Stays on constantly - Have your vehicle checked
by a dealer.
Lane Keeping
Assist System
(LKAS) Indicator
(White/Green)●Lights up in white wh en you press the LKAS
button.
●Lights up in green when the LKAS is in
operation.2 Lane Keeping Assist System (LKAS) P. 362
Cruise Mode
Indicator
(White/Green)●Lights up in white when you change to
cruise mode.
●Lights up in green when you have set a
speed for cruise control.
2To Switch ACC with Low Speed Follow to
Cruise Control P. 360
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Interval Indicator●Comes on when Adaptive Cruise Control
(ACC) with Low Speed Follow indicator
comes on.
2 To Set or Change Following-interval P. 355
23 ACCORD 4D US PET MAP-3130A6000_01.book 99 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

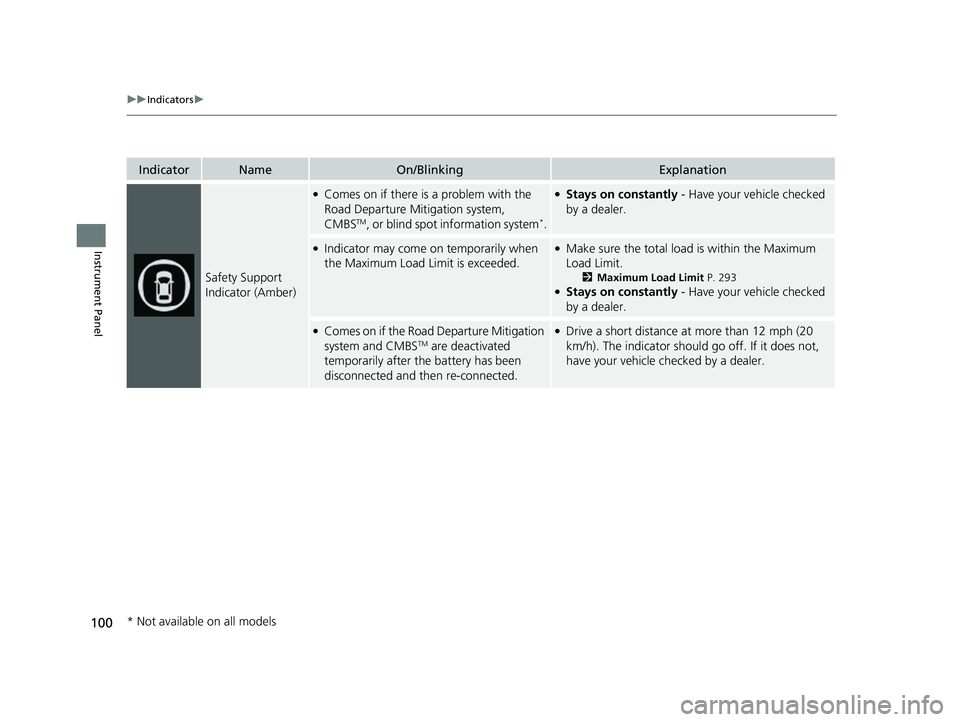

100
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on if there is a problem with the
Road Departure Mitigation system,
CMBS
TM, or blind spot information system*.
●Stays on constantly - Have your vehicle checked
by a dealer.
●Indicator may come on temporarily when
the Maximum Load Li mit is exceeded.●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 293●Stays on constantly - Have your vehicle checked
by a dealer.
●Comes on if the Road Departure Mitigation
system and CMBSTM are deactivated
temporarily after the battery has been
disconnected and then re-connected.
●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 100 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

101
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on when the Road Departure
Mitigation system and/or CMBSTM shuts
itself off.
●Indicator may come on temporarily if the radar
sensor cannot detect any objects when passing
through an enclosed space such as a tunnel, or
driving on an open road without any structures
nearby.
●The area around the radar sens or is blocked by dirt,
mud, etc. Stop your vehicle in a safe place and wipe
the debris off with a soft cloth. Indicator may take
some time to go off after the radar sensor is
cleaned.
●Have your vehicle checked by a dealer if the
indicator does not go off even after you have
cleaned the radar sensor.
2 Radar Sensor P. 398
●Stays on - The temperature inside the camera is
too high.
Use the climate control sy stem to cool down the
camera.
The system activates when the temperature inside
the camera cools down.
2 Front Sensor Camera P. 396
23 ACCORD 4D US PET MAP-3130A6000_01.book 101 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

102
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on when the Road Departure
Mitigation system and/or CMBSTM shuts
itself off.
●Stays on - The area around the camera is blocked
by dirt, mud, etc. Stop your vehicle in a safe place
and wipe the debris off with a soft cloth.
●Have your vehicle checked by a dealer if the
indicator and message are still displayed even after
you have cleaned the area around the camera.
2Front Sensor Camera P. 396●It may come on when th e ambient conditions are
dark, such as when driving in a tunnel, or at night,
dawn, or dusk.
●Comes on when mud, snow, or ice
accumulates in the vicinity of the blind spot
information system sensor.
●Comes on when the temperature of the
blind spot information system sensor is
high.
●Comes on while driving - Something may be
interfering with the blind spot information system
sensor. Check the vicinity of the blind spot
information system se nsor and remove any
obstacles.
●The system will return to normal when the
temperature cools down.
2 Blind Spot Information System* P. 323
Models with blind spot information system
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 102 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分
