2023 HONDA ACCORD Owners Manual

23
Quick Reference Guide
Audio System (P206)
(Seek/Track) Button
RADIO Button
PHONE
Button
(Seek/Track) Button
VOL
/ AUDIO
(Volume/Power) Knob
Audio/Information Screen
(Back) Button
MENU ButtonSelector Knob
MEDIA Button
CONNECT
Button
23 ACCORD 4D US PET MAP-3130A6000_01.book 23 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

24
Quick Reference Guide
About System Updates
When a software update is available for your vehicle, a notification will be displayed on the Meter.
For details on the methods of performing an update, please refer to the HondaLink manual, or ask a dealer.
System updates that change specifications may result in some discrepancies with the information in this owner’s manual.
23 ACCORD 4D US PET MAP-3130A6000_01.book 24 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

25
Quick Reference Guide

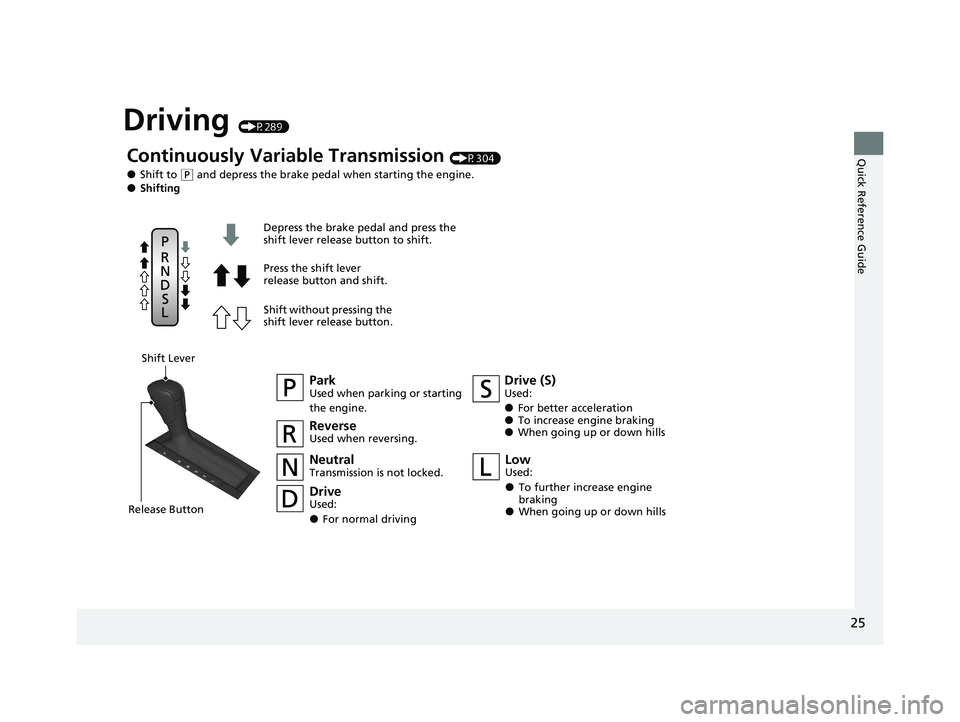

Driving (P289)
Continuously Variable Transmission (P304)
●Shift to (P and depress the brake pedal when starting the engine.●Shifting
ParkUsed when parking or starting
the engine.
NeutralTransmission is not locked.
Drive (S)Used:
●For better acceleration●To increase engine braking●When going up or down hills
Depress the brake pedal and press the
shift lever release button to shift.
Press the shift lever
release button and shift.
Shift without pressing the
shift lever release button.
ReverseUsed when reversing.
DriveUsed:
●For normal driving
LowUsed:
●To further increase engine
braking
●When going up or down hills
Shift Lever
Release Button
23 ACCORD 4D US PET MAP-3130A6000_01.book 25 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

26
Quick Reference Guide
CMBSTM On and Off
(P334)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can reduce the
vehicle speed and the severity of the
collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, use the
safety support of th e driver information
interface.
VSA ® On and Off (P314)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●The VSA ® function can be partially
disabled or fully restored in VSA ® settings
using the driver information interface. 2 Vehicle Stability Assist Mode
(P122)
Tire Pressure Monitoring System (TPMS)* (P316)
●Detects a change in tire conditions and overall dimensions due to decrease in tire
pressures.
●The TPMS is turned on automatically every time you start the engine.●A calibration procedure must be performed when certain conditions arise.
Refueling (P417)
Fuel recommendation: Unleaded gasoli ne, pump octane number 87 or higher
Fuel tank capacity: 14.8 US gal (56 L)
aUnlock the driver’s
door.
(P149)
bPress and release the
rear edge of the fuel
fill door to make it
and release the rear
slightly.
cAfter refueling, wait
about five seconds
before removing the
filler nozzle.Wait for five seconds
23 ACCORD 4D US PET MAP-3130A6000_01.book 26 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

27
Quick Reference Guide
Honda Sensing® (P327)
Honda Sensing ® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located behind the Honda emblem on the
front grille and a front sensor camera
mounted to the interior side of the
windshield behind the rearview mirror.
Front Sensor
Camera
Radar Sensor
Collision Mitigation
Braking System
TM
(CMBS
TM) (P330)
The system can assist you when it
determines there is a possibility of your
vehicle colliding with a vehicle (including
motorcycles) ahead from behind, an
oncoming vehicle in front, a pedestrian, or
someone riding a bicycle (moving bicycle).
The CMBS
TM is designed to alert you when
the potential for a collision is determined, as
well as assist in reducing speed, avoiding
collisions, and reducing collision severity.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P342)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Lane Keeping Assist
System (LKAS)
(P362)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Traffic Jam Assist (P373)
The Traffic Jam Assist system uses a camera
mounted to the upper portion of the
windshield to detect and monitor left and
right white (or yellow) traffic lane lines.
Based on inputs from the camera, the
system can apply steering torque to keep
your vehicle in the center of the detected
lane.
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 27 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

28
Quick Reference Guide

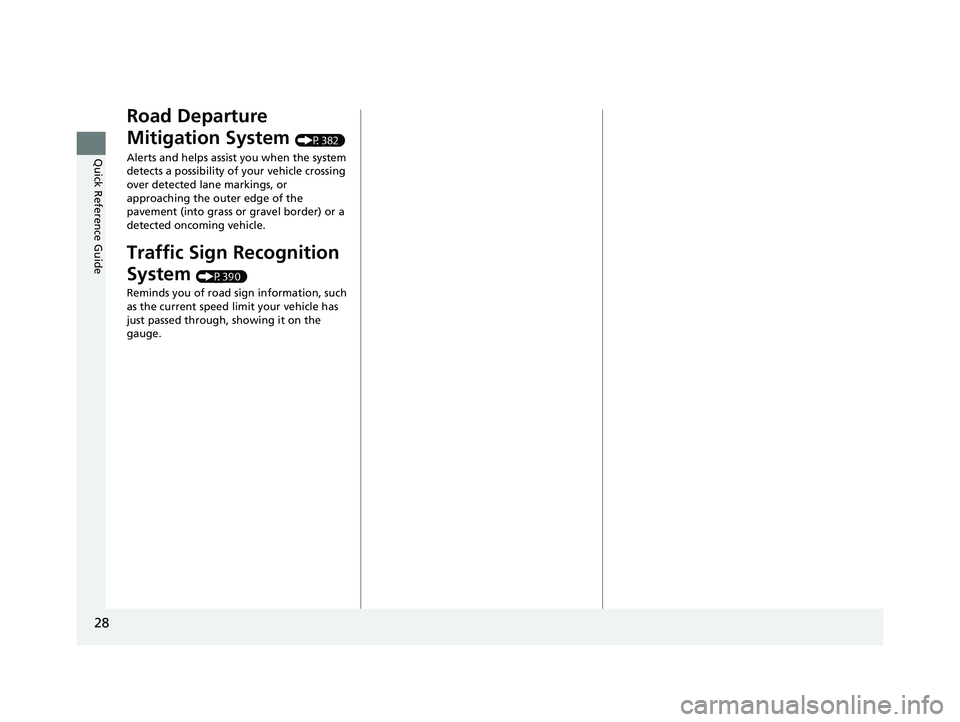

Road Departure
Mitigation System
(P382)
Alerts and helps assist you when the system
detects a possibility of your vehicle crossing
over detected lane markings, or
approaching the outer edge of the
pavement (into grass or gravel border) or a
detected oncoming vehicle.
Traffic Sign Recognition
System
(P390)
Reminds you of road sign information, such
as the current speed limit your vehicle has
just passed through, showing it on the
gauge.
23 ACCORD 4D US PET MAP-3130A6000_01.book 28 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

29
Quick Reference Guide
Maintenance (P423)
Under the Hood (P435)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
LeverLights (P446)
●Inspect all lights regularly.
Wiper Blades (P448)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P451)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.
23 ACCORD 4D US PET MAP-3130A6000_01.book 29 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

30
Quick Reference Guide
Handling the Unexpected (P471)
Flat Tire (P473)
●Park in a safe location and replace the
flat tire with the compact spare tire in the
trunk.
Indicators Come On
(P488)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start
(P479)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P494)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P486)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P501)
●Call a professional towing service if you
need to tow your vehicle.
23 ACCORD 4D US PET MAP-3130A6000_01.book 30 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分
