Handling the Unexpected
If You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Push the lower left si de of the cover to
remove it.
2. Remove the built-in key from the keyless
remote.
3. Insert the key into th e cylinder and turn it
clockwise.
u The trunk unlocks and opens.
■What to Do If Unable to Open the Trunk1What to Do If Unable to Open the Trunk
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Key
Models with the cylinder in the cover
23 ACCORD 4D US PET MAP-3130A6000_01.book 503 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

504
uuIf You Cannot Open the Trunk u
Handling the Unexpected
2.Pull the trunk release cord up in the
direction of the arrow in the image.
u The trunk unlocks and opens.Trunk Release CordModels without the cylinder in the cover
23 ACCORD 4D US PET MAP-3130A6000_01.book 504 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

505
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Open the fuel fill door.
2 How to Refuel P. 418
3.Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 472
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
23 ACCORD 4D US PET MAP-3130A6000_01.book 505 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

506
23 ACCORD 4D US PET MAP-3130A6000_01.book 506 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分This page intentionally left blank.

507
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 508
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 510
Devices that Emit Radio Waves ....... 511
Reporting Safety Defects ................. 512Emissions Testing
Testing of Readiness Codes.............. 513
Warranty Coverages ........................ 515
Authorized Manuals ......................... 518
Customer Service Information ......... 519
Open Source Licenses ....................... 520
23 ACCORD 4D US PET MAP-3130A6000_01.book 507 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

508
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelACCORD
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 15.3 – 17.1 oz (435 – 485 g)
Lubricant TypeRB100EV-01 (POE)
Quantity 6.71 – 7.5 cu-in (110 – 123 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGK DILKAR8P8SY
TypeUnleaded gasoline, pump octane number
87 or higher
Fuel Tank Capacity 14.8 US gal (56 L)
Tank CapacityU.S.: 1.6 US qt (1.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Parking/Daytime Running LightsLED
Front Turn Signal Lights LED
Front Side Marker LightsLED
Brake Lights LED
Rear Turn Signal LightsLED
Rear Side Marker/Taillights LED
TaillightsLED
Back-Up Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap LightsLEDCeiling LightLEDAmbient LightsLEDVanity Mirror LightsLEDCenter Console LightLEDTrunk LightLED
23 ACCORD 4D US PET MAP-3130A6000_01.book 508 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

509
uuSpecifications u
Information
■
Brake Fluid
■ Continuously Variable Transmission
Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 3.9 US qt (3.7 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20
·API service SN or higher grade 0W-20
Capacity Change 3.4 US qt (3.2 L)
Change
including
filter
3.7 US qt (3.5 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity1.61 US gal (6.08 L)
(change including the remaining
0.19 US gal (0.71 L) in the reserve tank)
■ Tire
RegularSize225/50R17 94VPressure
psi (kPa [kgf/cm2])Front33 (230 [2.3])Rear32 (220 [2.2])
Compact
Spare Size
T135/90D16 102M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 7 1/2JCompact Spare16 x 4T
23 ACCORD 4D US PET MAP-3130A6000_01.book 509 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

510
Information

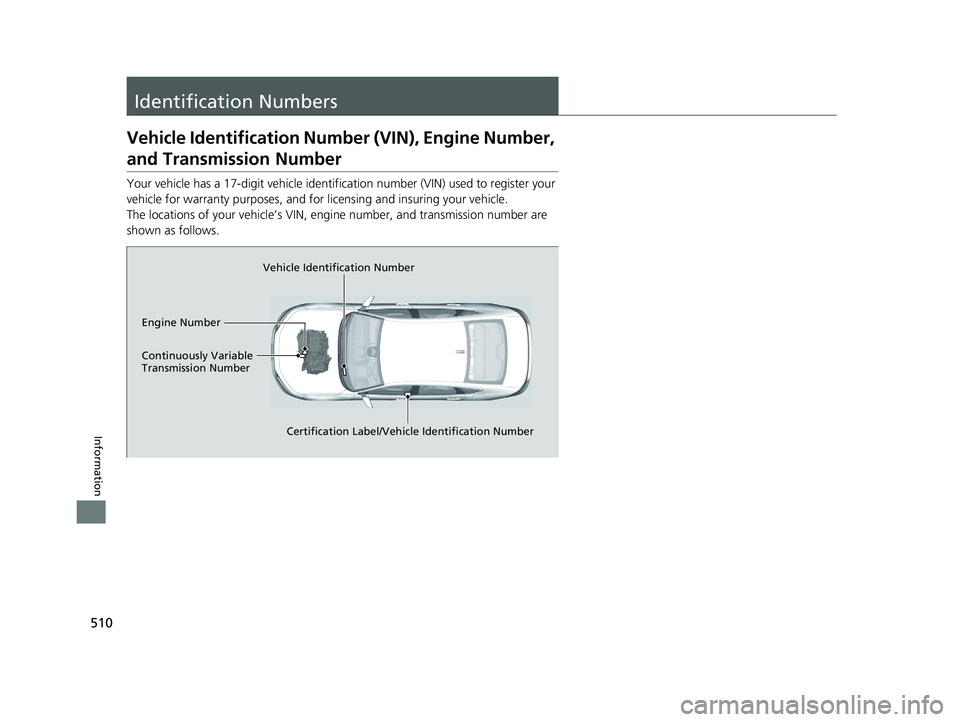

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows.
Vehicle Identification Number
Engine Number
Certification Label/Vehicle Identification Number
Continuously Variable
Transmission Number
