2023 HONDA ACCORD Owners Manual

471
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 472
If a Tire Goes Flat
Changing a Flat Tire ......................... 473
Engine Does Not Start Checking the Engine ........................ 479
If the Keyless Remote Battery is Weak.. 480Emergency Engine Start ................... 481
Emergency Engine Stop ................... 482
If the Battery Is Dead ....................... 483
Shift Lever Does Not Move .............. 485
Overheating
How to Handle Overheating ............. 486 Indicator Coming On/Blinking
If the Engine oil pressure low Warning Appears ......................................... 488
If the Charging System Indicator Comes On ................................................. 488
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 489
If the Brake System Indicator (Red) Comes On or Blinks ................................... 490
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes
On ................................................. 491 If the Electric Power Steering (EPS) System
Indicator Comes On......................... 492
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks
*...................... 493
Fuses Fuse Locations ................................. 494
Inspecting and Changing Fuses ........ 499
Emergency Towing ........................... 501
If You Cannot Unlock the Fuel Fill Door.. 502If You Cannot Open the Trunk ........ 503
Refueling ........................................... 505
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 471 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

472
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the trunk.
Wheel Nut Wrench/
Jack Handle Funnel
Jack Handle Bar
Tool Case Jack
23 ACCORD 4D US PET MAP-3130A6000_01.book 472 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

473Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
NOTICE
Do not use the jack if it doesn’t work properly.
Call your dealer or a pr ofessional towing service.
23 ACCORD 4D US PET MAP-3130A6000_01.book 473 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

474
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

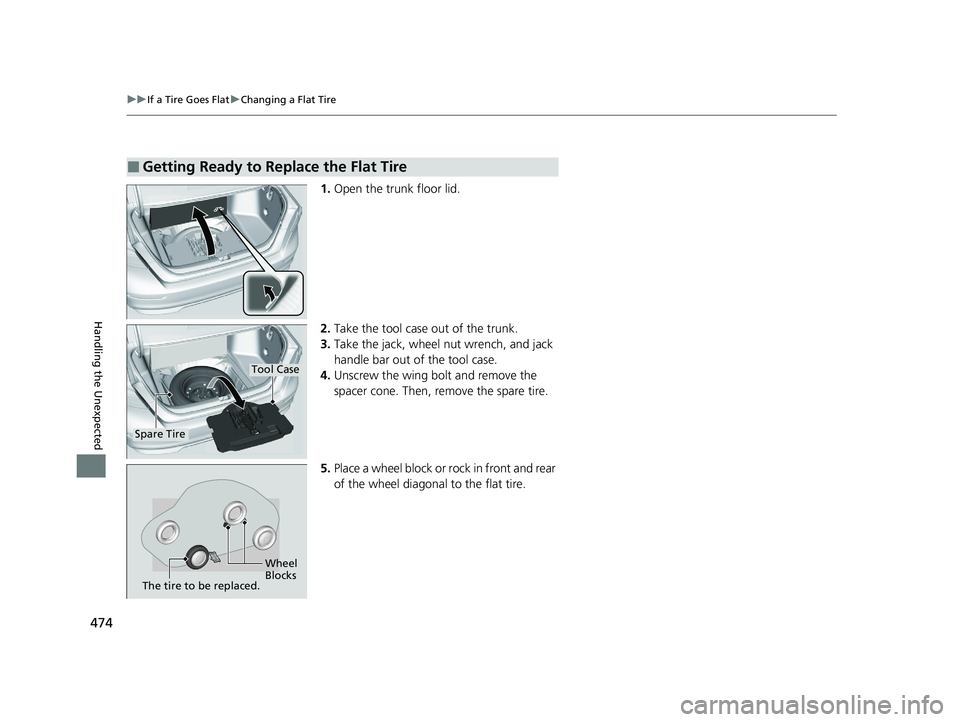

1. Open the trunk floor lid.
2. Take the tool case out of the trunk.
3. Take the jack, wheel nut wrench, and jack
handle bar out of the tool case.
4. Unscrew the wing bolt and remove the
spacer cone. Then, remove the spare tire.
5. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
■Getting Ready to Replace the Flat Tire
Tool Case
Spare Tire
Wheel
Blocks
The tire to be replaced.
23 ACCORD 4D US PET MAP-3130A6000_01.book 474 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

475
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
6. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
7. Loosen each wheel nut about one turn
using the wheel nut wrench.
23 ACCORD 4D US PET MAP-3130A6000_01.book 475 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuIf a Tire Goes Flat uChanging a Flat Tire
476
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jacking Points
Jacking Point
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle
23 ACCORD 4D US PET MAP-3130A6000_01.book 476 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

Continued477
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around
tightening the nuts tw o to three times in
this order.
Wheel nut torque:
80 lbf∙ft (108 N∙m, 11 kgf∙m)
■Replacing the Flat Tire1 Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
23 ACCORD 4D US PET MAP-3130A6000_01.book 477 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuIf a Tire Goes Flat uChanging a Flat Tire
478
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely store the jack, wheel nut wrench,
and jack handle bar back in the tool case.
5. Store the case in the trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. Afte r driving for a few miles (kilometers), Tire
pressure monitor system problem. Ch eck tire pressure. See your dealer. will
appear on the driver information interface and the indicator will start blinking for a
short time and then stay on; however, this is normal and is no cause for concern.
Calibrate the TPMS when you replace the tire with a specified regular tire.
2TPMS Calibration P. 318
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Center Cap
Spacer Cone
Wing Bolt
For
compact
spare tireFor
full-size
tire
■TPMS and the Compact Spare Tire*
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 478 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分
