2023 HONDA ACCORD Owners Manual

Continued119
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Instrument Panel
■The Driver Attention Monitor resets when:
• The engine is turned off.
• The driver unfastens the seat belt and ope ns the door while the vehicle is stopped.
■For the Driver Attention Monitor to function:
• The vehicle must be traveling above 25 mph (40 km/h).
• The electric power steering (EPS) system indicator must be off.
■Depending on driving conditions or other factors, the Driver Attention
Monitor may not function in the following circumstances:
• The steering assist function of the Lane K eeping Assist System (LKAS) is active.
2Lane Keeping Assist System (LKAS) P. 362
•The condition of the road is poor; e.g., the surface is unpaved or bumpy.
• It is windy.
• The driver is frequently op erating the vehicle in an assertive manner, such as
changing lanes or accelerating.
■Customizing
You can change the Driver Atte ntion Monitor settings. Select Tactile and audible
alert , Tactile alert , or OFF.
2Vehicle Settings P. 126
1For the Driver Attention Monitor to function:
The bars on the driver information interface remain
grayed out unless the Driv er Attention Monitor is
functioning.
23 ACCORD 4D US PET MAP-3130A6000_01.book 119 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

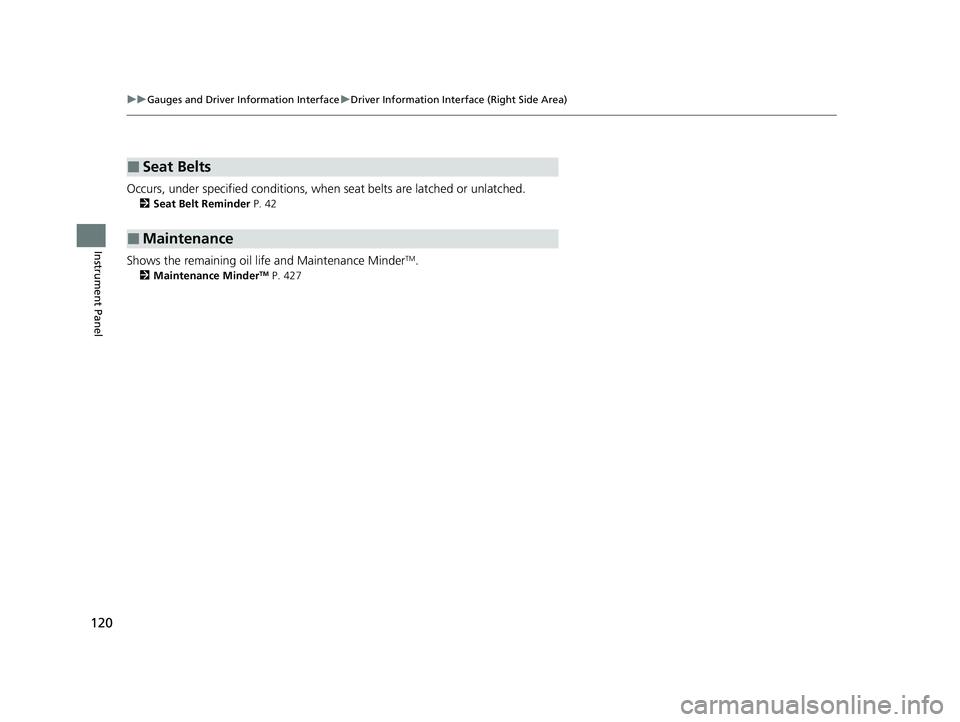

120
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Instrument Panel
Occurs, under specified conditions, when seat belts are latched or unlatched.
2 Seat Belt Reminder P. 42
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 427
■Seat Belts
■Maintenance
23 ACCORD 4D US PET MAP-3130A6000_01.book 120 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

Continued121
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Instrument Panel
Indicates the status of the Road Departure Mitigation system, CMBSTM and blind
spot information system* such as On, Off, or Failure, by color and letters.
The following colors indica te the status of any of the above-mentioned systems:
• Green: The system is on.
• Gray: The system is off.
• Amber: There is a problem with the system.
■Safety Support1Safety Support
If a system is indicated by the color amber, have your
vehicle checked by a dealer immediately.
To turn each system on or off, first press the right
selector wheel to switch displays. From the next
display, you can select which system to turn on or off. 2 Road Departure Mitigation System P. 382
2 Blind Spot Information System
* P. 323
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 330
You can also confirm the st atus of each function by
the color of the safe ty support indicator.
2 Safety Support Indicator (Amber) P. 100
2 Safety Support Indicator (Green/Gray)
P. 103
Area Info for CMBSTM
Area Info for Blind
Spot Information
System
*
Area Info for Road
Departure
Mitigation System Road Departure
Mitigation
System Icon and
Status Info
CMBS
TM Icon and
Status Info Blind Spot
Information
System Icon and
Status Info
*
* Not available on all models
23 ACCORD 4D US PET MAP-3130A6000_01.book 121 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
122
Instrument Panel
Display the adjustment for instrument panel brightness.
When the power mode is in ON, you can use the right selector wheel to adjust
instrument panel brightness.
Brighten: Roll the right selector wheel up.
Dim: Roll the right selector wheel down.
Press the right selector wheel to exit.
You can turn the VSA® on or off. Roll the right selector wheel to scroll to select
Reduce traction control, then press the right
selector wheel to check or uncheck it.
2 Vehicle Stability AssistTM (VSA ®), aka
Electronic Stability Control (ESC), System
P. 313
■Brightness Setting
■Vehicle Stability Assist Mode
1 Brightness Setting
The brightness of the gauge is automatically adjusted
depending on the ambient brightness.
•The brightness dims when the ambient light is
dark.
•The brightness brightens when the ambient light is
bright.
You can change the setting even when the ambient
lighting is bright, but the brightness of the gauge
won’t change.
23 ACCORD 4D US PET MAP-3130A6000_01.book 122 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

123
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Continued
Instrument Panel
■Speed/distance units
Enables you to set the displa yed measurements to read in either miles and mph or
km and km/h. 1.Press the right selector wheel when you
select the Gauge display settings on the
driver information interface.
2. Roll the right selector wheel to scroll to
select Speed/distance units, then press
the right selector wheel.
3. Roll the right selector wheel to scroll to
select your desired settings, then press the
right selector wheel.
■Gauge Display Settings
23 ACCORD 4D US PET MAP-3130A6000_01.book 123 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
124
Instrument Panel
■Arrange content on the right side area
You can choose which contents to display on the right side area. 1.Press the right selector wheel when you
select the Gauge display settings on the
driver information interface.
2. Roll the right selector wheel to scroll to
select Hide/show , then press the right
selector wheel.
3. Roll the right selector wheel to scroll
between contents, th en press the right
selector wheel to check or uncheck them.1 Arrange content on the right side area
Contents that are gray ca nnot be removed from the
right side area.
When you customize settings, shift to
( P.
23 ACCORD 4D US PET MAP-3130A6000_01.book 124 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

Continued125
uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
Instrument Panel
■Change gauge design
You can change the gauge design. 1.Press the right selector wheel when you
select the Gauge display settings on the
driver information interface.
2. Roll the right selector wheel to scroll to
select Gauge design , then press the right
selector wheel.
3. Roll the right selector wheel to scroll to
select your desired settings, then press the
right selector wheel.
You can check if there are any active warning messages.1 Change gauge design
When using the Round minimal or Bar minimal
gauge design, a simplified display is used when ACC
with Low Speed Follow is in operation.
■Warnings1 Warnings
If there are multiple warnings, you can roll the right
selector wheel to see other warnings.
23 ACCORD 4D US PET MAP-3130A6000_01.book 125 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuGauges and Driver Information Interface uDriver Information Interface (Right Side Area)
126
Instrument Panel
Use the driver information interfac e to customize certain features.
■How to customize
Roll the right selector wheel to scroll to se lect screen while the power mode is in
ON, the vehicle is at a complete stop, and the shift position is in
(P. Then, press the
right selector wheel.
■Vehicle Settings1 Vehicle Settings
To customize other features , roll the right selector
wheel.
2 List of customizable options P. 127
2 Example of customization settings P. 133
When you customize settings, shift to
( P.
Driver
Information
Interface
Right Selector Wheel
23 ACCORD 4D US PET MAP-3130A6000_01.book 126 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分
