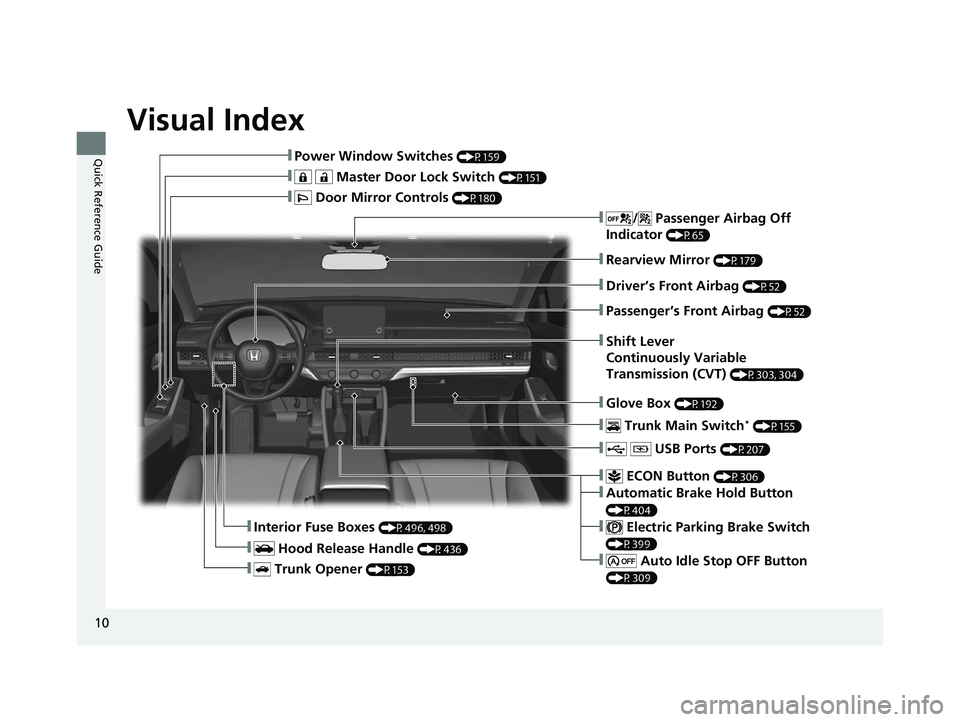

Quick Reference Guide❚Power Window Switches (P159)
❚ Master Door Lock Switch (P151)
❚ Door Mirror Controls (P180)
❚ Trunk Opener (P153)
❚Interior Fuse Boxes (P496, 498)
❚ Hood Release Handle (P436)
❚Driver’s Front Airbag (P52)
❚Rearview Mirror (P179)
❚Passenger’s Front Airbag (P52)
❚ USB Ports (P207)
❚ Trunk Main Switch* (P155)
❚ ECON Button (P306)
❚Automatic Brake Hold Button
(P404)
❚ Electric Parking Brake Switch
(P399)
❚ Auto Idle Stop OFF Button
(P309)
❚/ Passenger Airbag Off
Indicator
(P65)
❚Glove Box (P192)
❚Shift Lever
Continuously Variable
Transmission (CVT)
(P303, 304)
23 ACCORD 4D US PET MAP-3130A6000_01.book 10 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

494
Handling the Unexpected
Fuses

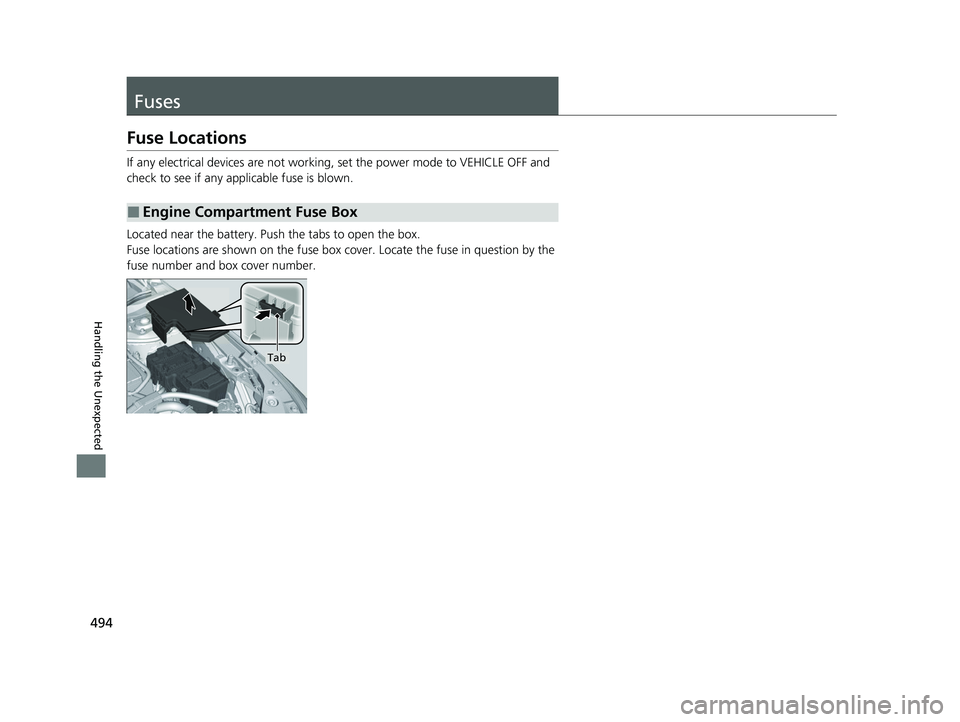

Fuse Locations
If any electrical devices are not working, set the power mode to VEHICLE OFF and
check to see if any app licable fuse is blown.
Located near the battery. Push the tabs to open the box.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
Tab
23 ACCORD 4D US PET MAP-3130A6000_01.book 494 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

495
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY125 A
2 DC/DC2 (30 A)
−40 A
F/BOX OPTION 60 A −40 A
F/BOX OPTION2 60 A −60 A
F/BOX MAIN 60 A
3
−(30 A)
ST MAGNETIC SW30 A
−40 A
−30 A
−50 A
HTR MTR40 A
RR DEFROSTER40 A
4 ABS/VSA FSR 40 A
ABS/VSA MTR 40 A −40 A
EBB 40 A
IG MAIN 30 A −40 A
R/M2 30 A
5
DC/DC(30 A)
WIPER30 A
EPS70 A
R/M130 A
−40 A
MAIN FAN30 A
F/BOX MAIN260 A
6SUB FAN30 A
7IG MAIN230 A
8−−
9BACK UP15 A
10WASHER15 A
11−−
12−−
13−−
14−−
15SHUTTER GRILLE(10 A)
16−−
17MG CLUTCH10 A
18HORN10 A
19−−
20−−
21−−
Circuit ProtectedAmps
22DBW15 A
23HAZARD15 A
24BACKUP FI-ECU10 A
25IGP15 A
26TCU15 A
27LCM L20 A
28INJ20 A
29STOP10 A
30LCM R20 A
31IG COIL15 A
32−−
33−−
34−−
35−−
36IGPS [LAF]10 A
37BACKUP2(30 A)
38−−
39VBACT10 A
40IGPS FAN7.5 A
41−−
42MON27.5 A
Circuit ProtectedAmps
23 ACCORD 4D US PET MAP-3130A6000_01.book 495 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

496
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label under the steering column.
Locate the fuse in question by the fuse number and label number.
■Interior Main Fuse Box
Main Fuse Box
Fuse Label
23 ACCORD 4D US PET MAP-3130A6000_01.book 496 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

498
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.
■Interior Sub Fuse Box
Sub Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
A−−
BEOP(10 A)
CAUDIO VST(15 A)
DACC VST(10 A)
E−−
F−−
GMETER(10 A)
HOPTION(10 A)
23 ACCORD 4D US PET MAP-3130A6000_01.book 498 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

499
uuFuses uInspecting and Changing Fuses
Continued
Handling the Unexpected

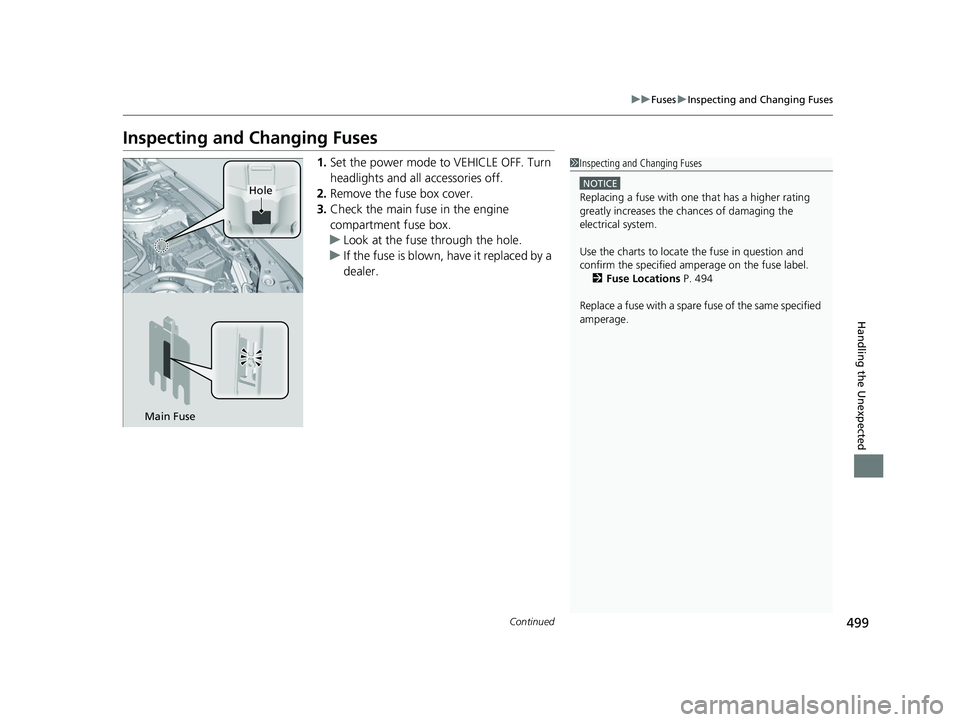

Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the main fuse in the engine
compartment fuse box.
u Look at the fuse through the hole.
u If the fuse is blown, have it replaced by a
dealer.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 494
Replace a fuse with a spare fuse of the same specified
amperage.
Main Fuse
Hole
23 ACCORD 4D US PET MAP-3130A6000_01.book 499 ページ ２０２２年１０月１９日　水曜日　午前１１時４９分

uuFuses uInspecting and Changing Fuses
500
Handling the Unexpected

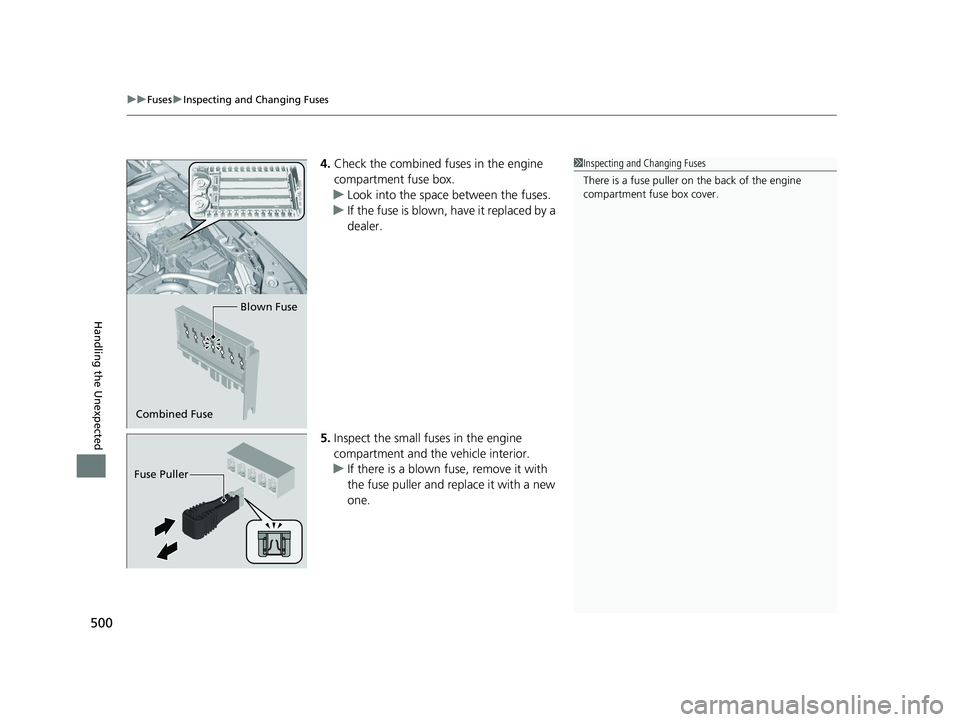

4. Check the combined fuses in the engine
compartment fuse box.
u Look into the space between the fuses.
u If the fuse is blown, have it replaced by a
dealer.
5. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
