2022 MERCEDES-BENZ S-CLASS SALOON LONG Owners Manual

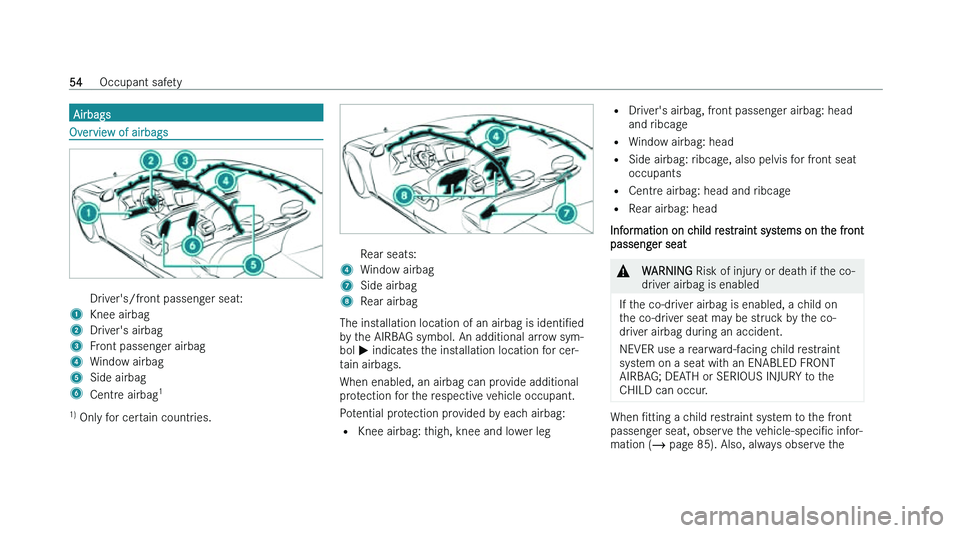

Airbags
Overview of airbags

Driver's/front passenger seat:
1 Knee airbag
2 Driver's airbag
3 Front passenger airbag
4 Window airbag
5 Side airbag
6 Centre airbag 1
1) Onl y for certain countries.
Rear seats:
4 Window airbag
7 Side airbag
8 Rear airbag
The installation location of an airbag is identiNed
b
y the AIRBAG symbol. An additional arrow sym-
bol P indicates the installation location for cer-
tain airbags.
When enabled, an airbag can provide additional
protection for the respective vehicle occupant.
Potential protection provided by each airbag: = Knee airbag: thigh, knee and lower leg =
Dr
iver's airbag, front passenger airbag: head
and ribcage
= Window airbag: head
= Side airbag: ribcage, also pelvis for front seat
occupants
= Centre airbag: head and ribcage
= Rear airbag: head
Information on child restraint systems on the front
passenger seat &
WARNING Risk of injur
y or death if the co-
driver airbag is enabled
If the co-driver airbag is enabled, a child on
t
he co-driver seat may be struck by the co-
driver airbag during an accident.
NEVER use a rearward-facing child restraint
system on a seat with an ENABLED FRONT
AIRBAG; DEATH or SERIOUS INJURY to the
CHILD can occur. When Ntting
a c
hild restraint system to the front
passenger seat, observe the vehicle-speciNc infor-
mation (  page 85). Also, always observe the 54
Occupant safety

notes on rearward-facing or forward-facing child
r estraint systems on the front passenger seat
(  page 84).

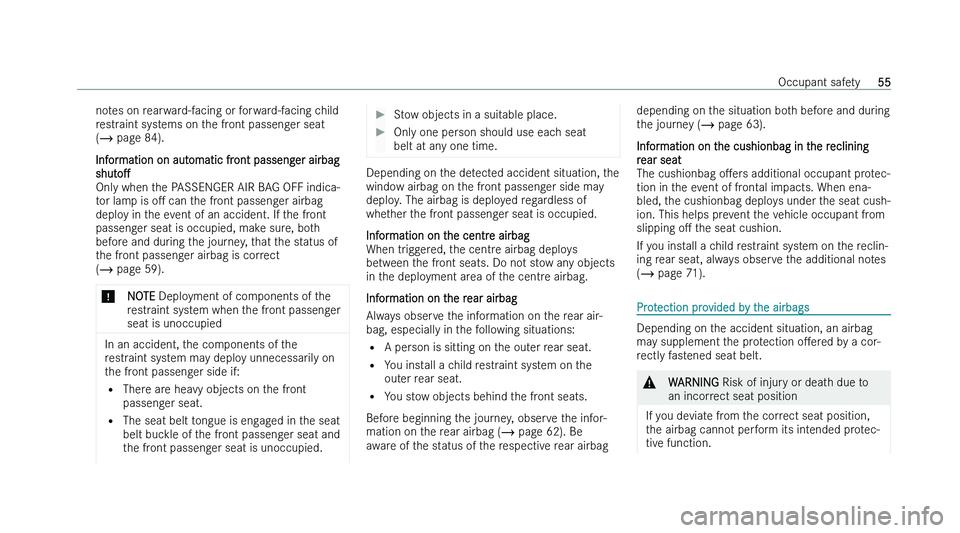

Information on automatic front passenger airbag
shutoM
Only when the PASSENGER AIR BAG OFF indica-
tor lamp is oM can the front passenger airbag
deploy in the event of an accident. If the front
passenger seat is occupied, make sure, both
before and during the journey, that the status of
the front passenger airbag is correct
(  page 59).
* NOTE Deplo
yment of components of the
restraint system when the front passenger
seat is unoccupied In an accident, the components of the
r
estraint system may deploy unnecessarily on
the front passenger side if:
= There are heavy objects on the front
passenger seat.
= The seat belt tongue is engaged in the seat
belt buckle of the front passenger seat and
the front passenger seat is unoccupied.
Stow objects in a suitable place.
Only one person should use each seat
belt at an
y one time. Depending on the detected accident situation, the
windo
w airbag on the front passenger side may
deploy. The airbag is deployed regardless of
whether the front passenger seat is occupied.
Information on the centre airbag
When triggered, the centre airbag deploys
between the front seats. Do not stow any objects
in the deployment area of the centre airbag.
Information on the rear airbag
Always observe the information on the rear air-
bag, especially in the following situations:
= A person is sitting on the outer rear seat.
= You install a child restraint system on the
outer rear seat.
= You stow objects behind the front seats.
Before beginning the journey, observe the infor-
mation on the rear airbag (  page 62). Be
aware of the status of the respective rear airbag depending on the situation both before and during
t

he journey (  page 63).
Information on the cushionbag in the reclining
rear seat
The cushionbag oMers additional occupant protec-
tion in the event of frontal impacts. When ena-
bled, the cushionbag deploys under the seat cush-
ion. This helps prevent the vehicle occupant from
slipping oM the seat cushion.
If you install a child restraint system on the reclin-
ing rear seat, always observe the additional notes
(  page 71). Protection provided by the airbags
Depending on the accident situation, an airbag
ma

y supplement the protection oMered by a cor-
rectly fastened seat belt. &
WARNING Risk of injur
y or death due to
an incorrect seat position
If you deviate from the correct seat position,
t
he airbag cannot perform its intended protec-
tive function. Occupant safety
55

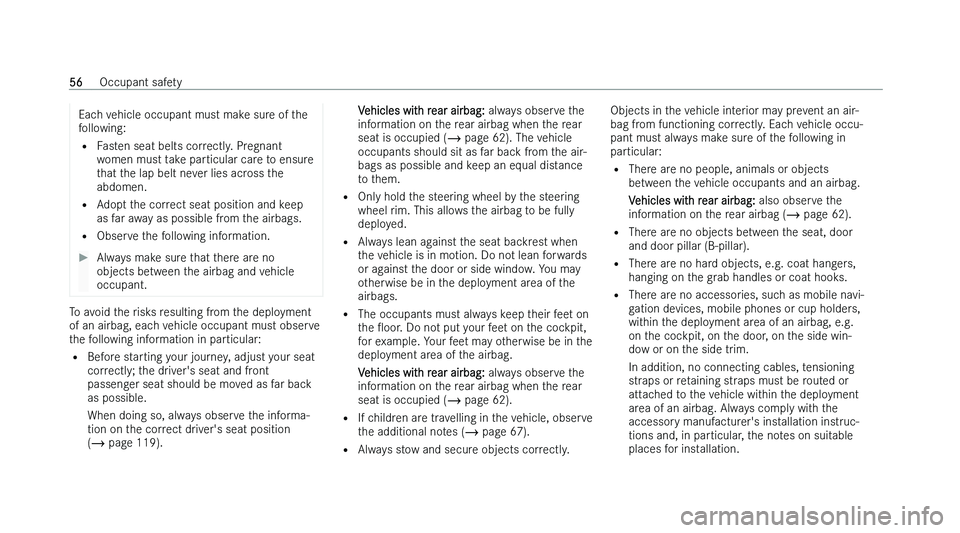

Each vehicle occupant must make sure of the
f ollowing:
= Fasten seat belts correctly. Pregnant
women must take particular care to ensure
that the lap belt never lies across the
abdomen.
= Adopt the correct seat position and keep
as far away as possible from the airbags.
= Observe the following information.
Always make sure that there are no
objects be
tween the airbag and vehicle
occupant. To avoid the risks resulting from the deployment
of an airbag, eac

h vehicle occupant must observe
the following information in particular:
= Before starting your journey, adjust your seat
correctly; the driver's seat and front
passenger seat should be moved as far back
as possible.
When doing so, always observe the informa-
tion on the correct driver's seat position
( page 119). Vehicles with rear airbag:
alw
ays observe the
information on the rear airbag when the rear
seat is occupied ( page 62). The vehicle
occupants should sit as far back from the air-
bags as possible and keep an equal distance
to them.
= Only hold the steering wheel by the steering
wheel rim. This allows the airbag to be fully
deployed.
= Always lean against the seat backrest when
the vehicle is in motion. Do not lean forwards
or against the door or side window. You may
otherwise be in the deployment area of the
airbags.
= The occupants must always keep their feet on
the Ooor. Do not put your feet on the cockpit,
for example. Your feet may otherwise be in the
deployment area of the airbag.
Vehicles with rear airbag: always observe the
information on the rear airbag when the rear
seat is occupied ( page 62).
= If children are travelling in the vehicle, observe
the additional notes ( page 67).
= Always stow and secure objects correctly. Objects in the vehicle interior may prevent an air-
bag fr
om functioning correctly. Each vehicle occu-
pant must always make sure of the following in
particular:
= There are no people, animals or objects
between the vehicle occupants and an airbag.
Vehicles with rear airbag: also observe the
information on the rear airbag ( page 62).
= There are no objects between the seat, door
and door pillar (B-pillar).
= There are no hard objects, e.g. coat hangers,
hanging on the grab handles or coat hooks.
= There are no accessories, such as mobile navi-
gation devices, mobile phones or cup holders,
within the deployment area of an airbag, e.g.
on the cockpit, on the door, on the side win-
dow or on the side trim.
In addition, no connecting cables, tensioning
straps or retaining straps must be routed or
attached to the vehicle within the deployment
area of an airbag. Always comply with the
accessory manufacturer's installation instruc-
tions and, in particular, the notes on suitable
places for installation. 56
Occupant safety

=
Ther e are no heavy, sharp-edged or fragile
objects in the pockets of your clothing. Store

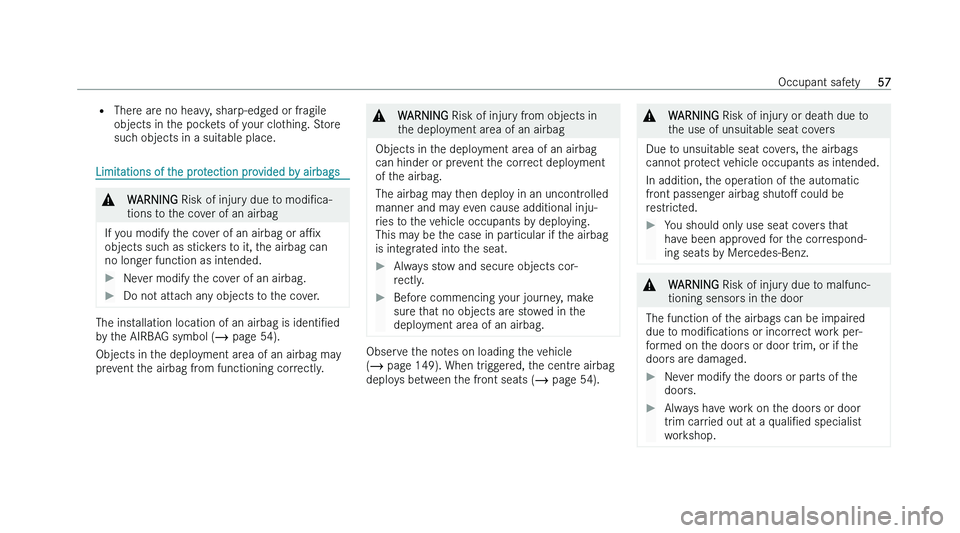

such objects in a suitable place. Limitations of the protection provided by airbags
&
WARNING Risk of injur
y due to modiNca-
tions to the cover of an airbag
If you modify the cover of an airbag or aPx
objects suc
h as stickers to it, the airbag can
no longer function as intended.
Never modify the cover of an airbag.
Do not attach any objects to the cover. The installation location of an airbag is
identiNed
b
y the AIRBAG symbol ( page 54).
Objects in the deployment area of an airbag may
prevent the airbag from functioning correctly. &
WARNING Risk of injur
y from objects in
the deployment area of an airbag
Objects in the deployment area of an airbag
can hinder or pr
event the correct deployment
of the airbag.
The airbag may then deploy in an uncontrolled
manner and may even cause additional inju-
ries to the vehicle occupants by deploying.
This may be the case in particular if the airbag
is integrated into the seat.
Always stow and secure objects cor-
r
ectly.
Before commencing your journey, make
sur

e that no objects are stowed in the
deployment area of an airbag. Observe the notes on loading the vehicle
(
 pag

e 149). When triggered, the centre airbag
deploys between the front seats (  page 54). &
WARNING Risk of injur
y or death due to
the use of unsuitable seat covers
Due to unsuitable seat covers, the airbags
canno
t protect vehicle occupants as intended.
In addition, the operation of the automatic
front passenger airbag shutoM could be
restricted.
You should only use seat covers that
ha

ve been approved for the correspond-
ing seats by Mercedes-Benz. &
WARNING Risk of injur
y due to malfunc-
tioning sensors in the door
The function of the airbags can be impaired
due t
o modiNcations or incorrect work per-
formed on the doors or door trim, or if the
doors are damaged.
Never modify the doors or parts of the
door

s.
Always have work on the doors or door
tr

im carried out at a qualiNed specialist
workshop. Occupant safety
57

&

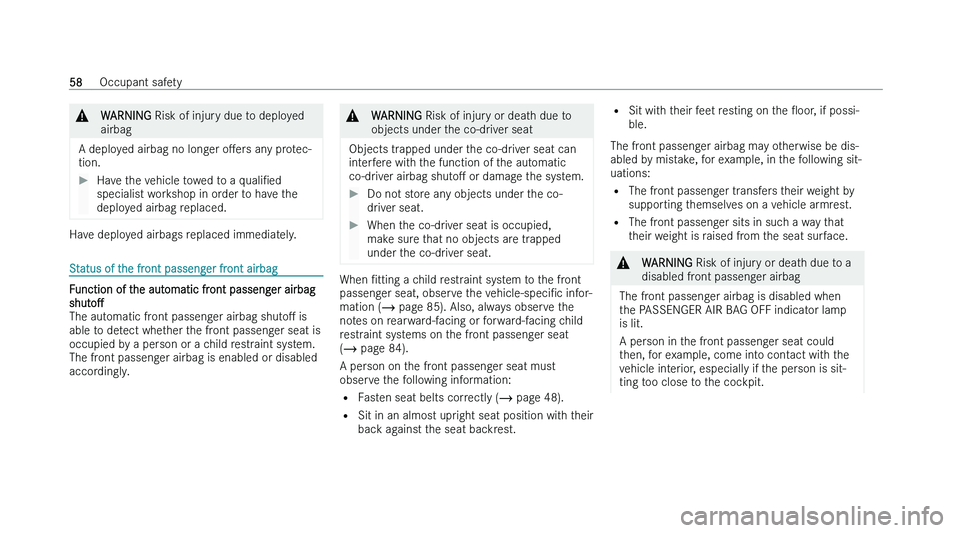

WARNING Risk of injur y due to deployed
airbag
A deployed airbag no longer oMer
s any protec-
tion.
Have the vehicle towed to a q
ualiNed
specialist workshop in order to have the
deployed airbag replaced. Have deployed airbags replaced immediately.
Status of the front passenger front airbag
Function of the automatic front passenger airbag
shut

oM
The automatic front passenger airbag shutoM is
able to detect whether the front passenger seat is
occupied by a person or a child restraint system.
The front passenger airbag is enabled or disabled
accordingly. &
WARNING Risk of injur
y or death due to
objects under the co-driver seat
Objects trapped under the co-driver seat can
int
erfere with the function of the automatic
co-driver airbag shutoM or damage the system.
Do not store any objects under the co-
dr
iver seat.
When the co-driver seat is occupied,
mak
e sure that no objects are trapped
under the co-driver seat. When Ntting
a c
hild restraint system to the front
passenger seat, observe the vehicle-speciNc infor-
mation (  page 85). Also, always observe the
notes on rearward-facing or forward-facing child
restraint systems on the front passenger seat
(  page 84).
A person on the front passenger seat must
observe the following information:
= Fasten seat belts correctly ( page 48).
= Sit in an almost upright seat position with their
back against the seat backrest. =
Sit wit
h their feet resting on the Ooor, if possi-
ble.
The front passenger airbag may otherwise be dis-
abled by mistake, for example, in the following sit-
uations:
= The front passenger transfers their weight by
supporting themselves on a vehicle armrest.
= The front passenger sits in such a way that
their weight is raised from the seat surface. &
WARNING Risk of injur
y or death due to a
disabled front passenger airbag
The front passenger airbag is disabled when
t
he PASSENGER AIR BAG OFF indicator lamp
is lit.
A person in the front passenger seat could
then, for example, come into contact with the
vehicle interior, especially if the person is sit-
ting too close to the cockpit. 58
Occupant safety

If the front passenger seat is occupied, always

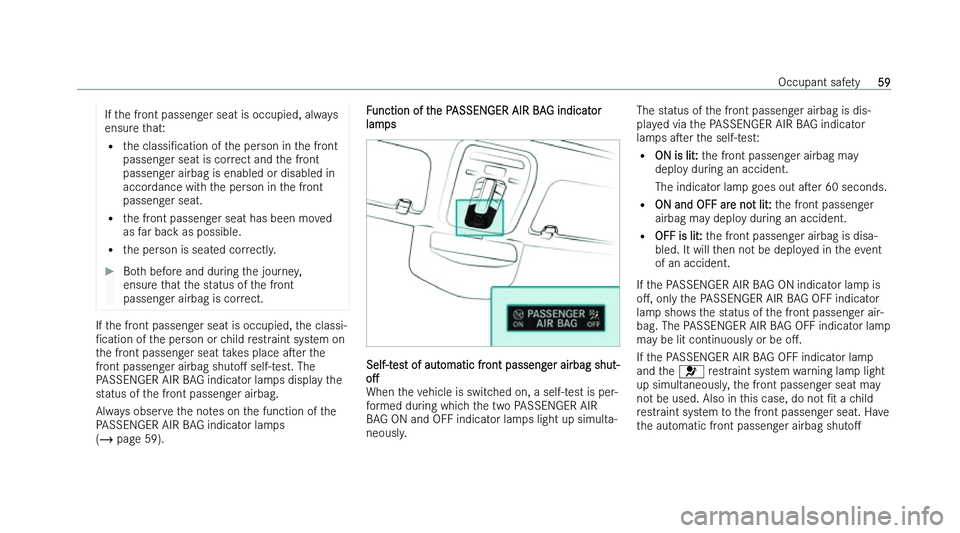

ensur e that:
= the classiNcation of the person in the front
passenger seat is correct and the front
passenger airbag is enabled or disabled in
accordance with the person in the front
passenger seat.
= the front passenger seat has been moved
as far back as possible.
= the person is seated correctly.
Both before and during the journey,
ensur

e that the status of the front
passenger airbag is correct. If the front passenger seat is occupied, the classi-
Ncation
of t

he person or child restraint system on
the front passenger seat takes place aser the
front passenger airbag shutoM self-test. The
PASSENGER AIR BAG indicator lamps display the
status of the front passenger airbag.
Always observe the notes on the function of the
PASSENGER AIR BAG indicator lamps
(  page 59). Function of the PASSENGER AIR BAG indicator
lam

ps Self-test of automatic front passenger airbag shut-
oM When t

he vehicle is switched on, a self-test is per-
formed during which the two PASSENGER AIR
BAG ON and OFF indicator lamps light up simulta-
neously. The status of the front passenger airbag is dis-
pla

yed via the PASSENGER AIR BAG indicator
lamps aser the self-test:
= ON is lit: the front passenger airbag may
deploy during an accident.
The indicator lamp goes out aser 60 seconds.
= ON and OFF are not lit: the front passenger
airbag may deploy during an accident.
= OFF is lit: the front passenger airbag is disa-
bled. It will then not be deployed in the event
of an accident.
If the PASSENGER AIR BAG ON indicator lamp is
oM, only the PASSENGER AIR BAG OFF indicator
lamp shows the status of the front passenger air-
bag. The PASSENGER AIR BAG OFF indicator lamp
may be lit continuously or be oM.
If the PASSENGER AIR BAG OFF indicator lamp
and the 6 restraint system warning lamp light
up simultaneously, the front passenger seat may
not be used. Also in this case, do not Nt a child
restraint system to the front passenger seat. Have
the automatic front passenger airbag shutoM Occupant safety
59

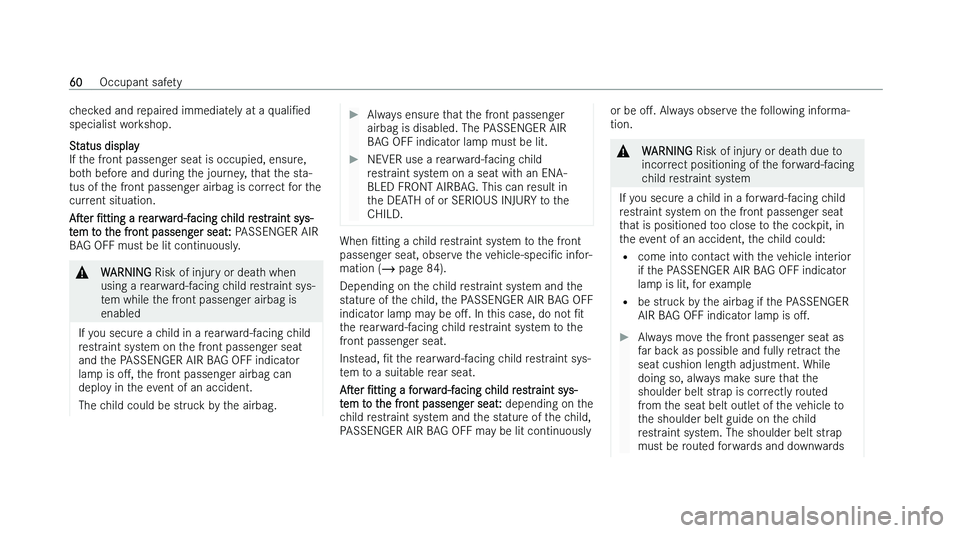

checked and repaired immediately at a
q ualiNed
specialist workshop.
Status display
If the front passenger seat is occupied, ensure,
both before and during the journey, that the sta-
tus of the front passenger airbag is correct for the
current situation.
Aser Ntting a rearward-facing child restraint sys-
tem to the front passenger seat: PASSENGER AIR
BAG OFF must be lit continuously. &
WARNING Risk of injur
y or death when
using a rearward-facing child restraint sys-
tem while the front passenger airbag is
enabled
If you secure a child in a rearward-facing child
r
estraint system on the front passenger seat
and the PASSENGER AIR BAG OFF indicator
lamp is oM, the front passenger airbag can
deploy in the event of an accident.
The child could be struck by the airbag.
Always ensure that the front passenger
airbag is disabled. The P

ASSENGER AIR
BAG OFF indicator lamp must be lit.
NEVER use a rearward-facing child
r
estraint system on a seat with an ENA-
BLED FRONT AIRBAG. This can result in
the DEATH of or SERIOUS INJURY to the
CHILD. When Ntting
a c
hild restraint system to the front
passenger seat, observe the vehicle-speciNc infor-
mation (  page 84).
Depending on the child restraint system and the
stature of the child, the PASSENGER AIR BAG OFF
indicator lamp may be oM. In this case, do not Nt
the rearward-facing child restraint system to the
front passenger seat.
Instead, Nt the rearward-facing child restraint sys-
tem to a suitable rear seat.
Aser Ntting a forward-facing child restraint sys-
tem to the front passenger seat: depending on the
child restraint system and the stature of the child,
PASSENGER AIR BAG OFF may be lit continuously or be oM.
Alw
ays observe the following informa-
tion. &
WARNING Risk of injur
y or death due to
incorrect positioning of the forward-facing
child restraint system
If you secure a child in a forward-facing child
r
estraint system on the front passenger seat
that is positioned too close to the cockpit, in
the event of an accident, the child could:
= come into contact with the vehicle interior
if the PASSENGER AIR BAG OFF indicator
lamp is lit, for example
= be struck by the airbag if the PASSENGER
AIR BAG OFF indicator lamp is oM.
Always move the front passenger seat as
f

ar back as possible and fully retract the
seat cushion length adjustment. While
doing so, always make sure that the
shoulder belt strap is correctly routed
from the seat belt outlet of the vehicle to
the shoulder belt guide on the child
restraint system. The shoulder belt strap
must be routed forwards and downwards 60
Occupant safety

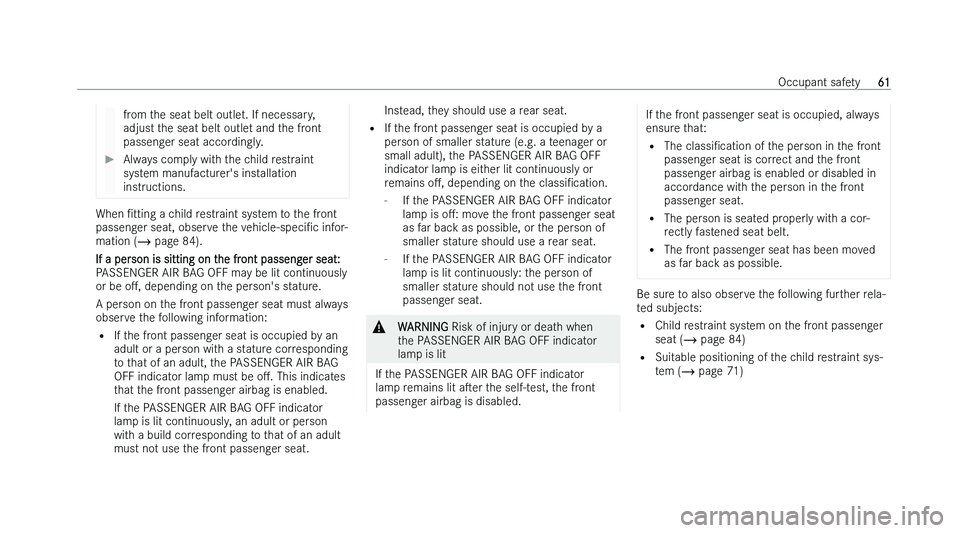

from the seat belt outlet. If necessary,
adjus t the seat belt outlet and the front
passenger seat accordingly.
Always comply with the child restraint
sy

stem manufacturer's installation
instructions. When Ntting
a c
hild restraint system to the front
passenger seat, observe the vehicle-speciNc infor-
mation (  page 84).
If a person is sitting on the front passenger seat:
PASSENGER AIR BAG OFF may be lit continuously
or be oM, depending on the person's stature.
A person on the front passenger seat must always
observe the following information:
= If the front passenger seat is occupied by an
adult or a person with a stature corresponding
to that of an adult, the PASSENGER AIR BAG
OFF indicator lamp must be oM. This indicates
that the front passenger airbag is enabled.
If the PASSENGER AIR BAG OFF indicator
lamp is lit continuously, an adult or person
with a build corresponding to that of an adult
must not use the front passenger seat. Instead, they should use a rear seat.
= If t

he front passenger seat is occupied by a
person of smaller stature (e.g. a teenager or
small adult), the PASSENGER AIR BAG OFF
indicator lamp is either lit continuously or
remains oM, depending on the classiNcation.
- If the PASSENGER AIR BAG OFF indicator
lamp is oM move the front passenger seat
as far back as possible, or the person of
smaller stature should use a rear seat.
- If the PASSENGER AIR BAG OFF indicator
lamp is lit continuously: the person of
smaller stature should not use the front
passenger seat. &
WARNING Risk of injur
y or death when
the PASSENGER AIR BAG OFF indicator
lamp is lit
If the PASSENGER AIR BAG OFF indicator
lam
p remains lit aser the self-test, the front
passenger airbag is disabled. If the front passenger seat is occupied, always
ensur
e that:
= The classiNcation of the person in the front
passenger seat is correct and the front
passenger airbag is enabled or disabled in
accordance with the person in the front
passenger seat.
= The person is seated properly with a cor-
rectly fastened seat belt.
= The front passenger seat has been moved
as far back as possible. Be sure to also observe the following further rela-
t
ed subjects:
= Child restraint system on the front passenger
seat ( page 84)
= Suitable positioning of the child restraint sys-
tem (  page 71) Occupant safety
61
