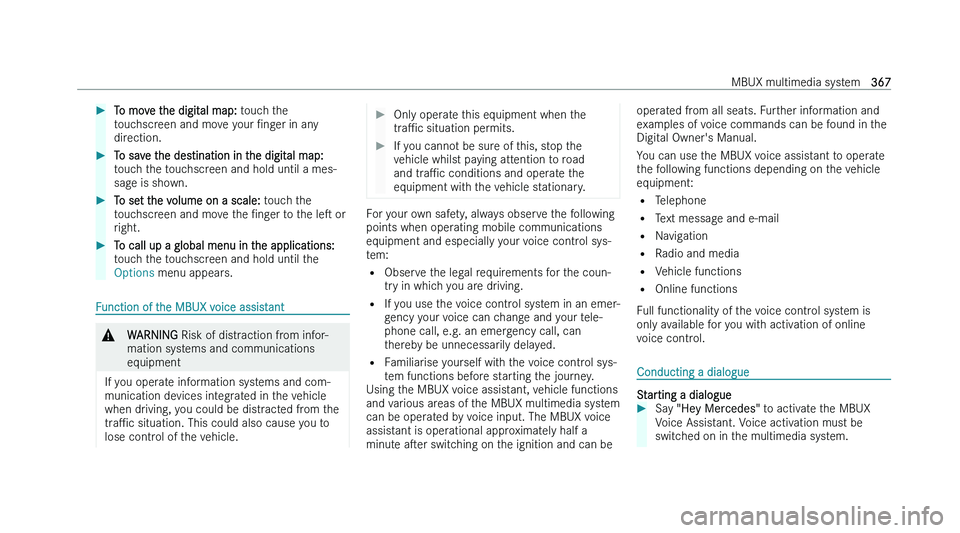

To move the digital map: t ouch the
touchscreen and move your Nnger in any
direction.
To save the destination in the digital map:
t

ouch the touchscreen and hold until a mes-
sage is shown.
To set the volume on a scale: t
ouch the
touchscreen and move the Nnger to the les or
right.
To call up a global menu in the applications:
t

ouch the touchscreen and hold until the
Options menu appears. Function of the MBUX voice assistant
&
WARNING Risk of dis
traction from infor-
mation systems and communications
equipment
If you operate information systems and com-
munication de
vices integrated in the vehicle
when driving, you could be distracted from the
traPc situation. This could also cause you to
lose control of the vehicle.
Only operate this equipment when the
tr

aPc situation permits.
If you cannot be sure of this, stop the
v
ehicle whilst paying attention to road
and traPc conditions and operate the
equipment with the vehicle stationary. For your own safety, always observe the following
points when oper
ating mobile communications
equipment and especially your voice control sys-
tem:
= Observe the legal requirements for the coun-
try in which you are driving.
= If you use the voice control system in an emer-
gency your voice can change and your tele-
phone call, e.g. an emergency call, can
thereby be unnecessarily delayed.
= Familiarise yourself with the voice control sys-
tem functions before starting the journey.
Using the MBUX voice assistant, vehicle functions
and v
arious areas of the MBUX multimedia system
can be operated by voice input. The MBUX voice
assistant is operational approximately half a
minute aser switching on the ignition and can be operated from all seats. Further information and
e

xamples of voice commands can be found in the
Digital Owner's Manual.
You can use the MBUX voice assistant to operate
the following functions depending on the vehicle
equipment:
= Telephone
= Text message and e-mail
= Navigation
= Radio and media
= Vehicle functions
= Online functions
Full functionality of the voice control system is
only available for you with activation of online
voice control. Conducting a dialogue
Starting a dialogue

Say "Hey Mercedes" t
o activate the MBUX
Voice Assistant. Voice activation must be
switched on in the multimedia system. MBUX multimedia system
367

or

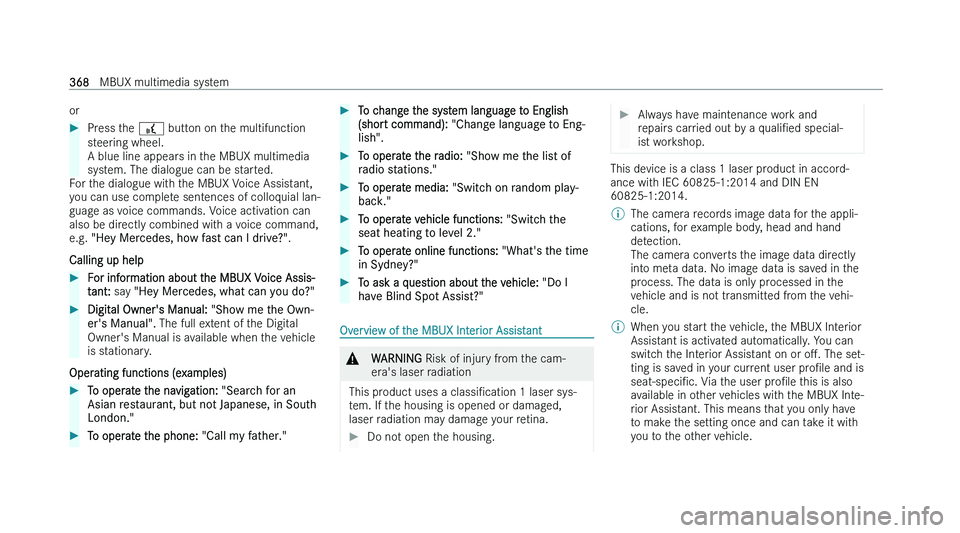

Press the £ butt on on the multifunction
steering wheel.
A blue line appears in the MBUX multimedia
system. The dialogue can be started.
For the dialogue with the MBUX Voice Assistant,
y
ou can use complete sentences of colloquial lan-
guage as voice commands. Voice activation can
also be directly combined with a voice command,
e.g. "Hey Mercedes, how fast can I drive"" .
Calling up help
For information about the MBUX Voice Assis-
t

ant: say "Hey Mercedes, what can you do""
Digital Owner's Manual: "Show me the Own-
er's Manual". The full e

xtent of the Digital
Owner's Manual is available when the vehicle
is stationary.
Operating functions (examples)
To operate the navigation: "Search for an
Asian restaurant, but not Japanese, in South
London."
To operate the phone: "Call my father."
To change the system language to English
(shor
t command): "Change language to Eng-
lish".
To operate the radio: "Show me the list of
radio stations."
To operate media: "Switch on random play-
back."
To operate vehicle functions: "Switch the
seat heating to level 2."
To operate online functions: "What's the time
in Sydney""
To ask a question about the vehicle: "Do I
have Blind Spot Assist"" Overview of the MBUX Interior Assistant
&
WARNING Risk of injur
y from the cam-
era's laser radiation
This product uses a classiNcation 1 laser sy
s-
tem. If the housing is opened or damaged,
laser radiation may damage your retina.
Do not open the housing.
Always have maintenance work and
r

epairs carried out by a qualiNed special-
ist workshop. This device is a class 1 laser product in accord-
ance wit

h IEC 60825-1:2014 and DIN EN
60825-1:2014.
% The camera records image data for the appli-
cations, f
or example body, head and hand
detection.
The camera converts the image data directly
into meta data. No image data is saved in the
process. The data is only processed in the
vehicle and is not transmitted from the vehi-
cle.
% When you start the vehicle, the MBUX Interior
Assis

tant is activated automatically. You can
switch the Interior Assistant on or oM. The set-
ting is saved in your current user proNle and is
seat-speciNc. Via the user proNle this is also
available in other vehicles with the MBUX Inte-
rior Assistant. This means that you only have
to make the setting once and can take it with
you to the other vehicle. 368
MBUX multimedia system

%

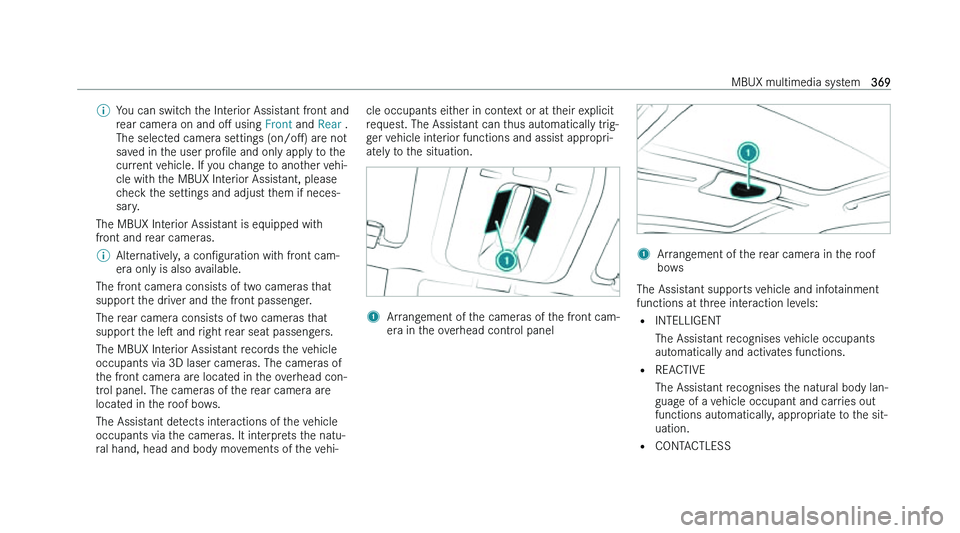

You can switch the Interior Assistant front and
r
ear camera on and oM using Front and Rear .
The selected camera settings (on/oM) are not
saved in the user proNle and only apply to the
current vehicle. If you change to another vehi-
cle with the MBUX Interior Assistant, please
check the settings and adjust them if neces-
sary.
The MBUX Interior Assistant is equipped with
fr
ont and rear cameras.
% Alternatively, a conNgur
ation with front cam-
era only is also available.
The front camera consists of two cameras that
suppor
t the driver and the front passenger.
The rear camera consists of two cameras that
support the les and right rear seat passengers.
The MBUX Interior Assistant records the vehicle
occupants via 3D laser cameras. The cameras of
the front camera are located in the overhead con-
trol panel. The cameras of the rear camera are
located in the roof bows.
The Assistant detects interactions of the vehicle
occupants via the cameras. It interprets the natu-
ral hand, head and body movements of the vehi- cle occupants either in context or at their explicit
r
equest. The Assistant can thus automatically trig-
ger vehicle interior functions and assist appropri-
ately to the situation. 1
Arrangement of the cameras of the front cam-
er
a in the overhead control panel 1
Arrangement of the rear camera in the roof
bo
ws
The Assistant supports vehicle and infotainment
functions at t
hree interaction levels:
= INTELLIGENT
The Assistant recognises vehicle occupants
automatically and activates functions.
= REACTIVE
The Assistant recognises the natural body lan-
guage of a vehicle occupant and carries out
functions automatically, appropriate to the sit-
uation.
= CONTACTLESS MBUX multimedia system
369

The vehicle occupant actively requests a func-
tion using a hand mo vement or pose.
The Assistant oMers functions for the following:
= SAFETY
The Assistant supports vehicle occupants with
the use of restraint systems.
= COMFORT
The Assistant enhances comfort by automat-
ing functions inside the vehicle and supporting
natural interaction with the vehicle.
= INFOTAINMENT
Operating options or information are highligh-
ted and/or shown on the central display as
your hand approaches. The vehicle occupants
can carry out a favourite function with a hand
pose.
System limits, display messages and notes for
rectiNcation
The error messages are shown on the central dis-
play, for example. The system may be impaired or may not function
in t he following situations:
= The cameras may heat up during operation. As
a result the cameras may switch oM tempora-
rily, particularly during longer periods of oper-
ation and at high outside temperatures.
Do not touch or cover the cameras. Wait until
the cameras have cooled down and are availa-
ble again.
The Interior assistant unavailable. Notifica-
tion to follow. message appears.
You receive a message when the camera is
available again.
= The front or rear camera is covered, dirty, fog-
ged up or scratched.
Wait until the camera has cooled down before
cleaning the camera cover.
The Currently unavailable, see Owner's Man-
ual. message appears.
Clean the outside of the camera cover with a
dry or damp cotton cloth. Do not use microN-
bre cloths. Do not remove the cover when
cleaning. =
A v ehicle occupant is very large. Clothing
being worn (gloves, hat, scarf, colour of cloth-
ing) or objects carried on a person, for exam-
ple a watch with a large face, are aMecting the
camera view. Or the detection range of the
camera is restricted.
The Interior assist. only available to driver to
limited extent, see Owner's Manual message
appears.
Keep the camera's Neld of vision clear.
Objects in the detection range of the camera
can restrict the camera view. Please make
sure that no objects hang on the inside rear-
view mirror, for example.
= The MBUX Interior Assistant is faulty.
The Interior assistant is unavailable. Please
contact a Mercedes-Benz workshop. mes-
sage appears.
Consult a Mercedes-Benz service centre.
= Vehicles with rear bench seat: as soon as the
centre rear seat is occupied, the rear seat
functions are not supported. 370
MBUX multimedia system

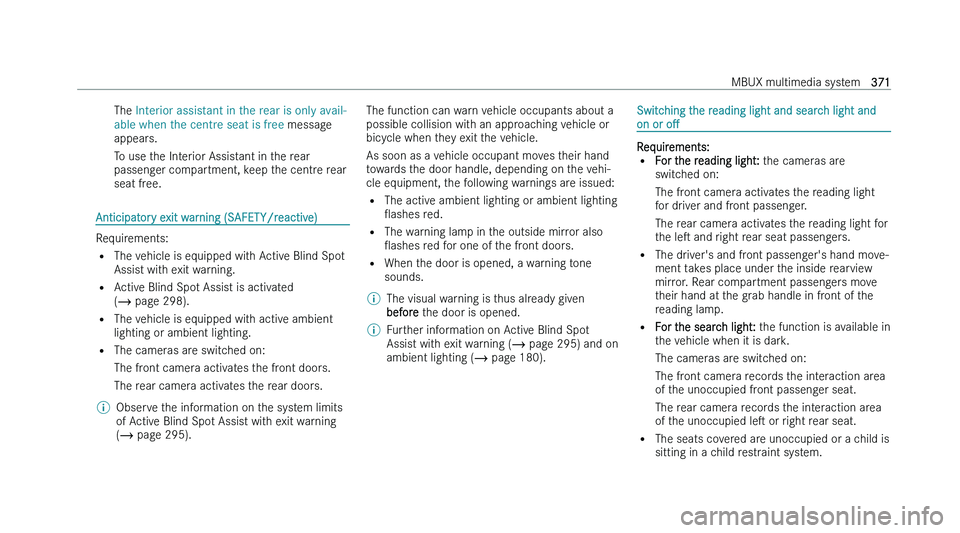

The Interior assistant in the rear is only avail-
able when the centre seat is free messag e
appears.
To use the Interior Assistant in the rear
passenger compartment, keep the centre rear
seat free. Anticipatory exit warning (SAFETY/reactive)
Requirements:
=
The v

ehicle is equipped with Active Blind Spot
Assist with exit warning.
= Active Blind Spot Assist is activated
( page 298).
= The vehicle is equipped with active ambient
lighting or ambient lighting.
= The cameras are switched on:
The front camera activates the front doors.
The rear camera activates the rear doors.
% Observe the information on the system limits
of A

ctive Blind Spot Assist with exit warning
(  page 295). The function can warn vehicle occupants about a
possible collision wit
h an approaching vehicle or
bicycle when they exit the vehicle.
As soon as a vehicle occupant moves their hand
towards the door handle, depending on the vehi-
cle equipment, the following warnings are issued:
= The active ambient lighting or ambient lighting
Oashes red.
= The warning lamp in the outside mirror also
Oashes red for one of the front doors.
= When the door is opened, a warning tone
sounds.
% The visual warning is thus already given
bef

ore the door is opened.
% Further information on Active Blind Spot
Assis

t with exit warning ( page 295) and on
ambient lighting ( page 180). Switching the reading light and search light and
on or oM
Requirements:
= F

or the reading light: the cameras are
switched on:
The front camera activates the reading light
for driver and front passenger.
The rear camera activates the reading light for
the les and right rear seat passengers.
= The driver's and front passenger's hand move-
ment takes place under the inside rearview
mirror. Rear compartment passengers move
their hand at the grab handle in front of the
reading lamp.
= For the search light: the function is available in
the vehicle when it is dark.
The cameras are switched on:
The front camera records the interaction area
of the unoccupied front passenger seat.
The rear camera records the interaction area
of the unoccupied les or right rear seat.
= The seats covered are unoccupied or a child is
sitting in a child restraint system. MBUX multimedia system
371

Switching the reading light on and
oMCarrying out operation of the reading light for the
dr iver and front passenger Carrying out operation of the reading light for rear
occupants
Move your hand up and down vertically under
t
he inside review mirror.
or
Move the hand on the grab handle vertically
up and do
wn in front of the reading light.
The reading light is switched on or oM.Switching the search light on and
oM Interaction area for activating the search light

To switch on: r
each with your hand into the
area of an unoccupied seat.
The search light is switched on automatically
for the vehicle occupants.
To switch oM wit
hdraw the hand from the area
of the unoccupied seat.
The search light is switched oM again.372
MBUX multimedia system

Automatic preselection of the outside mirrors
(C OMFORT/reactive) Requirements:
=
The fr

ont camera is switched on.
Until now, to set the outside mirrors the desired
mirror had to be selected using a preselection
button in the driver's door.
With the MBUX Interior Assistant, the mirror to be
set is preselected automatically by the natural
movement of your head to the les or right. When
the hand touches the button for adjusting the out-
side mirror, the LED under the button of the pre-
selected mirror side lights up.
Use the button to set the position of the active
outside mirror.
% Preselection of the outside mirrors using but-
t

ons is still possible. Further information on
adjusting the outside mirrors (  page 185).
% The driver camera is also used for this appli-
cation. Calling up favourites with the V pose (INFOTAIN-
MENT/cont

actless) Requirements:
= The fr

ont camera is switched on.
= At least one favourite has been saved in the
favourites list.
= The favourite has been connected with the
MBUX Interior Assistant.
= The area for detecting the favourites pose (V
pose) is above the centre console in front of
the central display.
= The V pose is held for a brief time.
The V pose makes it easier to call up favourites.
The front vehicle occupants can associate their
own favourite with the V-pose. Some examples
include a navigation destination, a radio station or
a massage programme for a seat.
% If a favourite has not yet been saved and con-
nect

ed with the MBUX Interior Assistant, the
multimedia system will assist you. Implementation of the V-pose above the stowage
com
partment of the centre console at the height of
the central display
Position your hand above the stowage com-
par

tment of the centre console at the height
of the central display. The back of your hand is
facing upwards. In doing so, your index and
middle Nnger are spread to form a V. With your
other Nngers bent inwards. MBUX multimedia system
373
