2022 MERCEDES-BENZ S-CLASS SALOON LONG Owners Manual

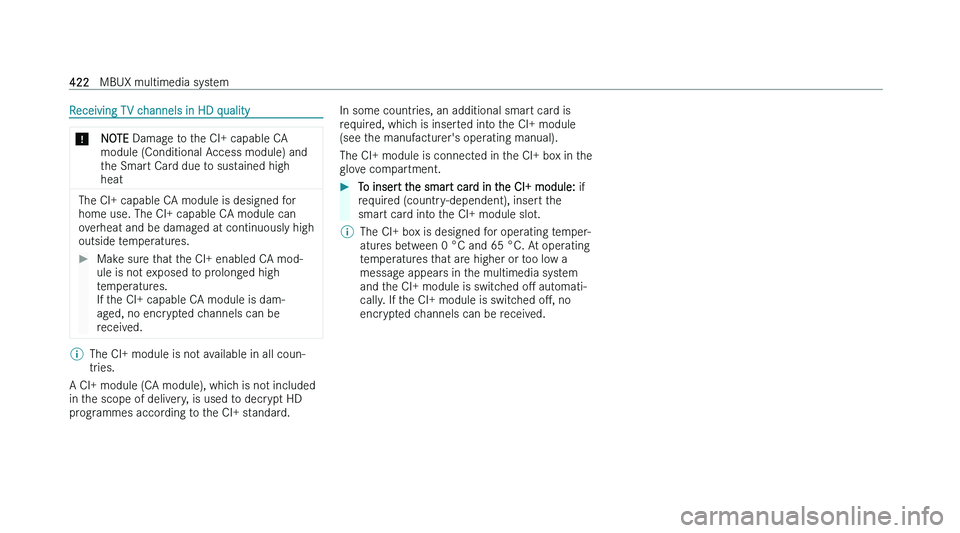

Receiving TV channels in HD quality
*
NOTE Damag e to the CI+ capable CA
module (Conditional Access module) and
the Smart Card due to sustained high
heat The CI+ capable CA module is designed for
home use. The CI+ capable C

A module can
overheat and be damaged at continuously high
outside temperatures.
Make sure that the CI+ enabled CA mod-
ule is no

t exposed to prolonged high
temperatures.
If the CI+ capable CA module is dam-
aged, no encrypted channels can be
received. %
The CI+ module is not available in all coun-
tr

ies.
A CI+ module (CA module), which is not included
in t
he scope of delivery, is used to decrypt HD
programmes according to the CI+ standard. In some countries, an additional smart card is
r
equired, which is inserted into the CI+ module
(see the manufacturer's operating manual).
The CI+ module is connected in the CI+ box in the
glove compartment.
To insert the smart card in the CI+ module: if
r
equired (country-dependent), insert the
smart card into the CI+ module slot.
% The CI+ box is designed for operating temper-
atur

es between 0 °C and 65 °C. At operating
temperatures that are higher or too low a
message appears in the multimedia system
and the CI+ module is switched oM automati-
cally. If the CI+ module is switched oM, no
encrypted channels can be received. 422
MBUX multimedia system

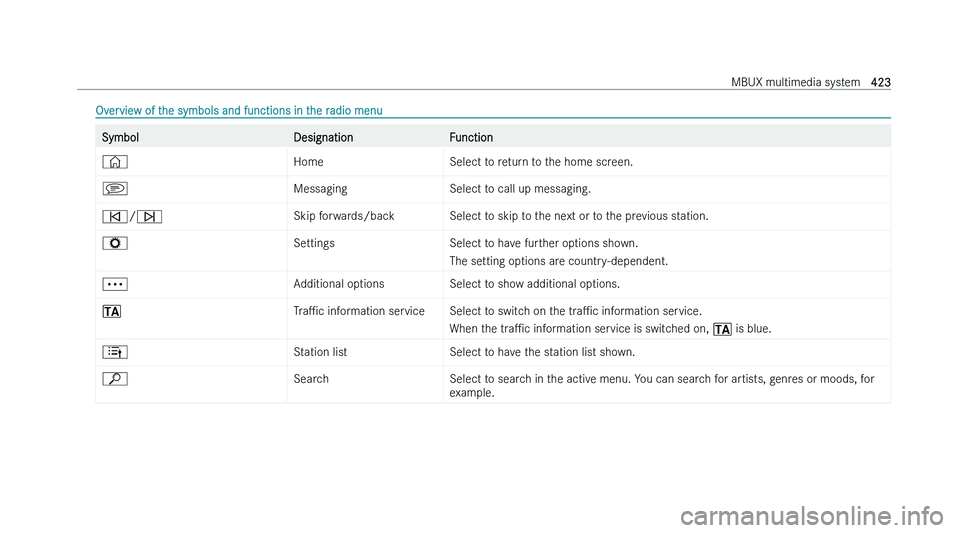

Overview of the symbols and functions in the radio menu
Symbol
DesignationFunction
© HomeSelect to return to the home screen.
L MessagingSelect to call up messaging.
û/ü Skip forwards/back Select to skip to the next or to the previous station.
= SettingsSelect to have further options shown.
The se
tting options are country-dependent.
Ä Additional optionsSelect to show additional options.

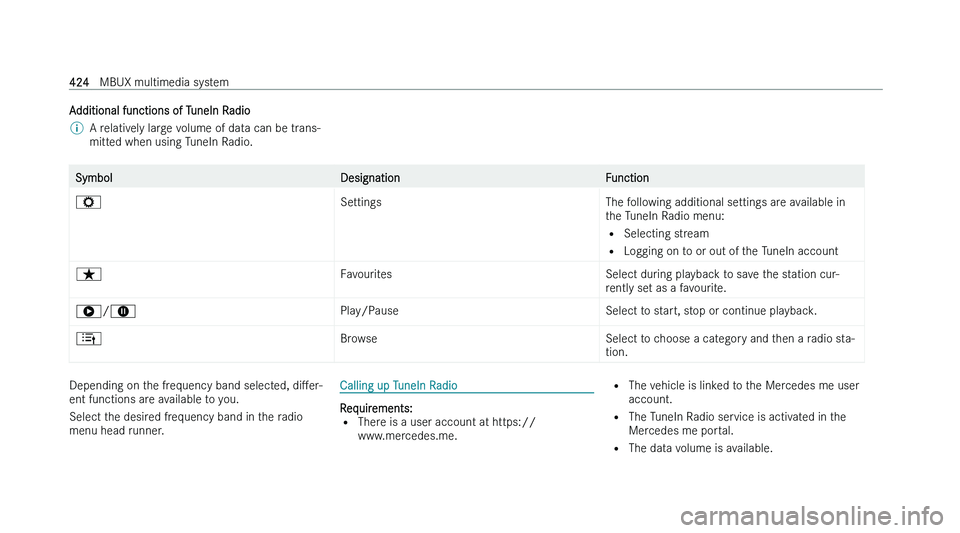

Additional functions of TuneIn Radio
%
A relatively large volume of data can be trans-
mitt ed when using TuneIn Radio. Symbol
DesignationFunction
= SettingsThe following additional settings are available in
t

he TuneIn Radio menu:
= Selecting stream
= Logging on to or out of the TuneIn account

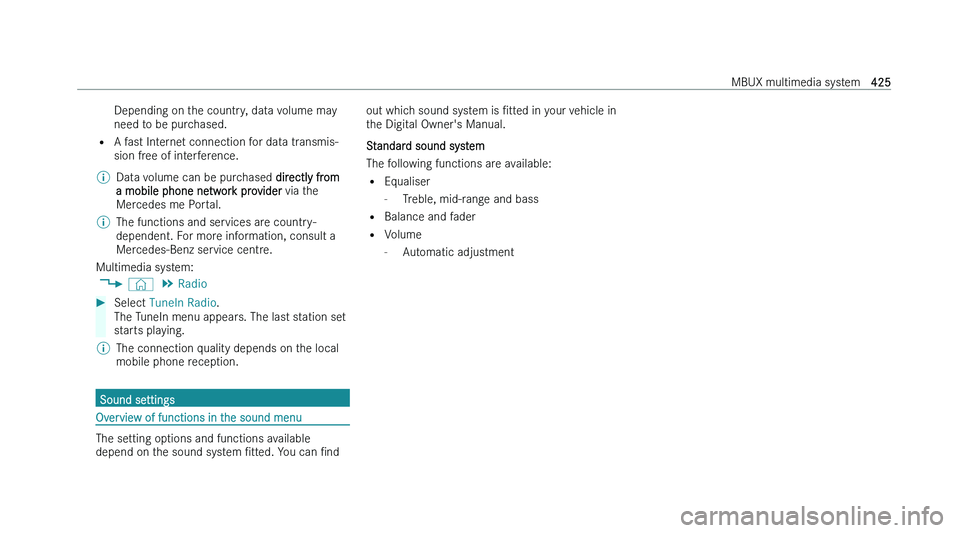

Depending on the country, data volume may
need t o be purchased.
= A fast Internet connection for data transmis-
sion free of interference.
% Data volume can be purchased dir
ectly from
a mobile phone network provider via the
Mercedes me Portal.
% The functions and services are country-
dependent. F

or more information, consult a
Mercedes-Benz service centre.
Multimedia system: 4 © 5
Radio
Select TuneIn Radio .
The T
uneIn menu appears. The last station set
starts playing.
% The connection quality depends on the local
mobile phone r
eception. Sound settings
Overview of functions in the sound menu
The setting options and functions available
depend on t

he sound system Ntted. You can Nndout which sound system is
Ntt
ed in your vehicle in
the Digital Owner's Manual.
Standard sound system
The following functions are available:
= Equaliser
- Treble, mid-range and bass
= Balance and fader
= Volume
- Automatic adjustment MBUX multimedia system
425

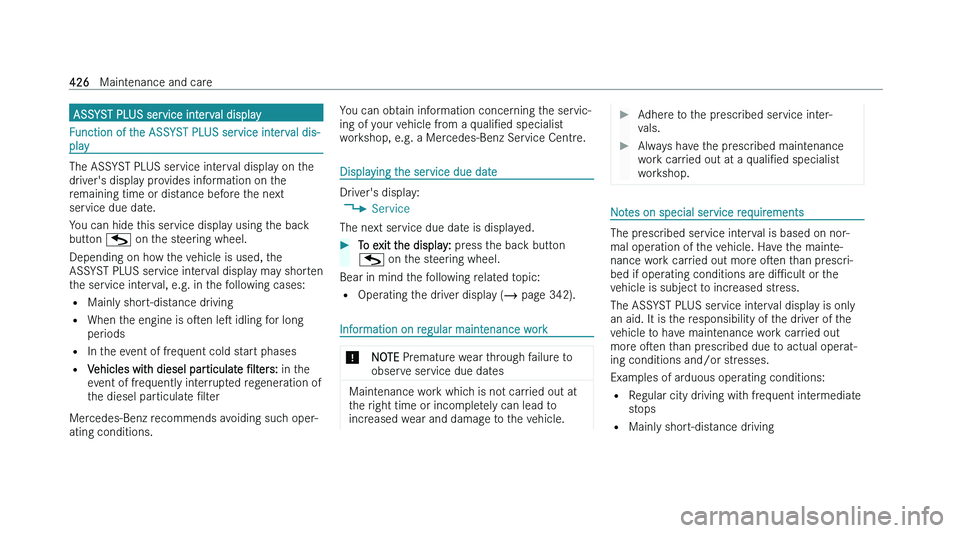

ASSYST PLUS service interval display
Function of the ASSYST PLUS service interval dis-
pla
y The ASSYST PLUS service interval display on the
dr
iver's display provides information on the
remaining time or distance before the next
service due date.
You can hide this service display using the back
button ( on the steering wheel.
Depending on how the vehicle is used, the
ASSYST PLUS service interval display may shorten
the service interval, e.g. in the following cases:
= Mainly short-distance driving
= When the engine is osen les idling for long
periods
= In the event of frequent cold start phases
= Vehicles with diesel particulate Nlters in the
event of frequently interrupted regeneration of
the diesel particulate Nlter
Mercedes-Benz recommends avoiding such oper-
ating conditions. You can obtain information concerning the servic-
ing of y
our vehicle from a qualiNed specialist
workshop, e.g. a Mercedes-Benz Service Centre. Displaying the service due date
Driver's display:
4 Service
The ne

xt service due date is displayed.
To exit the display: pr
ess the back button
( on the steering wheel.
Bear in mind the following related topic:
= Oper

ating the driver display ( page 342). Information on regular maintenance work
*
NOTE Pr
emature wear through failure to
observe service due dates Maintenance work which is not carried out at
t
he right time or incompletely can lead to
increased wear and damage to the vehicle.
Adhere to the prescribed service inter-
v
als.
Always have the prescribed maintenance
w

ork carried out at a qualiNed specialist
workshop. Notes on special service requirements
The prescribed service interval is based on nor-
mal oper

ation of the vehicle. Have the mainte-
nance work carried out more osen than prescri-
bed if operating conditions are diPcult or the
vehicle is subject to increased stress.
The ASSYST PLUS service interval display is only
an aid. It is the responsibility of the driver of the
vehicle to have maintenance work carried out
more osen than prescribed due to actual operat-
ing conditions and/or stresses.
Examples of arduous operating conditions:
= Regular city driving with frequent intermediate
stops
= Mainly short-distance driving 426
Maintenance and care

=

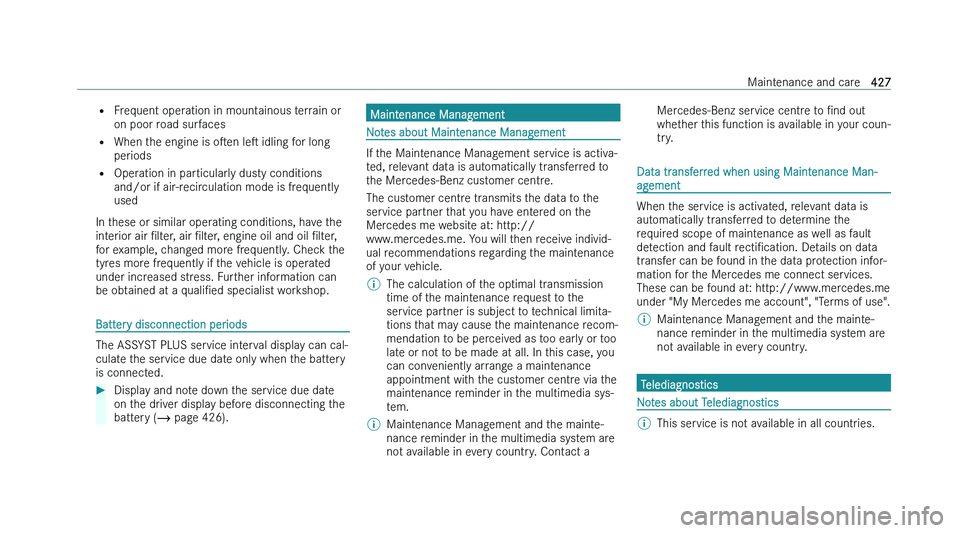

F requent operation in mountainous terrain or
on poor road surfaces
= When the engine is osen les idling for long
periods
= Operation in particularly dusty conditions
and/or if air-recirculation mode is frequently
used
In these or similar operating conditions, have the
interior air Nlter, air Nlter, engine oil and oil Nlter,
for example, changed more frequently. Check the
tyres more frequently if the vehicle is operated
under increased stress. Further information can
be obtained at a qualiNed specialist workshop. Battery disconnection periods
The ASSYST PLUS service interval display can cal-
culat
e the service due date only when the battery
is connected.
Display and note down the service due date
on t

he driver display before disconnecting the
battery ( page 426). Maintenance Management
Notes about Maintenance Management
If the Maintenance Management service is activa-
t

ed, relevant data is automatically transferred to
the Mercedes-Benz customer centre.
The customer centre transmits the data to the
service partner that you have entered on the
Mercedes me website at: http://
www.mercedes.me. You will then receive individ-
ual recommendations regarding the maintenance
of your vehicle.
% The calculation of the optimal transmission
time of t

he maintenance request to the
service partner is subject to technical limita-
tions that may cause the maintenance recom-
mendation to be perceived as too early or too
late or not to be made at all. In this case, you
can conveniently arrange a maintenance
appointment with the customer centre via the
maintenance reminder in the multimedia sys-
tem.
% Maintenance Management and the mainte-
nance r

eminder in the multimedia system are
not available in every country. Contact a Mercedes-Benz service centre to Nnd
out
whe
ther this function is available in your coun-
try. Data transferred when using Maintenance Man-
ag

ement When the service is activated, relevant data is
aut

omatically transferred to determine the
required scope of maintenance as well as fault
detection and fault rectiNcation. Details on data
transfer can be found in the data protection infor-
mation for the Mercedes me connect services.
These can be found at: http://www.mercedes.me
under "My Mercedes me account", "Terms of use".
% Maintenance Management and the mainte-
nance r

eminder in the multimedia system are
not available in every country. Telediagnostics
Notes about Telediagnostics
%
This service is not available in all countries. Maintenance and care
427

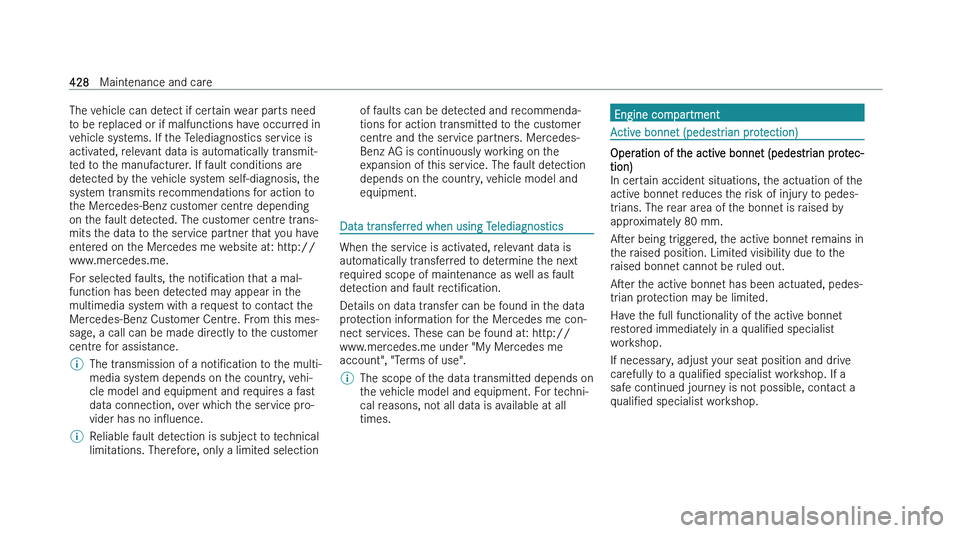

The vehicle can detect if certain wear parts need
t
o be replaced or if malfunctions have occurred in
vehicle systems. If the Telediagnostics service is
activated, relevant data is automatically transmit-
ted to the manufacturer. If fault conditions are
detected by the vehicle system self-diagnosis, the
system transmits recommendations for action to
the Mercedes-Benz customer centre depending
on the fault detected. The customer centre trans-
mits the data to the service partner that you have
entered on the Mercedes me website at: http://
www.mercedes.me.
For selected faults, the notiNcation that a mal-
function has been detected may appear in the
multimedia system with a request to contact the
Mercedes-Benz Customer Centre. From this mes-
sage, a call can be made directly to the customer
centre for assistance.
% The transmission of a no
tiNcation to the multi-
media system depends on the country, vehi-
cle model and equipment and requires a fast
data connection, over which the service pro-
vider has no inOuence.
% Reliable fault detection is subject to technical
limit
ations. Therefore, only a limited selection of faults can be detected and recommenda-
tions f
or action transmitted to the customer
centre and the service partners. Mercedes-
Benz AG is continuously working on the
expansion of this service. The fault detection
depends on the country, vehicle model and
equipment. Data transferred when using Telediagnostics
When the service is activated, relevant data is
aut

omatically transferred to determine the next
required scope of maintenance as well as fault
detection and fault rectiNcation.
Details on data transfer can be found in the data
protection information for the Mercedes me con-
nect services. These can be found at: http://
www.mercedes.me under "My Mercedes me
account", "Terms of use".
% The scope of the data transmitted depends on
t

he vehicle model and equipment. For techni-
cal reasons, not all data is available at all
times. Engine compartment
Active bonnet (pedestrian protection)
Operation of the active bonnet (pedestrian protec-
tion)
In cer

tain accident situations, the actuation of the
active bonnet reduces the risk of injury to pedes-
trians. The rear area of the bonnet is raised by
approximately 80 mm.
Aser being triggered, the active bonnet remains in
the raised position. Limited visibility due to the
raised bonnet cannot be ruled out.
Aser the active bonnet has been actuated, pedes-
trian protection may be limited.
Have the full functionality of the active bonnet
restored immediately in a qualiNed specialist
workshop.
If necessary, adjust your seat position and drive
carefully to a qualiNed specialist workshop. If a
safe continued journey is not possible, contact a
qualiNed specialist workshop. 428
Maintenance and care

Opening and closing the bonnet
&
DANGER Risk of f atal injuries when carry-
ing out maintenance work during the
charging process
During the charging process, the high-voltage
on-boar
d electrical system is under high volt-
age.
Do not perform any maintenance work
dur

ing the charging process. &
WARNING Risk of accident due t
o driving
with the bonnet unlocked
The bonnet may open and block your view.
Never release the bonnet when driving.
Before every trip, ensure that the engine
bonne

t is locked. &
WARNING Risk of accident and injur
y
when opening and closing the bonnet
The bonnet may suddenly drop into the end
position. There is a risk of injury for anyone in the
engine bonne

t's range of movement.
Do not open or close the bonnet if there
is a per

son in the bonnet's range of
movement. &
WARNING Risk of bur
ns when opening the
bonnet
If you open the bonnet in the event of an over-
heat
ed engine or Nre in the engine compart-
ment, the following situations may occur:
= You may come into contact with hot gases.
= You may come into contact with other
escaping hot operating Ouids.
Before opening the bonnet, allow the
engine t
o cool down.
In the event of a Nr
e in the engine com-
partment, keep the bonnet closed and
call the Nre service. &
WARNING Risk of injur
y due to moving
parts
Components in the engine compartment may
continue t
o run or start unexpectedly even
when the drive system is switched oM.
Observe the following if you must open the
bonnet:
Switch oM t
he vehicle.
Never touch the danger zones surround-
ing mo

ving components, e.g. the rotation
area of the fan.
Remove jewellery and watches.
Keep items of clothing and hair away
fr
om moving parts. &
WARNING Risk of injur
y from touching
components under voltage
The ignition system and the fuel injection sys-
t
em operate at high voltage. You could receive
an electric shock. Maintenance and care
429
