If tr aPc signs are diPcult to detect, e.g.
because they are dirty, covered, faded, cov-
ered with ice, damaged, badly positioned,
poorly lit or twisted.
= Active traPc signs with LED displays may not
be detected correctly or at all due to technical
factors, suchas transmission frequency.
= If the information on the navigation system's
digital map is incorrect, incomplete or out of
date.
= If signs or the road layout is ambiguous, e.g.
traPc signs in roadworks, at exits and ramps,
in neighbouring lanes or parallel roads.
= If signs do not conform to the standard.
= If signs or road layouts are speciNc to the
country and deviate from the route guidance
in the navigation system, e.g. at or beyond
construction sites.
= Aser sharp turns and tight bends, when traPc
signs are outside the camera's Neld of vision.
= If you overtake vehicles with traPc signs
which are aPxed or attached to them. =
If y ou are using transport equipment secured
to the vehicle with a trailer coupling, suchas a
bicycle rack, restrictions for car/trailer combi-
nations may be considered valid if applicable.
Setting TraPc Sign Assist
Multimedia system:
4 © 5
Settings 5
Assistance
5 Assistance 5
Traffic Sign Assist
Activating or deactivating the speed warning
Activate or deactivate Speed limit warning.
Activating or deactivating further functions of Traf-
f
ic Sign Assist
Switch Further warnings or Additional warn-
ing tone on or oM.
Setting the warning threshold
This v
alue determines the speed at which a warn-
ing is issued when exceeded.
Set the desired speed under Warning thresh-
old .
% This function is an on-demand feature
(  pag

e 26). TraPc
light vie
w Information about the
tr
aPc light view
The traPc light view supports the driver when
waiting in front of a red light by displaying the
camera image on the central display. The camera
image is displayed when the driver is the Nrst vehi-
cle in front of the red light and faded out when the
vehicle drives oM.
Displaying traPc light view
Requirements: = The Traffic light view option is switched on .
= A traPc light view is available.
Multimedia system: 4 © 5
Settings 5
Assistance
5 Assistance 5
Traffic light view
% This function is not available in all countries.
If the vehicle is in Nr
st position at a traPc light,
the camera image with traPc light view is shown
on the central display.
When the vehicle pulls away, the camera image is
faded out. 294
Driving and parking

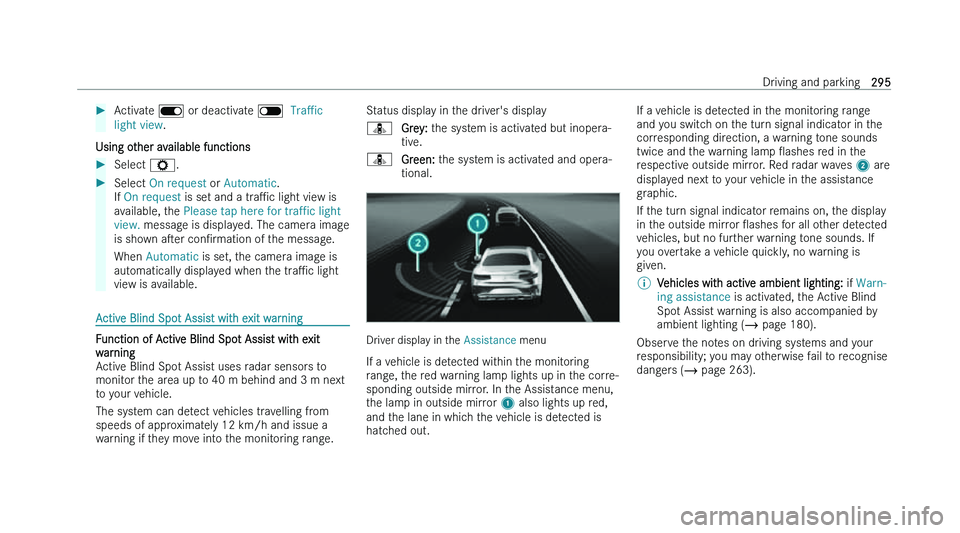

Activate D or deactiv ate E Traffic
light view .
Using other available functions
Select =.
Select On request or Automatic .
If On request is se
t and a traPc light view is
available, the Please tap here for traffic light
view. message is displayed. The camera image
is shown aser conNrmation of the message.
When Automatic is set, the camera image is
automatically displayed when the traPc light
view is available. Active Blind Spot Assist with exit warning
Function of Active Blind Spot Assist with exit
w

arning
Active Blind Spot Assist uses radar sensors to
monitor the area up to 40 m behind and 3 m next
to your vehicle.
The system can detect vehicles travelling from
speeds of approximately 12 km/h and issue a
warning if they move into the monitoring range. Status display in the driver's display

&

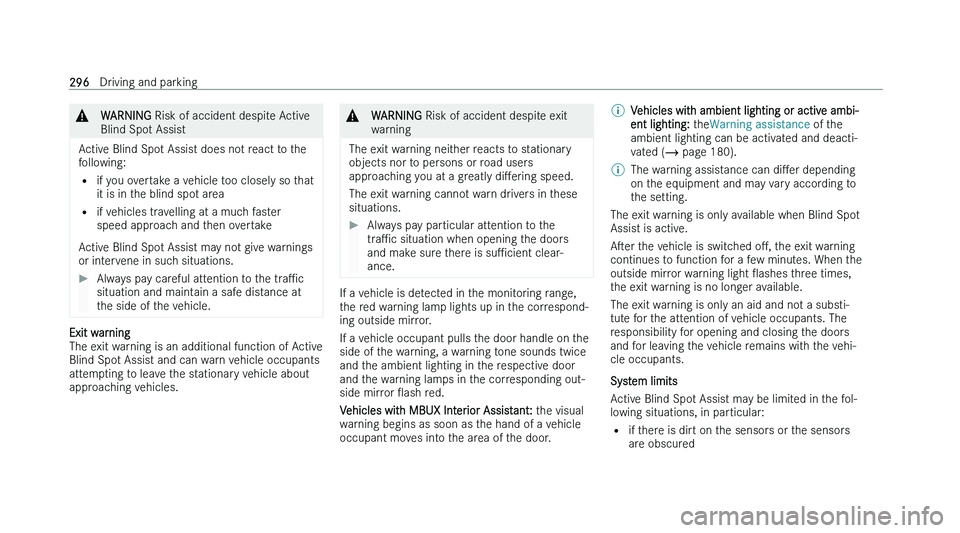

WARNING Risk of accident despit e Active
Blind Spot Assist
Active Blind Spot Assist does not react to the
f
ollowing:
= if you overtake a vehicle too closely so that
it is in the blind spot area
= if vehicles travelling at a much faster
speed approach and then overtake
Active Blind Spot Assist may not give warnings
or intervene in such situations.
Always pay careful attention to the tr
aPc
situation and maintain a safe distance at
the side of the vehicle. Exit warning
The e

xit warning is an additional function of Active
Blind Spot Assist and can warn vehicle occupants
attempting to leave the stationary vehicle about
approaching vehicles. &
WARNING Risk of accident despit
e exit
warning
The exit warning neither reacts to stationary
objects nor t
o persons or road users
approaching you at a greatly diMering speed.
The exit warning cannot warn drivers in these
situations.
Always pay particular attention to the
tr
aPc situation when opening the doors
and make sure there is suPcient clear-
ance. If a vehicle is detected in the monitoring range,
t
he red warning lamp lights up in the correspond-
ing outside mirror.
If a vehicle occupant pulls the door handle on the
side of the warning, a warning tone sounds twice
and the ambient lighting in the respective door
and the warning lamps in the corresponding out-
side mirror Oash red.
Vehicles with MBUX Interior Assistant: the visual
warning begins as soon as the hand of a vehicle
occupant moves into the area of the door. %
Vehicles with ambient lighting or active ambi-
ent lighting: t

heWarning assistance of the
ambient lighting can be activated and deacti-
vated (  page 180).
% The warning assistance can diMer depending
on t
he equipment and may vary according to
the setting.
The exit warning is only available when Blind Spot
Assis
t is active.
Aser the vehicle is switched oM, the exit warning
continues to function for a few minutes. When the
outside mirror warning light Oashes three times,
the exit warning is no longer available.
The exit warning is only an aid and not a substi-
tute for the attention of vehicle occupants. The
responsibility for opening and closing the doors
and for leaving the vehicle remains with the vehi-
cle occupants.
System limits
Active Blind Spot Assist may be limited in the fol-
lowing situations, in particular:
= if there is dirt on the sensors or the sensors
are obscured 296
Driving and parking

=

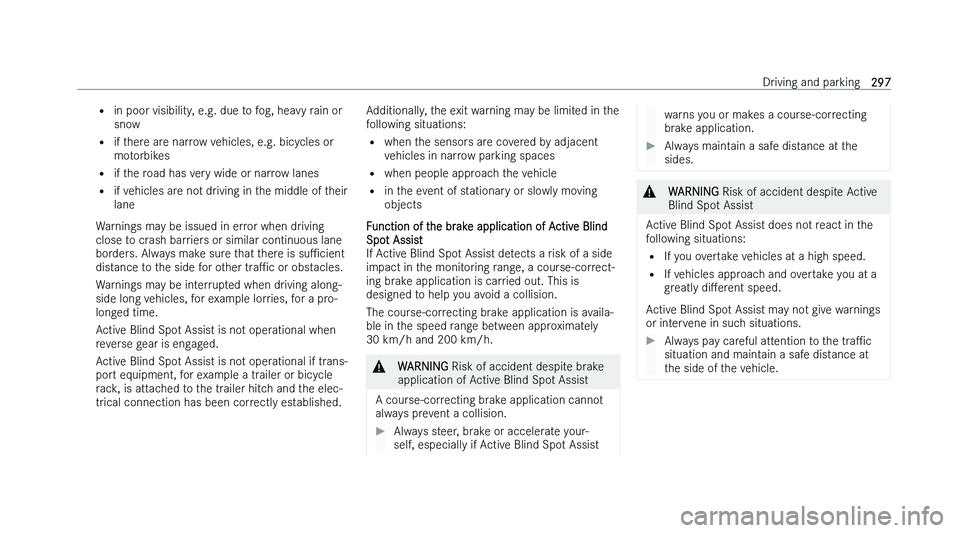

in poor visibility , e.g. due to fog, heavy rain or
snow
= if there are narrow vehicles, e.g. bicycles or
motorbikes
= if the road has very wide or narrow lanes
= if vehicles are not driving in the middle of their
lane
Warnings may be issued in error when driving
close to crash barriers or similar continuous lane
borders. Always make sure that there is suPcient
distance to the side for other traPc or obstacles.
Warnings may be interrupted when driving along-
side long vehicles, for example lorries, for a pro-
longed time.
Active Blind Spot Assist is not operational when
reverse gear is engaged.
Active Blind Spot Assist is not operational if trans-
port equipment, for example a trailer or bicycle
rack, is attached to the trailer hitch and the elec-
trical connection has been correctly established. Additionally, the exit warning may be limited in the
f ollowing situations:
= when the sensors are covered by adjacent
vehicles in narrow parking spaces
= when people approach the vehicle
= in the event of stationary or slowly moving
objects
Function of the brake application of Active Blind
Spot Assist
If Active Blind Spot Assist detects a risk of a side
impact in the monitoring range, a course-correct-
ing brake application is carried out. This is
designed to help you avoid a collision.
The course-correcting brake application is availa-
ble in the speed range between approximately
30 km/h and 200 km/h. &
WARNING Risk of accident despit
e brake
application of Active Blind Spot Assist
A course-correcting brake application cannot
alw
ays prevent a collision.
Always steer, brake or accelerate your-
self, especiall
y if Active Blind Spot Assist warns you or makes a course-correcting
br
ake application.
Always maintain a safe distance at the
sides. &
WARNING Risk of accident despit
e Active
Blind Spot Assist
Active Blind Spot Assist does not react in the
f
ollowing situations:
= If you overtake vehicles at a high speed.
= If vehicles approach and overtake you at a
greatly diMerent speed.
Active Blind Spot Assist may not give warnings
or intervene in such situations.
Always pay careful attention to the tr
aPc
situation and maintain a safe distance at
the side of the vehicle. Driving and parking
297

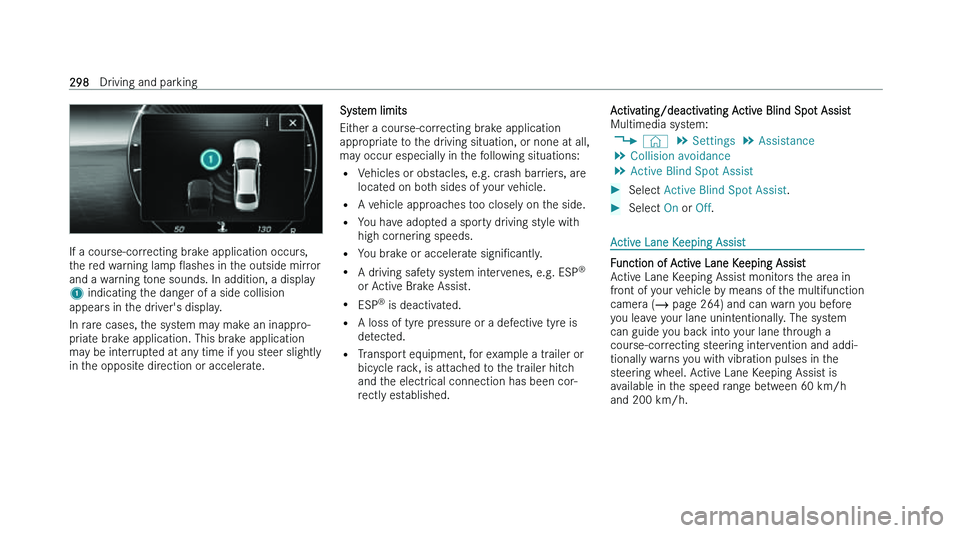

If a course-correcting brake application occurs,
t he red warning lamp Oashes in the outside mirror
and a warning tone sounds. In addition, a display
1 indicating the danger of a side collision
appears in the driver's display.
In rare cases, the system may make an inappro-
priate brake application. This brake application
may be interrupted at any time if you steer slightly
in the opposite direction or accelerate. System limits
Eit

her a course-correcting brake application
appropriate to the driving situation, or none at all,
may occur especially in the following situations:
= Vehicles or obstacles, e.g. crash barriers, are
located on both sides of your vehicle.
= A vehicle approaches too closely on the side.
= You have adopted a sporty driving style with
high cornering speeds.
= You brake or accelerate signiNcantly.
= A driving safety system intervenes, e.g. ESP n
or Active Brake Assist.
= ESP n
is deactivated.
= A loss of tyre pressure or a defective tyre is
detected.
= Transport equipment, for example a trailer or
bicycle rack, is attached to the trailer hitch
and the electrical connection has been cor-
rectly established. Activating/deactivating Active Blind Spot Assist
Multimedia sy
stem:
4 © 5
Settings 5
Assistance
5 Collision avoidance
5 Active Blind Spot Assist
Select Active Blind Spot Assist .
Select On or Off . Active Lane Keeping Assist
Function of Active Lane Keeping Assist
A

ctive Lane Keeping Assist monitors the area in
front of your vehicle by means of the multifunction
camera (  page 264) and can warn you before
you leave your lane unintentionally. The system
can guide you back into your lane through a
course-correcting steering intervention and addi-
tionally warns you with vibration pulses in the
steering wheel. Active Lane Keeping Assist is
available in the speed range between 60 km/h
and 200 km/h. 298
Driving and parking

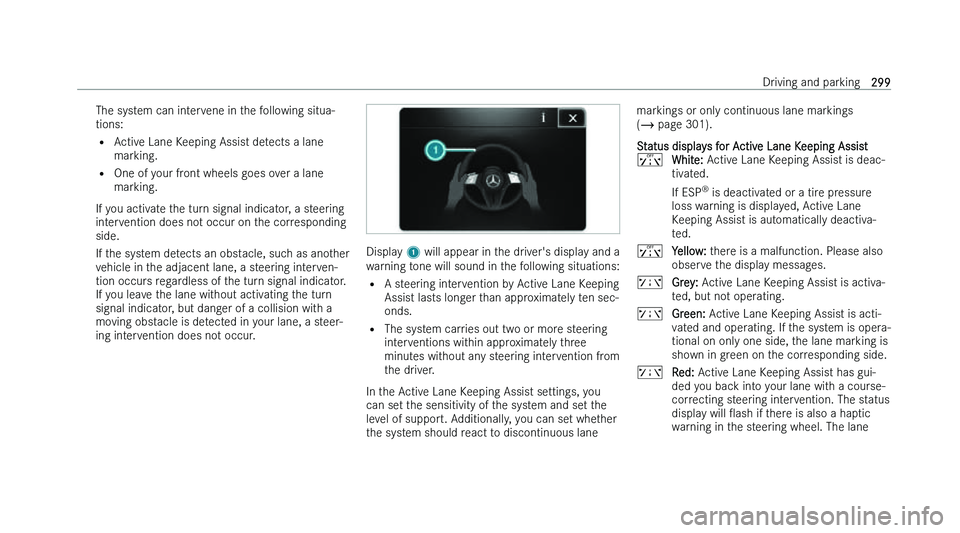

The system can intervene in the following situa-
tions:
= A
ctive Lane Keeping Assist detects a lane
marking.
= One of your front wheels goes over a lane
marking.
If you activate the turn signal indicator, a steering
intervention does not occur on the corresponding
side.
If the system detects an obstacle, such as another
vehicle in the adjacent lane, a steering interven-
tion occurs regardless of the turn signal indicator.
If you leave the lane without activating the turn
signal indicator, but danger of a collision with a
moving obstacle is detected in your lane, a steer-
ing intervention does not occur. Display
1 will appear in t
he driver's display and a
warning tone will sound in the following situations:
= A steering intervention by Active Lane Keeping
Assist lasts longer than approximately ten sec-
onds.
= The system carries out two or more steering
interventions within approximately three
minutes without any steering intervention from
the driver.
In the Active Lane Keeping Assist settings, you
can set the sensitivity of the system and set the
level of support. Additionally, you can set whether
the system should react to discontinuous lane markings or only continuous lane markings
( pag

e 301).
Status displays for Active Lane Keeping Assist
ï White: A
ctive Lane Keeping Assist is deac-
tivated.
If ESPn
is deactivated or a tire pressure
loss warning is displayed, Active Lane
Keeping Assist is automatically deactiva-
ted.
ï Yellow: t
here is a malfunction. Please also
observe the display messages.
ð Grey: A
ctive Lane Keeping Assist is activa-
ted, but not operating.
ð Green: A
ctive Lane Keeping Assist is acti-
vated and operating. If the system is opera-
tional on only one side, the lane marking is
shown in green on the corresponding side.
ð Red: A
ctive Lane Keeping Assist has gui-
ded you back into your lane with a course-
correcting steering intervention. The status
display will Oash if there is also a haptic
warning in the steering wheel. The lane Driving and parking

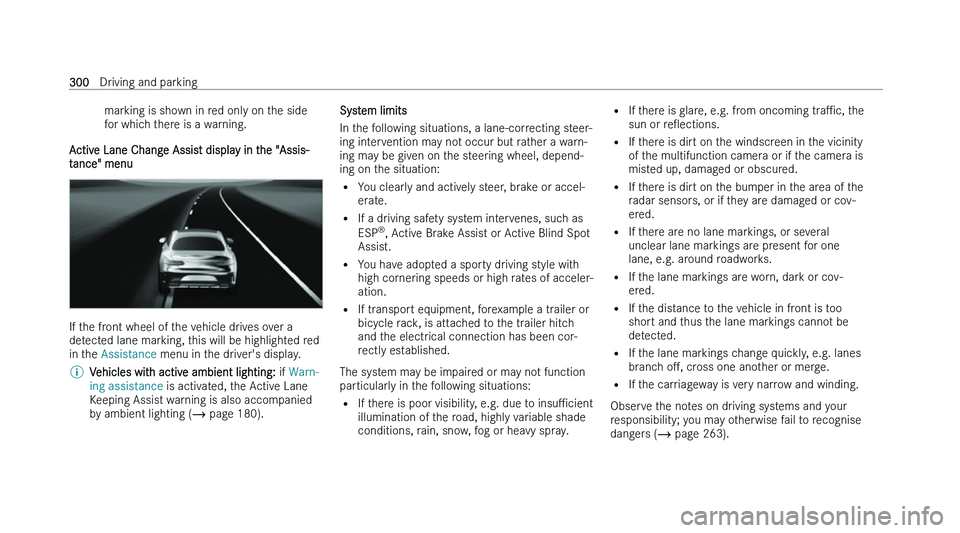

299

marking is shown in red only on the side
f
or which there is a warning.
Active Lane Change Assist display in the "Assis-
t
ance" menu If the front wheel of the vehicle drives over a
de

tected lane marking, this will be highlighted red
in the Assistance menu in the driver's display.
% Vehicles with active ambient lighting: if Warn-
ing assistance is activ
ated, the Active Lane
Keeping Assist warning is also accompanied
by ambient lighting (  page 180). System limits
In t

he following situations, a lane-correcting steer-
ing intervention may not occur but rather a warn-
ing may be given on the steering wheel, depend-
ing on the situation:
= You clearly and actively steer, brake or accel-
erate.
= If a driving safety system intervenes, such as
ESP n
, Active Brake Assist or Active Blind Spot
Assist.
= You have adopted a sporty driving style with
high cornering speeds or high rates of acceler-
ation.
= If transport equipment, forexample a trailer or
bicycle rack, is attached to the trailer hitch
and the electrical connection has been cor-
rectly established.
The system may be impaired or may not function
particularly in the following situations:
= If there is poor visibility, e.g. due to insuPcient
illumination of the road, highly variable shade
conditions, rain, snow, fog or heavy spray. =
If t here is glare, e.g. from oncoming traPc, the
sun or reOections.
= If there is dirt on the windscreen in the vicinity
of the multifunction camera or if the camera is
misted up, damaged or obscured.
= If there is dirt on the bumper in the area of the
radar sensors, or if they are damaged or cov-
ered.
= If there are no lane markings, or several
unclear lane markings are present for one
lane, e.g. around roadworks.
= If the lane markings are worn, dark or cov-
ered.
= If the distance to the vehicle in front is too
short and thus the lane markings cannot be
detected.
= If the lane markings change quickly, e.g. lanes
branch oM, cross one another or merge.
= If the carriageway is very narrow and winding.
Observe the notes on driving systems and your
responsibility; you may otherwise fail to recognise
dangers (  page 263). 300
Driving and parking

Activating/deactivating Active Lane Keeping
Assis
t
Multimedia system:
4 © 5
Settings 5
Assistance
5 Collision avoidance
5 Active Lane Keeping Assist
Activate or deactivate the function.
Alternatively, Active Lane Keeping Assist can be
activ
ated and deactivated via quick-access.
% Aser s
tarting the vehicle, the settings are
country-speciNc.
Setting Active Lane Keeping Assist
Multimedia sy
stem:
4 © 5
Settings 5
Assistance
5 Collision avoidance
5 Active Lane Keeping Assist
Setting the sensitivity
Select =.
Select Early , Med. or Late.
The last selected setting will be adopted the next
time t
he vehicle is started. %
The standard setting for this function is
dependent on t

he country.
Activating or deactivating assistance on discontin-
uous lane mar
kings
Select Advanced support.
The last selected setting will be adopted the next
time t
he vehicle is started.
% The standard setting for this function is coun-
tr
y-speciNc.
% This function must be activated in vehicles
wit
hout Driving Assistance Package, so that
Emergency Stop Assist is fully available.
Further information on Emergency Stop Assist
(  page 283) AIRMATIC
Function of AIRMATIC
AIRMA

TIC is an air suspension system with varia-
ble damping for improved driving comfort. The all-
round level control system ensures the best possi-
ble suspension and constant ground clearance,
even with a laden vehicle. When driving at speed, the vehicle is lowered automatically to improve
dr
iving safety and to reduce fuel consumption.
You also have the option of manually adjusting the
vehicle level.
AIRMATIC includes the following components and
functions:
= Air suspension with automatic all-round level
control
= Speed-dependent lowering to reduce fuel con-
sumption
= Increased vehicle level for greater ground
clearance, selected via the multimedia system
= ADS PLUS (Adaptive Damping System with
constant damping force adjustment)
Suspension setting depending on the drive pro-
gram
Drive program C and B:
= The suspension setting is Nrmer.
= The vehicle is set to low level -1.
= The vehicle is lowered to low level -2 when
driving at speeds above 120 km/h. Driving and parking
301
