When Active Parking Assist is active, lanes
and guide lines ar e displayed in green instead
of yellow ( page 317).
Top view with image from the front or reversing
camer
a
If you have activated the function, the image from
the reversing camera is automatically displayed in
the central display when reverse gear is selected
( page 313). 1
Warning display of Parking Assist
P

ARKTRONIC (  page 314)
2 Your vehicle from above
3 Lane indicating the route the vehicle will take
at t

he current steering angle 3D view,
les/r
ight-hand side of the vehicle
* NOTE Risk of accident due t
o objects
being severely distorted in the display or
not displayed at all Due to the projection of the cameras, objects
in t
he 3D views may be severely distorted
when displayed or not displayed at all.
Make sure that there are no persons,
animals or objects e

tc. in the manoeu-
vring area while manoeuvring and park-
ing. 1
Display of Parking Assist PARKTRONIC
( pag

e 314)
In the 3D view, les-/r
ight-hand side of the vehi-
cle, the virtual camera moves to the respective
side of the vehicle. When you change the trans-
mission position, the view is automatically adap-
ted.
3D auto view
% The area behind the vehicle is no
t displayed
as a mirror image as is usual in the 3D views. 310
Driving and parking

1
Display of Parking Assist PARKTRONIC
( pag
e 314)
2 Guide lines
In the 3D auto view, the virtual camera moves to
t
he standard perspective, facing forward from the
rear above the roof. The view changes automati-
cally when approaching obstacles.
If you touch the touchscreen, the view changes to
3D view with free rotation. You can turn, tilt and
zoom the views by touch. Wide-angle view
1
Display of Parking Assist PARKTRONIC
( pag

e 314)
2 To switch between standard and wide-angle
vie
w
Trailer view
% In trailer mode, the guide lines are shown at
t
he level of the trailer hitch.
If you select trailer view and no trailer is coupled
t
o the vehicle, the following display appears: Trailer view: locating aid
1 To switch between standard and trailer view
2 Yellow locating aid
3 Ball head of the trailer hitch
4 Red guide line at a distance of approximately
0.3 m fr
om the ball head of the trailer hitch
When the electrical connection is established
be
tween the vehicle and the trailer, the display
changes to the side camera view. Driving and parking
311

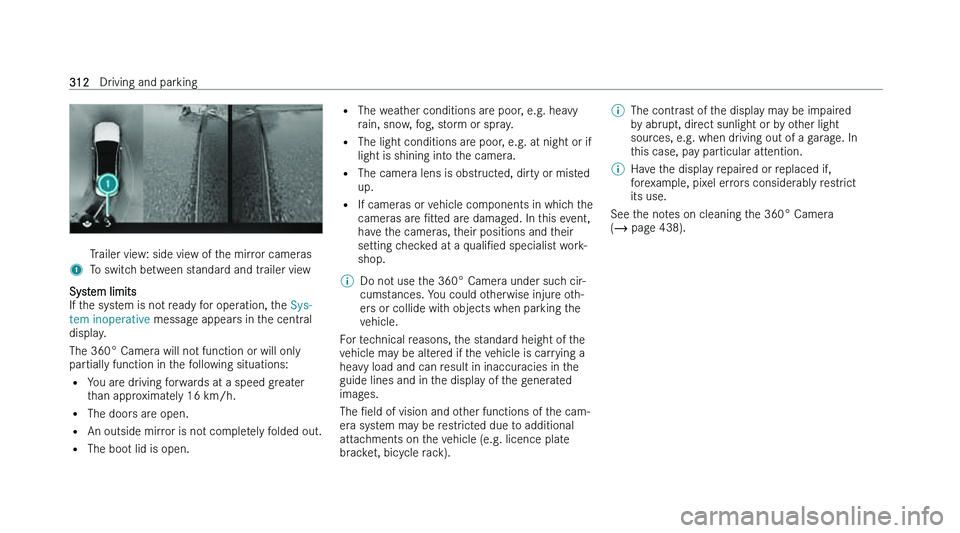

Trailer view: side view of the mirror cameras
1 To switch between standard and trailer view
System limits
If t he system is not ready for operation, the Sys-
tem inoperative message appears in the central
display.
The 360° Camera will not function or will only
partially function in the following situations:
= You are driving forwards at a speed greater
than approximately 16 km/h.
= The doors are open.
= An outside mirror is not completely folded out.
= The boot lid is open. =
The w
eather conditions are poor, e.g. heavy
rain, snow, fog, storm or spray.
= The light conditions are poor, e.g. at night or if
light is shining into the camera.
= The camera lens is obstructed, dirty or misted
up.
= If cameras or vehicle components in which the
cameras are Ntted are damaged. In this event,
have the cameras, their positions and their
setting checked at a qualiNed specialist work-
shop.
% Do not use the 360° Camera under such cir-
cums

tances. You could otherwise injure oth-
ers or collide with objects when parking the
vehicle.
For technical reasons, the standard height of the
v
ehicle may be altered if the vehicle is carrying a
heavy load and can result in inaccuracies in the
guide lines and in the display of the generated
images.
The Neld of vision and other functions of the cam-
era system may be restricted due to additional
attachments on the vehicle (e.g. licence plate
bracket, bicycle rack). %
The contrast of the display may be impaired
b

y abrupt, direct sunlight or by other light
sources, e.g. when driving out of a garage. In
this case, pay particular attention.
% Have the display repaired or replaced if,
f
orexample, pixel errors considerably restrict
its use.
See the notes on cleaning the 360° Camera
(  pag

e 438). 312
Driving and parking

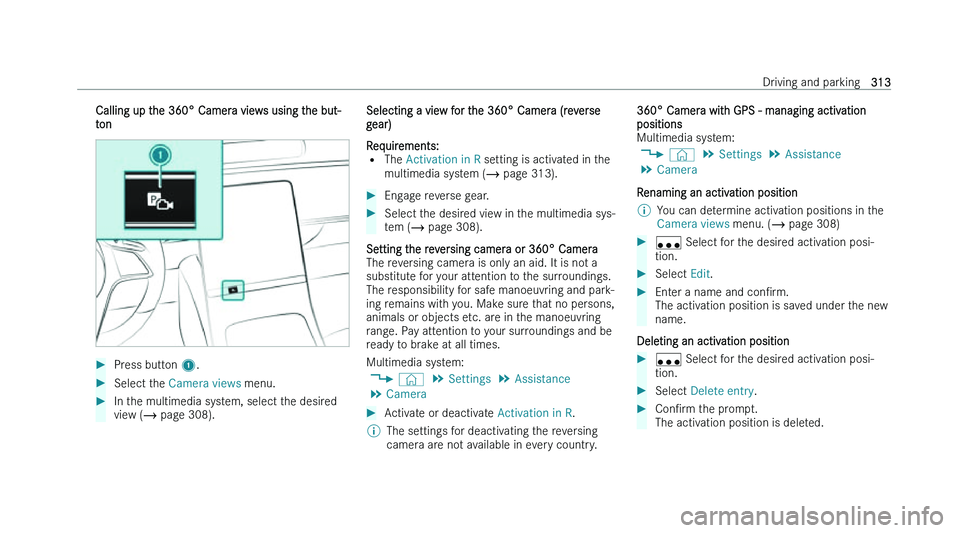

Calling up the 360° Camera views using the but-
t
on
Press button 1.
Select the Camera views menu.
In the multimedia system, select the desired
vie

w (  page 308). Selecting a view for the 360° Camera (reverse
g

ear)
Requirements: = The Activation in R setting is activated in the
multimedia system ( page 313).
Engage reverse gear.
Select the desired view in the multimedia sys-
t
em ( page 308).
Setting the reversing camera or 360° Camera
The r
eversing camera is only an aid. It is not a
substitute for your attention to the surroundings.
The responsibility for safe manoeuvring and park-
ing remains with you. Make sure that no persons,
animals or objects etc. are in the manoeuvring
range. Pay attention to your surroundings and be
ready to brake at all times.
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera
Activate or deactivate Activation in R.
% The settings for deactivating the reversing
camer

a are not available in every country. 360° Camera with GPS - managing activation
positions
Multimedia sy

stem:
4 © 5
Settings 5
Assistance
5 Camera
Renaming an activation position
% You can determine activation positions in the
Camera views menu. ( pag

e 308)
W Select f
or the desired activation posi-
tion.
Select Edit.
Enter a name and conNr
m.
The activation position is saved under the new
name.
Deleting an activation position
W Select f
or the desired activation posi-
tion.
Select Delete entry.
ConNrm t
he prompt.
The activation position is deleted. Driving and parking
313

Opening the camera cover
Multimedia sy
stem:
4 © 5
Settings 5
Assistance
5 Camera
Select Open camera cover.
% The camera cover closes automatically aser
some time or aser t

he vehicle is switched on
or oM. Parking Assist PARKTRONIC
Function of Parking Assist PARKTRONIC
P

arking Assist PARKTRONIC is an electronic park-
ing assistance system which monitors the area
surrounding your vehicle and shows you the dis-
tance between the vehicle and a detected obsta-
cle visually and audibly.
The passive side impact protection also warns you
of obstacles to the side. These must be detected
beforehand by the sensors in the front or rear
bumper while driving by them. If you steer in the
direction of a detected obstacle and there is a risk
of a lateral collision, a warning is issued. The pas- sive side impact protection can be activated and
deactiv

ated via the multimedia system.
In order for front or rear obstacles to the side to
be displayed, the vehicle must Nrst travel a dis-
tance of at least half a vehicle length. Once the
vehicle has travelled one vehicle length, obstacles
on all sides can be shown.
Parking Assist PARKTRONIC is only an aid. It is
not a substitute for your attention to the surround-
ings. The responsibility for safe manoeuvring and
parking remains with you. Make sure that there
are no persons, animals or objects in the manoeu-
vring area while manoeuvring and parking in/exit-
ing parking spaces. Displays in the central display Vehicles with 360° Camera
Vehicles with reversing camera314
Driving and parking

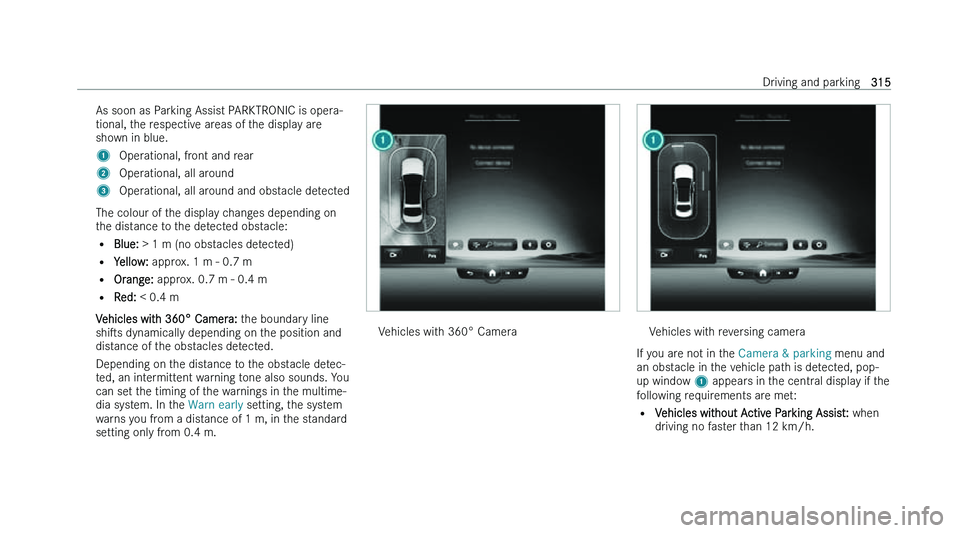

As soon as Parking Assist PARKTRONIC is opera-
tional, t
he respective areas of the display are
shown in blue.
1 Operational, front and rear
2 Operational, all around
3 Operational, all around and obstacle detected
The colour of the display changes depending on
t
he distance to the detected obstacle:
= Blue: > 1 m (no obstacles detected)
= Yellow: approx. 1 m - 0.7 m
= Orange: approx. 0.7 m - 0.4 m
= Red: < 0.4 m
Vehicles with 360° Camera: the boundary line
shiss dynamically depending on the position and
distance of the obstacles detected.
Depending on the distance to the obstacle detec-
ted, an intermittent warning tone also sounds. You
can set the timing of the warnings in the multime-
dia system. In the Warn early setting, the system
warns you from a distance of 1 m, in the standard
setting only from 0.4 m. Vehicles with 360° Camera Vehicles with reversing camera
If you are not in the Camera & parking menu and
an obs
tacle in the vehicle path is detected, pop-
up window 1 appears in the central display if the
following requirements are met:
= Vehicles without Active Parking Assist: when
driving no faster than 12 km/h. Driving and parking
315

=

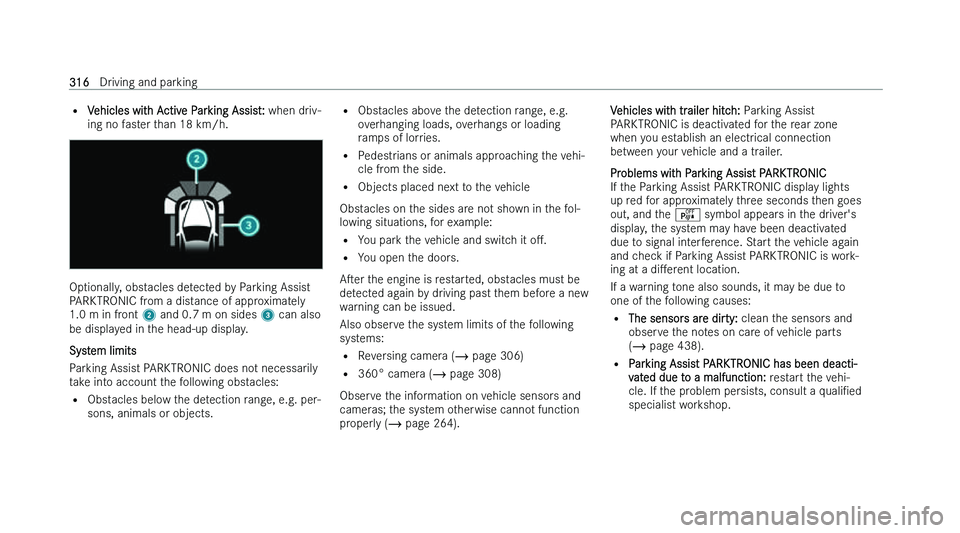

V ehicles with Active Parking Assist: when driv-
ing no faster than 18 km/h. Optionally, obstacles detected by Parking Assist
P

ARKTRONIC from a distance of approximately
1.0 m in front 2 and 0.7 m on sides 3 can also
be displayed in the head-up display.
System limits
Parking Assist PARKTRONIC does not necessarily
take into account the following obstacles:
= Obstacles below the detection range, e.g. per-
sons, animals or objects. =
Obs
tacles above the detection range, e.g.
overhanging loads, overhangs or loading
ramps of lorries.
= Pedestrians or animals approaching the vehi-
cle from the side.
= Objects placed next to the vehicle
Obstacles on the sides are not shown in the fol-
lowing situations, for example: = You park the vehicle and switch it oM.
= You open the doors.
Aser the engine is restarted, obstacles must be
detected again by driving past them before a new
warning can be issued.
Also observe the system limits of the following
systems:
= Reversing camera (  page 306)
= 360° camera ( page 308)
Observe the information on vehicle sensors and
cameras; the system otherwise cannot function
properly (  page 264). Vehicles with trailer hitch:
P arking Assist
PARKTRONIC is deactivated for the rear zone
when you establish an electrical connection
between your vehicle and a trailer.
Problems with Parking Assist PARKTRONIC
If the Parking Assist PARKTRONIC display lights
up red for approximately three seconds then goes
out, and the

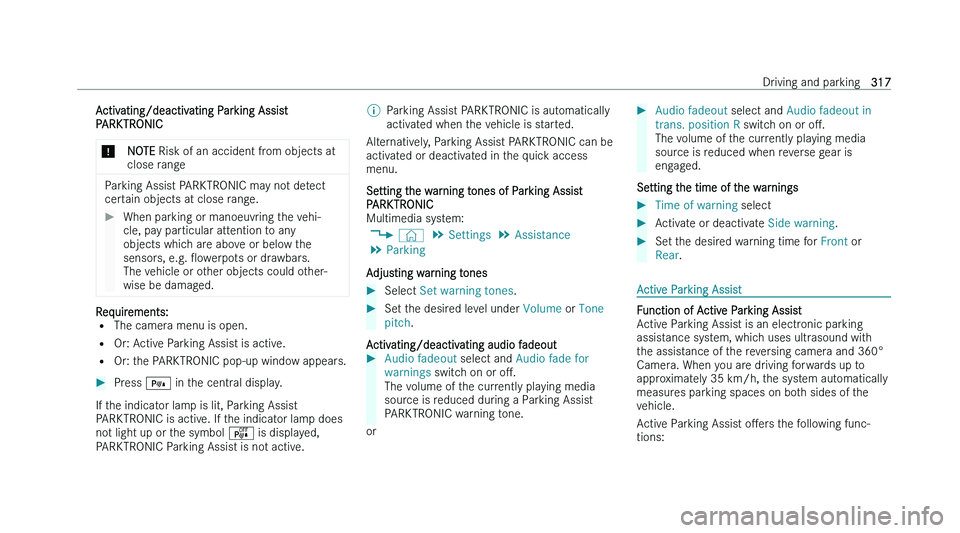

Activating/deactivating Parking Assist
P
ARKTRONIC
* NOTE Risk of an accident fr
om objects at
close range Parking Assist PARKTRONIC may not detect
cer
tain objects at close range.
When parking or manoeuvring the vehi-
cle, pa

y particular attention to any
objects which are above or below the
sensors, e.g. Oowerpots or drawbars.
The vehicle or other objects could other-
wise be damaged. Requirements:
= The camer

a menu is open.
= Or: Active Parking Assist is active.
= Or: the PARKTRONIC pop-up window appears.
Press in t
he central display.
If the indicator lamp is lit, Parking Assist
P
ARKTRONIC is active. If the indicator lamp does
not light up or the symbol
