2022 HYUNDAI VELOSTER N Owners Manual

5-103
Driving your vehicle
5

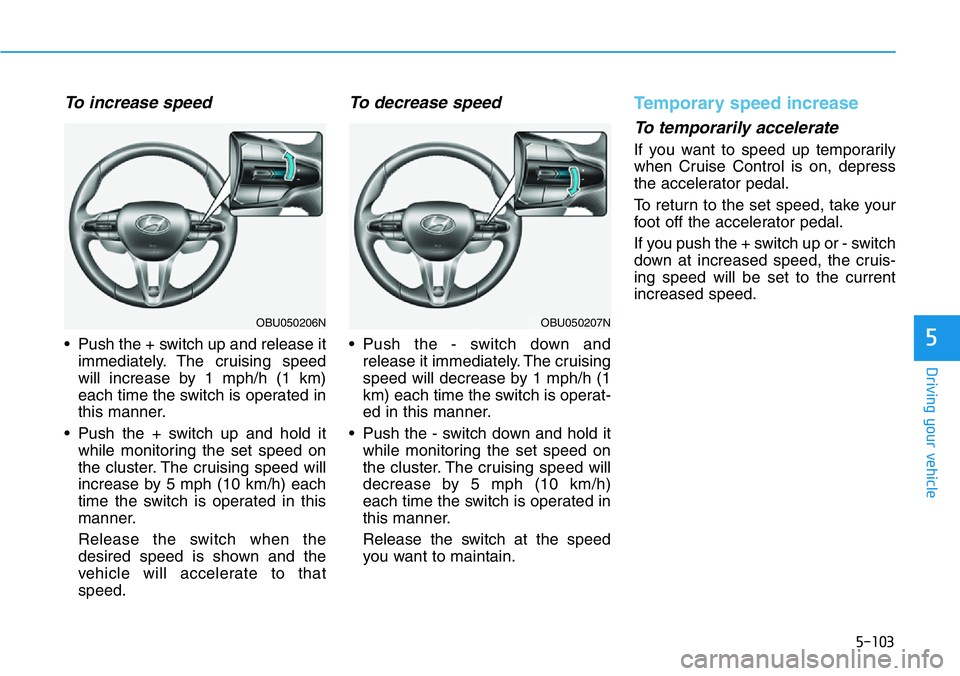

To increase speed
• Push the + switch up and release it
immediately. The cruising speed
will increase by 1 mph/h (1 km)
each time the switch is operated in
this manner.
• Push the + switch up and hold it
while monitoring the set speed on
the cluster. The cruising speed will
increase by 5 mph (10 km/h) each
time the switch is operated in this
manner.
Release the switch when the
desired speed is shown and the
vehicle will accelerate to that
speed.
To decrease speed
• Push the - switch down and
release it immediately. The cruising
speed will decrease by 1 mph/h (1
km) each time the switch is operat-
ed in this manner.
• Push the - switch down and hold it
while monitoring the set speed on
the cluster. The cruising speed will
decrease by 5 mph (10 km/h)
each time the switch is operated in
this manner.
Release the switch at the speed
you want to maintain.
Temporary speed increase
To temporarily accelerate
If you want to speed up temporarily
when Cruise Control is on, depress
the accelerator pedal.
To return to the set speed, take your
foot off the accelerator pedal.
If you push the + switch up or - switch
down at increased speed, the cruis-
ing speed will be set to the current
increased speed.
OBU050206NOBU050207N

5-104
Driving your vehicle

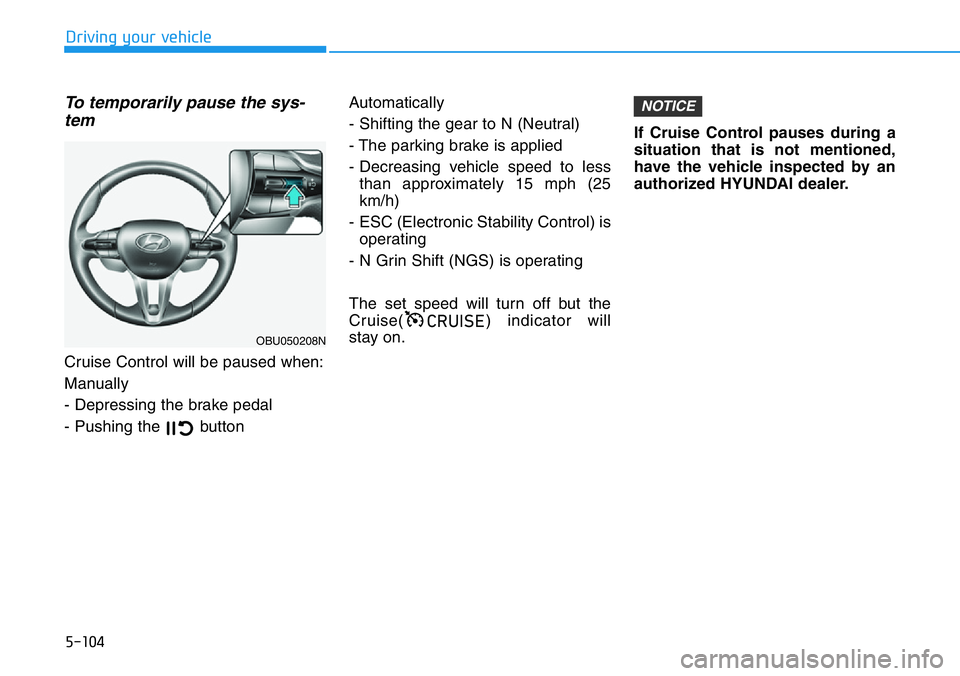

To temporarily pause the sys-
tem
Cruise Control will be paused when:
Manually
- Depressing the brake pedal
- Pushing the button Automatically
- Shifting the gear to N (Neutral)
- The parking brake is applied
- Decreasing vehicle speed to less
than approximately 15 mph (25
km/h)
- ESC (Electronic Stability Control) is
operating
- N Grin Shift (NGS) is operating
The set speed will turn off but the
Cruise( ) indicator will
stay on.If Cruise Control pauses during a
situation that is not mentioned,
have the vehicle inspected by an
authorized HYUNDAI dealer.
NOTICE
&58,6(
OBU050208N

5-105
Driving your vehicle
5

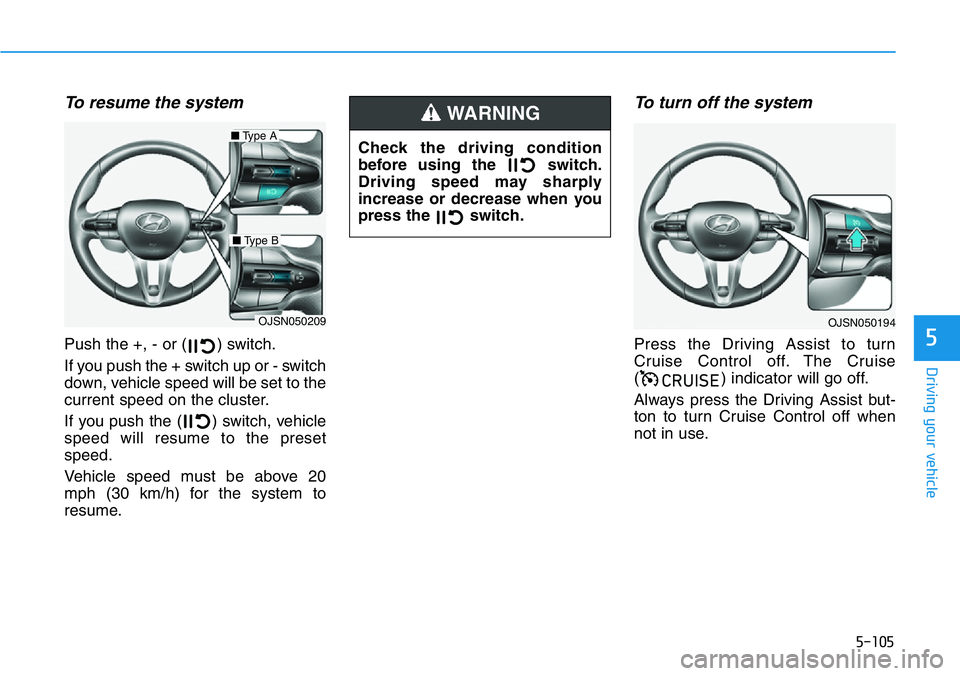

To resume the system
Push the +, - or ( ) switch.
If you push the + switch up or - switch
down, vehicle speed will be set to the
current speed on the cluster.
If you push the ( ) switch, vehicle
speed will resume to the preset
speed.
Vehicle speed must be above 20
mph (30 km/h) for the system to
resume.
To turn off the system
Press the Driving Assist to turn
Cruise Control off. The Cruise
( ) indicator will go off.
Always press the Driving Assist but-
ton to turn Cruise Control off when
not in use.
&58,6(
OJSN050209
■Type A
■Type B
OJSN050194
Check the driving condition
before using the switch.
Driving speed may sharply
increase or decrease when you
press the switch.
WARNING

5-106
Driving your vehicle

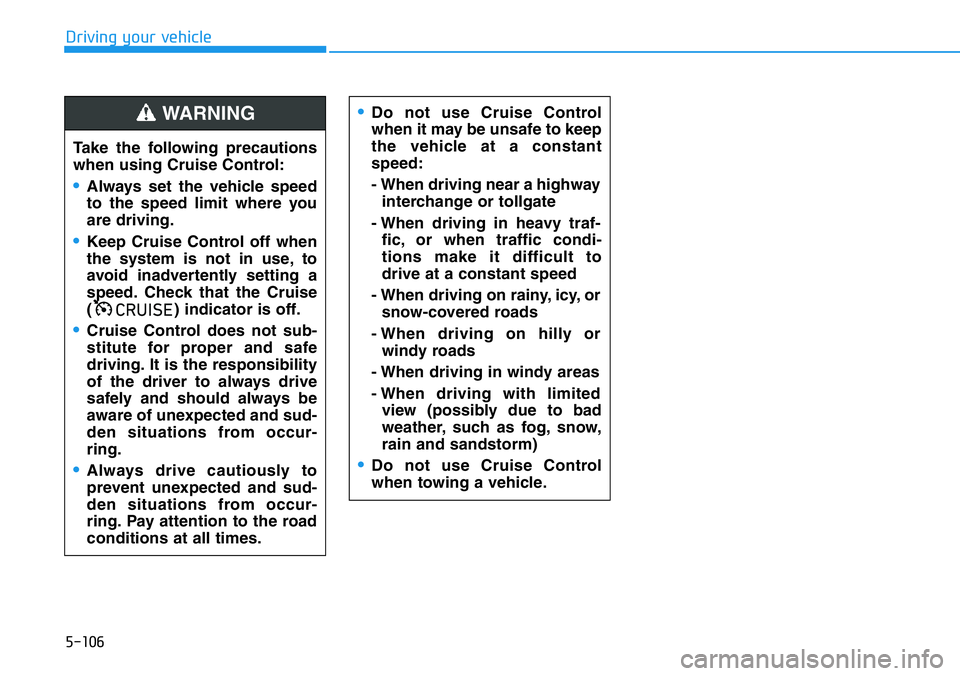

Take the following precautions
when using Cruise Control:
•Always set the vehicle speed
to the speed limit where you
are driving.
•Keep Cruise Control off when
the system is not in use, to
avoid inadvertently setting a
speed. Check that the Cruise
( ) indicator is off.
•Cruise Control does not sub-
stitute for proper and safe
driving. It is the responsibility
of the driver to always drive
safely and should always be
aware of unexpected and sud-
den situations from occur-
ring.
•Always drive cautiously to
prevent unexpected and sud-
den situations from occur-
ring. Pay attention to the road
conditions at all times.
&58,6(
€Do not use Cruise Control
when it may be unsafe to keep
the vehicle at a constant
speed:
- When driving near a highway
interchange or tollgate
- When driving in heavy traf-
fic, or when traffic condi-
tions make it difficult to
drive at a constant speed
- When driving on rainy, icy, or
snow-covered roads
- When driving on hilly or
windy roads
- When driving in windy areas
- When driving with limited
view (possibly due to bad
weather, such as fog, snow,
rain and sandstorm)
€Do not use Cruise Control
when towing a vehicle.
WARNING

5-107
Driving your vehicle
5
Lane Following Assist is designed to
help detect lane markings and/or
vehicles on the road, and assist the
driver’s steering to help keep the
vehicle between lanes.
Detecting sensor
[1] : Front view camera
The front view camera is used as a
detecting sensor to detect lane
markings and front vehicles.
Refer to the picture above for the
detailed location of the detecting
sensor.
System settings
Setting functions for the system
Turning the system On/Off
With the Engine Start/Stop button in
the ON position, shortly press the
Lane Driving Assist button located
on the steering wheel to turn on
Lane Following Assist. The white or
green indicator light will illumi-
nate on the cluster.
Press the button again to turn off the
system.
If the engine is restarted, Lane
Following Assist will maintain the last
setting.
LANE FOLLOWING ASSIST (LFA) (IF EQUIPPED)
For more details on the precau-
tions of the front view camera,
refer to “Forward Collision-
Avoidance Assist (FCA)” sec-
tion in this chapter.
CAUTION
OBU050218N
OJSN050193

5-108
Driving your vehicle

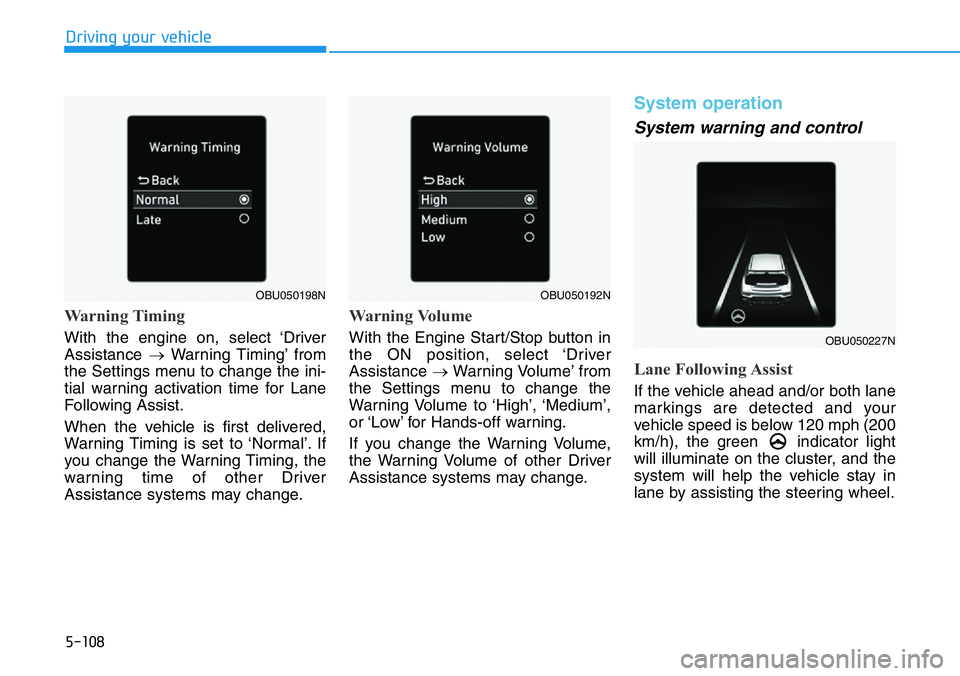

Warning Timing
With the engine on, select ‘Driver
Assistance →Warning Timing’ from
the Settings menu to change the ini-
tial warning activation time for Lane
Following Assist.
When the vehicle is first delivered,
Warning Timing is set to ‘Normal’. If
you change the Warning Timing, the
warning time of other Driver
Assistance systems may change.
Warning Volume
With the Engine Start/Stop button in
the ON position, select ‘Driver
Assistance →Warning Volume’ from
the Settings menu to change the
Warning Volume to ‘High’, ‘Medium’,
or ‘Low’ for Hands-off warning.
If you change the Warning Volume,
the Warning Volume of other Driver
Assistance systems may change.
System operation
System warning and control
Lane Following Assist
If the vehicle ahead and/or both lane
markings are detected and your
vehicle speed is below 120 mph (200
km/h), the green indicator light
will illuminate on the cluster, and the
system will help the vehicle stay in
lane by assisting the steering wheel.
OBU050192N
OBU050227N
OBU050198N

5-109
Driving your vehicle
5

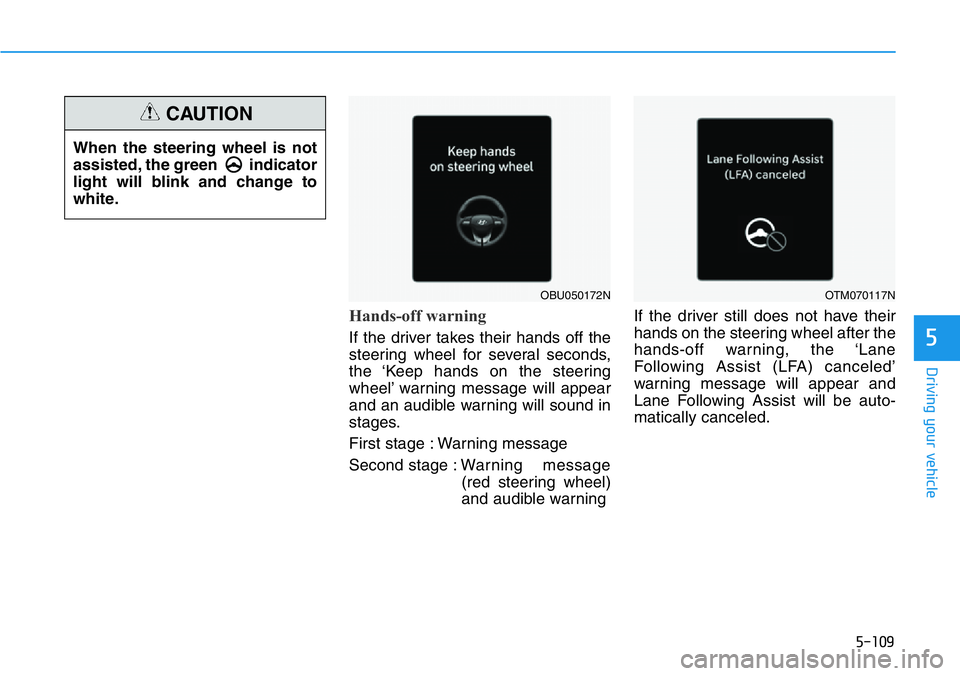

Hands-off warning
If the driver takes their hands off the
steering wheel for several seconds,
the ‘Keep hands on the steering
wheel’ warning message will appear
and an audible warning will sound in
stages.
First stage : Warning message
Second stage : Warning message
(red steering wheel)
and audible warningIf the driver still does not have their
hands on the steering wheel after the
hands-off warning, the ‘Lane
Following Assist (LFA) canceled’
warning message will appear and
Lane Following Assist will be auto-
matically canceled.
OBU050172NOTM070117N
When the steering wheel is not
assisted, the green indicator
light will blink and change to
white.
CAUTION

5-110
Driving your vehicle

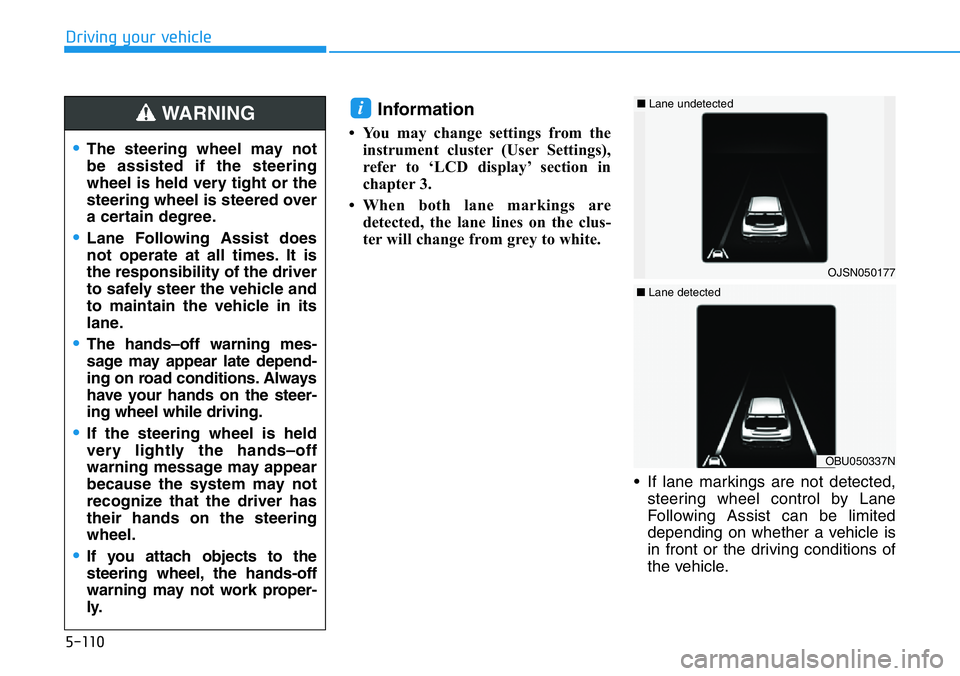

Information
• You may change settings from the
instrument cluster (User Settings),
refer to ‘LCD display’ section in
chapter 3.
• When both lane markings are
detected, the lane lines on the clus-
ter will change from grey to white.
• If lane markings are not detected,
steering wheel control by Lane
Following Assist can be limited
depending on whether a vehicle is
in front or the driving conditions of
the vehicle.
i
OJSN050177
■Lane undetected
OBU050337N
■Lane detected
•The steering wheel may not
be assisted if the steering
wheel is held very tight or the
steering wheel is steered over
a certain degree.
•Lane Following Assist does
not operate at all times. It is
the responsibility of the driver
to safely steer the vehicle and
to maintain the vehicle in its
lane.
•The hands–off warning mes-
sage may appear late depend-
ing on road conditions. Always
have your hands on the steer-
ing wheel while driving.
•If the steering wheel is held
very lightly the hands–off
warning message may appear
because the system may not
recognize that the driver has
their hands on the steering
wheel.
•If you attach objects to the
steering wheel, the hands-off
warning may not work proper-
ly.
WARNING
